Miele ULTRA FULLSIZE DISHWASHER User manual

Installation instructions
Dishwasher
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
UV
M.-Nr. 05 620 922

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . 5
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disposal of an old machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Prod ct and C t-o t Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1. Install the steam deflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. Install the mounting brackets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Install the slide skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. Install the dishwasher under the countertop . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5. Level the legs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6. Install the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. Align the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8. Install the custom door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9. Secure the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10. Adjust the door springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11. Make the plumbing connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12. Make the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
13. Test the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
14. Install the toekick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Contents
2

Installation
Installation, maintenance and
repair work should be by a Miele
authorized service technician. Work by
unqualified persons could be a hazard
and may void the warranty.
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or
aircraft. However, under certain
conditions it may be possible for an
installation in these applications. Please
contact the nearest Miele dealer or the
Miele Technical Service Department
with specific requirements.
Inspect the dishwasher for
transport damage. Do not install or
use a damaged unit. Contact the place
of purchase.
This dishwasher must be installed
under a continuous countertop
secured to adjacent cabinetry.
Do not install this dishwasher
beneath a cooking surface or oven.
Do not, under any circumstances,
cut the intake hose or submerge in
liquid. This hose contains electrical
components that could cause injury or
property damage if cut or submerged.
If there is any doubt concerning
installation contact the Technical
Service Department.
USA 1-800-999-1360
[email protected]
CDN 1-800-565-6435
[email protected]
,During the installation process,
please be careful of sharp edges
that can cause harm.
IMPORTANT SAFETY INSTRUCTIONS
3

Electrical safety
Before installation, make sure the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system.
It is imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy of, an
effective grounding system
Before installation or service,
disconnect the power supply to the
work area by manually "tripping" the
circuit breaker, unplugging the unit, or
removing the fuse.
Do not use an extension cord to
connect the unit to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Child safety
Ensure that any plastic wrappings,
bags etc. are disposed of safely
and kept out of the reach of babies and
young children. Danger of suffocation!
If the appliance is removed from its
installation and will not be used,
the door to the wash cabinet should be
removed to prevent children from being
locked in the machine.
When discarding an old
dishwasher, unplug it from the
power outlet, remove the door to the
wash cabinet and cut off the power
cord.
IMPORTANT SAFETY INSTRUCTIONS
4

Installation
L’installation et les travaux de répa-
ration et d’entretien doivent être ef-
fectués par un technicien de service
autorisé Miele. Les travaux effectués
par des personnes non qualifiées,
pourraient être dangereux et faire annu-
ler la garantie.
Cet équipement n’a pas été conçu
pour usage maritime ou pour les
installations mobiles telles que les rou-
lottes ou les avions. Toutefois, il peut
être parfois possible de faire
l’installation de ces applications sous
certaines conditions. Veuillez contacter
le Concessionnaire Miele le plus près
de chez-vous ou le Département du
service technique Miele pour leur don-
ner vos exigences précises.
Inspecter le lave-vaisselle pour voir
s’il a été endommagé lors de
l’expédition. Ne pas installer ou utiliser,
un appareil endommagé. Veuillez
contacter le point d’achat.
Ce lave-vaisselle doit être installé
sous un comptoir continu bien fixé
aux armoires adjacentes.
Ne pas installer ce lave-vaisselle
sous une surface de cuisson ou un
four.
Ne jamais, sous aucunes circons-
tances, couper le boyau de prise
ou submerger dans un liquide. Ce
boyau contient des éléments électri-
ques qui pourraient causer des blessu-
res ou des dégâts matériels s’ils sont
coupés ou submergés.
Si vous avez des doutes au sujet
de l’installation, contactez le Dé-
partement du service technique Miele.
USA 1-800-999-1360
[email protected]
CDN 1-800-565-6435
[email protected]
,Durant le processus
d’installation, veuillez faire attention
aux rebords coupants qui peuvent
blesser.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ
5

Séc rité électriq e
Avant l’installation, s’assurer que la
tension et la fréquence énumérées
sur la plaque signalétique correspon-
dent à la source d’électricité de la rési-
dence. Ces données doivent corres-
pondre afin d’éviter de vous blesser et
d’endommager l’appareil. Consulter un
électricien qualifié si vous avez des
doutes.
Pour garantir la sécurité électrique
de cet appareil, il doit y avoir conti-
nuité entre l’appareil et un système effi-
cace de mise à la terre. Ce critère de
sécurité doit absolument être respecté.
Si vous avez des doutes, faire vérifier le
système électrique de votre maison par
un électricien qualifié. Le fabricant ne
peut pas être tenu responsable des
dommages causés par un système de
mise à la terre efficace, manquant ou
inadéquat.
Débrancher le courant de la zone
de travail avant l’installation, en dé-
branchant l’appareil, retirant le fusible
ou en faisant "sauter" le disjoncteur.
Ne pas utiliser de rallonge pour
brancher l’appareil. Les rallonges
ne garantissent pas la sécurité requise
pour l’appareil, (par ex. danger de sur-
chauffage).
Séc rité des enfants
S’assurer de disposer de tous les
emballages de plastique, sacs etc.
et de les garder hors de la porté des
bébés et jeunes enfants. Danger de
suffocation!
Si l’appareil est retiré de son instal-
lation et que vous ne l’utilisez pas,
vous devez retirer la porte du meuble
de lavage pour empêcher les enfants
de s’enfermer dans l’appareil.
Pour disposer d’un ancien
lave-vaisselle, le débrancher de la
prise, enlever la porte du meuble de la-
vage et couper le cordon électrique.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ
6

Disposal of the packing
material
The cardboard box and packaging
protect the appliance during shipping.
These materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old machine
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibilty of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet and
cut off its power cord and remove any
doors to prevent hazards.
Caring for the environment
7

G 600 Series Dishwashers
F ll size models G 636 - G 698
Removing the leg extensions
The black leg extensions can be
removed to reduce the height of the
machine to 32 1/4" - 33" (819 - 838 mm)
(see Inset).
A = Black leg extension (removable)
B = White leg (must be installed on
machine).
^After removing the black leg
extensions, screw the white legs onto
the dishwasher.
Machine heights of 33 1/4" - 34"
(845- 864 mm) are not possible
using the supplied legs.
For this height range, or for heights
greater than 34 7/8" (886 mm),
extended legs (part # 02 702 601)
are necessary.
Contact the Miele Technical Service
Department for the appropriate legs.
Prod ct and C t-o t Dimensions
8

G 800 Series Dishwashers
F ll size models G 836 - G 898
Slimline models G 801 - G 832
Machine heights of 35" - 37"
(889 - 940 mm) can be obtained if
the supplied legs are removed and
extended legs are attached.
Contact the Miele Technical Service
Department for the appropriate legs
(part # 02 702 601).
Prod ct and C t-o t Dimensions
9

Prefinished models Machine heights between 35" and
37" (889 - 940 mm) can be obtained
if the supplied legs are removed and
extended legs are attached. Please
contact the Miele Technical Service
Department for the appropriate legs
(part # 02 702 601).
,To ensure stability, this
dishwasher should only be installed
under a continuous countertop and
securely fastened.
Prod ct and C t-o t Dimensions
10

1. Install the steam deflector
A stainless steel steam deflector is
supplied to protect the countertops
from steam and condesation when the
dishwasher is opened. If the countertop
is made of Corian®, granite, marble or
other solid, waterproof material, the
steam deflector is not required.
,If the counter is made of different
materials, the steam deflector
should be positioned so that it
covers the edge where the materials
are joined. Countertops with wood or
laminate edging should be tacked
through the rear holes of the steam
deflector.
^Remove the protective film from the
deflector.
^Squeeze the supplied silicone
sealant along the groove of the
deflector.
^Center the steam deflector in the
opening for the dishwasher and align
with the lower front edge of the
countertop.
^Secure the deflector in place using
the supplied nails.
^Wipe of any excess silicone with a
solution of liquid dish soap and warm
water.
The "Extended drying" feature can
be activated to further protect the
counter from condensation. See the
Operating instructions / Additional
features.
Installation
11

2. Install the mo nting
brackets
To ensure stability, this dishwasher
should be securely attached to the
countertop with the two mounting
brackets included.
^Insert the tab of each bracket into the
guide holes on the top of the
dishwasher.
Stone or marble countertops:
Do not install these mounting brackets
if the counter is made of an extremely
hard material.
The securing screws for the mounting
brackets are not suitable for such
materials.
3. Install the slide skis
Two slide skis are included and should
be installed on the feet of the
dishwasher before the machine is
pushed under the countertop. This will
allow the machine to slide easier,
protect the floor, and allow adjustment
of the rear leveling legs from the front of
the machine.
^First, adjust the height of the legs so
that the top of the dishwasher is
roughly 1/8" (3 mm) below the
countertop.
Tipping the machine slightly to the rear,
if possible, will make adjusting the front
legs easier. Make sure the machine is
level when adjustments are complete.
^Place the skis, with the ratchet at the
rear, under the dishwasher legs.
Installation
12

4. Install the dishwasher nder
the co ntertop
The dishwasher must be installed so
that the water and electricity supplies
can be accessed through an adjacent
cabinet. The supplies must not be
located behind the machine.
,WARNING - Fire hazard
Do not cover or crush the plug of an
electric appliance. Ensure that the
cabinet opening for the dishwasher
provides ample space for the plug.
Installing the dishwasher in a tight
space may crimp the power cord or
put pressure on the plug which may
cause overheating.
The floor of the cut out where the
dishwasher will be installed should be
even in height with the surrounding
kitchen floor. Plywood can be secured
to the floor to make the two areas even.
^Make a 2" x 4" (5 x 10 cm) cut out in
the side or bottom of the cabinet
adjoining the dishwasher. This cut out
is necessary for connections to pass
through.
^Make certain that there are no rough
edges that could damage the power
cord or hoses. If metal cabinets are
used, place the supplied rubber
grommet around the edge of the
opening before passing the cable
through.
^Slide the machine into the opening,
making sure the electrical cable and
hoses can reach their connection
points without kinking.
The drain hose connection at the rear of
the dishwasher can be turned to allow
the hose to be angled to the right or
left.
Exercise care when sliding the
dishwasher in or out, to prevent
damaging the power cord or hoses.
Installation
13

5. Level the legs
^The rear leveling legs can be
adjusted with a T20 Torx screwdriver
by turning the screws at the front of
the slide skis.
To raise the machine turn clockwise.
To lower the machine turn counter
clockwise.
Several turns may be needed to set the
correct height. Do not use a power
screwdriver.
^Adjust the front leveling legs by
pushing on the feet with a slotted
screwdriver.
^Tipping the machine slightly
backwards, if posssible will make
adjusting the front legs easier. Make
sure the machine is level when
adjustments are complete.
The dishwasher should be raised
until it just touches the underside of
the countertop.
If you are installing a prefinished unit
dishwasher proceed to step 9.
If you are installing a factory made
door panel (GDU Decor Set), refer to
the instruction manual enclosed with
the panel at this time.
Installation
14

6. Install the control panel
Dishwashers with a selector knob
The dishwasher must not be operated without the control panel installed.
^Press the "On/Off" button in and place
the cover, a, over the push button.
^Insert the drying vent grill (if
applicable), b, into its opening.
^Position the control panel, c, and
fasten it from the inside of the door,
d, using the six screws provided.
^Align and press the knob onto its
shaft, e.
Installation
15

Dishwashers with insertable p sh b ttons
^Press the "On/Off" button in and place
the cover, a, over the push button.
^Insert the drying vent grill, b, into its
opening.
^Position the control panel, c, and
fasten it from the inside of the door,
d, using the six screws provided.
^Insert the other button covers, eand
f, into their openings.
Installation
16

Dishwashers with fixed p sh b ttons
^Press the "On/Off" button in and place
the cover, a, over the push button.
^Push the drying vent grill, b, into its
opening.
^Position the control panel, c, and
fasten it from the inside of the door,
d, using the six screws provided.
Installation
17

7. Align the control panel
The control panel should be aligned
with the drawer fronts of the adjoining
kitchen cabinets by adjusting the filler
strips.
^Using an 8 mm socket, turn the nut
clockwise or counterclockwise until
the filler strips line up with the drawer
line.
If necessary, individual or all of the filler
strips can be removed.
^To remove the filler strips from the
control panel, place the panel printed
side up, and gently push down near
the bottom of the control panel. This
will release the mounting bolts from
their slots.
^After adjusting the control panel
height, cut off the plastic screw
excess.
Control Panel Height
41/2" control panel with-
(112 mm): out filler strips,
53/4" control panel with
(145 mm): four filler strips,
61/4" using a fifth filler strip
(158 mm): (optional accessory).
Part n mbers for additional filler
strips
Color F ll size Slimline
white 4 047 341 4 312 770
black 4 047 361 4 312 780
Stainless
Steel
3 280 742
3 298 210
4 316 721
Installation
18

8. Install the c stom door
panel
A custom door panel matching the
kitchen cabinetry can be installed using
the provided templates and bracket.

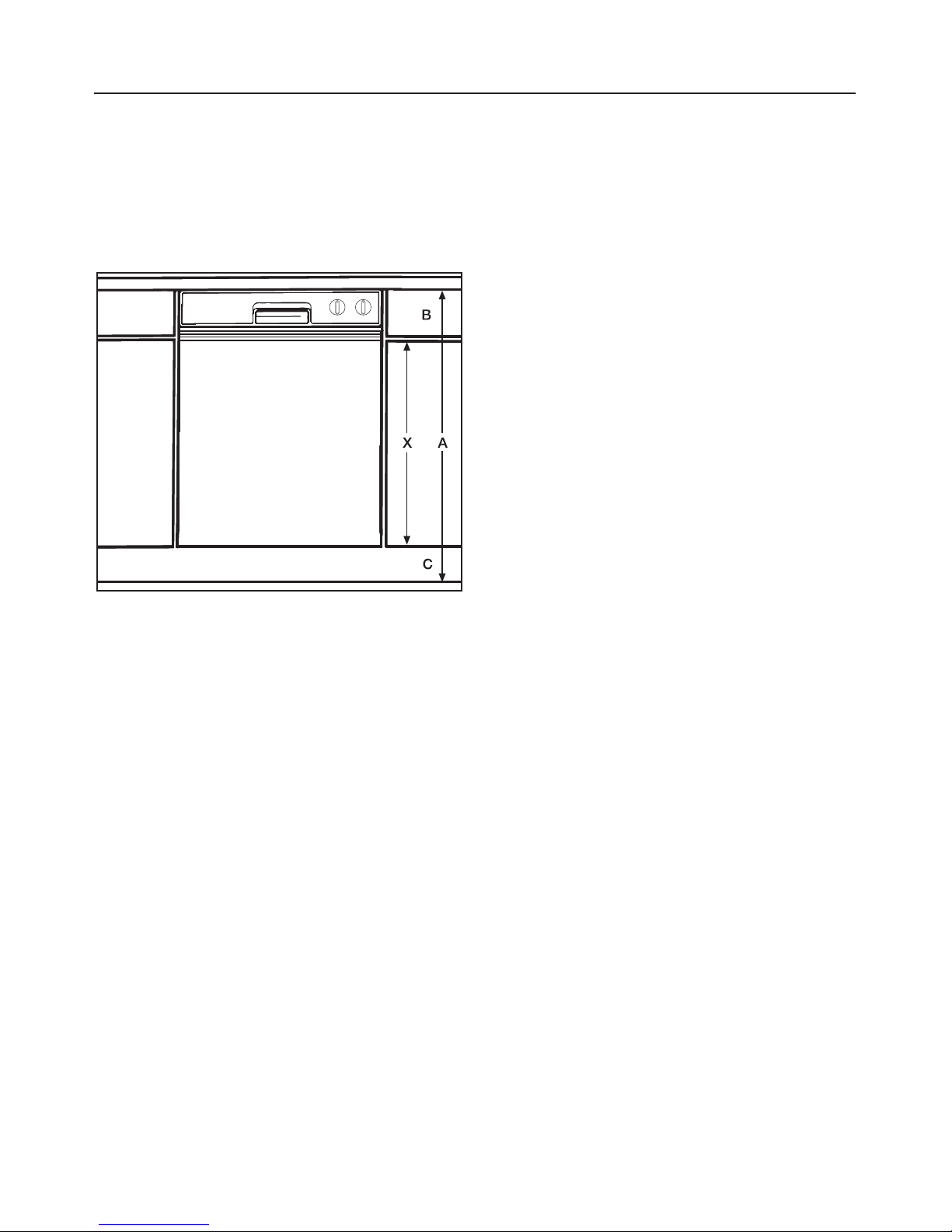

X= Panel length
A= Height to the underside of the
countertop
B= Control panel height*
C= Toe Kick Height
Length X:
Determined using the following
calculation: X = A – B – C
*Control panel height is determined by
the height of the drawers in the
cabinets. This height is adjustable
between 4 1/2" and 5 3/4" (112 - 145 mm)
with the filler strips provided. An
additional filler strip and foam inserts
may be ordered to reach 6 1/4"
(158 mm) in height.
As long as the panel length calculated
is within the Range of Panel Sizes
listed, the custom panel should fit
without a problem.
Range of Panel Sizes
G 636 - G 698
Length: 19" - 23 3/4" (483 - 603 mm)
Width: 23 1/2" (598 mm)
G 801 - G 832
Length: 21" - 25 3/4" (533 - 654 mm)
Width: 17 1/2" (445 mm)
G 836 - G 898
Length: 21" - 25 3/4" (533 - 654 mm)
Width: 23 1/2" (598 mm)
Note:
The maximum panel length is only
applicable when no filler strips are
used. The door panel thickness should
be 3/4" (19 mm).
Custom door panels should be finished
on all edges. Trim kits are not available
for custom door panels.
Installation
19

Maxim m panel weight
A custom door panel must not exceed
the listed maximum weight. An
overweight panel will distort the door
springs causing the dishwasher door to
fall when opened.
G 600
door
panel
G 800
door
panel
Plastic control
panel
13 lbs
(5.9 kg)
12 lbs
(5.5 kg)
Stainless Steel
control panel
10.5 lbs
(4.8 kg)
9 lbs
(4.1 kg)
Installation
20
