Miele M 637-45 ECR User manual

Operating instructions
Microwave oven
M 637-45 ECR
To avoid the risk of accidents
or damage to this appliance
it is essential to read these instructions
before it is installed or used for the first time.
ZiG
M.-Nr. 06 160 910

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Oven interior and accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Side runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Grilling rack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Glass tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Gourmet plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Boiling rod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How the microwave oven functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
How does the microwave oven function? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
What can a microwave oven do?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
In what ways can a microwave oven be used? . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Suitable containers for microwave ovens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Material and shape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Testing dishes for their suitability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
The cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Time of day display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Altering the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Switching off the time of day display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Night time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Opening the door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Placing the dish in the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Turntable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To close the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Interrupting or re-starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Altering the settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
To cancel a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contents
2

Automatic warming function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Quick-Start (programmable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Altering a minute minder entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Programming the end of cooking time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Operation - Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Grilling with automatic pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Grilling without automatic pre-heating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Combination mode - Microwave + Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Gourmet plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Some suggested uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Fan grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fan grill with automatic pre-heating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fan grill without automatic pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Combination mode
(Microwave + Fan grill) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fan heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fan heat with rapid heat-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fan heat without rapid heat-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Combination mode
(Microwave + Fan heat) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Useful tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Automatic programmes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Reheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Defrosting / Defrosting and reheating or cooking . . . . . . . . . . . . . . . . . . . . . . 43
Other uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Contents
3

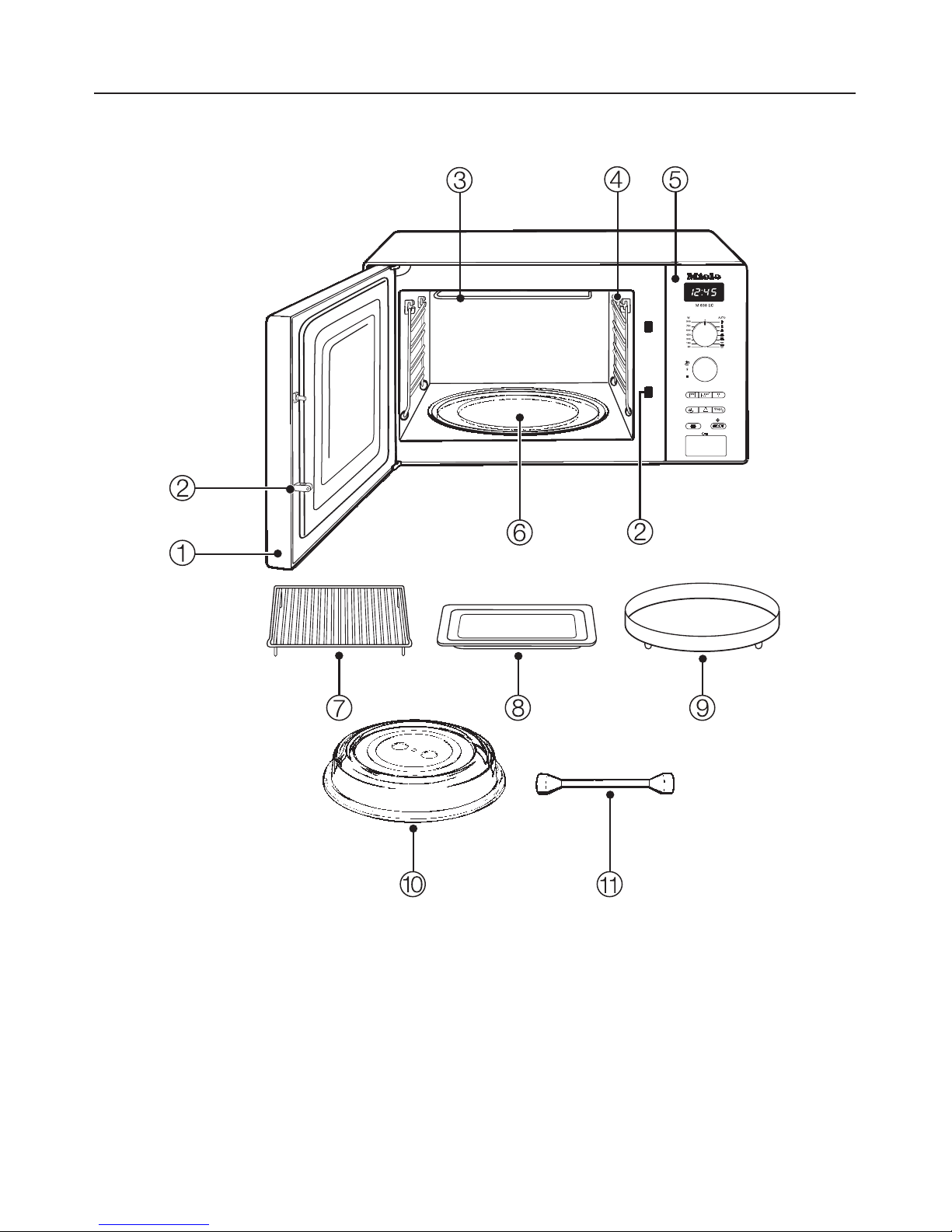

Oven interior and accessories
aOven door
bDoor locking mechanism
cGrill/browning element
dSide runners
eControl panel
fTurntable
gGrilling rack
hGlass tray
iGourmet plate
jCover
kBoiling rod
Description of the appliance
4

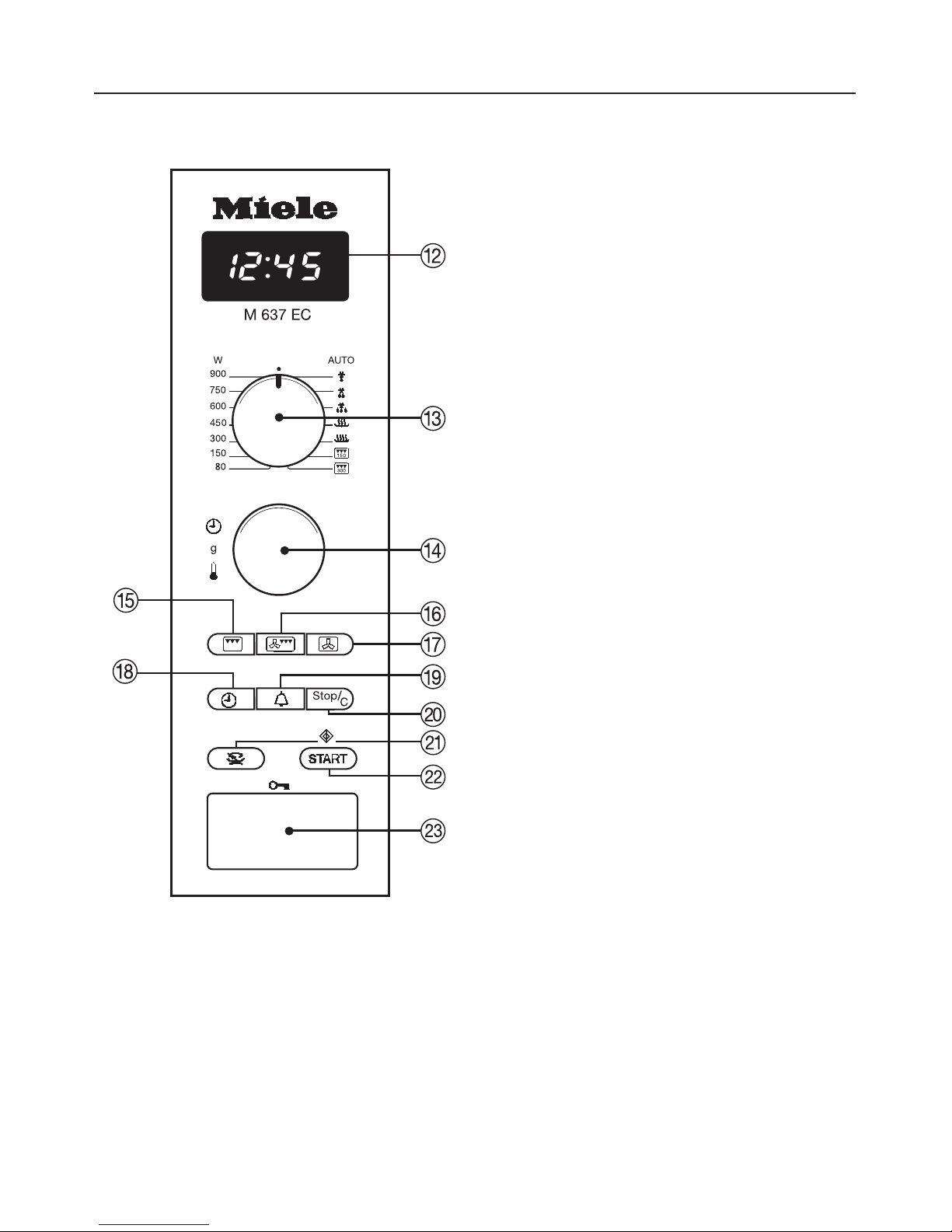

Control panel
lElectronic clock display
mMicrowave power and
automatic programme selector
nRotary selector for entering:
time, weight, temperature, grill
setting
oGrill button n
pFan grill button N
qFan heat button D
rTime of day button m
sMinute minder button l
tStop/cancel button
uTurntable button ä
vSTART / Quick-start button
(programmable) c
wDoor release button a
Description of the appliance
5

Accessories supplied
Side runners
The side runners can be inserted into
the oven walls to hold the grilling rack
and the glass tray. When dishes are
placed directly on the turntable, the
microwave can be used without the
side runners.
The side runners are supplied as a
separate accessory, and have to be
fitted if required.
Grilling rack
The grilling rack is suitable for use
when grilling with the addition of
microwave power. It must, however,
not be used in Microwave Solo
mode as this would cause damage.
To avoid the risk of using it in
Microwave Solo mode it should not be
left in the oven cavity when not in use
for grilling.
If using a metal baking tin in
combination mode (Microwave + Fan
grill or Microwave + Fan heat), do not
place it on the rack as this could create
sparks between the rack and the tin.
Place the tin on the glass tray.
Glass tray
The glass tray is suitable for use with all
cooking functions.
When grilling directly on the rack, the
glass tray should be placed underneath
the rack to catch any fat or juices.
Gourmet plate
The gourmet plate is a round, non-stick
grilling plate. It can be used to heat
snacks or small meals quickly whilst
maintaining crispness.
Cover
The cover supplied may only be used
in the microwave-solo mode.
It prevents the food from drying out and
the oven from becoming dirty, and it
accelerates the heating process.
Boiling rod
When heating liquids, the boiling rod
provided should be placed into the
container. It helps liquids to heat evenly.
Description of the appliance
6

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Caring for the environment
7

This appliance complies with all
relevant legal safety requirements.
Improper use can present a risk of
both personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance please
read these operating instructions
carefully before installation and
before using it for the first time. They
contain important notes on
installation, safety, operation and
care of the appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct usage
The appliance is intended for
domestic use only: to cook,
defrost, reheat and to grill food. Any
other usage is not supported by the
manufacturer and could be dangerous.
The manufacturer cannot be held liable
for damage caused by improper or
incorrect use of the appliance.
Never use the microwave to store
or dry items which could ignite
easily. Moisture evaporates. Fire
hazard.
This appliance is not a toy! To
avoid the risk of injury, do not allow
children to play on or near it or to play
with the controls. Supervise its use by
older children, the elderly or infirm. If
allowing older children to use the
appliance without supervision, please
ensure that they are aware of how a
microwave oven works and understand
the dangers of improper use.
Technical safety
If the connection cable is
damaged, the new cable must be
fitted by a Miele approved service
technician.
Do not use the microwave if
- the door is warped.
- the door hinges are loose.
- holes or cracks are visible in the
casing, the door, the door seal or the
oven interior walls.
Operating the appliance with this type
of damage will result in microwave
leakage and present a hazard to the
user.
Never open the casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous and can cause
operational faults or electric shock.
Before connecting the appliance to
the mains supply, make sure that
the rating on the data plate
corresponds to the voltage and
frequency of the household supply. This
data must correspond in order to avoid
risk of damage to the appliance. If in
any doubt, consult a qualified
electrician.
Warning and Safety instructions
8

Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested. Where there is any doubt, the
electrical wiring in the home should be
checked by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
The appliance must be built in
before operation to ensure that no
electrical components are accessible.
Repairs may only be carried out by
a suitably qualified and competent
person in accordance with national and
local safety regulations. Repairs and
other work by unqualified persons
could be dangerous. The manufacturer
cannot be held liable for unauthorised
work.
Ensure current is not supplied to the
appliance while maintenance or repair
work is being carried out.
The appliance is only completely
isolated from the electricity supply
when:
- it is switched off at the wall socket and
the plug removed.
- the mains fuse is withdrawn.
- or the screw-out fuse is removed (in
countries where this is applicable).
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Use
Always ensure that food is
sufficiently heated.
Many factors will affect the overall
cooking time, including the size and
amount of food, its initial temperature,
changes to the recipe and the shape
and size of cooking container.
Some foods may contain
micro-organisms which are only
destroyed by thorough cooking,
therefore when cooking or reheating
foods, e.g. poultry, it is particularly
important that food is fully cooked
through (at temperatures over 70°C for
more than 10 minutes). If in doubt,
select a longer cooking or reheating
time.
Warning and Safety instructions
9

It is important that the heat is
allowed to spread evenly
throughout the food being cooked. This
can be achieved by stirring and/or
turning the food, and by observing a
sufficiently long standing time, which
should be added to the time needed for
cooking, reheating or defrosting.
Always remember that times for
cooking, reheating and defrosting
in a microwave oven are usually
considerably shorter than with
traditional methods of food preparation.
Excessively long cooking times can
lead to food drying out and burning or
could even cause it to catch fire. Do not
use the microwave function to dry
breadcrumbs, flowers, herbs, grains
etc. Use the fan heat function for this
type of procedure and do not leave the
oven unattended.
Do not use the microwave function
to heat up cushions or pads filled
with cherry kernels, wheat grains,
lavender or gel, such as those used in
aromatherapy. These pads can ignite
when heated, even after they have
been removed from the microwave.
Exercise caution when cooking or
reheating food with a high sugar
content, e.g. Christmas pudding. If
heated for too long the sugar may
caramelise or ignite.
Do not use full power to warm
empty dishes. Do not use the
appliance without food, or if it is
incorrectly loaded.
Never cook or reheat food or
liquids in sealed containers or
bottles.
With baby bottles, the screw top and
teat must be removed. Otherwise
pressure builds up which can cause
the bottle or container to explode
posing a severe risk of injury.
Before serving, remember to allow
a sufficient standing time and then
always check the temperature of the
actual food itself after taking it out of the
microwave. The temperature of the
container is not an indication of the
temperature of the food or liquid in it.
This is particularly important when
preparing food for babies, children,
and the elderly or infirm. Shake or stir
baby milk and food thoroughly after
heating, and try it for temperature to
ensure that it will not scald the baby.
When heating food and drink remember
that the heat is created in the food
itself, and that the container will
normally be cooler. The dish is only
warmed by the heat of the food.
Warning and Safety instructions
10
