Miele CS 1028 G User manual

Installation Instructions
CS1028 G en-CA
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation instructions.

2
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
ßDo not try to light any appliance.
ßDo not touch any electrical switch.
ßDo not use any phone in your building.
ßImmediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ßIf you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts a licensed plumber / gas fitter)
– Note to the installer:
Please leave this instruction book with the
consumer for the local electrical / gas inspector’s
use.

WARNING- When using your gas
appliance follow basic
precautions, including the
following:
This gas combiset conforms to all
uniform safety codes and
regulations. The manufacturer
cannot be held responsible for
damage or injury caused by
improper use of this appliance.
Read all instructions before
installation or use to prevent
injury and appliance damage.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Correct usage
~Only use the gas combiset for
residential cooking, and for the
purposes described in this manual.
Other uses are not permitted and can
be dangerous. The manufacturer will
not be held liable for damage caused
by unauthorized use or improper
operation of any kind.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
~Children should not be left
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
~The appliance is hot during use and
remains so for some time after being
switched off. Keep children away from
the appliance.
~Keep all pots and pans out of the
reach of children. Danger of burning or
scalding.
~Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
IMPORTANT SAFETY INSTRUCTIONS
4

Technical safety
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
~Before installing the combiset,
check for externally visible damage.
Do not operate a damaged appliance.
A damaged gas combiset is a hazard.
~Before installation, make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
will not be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
~Install the appliance so that the
power cord and gas piping do not
come into contact with any portion of
the combiset which may become hot
during use.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
~Do not operate the appliance until it
has been properly installed in the
countertop.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical
Service Department.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
~Under no circumstance open the
outer casing of the appliance.
~While the appliance is under
warranty repairs should only be
performed by a Miele authorized
service technician. Otherwise the
warranty is void.
IMPORTANT SAFETY INSTRUCTIONS
5

~Before servicing, turn off the gas
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually “tripping” the
circuit breaker.
~This equipment has not been
designed for maritime use or for use in
mobile installations such as aircraft or
recreational vehicles. However, under
certain circumstances it may be
possible for installation in these
applications. Please contact the
nearest Miele Dealer or the Miele
Technical Service Department with
specific requirements.
~After connecting the appliance test
for leaks according to the installation
instructions.
~If there is any doubt concerning
installation contact Miele’s Technical
Service Department.
Safety
~The appliance is hot during use and
remains so for some time after being
switched off. Be careful not to touch the
appliance if it may still be hot.
~Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
~Be sure drafts do not blow
flammable material toward the flames
or push the flames so that they extend
beyond the edges of the pan.
~Be aware of loose fitting or hanging
garments when operating the combiset,
they may present a fire hazard.
~Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
,WARNING - NEVER use this
appliance as a space heater to heat
or warm the room. Doing so may
result in carbon monoxide poisoning
and overheating.
~Install the combiset in a room that
has sufficient ventilation.
~This appliance must not be
operated outdoors.
~Make sure all components of the
gas burner is assembled correctly
before using the combiset.
IMPORTANT SAFETY INSTRUCTIONS
6

~Do not use pans that extend past
the burner grate. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
~For safety and stability, do not use
pans with a bottom diameter smaller
than the burner grate.
~Only certain types of glass, ceramic
or other glazed cookware are suitable
for use on a combiset without breaking
due to the sudden temperature change.
~Do not use containers made of
plastic or aluminum. They may melt at
high temperatures.
~The burner grates supplied with the
appliance must always be used. Never
place a pan on the burner by itself.
~Do not use aluminum foil to line any
part of the combiset.
~For proper lighting and performance
of the burner, keep the igniter clean
and dry.
~Do not heat empty pots or pans,
they may be damaged.
~For safety reasons the flame should
be adjusted to be the same size as the
bottom of the pan or smaller. Do not
use small pans with high flame settings
as the flames can climb the sides of the
pan.
~Ensure that the burner is always
covered with a pan.
~Only use cooking utensils suitable
for combiset use.
~Always position pan handles and
utensils inward so they do not extend
over adjacent work areas, burner or the
edge of the combiset.
~Do not store items on the appliance
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
~Never cover the appliance with a
cloth. A fire may result.
~Do not let cooking grease or other
flammable materials accumulate on the
appliance.
~Do not use a steam cleaner to clean
the appliance. Steam could penetrate
electrical components and cause a
short circuit.
~Spills containing salt or sugar
should be removed immediately.
~Do not leave the combiset
unattended while in use. Boil-overs
cause smoking, and greasy spill-overs
may ignite.
~Do not use water on grease fires.
Smother any fire or flame, or use a dry
chemical or foam-type extinguisher.
~Do not flambé under an exhaust
hood. Flames could be drawn up into
the hood by the suction or the grease
filters may ignite.
~If there is a drawer directly
underneath the appliance without a
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, they must be
made of a heat-resistant material.
IMPORTANT SAFETY INSTRUCTIONS
7

~Make certain that the power cords of
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
~In the event of damage or defect,
turn off the appliance immediately. Turn
off the gas shut off valve and
disconnect completely from the
electrical supply. Contact the Miele
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
~Before discarding an old appliance,
disconnect it from the gas and
electrical supply, and cut off the power
cord to prevent it from becoming a
hazard.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these
Important Safety instructions.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
8

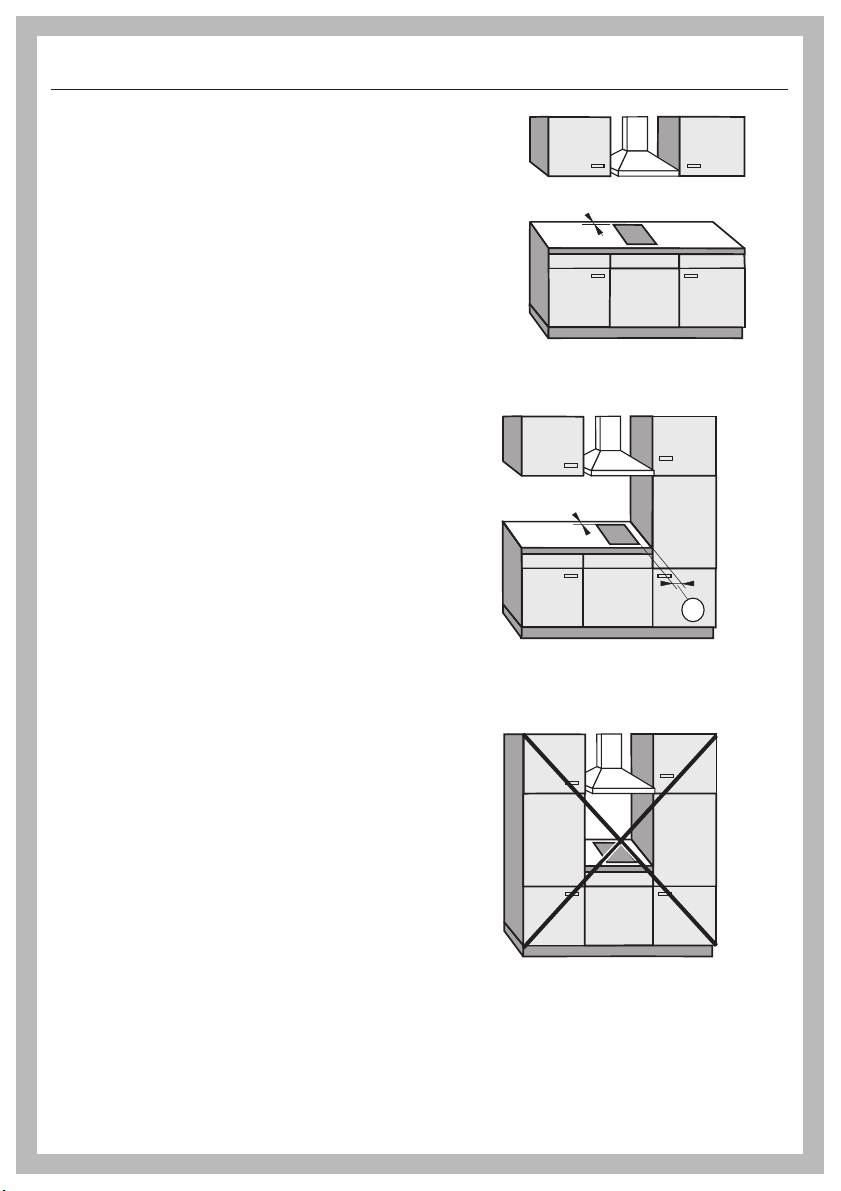

Installation
The minimum distances given in
these Installation instructions are to
combustible surfaces, and must be
observed to ensure safe operation.
Failure to do so increases the risk of
fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the combiset.
~Gas appliances should only be
installed in a well ventilated area.
~The countertop must be bonded
with heat resistant (212 °F/100 °C)
adhesive to prevent distortion or
dissolving.
~This appliance has not been
designed for maritime use or for use in
mobile installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the Miele Technical Service
Department with specific requirements.
~The combiset must not be installed
over a dishwasher, washer, dryer,
refrigerator or freezer. Heat radiated by
the combiset may damage the
appliances.
~Deep fat fryers must not be installed
directly next to gas combisets. Gas
flames can ignite splattering oil. A
distance of at least 11 5/16"" (288 mm)
should be maintained between these
two appliances.
~Install the appliance so that the
power cord or gas piping does not
come into contact with any portion of
the combiset which may become hot
during use.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer after the appliance is
installed.
This appliance must be
disconnected from the gas supply
during any pressure testing of the
system performed in excess of ½ psi
(3.5 kPa). This appliance must be
isolated at test pressures equal to or
less than ½ psi (3.5 kPa).
Any pipe connections must be made
using a thread sealant approved for
gas connections. Failure to correctly
install these items could lead to a
gas leak and subsequent explosion.
Keep this instruction book in a safe
place for reference and pass it on to
any future user.
IMPORTANT SAFETY INSTRUCTIONS
22

Safety distances above the
appliance
The minimum safety distance given by
the hood manufacturer must be
maintained between the combiset and
the hood above it. See the installation
instructions of the hood for these safety
measurements.
If the hood manufacturers instructions
are not available or if flammable objects
are installed over the combiset (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 30" (760 mm) must
be maintained.
If there is more than one appliance
beneath a hood (e.g. wok burner
and electric combiset), and they
have different minimum safety
distances always observe the
greater distance.
IMPORTANT SAFETY INSTRUCTIONS
23

Safety distances to the sides
of the appliance
The appliance should only be installed
as shown in the illustrations, while
maintaining the required safety
distances shown. Do not install the
appliance between two tall cabinets,
this is a fire hazard.
A distance of at least 2" (50 mm) must
be kept between the countertop cut-out
and the rear wall because of the high
temperatures radiated.
The minimum distance required from
the countertop cut-out to the side wall
a:
2" (50 mm) for CS 1112
CS 1122
CS 1212
CS 1221
CS 1223
CS 1326
CS 1411
6" (150 mm) for CS 1312
CS 1322
CS 1421
10" (250 mm) for CS 1011
CS 1012
CS 1028
recommended
not recommended
not allowed
IMPORTANT SAFETY INSTRUCTIONS
24
2 " (50 mm)
(50mm)
1
2"

Safety distance when installing the appliance near a wall with trim or a back
splash
A minimum distance of 2" (50 mm) between the trim or back splash and the
countertop cut-out if required.
This distance is only necessary if these items are made of combustible materials
e.g. wood. If the trim or back splash is made of a non-combustible material, the
required safety distance can be reduced by the thickness of the wall covering
material.
aWall frame
bSheet rock or wall board
cTrim or back splash
dCountertop
eCountertop cut-out
f2" (50 mm) minimum clearance
Installation
25

Installation dimensions
aSpring clips
bAppliance front
cInstallation height
dPower supply box with connection cable,L=783/4" (2000 mm)
eGas fitting
Installation
26

Cut out
^Make the countertop cut-out for one
or more appliances as applicable.
Remember to maintain a minimum
safety distance from the back wall,
as well as from any tall unit or side
wall to the right or left of the hob.
See "IMPORTANT SAFETY
INSTRUCTIONS".
^Seal the cut surfaces with a suitable
heat-resistant sealant to avoid
swelling caused by moisture.
The materials used must be
heat-resistant.
If during installation the seal around the
frame does not sit flush with the
countertop in the corners, the corner
radius, maximum 3/16" (4 mm), can be
carefully filed down to fit.
Installation
27

Installation of multiple
appliances
When installing more than one combiset appliance, a support bar bmust be
installed between the appliances.
Countertop cut-out
two appliances
For the installation of two appliances
the width of the countertop cut-out D is
the sum of A and C.
A,Band C= appliance widths
11 5/16", 15" or 22 11/16"
(288 mm, 380 mm or 576 mm)
minus 5/16" (8 mm) to allow for the
overhang
D= width of the countertop cut-out
Countertop cut-out
three appliances
For the installation of three appliances
the width of the countertop cut-out D is
the sum of A and B and C.
If more than three appliances are
being installed, you will need to add,
A, B or C for each additional
appliance.
Installation
28
C
D
A
b
(500 mm)
+
-1
11/16"
19
C
D
AB
b
(500 mm)
+
-1
11/16"
19

Sample calculations for a countertop cut-out for three appliances
A
appliance width
minus 5/16"
(8 mm)
B
appliance width
C
appliance width
minus 5/16"
(8 mm)
D
Countertop
cut-out
11" (280 mm) 11 5/16" (288 mm) 11" (280 mm) 33 5/16" (848 mm)
11" (280 mm) 15" (380 mm) 14 5/8" (372 mm) 40 5/8" (1032 mm)
11" (280 mm) 22 11/16" (576 mm) 22 3/8" (568 mm) 56 1/16" (1424 mm)
14 5/8" (372 mm) 11 5/16" (288 mm) 11" (280 mm) 37" (940 mm)
14 5/8" (372 mm) 15" (380 mm) 14 5/8" (372 mm) 44 1/4" (1124 mm)
14 5/8" (372 mm) 22 11/16" (576 mm) 22 3/8' (568 mm) 59 11/16" (1516 mm)
22 3/8" (568 mm) 11 5/16" (288 mm) 11" (280 mm) 44 3/4" (1136 mm)
22 3/8" (568 mm) 15" (380 mm) 14 5/8" (372 mm) 52" (1320 mm)
22 3/8" (568 mm) - 22 3/8" (568 mm) 44 3/4" (1136 mm)
Installation
29

aSpring clips
bSupport bars
cSpace between support bar and countertop
An additional support bar is required for each additional appliance. The position
for attachment of an additional spacing strip depends on the width of the
appliance B.
Installation
30
A
BC
ba
a
D
a
a
a
a
(280/372/568mm)
c
c
(25-30mm)
3/16"
1"-1
(500 mm)
+
-1
2"
11/16"
19
22
(50mm)
2"
(50mm) (50mm)
2"
(50mm)
2"
(25-30mm)
3/16"
1"-1
11" / 14 /
5/8" 3/8"
(288/380/576mm)
22
11 /15"/
5/16" 11/16"
(280/372/568mm)
22
11"/14 /
5/8" 3/8"

Attach the spring clips and
support bars
Wood or solid surface countertops
^Place the supplied spring clips a
and the support bars bat the
marked positions as shown above,
by laying them on the upper edge of
the cut-out and then securing them
with the 1/8" x 1" (3.5 x 25 mm) screws
(supplied).
Granite countertop
^Position and attach the spring clips
aand support bars bwith strong,
double-sided tape c.
The screws are not needed for granite
countertops.
Installation
31
a
(25-30mm)
3/16"
1"-1
b
a
c
(25-30mm)
3/16"
1"-1
b
c

^Coat the edges of the spring clips,
^and the space dbetween the strips
and the countertop with silicone
(supplied).
Installation
32
b
d
a

Installing the appliance
^Feed the power cord down through
the cut-out.
^Then place the front side of the
appliance in the countertop cut-out.
^Then with a hand on each side of the
appliance press down evenly on the
edges until it clicks into position.
When doing so make sure that the
appliance seal sits tightly on the
countertop to ensure it is sealed
correctly. Do not permanently seal
into the countertop.
^Connect the appliance to the main
power supply.
^Turn the appliance on and check the
function.
The appliance can be lifted out
using a special tool.
The appliance can also be pushed
up and out from underneath.
Note: the rear will need to be
pushed out first.
Installation
33

Sealing
The appliance must not be permanently
sealed into the countertop when
installed. The sealing strip under the
edge of the appliance provides a
sufficient seal for the countertop.
If the appliance is sealed into
position, the countertop or appliance
could be damaged if it needs to be
removed for maintenance or service.
Installation
34
