Miele K 12012 S Specification sheet

Operating and installation instructions
Refrigerator
K 12010 S
K 12012 S
To avoid the risk of accidents
or damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 285 020
en-GB

Guide to the appliance .............................................4
Caring for the environment..........................................6
Warning and Safety instructions .....................................7
How to save energy ...............................................12
Switching on and off ..............................................14
Switching off for longer periods of time .................................14
The correct temperature ...........................................15
...intherefrigerator section.........................................15
...inthefreezer compartment .......................................15
Temperature selection ..............................................16
Using the winter setting (depending on model) ........................17
Using the refrigerator efficiently ....................................18
Different storage zones .............................................18
Food which should not be stored in a refrigerator.........................18
When shopping for food ............................................19
Storing food correctly ..............................................19
Fruit and vegetables .............................................19
Unpacked meats and vegetables ..................................20
Protein rich foods ...............................................20
Meat .........................................................20
Adjusting the interior fittings .......................................21
Moving the shelves ................................................21
Split shelf ........................................................21
Adjusting the door shelf/bottle shelf ...................................21
Freezing and storing food..........................................22
Freezing fresh food ................................................22
Storing frozen food ................................................22
Home freezing ....................................................23
Hints on home freezing...........................................23
Packing .......................................................23
Before placing food in the freezer ..................................24
Placing food in the freezer compartment .............................24
Defrosting .......................................................24
Ice cubes ........................................................25
Cooling drinks ....................................................25
Contents
2

Defrosting .......................................................26
Refrigerator section ................................................26
Freezer compartment ..............................................26
Cleaning and care ................................................28
Cleaning the outer casing, the interior and accessories ....................28
Ventilation gaps ...................................................28
Door seal ........................................................29
Problem solving guide..?.........................................30
Noises .........................................................33
After Sales / Guarantee ............................................34
Electrical connection..............................................35
Electrical connection U.K. ...........................................35
Installation ......................................................36
Location .........................................................36
Climate range ..................................................36
Ventilation .......................................................36
Installation .......................................................36
Aligning the appliance..............................................37
Appliance dimensions ..............................................38
Changing the door hinging .........................................39
Changing the freezer compartment door ...............................40
Changing over the door handle.......................................40
Building under ...................................................42
Contents
3

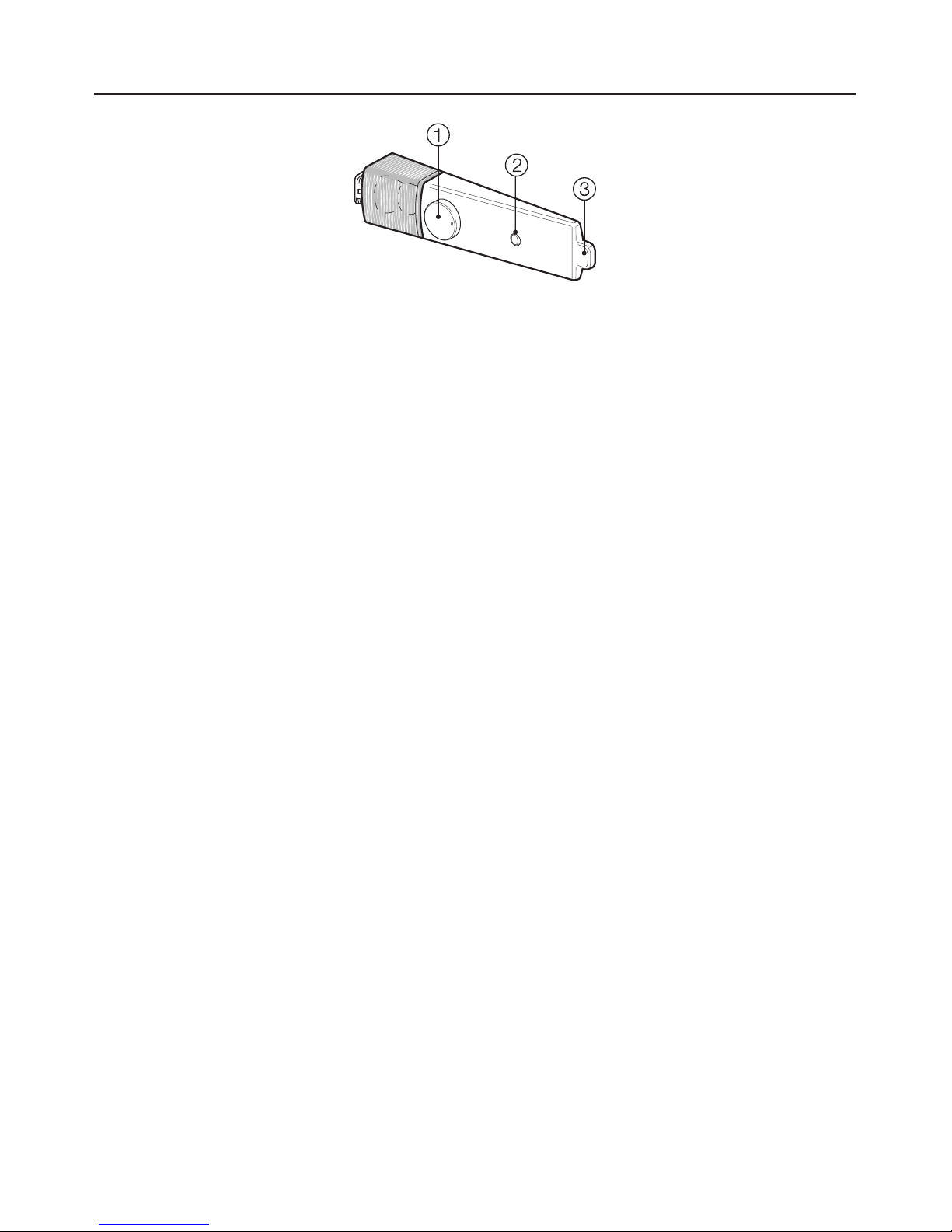

aOn/Off and temperature selector dial
bWinter setting switch
(only on models with a freezer
compartment)
cLight contact switch
Guide to the appliance
4

aFreezer compartment*
bAdjustable shelves
cCondensate channel and
drain hole
dFruit and vegetable containers
eButter and cheese compartment
fDoor shelf/Egg tray
gOn/Off and temperature selector,
interior lighting and
winter setting switch*
hBottle shelf
* Depending on model
Guide to the appliance
5

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
6

This appliance complies with all
relevant local and national safety
requirements. Improper use can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct application
~This appliance is intended for
domestic use only for the cool storage
of food and drinks as well as for storing
deep frozen food, freezing fresh food
and for preparing ice.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage resulting
from the incorrect or improper use of
the appliance.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it by a person
responsible for their safety.
Safety with children
~This appliance is not a toy! To avoid
the risk or injury, do not allow children
to play with it or near it or to play with
the controls. Older children may only
use the appliance when its operation
has been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
~Keep children away from the
appliance at all times, and supervise
them whilst you are using it.
Warning and Safety instructions
7

Technical safety
~Before setting up the appliance,
check it for any externally visible
damage. Do not install and use a
damaged appliance.
~If the connection cable is faulty it
must only be replaced by a service
technician authorised by the
manufacturer to protect the user from
danger.
~This appliance contains the coolant
Isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect. The use of this
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, and does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can damage the eyes.
In the event of any damage:
- avoid open fires and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department for
advice.
~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~Safe operation of the appliance is
only assured if it has been installed and
connected in accordance with these
operating and installation instructions.
~Before connecting the appliance to
the mains supply, make sure that the
rating on the data plate corresponds to
the voltage and frequency of the
household supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
Warning and Safety instructions
8

~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and tested regularly, and
where there is any doubt the household
wiring system should be inspected by a
qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee will be
invalidated.
~The appliance must be isolated from
the electricity supply during installation,
maintenance and repair work.
The appliance is only completely
isolated from the electricity supply
when:
–it has been switched off at the socket
and the plug has been withdrawn, or
–the fuse from the fused spur
connection unit has been withdrawn,
or
- the mains fuse has been withdrawn,
or
- the screw-out fuse has been
removed (in countries where this is
applicable).
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~This equipment may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.
Warning and Safety instructions
9

Correct use
~Never handle frozen food with wet
hands. Your hands may freeze to the
frozen food. Danger of frost burn.
~Do not take ice cubes out with your
bare hands and never place ice cubes
or ice lollies in your mouth straight from
the freezer.
The very low temperature of the frozen
ice or lollies can cause frost burn to the
lips and tongue.
~Do not refreeze thawed or partially
thawed food.
Defrosted food should be used up as
quickly as possible, as food soon loses
its nutritional value and goes off.
Defrosted food may only be re-frozen
after it has been cooked.
~Observe the "use by" dates given on
food to avoid the risk of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on food
manufacturer's packaging on storage
conditions required, as well as the “use
by” date.
~Never store explosive materials in
the appliance. Thermostats switching
on may produce sparks which could
present a fire hazard. Flammable
compounds could explode.
~Do not operate any electrical
equipment (e.g. an electric ice-cream
maker) inside the appliance. Danger of
sparking and explosion.
~If storing alcohol with a high
percentage proof, make sure it is tightly
closed and stored upright.
Danger of explosion.
~Do not store cans or bottles
containing carbonated drinks or liquids
which could freeze in the freezer. The
cans or bottles could explode.
Danger of injury and damage to the
appliance.
~When cooling drinks quickly in the
freezer, make sure bottles are not left in
for more than one hour, otherwise they
could burst, resulting in injury or
damage.
~Do not use sharp edged objects to
– remove frost and ice,
– separate frozen foods or remove ice
trays.
They will damage the evaporator,
causing irreversible damage to the
appliance.
~Do not use any oils or grease on the
door seals, as these will cause the
seals to deteriorate and become
porous with time.
~Do not block the ventilation gaps in
the appliance as this would impair the
efficiency of the appliance, increase the
electricity consumption and could
cause damage to the appliance.
Warning and Safety instructions
10

~The appliance is designed for use
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
~Never place electric heaters or
candles in the appliance to defrost it.
These can damage the plastic parts.
~Do not use defrosting sprays or
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.
~Do not store cooking oil in the
refrigerator door. Traces of oil can
cause stress cracks to occur in the
plastic components in the door.
~Never use a steam-cleaning
appliance to defrost or clean this
appliance. Pressurised steam could
reach the electrical components and
cause a short circuit.
Disposal of your old appliance
~Before disposing of an old
appliance, first make the door latch or
lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
~Be careful not to damage any part of
the pipework whilst awaiting disposal,
e.g. by
–puncturing the refrigerant channels
in the evaporator.
–bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and safety instructions.
Warning and Safety instructions
11

Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not situated near to a heat source
(radiator, oven).
Situated near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20°C.
Where there is a high ambient
room temperature.
Temperature setting with
a thermostat which is
approximate
(set in stages).
With a medium setting of 2 to 3. With a high setting: the lower the
temperature in the compartment,
the higher the energy
consumption.
Temperature setting with
a thermostat which is
exact to the degree
(digital display).
Cellar section 8 to 12°C
On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer
than 16 °C.
Refrigerator section 4 to 5 °C
PerfectFresh zone just above 0 °C
Freezer section -18°C
Wine storage section 10 to 12 °C
Use Only open the doors when
necessary and for as short a time
as possible.
Frequent opening of the doors for
long periods will cause a loss of
coldness.
Store food in an organised way. If food is not stored in an
organised way, searching for an
item will mean the door is open for
longer.
Allow hot food and drinks to cool
down before placing them in the
appliance.
Placing hot food in the appliance
will cause the compressor to run
for a long time, as the appliance
will have to work harder to lower
the temperature.
Store food covered or packaged. The evaporation or condensation
of liquids will cause a loss of
coldness in the refrigerator.
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance to
allow air to circulate.
Defrosting Defrost the freezer compartment
when a layer of ice 0.5 cm thick
has built up.
A layer of ice hinders the cold
from reaching the frozen food, and
causes an increase in energy
consumption.
How to save energy
12

Before using for the first time
The stainless steel trim to the interior
shelves and the door shelves has a
layer of protective foil to prevent
damage during transportation.
^Clean the inside of the appliance and
the accessories with luke warm water
and a little washing-up liquid, and
then dry with a soft cloth.
^Carefully remove the protective foil
from the stainless steel trim.
Important:
To ensure the correct functioning of
the appliance, let it stand for
between 1½ and 2 hours after
transporting it to its final location
before connecting it to the mains.
Switching on
^Turn the On/Off and temperature
selector dial in a clockwise direction
away from the "0" position.
The higher the setting, the lower the
temperature in the appliance.
The appliance will start to cool, and the
interior lighting will come on when the
door is opened.
To enable the temperature to get
sufficiently cold inside the appliance,
allow the appliance to run for a few
hours before placing food in it.
Switching off
^Turn the On/Off and temperature
selector dial in an anti-clockwise
direction from "1" back to the "0"
position. You will meet a little
resistance as you do so.
The cooling system and the interior
lighting are now switched off.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^switch off at the wall socket and
withdraw the plug,
^defrost the freezer compartment
(depending on model),
^clean the appliance out and
^leave the door ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
13

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
– if too much food is stored in it at
once,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
...intherefrigerator section
We recommend a temperature of 4°C
in the middle of the refrigerator section.
If you wish to check the temperature in
the refrigerator section,
^place a thermometer in a glass of
water and then place the glass in the
middle of the refrigerator section.
After about 24 hours, the thermometer
will show the approximate temperature
in the refrigerator section.
Please note the following:
–bathwater and other household
thermometers are not very accurate.
It is best to use an electronic
thermometer.
–Do not measure the temperature of
the air in the appliance. The result
will not reflect the temperature in the
food.
–Try to open the door as little as
possible during the measuring
period, as warm room air will enter
the refrigerator every time the door is
opened.
...inthefreezer compartment
To freeze fresh food and to store frozen
food for a long time, a temperature
colder than -18 °C is required. At this
temperature the growth of
micro-organisms is generally halted. As
soon as the temperature rises above
-10 °C, the micro-organisms become
active in the food again so that it cannot
be kept as long. For this reason,
partially defrosted or defrosted food
must not be re-frozen. Food may be
re-frozen once it has been cooked, as
the high temperatures achieved when
cooking destroy most micro-organisms.
The correct temperature
14

Temperature selection
The temperature is set with the
temperature selector.
^Turn the temperature selector to a
setting between 1 and 7.
The higher the setting, the lower the
temperature in the appliance.
A middle range setting is usually
sufficient.
However, if frozen food is to be stored
in the freezer compartment then a
setting of between 4 and 7 is
recommended to ensure that the
required temperature in the freezer
compartment is maintained.
It is also advisable to set the
temperature within this range if the door
is opened frequently, large quantities of
food are stored in the refrigerator
section or there is a high ambient
temperature.
The correct temperature
15

With very low ambient temperatures
at or below 16 °C the freezer
compartment may not be able to
maintain its temperature. The low room
temperature may prevent the appliance
from running often enough, resulting in
frozen food beginning to thaw. The
winter setting is designed to prevent
this happening.
To activate the winter setting
^Press the rocker switch for the winter
setting to "1".
The refrigerator will switch on more
frequently, lowering the temperature in
the freezer section to the required level.
To deactivate the winter setting
As soon as the ambient temperature
rises above 16 °C the winter setting
should be switched off.
^Press the rocker switch for the winter
setting to "0".
The appliance will continue running at
normal power.
Using the winter setting (depending on model)
16

Different storage zones
Due to the natural circulation of the air
in the appliance, there are different
temperature zones in the refrigerator.
Cold, heavy air sinks to the lowest
section of the appliance. Make use of
the different zones when placing food
in the appliance.
Warmest area
The warmest area is in the top section
of the door. Use this for storing butter
and cheese.
Coldest area
The coldest area in a refrigerator is
directly above the vegetable
containers.
Use this for all delicate and highly
perishable food, e.g.
– fish, meat, poultry,
– sausage products, ready meals,
–dishes or baked goods containing
eggs or cream,
–fresh dough, cake mixtures, pizza or
quiche dough,
–soft cheese and other dairy
products,
–pre-packed vegetables and other
fresh food with a label stating it
should be kept at a temperature of
approx. 4 °C.
Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Danger of explosion.
If storing alcohol with a high
percentage proof, make sure it is
tightly closed, and store upright.
Do not store cooking oil in the
refrigerator door.
Traces of oil can cause stress
cracks to occur in the plastic
components in the door.
Food must not touch the back wall of
the appliance, as it may freeze to
the back wall.
Food which should not be
stored in a refrigerator
Not all food is suitable for refrigeration.
This includes:
–Fruit and vegetables which are
sensitive to cold, such as bananas,
avocado, papaya, passion fruit,
aubergines, peppers, tomatoes and
cucumbers
–Fruit which is not yet ripe
–Potatoes
–Some hard cheeses, e.g. Parmesan
Using the refrigerator efficiently
17

When shopping for food
The freshness of food when first placed
in the appliance is an important factor
in determining how long it stays fresh.
Time out of the refrigerator e.g. during
transportation should be kept to a
minimum. For example, do not allow
food to stay in a hot car for too long.
Once food has started to deteriorate,
this process cannot be reversed. As
little as two hours outside the
refrigerator can cause food to start
deteriorating.
Storing food correctly
Store food covered or packaged. This
will prevent food smells from affecting
other foods, food from drying out, and
also any cross-contamination of
bacteria. The growth of bacteria, such
as salmonella, can be avoided by
setting the correct temperature and
maintaining good standards of hygiene.
Fruit and vegetables
Fruit and vegetables may be stored
loose in the vegetable containers.
However, you should bear in mind that
aromas and flavours can transfer from
one type of food to another (e.g. carrots
absorb the smell and flavour of onions
very easily). Some food also gives off a
natural gas (ethylene) which speeds up
the rate at which other food perishes.
Some fruit and vegetables react
strongly to this gas and should not be
stored together.
–Examples of fruit and vegetables
which produce a large amount of
this natural gas are:
Apples, apricots, pears, nectarines,
peaches, plums, avocado, figs,
blueberries, melons and beans.
– Examples of fruit and vegetables
which react strongly to the natural
gases given off by other types of
fruit and vegetables are:
Kiwis, broccoli, cauliflower, Brussels
sprouts, mangos, honeydew melons,
apples, apricots, cucumbers,
tomatoes, pears, nectarines and
peaches.
Example: Broccoli should not be
stored with apples, as apples
produce a large amount of natural
gas to which broccoli is very
sensitive. The result is a shorter than
expected storage time for the
broccoli.
Using the refrigerator efficiently
18

Unpacked meats and vegetables
Unpackaged meat and vegetables
should be stored separately. To avoid
any microbiological
cross-contamination, these foods may
only be stored together if they are
wrapped.
Protein rich foods
Please note that foods rich in protein
deteriorate faster than others.
Shellfish, for example, deteriorates
faster than fish, and fish deteriorates
faster than meat.
Meat
Meat should be stored unwrapped.
(Undo wrappings slightly to leave meat
loosely covered, and leave containers
open). This permits air to circulate
around the meat, allowing the surface
to dry slightly, which helps prevent the
growth of bacteria. To prevent the risk
of bacterial cross-contamination, do not
let meat come into direct contact with
other foods.
Using the refrigerator efficiently
19

Moving the shelves
The shelves can be adjusted according
to the height of the food.
^Pull the shelf forwards and then tilt it
downwards to remove it.
^With the rear barrier facing upwards,
place the shelf at the required
position.
The rear barrier must face upwards
to prevent food from touching the
back of the appliance and freezing to
it.
Adjusting the door shelf/bottle
shelf
^Push the door/bottle shelf upwards,
then remove it by pulling it forwards.
^Replace the door/bottle shelf at the
required position. Ensure that it is
securely pushed back into position.
Adjusting the interior fittings
20
