Miele K 37472 iD User manual

Operating and installation instructions
Refrigerator
To avoid the risk of accidents or damage to the appliance
it is essential to read these instructions
before it is installed and used for the first time.
M.-Nr. 09 939 120en-GB

Guide to the appliance .............................................4
Optional accessories ................................................7
Bottle rack......................................................7
Caring for the environment..........................................8
Warning and Safety instructions .....................................9
How to save energy ...............................................17
Switching on and off ..............................................19
Operating the appliance ............................................20
Switching on .....................................................20
Switching off .....................................................20
Switching off the appliance in Sabbath mode .........................20
Switching off for longer periods of time .................................21
The correct temperature ...........................................22
...intherefrigerator and the PerfectFresh zone .........................22
Dynamic cooling ................................................22
Temperature display ...............................................22
Setting the temperature .............................................23
Setting the temperature in the PerfectFresh zone ...........................24
Using Super cool .................................................25
Door alarm ......................................................26
Switching the alarm off early .........................................26
Selecting further settings ..........................................27
Safety lock 0.....................................................27
Acoustic signals )................................................28
Display brightness s..............................................29
Sabbath mode ¬..................................................30
Storing food in the refrigerator section ...............................32
Different storage zones .............................................32
Food which is not suitable for storing in the refrigerator ....................33
When shopping for food ............................................33
Storing food correctly ..............................................33
Contents
2

Storing food in the PerfectFresh zone................................34
Dry compartment ,................................................35
Humidity controlled compartment ,,..................................35
Humidity level not increased ,.....................................35
Increased humidity .............................................35
Adjusting the interior fittings .......................................37
Adjusting the door shelf/bottle shelf ...................................37
Moving the bottle holder ............................................37
Adjustable shelves / Adjustable shelves with LED lighting ..................37
Moving the adjustable shelves / adjustable shelves with LED lighting ......37
Adjusting the bottle rack ............................................38
PerfectFresh zone compartments .....................................38
Automatic defrosting..............................................40
Cleaning and care ................................................41
Before cleaning ...................................................42
Adjustable shelves / Adjustable shelves with LED lighting ...............42
Cleaning the interior and accessories ..................................44
Door seal ........................................................45
Ventilation gaps ...................................................45
After cleaning.....................................................46
Problem solving guide ............................................47
Noises ..........................................................55
Miele|home .....................................................56
After Sales / Guarantee ............................................58
Guarantee: U.K. ................................................58
Guarantee: Other countries ....................................58
Note for test institutes.............................................59
Information for dealers ............................................60
Demo mode r.....................................................60
Contents
3

Electrical connection..............................................62
Installation ......................................................63
Location .........................................................63
Climate range ..................................................63
Ventilation .......................................................64
Before installing the appliance .......................................65
Does your old appliance have a different hinging mechanism? ..............66
Stainless steel front panel.........................................66
Building-in dimensions ...........................................67
Adjusting the door hinges .........................................68
Changing the door hinging .........................................69
Installing the appliance ............................................73
Fitting the furniture door.............................................81
Contact details ...................................................87
Contents
4

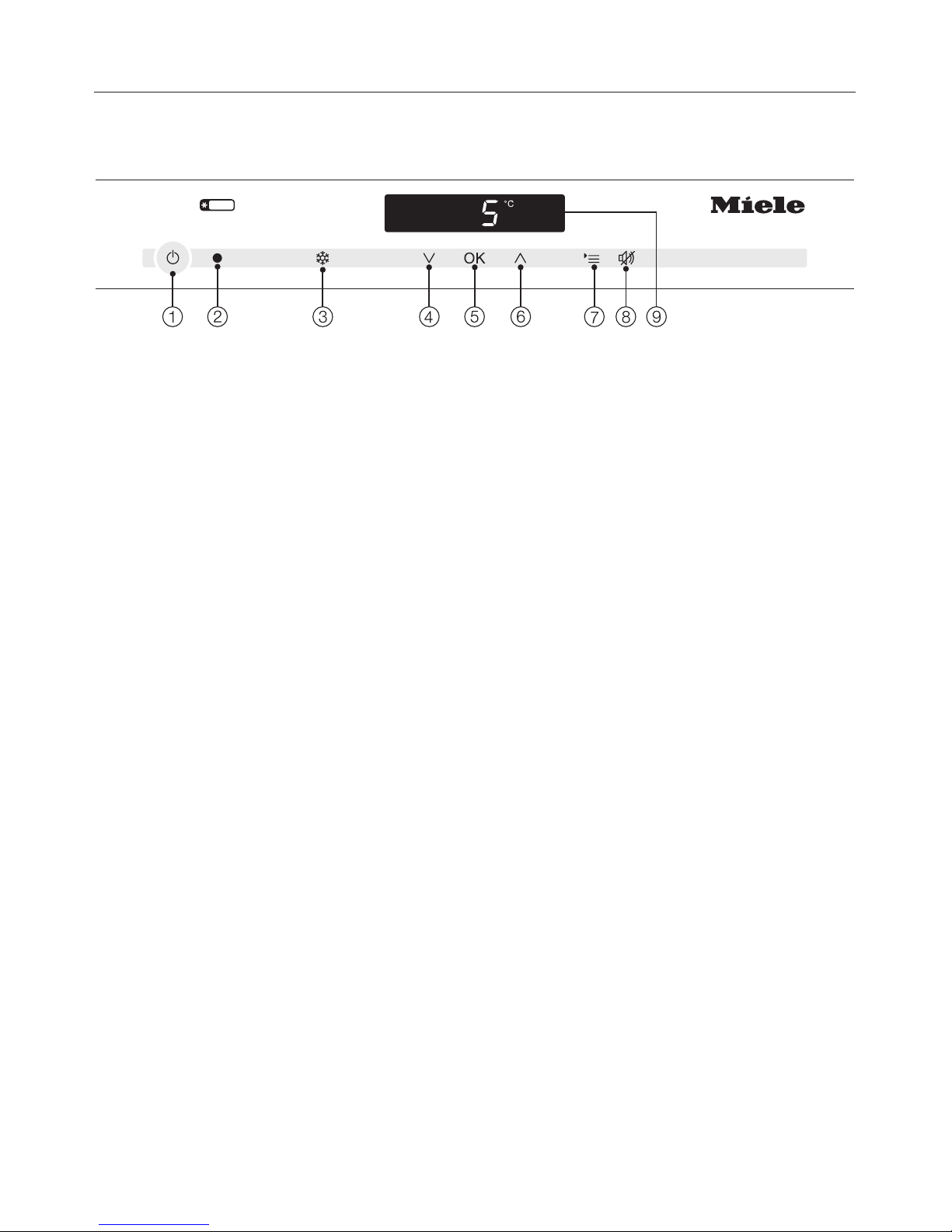

Control panel
aOn/Off sensor
for the whole appliance
bOptical interface
(for Service technician use only)
cOn/Off sensor for the
Super cool function
dFor setting the temperature
(X= colder),
Selector sensor in settings mode
eFor confirming a selection (OK
sensor)
fFor setting the temperature
(Y= warmer),
Selector sensor in settings mode
gFor accessing or leaving settings
mode
hFor switching off the door alarm
iDisplay with temperature and
symbols (symbols only visible in
settings mode, in the event of an
alarm/message; see table for
explanation of symbols)
Guide to the appliance
5

Symbols
Symbol Meaning Function
0Safety lock Prevents the appliance being switched off,
the temperature being altered, Super cool
being switched on and settings being
entered by mistake.
)Acoustic signals Choice of sensor tone and door alarm tone
<Miele|home Only visible when a communication module
is fitted and signed on (see "Miele|home")
sDisplay brightness
setting
For adjusting the brightness of the display
uPerfectFresh
temperature
For altering the temperature in the
PerfectFresh zone
¬Sabbath mode For switching Sabbath mode on and off
tMains connnection Confirms that the appliance is connected to
the mains electrical supply when it is not
switched on
;Alarm Lights up when there is a door alarm;
flashes when there are fault messages
rDemo mode
(only visible when
Demo mode is
activated)
For switching off Demo mode
Guide to the appliance
6

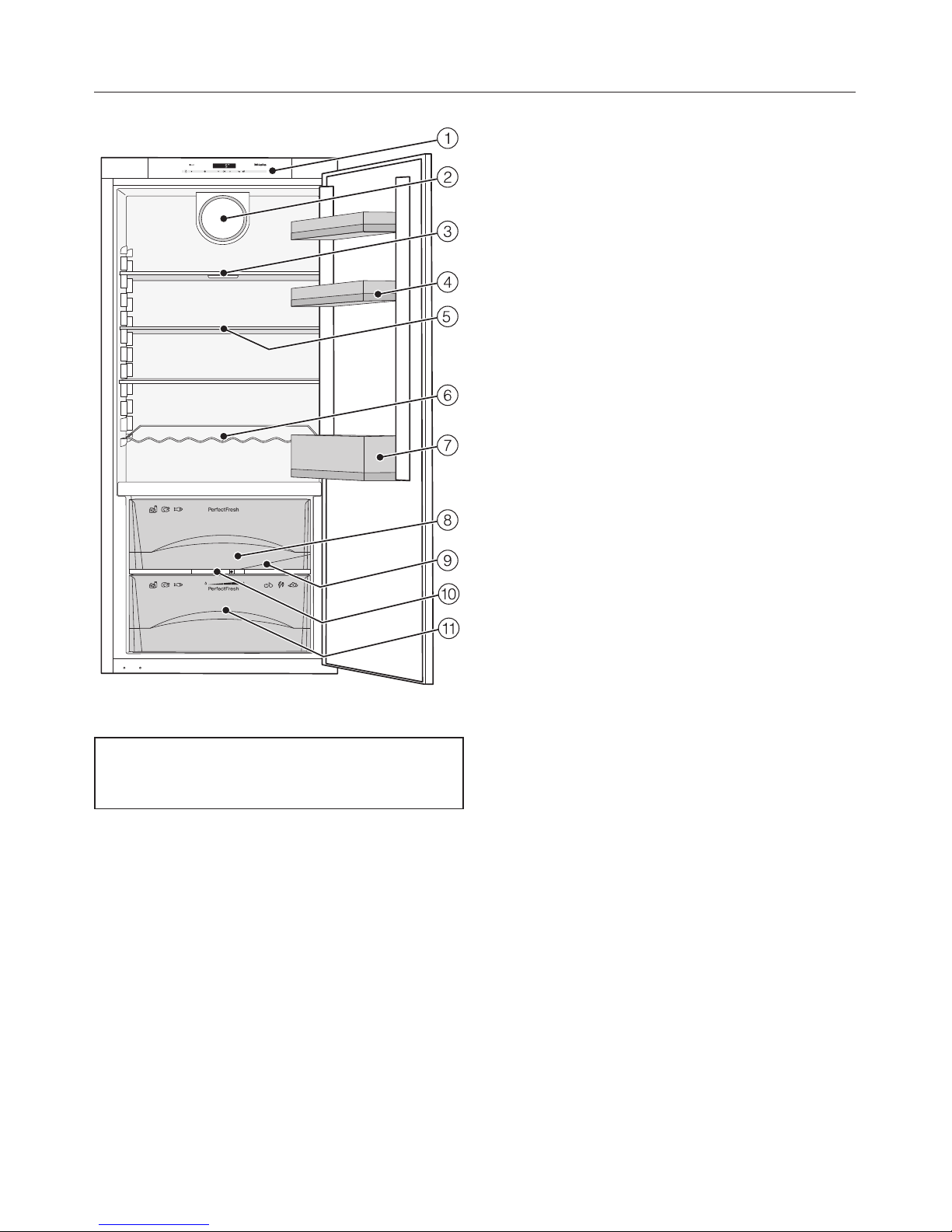

This drawing is for illustration
purposes only.
aControl panel
bFan
cShelves with
lighting (FlexiLight)
dDoor shelf / Egg tray
eAdjustable shelves
fBottle rack
gBottle shelf
hPerfectFresh zone, dry compartment
iCondensate channel and
drain hole
jRegulator for setting the moisture
level in the humidity controlled
compartments*
kPerfectFresh zone, humidity
controlled compartment*
* Depending on model
Guide to the appliance
7

Optional accessories
Stainless steel trim with LED lighting
for adjustable shelves (FlexiLight)
The LED lighting is located in the
stainless steel trim b, which is supplied
with electricity via metal discs (contacts)
a
The refrigerator section lighting can be
positioned to suit your requirements
simply by moving the shelf.

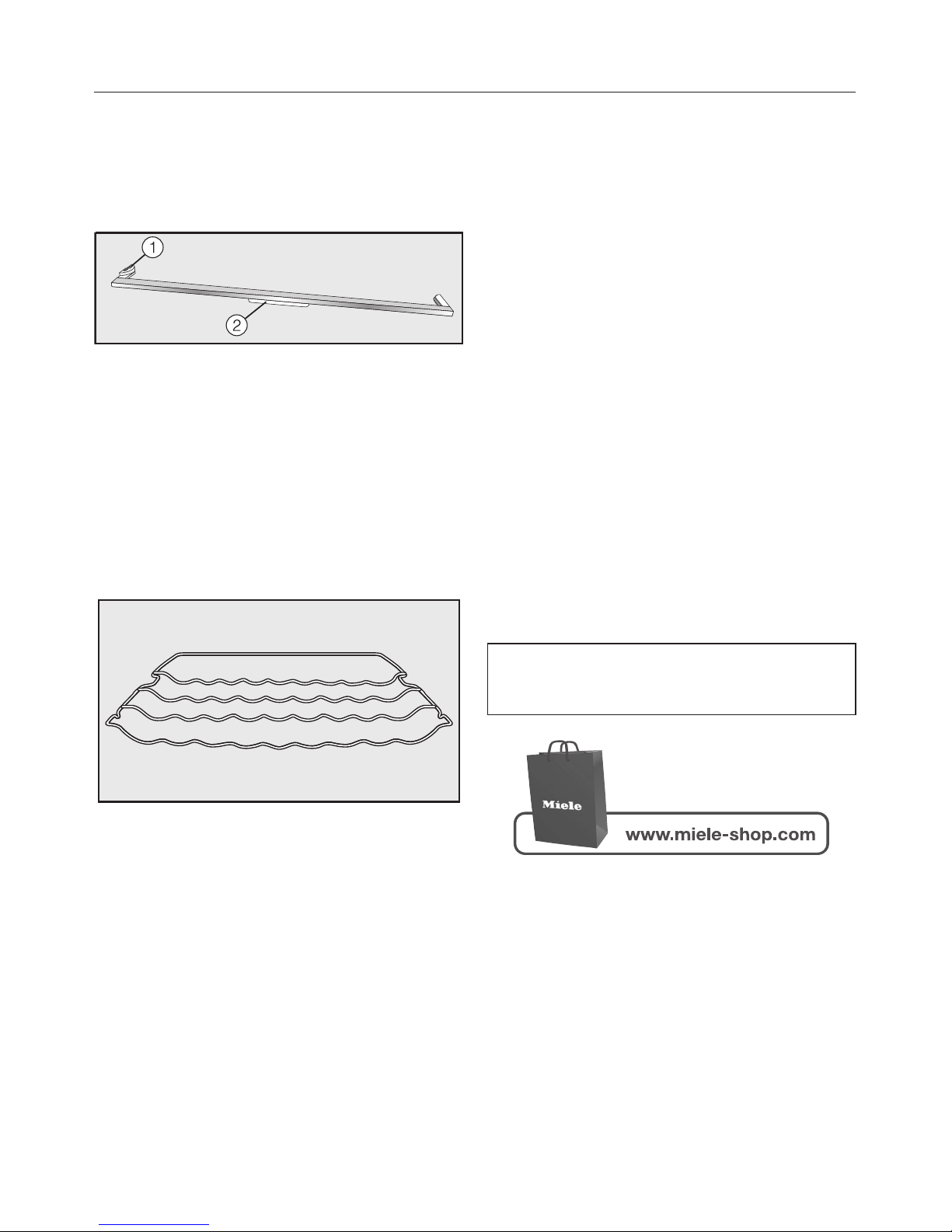

Bottle rack
Bottles can be stored horizontally using
the bottle rack to save space.
The bottle rack can be placed at
different positions in the appliance.
Stainless steel care
–The stainless steel conditioner forms
a water and dirt repellent protective
coating. It gently removes water
marks, fingerpints and other dirt and
leaves the surface smooth and
gleaming.
–The stainless steel cloth is
impregnated with stainless steel
conditioner for optimum cleaning and
protection.
Microfibre cloth
The microfibre cloth is suitable for
removing fingerprints and light soiling
from surfaces such as stainless steel,
glass, plastic and chrome without the
use of chemicals.
Optional accessories are available
from Miele or via the internet.
Guide to the appliance
8

Disposing of the packaging
materials
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your appliance. Please
do not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot. In this way, refrigerant
in the pipework and oil in the
compressor will be contained, and will
not leak into the environment.
Please ensure that your old appliance
presents no danger to children while
being stored awaiting disposal. See
"Warning and Safety instructions" for
more information.
Caring for the environment
9

This appliance complies with all statutory safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installation and
before using it for the first time. They contain important
information on installation, safety, use and maintenance.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~The appliance is intended for use in domestic households and
similar working and residential environments. It is not intended for
outdoor use.
~This appliance is intended for domestic use only for cooling and
storing food and drink.
Any other usage is not supported by the manufacturer and could be
dangerous.
Warning and Safety instructions
10

~The appliance is not suitable for storing and keeping cool
medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the appliance for such
purposes can cause deterioration of the items stored. The appliance
is also not suitable for use in areas susceptible to explosion.
Miele cannot be held liable for any damage resulting from incorrect
or improper use or operation.
~The appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
~Children 8 years and older may only use the appliance
unsupervised if they have been shown how to use it in a safe way
and recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean or maintain the appliance
unsupervised.
~Please supervise children in the vicinity of the appliance and do
not let them play with it.
Warning and Safety instructions
11

~Danger of suffocation. Packaging, e.g. plastic wrappings, must
be kept out of the reach of babies and children. Whilst playing,
children could become entangled in packaging or pull it over their
head and suffocate.
Technical safety
~The coolant system is tested for leaks. The appliance complies
with statutory safety requirements and the appropriate EU
guidelines.
~This appliance contains the coolant Isobutane (R600a), a natural
gas which is environmentally friendly. Although it is flammable, it
does not damage the ozone layer and does not increase the
greenhouse effect. The use of this coolant has, however, led to a
slight increase in the noise level of the appliance. In addition to the
noise of the compressor, you might be able to hear the coolant
flowing around the system. This is unavoidable, and does not have
any adverse effect on the performance of the appliance.
Care must be taken during the transportation and installation of the
appliance that no parts of the cooling system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid any flames or anything which creates a spark,
–disconnect the appliance from the electricity supply,
–ventilate the room where the appliance is located for several
minutes, and
–call the Service Department.
Warning and Safety instructions
12

~The more coolant there is in an appliance, the larger the room it
should be installed in. In the event of a leakage, if the appliance is in
a small room, there is the danger of combustible gases building up.
For every8gofcoolant at least 1 m3of room space is required. The
amount of coolant in the appliance is stated on the data plate inside
the appliance.
~To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
~The electrical safety of this appliance can only be guaranteed
when it is correctly earthed. It is essential that this standard safety
requirement is met. If in any doubt, please have the electrical
installation tested by a qualified electrician.
~If the electrical connection cable is faulty it must only be replaced
by a Miele approved service technician to protect the user from
danger.
~Do not connect the appliance to the mains electrical supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
~Do not use in a damp environment (e.g. garage or utility room).
Moisture could reach live components or the electrical connection
and cause a short circuit.
~This appliance must not be used in a non-stationary location (e.g.
on a ship).
Warning and Safety instructions
13

~A damaged appliance can be dangerous. Check the appliance
for visible signs of damage. Do not use a damaged appliance.
~For safety reasons, this appliance may only be used when it has
been built in.
~The appliance must be disconnected from the mains electricity
supply during installation, maintenance and repair work. Ensure that
power is not supplied to the appliance until after it has been
installed or until after any maintenance or repair work has been
carried out.
~Unauthorised installation, maintenance and repairs can cause
considerable danger to users. Installation, maintenance and repair
work must only be carried out by a Miele authorised technician.
~While the appliance is under guarantee, repairs should only be
undertaken by a Miele authorised service technician. Otherwise the
guarantee is invalidated.
~Miele can only guarantee the safety of the appliance when
original Miele replacement parts are used. Faulty components must
only be replaced by genuine Miele original spare parts.
Warning and Safety instructions
14

Correct use
~The appliance is designed for use within certain climate ranges
(ambient temperatures), and should not be used outside this range.
The climate range of the appliance is stated on the data plate inside
the appliance. Installing it in a room with too low an ambient
temperature will lead to the appliance switching off for longer
periods so that it cannot maintain the required temperature.
~Do not cover or block the air vents as this could impair the
efficiency of the appliance, increase the electricity consumption and
could cause damage to the appliance.
~If storing food which contains a lot of fat or oil in the appliance or
the door, make sure that it does not come into contact with plastic
components as this could cause stress cracks or break the plastic.
~Do not store explosive materials in the appliance or any products
containing propellants (e.g. spray cans). Electrical components
could cause flammable vapours to ignite. Danger of fire and
explosion.
~Do not operate any electrical equipment (e.g. an electric
ice-cream maker) inside the appliance. Danger of sparking
and explosion.
Warning and Safety instructions
15

~Observe the manufacturer's "use-by" dates and storage
instructions given on food to avoid the risk of food poisoning.
Storage times will depend on several factors, including the
freshness and quality of the food as well as the temperature at which
it is stored.
~Only use genuine original Miele accessories with this appliance.
Using spare parts or accessories from other manufacturers will
invalidate the guarantee, and Miele cannot accept liability.
Cleaning and care
~Do not use any oils or grease on the door seal, as these will
cause the seal to deteriorate and become porous with time.
~Do not use a steam cleaning appliance to clean this appliance.
Steam could reach electrical components and cause a short circuit.
~Do not use sharp edged objects to
– remove frost and ice,
– lift frozen food and remove ice trays.
They will damage the evaporator, causing irreversible damage to
the appliance.
~Never place electric heaters or candles in the appliance to
defrost it. These can damage the plastic parts.
~Do not use defrosting sprays or de-icers, as they might contain
substances which could damage the plastic parts or which could
cause a build-up of gases and pose a danger to health.
Warning and Safety instructions
16

Transporting the appliance
~Always transport the appliance in an upright position and in its
original transport packaging to prevent damage in transit.
~Danger of injury and damage. The appliance is heavy and must
be transported by two people.
Disposal of your old appliance
~Before disposing of an old appliance, first make the door latch or
lock unusable.
This way you will prevent children from accidentally locking
themselves in and endangering their lives.
~Be careful not to damage any part of the pipework whilst awaiting
disposal, e.g. by
– puncturing the refrigerant channels in the evaporator,
– bending any pipework,
– scratching the surface coating.
Leaking refrigerant can damage the eyes.
Warning and Safety instructions
17

Normal energy
consumption
Increased energy
consumption
Installation site /
Maintenance
In a ventilated room. In an enclosed, unventilated
room.
Protected from direct
sunlight.
In direct sunlight.
Not near to a heat source
(radiator, oven).
Near to a heat source
(radiator, oven).
Where the ideal ambient room
temperature is approx. 20°C.
Where there is a high
ambient room temperature.
Ventilation gaps uncovered
and dusted regularly.
Ventilation gaps covered up
or dusty.
Temperature
setting
Refrigerator section 4 to 5°C With a low temperature
setting: the colder the
temperature in the
refrigerator section, the
higher the energy
consumption.
PerfectFresh zone just
above 0 °C
How to save energy
18

Normal energy
consumption
Increased energy
consumption
Use Drawers, shelves and racks
arranged as they were when
the appliance was delivered.
Only open the door when
necessary and for as short a
time as possible.
Store food in an organised
way.
Frequent opening of the door
for long periods will cause a
loss of coldness. The
appliance works harder to
cool down and the
compressor runs for longer
periods.
Take an insulated cool bag
with you when shopping and
place food in the appliance as
soon as possible.
Replace any food removed as
quickly as possible, before it
begins to thaw.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the
temperature inside the
appliance. The appliance
works harder to cool down
and the compressor runs for
longer periods.
Store food covered or
packaged.
The evaporation or
condensation of liquids will
cause a loss of coldness in the
refrigerator.
Place frozen food in the
refrigerator to defrost.
Do not over-fill the appliance
to allow air to circulate.
How to save energy
19

Before using for the first time
Packing material
^Remove all the packing material from
the interior of the appliance.
Protective foil
The stainless steel trim to the interior
shelves and the door shelves a layer of
protective foil to prevent scratching
during transportation.
^Carefully remove the protective foil
from the stainless steel trim.
Cleaning and care
See "Cleaning and care" for more
information.
^Immediately after removing the
protective foil, treat stainless steel
surfaces with the Miele stainless steel
conditioning agent supplied with the
appliance.
Important. Each time it is used, the
Miele stainless steel conditioning agent
forms a water and dirt repellent
protective coating.
^Clean the inside of the appliance and
the accessories.
Accessory - Bottle holder
^Attach the bottle holder centrally
along the rear edge of the bottle
shelf, as shown.
The flexible ribs grip the bottles
securely when the door is opened and
closed.
Switching on and off
20
