Miele K 9552 iD User manual

Operating and installation instructions
Refrigerator
with Dynamic cooling
K 9552 iD (-1)
K 9752 iD (-1)
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 925 770
en - GB, HK

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety lock .......................................................14
Switching off for longer periods of time .................................14
The correct temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the temperature in the refrigerator...............................15
Temperature range ..............................................16
Temperature display ...............................................16
Temperature display brightness....................................16
Super cool and Dynamic cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Super cool .......................................................18
Dynamic cooling m...............................................18
Using the refrigerator efficiently . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Different storage zones .............................................20
Food which should not be stored in a refrigerator.........................21
When shopping for food ............................................21
Storing food correctly ..............................................21
Fruit and vegetables .............................................21
Unpacked meat and vegetables ...................................22
Protein rich foods ...............................................22
Meat .........................................................22
Adjusting the interior fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Moving the shelves ................................................23
Split shelf ........................................................23
Adjusting the condiment tray/bottle shelf ...............................24
Moving the bottle divider ............................................25
Automatic defrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the interior and accessories ..................................28
Ventilation gaps ...................................................29
Door seal ........................................................29
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
After Sales / Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Contents

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Location .........................................................35
Climate range ..................................................35
Ventilation .......................................................35
Before installation .................................................36
Does your old appliance have a different hinging mechanism? ..............36
Stainless steel front..............................................37
Building-in dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Adjusting the door hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Changing the door hinging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Appliance door ...................................................40
Building in the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Weight of the furniture door ..........................................43
Building into a peninsular run ........................................43
Fitting a furniture door ..............................................47
Contents

aSafety lock indicator light
bOn/Off button
cRefrigerator temperature display
dTemperature selector buttons
(+ for warmer; – for colder)
eSuper cool button and
indicator light
fDynamic cooling button and
indicator light
Guide to the appliance
4

aDynamic cooling fan
bBottle rack*
cAdjustable shelves
dCondensate channel and
drain hole
eFruit and vegetable containers *
fButter and cheese compartment
gEgg tray/Condiment tray
hInterior lighting
iUniversal container*
jBottle shelf
kBottle divider
* Depending on model
Guide to the appliance
5

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
6

This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct application
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as
–Hostels and guest houses.
This appliance is not intended for
outdoor use.
It must only be used as a domestic
appliance to cool and store foodstuffs.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it correctly by
a person responsible for their safety.
Safety with children
~This appliance is not a toy! To avoid
the risk or injury, do not allow children
to play on or near it, or to play with the
controls. Please supervise young
children whilst you are using it. Older
children may only use the appliance if
its operation has been clearly explained
to them and they are able to use it
safely, recognising the dangers of
misuse.
Warning and Safety instructions
7

Technical safety
~Before setting up the appliance,
check it for any externally visible
damage.
Do not install and use a damaged
appliance.
~This appliance contains the coolant
Isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect. The use of this
coolant has, however, led to a slight
increase in the noise level of the
appliance. In addition to the noise of
the compressor, you might be able to
hear the coolant flowing around the
system. This is unavoidable, but does
not have any adverse effect on the
performance of the appliance.
Care must be taken during the
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking coolant
can be harmful to the eyes.
In the event of any damage:
- avoid open fires and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department for
advice.
~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~Before connecting the appliance to
the mains supply, make sure that the
rating on the data plate corresponds to
the voltage and frequency of the
household supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with current local and national
safety regulations. It is most important
that this basic safety requirement is
present and tested regularly, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).
~If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
Warning and Safety instructions
8

~Safe operation of the appliance is
only assured if it has been installed and
connected in accordance with these
operating and installation instructions.
~This equipment may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
~Installation work, maintenance and
repairs may only be carried out by
suitably qualified and competent
persons in accordance with national
and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
Ensure current is not supplied to the
appliance until after maintenance or
repair work has been carried out.
~The appliance is only completely
isolated from the electricity supply
when:
–it has been switched off at the wall
socket and the plug has been
withdrawn,
–the mains fuse is withdrawn, or
–the screw-out fuse is removed in
countries where this is applicable.
~Do not connect the appliance to the
mains electricity supply by an extension
lead.
Extension leads do not guarantee the
required safety of the machine (e.g.
danger of overheating).
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Correct use
~Never store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Thermostats switching on may
produce sparks which could present a
fire hazard. Flammable compounds
could explode.
~Do not operate any electrical
equipment (e.g. an electric ice-cream
maker) inside the appliance. Danger of
sparking and explosion.
~If storing alcohol with a high
percentage proof, make sure it is tightly
closed and stored upright.
Danger of explosion.
~Observe the "use by" dates given on
food to avoid the risk of food poisoning.
Storage times will depend on several
factors, including the freshness and
quality of the food as well as the
temperature at which it is stored. Follow
the instructions given on the food
manufacturer’s packaging on storage
conditions required.
Warning and Safety instructions
9

~Do not use sharp edged objects to
–remove frost and ice,
–separate food which has become
frozen.
They will damage the evaporator,
causing irreversible damage to the
appliance.
~Do not use defrosting sprays or
de-icers, as they might contain
substances which could damage the
plastic parts or which could cause a
build-up of gases and pose a danger to
health.
~Do not use any oils or grease on the
door seal as these will cause the seal to
become porous with time.
~Do not store cooking oil in the
refrigerator door. Traces of oil can
cause stress cracks to occur in the
plastic components in the door.
~Do not block the ventilation gap in
the plinth or the top of the appliance
housing unit as this would impair the
efficiency of the appliance, increase
the electricity consumption and could
cause damage to the appliance.
~The appliance is designed for use
within certain climate ranges (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
~Never use a steam-cleaning
appliance to clean this appliance.
Pressurised steam could reach the
electrical components and cause a
short circuit.
Disposal of your old appliance
~Before disposing of an old
appliance first make the door latch or
lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
~Be careful not to damage any part of
the pipework whilst awaiting disposal,
e.g. by
– puncturing the refrigerant channels
in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

Normal energy
consumption
Increased energy
consumption
Installation site In a ventilated room. In an enclosed, unventilated room.
Protected from direct sunlight. In direct sunlight.
Not near to a heat source (radiator,
oven).
Near to a heat source (radiator,
oven).
Where the ideal ambient room
temperature is approx. 20°C.
Where there is a high ambient room
temperature.
Do not cover the ventilation gaps
and dust them regularly.
Temperature setting
with a thermostat
which is approximate
(set in stages).
With a medium setting of 2 to 3. With a high setting: the lower the
temperature in the compartment, the
higher the energy consumption.
Temperature setting
with a thermostat which
is exact to the degree
(digital display).
Larder section 8 to 12 °C
On appliances with winter setting,
please make sure that the winter
setting is switched off when the
ambient temperature is warmer than
16 °C .
Refrigerator section 4 to 5 °C
PerfectFresh zone just above 0 °C
Freezer section -18 °C
Wine storage section 10 to 12 °C
Use Drawers, shelves and racks
arranged as they were when the
appliance was delivered.
Only open the door when necessary
and for as short a time as possible.
Frequent opening of the door for
long periods will cause a loss of
coldness.
Store food in an organised way. Searching for an item will mean the
door is open for longer.
Allow hot food and drinks to cool
down before placing them in the
appliance.
Hot food will cause the compressor
to run for a long time, as the
appliance will have to work harder
to reduce the temperature.
Store food covered or packaged. The evaporation or condensation of
liquids will cause a loss of coldness
in the refrigerator.
Place frozen food in the refrigerator
to defrost.
Do not over-fill the appliance to
allow air to circulate.
Defrosting Defrost the freezer section when a
layer of ice 0.5 cm thick has built
up.
A layer of ice hinders the cold from
reaching the frozen food, and
increases energy consumption.
How to save energy
11

Before using for the first time
Protective foil
The stainless steel trim, frames and
panels have a layer of protective foil to
prevent scratching during
transportation.
^Carefully remove the protective foil
from them.
Cleaning and care
^After removing the protective foil,
treat stainless steel surfaces with the
Miele stainless steel conditioning
agent supplied with the appliance
(available to re-order from
www.miele-shop.com).
Important! Each time it is used, the
Miele stainless steel conditioning
agent forms a water and dirt repellent
protective coating.
^Clean the inside of the appliance and
the accessories with lukewarm water
and a little washing-up liquid, and
then dry with a soft cloth.
Switching on
^Press the On/Off button.
The temperature display lights up, the
appliance starts cooling and the interior
light will come on when the door is
opened.
To enable the temperature to get
sufficiently cold inside the appliance,
allow the appliance to run for a few
hours before placing food in it.
Switching off
^Press the On/Off button until the
temperature display goes out.
The cooling system is switched off. (If
this does not happen, the safety lock is
still activated).
Switching on and off
12

Safety lock
The safety lock can be activated to
prevent the appliance being switched
off inadvertently.

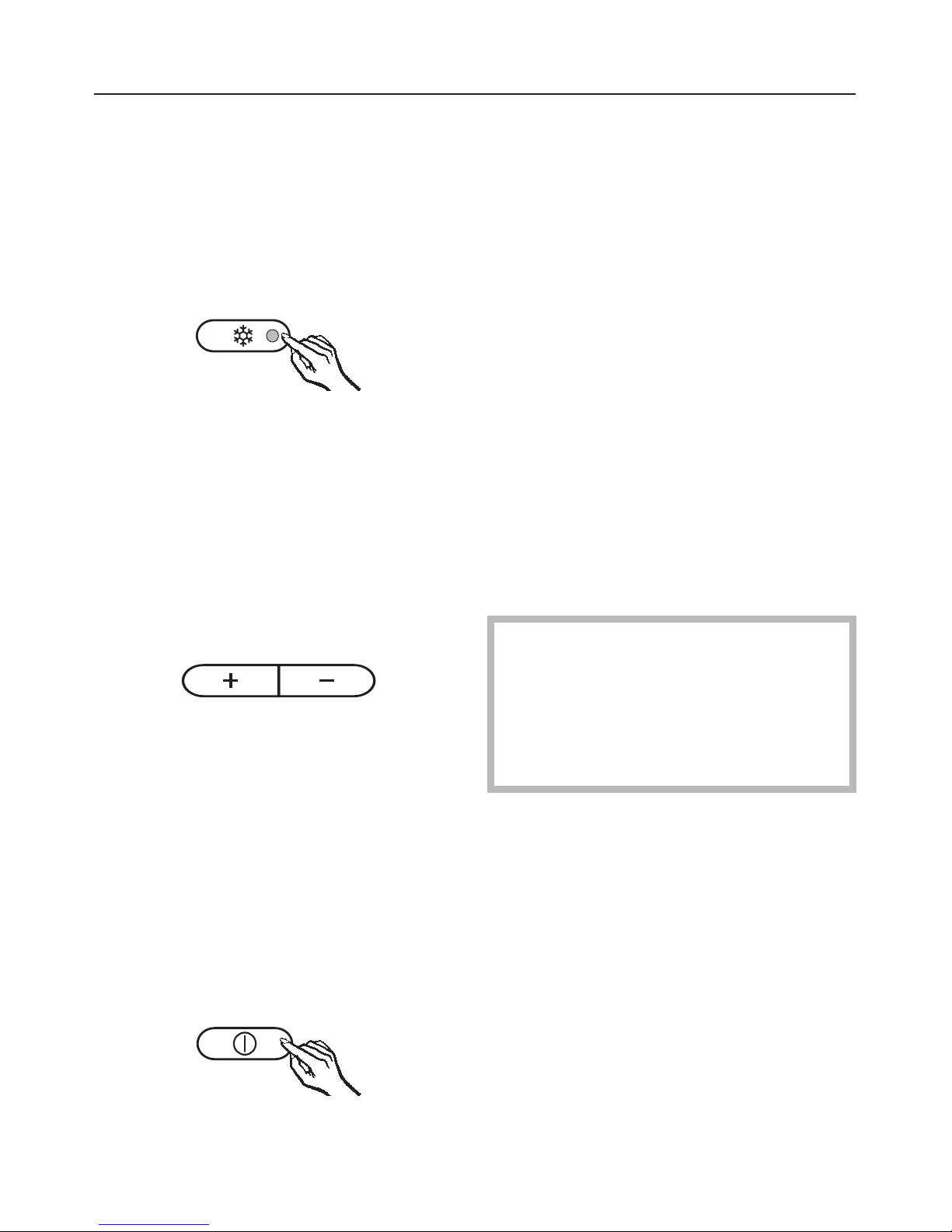

Activating or de-activating the safety
lock
^Press and hold the Super cool button
pressed in for approx. 5 seconds.
The Super cool indicator light flashes,
and a ;flashes in the temperature
display.
^Press the Super cool button again.
;will light up in the display.
^You can now choose between ;0
and ;1by pressing the temperature
selector buttons:
0: the safety lock is de-activated,
1: the safety lock is activated.
^Press the Super cool button to save
the setting.
The safety lock indicator light Xwill
light up when the safety lock has been
activated.
^Press the On/Off button to come out
of the setting mode.
If you do not do this, the electronics will
switch over to normal operation
automatically after a couple of minutes.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday:
^switch the appliance off,
^disconnect it from the mains. Switch
off at the wall and withdraw the plug
from the socket, or disconnect the
mains fuse.
^clean the appliance out and
^leave the door ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut,
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
13

It is very important to set the correct
temperature for storing food in the
appliance. Micro-organisms will cause
food which is not stored at the correct
temperature to deteriorate rapidly.
Temperature influences the growth rate
of these micro-organisms. Reducing
the temperature reduces their growth
rate.
The temperature in the appliance will
rise:
–the more often the door is opened
and the longer it is kept open,
– if too much food is stored in it at
once,
– the warmer the food is which is being
put into it,
– the higher the ambient temperature
surrounding the appliance.
The appliance is designed for use in
specific ambient temperatures
(climate ranges). Do not use in
ambient temperatures for which it is
not designed.
We recommend a temperature of 4°C
in the refrigerator.
Setting the temperature in the
refrigerator
Use the two buttons underneath the
temperature display to set the
temperature for the refrigerator.
Press the
+ button : to raise the temperature
(it gets warmer)
– button: to reduce the temperature
(it gets cooler).
The temperature being set will flash in
the display.
When pressing the buttons, the
following information shows in the
display:
– When first pressed, the last
temperature selected flashes.
– Each subsequent press of the button
adjusts the temperature shown in
1 °C steps.
–Keeping the button pressed in
adjusts the temperature continually.
Approx. 5 seconds after letting go of
the button, the current average
temperature of the refrigerator is
automatically shown.
The correct temperature
14

If you have adjusted the temperature,
wait for approx. 6 hours if the
appliance is not very full and for
approx. 24 hours if the appliance is
full, before checking the temperature
display, as it will take this long for the
display to give an accurate reading. If,
after this time, the temperature is still
too high or too low, you will need to
adjust it again.
Temperature range
The temperature can be adjusted from:
2°Cto9°C.
The ambient temperature in the room
and the installation location can affect
the time it takes for the appliance to
reach the lowest temperature. If the
ambient temperature is too high, the
appliance may not reach the lowest
temperature.
Temperature display
During normal operation, the
temperature display on the control
panel shows the average temperature
in the refrigerator.
If the temperature is not within the
range that the appliance is able to
display, bars will flash in the
temperature display.
Temperature display brightness
The appliance is supplied with the
brightness of the temperature display
set as low as possible. However, if the
door is opened, a setting changed or if
the alarm is sounding, the temperature
display will appear much brighter for
approx. 1 minute.
The level of brightness can be
adjusted:
^Press and hold the Super cool button
pressed in for approx. 5 seconds.
The Super cool indicator light flashes,
and a ;flashes in the temperature
display.
^Press one of the temperature selector
buttons repeatedly until ^appears in
the display.
^Press the Super cool button again.
^lights up in the display.
^You can now adjust the level of
brightness by pressing the
temperature selector buttons. You
can choose from settings 1to 5:
1: dimmest setting,
5: brightest setting.
The correct temperature
15

^Press the Super cool button to save
the setting.
^Press the On/Off button to come out
of setting mode.
If you do not do this, the electronics will
switch over to normal operation
automatically after a couple of minutes.
The correct temperature
16

Super cool
The Super cool function can be used to
rapidly reduce the temperature in the
refrigerator section to its lowest setting
(depending on the room temperature).
Switching on Super cool
Super cool is particularly
recommended for faster chilling of
large amounts of fresh food or drink.
^Press the Super cool button. The
Super cool indicator light will come
on.
The appliance will then work at full
power to lower the temperature.
Switching off Super cool
The Super cool function will switch itself
off automatically after approx. 6 hours.
The indicator light will go out and the
appliance will run at normal power
again.
To save energy, the Super cool function
can be switched off once food and
drinks are sufficiently chilled.
^Press the Super cool button. The
Super cool indicator light will go out,
and the appliance will continue to
operate at normal power.
Dynamic cooling m
When the Dynamic cooling function is
not switched on, the natural circulation
of air in the appliance will cause
different temperature zones in the
refrigerator as the cold, heavy air will
sink to the lowest section of the
appliance. You should bear this in mind
when placing food in the appliance
(see "Using the refrigerator efficiently").
However, if you are placing a large
amount of food in the refrigerator at any
one time, it is a good idea to switch on
Dynamic cooling. This way you can
distribute the temperature inside the
appliance to all areas more evenly so
that all the food will be chilled to about
the same degree.
The temperature is set as normal with
the temperature control.
Dynamic cooling should also be
selected when:
– the ambient temperature in the room
is high (above approx. 30 °C), and
–the room humidity level is high.
Switching on Dynamic cooling
^Press the Dynamic cooling button
m. The Dynamic cooling indicator
light will come on.
Super cool and Dynamic cooling
17

Switching off Dynamic cooling
^Press the Dynamic cooling button
m. The Dynamic cooling indicator
light will go out.
The fan automatically switches off
when the door is open.
Super cool and Dynamic cooling
18

Different storage zones
Due to the natural circulation of the air
in the appliance, there are different
temperature zones in the refrigerator.
Cold, heavy air sinks to the lowest
section of the appliance. Make use of
the different zones when placing food
in the appliance.
This appliance has Dynamic
cooling, which helps to keep an
even temperature when the fan is
running. When Dynamic cooling is
switched on, the difference between
the various zones is less
pronounced.
Warmest area
The warmest area is in the top section
of the door. Use this for storing butter
and cheese.
Coldest area
The coldest area in a refrigerator is
directly above the vegetable
containers.
Use this for all delicate and highly
perishable food, e.g.
–fish, meat, poultry,
–sausage products, ready meals,
–dishes or baked goods containing
eggs or cream,
–fresh dough, cake mixtures, pizza or
quiche dough,
–soft cheese and other dairy
products,
–pre-packed vegetables and other
fresh food with a label stating it
should be kept at a temperature of
approx. 4 °C.
Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Danger of explosion.
If storing alcohol with a high
percentage proof, make sure it is
tightly closed, and store upright.
Do not store cooking oil in the
refrigerator door. Traces of oil can
cause stress cracks to occur in the
plastic components in the door.
Food must not touch the back wall of
the refrigerator, as it may freeze to
the back wall.
To allow air to circulate efficiently,
do not pack food too closely
together in the refrigerator. Do not
cover the fan in the rear wall of the
refrigerator, as this is essential for
keeping the appliance cool.
Using the refrigerator efficiently
19

Food which should not be
stored in a refrigerator
Not all food is suitable for refrigeration,
as some food is sensitive to cold.
Cucumbers, for example, become
glassy, aubergines bitter and potatoes
sweet. Tomatoes and oranges lose their
aroma, and the peel on citrus fruit
hardens.
Food which should not be stored in a
refrigerator includes:
–pineapple, pomegranate, bananas,
avocado, mangos, papaya, passion
fruit, citrus fruit
– fruit which is not yet ripe
– aubergines/egg plant, cucumbers,
potatoes, peppers/capsicum,
tomatoes, courgettes,
– some hard cheeses, e.g. Parmesan
When shopping for food
The freshness of food when first placed
in the appliance is an important factor
in determining how long it stays fresh,
and how long it can be kept in the
refrigerator. Time out of the refrigerator,
e.g. during transportation, should be
kept to a minimum. For example, do not
allow food to stay in a hot car for too
long. Once food has started to
deteriorate, this process cannot be
reversed. As little as two hours outside
the refrigerator can cause food to start
deteriorating.
Storing food correctly
Food should generally be stored
covered or packaged. This will prevent
food smells from affecting other foods,
food from drying out, and also any
cross-contamination of bacteria. The
growth of bacteria, such as salmonella,
can be avoided by setting the correct
temperature and maintaining good
standards of hygiene.
Fruit and vegetables
Fruit and vegetables may be stored
loose in the vegetable containers.
Please be aware that not all types of
fruit and vegetables are suitable for
storing in the same container. Aromas
and flavours can transfer from one type
of food to another (e.g. carrots absorb
the smell and flavour of onions very
easily). Some food also gives off a
natural gas (ethylene) which speeds up
the rate at which other food perishes.
– Examples of fruit and vegetables
which produce a large amount of
this natural gas are:
Apples, apricots, pears, nectarines,
peaches, plums, avocado, figs,
blueberries, melons and beans.
Using the refrigerator efficiently
20
