Miele G 7782 CD User manual

Operating Instructions
G 7782 CD
Washer/Disinfector
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
U
04 666 564
M.-Nr.

2

Read all instructions before using the washer disinfector. This equipment is
suitable for the applications mentioned in the operating instructions. Do not use
for purposes other than those for which ist was designed, as these may be
dangerous. The manufacturer cannot be held responsibe for damage cause by
improper use.
3

WARNINGS AND SAFETY INSTRUCTIONS
Indications for use
Guide to the disinfector
Openin and closin the door
Instrument Guidelines
Instruments suitable for processing in the Washer/Disinfector . . . . . . . . . . . . . . . 13
Instruments not suitable for processing in the Washer/Disinfector . . . . . . . . . . . . 13
Cleaning Without Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Loadin the washer/disinfector
Loading accessory baskets/inserts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Loading the washer/disinfector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adjustable upper basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Loadin examples

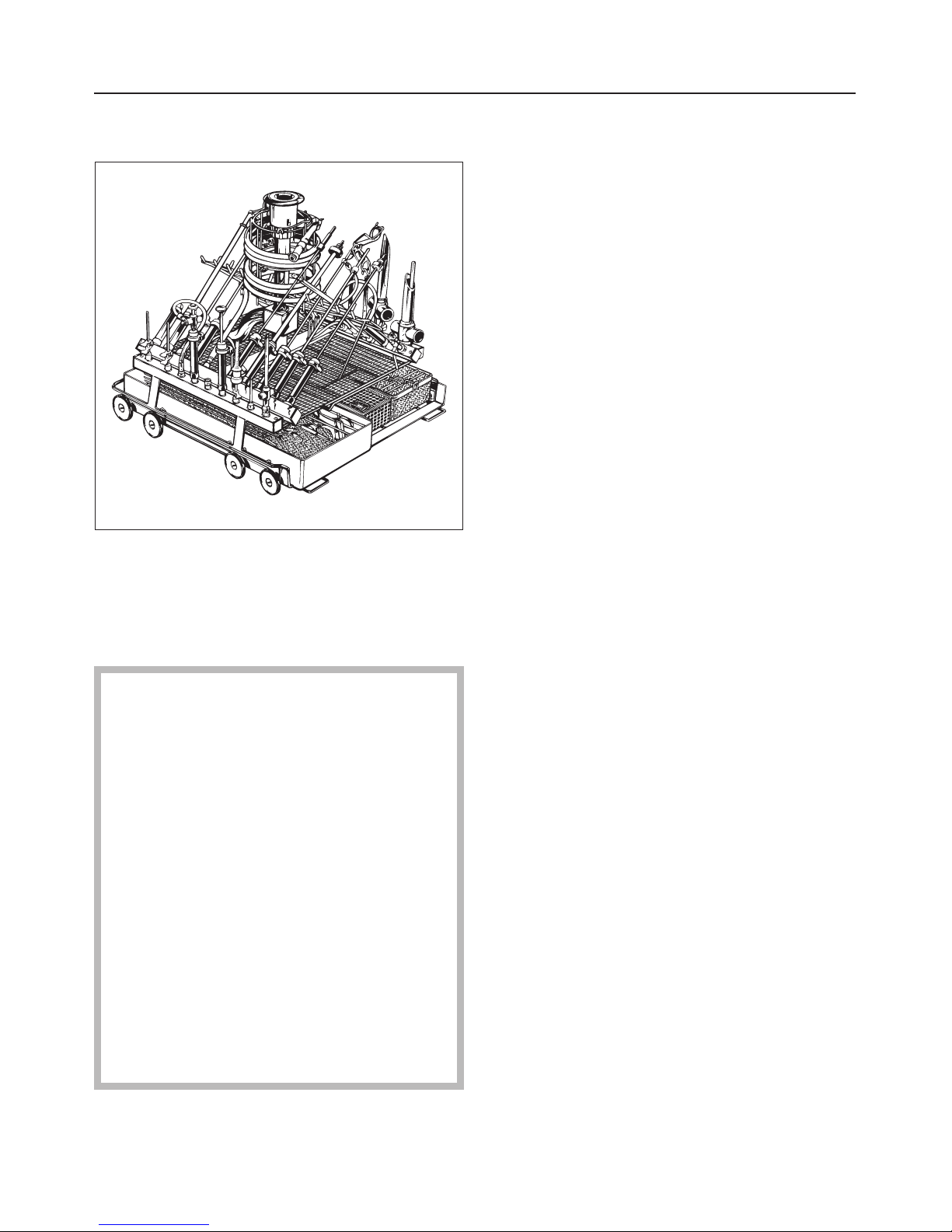

MIS injector mobile unit E 450
Loading instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Loading examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Addin deter ent
Addin neutralizin rinse
Cycle selection
WARNINGS AND SAFETY INSTRUCTIONS
Washer/Disinfector operation
Cycle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cycle phase indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Selecting an additional cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Interrupting a cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Unloadin the washer/disinfector
Pro rammin special functions
Cleanin and care
Maintaining the filter assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Maintaining the dispensing system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Maintaining the drying unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Reactivatin the water softener
Troubleshootin
Installation instructions
Contents
4

The following is a summary of the safety precautions which must be observed
when operating and servicing this equipment. These precautions are repeated (in
whole or in part), where applicable throughout the manual.
All relevant safety procedures must be obeyed. Relevant safety procedures
include, but are not limited to, the Centers for Disease Control’s Recom-
mended Infection Control Practices and the OSHA Bloodborne Patho ens
Standard.
READ ALL INSTRUCTIONS BEFORE
USING THE APPLIANCE
WARNING -
The manufacturer cannot accept responsibility for dama e caused when the
appliance is not used accordin to the instructions, or for uses other than
those for which it was intended.
The manufacturer cannot be held responsible for problems or injuries result-
in from improper installation, use or operation of this equipment.
WARNINGS AND SAFETY INSTRUCTIONS
5

WARNING - PERSONAL INJURY
HAZARD: Do not allow small chil-
dren or unauthorized personnel access
to the washer/disinfector or its controls.
WARNING - EXPLOSION
HAZARD: Do not install the
washer/disinfector in areas where flam-
mable compounds/vapors are
present.
WARNING - PERSONAL INJURY/
EQUIPMENT DAMAGE HAZARD:
Repair work must be carried out only by
a qualified and competent service tech-
nician. Repairs by unqualified persons
or installation of unauthorized parts
could cause personal injury, result in
costly equipment damage or void the
washer/disinfector warranty.
WARNING - BURN HAZARD:
Except for an emergency, do not
open door when cycle is in process. In
an emergency, first stop the cycle by
pressing the ON/OFF button. Press the
DRAIN touch pad and wait for
washer/disinfector to drain. Wear pro-
tective gloves and face shield when-
ever reaching into wash cabinet.
WARNING - ELECTRICAL SHOCK
HAZARD: Disconnect all utilities to
equipment before servicing. Do not ser-
vice equipment unless all utilities have
been properly locked out.
WARNING - PERSONAL INJURY/
EQUIPMENT DAMAGE HAZARD:
Only use detergents which have been
approved by Miele. Use of any other
products may cause personal injury, in-
validate the disinfection results or void
the washer/disinfector warranty.
WARNING - PERSONAL INJURY
HAZARD: The water in this
washer/disinfector is not suitable for
drinking.
WARNING - PERSONAL INJURY
HAZARD: Be careful when sorting
instruments with sharp pointed ends. If
possible, place the pointed end down-
wards.
WARNING - CHEMICAL BURN
HAZARD: Wear protective gloves
and goggles and use care when han-
dling liquids such as detergents or neu-
tralizing agents. Read and follow the in-
structions and safety procedures on the
packaging and in the Material Safety
Data Sheet (MSDS).
WARNINGS AND SAFETY INSTRUCTIONS
6

WARNING - PERSONAL INJURY/
EQUIPMENT DAMAGE HAZARD:
Empty containers and glassware before
placing in the washer/disinfector. Do
not allow any acids or solvents, espe-
cially hydrochloric acid and chlorides,
to get into the wash cabinet.
WARNING - PERSONAL INJURY/
EQUIPMENT DAMAGE HAZARD:
Internal cleaning and disinfecting to a
measurable standard can only be
achieved with instruments that can be
dismantled and where the jets, sleeves
and adapters are used appropriately. A
special examination, over and above a
visual one, of the cleanliness of the in-
ner area of the instruments should be
made. Minimally invasive surgical (MIS)
and dental instruments should prefera-
bly be processed using the DISIN
VARIO 93°C-10 MIN or DISIN 93°C-10
MIN program with recommended deter-
gents.
WARNING - BURN HAZARD: Allow
accessories to cool to room tem-
perature before unloading. Any water
which may have collected in incorrectly
loaded items will be very hot and
should be emptied into the wash cabi-
net.
WARNING - BURN HAZARD:
Do not touch the heating elements
in wash cabinet after the end of a cycle.
WARNING - TIPPING HAZARD: Do
not sit or lean on the open door.
This could cause the washer/disinfector
to tip.
WARNING - FALL HAZARD:
To prevent falls, keep floors dry by
immediately wiping up any spilled liq-
uids in washer/disinfector loading and
unloading areas.
WARNING - ELECTRIC SHOCK
HAZARD: Washer/disinfector must
be correctly grounded!
WARNING - POTENTIAL
BIOHAZARD: Always use DISIN-
FECTION cycles when processing den-
tal or medical instruments and acces-
sories. Only DISINFECTION cycles pro-
vide high levels of disinfection.
WARNING - PERSONAL INJURY/
EQUIPMENT DAMAGE HAZARD:
Do not fill the white cylindrical container
with cleaning detergent! Fill with reacti-
vation salt only! Otherwise the pressur-
ized container may cause injuries by
unscrewing.
WARNINGS AND SAFETY INSTRUCTIONS
7

If thermal disinfection is required
(93 °C / 10 min.), the process
needs to be checked and documented
regularly. This can be done by check-
ing the disinfection control diode on the
machine. Alternatively, a chemical indi-
cator may be used (e.g. the Disinfec-
tion Control Tubes by A. Browen Ltd.,
supplied by Miele). These disinfection
control tubes should be placed in the
filter combination. After the disinfection
cycle, they may be inspected by re-
moving the coarse filter.
CAUTION: Washer/disinfector must
not be used without all filters in
place.
CAUTION: Use only accessories
specifically designed for this
equipment. Load accessories into
washer/disinfector in accordance with
the instructions provided.
CAUTION: The operator is respon-
sible for monitoring and guarantee-
ing the standard of disinfection in the
routine disinfection cycle. Disinfection
parameters should be checked regu-
larly using chemical indicators, and
contamination levels checked and doc-
umented periodically using biological
indicators.
SAVE THESE
INSTRUCTIONS
WARNINGS AND SAFETY INSTRUCTIONS
8

The G 7782 CD Washer/Disinfector is
intended for cleaning and disinfection
of dental and general medical instru-
ments and accessories. It cleans and,
when using the disinfection cycles, si-
multaneously thermally disinfects at
(93 °C) instruments and accessories.
Areas of effectiveness are physical re-
moval or thermal inactivation of vegeta-
tive bacteria including mycobacteria,
fungi, fungal spores, and viruses.
These categories include the Mycobac-
terium tuberculosis and the
Enterococcus faecium.
The intended use is identical for pro-
cessing medical and dental instrumen-
tation. Miele, Inc. considers general
medical instruments to be only insignifi-
cantly different from detal instruments.
Materials used are identical (mostly
stainless steel); architectures are sim-
ple and very similar.
Important: Only the cycles labeled
‘DISINFECTION’ disinfect! Always use
these cycles when handling contami-
nated items. All other cycles are de-
signed to clean items without disinfect-
ing them!
IMPORTANT: Centers for Disease Con-
trol Publication PB85-923404,
Guideline
for Handwashing and Hospital Environ-
mental Control, 1985,
defines the pro-
cessing requirements for critical,
semi-critical and non-critical instru-
ments. Refer to these definitions to de-
termine when and under what condi-
tions the G 7782 CD Washer/Disinfector
can be used.
Indications for use
9

1 CHECK WATER INLET/DRAIN
indicator light
2 REACTIVATE WATER SOFTENER
indicator light
3 ADD LIQUID DETERGENT
indicator light
4 ADD NEUTRALIZING AGENT
indicator light
5 Cycle phase indicator lights
6 Indicator display field
7 Door release button
8 On-Off button
9 Cycle selector touch pads
Guide to the disinfector
10

10 Dispenser for detergent (blue)
and neutralizing agent (red)
11 Filter assembly
12 Safety fuse
(anti-block feature) for drying unit
13 Operating hours counter for
drying unit
14 Temperature selector for
drying unit
15 Service panel
16 Dispenser for liquid rinsing
agent with dosage selector
17 Level indicator for rinsing
agent
18 Filter combination
19 Salt reservoir
(water softener)
Guide to the disinfector
11

To open the door
^Press the DOOR button on the control
panel and open the door.
WARNING - BURN HAZARD: Except
for emergency, do not open door
when cycle is in process. In an
emergency, first stop the cycle by
pressing ON/OFF button. Press
DRAIN touch pad and wait for
washer/disinfector to drain. Wear
protective gloves and face shield
whenever reaching into wash cabi-
net.
The door should only be opened during
cycle operation for emergencies, e.g. if
articles are knocking together. (Refer to
"Interrupting a cycle".)
WARNING - TIPPING HAZARD: Do
not sit or lean on open door.
To close the door
Lift the door upwards and push until it
clicks into position. Do not press the
DOOR button.
Openin and closin the door
12

Instruments suitable for
processin in the
Washer/Disinfector
All instruments, accessories, and other
items to be cleaned and disinfected in
the G 7782 CD Washer/Disinfector must
have the following properties:
–Heat resistance to temperatures of at
least 93 °C.
–Corrosion resistance in the presence
of heat, alkalinity and water.
Certain items and materials are not
suitable for processing in the G 7782
CD Washer/Disinfector.
Instruments not suitable for
processin in the
Washer/Disinfector
– Carbon steel and chrome steel de-
vices as they may corrode.
– Flexible endoscopes.
–Light cables, fiber optics, rotating
devices, motors or other electrical
equipment unless the device manu-
facturer approves the processing.
Handpieces, drill bits, grinders, root ca-
nal instruments or other rotating instru-
ments only have a limited suitability for
the washer/disinfector. Please ask the
manufactrer’s advice on the suitability
for processing in this system.
Rhodium coated specula must be ar-
ranged so that their surfaces do not
suffer any mechanical damage. Not all
specula with glass are suitable for ma-
chine treatment.
NOTE: Aluminum devices can only be
processed using the DISINFECTION
VARIO 93 °C – 10 MIN cycle with Neu-
tral pH Detergent as they may discolor
otherwise. Aluminum only has a limited
suitability for processing in this system.
NOTE: Always contact the device man-
ufacturer to confirm processing com-
patibility if you have any concerns
about the suitability of a specific item.
,
WARNING – POTENTIAL
BIOHAZARD: Always use DISIN-
FECTION cycles when processing
medical and dental instruments and
accessories. Only DISINFECTION
cycles provide high-level disinfec-
tion.
^Please visually inspect instruments
and cassettes to make sure they are
free from deposits before wrapping
and sterilization.
Cleanin Without Disinfection
All other cycles are designed to clean
goods without disinfecting them. These
programs are:
–RINSE
–WASH 93 °C
^Please refer to “Cycle selection” for
detailed information.
Instrument Guidelines
13

CAUTION: Use only accessories
specifically designed for this equip-
ment.
The washer/disinfector normally uses
an upper and a lower basket.
Depending on the type and shape of
the items being cleaned, accessory
baskets and inserts can be utilized. Se-
lect baskets and inserts which are ap-
propriate for the application (see sepa-
rate product literature).
Loadin accessory
baskets/inserts
WARNING - PERSONAL INJURY/
EQUIPMENT DAMAGE HAZARD:
Empty containers and glassware be-
fore placing in the washer/
disinfector. Do not allow any acids or
solvents, especially hydrochloric
acid and chlorides to get into the
wash cabinet.
WARNING - PERSONAL INJURY
HAZARD: Be careful when sorting
instruments with sharp pointed
ends. If possible, place pointed end
downwards.
1. Empty all items to be cleaned before
loading into the basket or insert.
2. Remove gross soil/debris from all
items to be cleaned before loading
into the basket or insert.
3. Load the items to be cleaned so the
water will come into contact with all
surfaces. This ensures that they will
be properly cleaned and disinfected.
^Do not place items to be cleaned in-
side other pieces where they may be
concealed.
^Vessels should be inverted and
placed in the correct accessory in-
serts.
^Deep-based items should be placed
at enough of an angle for water to run
off them freely.
^Tall and narrow pieces should be
placed in the center of the basket to
ensure good coverage with water.
4. In order to avoid corrosion, it is rec-
ommended that only heat and corro-
sion resistant items be cleaned in the
washer/disinfector. For the suitability
of instruments, please refer to "Instru-
ment Guidelines".
5. The spray arms must not be blocked
by items which are too high for the
basket or which hang down. If nec-
essary, manually rotate the spray
arms to test it.
Loadin the washer/disinfector
14

Loadin the washer/disinfector
WARNING - FALL HAZARD: To pre-
vent falls, keep floors dry by immedi-
ately wiping up any spilled liquids in
washer/disinfector loading and un-
loading areas.
CAUTION: Load baskets and inserts
into washer/disinfector in accor-
dance with the instructions provided.
Care should be taken to remove (den-
tal) cement or amalgam from the instru-
ments. However, where necessary, the
instruments can be cleaned manually
after thermal disinfection (following
health and safety regulations) with mini-
mized danger.
Make sure the spring loaded coupling
engages correctly when the upper bas-
ket is inserted into the washer/
disinfector. There should be a tight fit
between the coupling and the water in-
let connector at the top of the chamber.
If there is not, adjust the adapter as fol-
lows:
^Loosen the holding ring on the upper
basket.
^Push up the adapter so it is 1/4’’
higher than the water inlet connector,
and tighten the holding ring.
Adjustable upper basket
Adjustable upper baskets can be used
in this machine. They can be raised or
lowered by 3/4" (2 cm) from the initial
setting. In the middle position, the up-
per basket will accommodate:
^instruments, utensils, accessories
and inserts up to 7 1/2" (19 cm) in
height
while the lower basket can accommo-
date:
^instruments, utensils, accessories
and inserts up to 9 13/16" (25 cm) in
height.
For further details re ardin con-
tainer hei ht combinations, see table
below.
Top
basket
position
Top basket height Bottom basket
height
(cm) (inches) (cm) (inches)
top 17 6 11/16 27 10 5/8
middle 19 7 1/225 9 13/16
bottom 21 8 1/423 9 1/16
To adjust the upper basket
^Pull out the upper basket until a resis-
tance is felt, lift from the runners and
remove.
Unscrew the knurled nuts on both sides
of the basket and reposition as neces-
sary.
Loadin the washer/disinfector
15

Loadin examples
Miele offers a wide variety of baskets
and inserts for many medical and den-
tal applications.
Please see the following pages for in-
structions on loading specific baskets /
inserts.
Please contact a Miele representative
for recommendations on the appropri-
ate basket / insert for your cleaning
needs.

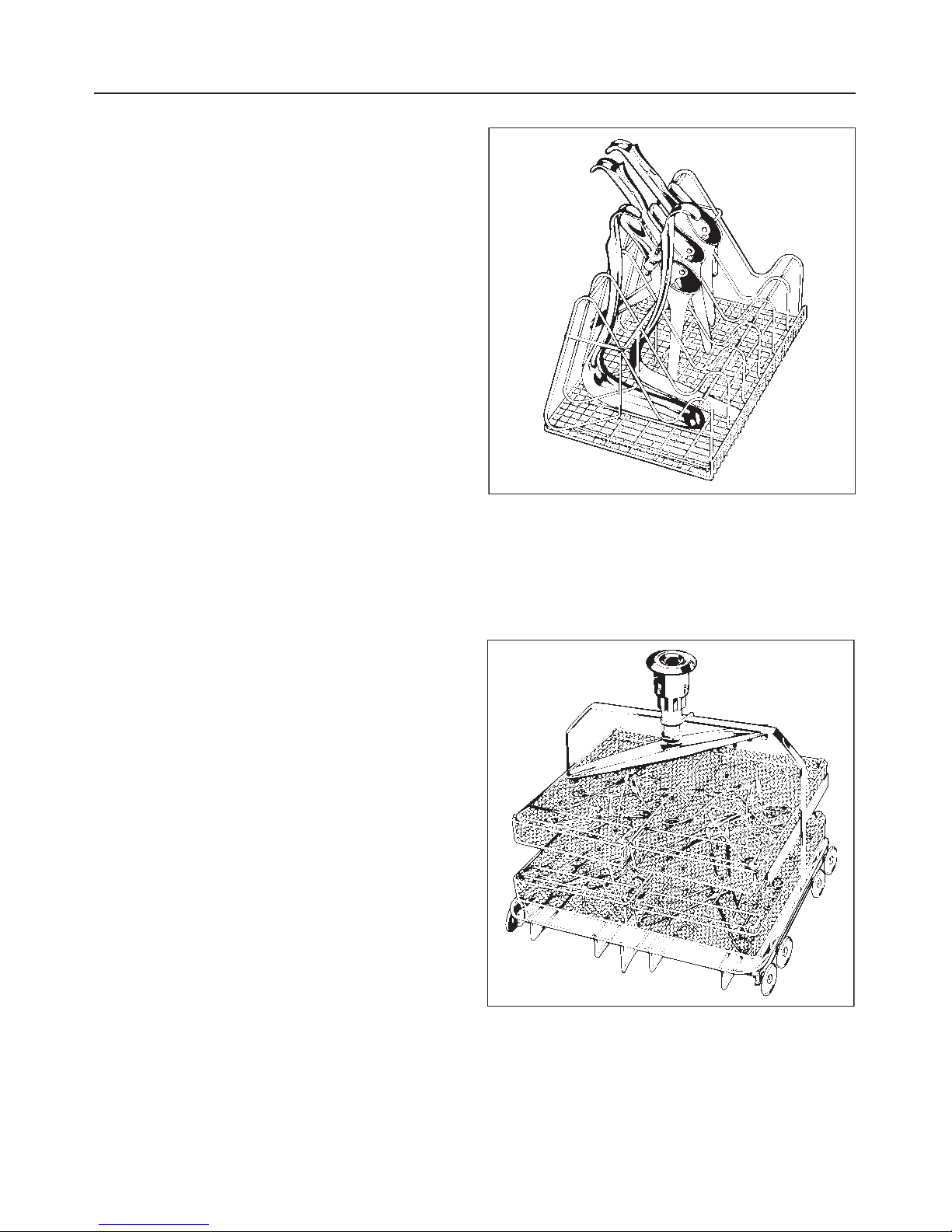

E-414
1/4ENT Insert
For speculums used in gynecological
applications. Load as illustrated.
E-327
2-Level Mobile Unit
with 2 levels for mesh trays. Unit is sold
seperately from mesh baskets in the il-
lustration.
Loadin examples
16

E-417

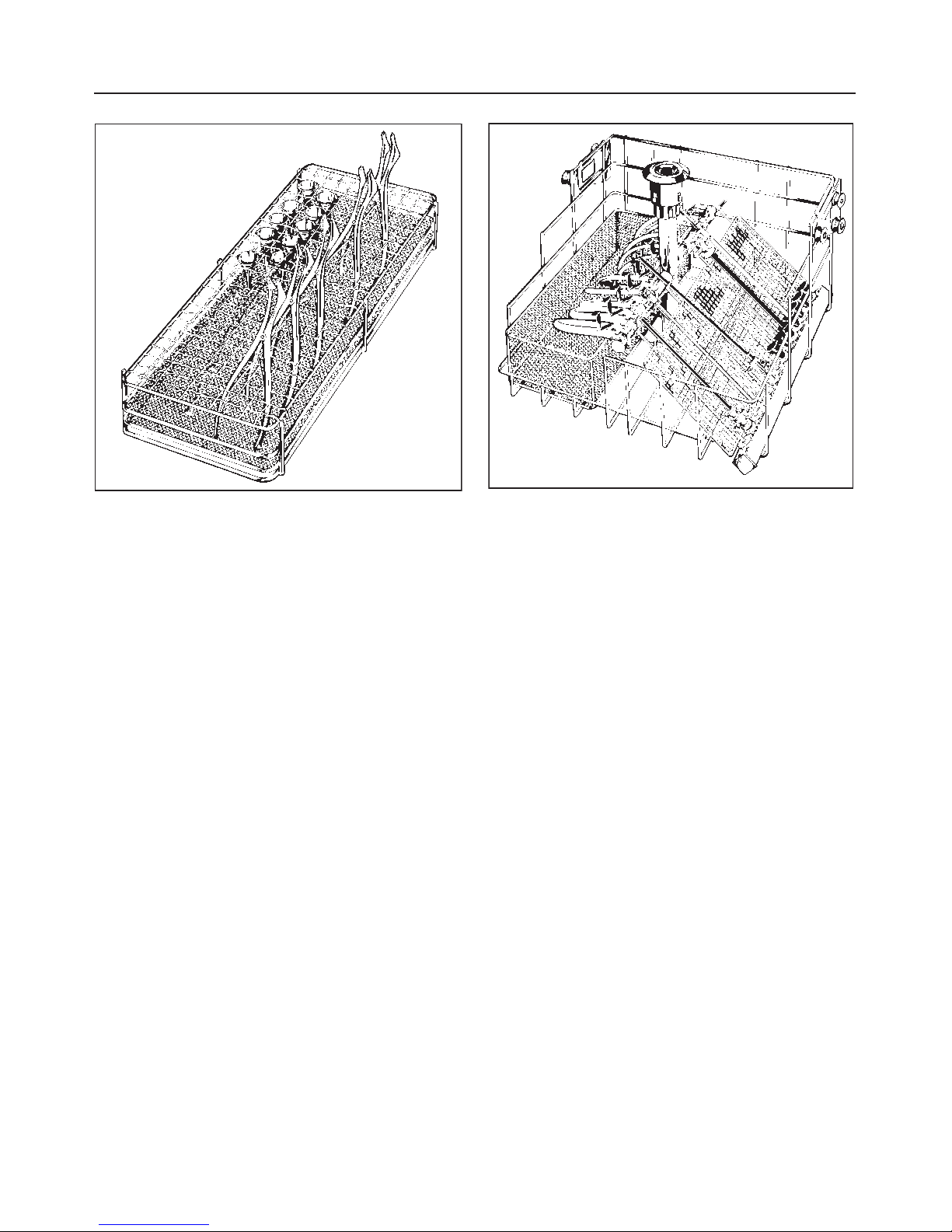

2/5ENT Insert
For ear and nose speculums. Load as
illustrated to ensure that speculums are
open for cleaning.
E-176
Upper basket with Dryin Connection
for ri id endoscopes
Right-hand side: 14 jets/funnels for
parts of rigid endoscopes, max. length
50 cm. 10 jets with clips are fitted for
catheters.
Left-hand side: mesh basket for loose
instruments (sold seperately).
Loadin examples
17

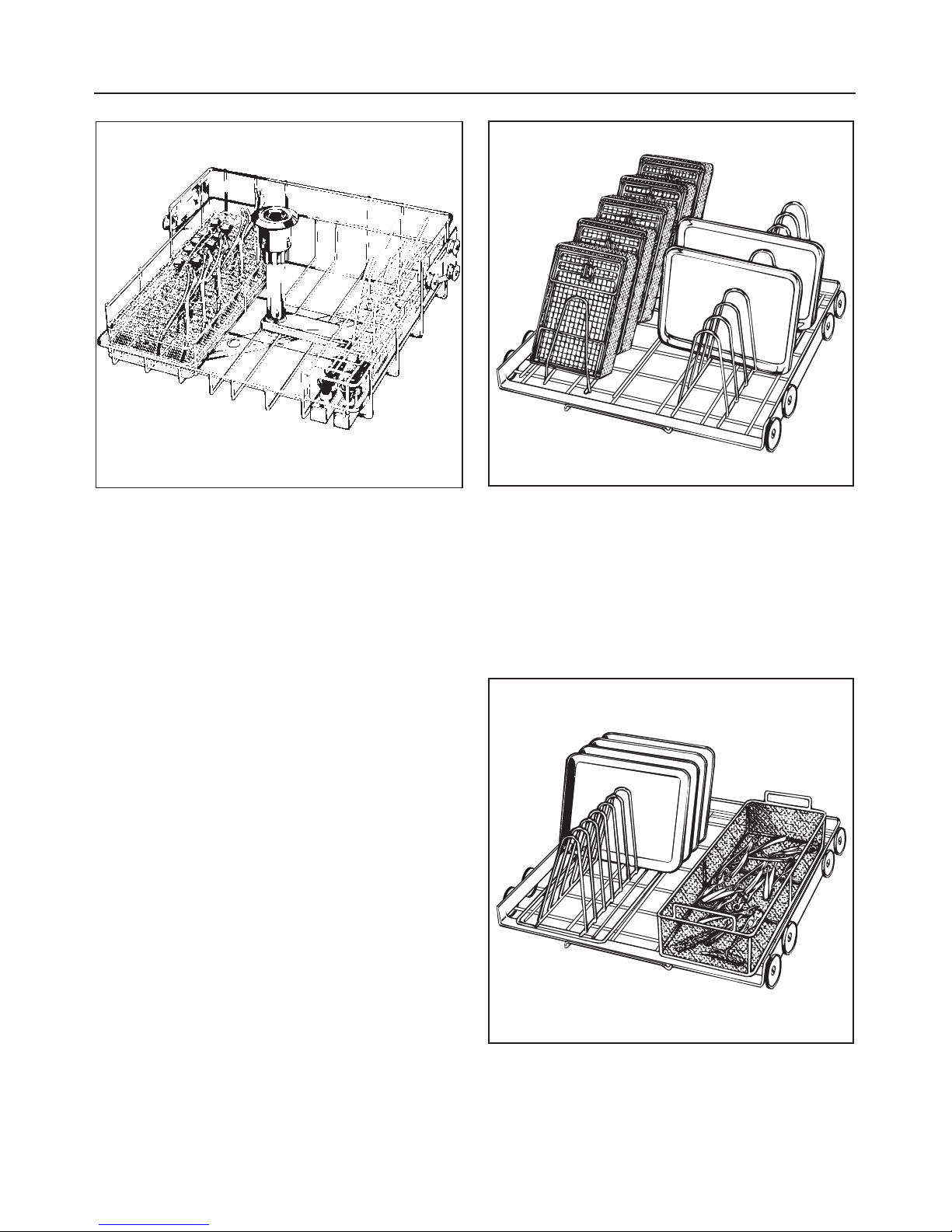

Upper basket O 177
The upper basket O 177 features 28
jets/funnels for direct injection of hollow
instruments like syringe tips or evacua-
tion tips. The left side is free for alterna-
tive inserts (sold seperately).
Place hollow instruments directly onto
the jets. If the inner diameter of the hol-
low instruments do not allow for posi-
tioning onto the jets, the jets may be re-
placed by funnels.
Lower basket U 874
Inserts sold seperately:
Left side: insert E 131 for 5 mesh trays
(E 146 - 2 5/32" x 5 7/8") and holders
(E 328) for double sided instruments.
Right side: E 130 insert for 10 trays.
Lower basket U 874 insert
Left side: E 130 insert for 10 trays.
Right side: E 379 universal mesh tray
for various loose instruments.
Loadin examples
18

Additional baskets, inserts and accessories not pictured:
O190 Standard upper basket
E 363 Mesh tray with lid for various instruments (1/32” wire mesh)
E 378 Insert for lower basket.
Full size mesh tray (for various instruments) without lid
E 338 Insert for lower and upper basket – for 8 half trays
E 441 Instrument container (1 31/32” x 7 1/16”)
E 417 Insert for lower basket – for miscellaneous items
E 373 Mesh tray with instrument holders
E 339 Insert for lower basket – for 16 tray bases
E 308 Insert for lower basket – for 7 half trays
Loadin examples
19

Loadin instructions
Important:
The "Warnin s and Safety instruc-
tions" pa es must be observed.
WARNING - PERSONAL INJURY/
EQUIPMENT DAMAGE HAZARD:
Internal cleaning and disinfecting to
a measurable standard can only be
achieved with instruments that can
be dismantled and where the jets,
sleeves and adapters are used ap-
propriately. A special examination,
over and above a visual one, of the
cleanliness of the inner area of the
instruments should be made. MIS in-
struments should preferably be pro-
cessed using the DISIN VARIO
93°C-10 MIN or DISIN 93°C-10 MIN
program with recommended deter-
gents.
^Put 5 mm and 10 mm Ø shafts into
the appropriate sleeves (E-442 or
E-443).
^Do not load the lower levels with
more inserts than as shown above in
the example (from left to right
E-457, E-460, E-451)
^Trocars of a wider diameter will be
cleaned more effectively in the front
or the rear position of the row of jets.
Other accessories and fittin not pic-
tured:
^E 442 5 mm Ø injection sleeve
^E 443 10 mm Ø injection sleeve
^E 445 caps for E 442 sleeves
^E 446 caps for E 443 sleeves
^E 447 Adapter for Luer lock
(female)
^E 452 Injector jet Ø 2.5 x 60 mm
^E 362 Blanking screw
^E 444 Insert for fiber optic
(cold-light) cable or
suction hose
MIS injector mobile unit E 450
20
Table of contents
Other Miele Washer manuals

Miele
Miele PW 6101 User manual

Miele
Miele W 504 Plus User manual

Miele
Miele APCL 002 User manual

Miele
Miele W 1945 User manual

Miele
Miele W 1966 WASHING MACHINE - OPERATING User manual

Miele
Miele WCG 660 User manual

Miele
Miele W 5903 WPS User manual

Miele
Miele W 828 User manual

Miele
Miele TX2070 User manual

Miele
Miele WED 665 Excellence User manual

Miele
Miele WKH 130 WPS User manual

Miele
Miele WWH 860 User manual

Miele
Miele WWV 980 WPS Passion User manual

Miele
Miele WWD 120 User manual

Miele
Miele W 2662 WPS User manual

Miele
Miele W 3203 User manual

Miele
Miele PW 6065 Vario User manual

Miele
Miele W 2859i WPM SUPERTRONIC User manual

Miele
Miele WCI 670 User manual

Miele
Miele W 6073 User manual
