Miele W 1724 User manual

Operating instructions
for Washing machine
W 1724
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 468 610
en-GB

Disposal of the packing
material
The packaging is designed to protect
the machine from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation!
Disposal of your old machine
Electrical and electronic machines
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly, could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your machine. Please do
not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for our environment
2

Caring for our environment .........................................2
Warning and Safety instructions .....................................6
Operating the washing machine.....................................13
Control panel .....................................................13
Before using for the first time.......................................15
Washing environmentally and economically ..........................16
Energy and water consumption ....................................16
Detergent .....................................................16
How to wash correctly.............................................17
Spinning ........................................................22
Final spin speed ..................................................22
Delay start.......................................................23
Extra options ....................................................26
Garment care label symbols ........................................27
Programme sequence .............................................28
Changing the programme sequence .................................30
Cancelling a programme ............................................30
Interrupting a programme ...........................................30
Making changes to a programme .....................................30
Adding or removing laundry after a programme has started ................31
Safety lock .......................................................31
Contents
3

Detergent .......................................................32
The correct detergent ..............................................32
Water softener ....................................................34
Washing with several components ....................................34
Fabric conditioners and liquid starch ..................................35
Automatic dispensing of fabric conditioner or liquid starch to laundry
at the end of a programme ........................................35
Colour run and dye removers / dyes ...................................35
Cleaning and care ................................................36
External casing and fascia panel .....................................36
Extra cleaning ..................................................36
Cleaning the detergent dispenser drawer...............................36
Cleaning the water inlet filters ........................................38
Problem solving guide ............................................39
The programme does not start .......................................39
Fault messages in the display ........................................40
General problems .................................................41
An unsatisfactory wash result ........................................42
The drum door does not open when you press the Door button..............43
Opening the drum door in the event of a blocked drain outlet and/or
power failure .....................................................44
Blocked drain outlet .............................................44
After sales service ................................................46
Future updates (PC) .............................................46
Guarantee .....................................................46
Optional spare parts and accessories ...............................46
Installation and connection ........................................47
Front view........................................................47
Rear view ........................................................48
Installation surface.................................................49
Transporting the machine to its installation site ........................49
Removing the transit bars ...........................................49
Re-fitting the transit bars ............................................51
Contents
4

Levelling the machine ..............................................52
Screwing out and adjusting the feet .................................52
Building under a worktop .........................................53
Washer-dryer stack..............................................53
The Miele water protection system ....................................54
Connection to the water supply .......................................55
Connection to the drainage system....................................56
Electrical connection U.K. ...........................................57
Consumption data ................................................58
Notes for test institutes: ..........................................58
Technical data ...................................................59
Programmable functions...........................................60
To access programmable functions .................................60
To select a programmable function .................................60
To alter a programmable function ..................................60
To come out of programmable functions .............................60
Language !......................................................60
Water plus .......................................................61
Gentle action .....................................................61
Suds cooling .....................................................61
Code ...........................................................62
Temperature unit ..................................................63
Buzzer ..........................................................63
Keypad tone .....................................................63
Brightness .......................................................63
Contrast .........................................................63
Standby display ...................................................64
Memory .........................................................64
Anti-crease.......................................................64
Optional accessories..............................................65
CareCollection ....................................................65
Contents
5

This machine complies with current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the machine,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, use and
maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~This washing machine is intended for use in domestic households
and in similar working and residential environments.
~The machine is not intended for outdoor use.
~It must only be used as a domestic appliance to wash items
which are specified by the manufacturer as being machine-
washable on the wash care label, and textiles composed of hand-
washable wool or wool blend fabrics as well as satin, lace, silk and
other hand-washable garments. Miele cannot be held liable for
damage resulting from incorrect or improper use or operation.
~The machine can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, if
they are supervised whilst using it or have been shown how to use it
in a safe way and recognise and understand the consequences of
incorrect operation.
Warning and Safety instructions
6

Safety with children
~Children under 8 years of age must be kept away from the
machine unless they are constantly supervised.
~Children 8 years and older may only use the machine
unsupervised if they have been shown how to use it in a safe way
and recognise and understand the consequences of incorrect
operation.
~Children must not be allowed to clean or maintain the machine
unsupervised.
~Please supervise children in the vicinity of the washing machine
and do not let them play with it.
~For machines with a 'porthole' door, remember that the porthole
glass will be hot when washing at high temperatures
Do not let children touch it.
Warning and Safety instructions
7

Technical safety
~Before setting up the washing machine, check it for any externally
visible damage.
Do not install or use a damaged machine.
~Before connecting the machine, ensure that the connection data
on the data plate (fuse rating, voltage and frequency) match the
mains electricity supply. If in any doubt, consult a qualified
electrician.
~The electrical safety of this washing machine can only be
guaranteed when correctly earthed. It is essential that this standard
safety requirement is met. If in any doubt please have the electrical
installation tested by a qualified electrician. The manufacturer
cannot be held liable for the consequences of an inadequate
earthing system (e.g. electric shock).
~Do not connect the washing machine to the mains electricity
supply by an extension lead. Extension leads are a fire hazard and
do not guarantee the required safety of the machine.
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can Miele
guarantee the safety standards of the machine.
~Please observe the instructions in "Installation and connection"
and "Technical data".
~The electrical socket should be easily accessible after installation
so that the machine can be disconnected from the electricity supply
when necessary.
Warning and Safety instructions
8

~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician, otherwise any
subsequent damage will not be covered by the guarantee.
~If the electrical connection cable is faulty it must only be replaced
by a Miele approved service technician to protect the user from
danger.
~The machine must be isolated from the electricity supply when
cleaning and maintaining the machine and in the event of a fault.
~This machine must only be connected to the on-site water supply
using a new hose kit. Old hoses must not be re-used.
~This machine must not be used in a non-stationary location (e.g.
on a ship).
~Do not make any alterations to the machine, unless authorised to
do so by Miele.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the guarantee.
Warning and Safety instructions
9

Correct use
~The maximum load of dry laundry for this machine is 6 kg. See
the "Programme chart" for the maximum recommended loads in
individual programmes.
~Do not install your washing machine in rooms where temperatures
below freezing may occur. Frozen hoses may burst or split. The
reliability of the electronic control unit may be impaired at
temperatures below freezing point.
~Before using the machine for the first time, check that the transit
bars at the rear of the machine have been removed (see "Installation
and connection - Removing the transit bars"). During spinning, a
transit bar which is still in place may result in damage to both the
machine and adjacent furniture or appliances.
~Turn off the stopcock if the machine is to be left for any length of
time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.
~Flooding danger.
If hooking the drain hose into a wash basin, check that the water can
drain off quickly enough to prevent the sink from overflowing. Make
sure that the drain hose is secure, so that the force of the water
flowing out of the hose does not dislodge it.
~Take care to ensure that foreign objects (e.g. nails, pins, coins,
paper clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds
container, drum), which in turn can result in damage to the laundry.
Warning and Safety instructions
10

~If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
it, only use proprietary non-corrosive descaling agents and strictly
observe the instructions on the packaging. A special descaling
agent is available to order from Miele (see "Optional accessories").
~Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the machine.
~Do not use solvent based cleaning agents, e.g. those containing
benzine, in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.
~Do not use solvent based cleaning agents, e.g. those containing
benzine to clean the outside surfaces of this machine. They can
cause damage to plastic surfaces.
~Only use dyes specified by the manufacturer as being suitable for
use in a domestic washing machine. Always observe the
manufacturer's instructions carefully.
~Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
~If detergent comes into contact with the eyes, rinse them
thoroughly with lukewarm water immediately. If swallowed, seek
medical assistance immediately and retain the packaging or label
for reference. Those with skin problems or sensitive skin should
avoid their skin coming into contact with detergent.
Warning and Safety instructions
11

Accessories
~Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, guarantee, performance and product
liability claims will be invalidated.
~A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional
accessory). Please make sure you order the correct one for the
Miele washing machine and Miele tumble dryer.
~If installing the machine on a Miele plinth, (available as an
optional accessory, depending on country), please make sure you
order the right one for this washing machine.
Miele cannot be held liable for damage caused by non-
compliance with these Warning and Safety instructions.
Warning and Safety instructions
12

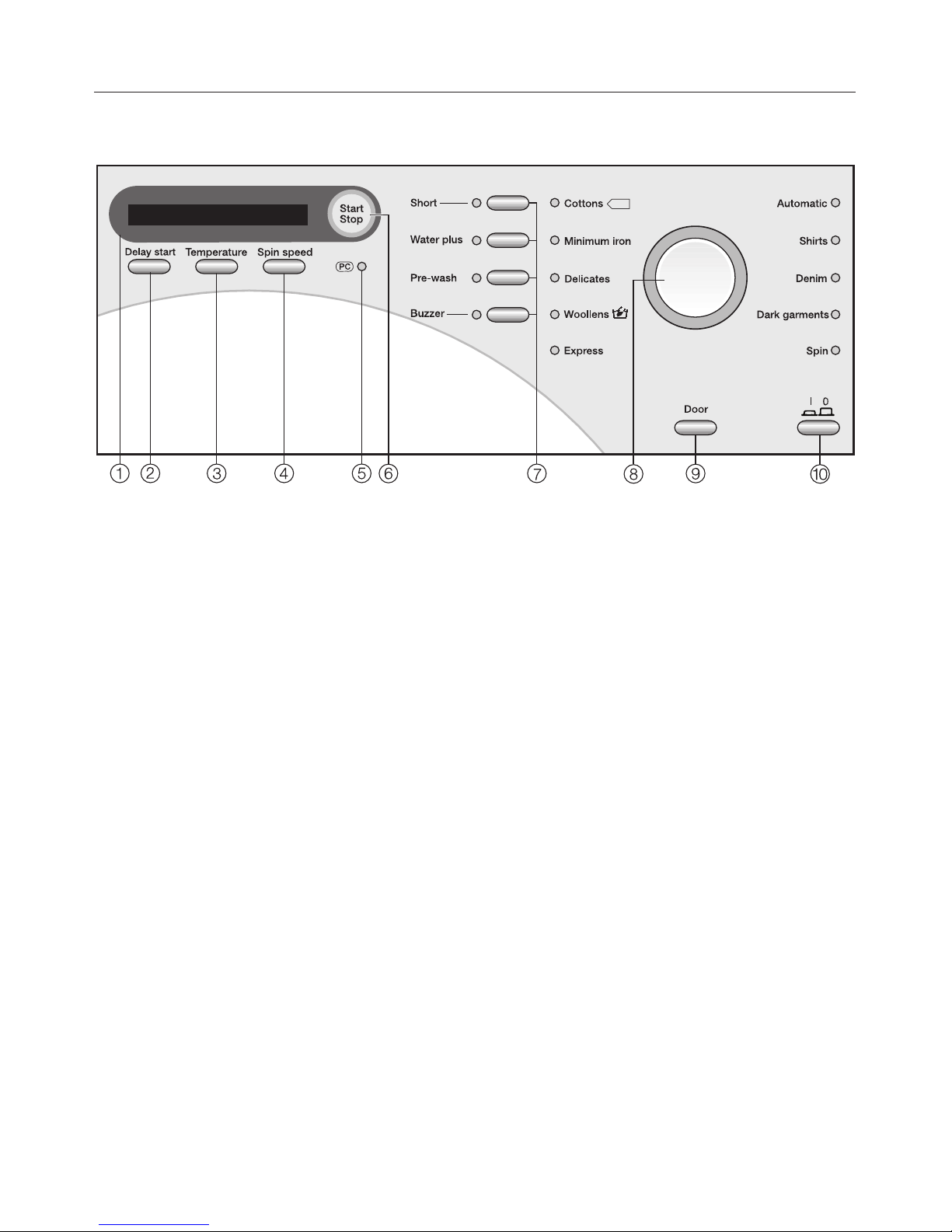

Control panel
aDisplay
See the following page for more
information.
bDelay start button
For delaying the start time of a
programme.
cTemperature button
For selecting a temperature.
dSpin speed button
For selecting the final spin speed or
Rinse hold/eor deselecting the
spin No ..
ePC / Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
fStart/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
gExtra option buttons
Various Extra options can be added
to the washing programmes.
hProgramme selector
For selecting a programme. The
indicator light next to the selected
programme will come on. The
programme selector can be turned
clockwise or anti-clockwise.
iDoor button
Opens the machine door.
j_button
For switching the machine on or off.
Operating the washing machine
13

The following are selected via the
display:
– wash temperature
– final spin speed
– delay start
– cancellation of a programme
– safety lock
– programmable functions
The display also shows:
–the programme sequence
Delay start
The delay start time selected will
appear in the display.
After the machine has started, the delay
start time counts down. If the delay start
time is more than 10 hours, it will count
down by the hour. If it is less than 9
hours and 59 minutes it will count down
minute by minute.
Once the delay start time has elapsed,
the programme will begin and the
programme sequence will appear in the
display.
Programmable functions
The programmable functions can be
used to tailor washing programmes to
suit your individual requirements. In
programming mode, the display will
show the function selected.
Operating the washing machine
14

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of water
leaks during use.
This washing machine has
undergone a thorough functional test
in the factory and there will be some
residual water in the drum from this
process.
For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.
Using detergent could result in an
excessive build-up of foam.
This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.
^Press the _button in.
If the washing machine is being
switched on for the first time, the
welcome screen will appear.
The welcome screen will appear in
the display every time the machine is
switched on until a programme
lasting longer than 1 hour has been
completed.
Setting the language
You will be asked to select the
language you require for the display. It
is possible to change the language at
any time via the programmable
functions.
!deutsch
^If the language shown is not the one
you want, select the language you do
want by turning the programme
selector. Confirm your selection by
pressing the Start/Stop button.
Reminder to remove transit bars
To avoid the risk of damage, the
transit bars must be removed before
the machine is used for the first time.
See "Installation and connection" for
instructions on how to do this.
^After removing the transit bars (if this
has not already been done by your
fitter), press the Start/Stop button.
Running your first programme
Run a Cottons rprogramme without
any laundry and without detergent.
^Open the stopcock.
^Press the Start/Stop button.
^At the end of the programme switch
the machine off.
The machine is now ready for use.
Before using for the first time
15

Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.
–Use the Automatic and Express
programmes for small loads.
–When smaller amounts of laundry are
washed using the Cottons
programme, the automatic load
recognition system will reduce the
amount of water and energy used.
– Using the Cottons 60°C programme,
instead of the Cottons 90°C
programme will give energy savings
of between 35% and 45%. This is
sufficient for most levels of soiling.
Detergent
–Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
–Adjust the dosage to the degree of
soiling of the laundry.
–Reduce the amount of detergent with
smaller loads (approx. 1/3less than
the amount recommended can be
used when washing a half load).
Choosing the correct extra option
(Short and Pre-wash)
Select:
– A wash programme together with the
Short extra option for light to normal
soiling where there are no obvious
marks.
– A wash programme without any extra
options for normal to heavy soiling
with visible staining.
– The Pre-wash extra option for laundry
with large amounts of dirt (e.g. dust,
sand).
When drying with a tumble dryer
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Washing environmentally and economically
16

Brief instructions
The headings numbered A,B,C,...
show the operating sequence and can
be used as brief instructions.
ASort the laundry
^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.
,If you use a solvent-based
cleaning agent (e.g. one containing
benzene) to pre-treat a stain, make
sure that any plastic parts (e.g.
buttons) are protected, and that the
cleaning agent is rinsed off before
washing the garment in the machine.
,Do not use solvent-based
cleaning agents in or on this machine.
^Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.
– Curtains: Remove lead weights first
or place in a laundry bag.
–Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–Turn garments inside out, if
recommended by the manufacturer.
–Close any zips, fasten hooks and
eyes etc before washing.
–Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.
Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (hsymbol)
How to wash correctly
17

BSwitch on the washing machine
CLoad the drum
^Press the Door button to open the
drum door.
^Unfold the laundry and load loosely
into the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
Make sure that items do not get
caught between the drum door and
the seal.
^Shut the door with a gentle swing.
DSelect a programme

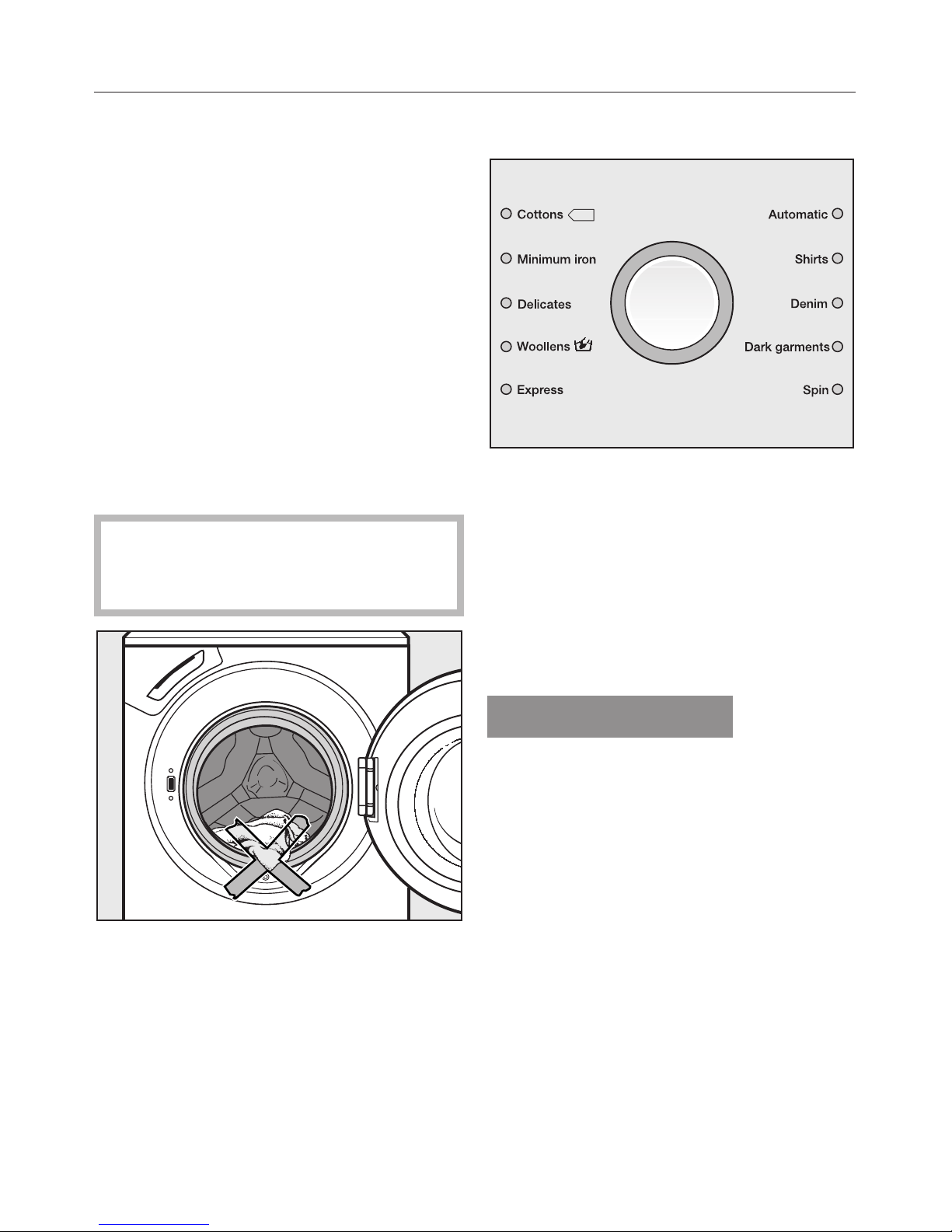

^Turn the programme selector
clockwise or anti-clockwise to the
required programme. The
programme indicator light for the
programme selected will come on.
ESelect a temperature / spin speed
The suggested temperature and/or spin
speed can be changed.
60° 1400
^Press the Temperature button to alter
the temperature and press the Spin
speed button to alter the spin speed.
How to wash correctly
18

FSelect extra option(s)
^Select any extra options by pressing
the appropriate button. The relevant
indicator light will come on to show
which extra option has been
selected.
Not all extra options are suitable for use
with every programme.
You can only select extra options which
are compatible with the programme
being used.
Short
For light to normal soiling with no visible
staining.
The duration of the main wash is
reduced.
Water plus
The water level in the main wash and
the rinses will be increased.
You can select other settings for Water
plus. These are described in
"Programmable functions".
Pre-wash
For laundry with large amounts of dirt
e.g. dust, sand.
Buzzer
An audible tone sounds repeatedly at
the end of a programme and when
Rinse hold is reached. The buzzer will
sound repeatedly until the drum door is
opened or the machine is switched off.
The volume of the buzzer can be
changed, see "Programmable
functions".
GSelect Delay start (if required)
The start of a programme can be
delayed from 30 minutes up to 24
hours, allowing you to make use of
night-time economy electricity rates, for
example.
See "Delay start" for more information.
How to wash correctly
19

HAdd detergent
It is important to dispense the correct
amount, because...
. . . too little detergent results in:
–Laundry not getting properly clean
and with time it may become grey
and hard to the touch.
–Greasy particles clinging to the
laundry.
–Limescale deposits on the heater
elements.
. . . too much detergent results in:
– Excessive foam which causes a low
level of agitation and poor wash,
rinse and spin results.
– Higher water consumption (an
additional rinse cycle will
automatically switch in).
– A burden to the environment.

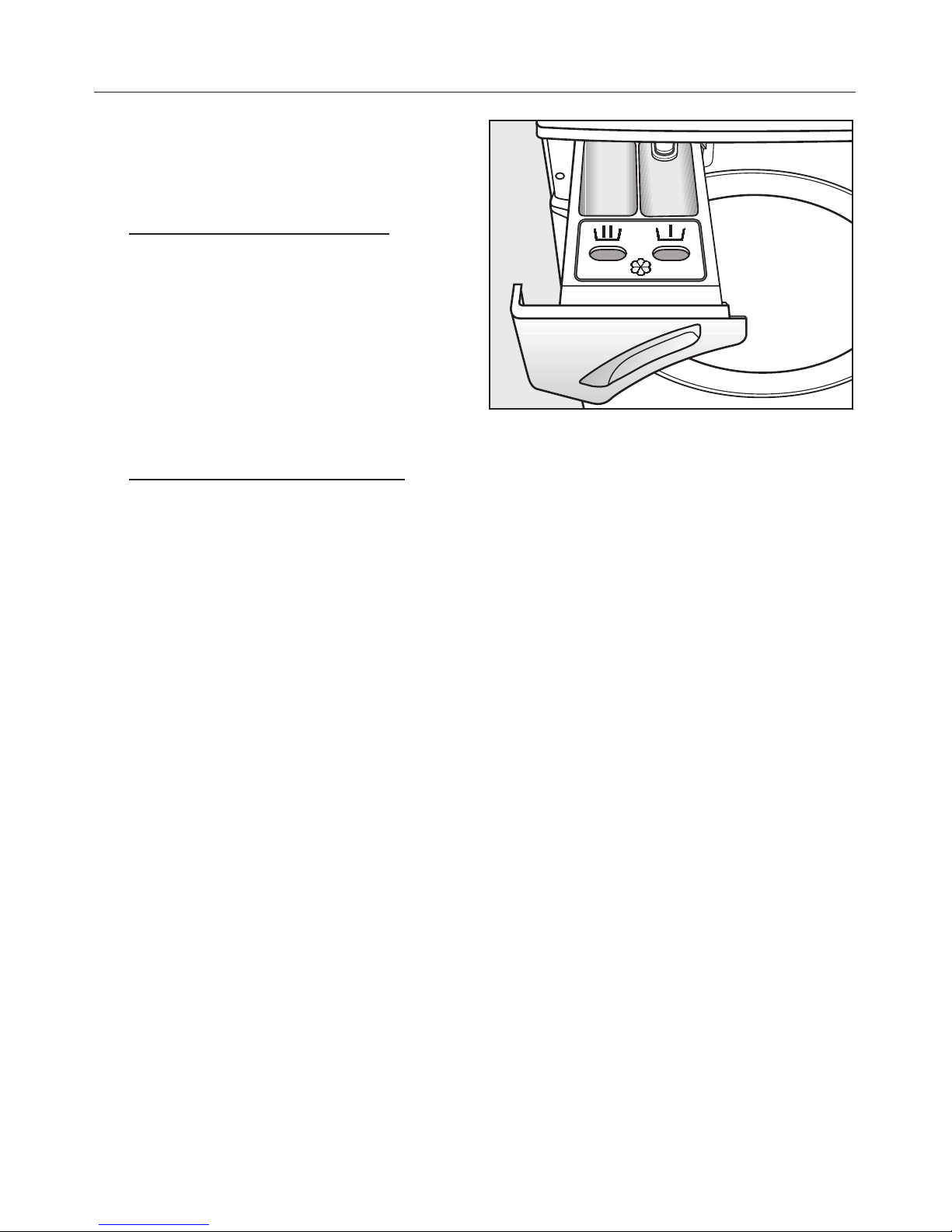

^Pull out the detergent drawer and
place detergent in the compartments
as follows:
i
Detergent for the pre-wash (divide
the total recommended amount as
follows: add 1/3to compartment i
and 2/3to compartment j)
j
Detergent for the main wash
§
Fabric conditioner or liquid starch
^Close the detergent drawer.
See "Detergent" for further information.
How to wash correctly
20
