Mimio MimioProjector Parts list manual

For more info, please visit us at mimio.com.
Join our worldwide teacher community at mimioconnect.com.
© 2013 Mimio

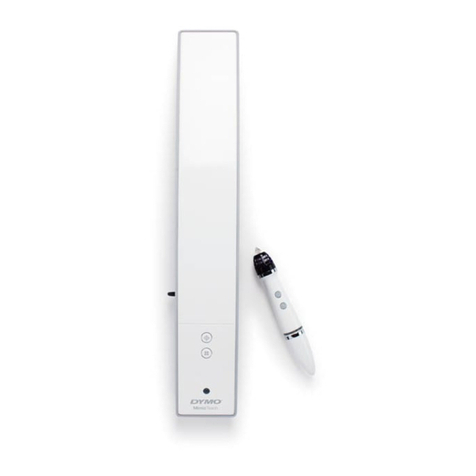

IR Module
Dual Pens*
Two students can work simultaneously at the board.
*Dual-pen functionality only available for Windows 7 and 8.
Control Panel
Status Lights
Power - Turn the projector on and o.
Resync - Adjusts analog signal timing
if there is a change in display resolution.
Source - Select the input signal.
Menu - Opens projector menu. Use
arrows to navigate through choices.
MimioProjector
Hardware Reference Card

For more info, please visit us at mimio.com.
Join our worldwide teacher community at mimioconnect.com.
© 2013 Mimio
Remote Control
Power - Turn the
projector on and o
HDMI - Switch to HDMI input
PC - Switch to VGA-A /
VGA-B input
Aspect - Select the
desired aspect ratio
Navigation Keys - Navi-
gate through menus or
make selections
Volume Control - Increase/
Decrease the volume of the
projector’s speakers
Mute - Mute the projector’s audio
Blank - Hide or show
the screen image
Keystone +/- - Adjust
image until the sides are
vertical
Freeze - Freeze or unfreeze
the image on the screen**
3D - Turn on and o 3D menu*
Video - Switch to Compos-
ite Video or S-Video input
ReSync - Adjusts analog
signal timing if there is a
change in display resolution
Source - Select the input signal
Projector Menu - Opens
the projector menu
*Mimio does not provide 3D content; DLP Link 3D and HDMI 1.4a 3D supported.
**Interactive projector is still active when screen is frozen.
MimioProjector
Hardware Reference Card
