Declaration
Please read the instructions carefully before equipment installation and
1
using the device.
Do not put the product in high temperature, humid or dusty environment.
Do not drop, crash or break down this product.
Do not power off the device when it’s formatting or upgrading, otherwise it
will cause operation system error.
This product is not waterproof.
Use only approved add-on enhancements.
Product Instruction
1. Camera (optional): 2M pixel camera
2. LED Indicator:
Red
System is booting.
Green
System is working properly.
Light Off Power supply is off.
3. SD Card Slot / Cover: support external SD card
4. Escape Button: return to the previous page
5. Function Keys (Up / Down): select the up/down item
6. Function Keys (Vol+ / Vol-): adjust the system volume
7. Speaker: audio output
8. VESA Mount Holes: for installing the bracket
9. DC In Jack: powered by 12V/2A DC input
10. Ethernet RJ45 Port: support Ethernet connection (10/100Mbps LAN)
11. USB Port: support USB 2.0 high speed 480Mbps
12. Micro-USB Port: support USB 2.0 high speed 480Mbps

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 2
2
13. Power Switch: switch power ON/OFF
14. Add-on module slot: to put optional add-on module
15. Headset + Microphone Jack
16. WIFI: 802.11b/g/n/ac 2.4G
17. Temperature：Operation: 0℃~ 40℃( 32F ~104F)
Storage: -10°C ~ 55°C (14°F ~ 131°F)
Power on the Product
Step1 Power on the power adapter that connected to this product.
Step2 Switch the power switch (#13in Product Instruction) on the back of
this product to ON.
Insert SD Card
This product supports external SD card. Please insert your SD card into the
SD Card Slot (#3 in Product Instruction) on the top of this product.
Insert USB Devices
This product supports USB and Micro-USB to deal with your files.
USB
Plug your USB memory into the USB port (#11in Product Instruction) on
the bottom of this product, and then you can do the file operations via the File
Browser. (See the details in Browse Files).
Micro-USB
Connect the Micro-USB port (#12 in Product Instruction) on the bottom of
this product and the USB port on your computer with a Micro-USB-to-USB
cable.
Click the “Turn on USB storage” button in the “USB mass storage” window
that pops up automatically to make the device memory visible in your
computer.

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 3
3
Home Screen

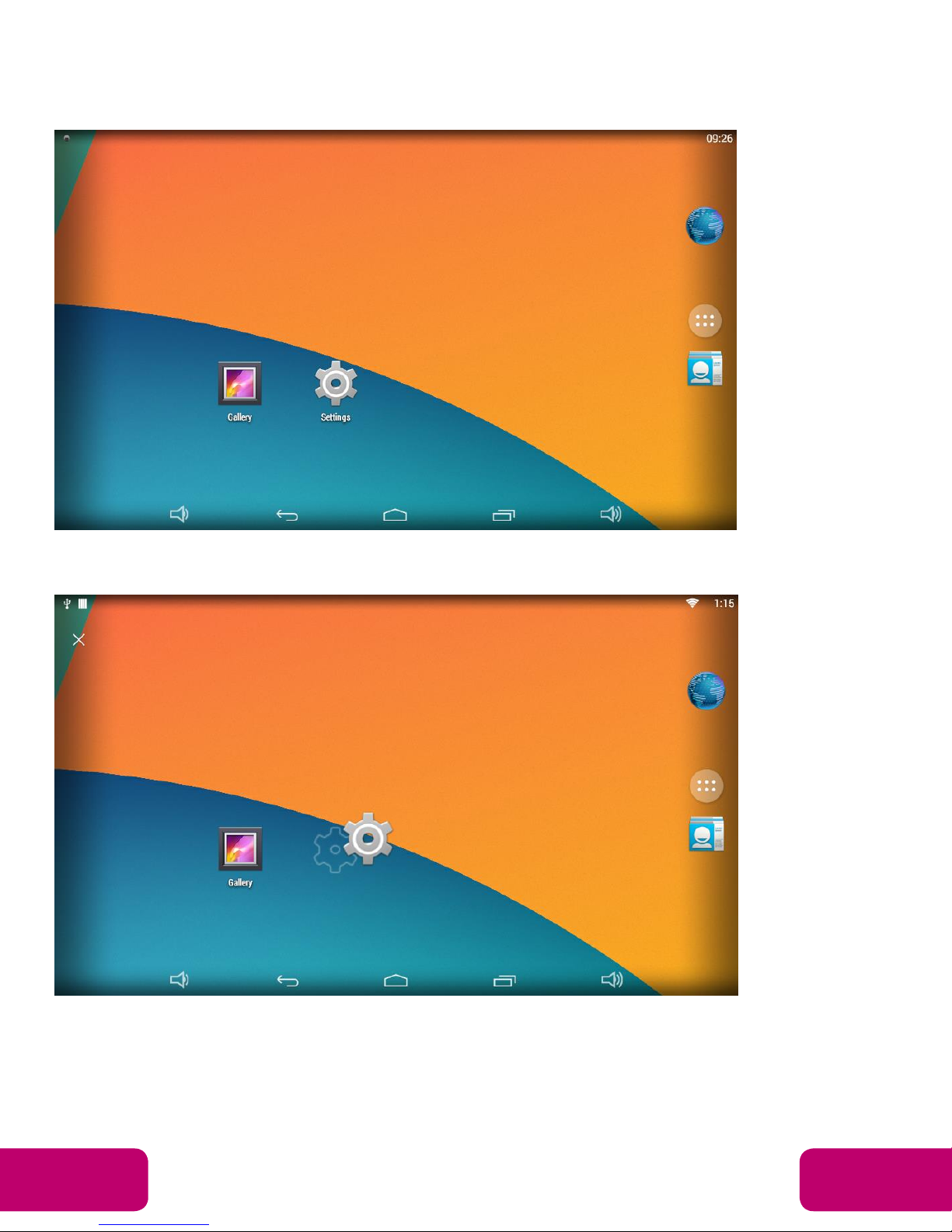

When the system starting completed, you will see the home screen.
In the home screen, you will see some app or widget icons. By long-press of
an icon, you can drag it to where you like.
If you want to remove an icon, sweep the icon up to the top of the screen.
By long-press of any space on a screen, wallpaper selection and widget
icons will occur. You could choose your wallpaper from “Wallpapers”.

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 4
4
Widgets
Clicking the “widgets”will open the widgets tab.
By long pressing an application, you could create a widget in the home page.

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 5
5
Combined System Bar

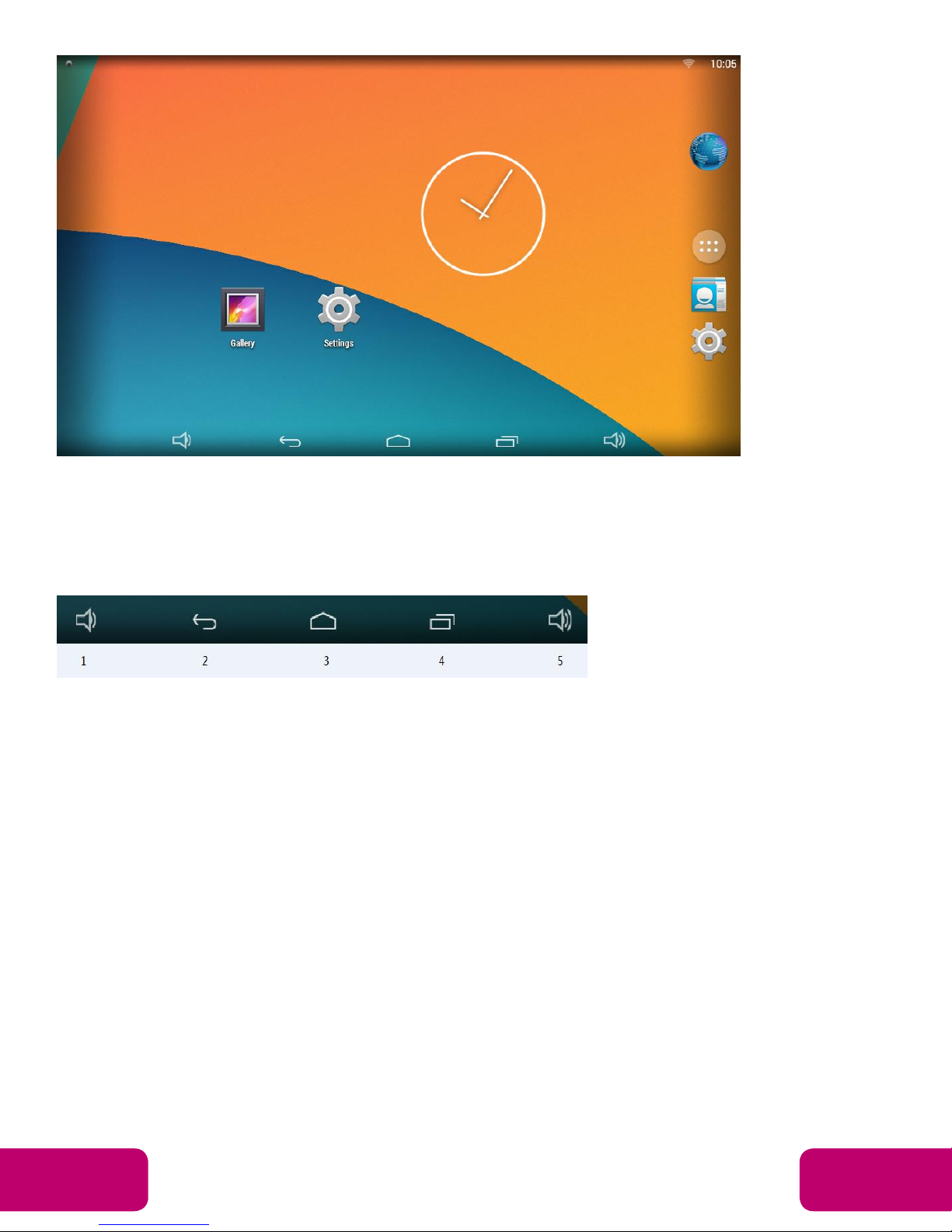

Navigation Buttons
1. Volume-: Decrease the system volume.
2. Back: Return to the previous page.
3. Home: Return to the home screen.
4. Recents: Switch between recently used apps.

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 6
6

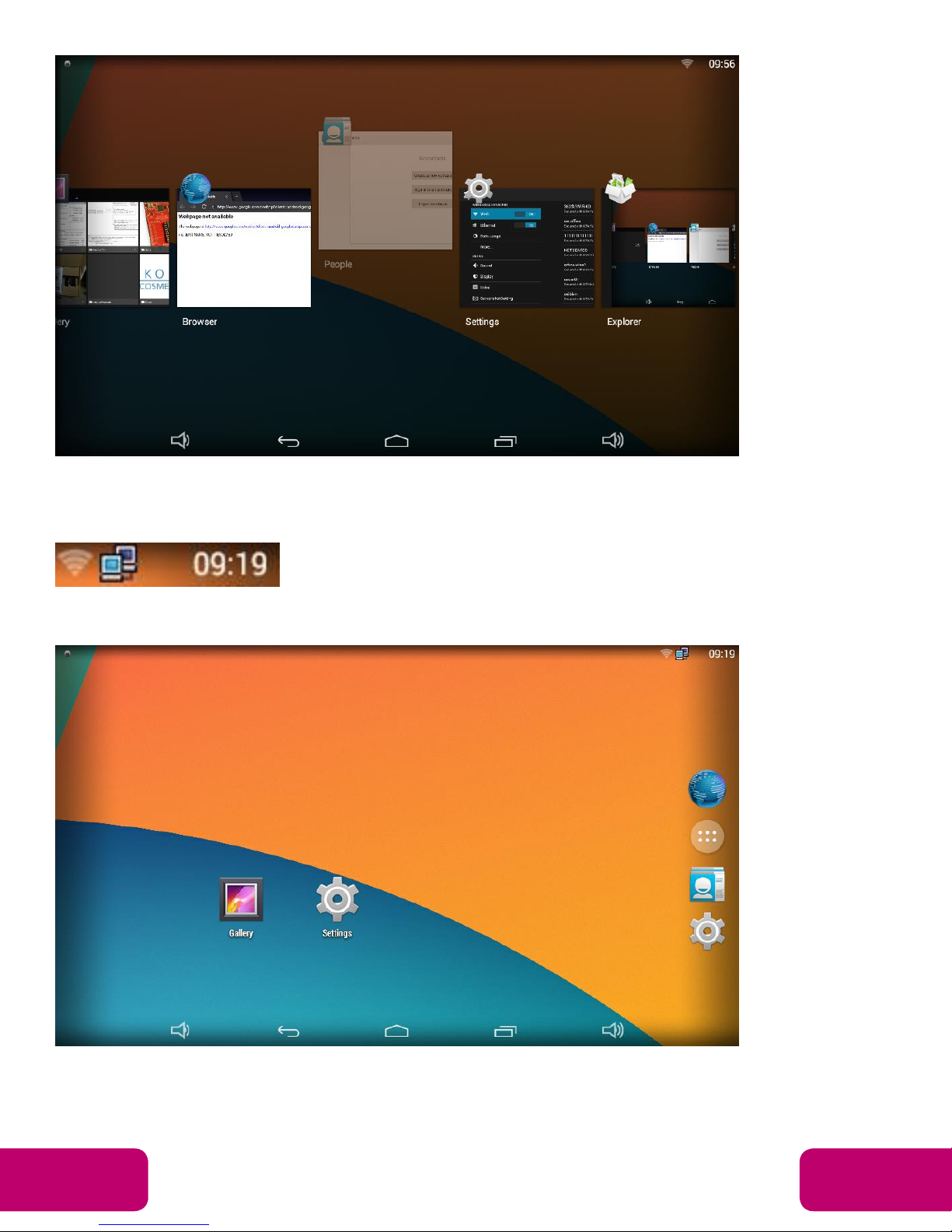

To remove an app from the list, you could long-press the icon to select
“Remove from the list”.
Or swipe the app item up or down to remove it.

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 7
7
5. Volume+: Increase the system volume.
Status Notifications
The upper-right corner of the home page displays time, Wi-Fi and Ethernet
connection.
Slide down the upper-right of screen to open context menu.

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 8
8
Brightness
Click “BRIGHTNESS”in context menu. In details, you can see the
brightness tool.
Slide the brightness button to adjust the brightness of the screen.
Use Apps
Click at the right side of home screen to show the applications’page.

Mimo Monitors
[email protected]
Sales: 1-855-YES-MIMO (937-6466) 9
9
The installed applications will be shown here and you can open an app by
clicking its icon.
To find an app easily, you can create a shortcut of the icon by long-pressing
and drag it to the home screen.
Language

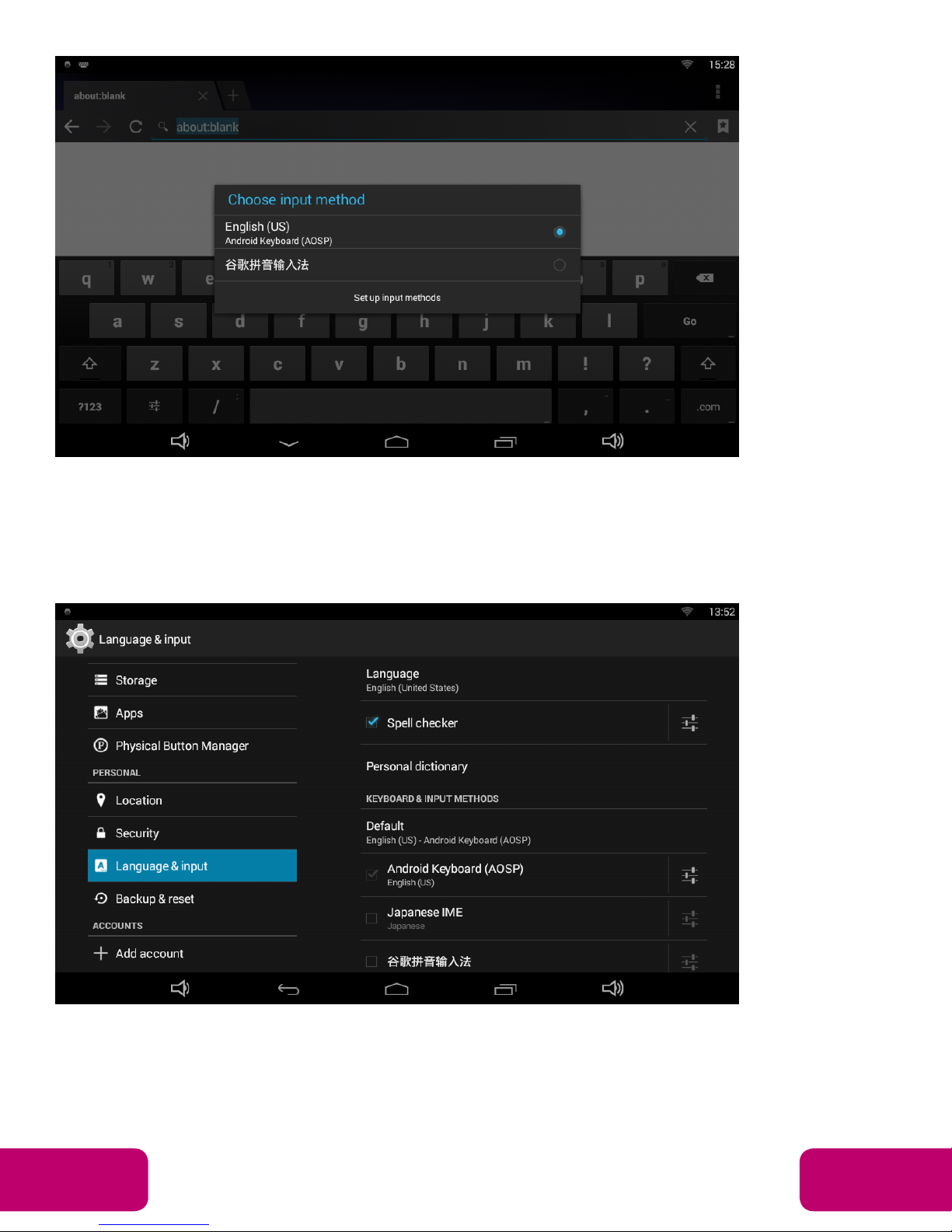

In the App list, click “Settings” to open the system setting app, and
select the option “Language & input”.
