miniBatt PowerGOO User manual
PowerGOO WIRELESS CHARGER
+ POWER BANK 6000 mAh
Please register online
www.miniBatt.com/register Qi-compatible
USER MANUAL miniBatt PowerGOO.indd 1 25/4/16 12:39
Thank you for purchasing a miniBatt charging station.
With this charger, you can charge any Qi-compatible device
like a smartphone or other low-power wireless charging receivers
without the hassle of untangling cables. Just place your smartphone
on the charging surface, and your smartphone starts charging.
Parts of the product are magnetic. Metallic materials may be
attracted to the charger. Do not place any credit card or other
magnetic storage media near the product, because info stored
on them may be erased.
Read this user manual carefully before using the product.
Also, read the user manual for the device that you connect to the
charger.
Qi is a global standard that makes wireless charging possible for
your device.With this a Qi-compatible device, you don´t need to
connect any cable to charge it.
Qi and Qi mark, are the trade marks of WPC.
This product applies for all Qi standard transmitter.
Thank you for selecting miniBatt products.
USER MANUAL miniBatt PowerGOO.indd 2 25/4/16 12:39
miniBatt PowerGOO is a stylish, 3-coil Wireless PowerBank charger
with a 6,000 mAh high-density battery to charge all kinds of wireless
devices wherever you are. It also includes a twin USB output for
charging devices with a standard connector.
Say goodbye to tangled wires and misplaced charging cables.
Thanks to its exclusively designed silicone belt, you can charge your
smartphone while carrying it into your bag.
Wireless charging area
Power switch
Output USB 1 (DC 5V 1A)
Input of Micro 5 pin (DC 5V 2A)
Output USB 2 (DC 5V 2A)
PRODUCT INTRODUCTION:
PRODUCT OVERVIEW:
USER MANUAL miniBatt PowerGOO.indd 3 25/4/16 12:39
MAIN FUNCTION: Wireless Charger + Power Bank
TYPE OF COIL: 3 Coils
Qi STANDARD: Version 1.2
CHARGING METHOD: One to One
INPUT: DC5V / 2.0A
WIRELESS OUTPUT: DC5V / 1.0A
USB OUTPUT 1: DC5V / 1.0A
USB OUTPUT 2: DC5V / 2.0A
BATTERY CAPACITY: 6.000 mAh
CHARGING DISTANCE: 6-8 mm.
EFFICIENCY RATE: 72%
WORKING FREQUENCY: 110-205KHz
DIMENSIONS: 153.3 x 82.8 x 13.7mm
BOX INCLUDES: Wireless Charger, USB Cable, Manual
Instructions
SPECIFICATIONS:
USER MANUAL miniBatt PowerGOO.indd 4 25/4/16 12:39
1. Input of Micro USB (5Pin)
(DC 5V 2A)
2. Output of USB1 (DC 5V 1A)
3. Output of USB2 (DC 5V 2A)
4. Power switch
5. Indicator Light
1.Wireless charging when the charger plugged into a wall outlet:
1. Insert one end of USB charging cable into power adaptor (not
included) (A) or to the computer (B).
- Wireless Charger + Powerbank 1 PCS
- Micro USB to USB a digital cable 1,5 m 1 PCS
- User Manual 1 PCS
INTRODUCTION OF BUTTON AND INDICATOR
LIGHT:
PARTS LIST (INCLUDED IN THIS PACKAGE):
USER GUIDE:
Switch on and charging
12 3
6
5
4
(A) (B)
USER MANUAL miniBatt PowerGOO.indd 5 25/4/16 12:39

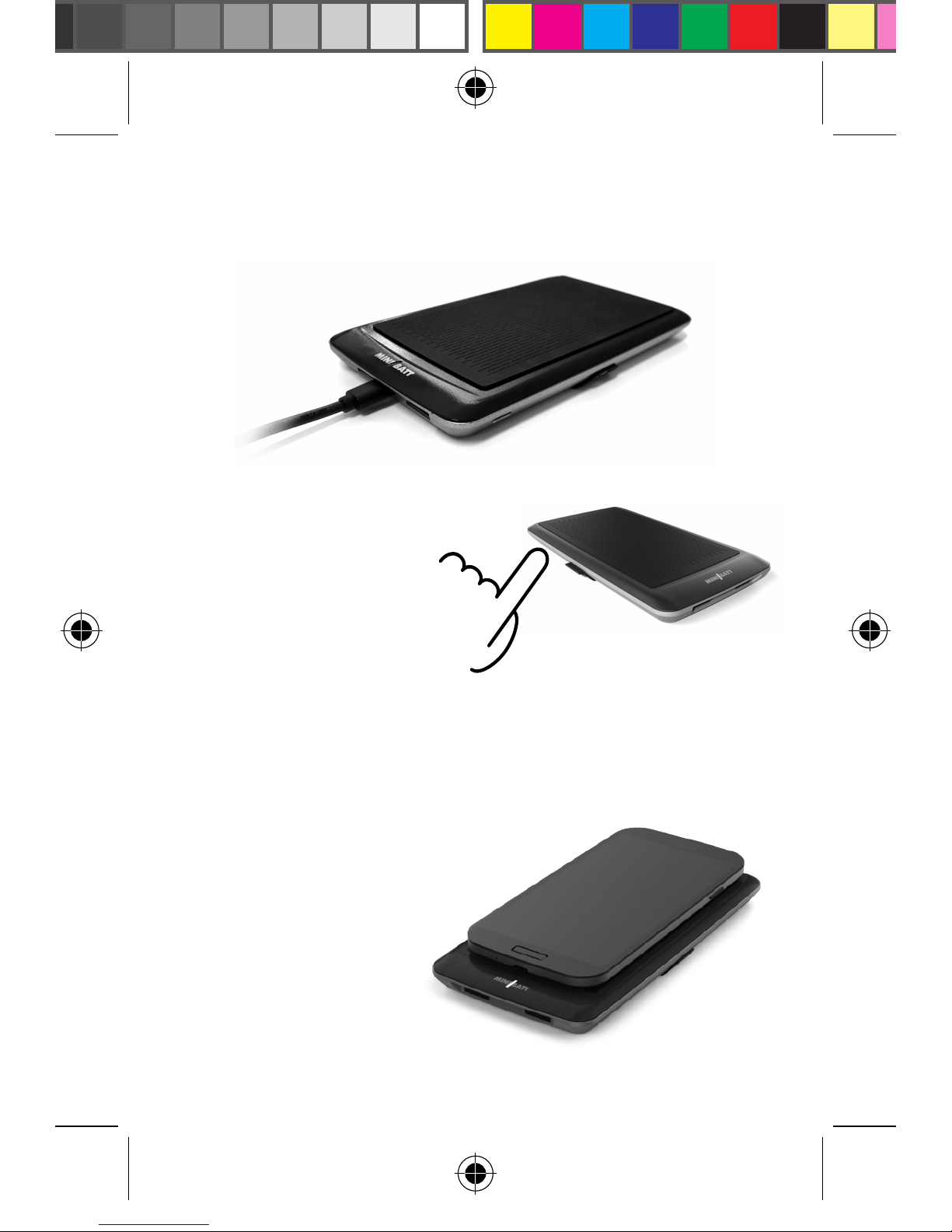

2. Insert another end of USB charging cable into Micro USB port
(5 PIN) jack of the wireless charger.The LED indicator lights up to
indicate well connectivity.
4. Place your “Qi enabled Smartphone” on the charging pad.The
blue LED light is blinking.
3. To turn on:
Lightly press the power switch
button to turn on the charger.
The red light will be on.
press the power button
5. Long press the power switch
for three seconds to turn off the
Wireless Charging Function.Then
the red light will be off.
USER MANUAL miniBatt PowerGOO.indd 6 25/4/16 12:39
2. Charging the Powerbank:
Insert one end of the USB charging cable into power adaptor (not
included), and the other end to the Micro USB (5 PIN) jack.The blue
LED light will flash continuously during charging.The indicator blue
LED lights will be on after fully charged.
3.Wireless charging when the charger is not plugged into a wall
outlet (using Powerbank):
1. To turn on:
Lightly press the power switch button to turn on the charger.
The red light will be on.
2. Place your “Qi enabled Smartphone” on the charging pad.The
blue LED light is blinking.
When the Powerbank is charged, you can bring it with you wherever you want to
charge your smartphone!
Thanks to its exclusively designed silicone belt, the smartphone remains attached
to the charger.
3. Long press the power switch for
three seconds to turn off the Wireless
Charging Function.Then the red light
will be off.
USER MANUAL miniBatt PowerGOO.indd 7 25/4/16 12:39
• Keep the device dry. Precipitation, humidity and all types of liquids
or moisture can contain minerals that corrode electronic circuits. If
your device gets wet, allow the device to dry.
• Use the charging station for intended purposes only. Never use
a damaged charger.The charging station should only be used at
normal indoor conditions.
• Do not attempt to charge a device having a damaged, cracked or
open battery case or a device that is not compatible with Qi.
• Do not use the device in dusty or dirty areas. Moving parts and
electronic components can be damaged.
• Do not expose the device in high or low temperatures. The device
can be damaged.
• Do not attempt to open , disassemble or dismantle the charger.
• Unauthorized modications may damage the device and violate
regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling can break
internal circuit boards and mechanics.
• Only use a soft, clean, dry cloth to clean the surface of the device.
• Please use suitable or compatible adapter to connect with the
transmitting terminal.
• Please remove the protective layer before recharging.
• Please, do not charge your mobile phone when you charge the
battery of the powerbank.
• Please long press the power switch three seconds to turn off power
when you do not use wireless charge.
• Please stop using it immediately if battery is bulging, leaking or
smelling.
• This product should be charged for once every month at lease
when you do not use it for a long period.
SAFETY INFORMATION:
USER MANUAL miniBatt PowerGOO.indd 8 25/4/16 12:39
ADDITIONAL INFORMATION:
Applicable devices:
- Devices with build-in wireless charging receiver.
- Devices with reserved wireless charging interface beside it battery.
- Devices with wireless charging receiver in its protection case.
Note: All devices must be Qi Standard.
• Please use a 5V/2A adaptor and good quality cable to ensure
charging effect.
• Please keep the charger away from water or other liquid.
• If you need to clean the charger, please make sure it is not
connected to power supply.
• Working temperature: 0℃ ~ 45℃
• Working humility: 10% ~80% (no vapor condense)
Rubber belt included to fix the phone to the wireless charger
when transporting.
USER MANUAL miniBatt PowerGOO.indd 9 25/4/16 12:39
TROUBLESHOOTING:
1. If only one blue LED light is blinking, turn on the power switch.
Otherwise battery will run down soon. Please recharge.
2. If there is not any device on the charging pad, the charger will be
disconnected automatically after 5 minutes.
3. If the center point of the receiving terminal is deflected over 20 mm
from the center point of transmitting terminal, the machine power
will be off automatically. The more deected, the more inefciency.
4. If the transmitting terminal detects that the current of load is over,
it will disconnect connection automatically.The transmitting and
receiving terminal will be kept standby status automatically.
Reset receiving terminal and then restart.
5. The charger will be disconnected automatically when it detects
the load current is over.
6. If you use incompatible adapter, the battery will be not fully
charged, and the terminal will be damaged.
USER MANUAL miniBatt PowerGOO.indd 10 25/4/16 12:39
WARRANTY AND SUPPORT
INFORMATION
Please register online
www.miniBatt.com/register
USER MANUAL miniBatt PowerGOO.indd 11 25/4/16 12:39
Please register online: www.miniBatt.com/register
Please retain proof of purchase and warranty information.
To register your product, obtain product information and
documentation, or to access customer-only special offers, direct
your Web browser to the web page at:
www.miniBatt.com/register
Please retain the receipt as proof of purchase and write down the
information below in case you need to obtain support information.
IMPORTANT!
miniBatt Product Model:
Hardware Serial Number:
Date of Purchase:
Product Number:
Thank you for selecting miniBatt products.
USER MANUAL miniBatt PowerGOO.indd 12 25/4/16 12:39
PRODUCT WARRANTY
MINIBATT TECHNOLOGIES HK, LTD (“MINIBATT”) offers a limited
product warranty on hardware for two years from the date of
purchasing.
Products repaired or replaced under warranty shall be subject to
the product warranty remaining for the original products that are
repaired or replaced.
Defects in material or workmanship on a hardware product or
software, covered under warranty, will be repaired or replaced with
the same or functionally equivalent product by MINIBATT, at its
discretion, free of charge under these conditions:
(1) Obtain a return material authorization (RMA) number from
MINIBATT.
(2) Return the failed product to a MINIBATT designated repair
facility with shipping charge prepaid, and
(3) Provide MINIBATT with written proof of the original date of
purchase, such as a dated purchase receipt.
Replacement products may be refurbished or contain refurbished
materials. If MINIBATT, by its sole determination, is unable to repair
or replace the defective product, it will refund the purchase price of
the product, less a reasonable usage charge.
This warranty does not apply if, in the sole judgment of MINIBATT,
the product fails due to damage from shipment, handling, storage,
accident, abuse or misuse, or if it has been installed, used or
maintained in a manner not conforming to product manual
instructions, has been modied in any way, or has had any serial
number removed or defaced. Repair by anyone other than
MINIBATT or an approved agent will void this warranty.
The maximum liability of MINIBATT under this warranty is limited
to the purchase price actually paid by the customer for the product
covered by the warranty, regardless of the amount of any other
direct or indirect damage suffered by the customer. MINIBATT
USER MANUAL miniBatt PowerGOO.indd 13 25/4/16 12:39
makes no warranty that the software will be error free or will
operate without interruption.
MINIBATT reserves the right to revise or update its products,
software or documentation without notice. MINIBATT also reserves
the right to change the terms of its limited product
warranty at any time. Except as specically provided above or as
required by law, the warranties and remedies stated above are
exclusive and in lieu of all others, oral or written, express or implied.
Any and all other warranties, including implied warranties of
merchantability and tness for a particular purpose, and non-
infringement of third party rights are expressly excluded. MINIBATT
shall not under any circumstances be liable to any person for any
special, incidental, indirect or consequential damages, including
without limitation, damages resulting from use or malfunction of
the product, loss of prots or revenues or costs of replacement
goods, even if MINIBATT is informed in advance of the possibility
of such damages.The maximum liability of MINIBATT under this
warranty is limited to the purchase price actually paid by customer
for the product covered by the warranty. Customer’s purchase and
usage of this product is expressly contingent upon the acceptance
of the warranty terms above.
USER MANUAL miniBatt PowerGOO.indd 14 25/4/16 12:39
For more information, please visit the
miniBatt website: www.miniBatt.com
miniBatt Technologies (HK) Ltd.
6/F, Oriental Crystal Commercial Building
46, Lyndhurst Terrace, Hong Kong
All rights reserved miniBatt ®
Designed in Barcelona
Made in China
This device complies with CE regulations and meets the requirements of the
applicable European guidelines.
Electronic old device are valuable materials and do not belong in the domestic
waste.If the device has reached the end of its operational life, please dispose of it
in a accordance with the applicable regulatory requirements of the local collection
points. Disposal in general household waste is prohibited.
The device is compatible with the WPC Standard Spec. 1.2“Qi”. Please only use the
device with the Qi compatible devices.
Use only in dry indoors locations.
Safety note:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Environmentally friendly disposal
Old electrical appliances must not be disposed of together with the residual waste,
but have to be disposed of separately .The disposal at the communal collection
point via private persons if for free.The owner of old appliances is responsible to
bring the appliances to these collection points or to similar collection points .With
this little personal effort, you contributed to recycle valuable raw materials and the
treatment of toxic substances.
USER MANUAL miniBatt PowerGOO.indd 15 25/4/16 12:39
Table of contents
