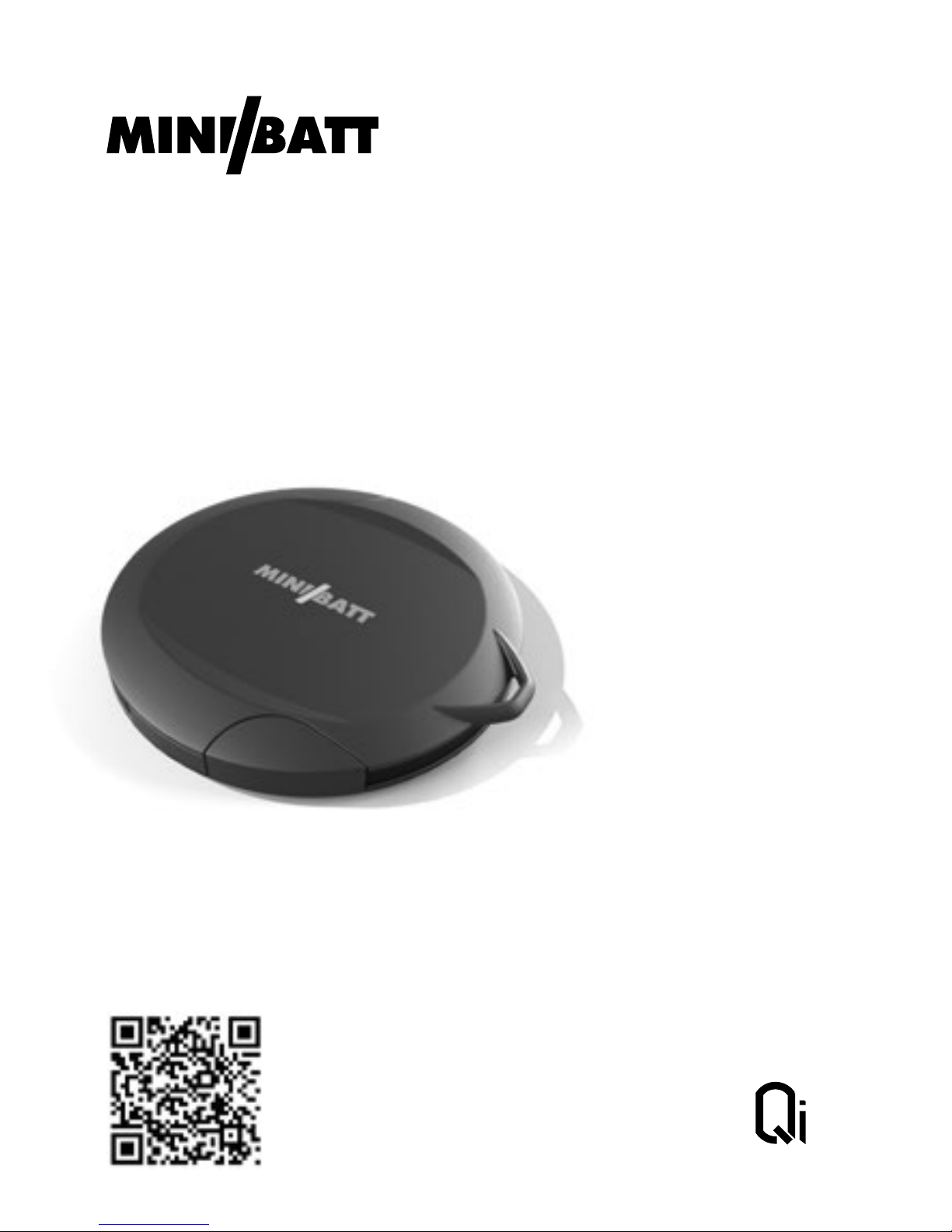

miniBatt PowerRING User manual

PowerRING
Qi DUAL WIRELESS CHARGING RECEIVER
Please register online
www.miniBatt.com/register Qi-compatible

Thank you for purchasing the Dual Mode Receiver
miniBatt PowerRING.
Although a wide variety of smartphones and other devices are
optimized for Qi charging technologies, some do not have the
capacity. MiniBatt PowerRING is the answer to universal charging
compatibility.
With this receiver, you can charge your smatphone in any
Qi-compatible charger without the hassle of untangling cables.
Just place the miniBatt receiver on the charging surface, and your
smartphone will start charging.
Qi is a global standard that makes wireless charging possible for
your device.With this a Qi-compatible device, you don´t need to
connect any cable to charge it.
Thank you for selecting miniBatt products. miniBatt PowerRING is an easy-to-use dual wireless receiver ring
to charge any device with micro micro USB (5p) or Apple Lightning
connector. Simply plug your device into the appropriate PowerRING
connector and place it on your chosen wireless charging station surface.
According to Qi Standard 1.2 and one-to-one induction charging,
our miniBatt PowerRING universal receiver even comes with a
convenient LED status display to better let you know when your
device is ready to go.
Receiver terminal 1 PCS
User Manual 1 PCS
PRODUCT INTRODUCTION:
PRODUCT OVERVIEW:
PARTS LIST (INCLUDED IN THIS PACKAGE):
Qi and Qi mark, are the trade marks of WPC.
This product applies for all Qi standard transmitter.
Main housing
Micro USB (5p)Apple lightning

MAIN FUNCTION: Wireless Charging Receiver
TYPE OF COIL: Single Coil
Qi STANDARD: Version 1.2
CHARGING METHOD: One to One
INPUT: DC 5V / 1.0A
OUTPUT Lighting: DC 5V / 1.0A
OUTPUT 5p: DC 5V / 1.0A
RECEIVING DISTANCE: 6-8 mm.
EFFICIENCY RATE: 73%
WORKING FREQUENCY: 110-205KHz
DIMENSIONS: Φ 58.0 x 9.5 mm.
BOX INCLUDES: Wireless Receiver, Manual Instructions
SPECIFICATIONS:
1. Insert the plug to the external device hole.
2. Put external devices on the wireless charging transmitter, please as
far as possible close to the wireless transmitter battery positive area.
The LED indicator remains blue when connected to the power and
receiver is placed within the induction area of the charger while
charging.
Attention:When
these two connectors
work together, it will
assign current to each
connector automatically
with total current 1A.
USER GUIDE:
Switch on and charging

To protect people from harm and properly loss, we make a clear
explanation on what you do should obey:
Warning! There are concerning the possibilities of death and
severe wound. Attention! There are contents concerning the
occurrence of slight wound and property damage.
- Do not dismantle! WARNING. It may lead to heat, fire and electric
shock.
- Do not use it in places out of the temperature ranging from -20ºC
to 40ºC. It may lead to fire.
- Working temperature: 0Φ ~ 45Φ
- Working humility: 10% ~80% (no vapor condense)
- Do not charge in places where the sun shine directly or with high
temperature. It may lead to heat, fire and burn
- Please do not use and keep it in wet and dust places.It may lead to
heat, fire and electric shock.
- Do not lay the charging machine loaded with other things in
places that are easy to fall.It may lead to heat, fire and electric shock
- Do not lay the magnetic card, magnetic record media and
precise machine too close to the product!!! If you put wireless
charging pad close to magnetic card and magnetic record medias,
the product may have influence on the magnetic and make those
recorded data disappear, and hard watch or other precise machine
may break down, so do not put them close to the product.
- Please charge in steady horizontal level places It may lead to
wound if it fall down.
- Please who use heart-birth makers should consult your doctor
before you use this product.
- People use heart-birth makers please leave it at a distance of
22cm from the place where you install your heart-birth maker.
- The electromagnetic waves have influence on heart-birth-maker’s work.
- Do not put it into water or any other liquid product. Do not make it
wet. It may lead to heat, electric shock.
SAFETY INFORMATION: ADDITIONAL INFORMATION:
1. Please refer to the operation Manual and put the charging
machine in charging area. All you have to do is put it in the charging
area, it will start charging regardless of the place and direction.Try to
put it near the charging center as close as possible.
2. When the charge is almost finished but not yet, it will stop
charging, this is normal.
3. When the product which is under charging conditions is mixed
with television and radio noise, please keep the product away from
television and radio for more than 1m.

WARRANTY AND SUPPORT
INFORMATION
Please register online
www.miniBatt.com/register
Please register online: www.miniBatt.com/register
Please retain proof of purchase and warranty information.
To register your product, obtain product information and
documentation, or to access customer-only special offers, direct
your Web browser to the web page at:
www.miniBatt.com/register
Please retain the receipt as proof of purchase and write down the
information below in case you need to obtain support information.
IMPORTANT!
miniBatt Product Model:
Hardware Serial Number:
Date of Purchase:
Product Number:
Thank you for selecting miniBatt products.

direct or indirect damage suffered by the customer. MINIBATT
makes no warranty that the software will be error free or will
operate without interruption.
MINIBATT reserves the right to revise or update its products,
software or documentation without notice. MINIBATT also reserves
the right to change the terms of its limited product
warranty at any time. Except as specically provided above or as
required by law, the warranties and remedies stated above are
exclusive and in lieu of all others, oral or written, express or implied.
Any and all other warranties, including implied warranties of
merchantability and fitness for a particular purpose, and non-
infringement of third party rights are expressly excluded. MINIBATT
shall not under any circumstances be liable to any person for any
special, incidental, indirect or consequential damages, including
without limitation, damages resulting from use or malfunction of
the product, loss of profits or revenues or costs of replacement
goods, even if MINIBATT is informed in advance of the possibility
of such damages.The maximum liability of MINIBATT under this
warranty is limited to the purchase price actually paid by customer
for the product covered by the warranty. Customer’s purchase and
usage of this product is expressly contingent upon the acceptance
of the warranty terms above.
PRODUCT WARRANTY
MINIBATT TECHNOLOGIES HK, LTD (“MINIBATT”) offers a limited
product warranty on hardware for two years from the date of
purchasing.
Products repaired or replaced under warranty shall be subject to
the product warranty remaining for the original products that are
repaired or replaced.
Defects in material or workmanship on a hardware product or
software, covered under warranty, will be repaired or replaced with
the same or functionally equivalent product by MINIBATT, at its
discretion, free of charge under these conditions:
(1) Obtain a return material authorization (RMA) number from
MINIBATT.
(2) Return the failed product to a MINIBATT designated repair
facility with shipping charge prepaid, and
(3) Provide MINIBATT with written proof of the original date of
purchase, such as a dated purchase receipt.
Replacement products may be refurbished or contain refurbished
materials. If MINIBATT, by its sole determination, is unable to repair
or replace the defective product, it will refund the purchase price of
the product, less a reasonable usage charge.
This warranty does not apply if, in the sole judgment of MINIBATT,
the product fails due to damage from shipment, handling, storage,
accident, abuse or misuse, or if it has been installed, used or
maintained in a manner not conforming to product manual
instructions, has been modified in any way, or has had any serial
number removed or defaced. Repair by anyone other than
MINIBATT or an approved agent will void this warranty.
The maximum liability of MINIBATT under this warranty is limited
to the purchase price actually paid by the customer for the product
covered by the warranty, regardless of the amount of any other

For more information, please visit the
miniBatt website: www.miniBatt.com
miniBatt Technologies (HK) Ltd.
6/F, Oriental Crystal Commercial Building
46, Lyndhurst Terrace, Hong Kong
All rights reserved miniBatt ®
Designed in Barcelona
Made in China
This device complies with CE regulations and meets the requirements of the
applicable European guidelines.
Electronic old device are valuable materials and do not belong in the domestic
waste. If the device has reached the end of its operational life, please dispose of it
in a accordance with the applicable regulatory requirements of the local collection
points. Disposal in general household waste is prohibited.
The device is compatible with the WPC Standard Spec. 1.2“Qi”. Please only use the
device with the Qi compatible devices.
Use only in dry indoors locations.
Safety note:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Environmentally friendly disposal
Old electrical appliances must not be disposed of together with the residual waste,
but have to be disposed of separately .The disposal at the communal collection
point via private persons if for free.The owner of old appliances is responsible to
bring the appliances to these collection points or to similar collection points .With
this little personal effort, you contributed to recycle valuable raw materials and the
treatment of toxic substances.
