Minka-Aire High Sierra F612 User manual

CERTIFICATE
High Sierra

Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

R
Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one year
R
from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan shall be free
from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in the original
installation.
This is a limited warranty. Minka-Aire ’s only obligation under this limited warranty is to replace or repair, or refund the purchase price, in Minka-
R R
Aire ’s sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this limited
R
Call our customer service department at 1-800-307-3267 to obtain the name of the
contact us through our web site, www.minkagroup.net and write to: Ask Mr.Minka if you have any questions or require further assistance.
R
Minka-Aire authorized dealer closest to your location, or
To obtain warranty service, the owner should return the fan along with proof of purchase to a
authorized dealer shall then, at its sole discretion: repair the fan, replace the fan,refund the purchase price less the amount directly attributable to the
R R
consumer’s prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire directly for warranty service. Minka-Aire will be
R
responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire authorized dealer for product under warranty.
R R
Minka-Aire authorized dealer. The Minka-Aire
You may also at your preference obtain warranty service by returning the fan directly to
R
return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the original
owner’s responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that proves
to be defective during the warranty period to the following address:
R
Minka-Aire along with proof of purchase, your name and
R
Minka-Aire -Warranty Service,1151W.Bradford Court,Corona,CA 92882

This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as result of the removal
of the fan from the original installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which
the fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan,or any other costs.
This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and
R
Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some states do not allow the exclusion of or
limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. We encourage you to promptly
complete and return the enclosed warranty registration card.However, return of the warranty registration card is not a condition of this warranty.
Date Purchased Store Purchased Model No. F612 Serial No.

CONTENTS
INSTALLING THE LIGHT KIT PLATE 8
INSTALLING THE LIGHT KIT ASSEMBLY 9

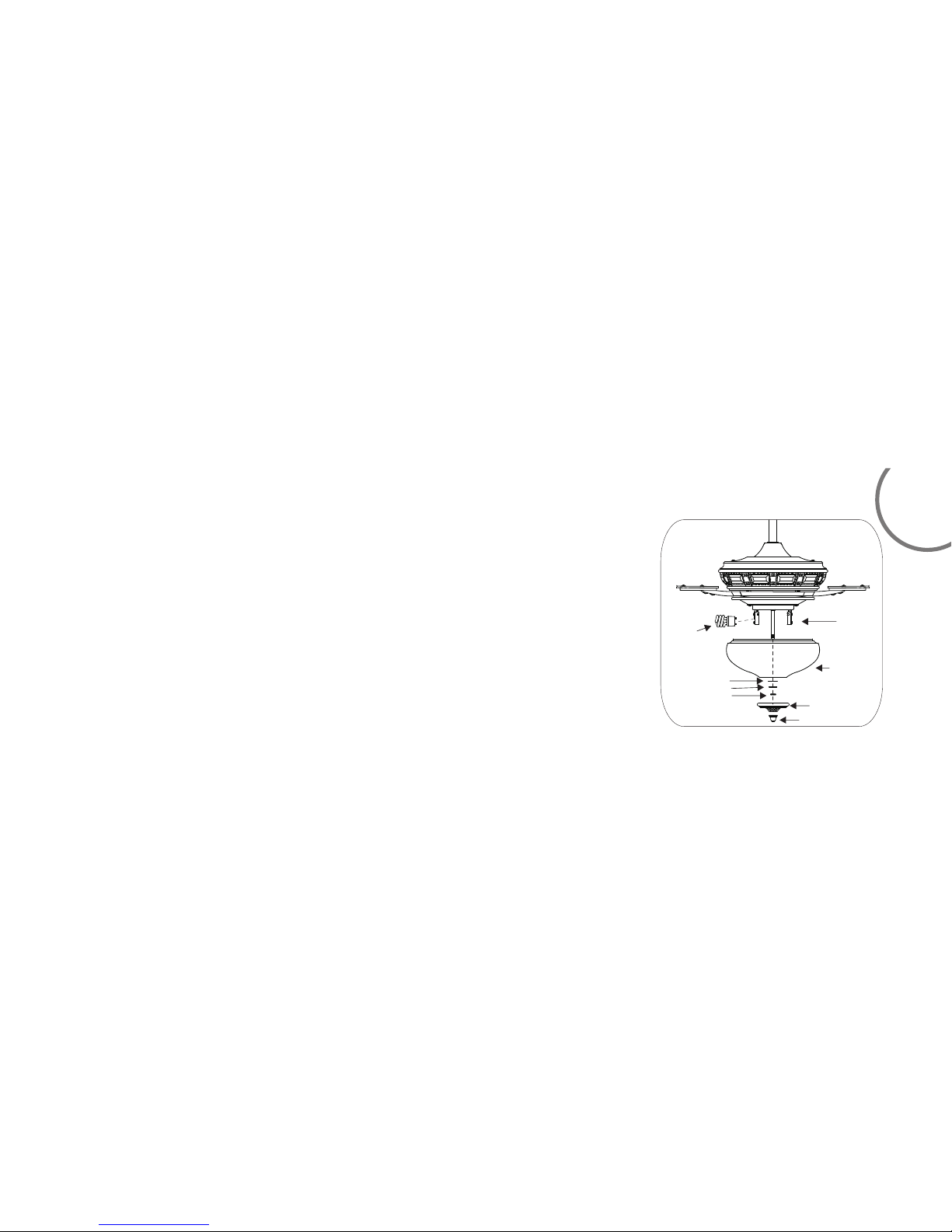

INSTALLING THE GLASS SHADE & LIGHT BULB 10
OPERATING THE REMOTE CONTROL/WALL CONTROL 11
CARE OF YOUR FAN 12
TROUBLESHOOTING 13
SPECIFICATIONS 14
1
SAFETY RULES
PACKAGE CONTENTS 2
INSTALLING THE FAN 3
HANGING THE FAN 4
ELECTRICAL CONNECTIONS 5
FINISHING THE INSTALLATION 6
BLADE INSTALLATION 7

SAFETY RULES
1 1.
2. Be cautious!Read all instuctions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes.Hire a qualified electrician or
consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the floor and 18 inches from the top of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L Listed metal octagonal outlet box marked"Acceptable For Fan Support".
Secure the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at
least 50 pounds). Do not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with
the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. To operate the reverse function on this fan, press the reverse button while the fan is running.
Before you begin installing the fan, shut power off the circut breaker of the fuse box.

NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and
situations that may occur. It must be understoood that common sense,caution and care are factors which can not be built into
this product. These factors must be spplied by the person(s) installing, caring for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L LISTED OUTLET BOX OR SUPPORTING
SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE
LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXS COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT
ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIDE ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING BALANCING THE BLADES OR CLEANING
THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, THIS FAN ONLY CAN USE UC7067RYK SOLID-STATE SPEED CONTROL WITH UC9040T
WALL CONTROL ONLY.
ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device, If lamping exceeds
190watts, the ceiling fan’s light kit will shut off automatically.

PACKAGE CONTENTS
Unpack your fan and check the contents.You should have the following items:
2
B
A
15
9
10
11
12
14
13
8
2
3
4
5
6
7
1
1. Fan blades(5)
2.
H
anger bracket
3.
C
anopy
4.
Canopy cover
5.
Coupling cover
6. Standard downrod assembly(6")
Minimum-length downrod(3.5")
7. Fan motor/housing assembly
8. Light kit plate
9. Light kit assembly
10. 13W GU24 bulb(2)
1 1. Glass shade
12. Blade holder (5)
1
3 .
Receiver with 6 wire nuts
14 .Transmitter+holder+2 mouting
screws
A. Mounting hardware:
Wire nuts(3)
Machine screws (2)
Wood screws (2)
Star washers (2)
Lock washers (2)
Spring washers (2)
B. Blade attachment hardware:
3/16”*6mm Screws(16)
Paper washers(16)
C. Blade holder attachment hardware:
1/4”*13.5mm screws with lock
washers(11)
15 .Balancing kit
C

3
INSTALLING THE FAN
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and
building mateRials. The outlet box and its support must be able to fully support the moving
weight of the fan (at least 50 lbs.).Use a ETL listed metal outlet box. Do not use a plastic
outlet box.
Figure1,2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on
R
a steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to
R
install a hanger bar as shown in Fig.4(available at your Minka Aire dealer or local hardware
store)
Tools Required: Philips screw driver, slotted screw driver, step-ladder, wire cutters, electrical tape.
FIG. 1
CROSS B RACE
CEILING
JOIST
CEILING
jOIST
OUTLET BOX
FIG. 2
PARALL EL WOOD BR AC E
(MIN. 2’’ THICK )
OUTLET
BOX
CEILING JOIST OR
CROSS B RACE
FIG. 3
ANGLE D CEILI NG
MAXIM UM 20°ANG LE
PROVI DE
STRON G
SUPPO RT
RECES SED
OUTLE T
BOX
HANGE R
OPENI NG
must be
FACING
UPSIDE
FIG. 4
CEILING
JOIST
OUTLE T BOX
HANGE R BA R
(OPTI ONAL)
HANGE R
BRACKET

4 HANGING THE FAN
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other
R
parts,hardware or components not supplied by Minka Aire with the fan
R
will void the Minka Aire Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Stpe 2.Lossen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly.(Fig 6)
Step 3.Remove hanger ball from downrod assembly by loosening set
screw,removing the cross pin, and sliding ball off rod.(Fig 7)
Step 1.Secure the hanger bracket to the ceiling outlet box using screws
and washers included with mounting hardware.(Fig.5)
Step 4.Carefully feed fan wires up through the downrod(Fig 8).
Thread the rod into the coupling, next line up holes and replace lock
pin and hitch pin. Tighten set screws.
NOTE:DO NOT INSTALL THE COUPLING COVER IF YOU PLAN TO USE
THE MINIMUM LENGTH DOWNROD.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into
the registration slot and seats firmly.(Fig 10)Rod should not rotate
if this is done correctly.
Step5.Slip coupling cover, canopy cover, and canopy onto downrod
(Fig.9).Carefully reinstall hanger ball onto rod being sure that cross
pin is in the correct position, set screws are tighten and wires are
not twisted.

Fig. 10
REGISTRATION
SLOT
Fig. 8
DOWNROD
SUPPLY
WIRES
Fig. 7
CROSS PIN
HANGER
BALL
DOWNROD
SET SCREW
Fig. 6
HITCH
PIN LOCK
PIN
SET SCREWS
Fig. 5
OUTLET BOX
HANGER BRACKET
Fig. 9
LOCK PIN
CANOPY
COVER
DOWNROD
CANOPY
SET SCREWS
HITCH PIN
COUPLING
*OMIT COUPLING
COVER WHEN USING
DOWNROD
THE MINIMUM-LENGTH

5ELECTRICAL CONNECTIONS
WARNING:To avoid possible electrical shock be sure electricity
is turned off at the main fuse or breaker box before wiring.
R
NOTE: The Aire Control System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units.The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig.11) No
frequency change is necessary, should you desire to install another
fan whithin the same home or area with a separate frequency code
please see the ”frequency interference ”troubleshooting section
of this instruction manual to learn how to change the frequency.
Step 1. Insert Receiver into Hanger Bracket with the flat side of
the Receiver facing the ceiling.(Fig.12)
Step 2. Motor to Receiver Electrical Connections: Connect the WHITE
wire from the fan to the WHITE wire marked”TO MOTOR N” from
the Receiver. Connect the BLACK wire from the fan to the BLACK
wire marked”TO MOTOR L” from the Receiver. Connect the BLUE wire
from the fan to the BLUE wire marked”For Light” from the Receiver.
NOTE: If your ceiling fan features an UP Light: Connect the ORANGE
wire from the fan to the ORANGE wire marked “ For Up Light ” from
the Receiver. Otherwise disregard this step and proceed to secure all
wire connections with the plastic wire nuts provided.(Fig.13)
Note:Fan must be installed from a maximum distance of 40 feet from
the transmitting unit for proper signal transmission between the
transmitting unit and the fan’s receiving unit.

Step 3.Receiver to House Supply Wires Electrical connections:Connect
the WHITE wire(Neutral) from the outlet box to the WHITE wire
marked”AC in N” from the receiver. Connect the BLACK wire(Hot) from
the outlet box to the BLACK wire marked “AC in L” from the receiver.
Secure all wire connections with the plastic wire nuts provided.(Fig.13)
Step 4.If your outlet box has a GROUND wire (Green or Bare Copper)
connect this wire to the Hanger Ball and Hangerf Bracket Ground wires.
If your outlet box does not have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket Ground Wire together. Secure wire
connection with the plastic wire nut provided.(Fig. 13)
After all splices are made,check to make sure there are no loose strands.
As an additional precaution we suggest to secure the plastic wire
connectors to the wires with electrical tape.

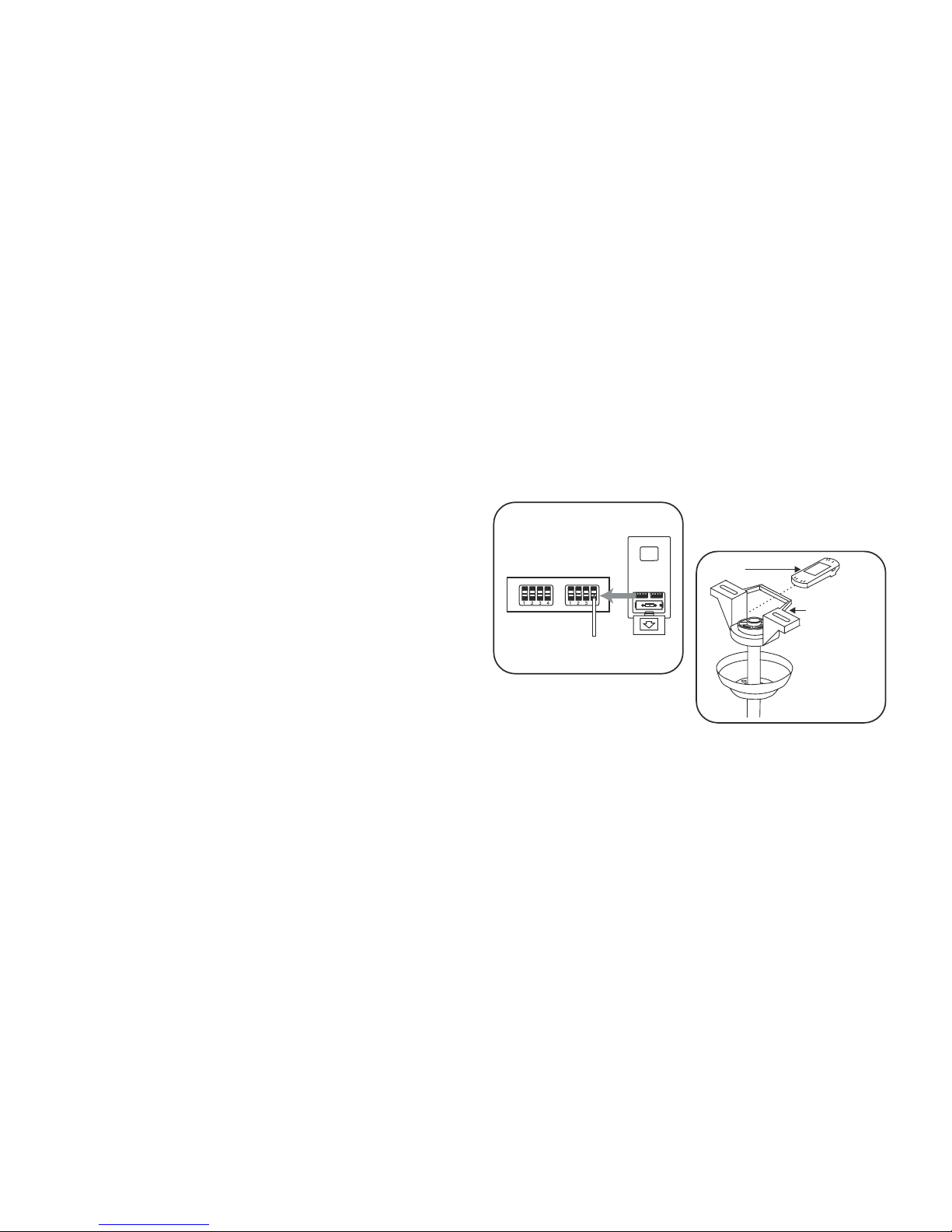

Fig. 11
Fig. 12
RECEIVER
HANGER BRACKET

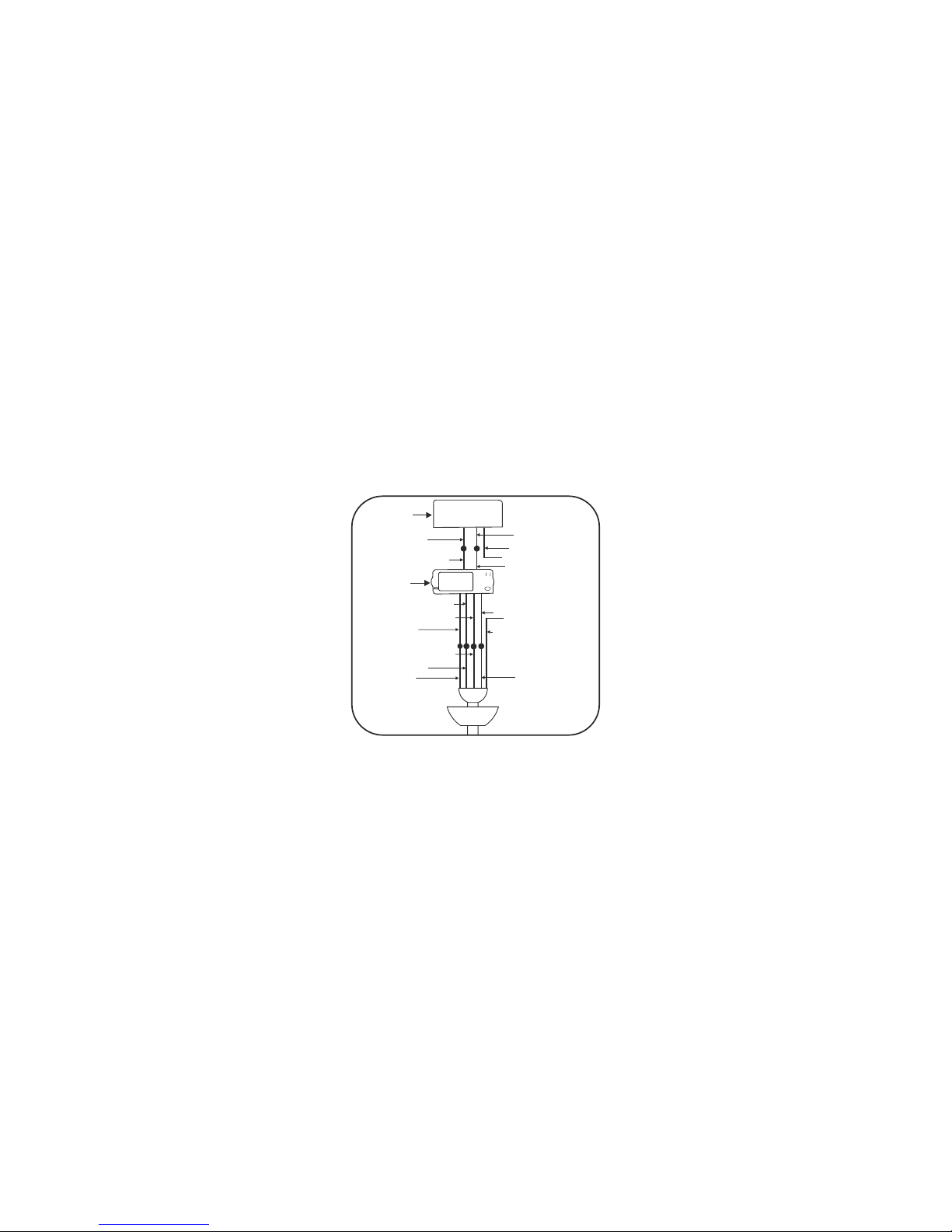

Fig. 13
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ( AC IN N )" "
WHITE ( TO MOTOR N )" "
GROUND-
(GREEN)
(CONNECT TO
GROUND WIRE ON
HANGER BRACKE
IF NO HOUSE
GROUND WIRE
EXISTS.)
OUTLET BOX
BLACK (HOT)
BLACK ( AC IN L )" "
BLACK ( TO MOTOR L )" "
RECEIVER
BLUE (FOR LIGHT)
BLUE (FOR LIGHT)
ORANGE
(FOR UPPER LIGHT)
BLACK (MOTOR)
ORANGE
(FOR UPPER LIGHT)

6
FINISHING THE INSTALLATION
″
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2. Remove one screw from the hanger bracket and loosen the other screw around 1/4” .
Step 3. Align the canopy up to ceiling and over the loose screw. Place the canopy into key hole
and rotate canopy clockwise. (Figure 14)
Step 4. Secure the canopy by use previous removed screw.
Step 5. Place the canopy cover to the canopy and rotate canopy cover clockwise until it is
locked into right position.(Figure 14)
Fig. 14
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER

7BLADE INSTALLATION
Step 1.Attach the fan blade to the blade holder using the screws
and paper washers provided. Tighten screws securely. Repeat
process for remaining blades.(Fig.15)
Step2.Remove the rubber stops from motor. Rotate the motor so
that the screw holes in motor are aligned with the holes in blade
holder and secure with proper screws. Repeat process for the other
blade holders.(Fig. 16)
Blade holder
SCREWS
PAPER
WASHERS
BLADE
Fig. 15
Blade holder
SCREWS
Fig. 16
Blade
holder

8

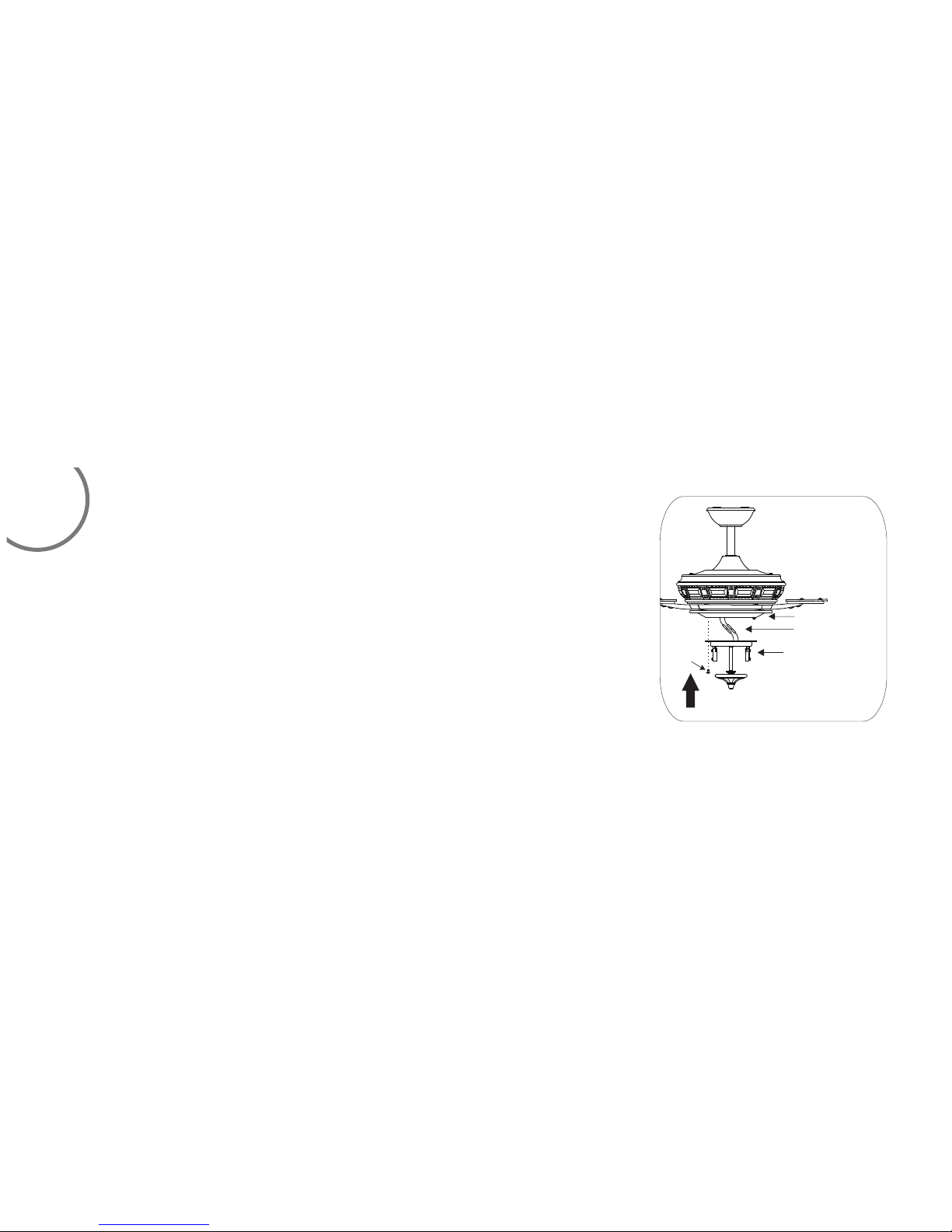

INSTALLING THE LIGHT KIT PLATE
Step1.Remove 1of 4screws from the mounting ring and loosen the other 3
screws.(Do not remove.)
Step2.Place the key holes from the light kit plate over the 3 screws previously
loosened from the mounting ring , turn light kit plate until it locks in place at the
narrow section of the key holes. Secure by tightening the 3 screws previously
loosened and the one previously removed.(Fig.17)
Fig. 17
Mounting ring
Light kit plate

9INSTALLING THE LIGHT KIT ASSEMBLY
Light Kit Warranty
“This Ceiling fan Light Kit Fixture is covered by a Limited 2 year Warranty from the
Manufacturer, effective from the date of purchase. This fixture is warranted against defects in
the quality of the housing, trims, diffuser, shades, and electrical components. Fixture finishes
and/or lamps (bulbs) are expressly excluded from this warranty; refer to bulb manufacturer for
lamp warranty.”
LIGHT KIT PLATE
Fig .18
OUTER
SCREW
CONNECTOR
NOTE: Before starting installation, disconnect the power by turning off the
breake or removing the fuse at fuse box.
Step1. Remove one of the three outer screws and loosen the other 2 from the light kit
plate.(Do not remove.)(Fig. 18)
Step2. Connect WHITE(BLUE) wire from light kit plate to WHITE(BLACK) wire from light kit
assembly with the connector.(Fig.18)
Step3. Place the key holes from the light kit assembly over the 2 screws previously loosened
from the light kit plate , turn light kit assembly until it locks in place at the narrow section of
the key holes. Secure by tightening the 2 screws previously loosened and the one previously
LIGHT KIT ASSEMBLY

INSTALLING THE GLASS SHADE & LIGHT BULBS
WARNING:Shut of the power supply before removing or replacing lamp. If you accidentally
come into contact,wipe thoroughly with a clean,lint-free,cotton cloth. Use light bulb in accordance
with the fan’s specification.TO REDUCE THE RISK OF FIRE DO NOT EXCEED MAXIMUM WATTAGE
RATING.
The color correlated Temperature (CCT) for replacing the enclosed lamp is (2700K).
The ballast in each of these models can be replaced by a qualified electrician without cutting of
wires and without damage to the housing, trim, decorative elements or carpentry to which the
fixture is attached. See installation steps for more detail.
ATTENTION:The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt
limiting device.If lamping execeeds 190 watts,the ceiling fan’s light kit will shut off automatically.
Step1. Install 2*13 GU24 CFL bulbs (included) into socket.(Fig.19)
Step2. Remove the rubber washer, metal washer, metal nut, switch cup and finial from the light kit
assembly. Place glass shade over the light kit stem, secure with the rubber washer, metal washer,
metal nut, matel cap and finial. Do not over tighten.(Fig.19)
GLASS SHADE
MATEL CAP
FINIAL
Fig .19
BULBS
METAL NUT
METAL WASHER
RUBBER WASHER
10
LIGHT KIT
ASSEMBLY

11
OPERATING THE REMOTE CONTROL/WALL TRANSMITTER
Restore Power to Ceiling Fan.
A.Buttons:
These buttons are used to set the fan speeds as follows;
=Low Speed
=Medium Speed
=High Speed
B.Button:
This button turns the fan off.
C.Button:
Press and release the button to turn the light ON or OFF,
this fan's light will not dim.
D.OFF-ON Slide Button Wall Control Fans Only)(
This button turns the power Off and On to the Fan and
Light s).(
E.Button:Full Function Remote Control Units Only( )
This button is used to change the direction of the
rotation of the blades;forward for warm weather or
reverse for cool weather.
NOTE:If your Remote Control or Wall Control does not
have a " " button,Please look for a slide reverse switch
on the motor housing.
Remote Control only:Install a A23 12 volt battery (included) .To prevent damage to transmitter remove the battery if not used for long periods of time.
11
