Minka-Aire CONTRACTOR Series User manual

INSTRUCTION MANUAL WARRANTY CERTIFICATE
Model No. F552L
TACTICAL TO
PRACTICAL
WATT II

This product is protected by United States Federal and/or State Law including
Patents, Trademark, and/or Copyright Laws.
©2020 Minka Lighting Inc. Manual design and all elements of manual design are
protected by United States Federal and/or State Law including Patents, Trademark,
and/or Copyright Laws.

The Minka-Aire® warranty is for one (1) year from the
date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user
against all defects in material and workmanship (light bulbs
excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for
the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical
components), to the original purchaser or user.
Date Purchased
Store Purchased
Model Number
Serial Number
F552L
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should
return the fan with the sales receipt to the original place of purchase. The authorized
Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after
verifying the legitimacy of the warranty claim. Replacement is subject to availability
of the same model. If the model is unavailable it will be replaced by one of equal
value. This is a limited warranty; the original purchaser or user is responsible for the
cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the
Minka-Aire® customer care department at 1-800-307-3267, or contact Minka-Aire®
through www.minkagroup.net and select FAQ to answer any questions or if you
require additional assistance submit the question form found there.
The warranty is voided with the use of any non- Minka-Aire®electrical devices,E.g.,
wall controls or electrical dimmer switches, etc…
The warranty is void once the original purchaser or user ceases to own the fan or the
fan is moved from its original point of installation.
The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan
specific) other than the hanger bracket supplied & installed with this specific fan.
*
*
*

CONTENTS
SAFETY RULES.............................................................................................................................................
PACKAGE CONTENTS..............................................................................................................................
INSTALLING THE FAN..............................................................................................................................
HANGING THE FAN..................................................................................................................................
ELECTRICAL CONNECTIONS................................................................................................................
FINISHING THE INSTALLATION.........................................................................................................
BLADE INSTALLATION............................................................................................................................
INSTALLING THE MOUNTING PLATE..............................................................................................
INSTALLING THE LIGHT KIT................................................................................................................
INSTALLING THE LIGHT BULBS & GLASS SHADE .....................................................................
OPERATING YOUR FAN.........................................................................................................................
CARE OF YOUR FAN.................................................................................................................................
TROUBLESHOOTING...............................................................................................................................
SPECIFICATIONS........................................................................................................................................
1
2
3
4
6
8
9
9
10
11
12
13
14
15
1151 W. Bradford Court, Corona, CA 92882
For Customer Assistance Call: 1-800-307-3267

SAFETY RULES
Before you begin installing the fan, shut power off at the circuit breaker of the
fuse box.
Be cautious! Read all instructions and safety information before installing your
new fan. Review accompanying assembly diagrams.
Make sure that all electrical connections comply with local codes, ordinances, or
National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
Make sure the installation site you choose allows the fan blades to rotate without
any obstructions. Allow a minimum clearance of 7 feet from the floor and 18
inches from the tip of the blades to the wall.
If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal
octagonal outlet box marked "Acceptable for Fan Support". Secure the box directly
to the building structure. The outlet box and its support must be able to support
the moving weight of the fan (at least 50 pounds) Do not use a plastic box.
Caution: To reduce the risk of injury use only the screws provided with the outlet
box in conjunction with the lock washers provided with the fan.
If you are mounting the fan to a joist, make sure it is able to support the moving
weight of the fan (at least 50 pounds).
After you install the fan, make sure that all mounting components are secured to
prevent the fan from falling.
Do not insert anything into the fan blades while the fan is operating.
Turn the fan off and wait for the blades to stop completely before proceeding
with maintenance or cleaning.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN
ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN
SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION
WITH THE LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY
USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT
AND NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE
INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
NOTE: The important safeguards and instructions appearing in this manual are not
meant to cover all possible conditions and situations that may occur. It must be
understood that common sense, caution and care are factors which can not be built
into this product. These factors must be supplied by the person (s) installing, caring
for and operating the unit.
NOTE: READ AND SAVE ALL INSTRUCTIONS!
1

2

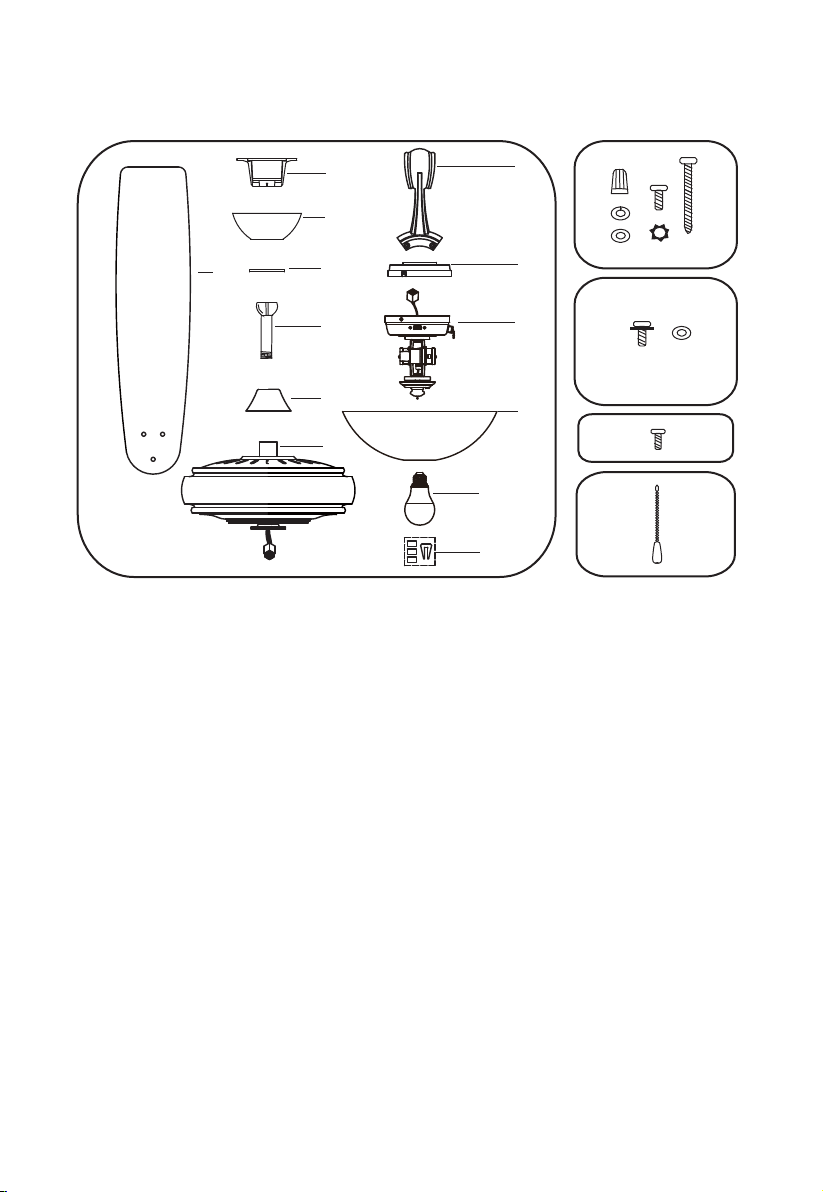

PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
A
B
1
2
4
6
5
10
9
13
12
11
7
8
3
Fan blades (5)
Hanger bracket
Canopy
Canopy cover
Downrod assembly
Coupling cover
Fan motor/housing assembly
Blade bracket (5)
Mounting plate
Light kit assembly
Glass Shade
9 Watt LED Bulbs (2)
Balance Kit
10.
11.
12.
13.
9.
8.
7.
6.
5.
4.
3.
2.
1. Mounting hardware:
#10 x 1.5" Wood screws (2 PCs.)
#8 x 3/4" Machine screws (2 PCs.)
Lock washers (2 PCs.)
4mm Star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
Blade attachment hardware:
3/16" x 17mm Screws (16PCs.)
Fiber washers (16PCs.)
Blade bracket hardware:
1/4" x 14mm Screws (11 PCs.)
Pull chain fobs (2)
A.
B.
C.
D.
D
C

3
INSTALLING THE FAN
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters;
electrical tape.
MOUNTING OPTIONS
If there isn't an existing mounting box, then read
the following instructions. Disconnect the power
by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 50 lbs.). Use a UL Listed metal outlet box.
Do not use a plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to
mount the outlet box.
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep,
sloped ceiling. Longer downrods are available from
your Minka-Aire® dealer.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need to install a
hanger bar as shown in Fig. 4 (available at your
Minka-Aire® dealer).
Fig. 1
CROSS BRACE
CEILING
JOIST
CEILING
jOIST
OUTLET BOX
Fig. 2
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
CEILING JOIST OR
CROSS BRACE
Fig. 3
ANGLED CEILING
MAXIMUM 18 ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
must be
FACING
UPSIDE
Fig. 4
CEILING
JOIST
OUTLET BOX
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

4

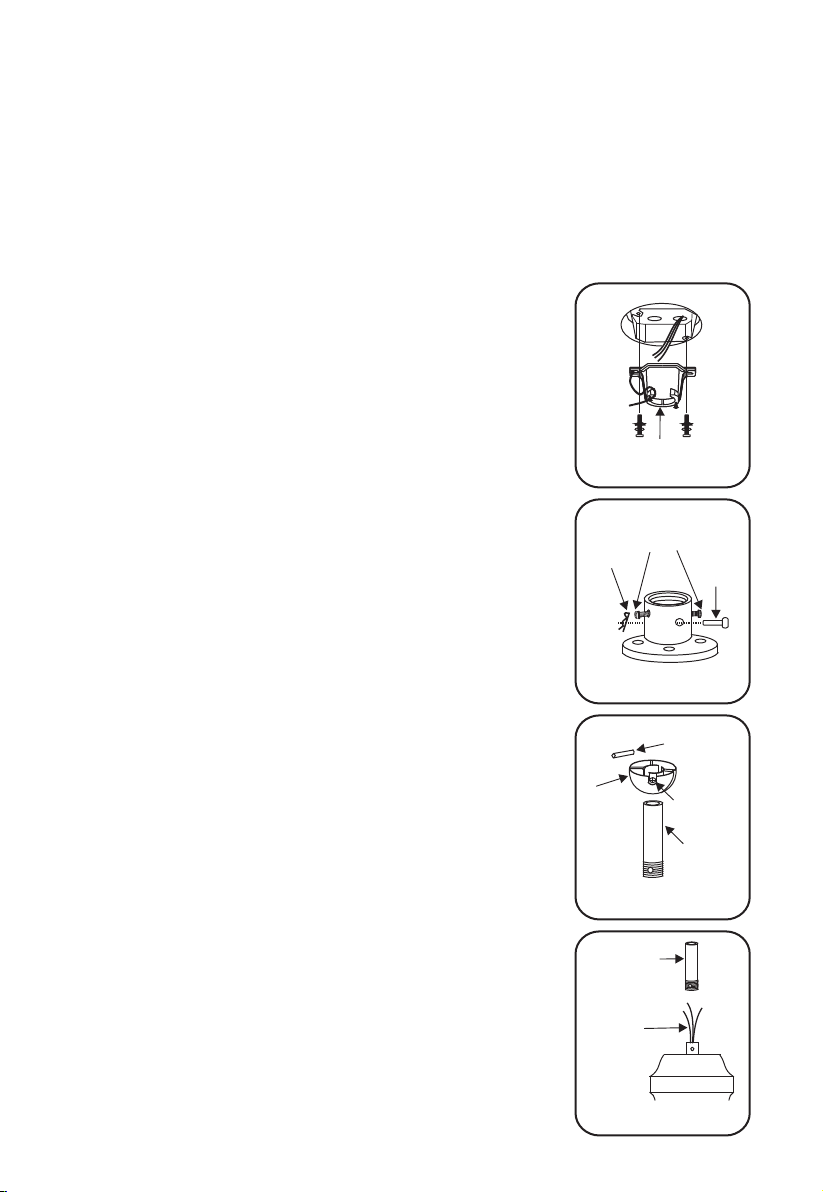

HANGING THE FAN
WARNING: All of the parts, hardware and components such as the hanger bracket
and hanger ball have been provided for your safety and the proper installation of
your new ceiling fan. The use of other parts, hardware or components not supplied
by Minka Aire®with the fan will void the Minka Aire®Warranty.
REMEMBER to turn off the power. Follow the steps below to hang your fan
properly:
Secure the hanger bracket to the ceiling outlet box
using screws included with your outlet box, lock
washers included with the fan. (Fig.5)
Carefully feed fan wires up through the downrod.
(Fig. 8) Thread the rod into the coupling, next line
up holes and replace lock pin and hitch pin. Tighten
set screws.
Remove hanger ball from downrod assembly by
loosening set screw, removing the cross pin, and
sliding ball off rod. (Fig.7)
Loosen the two set screws and remove the hitch pin
and lock pin from the top coupling of the motor
assembly. (Fig. 6)
Step 1.
Step 2.
Step 3.
Step 4.
Fig. 8
DOWNROD
SUPPLY
WIRES
Fig. 6
HITCH
PIN LOCK
PIN
SET SCREWS
Fig. 7
CROSS PIN
HANGER
BALL
DOWNROD
SET SCREW
OUTLET BOX
HANGER BRACKET
Fig. 5

5

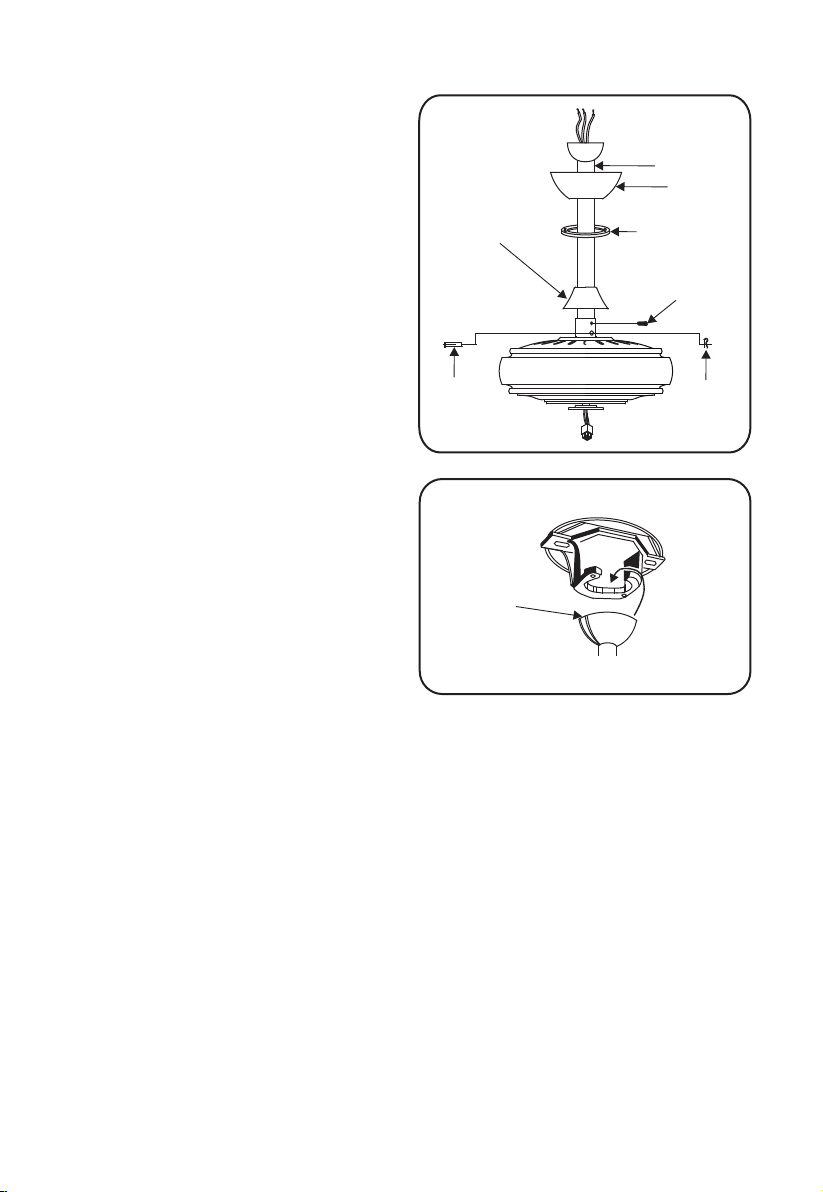

Step 5.
Step 6.
Slip coupling cover, canopy cover
and canopy onto downrod. (Fig.
9) Carefully reinstall hanger ball
onto rod being sure that cross
pin is in the correct position, set
screws are tighten and wires are
not twisted.
Now lift motor assembly into
position and place hanger ball
into hanger bracket. Rotate until
the check groove has dropped
into the registration slot and
seats firmly. (Fig. 10) Rod should
not rotate if this is done
correctly.
Fig. 10
REGISTRATION
SLOT
Fig. 9
CANOPY COVER
DOWNROD
CANOPY
SET SCREWS
HITCH PIN
LOCK PIN
COUPLING COVER

6
ELECTRICAL CONNECTIONS
REMEMBER to shut the power off at the circuit breaker or fuse box.
Follow the steps below to connect the fan to your house supply wires. Use the
wire nuts supplied with your fan. Secure the wire nuts by wrapping the
connection with electrical tape.
Step 1. Connect the black (hot) wire from the ceiling to the black and the blue
wires from the fan. Connect the white (Neutral) wire from the ceiling to the white
wire from the fan. (Fig 11)
Step 2. If your outlet has a ground wire (Green or Bare Copper) connect the fan
ground wires ((from hanger ball and hanger bracket) to it; otherwise connect the
fan ground wire wires from the hanger ball and hanger bracket together. (Fig. 11)

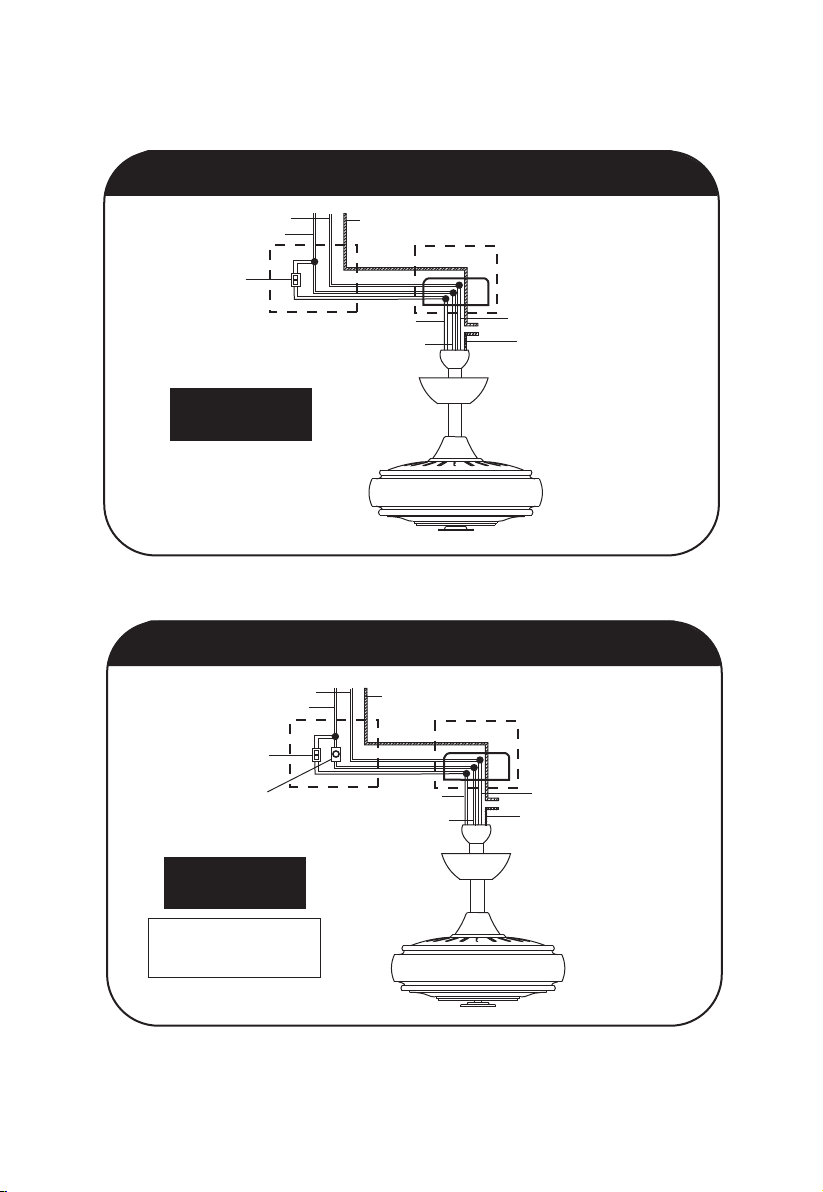

Step 3. Figure 12 & 13 Illustrate the wiring connections using optional wall unit.
(Available at your Minka-Aire
®
Retailer.)
NOTE: If a light kit is not included with your fan, one can be purchased at your
Minka-Aire
®
Retailer.

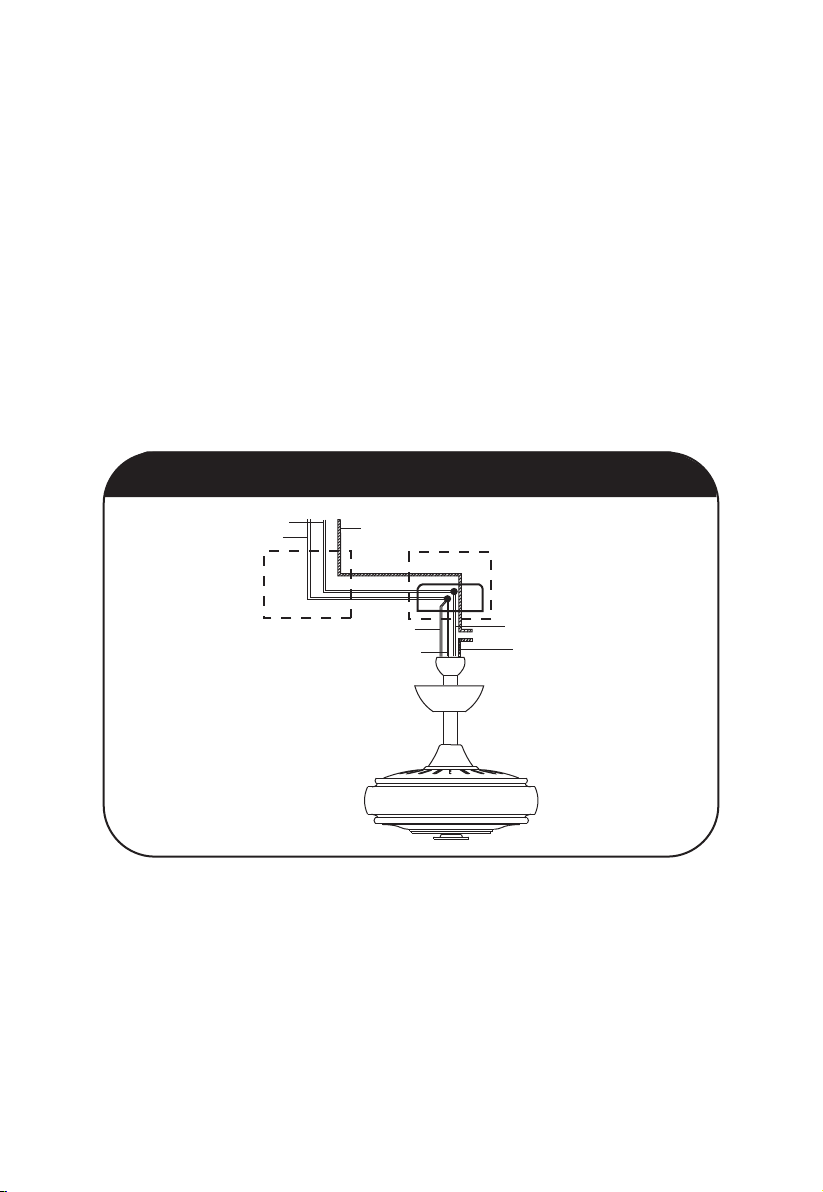

Fig. 11
BLACK (HOT)
WALL
WHITE (NEUTRAL) GREEN (GROUND)
CEILING
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT)
BLACK (MOTOR)
WHITE (NEUTRAL)
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN.
GROUND
(CONNECT TO GROUND WIRE ON
HANGER BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)

7
Fig. 12
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH.
WIRING
OPTION 1
BLACK (HOT)
WALL
WHITE (NEUTRAL) GREEN (GROUND)
CEILING
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT) WHITE (NEUTRAL)
LIGHT SWITCH
BLACK (MOTOR) GROUND
(CONNECT TO GROUND WIRE ON
HANGER BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
Fig. 13
FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH.
WIRING
OPTION 2
BLACK (HOT)
WALL
WHITE (NEUTRAL) GREEN (GROUND)
CEILING
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT)
BLACK (MOTOR)
WHITE (NEUTRAL)
LIGHT SWITCH
FAN WALL CONTROL
GROUND
(CONNECT TO GROUND WIRE ON
HANGER BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
NOTE: SOME WALL UNITS
INCORPORATE BOTH LIGHT
SWITCH AND FAN WALL
CONTROL IN ONE HOUSING.

8
FINISHING THE INSTALLATION
Step 1.
Step 2.
Step 3.
Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the
other one half a turn from the screw head.
Slide the canopy up towards the hanger bracket and place the key hole on the
canopy over the screw on the hanger bracket, turn canopy until it locks in place
at the narrow section of the key holes. (Fig. 14)
Align the circular hole on canopy with the remaining hole on the hanger bracket,
secure by tightening the two set screws.
NOTE: Adjust the canopy screws as necessary until the canopy and canopy cover are
snug.
Fig. 14
OUTLET BOX
HANGER BRACKET
HANGER BALL
CANOPY
CANOPY COVER

9

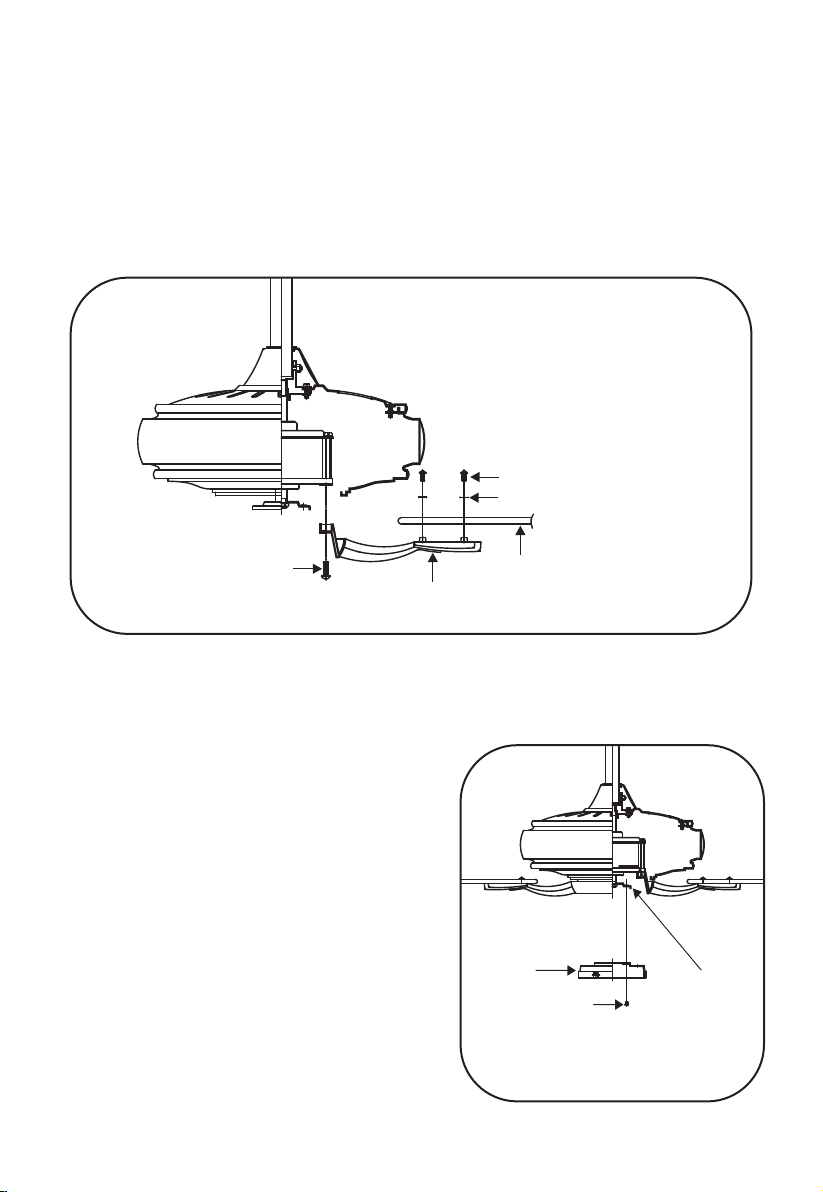

BLADE INSTALLATION
Attach the fan blade to the blade bracket using the screws and fiber
washers provided. Tighten screws securely.Repeat for remaining blades.
(Fig. 15)
Align holes in blade bracket and motor and secure with properscrews.
Repeat process with the other blade bracket.
INSTALLING THE MOUNTING PLATE
Fig 16
Remove 1 of 3 screws from the
mounting ring and loosen the other
2 screws. (Do not remove)
Place the key holes from the mounting
plate over the 2 screws previously
loosened from the mounting ring, turn
mounting plate until it locks in place at
the narrow section of the key holes.
Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Fig. 16)
Step 1.
Step 1.
Step 2.
Step 2.
Fig 15
Screws
Blades
Blade Bracket
Fiber Washers
Screws
SCREWS
MOUNTING
PLATE
MOUNTING
RING

10
NOTE: Before starting installation, disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box.
Step 1. Remove the 3 screws from the mounting plate.
Step 2. Place the light kit attached close to the mounting plate, firmly snap the wire
molex together. (Fig. 17)
Step 3. Carefully place the light kit assembly over the mounting plate and secure it
with the 3 screws. (Fig. 17)
INSTALLING THE LIGHT KIT
Fig. 17
SCREWS
MOUNTING PLATE
LIGHT KIT
ASSEMBLY
CONNECTORS

11
NOTE: Before starting installation, disconnect the power by turning off the circuit
breaker or removing the fuse at fuse box.
Step 1. Install 2 x 9W LED bulbs (included).
Step 2. Remove the decorative nut, glass cap and nut from the light kit. Place the
glass shade over the light kit stem. Place the nut over the stem and turn it
clockwise until it locks up against the glass shade. Do not overtighten. (Fig. 18)
Step 3. Insert the two pull chains through the eyelets in the glass shade and glass
cap. Secure the glass cap and decorative nut provided. Do not overtighten.
Step 4. Install two pull chains and fobs onto the pull chains located in the switch
housing and light kit.
Fig. 18
INSTALLING THE LIGHT BULBS & GLASS SHADE
GLASS CAP
DECORATIVE NUT
NUT
9W LED BULBS
GLASS SHADE
PULL CHAINS
PULL CHAINS
AND FOBS
LIGHT KIT ASSEMBLY

12
OPERATING YOUR FAN
Restore power to ceiling fan and test for proper operation.
Speed settings for warm or cool weather depend on factors such as the room size.
Ceiling height, number of fans, etc.
The Reverse switch is located on the switch cup. Slide the switch to the Left for
warm weather operation. Slide the switch to the Right for cool weather operation.
NOTE: Wait for fan to stop before changing the setting of the slide switch.
Warm weather - (Counter clockwise direction)
A downward airflow creates a cooling effect as shown in Fig. 19. This allows you to
set your air conditioner on a warmer setting without affecting your comfort.
Cool weather - (Clockwise direction )
An upward airflow moves warm air off the ceiling area as shown in Fig. 20.
This allows you to set your heating unit on a cooler setting without affecting your
comfort.
The pull chain controls the fan speed as follows:
1st pull - High , 2nd pul l - Med, 3rd pull - Low and 4th pul l - Off.
FIG. 19
FIG. 20
WINTER OPERATION
(CLOCKWISE DIRECTION)
SUMMER OPERATION
(COUNTERCLOCKWISE DIRECTION)

13
CARE OF YOUR FAN
Here are some suggestions to help maintain your fan.
1. Because of the fan's natural movement some connections may become loose.
Check the support connections, brackets and blade attachments twice a year.
Make sure they are secure. (It is not necessary to remove fan from the ceiling).
2. Clean your fan periodically to help maintain its new appearance over the years.
Use only a soft brush or lint free cloth to avoid scratching the finish. Plated
finishes are sealed with lacquer to minimize discoloration or tarnishing. Do not
use water when cleaning, this could damage the motor, wood blades or possibly
cause an electrical shock.
3. If your fan is provided with wood veneer blades; you can apply a light coat of
furniture polish for additional protection and enhanced beauty. Cover small
scratches with a light application of shoe polish.
4. Use a lint free lightly damp cloth or duster to remove dust from the blades.
5. There is no need to oil your fan. The motor has permanently lubricated bearings.
6. If your fan is provided with glass shades, clean with lukewarm soapy water and a soft
cloth or sponge. DO NOT IMMERSE GLASS SHADES IN HOT WATER. DO NOT PUT
GLASS SHADES INTO AN AUTOMATIC DISHWASHER.
WARNING!
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE SECTION, "ELECTRICAL
CONNECTIONS".

14
TROUBLESHOOTING
SYMPTOM - Fan will not start
SOLUTION
SYMPTOM - Fan Sounds Noisy
SOLUTION
SYMPTOM - Fan Wobble
SOLUTION
Allow a 24-hour "break-in" period. Most noises as sociated with a new fan go away
during this time.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub are tight.
Some fan motors are sensitive to signa ls from solid-state variable speed controls. If
you have installed this type of control, choose and install another type of control.
Check fuses or circuit breakers.
Check line wire connections to fan and switch wire connections in switch housing.
CAUTION: Make sure main power is off.
Check to make sure the reverse is set to one side. If switch is located in the
middle it might not make proper contact.
Check that all blade and blade holder screws are secured.
If a Balancing kit is provided follow the instructions included with the balancing kit
to help correct any excessive wobble.
NOTE: All Blade sets are grouped by weight. Because blades vary in density, the fan
may wobble even though blades are weight matched.

15
SPECIFICATIONS
These are typical readings. Your actual fan may vary. They do not include amps and
wattage used by the light(s).
0.00'
60”
Fan Size
120
120
VoltsSpeed
Low
High
Amps
0.10
0.40
Watts RPM
50
121
N.W. G.W. C.F.
0.0
Kgs 00.00 Kgs
Low
High
For any additional information about your
Minka Aire Ceiling fan, please write to:
R
2513
6028
4.58
29.76
4.58
29.76
549
203
ftc.gov/energy
The higher the airflow, the
more air the fan will move
Airflow Efficiency: 214 Cubic
Feet Per Minute Per Watt
Airflow
4,381
Cubic Feet Per Minute
Based on 12 cents per kWh and 6.4 hours use per day
Your cost depends on rates and use
Energy Use: 21 Watts
$3$34
Cost Range of Similar Models (19” – 84”)
$6
Estimated
Yearly Energy Cost
All estimates based on typical use, excluding lights
●
●
●
●
●
PERFORMANCE AND ENERGY INFORMATION
Ceiling fan airflow is measured in cubic feet per minute (CFM).
Power use is measured in watts. To maximize energy savings:
•Choose a fan with high airflow efficiency (CFM/watt).
•Use ENERGY STAR
®
rated bulbs in your fan.
•Switch off your fan when you leave the room.
FAN SPEED AIRFLOW
(CFM)*
POWER USE
(Watts)
AIRFLOW EFFICIENCY
(CFM/Watt)
Measure according
to the DOE approved
test method.
*
1151 W. Bradford Court, Corona, CA 92882
For Customer Assistance Call: 1-800-307-3267
