Minka-Aire ARTEMIS User manual

INSTRUCTION MANUAL WARRANTY CERTIFICATE
by
ARTEMIS
A
TM
U.S. Patents: D535,011; D535,015; D535,387; D535,388; D536,083; 7,481,626

This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.

Minka-Aire warrants to the original owner that this fan will be free from defects in material and workmanship for one
year from the date of purchase, excluding the motor. Minka-Aire warrants to the original owner that the motor in this fan
shall be free from defects in material and workmanship for as long as the original purchaser owns the fan, and it remains in
the original installation.
This is a limited warranty. Minka-Aire's only obligation under this limited warranty is to replace or repair, or refund the purchase price, in
Minka-Aire's sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this
limited warranty.
Call our customer service department at 1-800-307-3267 to obtain the name of the Minka-Aire authorized dealer closest to your location, or
contact us through our web site, www.minkagroup.net and write to: Ask Mr. Minka if you have any questions or require further assistance.
To obtain warranty service, the owner should return the fan along with proof of purchase to a Minka-Aire authorized dealer. The Minka-Aire
authorized dealer shall then, at its sole discretion: repair the fan, replace the fan, refund the purchase price less the amount directly attributable to
the consumer's prior usage of the fan, or if necessary instruct the consumer to contact Minka-Aire directly for warranty service. Minka-Aire will be
responsible for the cost of any repair, or replacement for any warranty service provided by a Minka-Aire authorized dealer for product under
warranty.
You may also at your preference obtain warranty service by returning the fan directly to Minka-Aire along with proof of purchase, your name
and return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the
original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that
proves to be defective during the warranty period to the following address:
Minka-Aire - Warranty Service, 1151 W. Bradford Court, Corona, CA 92882
R
R
R
R
R
R
R
R
R
R
R
R
R
R

Date Purchased Store Purchased Model Number Serial Number
F803
This warranty shall not apply to fans which have been damaged in any way, including improper installation, damage as a result of the removal
of the fan from the origial installation, or damage in shipping. This warranty shall not apply to fans which have been subjected to use for which the
fan was not designed. The purchaser of the fan shall be responsible for any cost of removing the old fan, installing a new fan, or any other costs.
This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and
Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or
limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. We encourage you to promptly
complete and return the enclosed warranty registration card. However, return of the warranty registration card is not a condition of this warranty.
R

CONTENTS
BLADE INSTALLATION.......................................................................................
INSTALLING THE MOUNTING PLATE.........................................................
INSTALLING THE LIGHT PLATE....................................................................
INSTALLING THE LIGHT BULB & GLASS SHADE...................................
OPERATING YOUR REMOTE CONTROL/WALL TRANSMITTER...
CARE OF YOUR FAN..........................................................................................
TROUBLESHOOTING........................................................................................
SPECIFICATIONS................................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
UL
LISTED
E75795
R
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
SAFETY RULES....................................................................................
PACKAGE CONTENTS.....................................................................
INSTALLING THE FAN.....................................................................
HANGING THE FAN.........................................................................
ELECTRICAL CONNECTIONS.......................................................
INSTALLING THE WALL TRANSMITTER.................................
FINISHING THE INSTALLATION................................................

SAFETY RULES
1
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure the
box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50 pounds) Do
not use a plastic box.
6. Caution: To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning.

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE
FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED.
CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person (s) installing, caring for and operating the unit.
NOTE:READ AND SAVE ALL INSTRUCTIONS!
ATTENTION:
ATTENTION:
The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the
ceiling fan's light kit will shut off automatically.

2
1. Fan blades (3)
2. Hanger bracket
3. Canopy
4. Canopy cover
5a. Standard downrod assembly
5b. Minimum-length downrod (for close to
ceiling mounting only)
6. Coupling cover
7. Fan motor/housing assembly
8. Mounting plate
9. Light plate
10. Glass shade
11. Optional switch cup cover
12. Receiver with 6 wire nuts
13a. Wall transmitter Incl. 2 mounting
screws and 3 wire nuts
13b. Wall plate w/2 mounting screws
14. Extra Wall Plate w/2 Mounting screws
15. 100 Watt halogen bulb
A. Mounting hardware:
#10 x 1.5" Wood screws (2 PCs.)
#8 x 3/4" Machine screws (2 PCs.)
Lock washers (2 PCs.)
4mm Star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
B. Bracket holder hardware:
3/16" x 17mm Screws with lock
washers (10 PCs.)
PACKAGE CONTENTS
1
Unpack your fan and check the contents.
You should have the following items:
5a
5b
2
12
15
14
4
13a
13b
6
10
11
7
8
9
3
A
B

3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE FAN
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.

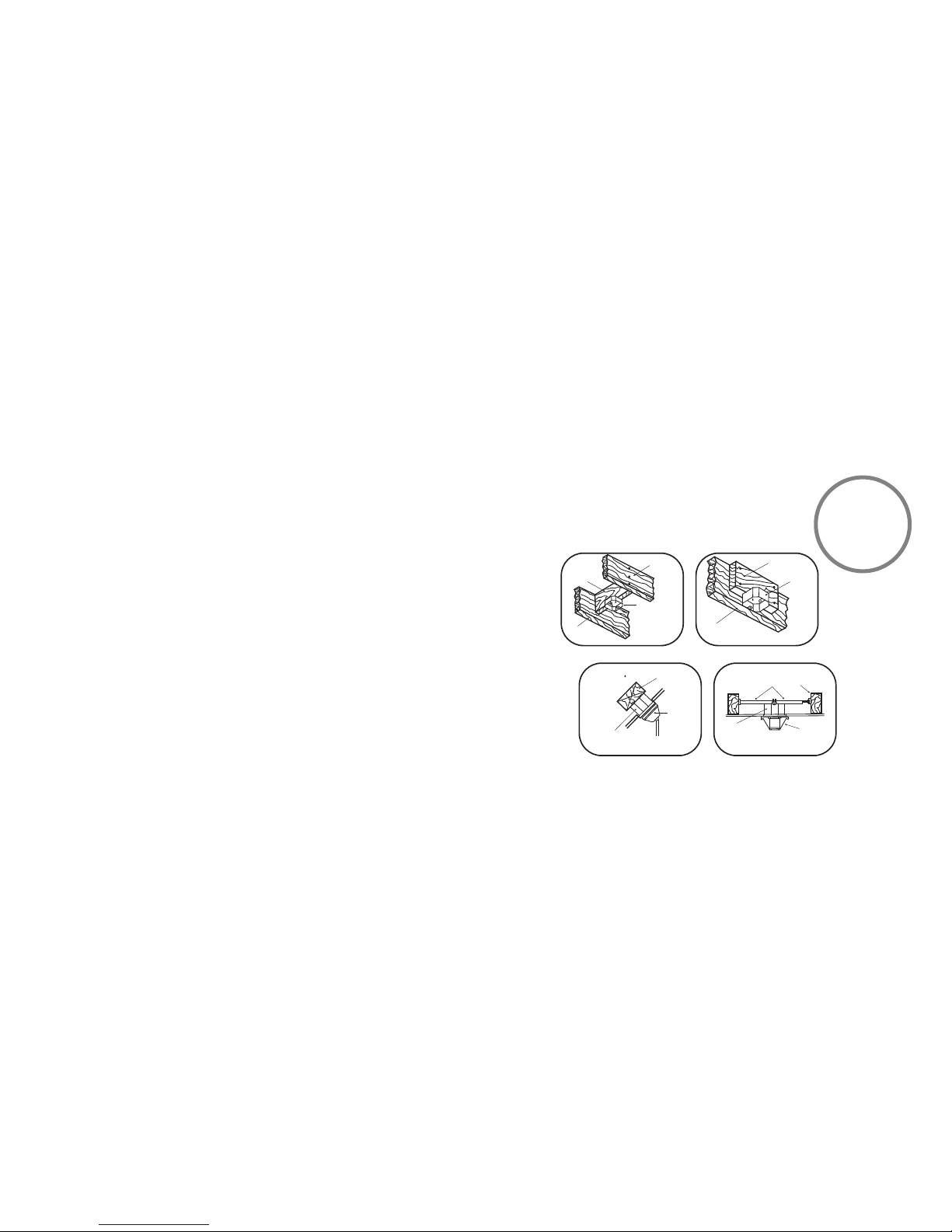

Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note: You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire® dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire® dealer).
FIG. 1
FIG. 3
FIG. 2
FIG. 4
CROSS BRACE
CEILING
JOIST
CEILING
jOIST
CEILING
JOIST
OUTLET BOX
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
OUTLET BOX
CEILING JOIST OR
CROSS BRACE
ANGLED CEILING
MAXIMUM 29 ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
must be
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

4
WARNING: All of the parts, hardware and components such as the
hanger bracket and hanger ball have been provided for your safety and
the proper installation of your new ceiling fan. The use of other parts,
hardware or components not supplied by Minka Aire®with the fan will
void the Minka Aire®Warranty.

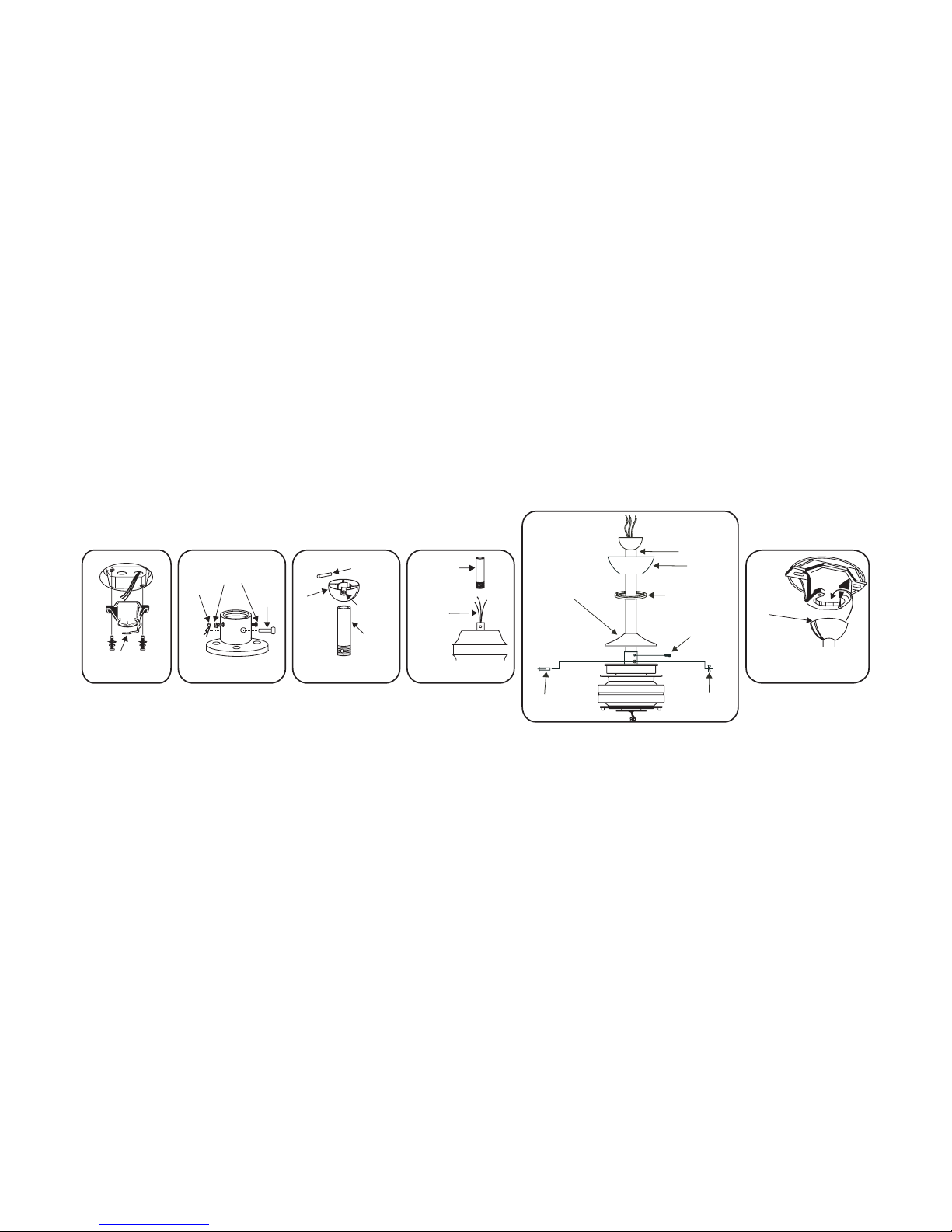

REMEMBER to turn off the power. Follow the steps below to hang your
fan properly:
Step 1. Secure the hanger bracket to the ceiling outlet box using screws
included with your outlet box, lock washers included with the fan. (Fig.5)
Step 2. Loosen the two set screws and remove the hitch pin and lock pin
from the top coupling of the motor assembly. (Fig. 6)
Step 3. Remove hanger ball from downrod assembly by loosening set
screw, removing the cross pin, and sliding ball off rod. (Fig.7)
Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread
the rod into the coupling, next line up holes and replace lock pin and
hitch pin. Tighten set screws.
Step 5. Slip coupling cover, canopy cover and canopy onto downrod.
(Fig. 9) Carefully reinstall hanger ball onto rod being sure that cross pin
is in the correct position, set screws are tighten and wires are not
twisted.
Step 6. Now lift motor assembly into position and place hanger ball
into hanger bracket. Rotate until the check groove has dropped into the
registration slot and seats firmly. (Fig. 10) Rod should not rotate if this
is done correctly.
HANGING THE FAN

Fig. 5
Fig. 7 Fig. 8Fig. 6 Fig. 10
Fig. 9
CANOPY COVER
OUTLET BOX
HANGER BRACKET
DOWNROD
SUPPLY
WIRES REGISTRATION
SLOT
CROSS PIN
HANGER
BALL
DOWNROD
HITCH
PIN LOCK
PIN
SET SCREWS
SET SCREW
DOWNROD
CANOPY
SET SCREWS
HITCH PIN
LOCK PIN
COUPLING COVER

5
WARNING: To avoid possible electrical shock be sure electricity is
turned off at the main fuse or breaker box before wiring.

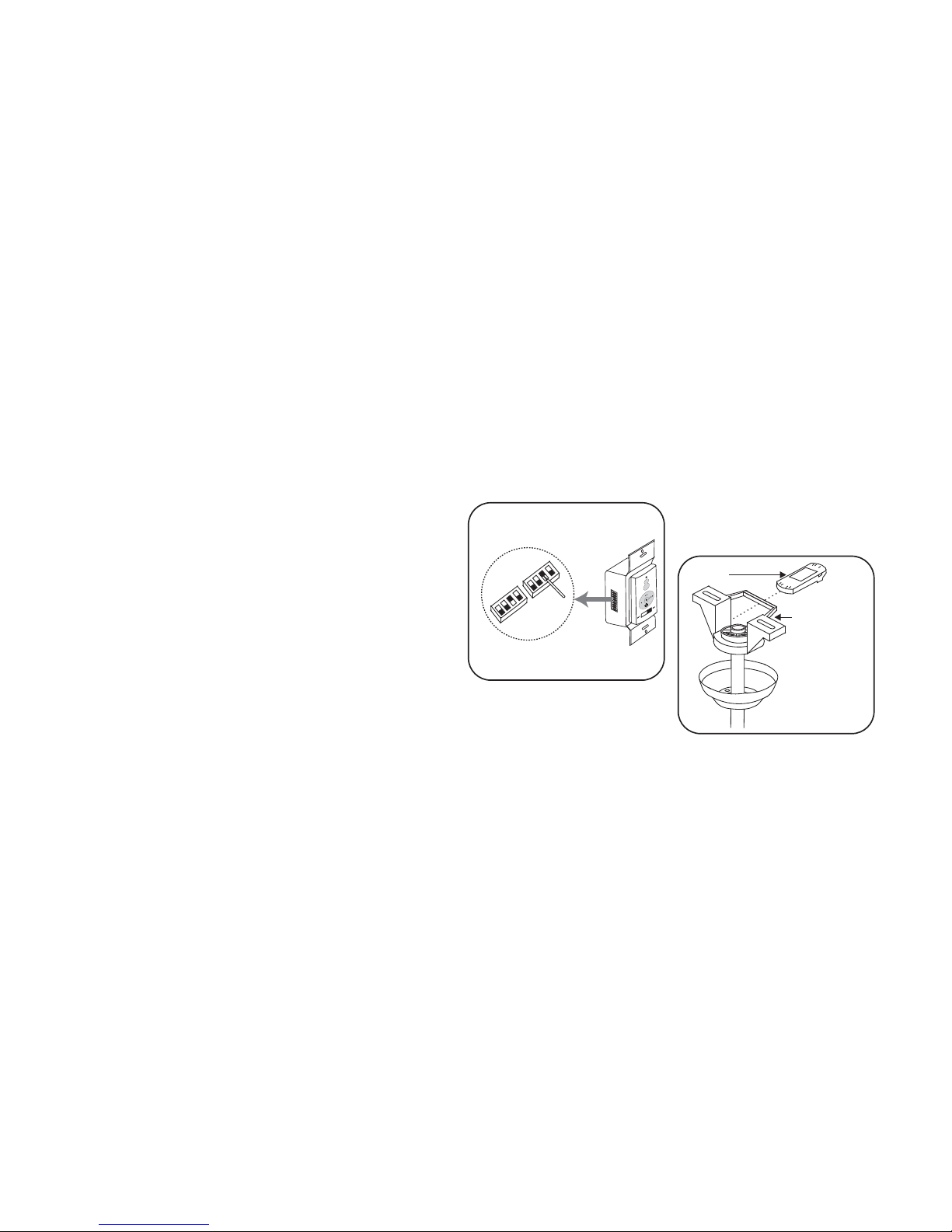

NOTE: The Aire Control® System is equipped with a learning frequency
function which has 256 code combinations to prevent potential
interference from other remote units. The frequency on your Receiver
and Transmitter units have been preset at the factory. (Fig. 11) No
frequency change is necessary, should you desire to install another fan
within the same home or area with a seperate frequency code please
see the "frequency interference" troubleshooting section of this
instruction manual to learn how to change the frequency.
Step 1. Insert Receiver into Hanger Bracket with the flat side of the
Receiver facing the ceiling. (Fig. 12)
Note: Fan must be installed at a maximum distance of 40 feet from the
transmitting unit for proper signal transmission between the
transmitting unit and the fan's receiving unit.
Step 2. Motor to Receiver Electrical Connections: Connect the WHITE
wire from the fan to the WHITE wire marked "TO MOTOR N" from the
Receiver. Connect the BLACK wire from the fan to the BLACK wire
marked "TO MOTOR L" from the Receiver. Connect the BLUE wire from
the fan to the BLUE wire marked "For Light" from the Receiver.
NOTE: If your ceiling fan features an UP Light: Connect the ORANGE wire
from the fan to the ORANGE wire marked "For Up Light" from the
Receiver. Otherwise disregard this step and proceed to secure all wire
connections with the plastic wire nuts provided. (Fig. 13 & 14)
ELECTRICAL CONNECTIONS

Step 3. Receiver to House Supply Wires Electrical Connections:
Connect the WHITE wire (Neutral) from the outlet box to the WHITE
wire marked "AC in N" from the receiver. Connect the BLACK wire
(Hot) from the outlet box to the BLACK wire marked "AC in L" from
the receiver. Secure all wire connections with the plastic wire nuts
provided. (Fig. 13 & 14)
Step 4. If your outlet box has a GROUND wire (Green or Bare Copper)
connect this wire to the Hanger Ball and Hanger Bracket Ground
wires. If your outlet box does not have a Ground Wire, then connect
the Hanger Ball and Hanger Bracket Ground Wires together. Secure
wire connection with the plastic wire nut provided. (Fig. 13 & 14)
After all splices are made, check to make sure there are no loose
strands. As an additional precaution we suggest to secure the plastic
wire connectors to the wires with electrical tape.
Fig. 11
Fig. 12
RECEIVER
HANGER BRACKET

Fig. 13 Fig. 14
WALL
CONTROL
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
BLUE
BLUE
GROUND
GROUND
ORANGE
GREEN
INPUT
AC120V
AC SUPPLY
WHITE (NEUTRAL)
WHITE (NEUTRAL)
GREEN OR BARE
COPPER (GROUND)
WHITE ("AC IN N")
WHITE ("TO MOTOR N")
GROUND-
(GREEN) (CONNECT TO
GROUND WIRE ON
HANGER BRACKE
IF NO HOUSE
GROUND WIRE
EXISTS.)
OUTLET BOX
BLACK (HOT)
BLACK ("AC IN L")
BLACK ("TO MOTOR L")
RECEIVER
BLUE (FOR LIGHT)
BLUE (FOR LIGHT)
ORANGE
(FOR UPPER LIGHT)
BLACK (MOTOR)
ORANGE
(FOR UPPER LIGHT)
BLACK
BLACK
BLACK
WHITE
WHITE
ORANGE
WHITE
GREEN

6
Fig. 15
WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF
ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE
TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Step 2. Make the electrical connections as shown in Fig.14. If your outlet box has a ground
wire (Green or Bare Copper) connect the Transmitter's ground wire directly to one of the
screws from the outlet box. Secure all wire connections with the plastic wire nuts
provided.

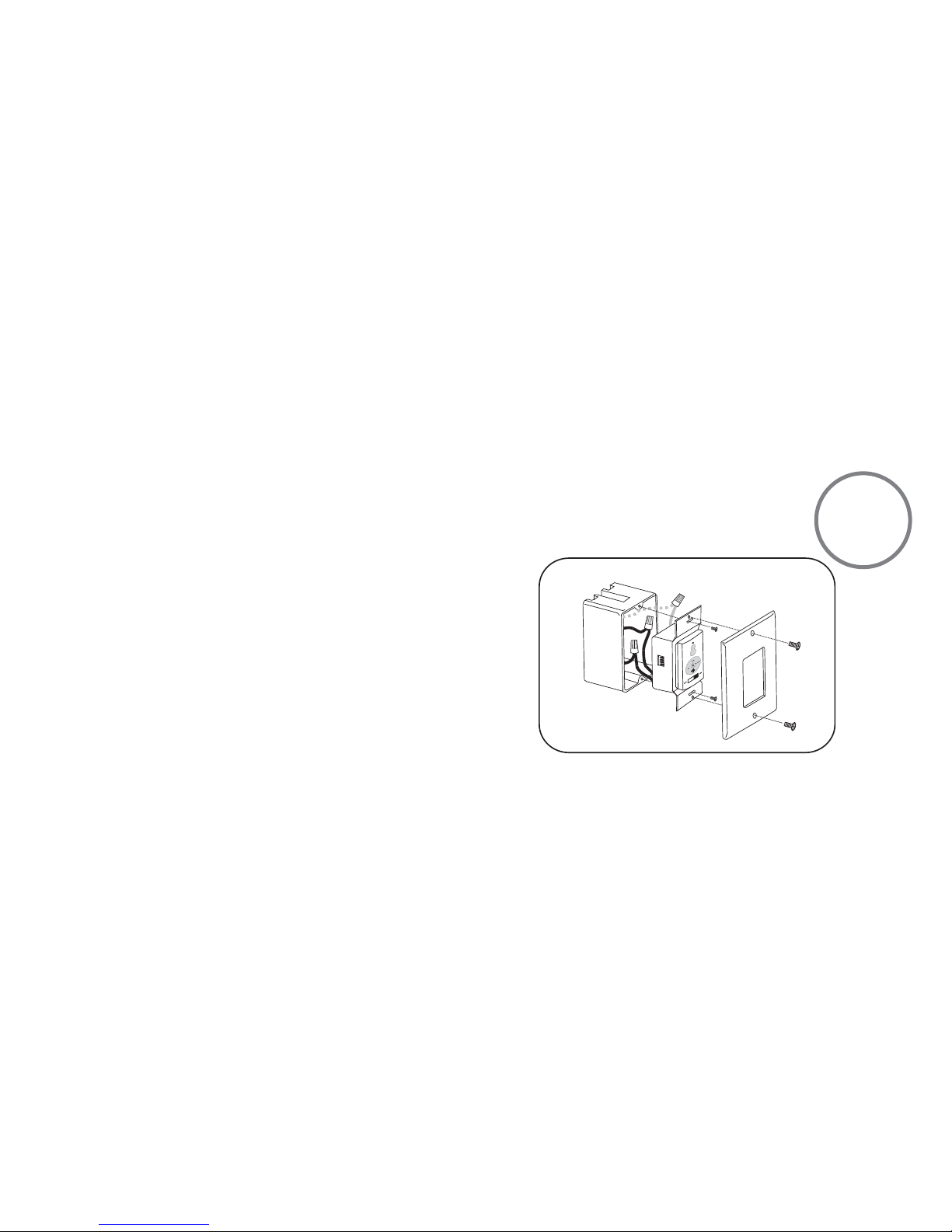

Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws provided
to secure the wall transmitter and wall plate to the outlet box. (Fig. 15)
NOTE: Your Aire Control™ System includes two sets of face and decorative plate color
options. The wall control comes with standard white faceplate attached. If you desire to
replace it with the Ivory color faceplate included, use a small flat screw driver and gently
pry it apart from the top or bottom of the plate.
INSTALLING THE WALL TRANSMITTER

7
Step 1. Tuck connections neatly into ceiling outlet box.
Step 2. Slide the canopy up to ceiling and over the two screws on hanger bracket. Rotate canopy
clockwise, next, while holding the canopy with one hand, slide the canopy cover over the screws
and rotate clockwise until tight.
Note: Adjust the canopy screws as necessary until the canopy and canopy cover are snug. (Fig. 16)
Fig. 16
FINISHING THE INSTALLATION
OUTLET BOX
HANGER
BRACKET
HANGER
BALL
CANOPY
CANOPY
COVER

8
Fig 17

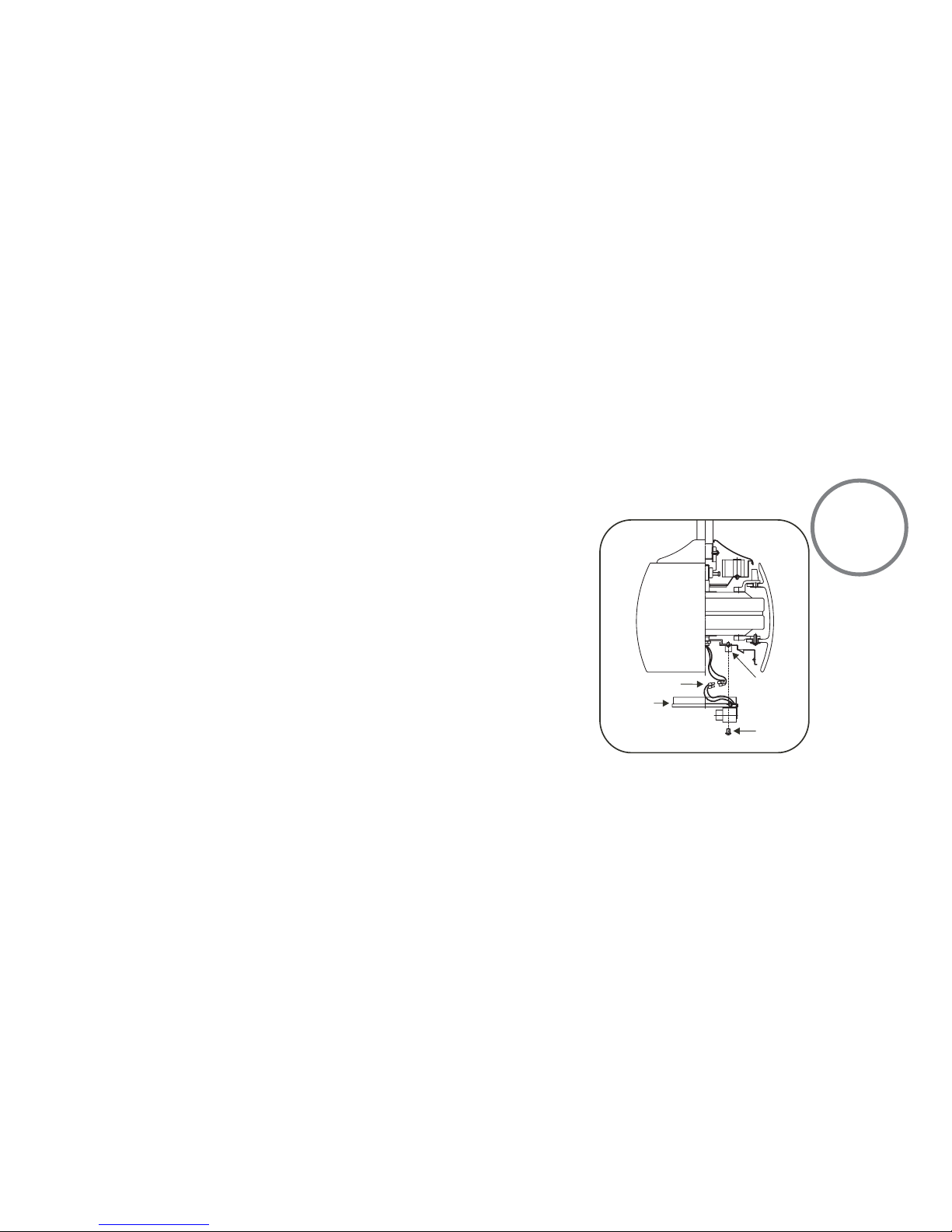

Align and engage the top holes from one of the blades to the upper blade holder
tabs. Carefully align the bottom holes from the blade to the holes from the lower
blade holder. Secure blade with 3 screws provided. Follow the same process for the
remaining two blades. (Fig. 17)
All blade sets are grouped together by weight. Because plastic materials vary in
density, the fan may wobble even though the blades are weight matched.
BLADE INSTALLATION
BLADE
LOWER BLADE
HOLDER
SCREWS
UPPER BLADE
HOLDER TABS

Fig 18
9
Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not
remove)
Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the
mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 18)
INSTALLING THE MOUNTING PLATE
MOUNTING
RING
SCREWS
MOUNTING PLATE

10
Fig. 19
NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or
removing the fuse at fuse box.
1. Loosen the 3 screws from the mounting plate.
2. Raise and hold the light plate close to the mounting plate and proceed to do the wire connections.
Connect the white wire connectors from the light plate and fan, follow the same procedure with the
black wire connectors. (Fig. 19)
3. Place the key holes on the light plate over the 3 screws previously loosened from the mounting
plate, turn light plate until it locks in place at the narrow section of the key holes. Secure by
tightening the 3 screws previously loosened. (Fig. 19).
INSTALLING THE LIGHT PLATE
SCREWS
LIGHT PLATE
CONNECTORS
MOUNTING PLATE

11
Fig. 20
WARNING: Shut off the power supply before removing or replacing lamp. In handling of
halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten
the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean,
lint-free, cotton cloth. Allow the bulb to cool off for 10 minutes before changing the bulb. Use light
bulb in accordance with the fan's specification. TO REDUCE THE RISK OF FIRE DO NOT EXCEED
MAXIMUM WATTAGE RATING.
ATTENTION:
ATTENTION:
The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt
limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically.
Step 1. Install 100W halogen bulb (included). (Fig. 20). (Disregard this step if using the optional
switch cup cover)
Step 2. Raise glass shade or optional switch cup cover up against bottom of fan housing and secure
it to fan by turning it clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 20)
Note: If installing the optional switch cup cover, make sure is securely tighten.
INSTALLING THE LIGHT BULB & GLASS SHADE
BULB
LIGHT PLATE
GLASS SHADE
OR OPTIONAL
SWITCH CUP
COVER
