Minnesota Fats MFT901-TBL User manual

1-866-556-2757
FAX: [phone]
We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts. However, if
you have any problems with your new product,
DO NOT RETURN IT TO THE STORE,
please contact us toll free @:
Or write to:
Escalade Sports
Customer Service Department
P.O. Box 889
Evansville IN 47706
Your Model Number ____________________
have your model number when inquiring about parts.
[email protected]
Please
Date Code ___________________________
2-MFT901-TBL- -DO
© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
When contacting Escalade Sports please provide your model number, date
code (if applicable) and part number if requesting a replacement part. These
numbers are located on the product, packaging, and this owners manual.
1
All Rights Reserved.
Purchase Date ________________________
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
MFT901-TBL

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
2
All Rights Reserved.
IMPORTANT! READ EACH STEP
IN THIS MANUAL BEFORE YOU
BEGIN THE ASSSEMBLY.
Allen Wrench T1 & Wrench T2 Included with the Hardware Kit
Furniture Polish and Cloth
Make sure you understand the following tips before you begin to assemble your pool table.
1. Start all bolts by hand before tightening.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.
An electric screwdriver is helpful in assembly. However, please set at low torque and use
extreme caution with an electric screwdriver because you could overtighten the hardware
and strip the screws.
TWO ADULTS ARE REQUIRED TO ASSEMBLE THIS
THIS MINNESOTA FATS 7.5FT FULLERTON POOL TABLE
Assembly Tips
Tools Required:
READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO
ADULTS ARE NEEDED TO PUT THIS POOL TABLE
TOGETHER.
ATTENTION:

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
3
All Rights Reserved.

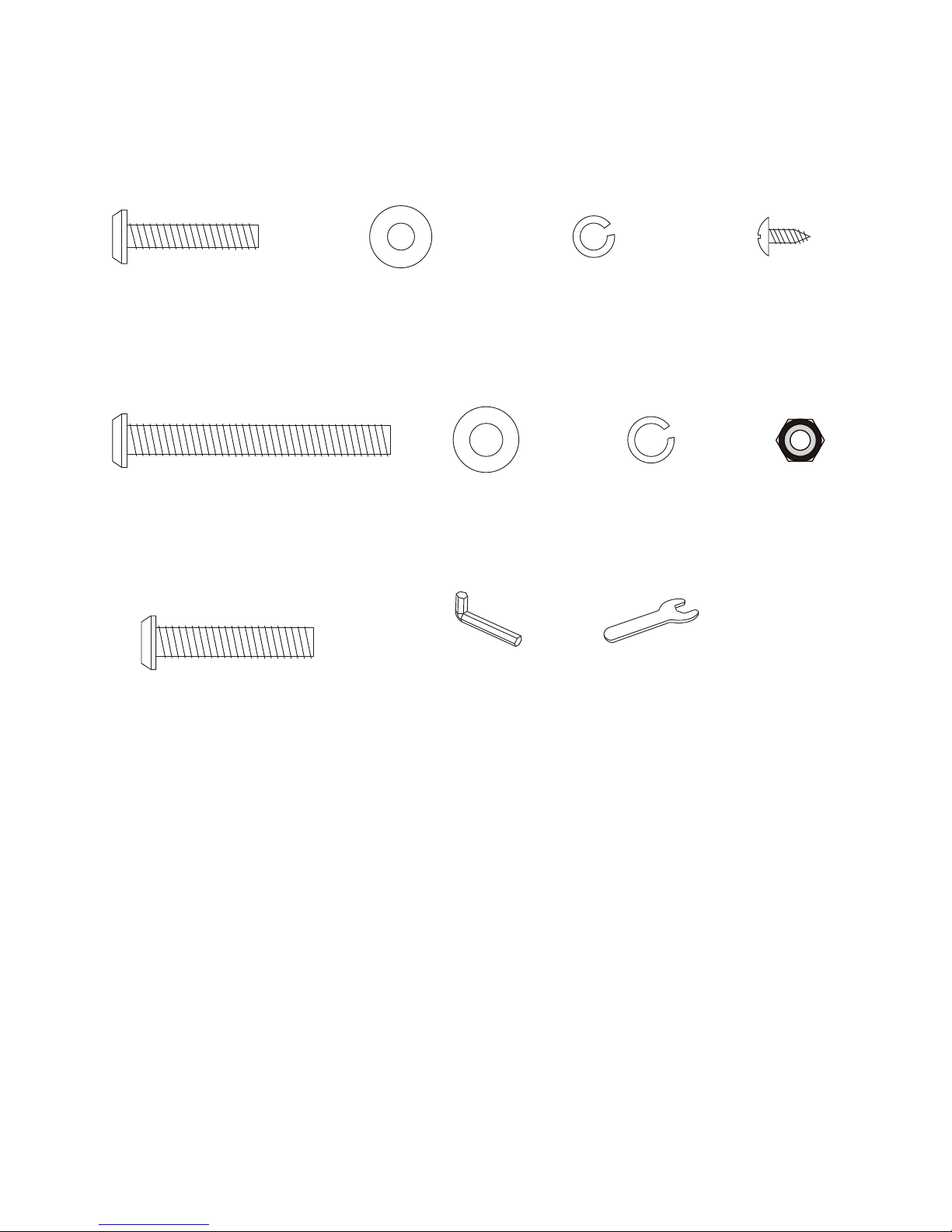

HARDWARE IDENTIFIER
H1 - 1/4” x 1-1/4”
Allen Head Bolt (16)
H2 - 1/4”
Flat Washer (16)
H4 - 4mm x 10mm
Phillips Round
Head Screw (16)
(To Scale)
T1 - Allen Wrench (1)
(Not to Scale)
H5 - 5/16” x 2-1/4”
Allen Head Bolt (12)
H3 - 1/4”
Lock Washer (16)
H6 - 5/16”
Flat Washer (36)
H7 - 5/16”
Lock Washer (24)
H8 - 5/16”
Nut (12)
T2 - Wrench (1)
(Not to Scale)
H9 - 5/16” x 1-1/2”
Allen Head Bolt (12)

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
4
All Rights Reserved.
(Not To Scale)
PARTS IDENTIFIER
P1R - Pool Table Cabinet (1) P2R - Side Apron (2)
P4 - Corner
Post (4)
P5 - Leg (4)
P3 - End Apron (2)
P6 - Leg
Support
Brace (4)
(Not To Scale)
ACCESSORIES IDENTIFIER
A1 - Cue Stick (2) A2 - Triangle (1)
A5 - Billiard Ball Set (1)
A3 - Playfield
Cloth Brush (1)
A4 - Cue Chalk (2)
!
WARNING:
CHOKING HAZARD
Small parts.
Not for children under 3 yrs.
P7 - Wooden
Block (12)
A6 - Leveling Shim (10)
** Use under legs
only as required **

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
5
All Rights Reserved.

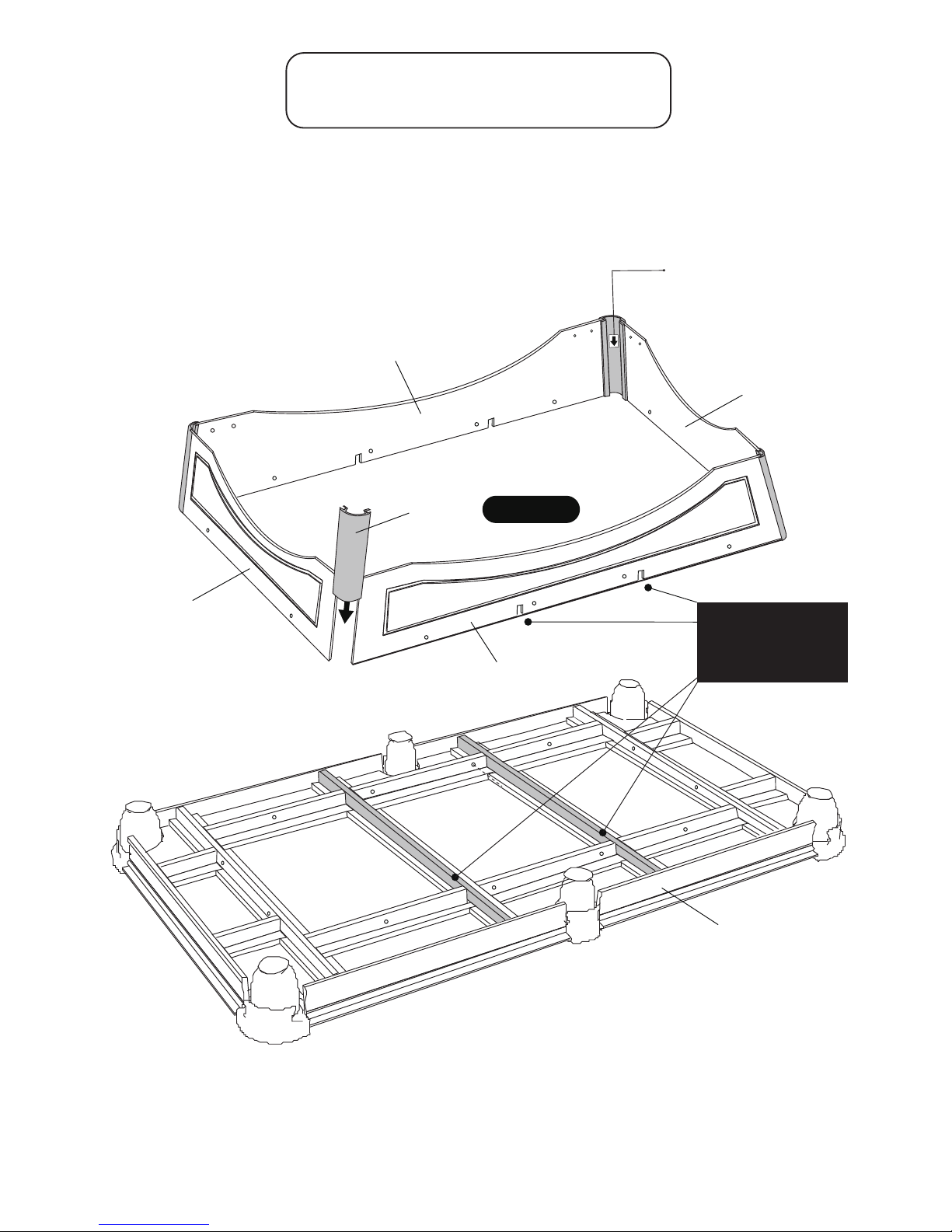

STEP 1:
With the help of another adult, install P2R Side Aprons and P3 End Aprons onto P1R Pool Table Cabinet with
P4 Corner Posts attach as shown in FIGURE 1.
IMPORTANT NOTE: SLIDE P4 CORNER POSTS WITH ARROW POINTING DOWN.
PARTS REQUIRED:
1 pc - P1R Pool Table Cabinet 2 pcs - P3 End Apron
2 pcs - P2R Side Apron 4 pcs - P4 Corner Post
IMPORTANT NOTE:
Install P2R Side Aprons
with grooves fit to the P1R
Pool Table playfield support
braces as shown.
P2R
P3
P1R
FIGURE 1
P2R
P3
P4
NOTE: Slide P4 Corner
Posts with arrow
pointing down.

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
6
All Rights Reserved.

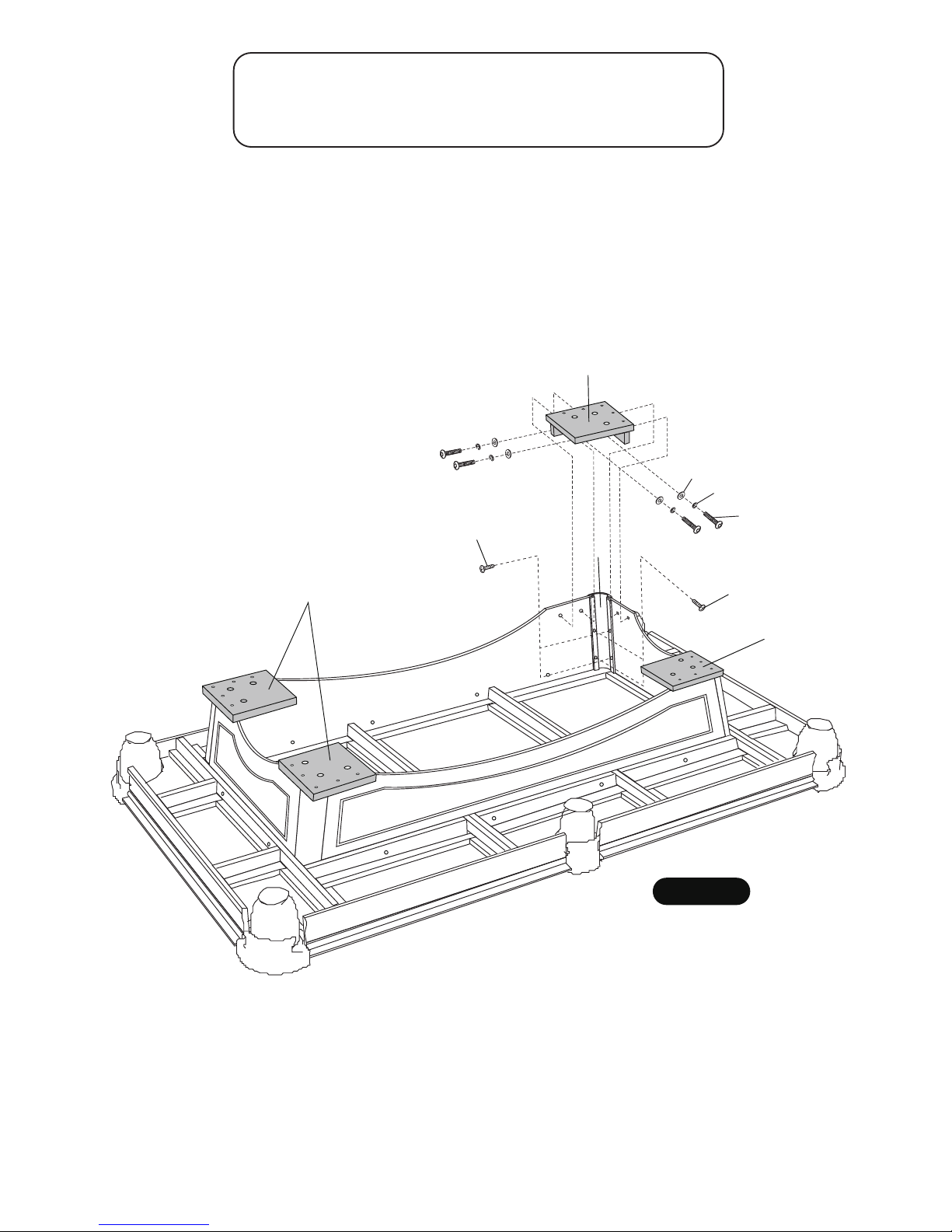

STEP 2:
Install P6 Leg Support Braces using H1 Allen Head Bolts with H2 Flat Washers and H3 Lock Washers as shown
in FIGURE 2. Use T1 Allen Wrench to tighten all H1 Allen Head Bolts.
Secure P4 Corner Posts using H4 Phillips Round Head Screws as shown in FIGURE 2.
IMPORTANT NOTE: TIGHTEN, BUT DO NOT STRIP OUT H4 SCREWS.
PARTS REQUIRED:
16 pcs - H1 Allen Head Bolt 16 pcs - H4 Phillips Round Head Screw
16 pcs - H2 Flat Washer 4 pcs - P6 Leg Support Brace
16 pcs - H3 Lock Washer 1 pc - T1 Allen Wrench
FIGURE 2
P6
H2
H3
H1
P6
P6
H4
H4
P4

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
7
All Rights Reserved.
STEP 3:
Install P7 Wooden Blocks using H5 Allen Head Bolts with H6 Flat Washers, H7 Lock Washers and H8 Nuts as
shown in DETAIL A and FIGURE 3. Use T1 Allen Wrench and T2 Wrench to tighten all H5 Allen Head Bolts.
PARTS REQUIRED:
12 pcs - H5 Allen Head Bolt 12 pcs - H8 Nut
24 pcs - H6 Flat Washer 12 pcs - P7 Wooden Block
12 pcs - H7 Lock Washer 1 pc - T1 Allen Wrench
1 pc - T2 Wrench
FIGURE 3
H6
H5
IMPORTANT NOTE:
Place P7 Wooden Blocks
between table support
frames and P3 End Aprons.
P7
P7
H6
H7 H8
H8
H7
H6H6H5
DETAIL A
Support
Frame
Apron
Wooden
Block
P7
H8
H7
H6
IMPORTANT NOTE:
Place P7 Wooden Blocks
between table support
frames and P2 Side Aprons.
H6
H5

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
8
All Rights Reserved.
STEP 4:
Install P5 Legs to each P6 Leg Support Brace using H9 Allen Head Bolts, H6 Flat Washers and H7 Lock Washers
as shown in FIGURE 4. Use T1 Allen Wrench to tighten all H9 Bolts.
PARTS REQUIRED:
12 pcs - H6 Flat Washer 4 pcs - P5 Leg
12 pcs - H7 Lock Washer 1 pc - T1 Allen Wrench
12 pcs - H9 Allen Head Bolt
FIGURE 4
H6
H7
H9
P6
P5
THIS STEP REQUIRES FOUR OR MORE ADULTS.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.
DO NOT REST TABLE ON THE TWO SIDE LEGS WHILE
TURNING THE TABLE UPRIGHT AS THIS COULD DAMAGE
THE LEGS.
ATTENTION:

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
9
All Rights Reserved.

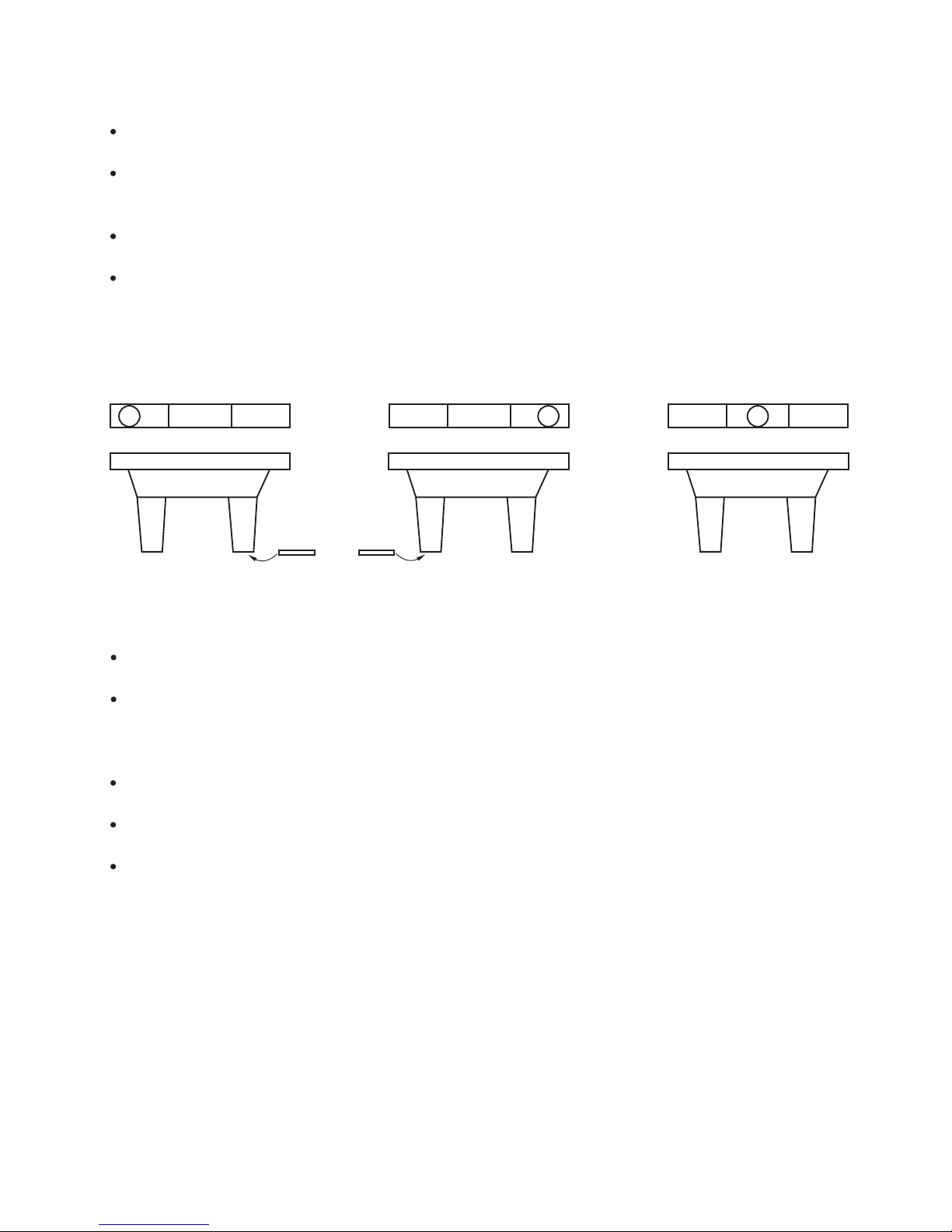

INSTRUCTIONS FOR LEVELING A POOL TABLE
Assemble pool table according to the instruction.
Any type of level would be sufficient to perform this procedure. However, a two-foot level is
recommended.
Before leveling, make sure level is placed on the playing surface, not the rails.
Level the ends between the corner pockets: Place the level on the playing surface between
the two corner pockets and adjust the height by placing shims (A6) underneath the leg
apposite of which the bubble in the level favors until the bubbles rests in the middle of the
level.
Repeat the step above to the opposite corner pockets.
Next, level the length of the table. Place the level next to the side pocket and adjust the
height to position the bubble in the middle of the level, using the shims beneath the leg
opposite of which the bubble in the level favors.
Repeat the step above to the opposite length of the table.
Recheck both short ends to ensure bubble is in the middle on the level.
Depending on the surface the pool table sits, especially deep pile carpenting, the pool table
needs to settle for 24 hours. Recheck the level on each side of the table after 24 hours.
UN-LEVEL UN-LEVEL LEVEL
Add Shim Add Shim

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
10
All Rights Reserved.
CARE AND USE OF YOUR TABLE
1. Use spray furniture polish to clean all exterior surfaces of your pool table.
2. Use the table brush provided to clean the cloth on the table.
3. This product is intended for INDOOR use only.
4. DO NOT sit, climb or lean on the table.
5. DO NOT drag the table when moving it. This will damage the legs.
Congratulations! You have now assembled your pool table. Please note the Care
and Use instructions below to insure many years of trouble free use of your pool
table.
MFT901-TBL PRODUCT PARTS LISTS
6. DO NOT set drinks on the table.
MFT901-TBLDOH1 H1 1/4” x 1-1/4” Allen Head Bolt 16
MFT901-TBLDOH2 H2 1/4” Flat Washer 16
MFT901-TBLDOH3 H3 1/4” Lock Washer 16
MFT901-TBLDOH4 H4 4 mm x 10 mm Phillips Round Head Screw 16
MFT901-TBLDOH5 H5 5/16” x 2-1/4” Allen Head Bolt 12
MFT901-TBLDOH6 H6 5/16” Flat Washer 36
MFT901-TBLDOH7 H7 5/16” Lock Washer 24
MFT901-TBLDOH8 H8 5/16” Nut 12
MFT901-TBLDOH9 H9 5/16” x 1-1/2” Allen Head Bolt 12
MFT901-TBLDOT1 T1 Allen Wrench 1
MFT901-TBLDOT2 T2 Wrench 1
MFT901-TBLDOP1R P1R Pool Table Cabinet 1
MFT901-TBLDOP2R P2R Side Apron 2
MFT901-TBLDOP3 P3 End Apron 2
MFT901-TBLDOP4 P4 Corner Post 4
MFT901-TBLDOP5 P5 Leg 4
MFT901-TBLDOP6 P6 Leg Support Brace 4
MFT901-TBLDOP7 P7 Wooden Block 12
MFT901-TBLDOA1 A1 Cue Stick 2
MFT901-TBLDOA2 A2 Triangle 1
MFT901-TBLDOA3 A3 Playfield Cloth Brush 1
MFT901-TBLDOA4 A4 Cue Chalk 2
MFT901-TBLDOA5 A5 Billiard Ball Set 1
MFT901-TBLDOA6 A6 Leveling Shim 10
MFT901-TBLDOK1 K1 Hardware Kit 1
MFT901-TBLDOM1 M1 Owner’s Manual 1
Part# Key# Description Qty
7. The purchase of a pool table cover will both protect and help keep clean the
entire top of the pool table.

© 2015 Escalade Sports For Customer Service Call 1-866-556-2757
11
All Rights Reserved.
This customer warranty extends to the original owner, on the purchase of any ESCALADE SPORTS
Product (hereinafter referred as the "Product").
This Product is warranted to the original owner, for a period of 90 days from the
original purchase.
ESCALADE SPORTS warrants to the original owner, this product to be free
from defects in material and workmanship when used for the intended purpose under normal use and
conditions. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT,
UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS
PROVIDED WITH THE PRODUCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL
AND WORKMANSHIP.
During the above 90 day warranty period, ESCALADE SPORTS shall
provide replacement components or replace with a comparable product at our choosing. If product is
defective under normal use and proper care, please contact our Customer Service Dept.
Other than shipping requirements no charge will be made for such replacement of in-warranty Products.
Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental
damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
may vary from state to state.
WARRANTY DURATION:
WARRANTY COVERAGE:
WARRANTY REPLACEMENT:
LEGAL REMEDIES:
1-866-556-2757 / Customer Service Dept.
Or Write us at:
Escalade® Sports, Inc. - P.O. Box 889, Evansville, IN 47706
Attn: Customer Service Dept.
Or E-mail us at:
[email protected]
ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
ABOVE 90 DAY PERIOD. ESCALADE SPORTS SHALL NOT BE LIABLE FOR LOSS OF
USE OF THE PRODUCT OR OTHER CONSEQUENTIAL OR INCIDENTAL COSTS,
EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.
WARRANTY DISCLAIMERS:
90 DAY LIMITED WARRANTY
