Minusforty 07-CSGR User manual

Glass Door Refrigerators
Undercounter and Countertop
Owners Manual
Models
07-CSGR
12-CDGR
Model:
Serial Number:
Date of Purchase:
30 Armstrong Avenue
Georgetown, Ontario
Canada L7G 4R9
Tel: [phone] or 905.702.1441
Fax: [phone]
Email: [e-mail]
Web: www.minusforty.com
TEL 8 .8 .57 6 • 9 5.7 2.1441 • FAX [phone] • WWW.MINUSFORTY.COM
3 ARMSTRONG AV E . GE O R G E T O W N , ON TA R I O CA N A D A L7G 4R9
To better help you obtain assistance or service should you ever need it, write down the
following information about the product. This information is on the identification label
located on the left hand inside wall of the cabinet. We advise you to keep this Owners
Manual and sales slip in your possession.
MNL 7CSGR_12CDGR_EN150101

IMPORTANT
READ ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
NOTICE
THIS EQUIPMENT IS INTENDED FOR THE STORAGE AND
DISPLAY OF NON-POTENTIALLY HAZARDOUS BOTTLED
OR CANNED PRODUCTS ONLY
NOTICE
OPERATING THE REFRIGERATOR FOR 24 HOURS PRIOR TO
LOADING PRODUCT IS RECOMMENDED
MONITOR REFRIGERATOR TEMPERATURE REGULARLY
WARNING
MA E SURE THE REFRIGERATOR IS DISCONNECTED FROM THE
POWER SUPPLY BEFORE ANY SERVICE.
PRESS THE REFRIGERATOR SWITCH TO THE “OFF” POSITION THEN
UNPLUG THE POWER CORD FROM THE ELECTRICAL RECEPTACLE.
ALL SERVICE WOR MUST BE PERFORMED BY A CERTIFIED
TECHNICIAN ONLY.

Warranty
Installation Instructions
Operating Instructions
Shelf and Basket, Placement and Adjustment
Product Loading

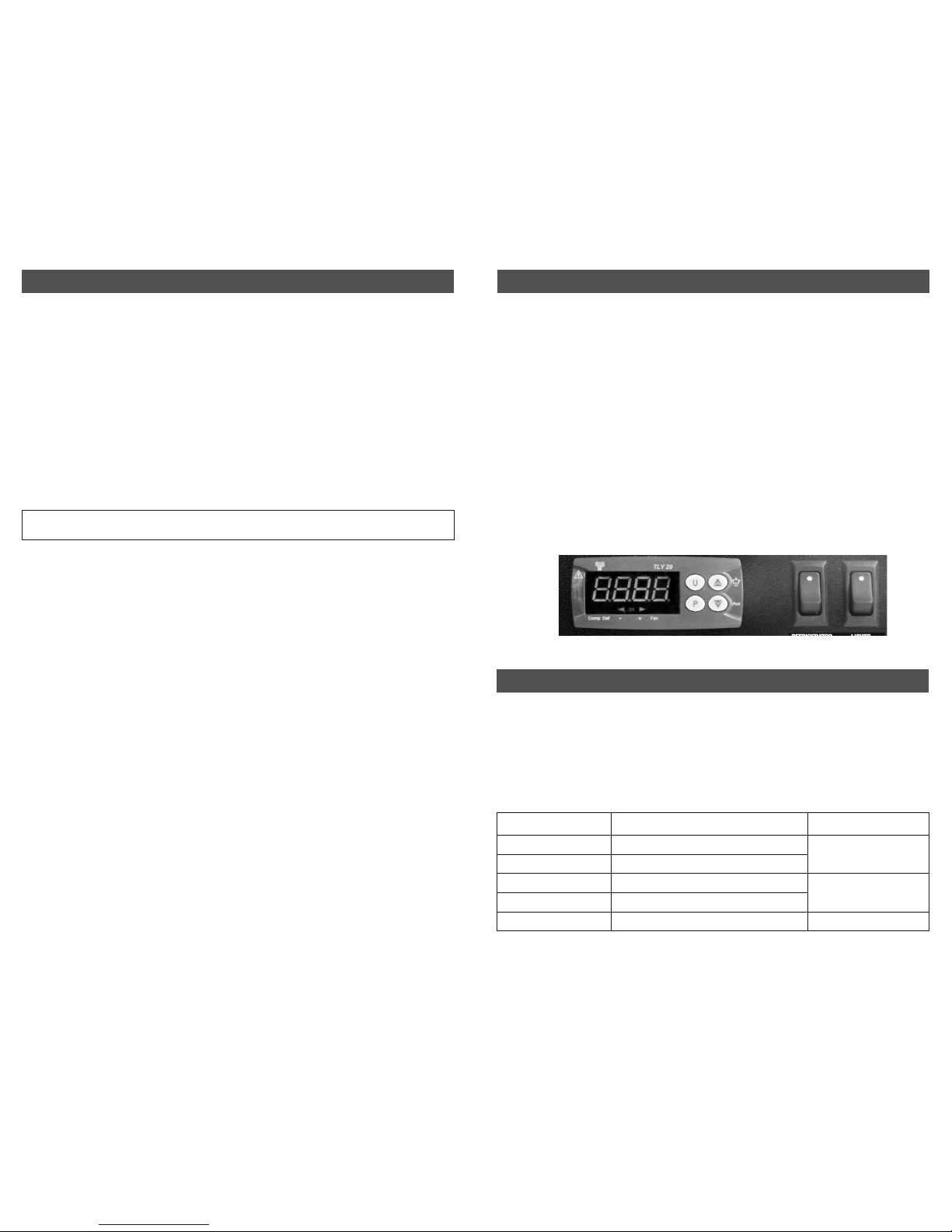

Temperature Adjustment and Switch Functions
Controller Alarms and Signals
Controller Symbols and Functions
Cleaning
Condenser Cleaning
Interior LED Strip Replacement
Troubleshooting Guide
Wiring Diagram
1
2
2
3
3
4
4 - 5
5
6
7
8
9 - 10
11
CONTENTS
11
WIRING DIAGRAM

STANDARD WARRANTY FOR MINUS FORTY®
REFRIGERATION EQUIPMENT AND ACCESSORIES
LIMITED WARRANTY
Minus Forty®Technologies Corp. warrants its products to be free from defect as
to workmanship and materials for a period of twelve (12) months from the time
of delivery.
Minus Forty®Technologies Corp. will at its option either replace or repair any de-
fective parts returned within twelve (12) months of the time of delivery, trans-
portation charges prepaid, which Minus Forty®Technologies Corp. in its sole
discretion, determines to be defective.
This warranty shall not apply to any products that have been repaired or altered
outside of Minus Forty®Technologies Corp.’s factory or repair facilities if the re-
pairs in the judgement of Minus Forty®Technologies Corp. have affected the reli-
ability or wear of the product and nor does the guarantee apply to any product
which has been subject to misuse, accident or to any product which has not been
maintained pursuant to the instruction of Minus Forty®Technologies Corp.
This warranty does not extend to any consequential damage caused by the failure
of the product under any circumstance and further, Minus Forty®Technologies
Corp. shall not be responsible for damage to the contents of the product or any
economic loss caused by the failure of the product, whether such loss is suffered
by the customer or a third party user of the product or whether the contents are
owned by the customer or a third party user or supplier.
Effective January 1, 1996
110
for online reference go to www.minusforty.com
TROUBLESHOOTING GUIDE CONT...
Problem Possible Cause Action
Condensation on glass door. • Door not closing properly.
• Room humidity too high.
• Check the spring tension or any
obstruction
• To prevent condensation, room
humidity should be below 55%.
LED strips are not working. • Light switch is off.
• Burned out LED strip.
• Check if the light switch is on.
• Replace the LED strip. (See page 8
Cabinet is noisy. • Part(s) loose
• Tubing vibrating
• Locate and tighten loose part(s).
• Ensure tubing is not in contact with
other tubing or components.
Door does not close tight. • Refrigerator is not leveled.
• Hinges are loose / not adjusted.
• Gasket is out of the groove.
• Level the unit (See page 2).
• Adjust / tighten the hinge screws.
• Check gasket condition. Adjust position
or replace gasket.
Electronic control blank,
flashing, or displaying incorrect
characters.
• Wires disconnected at back of
electronic control.
• See actions described on the
• controller section. (page 4)
Evaporator fan does not run. • Fan wire disconnected.
• Door switch not working.
• Check wiring.
• Check door switch.
WARNING
Make sure the refrigerator is disconnected from the power supply before any service. Press the
refrigerator switch to the “Off” position then unplug the power cord from electrical receptacle.
All service work must be conducted by a certified technician only.

2
CABINET LOCATION: An air space of at least 2” must be maintained on all sides of the refrigerators. Do
not install this refrigerator in a warm unventilated room that exceeds 80oF; do not place refrigerator in
direct sunlight; do not place refrigerator under or near heat range or heating vent.
CABINET LEVELLING: The refrigerator has to be completely leveled side to side and front to back or
slightly tilted front to back but never tilted forward. Once the refrigerator is placed in its final location,
use a carpenter level to level the refrigerator. Proper leveling of the refrigerator is important for the
door closing.
INSTALLATION INSTRUCTIONS
WARNING
This refrigerator MUST be installed on a dedicated grounded circuit protected with a 15 Amp circuit breaker
or a 15 Amp time delay fuse. Do not remove ground prong. If the cord or plug is damaged, replace with the
same type. Refrigeration and electrical work must be performed by a qualified technician. Failure to follow
these instructions can result in death, fire, or electrical shock.
• DO NOT USE AN EXTENSION CORD
• DO NOT CUT, REMOVE OR BYPASS THE GROUNDING PRONG FROM THE PLUG
• DO NOT PLUG INTO AN OUTLET CONTROLLED BY A WALL SWITCH
• ENSURE POWER CORD IS NOT CUT OR DAMAGED FROM PINCHING, KNOTTING, OR MISHANDLING
NOTICE:
Failure to follow these instructions may void the warranty and/or cause loss of product.
POWER REQUIREMENTS: The refrigerator requires a 15 Amp dedicated and properly grounded
115V circuit with a NEMA 5-15P receptacle. Wiring should be sized according to the amperage
rating stated on the serial plate. Failure to use a dedicated circuit may cause the circuit breaker
to trip off and/or cause voltage drops. As a result, power to the refrigerator may be inter-
rupted and freezing performance can be adversely affected which may cause equipment
damage and/or product loss.
Voltage supply to the refrigerator must not vary more than ±10% of the nominal voltage, or performance may
be affected. The warranty does not cover damage resulting from excessive voltage variations.
NEMA 5-15P
Metallic Clip Shelf
The clips can be removed at any time if a new position is chosen for the shelf or basket. To remove, grab
the clip with your thumb and index finger, then push up the slanted surface until the clip is free. A slight
hit upwards to the slanted surface is usually an easy way to remove the clip. Once the clips are in place,
put the shelf on top. Once the shelves are securely in place, baskets (if equipped) may be positioned on
the shelves.
The refrigerator is supplied with shelves and metallic clips. The refrigerator has slotted pilasters to
position the shelves according to the customer’s needs.
SHELF AND BASKET INSTALLATION, ADJUSTMENT
9
for online reference go to www.minusforty.com
TROUBLESHOOTING GUIDE
Problem Possible Cause Action
Refrigerator not running. • Refrigerator switch located at the lower
front is turned off.
• Fuse blown / circuit breaker tripped.
• Power cord unplugged.
• Receptacle not working.
• Improper voltage supplied to
cabinet / over load circuit.
• Turn power switch on.
• Replace fuse/reset circuit breaker.
• Plug in power cord.
• Check receptacle.
• Remove extension cords or other
equipment on the same circuit.
Refrigerator not getting cold
but compressor is running
• Refrigerator located in direct sunlight or
ambient (room) temperature is too hot.
• Condenser clogged with dust.
• Move refrigerator away from direct
sunlight.
• Room temperature is recommended
not to exceed 80˚F.
• See page 6 (Cleaning)
Condensing unit runs for a
prolonged period or
continuously.
• Refrigerator loaded with excessive
amount of warm product.
• Prolonged door opening or door ajar.
• Door not closing properly.
• Clogged condenser.
• Allow enough time for product
to cool down.
• Close door when not in use.
Avoid prolonged door openings.
• Level the unit (See page 2).
Check gasket condition.
Check the door spring.
• Clean the condenser (See page 7).
Refrigerator cabinet temper-
ature too high.
• Electronic control set too high.
• Poor air circulation in cabinet.
• Insufficient clearance around cabinet or
ambient temperature too high.
• Clogged condenser
• Adjust control setting (See page 4).
• Follow instructions for product
loading (See page 3)
• eep at least 2” free space around all
sides of the refrigerator. Room temp-
erature is recommended not to exceed
80˚F. Make sure the air flow to the
compressor is not obstructed.
• Clean the condenser (See page 7)
WARNING
Make sure the refrigerator is disconnected from the power supply before any service. Press the
refrigerator switch to the “Off” position then unplug the power cord from electrical receptacle.
All service work must be conducted by a certified technician only.

Once the refrigerator has been installed and the power supply has been connected, push the refrigerator
switch to ON (see page 4). The compressor will start to run after 6 minutes. This can be confirmed by
listening for a slight humming or a slight vibration.
Once the refrigerator is running, the inside temperature will start to cool down within a couple of min-
utes. Ensure that the refrigerator has reached the desired temperature (this will take between 2 to 3
hours) by checking the electronic control display readout before loading product. It is strongly rec-
ommended to run the refriger tor empty for 24 hours before lo ding ny products.
NOTE:
If the refrigerator is running and the power supply is interrupted, the refrigerator will not restart
immediately. There is a 6 minute delay for compressor protection.
OPERATING INSTRUCTIONS
WARNING
Check with your power company if you are not certain of your power supply.
Before connecting to power supply the refrigerator should be upright and idle for at least 1 hour.
8
3
Remove silicone corner beads.
Pry the screwdriver between
plastic cover and cabinet frame.
Pry from one end to the other.
Slide broken LED strip from
plastic cover.
Locate the wire for the LED
strip in the electrical box.
Install the new LED strip into
the plastic cover.
Attach wires, observing color
coding. Snap plastic cover
back to cabinet frame.
INTERIOR LED STRIP REPLACEMENT
Plug the refrigerator in and
make sure the light switch is in
the ‘ON’ position.
WARNING
Make sure the refrigerator is disconnected from the power supply before any service. Press the
refrigerator switch to the “Off” position then unplug the power cord from electrical receptacle.
All service work must be conducted by a certified technician only.
NOTICE:
Ensure the refrigerator has reached the proper operating temperature before loading product.
The electronic control displays the interior cabinet temperature.
Product loss is not covered under warranty.
PRODUCT LOADING
DO leave free space in front of the rear vents, from
the vents to the glass door for air circulation.
DO NOT stock any products above or below the load
limit.See load limit labels inside the cabinet for refer-
ence.
DO NOT stock product directly on the bottom of the
inner cabinet. Install the bottom shelf at the lowest
pilaster position prior to stocking.
For proper performance of the unit and to avoid
product spoilage, follow these instructions:

4
The electronic controller can detect and signal several alarm conditions: high/low refrigerator tempera-
tures, door open and open or short-circuited temperature probes. If the alarm conditions last longer than
pre-programmed time delays, the controller will turn ON an audio signal (buzzer). Also a LED light located
in the upper left corner of the controller, next to the caution symbol, will glow in case an alarm is active.
Once the alarm conditions have been fixed, the controller will turn off the alarms on its own. Alarms can
be disabled by pressing any controller button, during alarm conditions
CONTROLLER ALARMS AND SIGNALS
Message Cause Action
Prl diSC Cabinet temperature probe open • Check connections
• Replace probe
Prl Short CC Cabinet temperature probe short-circuited
Pr2 diSC Defrost probe open • Check connection
• Replace probe
Pr2 Short CC Defrost probe short-circuited
Int Error Internal memory error • Replace controller
Locate the electronic control at the lower front of the refrigerator. The electronic control displays the
actual temperature inside the refrigerator. In addition, the electronic control turns the refrigeration sys-
tem OFF when refrigerator reaches the set temperature, and turns the refrigeration system ON after the
refrigerator temperature rises by 6˚F.
TEMPERATURE ADJUSTMENT AND SWITCH FUNCTIONS
ELECTRONIC CONTROLLER
LIGHTREFRIGERATORELECTRONIC CONTROL
To adjust the set temperature, follow these steps:
1. Press and release P button; the set temperature and SP1 are displayed alternatively on the controller
2. Press the UP or DOWN buttons to adjust the set temperature.
3. Press P to store the adjusted value; The electronic control will return to cabinet temperature
display. The U Button on the electronic controller is used for displaying cabinet and defrost
temperatures (PR1 and PR2 parameters)
1. REFRIGERATOR switch turns the refrigeration system (including all electrical parts) ON or OFF.
2. LIGHT switch turns the internal and external lights ON or OFF.
There are two switches located on the right hand side of the controller.
Their functions are to manually switch electronic components of the refrigerator.
7
1. To clean the condenser grille at the back, use a vacuum cleaner, or compressed air, or a brush.
Go over the entire grill and remove any dust that may be on the grill surfaces or stuck between
welded wires.
2. Prior to cleaning the pre-condensers that are located just below the fan blade in the compressor
compartment, turn the power switch off and unplug the power cord. Feed a vacuum hose, or
compressed air hose through the compressor platform slots underneath the pre-condensers.
Clean all pre-condenser surfaces by going through all of the bottom openings and reaching the
whole height up to the fan blade(s).
3. When finished with cleaning, plug the power cord into receptacle then turn the power switch on.
NOTE:
The cleaning of the condenser is a service not covered under the warranty
The refrigerator is designed for minimal condenser cleaning. With the “lint free” condenser design,
most dust and dirt will pass right through the condenser. To insure the proper operation, we recom-
mend scheduled check-ups and cleaning every three to four months. This period may be shorter or
longer depending on the location in which the refrigerator was installed. A dirty condenser can result
in a voided warranty, part failure, product loss, and higher electrical cost. The steps to clean the con-
denser are as follows:
CONDENSER CLEANING

6
5
1. Comp - Indicates compressor status:
Light off - Compressor off
Light on - Compressor on
Light flashing - Start-up delay in progress
2. Def - Indicates defrost status:
Light on - Defrost in progress
Light flashing - Refrigerator in dripping mode
3. ( - ) - Indicates low temperature alarm status:
Light on - Low refrigerator temperature alarm in progress
Light flashing - Low temperature alarm memorized
4. O - Indicates that no alarms are in progress.
This is the normal mode for the refrigerator.
5. ( + ) - Indicates high temperature alarm status:
Light on - High refrigerator temperature alarm in progress
Light flashing - High temperatures alarm memorized.
6. Fan - Indicates fan status:
Light on - Cabinet fan ON
Light off - Cabinet fan OFF
Light flashing - Start-up delay in progress after defrost, door open,
delay in progress due to high refrigerator temperature.
At the bottom of the controller display are the following LED indicators:
CONTROLLER ALARMS AND SIGNALS CONT...
CONTROLLER SYMBOLS AND FUNCTIONS
12 345 6
Message Cause Action
StArt dELAy Start up delay in progress • Wait for 6 minutes
Hi °F or Hi °C Maximum temperature alarm • Check door
• See Troubleshooting (page 12)
Lo °F or Lo °C Minimum temperature alarm • Adjust set temperature
door oPEn Door open • Close door
GENERAL
The refrigerator should be cleaned at regular intervals to meet a good standard of hygiene
and to keep the refrigerator attractive as an effective point of purchase display.
INTERIOR CLEANING
Use only mild non-abrasive liquid cleaner, water and a soft cloth for the entire refrigerator
interior. Make sure to wipe off all residue.
EXTERIOR CLEANING
Use only mild non-abrasive liquid cleaner, water and a soft cloth for the painted surfaces and
a stainless steel polish and cleaner for the stainless steel surfaces if desired.
CLEANING GLASS DOOR
Due to the special coating on the glass, use only a mild, non-abrasive liquid cleaner, water,
and a soft cloth. Same applies to the plastic door frame.
CLEANING
WARNING
To reduce the risk of fire, electrical shock or personal injury, disconnect the refrigerator from the
power source before cleaning. Press the refrigerator switch to the “Off” position, then unplug the
power cord from the receptacle. eep liquids away from electrical and electronic components.
To clean the exterior whether it has the original finish or a decal package, use only a mild non-abrasive
liquid cleaner, water and a soft cloth. For stainless steel parts, a commercial stainless steel polish and
cleaner can be used. Always apply the cleaner to the soft cloth and then clean the refrigerator. Never
apply the cleaner directly to the refrigerator. Excess liquid applied to the surface may seep into the elec-
tronic control and switches which can cause an electrical hazard or a malfunction.
DO NOT USE abrasive or caustic cleaners, scouring pads, solvents or flammable liquids.
CAUTION
Do not apply hot water on cold glass components. Allow glass to warm sufficiently to prevent
shattering.
CAUTION
Do not use ammonia or bleach based cleaners or abrasive type cleaners.
Do not use abrasive cleaning pads.
