USER GUIDE
This device has completed a conformity test for business use,
and radio interference can occur when used for family use.
Please read this manual carefully and follow directions.
Please keep this manual for future use.

①
②
③
Information for initial use
Power ON: Press and hold the Power button. The product powers on when LED is
activated and guide sound commences.
(You can power on with the remote controller when connected to the charger)
Connect Bluetooth: You can connect with the Bluetooth function on your smartphone.
(See related page)
Play Music: You can play music by running a smartphone applications.
Adjust volume: You can adjust volume and echo with remote controller or button
on the speaker unit.
Connect MIC:
The MIC connects to the speaker automatically when the speaker
turns on. (If your speaker connection fails to auto connect, you can re-connect
with a different frequency.)
Dual MICs: You can use as dual MICs by powering on MICs separately.
(It can also be used for a lecture.)
Power OFF: Press and hold power button on the remote controller or main unit.
Use AUX cable: You can deliver external or internal sound with Aux cable.
Charge:
You can charge the speaker main unit with C-type charger connected to
the product. (only 1.8A or above charger is required.)
Various use : This product has many features, such as, singing, lecture, meeting or
small talks.
Smartphone application compatiblet :
the product can be used for playing music
or sound effects with various Smartphone
applications.
MP3 playing with USB memory stick :
You can play MP3 files contained in the USB
memory stick.
How to Use Summary
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
Battery requires full charge when first use to maintain optimized battery capacity.
C-Type charger with up to 1.8A is required for charging.
When battery is being depleted, the battery and circuit protection function is
activated. It will lower the volume to base level or shut down the product. You
can continue to use this device when the battery is depleated by connecting to the
charger.
01
English 日本語 한국어

※ Display battery charging balance : Approx
※ Time required for charging is subject to battery balance / charging method / charging
circumstances.
※ The battery circuit protection function can be activated when battery balance is lower than
60%.
- 0~30% - 30~70% - 70~100%
Charging the product
①
②
③
④
⑤
⑥
The battery is embedded in the speaker main unit. The MIC uses AA-type batteries.
Please full charge the product when first use since the product has not been fully
charged when manufactured.
You should turn the product off during charging for proper charging process.
·
·
·
Caution
The audio feedback effect can occur if you use the MIC and speakers too close to one
another.
When using Bluetooth function, the distance between devices should be less than 10m.
Keep out of reach of children or animals and do not use in humid conditions or when
in water. (ie:hot tubs, pools, bodies of water)
Dropping the product could cause severe damage or malfunction.
Use the product near heating equipment, fire or other hot items could cause severe
damage of the product.
Please maintain a tempature between -10~40˚C when charge the product.
·
·
·
·
·
·
: 1.5 ~ 4 hours
Required time
to charge
(It depends on battery balance
or charger capacity)
: 1.5 ~ 4 hours
Operating
time
(It depends on battery balance,
volume and MIC usage)
★
Please carefully
check the
socket direction
when charge!
The product should remain off when charged for faster charging
process.
Connect C-type charger to the charging socket. (Charger not included
in the product package)
Charging will begin when the battery balance display on the LED
screen gradually blinks.
All three blocks on the battery balance display on the LED screen
will show when fully charged.
It takes Approx. 1.5 to 4 hours to be fully charged. Blinking LED will stop when fully charged.
You can use 1.5 to 4 hours continuously after fully charged.
Approx
Approx
02
English 日本語 한국어

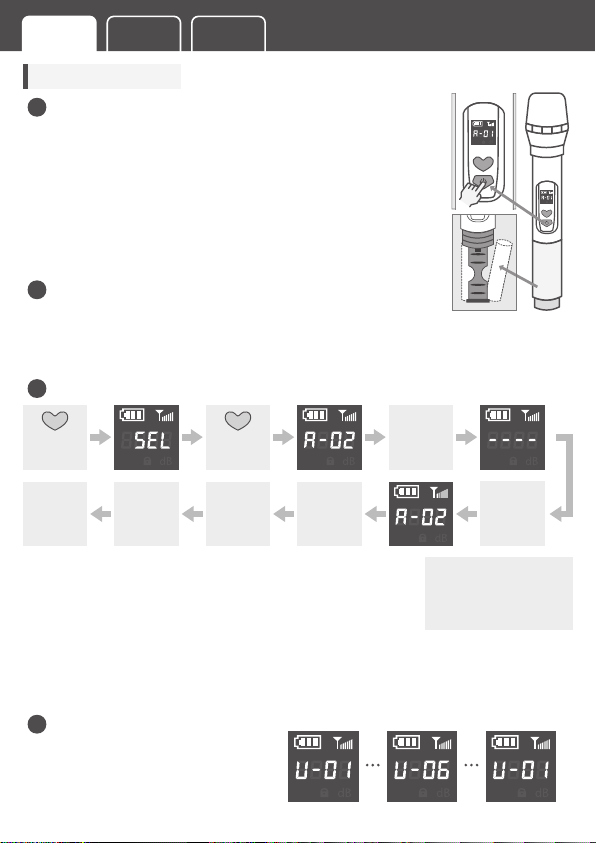

How to use MIC
Press and hold the power button on the MIC to turn on the MIC.
The frequency channel is automatically connected with the LED
screen on the MIC turns on. (You can change the channel when the
channel shows as OFF or there is no sound output)
The MIC is connected accordingly if the connected channel is
displayed on the LED screen and the ‘A-ON’ letter is displayed
on the LED screen of the speaker.
①
②
③
Turn on the MIC & LED display information
STEP 1 STEP 6 Back to STEP 1
Click 1 Click 6 Click 7
CHANNEL NUMBER
Blue MIC : A-01~20
Red MIC : B-21~40
‘SEL’ blinks when press and hold the SET button on the MIC.
You can move to the next channel every time you press the
SET button.
If you stop at the channel you like, the channel is automatically
selected and it attempts to connect.
When the connection is successful, sound outputs after the channel number on the
MIC display fixed and ‘A-ON’ display is shown on the LED display on the MIC.
①
②
③
④
You can adjust the volume level by pressing
the SET button on the MIC briefly.
The volume can be adjusted from level
1 to 6.
①
②
SET
Press&hold
SET button
SET
Press SET
button briefly
STOP at
channel
you select
Attempt to
connect to
speaker
with blinking
When
connected,
the channel
number fixed
Display
A-ON on
the speaker
LED display
Connected
to changed
channel
Speaker
sound
output
How to change the frequency channel
Adjust MIC volume
You may open the battery insert part by turning the bottom side of the MIC.
Put AA-type batteries into each side as described in the figure on the left and close the cover.
①
②
How to change battery in the MIC
Battery not included
in the product
SET
SET
SET
(Two(2) AA-type batteries required per product)
1
2
3
4
03
English 日本語 한국어

1
2
3
4
5
How to pair Bluetooth
Pair The Sing M200 with Bluetooth function on the Smartphone.
The distance between speaker main unit and the phone need to be less than 1M for good pairing.
When failed to pairing, power off and restart the speaker and repeat the steps above.
If auto pairing is not supported for certain Smartphone model, please follow the following
steps for pairing.
If failed to pairing at the first attempt, check pairings with other devices and release
all pairings try pairing again.
If you want to pair with other phone, release existing pairing and pair another phone with following steps.
Do not pair devices where there is a warning to electromagnetic radiation such as hospital
or airplane and where the use of the product is not permitted.
Noise or abnormal operations can be observed due to obstacles such as a wall or partition.
When the Bluetooth pairing is disconnected, a confirmation sound occurs.
·
·
·
·
·
·
·
·
·
How to pair Bluetooth (This procedure is developed based on Android Smartphones.)
★Please refer to how to use for each device since some devices have different
setup procedure.
★When power on, the speaker is paired to most recently connected device.
Press and hold the power button at the side of The Sing M200 speaker main unit
for 3 seconds to power on the system. The Bluetooth connection is in ready status
with a confirmation sound.
(When power on, the speaker is paired to most recently connected device.)
Push the Bluetooth icon on the Smartphone(Android) to activate the Bluetooth, and
find the devices to add.
Find ‘miracle, M the Sing M200-Bt’ model in the device list. (Push ‘Find’ button to search
the model if the model does not appear in the list.)
When conncected, a confirmation sound occurs.
Press and hold the ‘Power’ button for 3 seconds after use. The product turns off with
confirmation sound.
How to connect Bluetooth(Pairing)
You can use lock feature when you press and hold and together.
①
②
③
5
The battery balance display shows the balance of the battery.
The frequency signal status display shows the communication status between speaker and MIC.
Information on upper status line and channel lock
*What is Lock Feature? A function to cut off interfering frequencies around the transmission & reception.
04
English 日本語 한국어

USB
Connection
Status Display
USB Connected
Bluetooth
Connection Display
Display
battery balance
Bluetooth Pairing Mode AUA Cable Connection Mode MIC Channel ON/OFF
MUTE
ECHO+MODEM.VOL+
ECHO-MENUM.VOL-
VOL+
VOL-
RESETAUX OUTPAIR
Mute Music
Change mode
Play/Pause
Music volume
Echo control
Echo control
Power
MIC volume
treble setting
Speaker mute
AUX OUT connection
Next song
Previous song
Reset
Connect Bluetooth
ON/OFF Music volume
MIC volume
MIC volume
Information on LED Display on the front side
Information on Buttons on the Remote Controller
You can power on the product with the remote controller when the power is supplied
from the external suppliers such as charger or external battery.
- Ready status : Blinking
- Normal connection : Hold
- In charge : Blinking
- Fully charged : hold
05
English 日本語 한국어

: Press and hold - Power ON & OFF / Press briefly - Change mode
: Play / Pause
: Press & hold - Lower the volume / Press briefly - Play previous song
: Press & hold - Increase the volume / Press briefly - Play next song
AUX OUT : Audio output (The sound of the speaker is delivered to the external device)
AUX IN : Audio input (The speaker outputs sounds from external device)
USB : USB input DC5V IN : Charging socket Battery reset hole
Be cautious when connecting to charging socket!
Most of the damages come from this connection!
Press and hold for 3 sec
★Power ON/OFF★
Mode changed in sequence
when clicking the button
BLUE AUX
(Auto change when
connected in USB mode)
External output device
Connet to AUX IN
Speaker
Connet to AUX OUT
AUX Cable ↔
AUX OUT Socket
AUX Cable ↔
AUX IN Socket
You can amplify the sound by connecting
external devices such as Bluetooth speaker,
Audio device with attached external
output cable(AUX↔AUX).
Connect external speaker
to boost the sound~!
Speaker
Connet to AUX IN
External device
Connet to AUX OUT
Y ou can play music by connecting external devices
such as Smartphone with No Bluetooth function,
Notebook, Computer, etc with attached external
output cable(AUX↔AUX).
Connect external device
to our high-end speaker~!
Information on the function of the button on the Speaker
Playing music with cables
※ When connecting AUXOUT, sound output will be delivered both from internal and external
speakers. If you want to have sound outputs only from the external speaker, press ‘AUXOUT’
button on the remote control to mute the internal speaker.
※
Control through the Smartphone directly if the button control to play is not available for the
external device when connecting the external device.
06
English 日本語 한국어

2 Wireless MIC Remote controller
Speaker main unit
AUX Cable (3.5mm+3.5mm)
Pouch
User's Guide
MANUAL
Product Component
Specification
M200
Model
DC 5V / 7.4V / 2,500mAh
Rated Voltage
Doors China
Manufaturer
Made in China
5.0
20W (MAX 40W)
1.5 ~ 4hr1.5 ~ 4 hr
Recharge hr
XU101401-18006A / 18650-2,500mAh
Battery
Product : (W)25cm x (D)9.5cm x (H)6cm / about 980g
BOX : (W)29.5cm x (D)28.5cm x (H)12.5cm / about 2.1kg
(주)도어스코리아 (Doors Korea) / Tel.[phone]
Yeomgwang na-dong, 27, Mangu-ro 81-gil, Jungnang-gu, Seoul, Republic of Korea
Size / Weight
Distributer
Spaker : R-R-DOr-Miracle-M200
MIC : R-R-DOr-Miracle-M900HA
KC
Coutry of Orgin
Bluetooth Ver
Output
Usage hr
(Pouch not included in M200-A)
07
English 日本語 한국어

FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable
exposure condition without restriction.

English: This device complies with Part 15 of the FCC Rules [and contains license-exempt
transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS standard(s)]. Operation is subject to the following two
conditions: (1)this device may not cause harmful interference, and (2)this device must
accept any interference received, including interference that may cause undesired operation.
The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B).
French: L’émetteur/récepteurexempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et DéveloppementéconomiqueCanada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
l'appareil numérique du ciem conforme canadien peut ‐3 (b) / nmb ‐3 (b).
This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and
compliance with RSS 102 RF exposure, users can obtain Canadian information on RF exposure and
compliance.
cet appareil est conforme à l'exemption des limites d'évaluation courante dans la section 2.5 du cnr -
102 et conformité avec rss 102 de l'exposition aux rf, les utilisateurs peuvent obtenir des données
canadiennes sur l'exposition aux champs rf et la conformité.
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment.
Cet équipement est conforme aux limites d'exposition aux rayonnements du Canada établies pour un
environnement non contrôlé.
RF Exposure Statement
The device has been evaluated to meet general RF exposure requirement. The device can be usedin
portable exposurecondition without restriction.
L'appareil a été évalué pour répondre aux exigences générales d'exposition aux radiofréquences.
L'appareil peut être utilisé en condition d'exposition portable sans restriction.
ISED Statement
