Mirage BOX2IP User manual

Introduction
2
Introduction
Dear customer,
Thank you for buying a mirage HDTV satellite receiver.
This user manual provides information on
•placement
•installation,
•adjustment
•operation,
•cleaning and disposal of the receiver.
Please carefully read the user manual before operating the receiver.
We hope you enjoy your mirage receiver.
smart electronic GmbH
Industriestraße 29
78112 St. Georgen
Germany
Table of Content
1User Information.......................................3
1.1 Use of this Manual.........................3
1.2 Signs, Symbols, Layout .................3
2Product Description .................................4
2.1 Scope of Delivery...........................4
2.2 Receiver.........................................4
2.3 Remote Control..............................5
2.4 Save Energy ..................................5
2.5 Guarantee......................................6
3Safety Instructions ...................................6
3.1 Intended Use..................................6
3.2 Risks in Case of Intended Use ......6
3.3 Grounding......................................6
3.4 Location .........................................6
3.5 Handling of Batteries .....................7
3.6 Notes on Product Liability..............7
4Installation of the Receiver......................7
4.1 Connection Scheme.......................7
4.2 Connecting Satellite Antenna ........7
4.3 Connecting TV Set.........................7
4.4 Connecting a Home Cinema
System...........................................8
4.5 Connecting Data Storage ..............8
4.6 Connecting a Home Network.........8
4.7 Inserting the Batteries of the
RCU...............................................8
5Basic Operation........................................9
5.1 Switching on Receiver...................9
5.2 Software Update............................9
5.3 Commissioning............................10
5.4 Language ....................................10
5.5 RAPS Parameters.......................11
5.6 Satellite List.................................11
5.7 Select Operation Mode................12
5.8 Call/Leave Menu .........................13
5.9 Menu Navigation .........................13
5.10 Parental Lock ..............................13
5.11 Set Time......................................13
5.12 TV................................................14
6Media Player...........................................22
6.1 Music...........................................22
6.2 Images.........................................23
6.3 Video...........................................24
7IP Functions............................................24
7.1 YouTube......................................24
7.2 Web Radio...................................24
7.3 Web News...................................24
7.4 Weather Forecast........................24
8smartSTREAM........................................25
© smart electronic GmbH 2014
All rights, technical changes, errors as
well as printing mistakes reserved.
Any reproducing or copying of the
contents requires prior written per-
mission from smart.

Table of Content
3
8.1 Receiver Settings ........................25
8.2 BOX2IP........................................26
8.3 Small2Big ....................................26
9Extended Settings and Functions ........27
9.1 Installation ...................................27
9.2 TV Channel List / Radio
Channel List.................................31
9.3 Rename Favorite Lists.................33
9.4 Timer ...........................................34
9.5 OSD Setting.................................34
9.6 Automatic Standby Function........35
9.7 Display Setting.............................35
9.8 Format of the Video Signal at
the SCART Output.......................35
9.9 Digital Audio Out..........................35
9.10 Simultaneous Playback of
Picture and Sound.......................35
9.11 LNB IN / OUT Loop Through
(Loop Standby)............................36
9.12 SmartLink (CEC) .........................36
9.13 Software Version......................... 36
9.14 Factory Settings.......................... 36
10 Operation in a Unicable System........... 37
10.1 About Unicable............................ 37
10.2 Allocation of IF channels and
frequencies ................................. 37
10.3 Installation................................... 37
11 Cleaning.................................................. 38
12 Transport and Decommissioning......... 38
13 Troubleshooting .................................... 39
14 Disposal.................................................. 40
15 Technical Data ....................................... 41
15.1 General Information.................... 41
15.2 Remote Control........................... 41
15.3 Mains Adapter............................. 41
15.4 Connections................................ 41
15.5 Temperature ............................... 41
15.6 Dimensions and Weight.............. 41
Index.............................................................. 42
1User Information
1.1 Use of this Manual
•Please carefully read this user manual
before operating the device for the first
time.
•Please note all warnings and notes includ-
ed in this user manual.
•Consider this user manual to be an integral
part of the product, and store it at a well
accessible location.
•This user manual should also be enclosed
when handing over the device to a third
party.
•In case of loss, the current version of the
user manual can be downloaded at the
support center on our website www.smart-
electronic.de.
•The software is still being further devel-
oped even after your purchase of the de-
vice. Thus, it may be possible that certain
operation steps do not fully correspond to
the user manual.
1.2 Signs, Symbols, Layout
Symbol/layout
Meaning
WARNING
Danger due to electric
shock with possible severe
bodily injury
CAUTION
Warning of possible physi-
cal damage

NOTE
Useful information and
hints

You are requested to per-
form an action.
1.
2.
Perform these steps in the
stated order.

List
Italics
The various possibilities of
settings as well as image
captions are stated in Ital-
ics .

Product Description
4
Symbol/layout
Meaning
bold
Menu windows and menu
items (that often include
further hidden menu items
or direct settings) as well as
the designations of keys
are printed in bold letters.
2Product Description
2.1 Scope of Delivery
•HDTV satellite receiver
•remote control
•2 batteries (AAA) for remote control
•user manual
2.2 Receiver
2.2.1 Front Panel
No.
Description
1
Display
4-digit display
2 LED red
Indicates, that the receiver
is in Standby mode.
3 STANDBY
Switch between standby /
normal operation
4 PR-
Channel down / down-
navigation in menu
5 PR+
Channel up / up-navigation
in menu
6 LED green
Indicates that a valid video
signal is routed to the TV
set.
2.2.2 Rear Panel
No.
Description
1
AUDIO
OUT (R)
Analog audio signal right
2
AUDIO
OUT (L) Analog audio signal left
3
DIGITAL
AUDIO
Digital RCA audio out
(SPDIF)
4 USB First connection for external
USB data storage
5
ETHERNET
Network connection
6
LNB IN
Connection for LNB (DVB-S)
7
HDMI
Digital audio and video out
8 TV
SCART connection for TV
device (analog)
9 USB
Second connection for
external USB data storage
10
POWER
Power switch (On/Off)

Product Description
5
2.3 Remote Control
No.
Key
Description
1
V-MODE
Switch aspect mode
2
Switch between operational
and standby mode.
3
AUDIO
Selection of audio format
4
IPTV
Not Used
5
1 - 9
Direct channel selection
6 0
Select playback format of
media player
7 FIND
Call of channel search func-
tion
8
PR+
Channel + or up-navigation in
menu
PR-
Channel - or down-navigation
in menu
Volume + or menu navigation
to the right
Volume -or menu navigation
to the left
No.
Key
Description
OK/LIST
Display channel list / confirm
menu item
9 EPG
Call of EPG (Electronic Pro-
gram Guide)
10
INFO
Display information on cur-
rent channel
11
Not used
12
Play (media player)
13
Fast rewinding
14
Fast forwarding
15
Red function key
16
Green function key
17
Mute
18
BOX2IP
Calls for BOX2IP mode
19
TV/RADIO
Switch between TV and radio
mode
20
PAGE+
10 entries up in menu / chan-
nel list
21
PAGE-
10 entries down in menu /
channel list
22
PR
Switch of previously selected
channels
23
FAV
Call list of favorites
24
MENU
Call main menu
25
EXIT
Exit menu or menu item
26
TXT
Display / hide teletext
27
Stop playback
28
Pause playback
29
Slow forwarding – slow
motion
30
Slow rewinding
31
Blue function key
32
Yellow function key
2.4 Save Energy
The receiver is equipped with particularly
energy-saving electric and electronic compo-
nents. Furthermore, a sophisticated energy
management helps to save energy:

Safety Instructions
6
Thus, energy consumption during Save Energy
Standby Mode is reduced to less than
0.5 Watt!
2.5 Guarantee
The warranty of the mirage HDTV satellite
receiver corresponds to the legal regulations at
the time of purchase.
3Safety Instructions
3.1 Intended Use
The HDTV satellite receiver is intended for
private receiving of digital satellite television
(DVB-S/S2). It is exclusively intended for such
purpose and must be used exclusively for such
purpose.
Any other use is deemed to be unintended use.
3.2 Risks in Case of Intended Use
CAUTION!
Humidity, wrong mains volt-
age and/or wrong mains
frequency, lightning stroke
or mechanical overload may
cause malfunction of or
damage to the device.
Ensure that the receiver
(in particular the mains
plug) and the remote con-
trol are not exposed to
any humidity. Example:
Do not place filled flower
vases or similar onto the
receiver.
Only connect the receiver
to 175…250 V ~, 50/60
Hz.
Disconnect mains plug in
case of thunderstorms or
malfunction.
Do not place heavy items
onto the receiver.
Do not bend or squeeze
the cable.
WARNING!
Risk of electric shock when
contacting mains voltage.
Damage to housing,
mains cable or improper
repair may result in con-
tact to mains voltage.
Do not place heavy items
onto the receiver.
Do not bend or squeeze
the cable.
Repairs of plug, cable or
receiver should only be
performed by qualified
specialists.
3.3 Grounding
The satellite antenna must be grounded
properly. Note the relevant VDE0F
1regulations1F 2.

We recommend that the outdoor
unit of the satellite system should
be installed by a professional!
3.4 Location
Place the receiver onto a solid and level
surface.
Protect the receiver from humidity, heat,
dust and dirt.
Do not place items filled with liquid, e.g.
flower vases, onto the receiver.
Protect the receiver from dripping and
splash water.
Do not place burning items, e.g. burning
candles, onto the receiver.
Ensure sufficient ventilation (ventilation
slots must not be blocked): the receiver
should have a distance of at least five cen-
1VDE = Verband der Elektrotechnik, Elektronik,
Informationstechnik (German) = Association for
Electrical, Electronic & Information Technologies
2DIN EN 60728-11 VDE 0855-1:2011-06: Cable
networks for television signals, sound signals and
interactive services, Part 11: Safety

Installation of the Receiver
7
timeters to its surrounding elements on all
sides.
Ensure that the ventilation openings are
not covered by objects such as newspa-
pers, table cloths, curtains etc.
Only operate the receiver in moderate
climate (not in tropical climate).
Place the receiver so that the mains plug
can be disconnected at any time, corre-
spondingly disconnecting the device from
the mains.

If the device is transported from
cold to hot environment, then
condensing humidity may build
up in the device.
Do not connect the device, but
leave it switched-off for some
hours.
3.5 Handling of Batteries
•Batteries should always be out of chil-
dren's reach.
•Leaking batteries cause damage to the
environment and the remote control.
•Batteries should not be exposed to ex-
treme heat, e.g. sunlight, fire etc.
Dispose of the batteries in accordance with
the applicable legal regulations (see chap-
ter Disposal, page 40).
3.6 Notes on Product Liability
In the following cases, the intended protection
of the device may be limited. Then, liability
regarding function of the device correspond-
ingly passes over to the operator:
•The device is not used in accordance with
the user manual.
•The device is used out of the field of appli-
cation as described above.
•The operator performs unauthorized
changes of the device.
4Installation of the Receiver
CAUTION!
First connect the receiver
to the satellite antenna
and any other devices be-
fore connecting the mains
plug to the power outlet.
Please also note the user
manuals of the other de-
vices.
4.1 Connection Scheme
default connection
optional connection
4.2 Connecting Satellite Antenna
Connect the antenna cable to the receiver
connection LNB IN.
4.3 Connecting TV Set
As stated in the connection scheme, the re-
ceiver offers various possibilities to connect TV
set and receiver. The possibilities applicable to
you depend on the connection possibilities of
your TV set.
The TV set provides of an HDMI connection:
Connect TV set and receiver by using an
HDMI cable.
The TV set does not provide of an HDMI
connection:
Connect TV set and receiver by using a
SCART cable.
Home network

Installation of the Receiver
8

If your TV set offers both possi-
bilities then always choose con-
nection via HDMI cable.
This ensures best possible au-
dio and video quality with digital
signals.
4.4 Connecting a Home Cinema Sys-
tem
To improve audio playback, you can connect
to the receiver - additionally to the TV set - also
a multichannel home cinema system or a hi-fi
system. There are various possibilities for
connection. Your type of connection depends
on the connection possibilities of your home
cinema system.
a.
Your home cinema system is able to loop
through an HDMI signal, i.e. HDMI con-
nection for receiver and HDMI connection
for TV set.
Connect the home cinema system and
the receiver by using an HDMI cable as
well as home cinema system and TV set
by using an HDMI cable.
b.
Your home cinema system can process
digital audio data – connection for digital
data is present.
Connect the home cinema system and
the receiver by using a RCA cable.
c.
Your home cinema system cannot pro-
cess digital audio data –
no connections
for digital data present
Connect the home cinema system and
the receiver by using a 2-pole RCA cable
(stereo).

If your home cinema system (hi-
fi system) supports HDMI con-
nection, then use such connec-
tion.
This ensures best possible au-
dio and video quality with digital
signals.
4.5 Connecting Data Storage
Connect a data storage (USB stick or hard
drive with USB connection) at the USB
connector to be able to access MPEG,
MP3, JPG or other media data files.
4.6 Connecting a Home Network
In order to connect the receiver to the
internet (www) or to a home network, con-
nect the receiver’s ETHERNET socket with
a network cable to the appropriate inter-
face of your home network.

See section 8.1.1.1 on page 25
to learn how to configure a
wired LAN.
4.7 Inserting the Batteries of the RCU
This is the procedure to insert new RCU
batteries or to replace empty batteries:
Open the battery cover at the bottom of
the RCU.
Insert two batteries 1.5 V (Type: AAA). Take
care of the right polarity!

Basic Operation
9

Replace batteries when the
range of the remote control is
decreasing or when the receiver
no longer reacts to all com-
mands.
When not used for prolonged
periods of time, batteries may
leak. Remove batteries from the
remote control if it is not used
for long periods of time (> 1.5
years).
When replacing batteries, al-
ways replace all batteries.
5Basic Operation
This chapter describes the necessary steps to
use easily the radio and television programs
broadcasted via satellite.
5.1 Switching on Receiver
1. Switch on all connected devices.
2. Ensure that the correct AV input is selected
at the TV set (i.e. that the signals from the
receiver are displayed).
3. Connect the mains plug to the power outlet
to switch on the receiver
or
Switch on the receiver by using the power
switch (on the rear panel of housing) (I,
ON)2F
3.
5.2 Software Update

Once you have put your re-
ceiver into
operation, you
should first update the operat-
ing software of your receiver!
5.2.1 Update via USB
If you have Internet access, you should update
your receiver via the USB interface.
3Depends on your receiver type.
1. Search for the upgrade file on the internet
page www.avanit.tv (menu item Support).
2. If the version number of the update file
matches with the version number of the
software of the receiver, which is displayed
in the submenu Information of the menu
Tools, you do not need to do anything
else. Your receiver is up to date. Otherwise
continue with step 3.
3. Save the update file to a USB data storage.
4. Unpack the file with the ending .abs.

Please note that the upgrade file
(*.abs) is copied directly to the root
directory of the USB data storage
(no subdirectory)!
5. Connect the data storage to your receiver.
6. In the menu Tools, select the sub-menu
Upgrade by USB and press the OK key.
7. At Upgrade Mode, select the upgrade
mode Allcode by using the keys und
.
8. At Upgrade File, select the file copied in
step 2.
9. Select the Start button and confirm by
pressing OK.
A message saying that you will lose all per-
sonal settings will be displayed.
The upgrade will be performed after selecting
Yes by using the keys und and
pressing OK. Then, the receiver will automati-
cally perform new start.
5.2.2 Software Update via Satellite
smart can also upload the update file on the
satellite Astra 19.2° E. You can then perform a
so-called OTA3F
4update:
1. In the menu Tools, select the submenu
OTA Upgrade.
2. Leave all settings unchanged (factory
settings).
4OTA = Over The Air = via Satellite

Basic Operation
10

The option of software update via
satellite is only possible via Astra
19.2°E. Correspondingly, all settings
should be left unchanged in the
status as preset:
Line Target value
Satellite
Astra 19.2°E
Transponder
12604 H 22000
Frequency
12604
Symbol rate
22000
Polarization
H
Download PID
343
3. Mark the button Start by using the keys
PR+ and PR-, and confirm by pressing the
OK key.
Now it is being checked if the software
currently installed on the receiver is up-to-
date. If it is not up-to-date, then the current
software version will be downloaded via
satellite and installed onto the receiver. Af-
ter end of installation you will be asked if
the update should be saved.
4. Select the option
Yes to accept the up-
date. The satellite update may take up to
one hour. Do not switch off the receiver
during such period!
5.3 Commissioning
After first switching-on or after resetting the
receivers, various windows will open:
5.4 Language
By default, the language is preset to
Deutsch
[German].
Please ensure that the setting is correct;
you may change your settings by corre-
spondingly pressing the keys PR+ and PR-
.
Confirm by pressing OK to go to the next
window.

The submenu Language can be
accessed anytime via the menu
System Setup .
5.4.1 RAPS Start
Your receiver is equipped with RAPS. RAPS
means Receiver Automatic Programming
System. RAPS can automatically update the
channel lists of your receiver.
What is RAPS?
Currently, the satellites Astra 19.2° and 23.5°,
Eutelsat Hot Bird 13° East, Eurobird 9° and
Turksat 42° offer a four-digit number of digital
TV and radio channels.
At delivery, state-of-the-art satellite receivers
have all important channels already stored. But
what happens after that? New and interesting
channels are added almost weekly, and there
are channel changes time and again.
Updating the channel list with a present re-
ceiver is not quite easy for most users. When
performing a channel search, invalid data are
not deleted, and usually the new channels are
just added at the end of the list; this requires
time-consuming reprogramming of the channel
list.
The RAPS system of your receiver automatical-
ly performs such programming work.
The window RAPS Automatic Installation is
the second window of the installation process.
Every time you switch off your receiver, RAPS
checks whether there are any changes with the
channel lists (RAPS scan). This only takes a
few seconds.
In case of changes, the new data are automat-
ically included into the new channel list (RAPS
download) and displayed in a table. If a chan-

Basic Operation
11
nel changes the receive parameters, then this
is automatically updated by RAPS. In case of
new channels, such channels are added. If
channels are permanently discontinued, then
the corresponding channel number is deleted.
However, new channels are not only added,
but allocated to logic blocks, correspondingly
enabling easier finding. That is why certain
areas may remain free. Example: For Germany,
there is the basic list as well as the areas Third
Channels, Info + Sports, Special Interest, Local
TV, as well as News starting at channel number
100 and many Music Channels starting at
channel number 123.
You can cancel RAPS installation by pressing
the key EXIT whilst the countdown of RAPS
installation is running (and also at a later point
in time during installation).
The then displayed channel list is a prepro-
grammed factory list. However, such list is not
updated via satellite due to cancelled RAPS
installation!
The respective up-to-date RAPS lists are
available via the satellite Astra 19.2°. Corre-
spondingly, RAPS can only be used within the
footprint of the satellite Astra 19.2°; further-
more, your system should be suitable for digi-
tal Astra receiving.
5.5 RAPS Parameters
During installation, the third installation window
Automatic Programming displays various
parameters:
No.
Meaning
1
Date of the RAPS file stored in the receiv-
er
2
Date of the RAPS file currently available
on the satellite
3
Number of available RAPS lists
4
Number of satellites included in the RAPS
file:
Astra 19.2° East4F
5
Hotbird 13° East
Turksat 42° East
Astra 23.5° East
Eurobird 9A 9° East
5
Number of transponders included in the
RAPS file
6
Number of all channels in the RAPS lists
7
Progress bar: informs on progress of
download of the RAPS file
5.6 Satellite List
After completion of RAPS download and com-
pleted satellite scan (RAPS DiSEqC5F
6scan), the
window Satellite List will be opened.
5East, often abbreviated "E"
6DiSEqC = Digital Satellite Equipment Control, a
digital control signal technology with satellite receiv-
ing systems

Basic Operation
12
The window displays the satellites included
in the RAPS file. As the RAPS lists are
available via the satellite Astra 19.2°, Astra
19.2° is already marked (and cannot be
deselected!).
Select a satellite by pressing the keys PR+
and PR-.
Press OK to select a non-marked satellite.
Press OK to deselect a marked satellite.
Press to go to the next window
RAPS select raps file.
Examples:
•Your antenna system is designed for re-
ceiving Astra 19.2°E and Hotbird 13°E.
These satellites are found and marked in
the list. You are planning to soon extend
your antenna system for receiving of Euro-
bird 9A 9°E. You can additionally mark Eu-
robird 9A 9°E already now to avoid repeat-
ed installation in the future.
•Your antenna system is designed for re-
ceiving Astra 19.2°E and Türksat 42°E.
However, the receiver in the children's
room should only receive the German
channels. For this, manually deselect Tü-
rksat 42°E (found by RAPS-DiSEqC scan).
5.6.1 Country
Select the country in which you want to
use the receiver - and correspondingly also
the RAPS list - by pressing the keys PR+
and PR-. The selectable countries are
based on your satellite selection as per
section “Satellite List”.
Press OK to go to the next window Your
regional channel.
5.6.2 Regional Channel
Select your preferred regional channel
(which will be stored at number three in the
channel list) by pressing the keys PR+ and
PR-.
Press OK to go to the next window Chan-
nel-Filter; here you can select if you want
to include erotic channels and call TV
(channels that may incur quite high tele-
phone costs due to telephone calls to the
channel) into the channel list.
5.6.3 Channel Filter
Select Erotic and/or Call TV by pressing
the keys PR+ and PR-, and select the op-
tion (
Yes ) to include such channels into the
channel list or (
No ) to not include such
channels by respectively pressing /
.
Press OK to store your settings and to
finish installation of the RAPS channel list.
After this, TV operation will automatically
start.
5.7 Select Operation Mode

TV is the operation mode after
first switching-on of the receiver
(or after restoration of factory
settings).

Basic Operation
13
You can select between the operation
modes TV (TV channels) and RADIO (radio
channels) as follows:
Press the key TV/RADIO on the remote
control.
Press again the key TV/RADIO to return to
the previous operation mode.

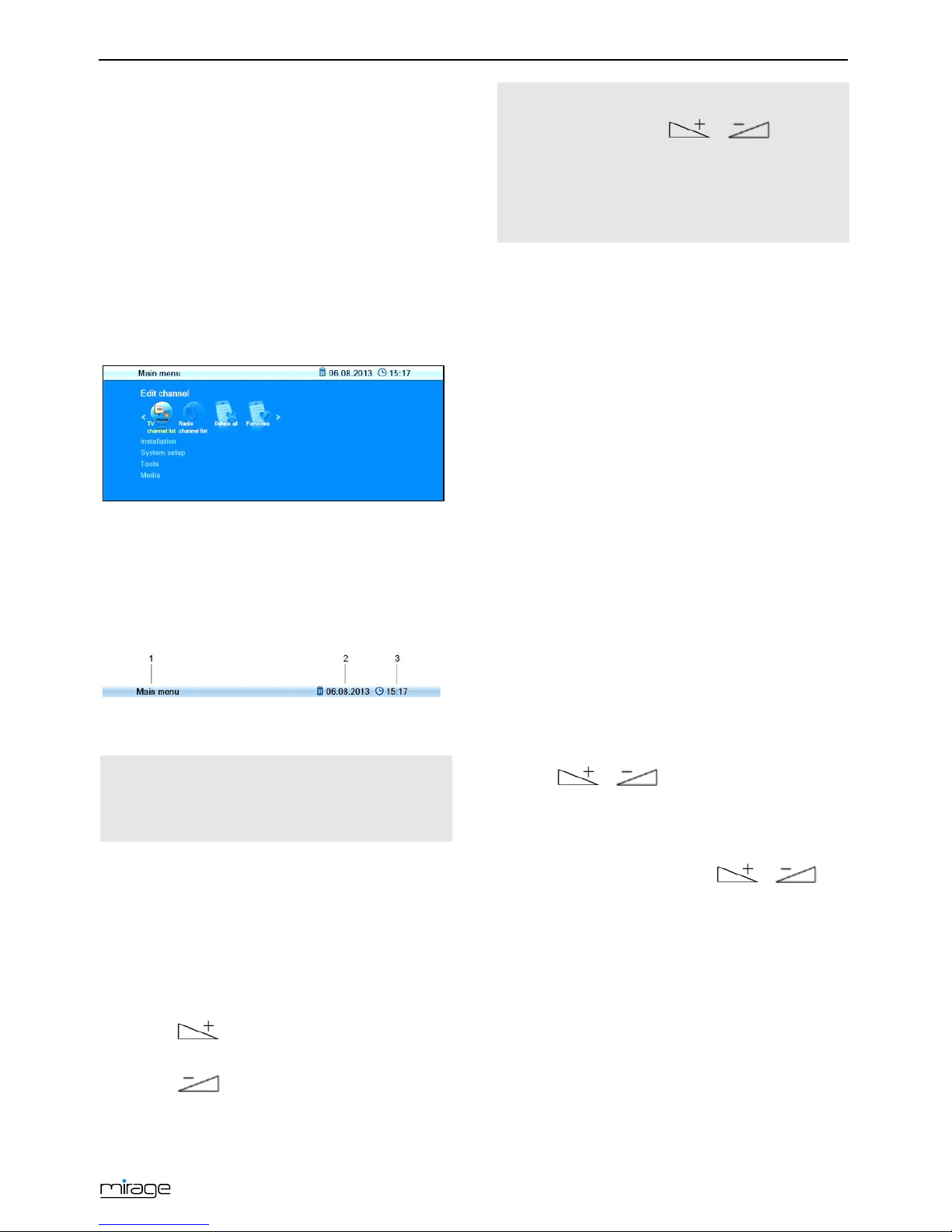

5.8 Call/Leave Menu
To call the menu, press the key MENU (of
the remote control or at the receiver).
The menu is called.
The following is displayed in the headline of the
various menu windows:
1. Name of menu window
2. Current date
3. Current time
Press the EXIT key to leave the menu or to
go back one step.

It could be possible that you have to
press EXIT several times to go back
to TV mode.
5.9 Menu Navigation
The menu items with the settings for TV and
radio can be respectively accessed in the two
operation modes TV and Radio.
Press PR+ to select the menu item above.
Press PR-to select the menu item below.
Press to change resp. increase the
selected value.
Press to change resp. decrease the
selected value.

Instead of changing a value by us-
ing the keys / , with
many menu items you can also
press the OK key, select a new val-
ue from the list, and confirm such
value by again pressing the OK key.
Active menu items are color-marked.
Although most settings for TV operation are
made, you can also make some further set-
tings via the menu.
5.10 Parental Lock
In the sub-menu Parental Lock you can lock
access to certain menus by using a PIN (e.g.
for protection of your settings) or block selec-
tion of certain channels by using a PIN.
Access the sub-menu Parental Lock as
follows:
1. Press the MENU key.
2. Select the menu System Setup.
3. Select Parental Lock and confirm by
pressing OK.
After entry of password, you may
−set if access to the sub-menus is pro-
tected by password,
by selecting the Menu Lock and select-
ing
Off or On by using the keys
/ ;
−set if certain channels are to be locked
by a PIN,
by selecting PIN and selecting
Off or
On by using the keys / ; or
−change the password:
Select the field New Password.
Enter a new password.
Go to the field Confirm Password.
Again enter the new password.
4. Press OK to save your changes and to
leave the sub-menu.
5.11 Set Time
Reasonable operation of the receiver requires
setting of system time. By default, the receiver

Basic Operation
14
is set to GMT6F
7Usage, i. e. date and time are
taken from the received signal. Time zone is
set to GMT + 1 hour (+ 1:00) by default. Re-
quired changes can be made in the sub-menu
Time:
1. Select the menu System Setup (see
above).
2. Select the sub-menu Time and confirm by
pressing OK.
3. Select the item GMT Usage and switch on
or off GMT Usage by using the keys
/ .
On = automatic time setting via satellite
signal is activated.
Off = automatic time setting via satellite
signal is deactivated.

It’s recommended to keep the
presetting (GMT Usage On ).
4. Select the item GMT and select your time
zone by using the keys / ; for
example, the time zone of Germany, Aus-
tria and Switzerland is
GMT +1:00 .
5. Select the item Summer Time and switch
Summer Time
Off or On by using the keys
/ .

Please verify the presetting and
correct them, if required. Please
also consider corresponding
change of those settings.
6. If automatic time setting (GMT Usage) is
switched off, then date and time should be
manually entered:
For this, select the item Date, select the
position to be changed by using the keys
/ , and enter the current date
by using the numeric keys. Then, select the
item Time, select the position to be
changed by using the keys / ,
and enter the current time by using the
numeric keys.
7GMT = Greenwich Mean Time
7. Leave the menu by pressing EXIT until the
screen shows the TV picture.
5.12 TV
You have several possibilities to select a chan-
nel:
•Direct channel selection;
•Channel selection via selection window;
and
•Channel selection via search function;
as explained in the following sections.
5.12.1 Direct Channel Selection
Select the desired channel by using the
keys PR+ and PR-.

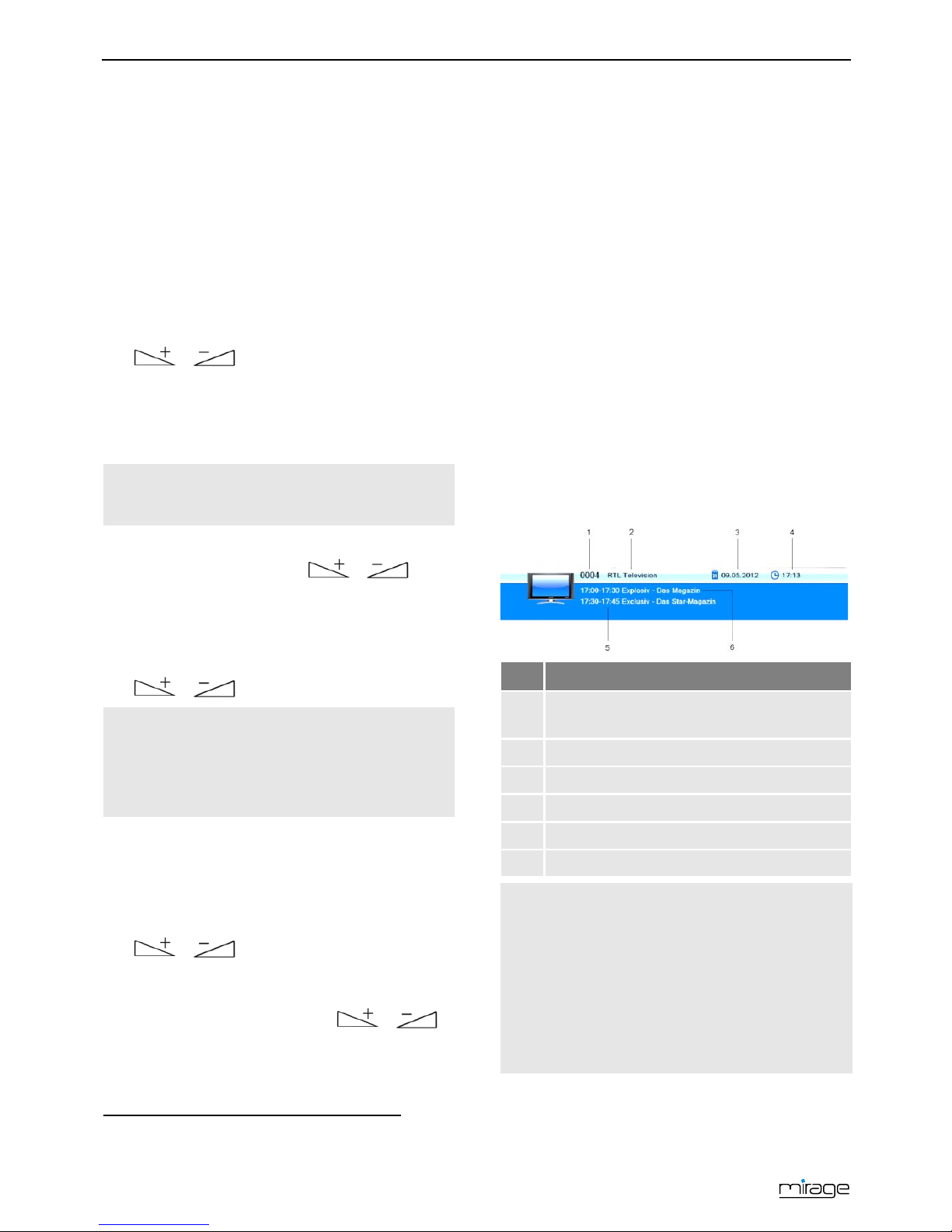

With each change of channel, an information
window with information on the current chan-
nel will be displayed:
No.
Description
1
Channel number of current channel in
current channel list
2
Channel name of current channel
3
Date
4
Time
5
Name of next program
6
Name of current program

Press the INFO key to call this
window at any time.
Set display time at OSD
Timeout (see section 9.5.1,
page 34).
Press EXIT two times to close
the information window.

Basic Operation
15
5.12.2 Channel Selection via Selection
Window
1. Press the OK key to display a selection
window with all available channels.
2. Select the channel list with the desired
channel by using the keys or
or
Press the FAV key to select from your fa-
vorite lists (see p. 31).
3. Select the channel to be displayed by
using the keys PR+ and PR-for single
steps or P+ and P- for steps of ten, and
confirm your selection by pressing OK.
The channel will be correspondingly
switched.
4. Press OK or EXIT to close the selection
window.
Channel selection window:
No.
Description
1
Display of current channel list
2
Marked channel
3
Channels included in the current chan-
nel list
4
Frequency of current channel (example:
33800 is 338.00 MHz)
5
Symbol rate of current channel (in
megasymbols/second)
6
Polarization of current channel
7
Scroll bar – shows position of current
channel in channel list
5.12.3 Channel Selection via Search Function
The channel lists can be quite comprehensive;
correspondingly, the receiver offers various
possibilities to filter the list, search for channels
in the list, or sort the list:
Press the FIND key to open the window
Find.
Select one of the offered options by using
the keys PR+ and PR-, and confirm by
pressing OK.
5.12.3.1 HDTV Filter
Select
HDTV to only show HDTV channels
in the channel selection window.
Use the steps as described in 5.12.2 to
select a channel.
5.12.3.2 Genre Filter
Select
GENRE to show the genre selection
window (1).
1:
Select the desired genre by using the keys
PR+ and PR-, and confirm by pressing
OK. The channel selection window will
open as second window; this window only
shows channels with the selected genre.
2:

Basic Operation
16
Press EXIT to close the channel selection
window. Now you can choose another
genre.
5.12.3.3 Find Channels (by Alphabet)
1. Press the FIND key, to open the window
Find.
2. Select a character by using the keys
and as well as PR+ and PR-and re-
spectively confirm by pressing OK to ac-
cept such character in the field for the
name or part of the name of the desired
channel.
Additionally to letters and numbers, there are
also special buttons:
Button
Meaning
CAPS
(yellow func-
tion key)
Changes between upper-
case and lower case
(only effective with letters).
Button
Meaning
DEL
(red function
key) or <-
Deletes the last entered
character.
OK
(blue function
key)
Closes the windows.
SP
Enters a space character.
?
The question mark as first
character has a wildcard
function. Example: "?R"
sear
ches for all channel
names that include an "R".
As soon as the first selected character has
been confirmed by pressing OK, a second
window will open, showing all channels starting
with this character (in most cases, the first
character is a letter).
1:
2:

Basic Operation
17
Press EXIT to close window 1, provided
that selection is sufficiently arranged for
your purposes. Now, you can select the
desired channel in window 2 by using the
keys PR+ and PR-, and confirm by press-
ing OK.
Return to entry of characters (see above) to
further limit channel selection.
5.12.3.4 Sort Channel List (by Alphabet)
Select
Sort (A-Z) or Sort (Z-A) to sort the
displayed channels in ascending or de-
scending alphabetical order in the channel
selection window.

With all of the functions as de-
scribed in 5.12.3, the made selec-
tion or sorting is deleted as soon as
a channel is selected by pressing
OK, i.e. if you are then pressing the
OK key to show the channel selec-
tion window, the channel selection
list is displayed in its previous origi-
nal state.
5.12.4 Channel Information
Press the INFO key twice. The window
below will be displayed:
No.
Description
1
Genre
2
Start time and end time of current
program
3
Name of current channel
4
Name of current program
No.
Description
5
Language of current program
6
Detailed information on current pro-
gram
7
Frequency, Polarization (H = horizon-
tal, V = vertical), Symbol rate
8
Signal strength
9
Signal quality
10
DVB PIDs for video, audio, PCR
7F
8
5.12.5 EPG
The Electronic Program Guide is a comfortable
tool, replacing a printed TV guide.
5.12.5.1 Single EPG
Press the EPG key of the remote control.
The window Single EPG (information on
one channel) will open.
8PID = Packet IDentifier, each table or each elemen-
tary stream in a transport stream is identified by a 13-
bit PID. PCR = Program Clock Reference; required to
enable the decoder to perform correct presentation
regarding time and speed.

Basic Operation
18
No.
Description
1
All programs during a day, with start
and end time; the selected program is
color-marked.
2
Date of day to which display applies.
3
Duration of current program (start time
~ end time).
4
Name of current program.
5
Illustration of the colored function keys
and their functions.
6
Detailed information on the current
program.
Press the keys PR+ and PR-to display a
later or earlier program (1).
Press the keys and to page
forward/back respectively one day (2).
Press the yellow function key to scroll
down in the information section (6).
Press the red function key to scroll up in
the function area (6).
Press the green function key to include
channel, date, switch-on time and duration
of the marked program into a timer. The
Timer Mode is set to
Once by default;
Timer Service is set to
Channel . You may
change the settings.
Press the blue function key to go to the
window EPG.
Press the EXIT key to close the window
Single EPG and return to TV operation.
5.12.5.2 EPG
After pressing the blue function key in the
window Single EPG you will access the win-
dow EPG with the following display:
The current program is marked with .
No.
Description
1
Thumbnail of selected channel.
2
Channel number of selected channel.
3
Name of selected channel.
4
Name of selected program.
5
Start time and end time of selected
program.
6
Current and next program with a
timeframe of approx. 1.5 hours for the
marked channel.
7
Illustration of the colored function keys
and their functions.
8
All channels included in the current
channel list.
9
Day to which the displayed data apply.
Press OK to open a window with detailed
information on the selected program.
Press the OK key, the red function key or
the EXIT key to close such window.
Press the keys PR+ and PR-to flip through
all available channels.
Press the keys and to page
back and forward respectively one pro-
gram within a channel.
Press the red function key to access the
window Time:

Basic Operation
19
Here, select the function on the bottom by
using the keys and :
Press OK when is selected to go to
the current program. The current pro-
gram is marked with .
Press OK when is selected to
go one program forward or back.
Press OK when is selected to
go two hours forward or back.
Press OK when is selected to
go one day forward or back.
Press OK when is selected or press
EXIT to close the window Time and to
return to the EPG window.
Press the green function key to include
channel, date, switch-on time and duration
of the marked program into a timer. The
Timer Mode is set to
Once by default;
Timer Service is set to
Channel . You may
change the settings.
Press the blue function key to leave the
EPG window and return to the window
Single EPG.
Press the EXIT key to leave the EPG win-
dow and return to the TV program.
5.12.6 Audio Settings
1. Press the key AUDIO.
2. Select the audio mode by using the keys
and .
Depending on the selected channel and
the current program, the following modes
are available:
Left - Right - Stereo - Mono.
3. Press the keys PR+ or PR-to select an-
other language or Dolby AC3 (Dolby Digi-
tal) as far as provided by the TV station.
4. After selecting the desired audio mode,
leave the menu by pressing the EXIT key.
5.12.7 Teletext
Teletext is an information system displayed on
your TV set. Teletext is only possible if the
selected channel supports such function. The
information is organized in the main pages and
subpages.
5.12.7.1 Switching 0n Teletext
Press the key TXT.
If subtitles are offered for the program in
the selected channel, a selection window
appears.
Press the keys and to select
Teletext
Press OK to switch on teletext. The first
teletext page no. 100 is displayed.

If subtitles are offered for the pro-
gram in the selected channel, im-
mediately after pressing TXT the
first teletext page no. 100 is dis-
played.
5.12.7.2 Navigating inside Teletext
To navigate inside teletext proceed as fol-
lows:
key
function
Keys 0 ... 9 of the
remote control
Direct input of a
page number
Next main page
Previous main page
(if there are sub-
pages)
Next sub page
(if there are sub-
pages)
Previous subpage or
AUTO : automatic
switch from one
subpage to another
5.12.7.3 Setting the Transparency During Teletext-
View
Drücken Sie mehrmals OK, um die Trans-
parenz der Videotextdarstellung in vier Stu-
fen (von
nicht transparent bis vollständig
transparent
) einzustellen.

Basic Operation
20
5.12.7.4 Switching Off Teletext
Press the EXIT or TXT key to deactivate
teletext.
5.12.8 Subtitles
If subtitles are offered for the program in
the selected channel, these can be activat-
ed as follows:
1. Press the keys TXT to open the selection
window Subtitles/Teletext.
2. Press the keys and to select
Subtitle and confirm with OK. Another
window Subtitle Language appears.
3. With the keys PR+ or PR- select a line
Subtitle language and confirm your selec-
tion with OK to activate subtitles. Only if
several subtitle languages are being sent
there will appear several lines
Subtitle lan-
guage
. If for example only German subti-
tles are sent,
deu(D) is preset as subtitle
language.
To switch off the subtitles proceed as fol-
lows:
1. Press the key TXT to open the selection
window Subtitles/Teletext.
2. Press the keys and to select
Subtitle and confirm with OK. Another
window Subtitle Language appears.
3. With the keys PR+ or PR- select the line
SUB OFF and confirm your selection with
OK to deactivate the subtitles.
5.12.9 Aspect Mode
5.12.9.1 Setting the Aspect Mode with the V-MODE
key
Press the V-MODE key several times to set
the aspect ratio. Possible values:
Auto , 4:3PS , 4:3LB , 16:9LB (see below ta-
ble).
5.12.9.2 Setting the Aspect Mode via the Menu
Select Aspect Mode to set the aspect ratio by
using the keys and .
Value Meaning
Auto
Default setting: the receiver selects
optimum value
4:3PS
For playback with a 4:3 screen, PS
= Pan & Scan:
•4:3 program: picture is opti-
mally displayed.
•16:9 program: picture height is
adjusted to screen; picture in-
formation on the right and left
are missing.
4:3LB
For playback with a 4:3 screen, LB
= Letterbox
•4:3 program: picture is opti-
mally displayed.
•16:9 program: picture width is
adjusted to screen; lacking
height is filled up by black
bars.
16:9 For playback with a 16:9 TV set
5.12.10 Video Resolution
5.12.10.1 Switching the Video Resolution via the
Menu
In the menu System Setup, select the
submenu TV System and confirm by
pressing OK.
1. Select the Video Resolution.
2. Press OK to display a list with the se-
lectable values.
3. Select the value appropriate to your TV set
by using the keys PR+ and PR-.
Example: If your TV set is capable of dis-
playing a resolution of 720p8F
9then you
should also set 720p at the receiver (720p
is the factory setting).
9p = progressive scan: progressive scan images are
transmitted, e.g. 720p means that 50 progressive
scan images with a resolution of 1280 pixel/line and
720 lines/image are transmitted per second. i =
interlaced video: odd and even lines are transmitted
alternatingly.
