Mirage DNA75C User manual
1. INTRODUCTION
2. MAIN FEATURES
3. STANDARD PACKAGE
4. EVOLV DNA 75C COLOR
5. ESCRIBE
6. DISPLAY OF DNA 75C
7. ERROR MESSGAES
8. BATTERY INSTALLING AND CHARGING
9. PRECAUTIONS
10. WARRANTY
3. STANDARD PACKAGE
1 x Mirage DNA 75C Device
1 x USB Charging Cable
1 x Mirage Gift Box
1 x Mirage USER Manual
1 x 18650 Battery Adapter
1.INTRODUCTION
The Mirage DNA 75C is the first device that Lost Vape created to convert 3 types
of single batteries which are 18650, 20700 and 21700. The top and body of
the Mirage DNA 75C are made with resin and wood hybrid material. This creative
design of resin and wood combination gives Mirage DNA75C an unique and
phantasmagoric appearance.
The front of the Mirage DNA 75C features a full color TFT screen display,onboard
programmable multicolor LED, waterproof onboard buttons, a real-time clock,
adjustmentbuttons,andUSBchargingport. Along with the smart DNA 75C
chip, the frame is made of anodized aluminum which makes the devices
extremely light weight, and the bottom battery sled is built as flip open function
to simplify the vaping operation.
It is the customisable user interface of the DNA 75 Color that impressesthe
Mirage DNA 75C. This advanced feature makes the operation of Mirage DNA 75C
easy to maintain and operate. With theme designer software build in Escribe,
the way of customization are endless, with 100% customisable user interface.
In order to satisfy and spare vapers’ needs andtime, Lost Vape MirageDNA
75C provides preset profiles in Nickel(Ni200), Titanium(Ti)andStainless
Steel(SS) coil builds for ready to go.
USER MANUAL
DNA 75C
POWERED BY:
2. MAIN FEATURES
Powered by Evolv DNA 75C Board
Wattage Control / Temperature Protection
Full Color TFT Screen
Theme Designer Software
Customizable User Interface
Escribe Software / Firmware Upgradable
Onboard Programmable Multicolor LED
Stainless Steel 510 Atomizer Connector
Anodized Aluminum Frame
Resin-Wood or Resin-Only Body
Single 18650/20700/21700 Convertible
Flip-Open Battery Sled
Temperature Limit: 200°F-600°F
Output Power: 1-75 Watts
Integrated 1Amp On-board Balanced Charger
Dimensions: 43.5mm*28mm*93mm
4. EVOLV DNA 75C
The DNA 75C is a power regulated digital switch-mode DC-DC converter for
personal vaporizers. It features Evolv's patented Wattage Control, Temperature
Protection, Preheat, Full Color TFT Screen, Reverse Polarity Protection, onboard
programmable multicolor LED, waterproof onboard buttons and a real-time clock.
The USB port, Evolv’s EScribe software and separate Theme Designer software can
be used to fully customize all aspects of the interface or monitor the user
experience. The DNA 75C features battery monitoring and integrated 1A charger.
The following graphs show the output power range of the DNA 75C as a function
of the coil resistance.
Specifications
New 100Watts Boost/Preheat Power Feature
Single 18650/20700/21700 Convertible
Flip-Open Battery Sled (18650/20700/21700 Convertible)
18650 Battery Adapter
510 Atomizer Connector
Up Button
Down Button
Fire Button
Full Color TFT Screen Display
Select Button
USB Port
(Charging & Firmware Update)
Programmable Multicolor
LED Indicator
9. PRECAUTIONS
Please read the following safety recommendations before using this device.
1.This device is intended for users over the age of 18, and not by minors,women
who are pregnant or breast feeding, or people with or at risk of heartdisease, high
blood pressure, hypertension, diabetes, or taking medicine fordepression or
asthma.
2.This products is sold purely for recreational purpose, it is not a smoking
cessation product and has not been tested as SSsuch.
3.Please ensure this product is kept away from extreme high and low temperatures
and moist environment while in use or stored.
4.The manufacturer is not responsible for any damage or personal injurycaused by
inappropriate, incorrect or irresponsible use of the device. Use ofany illegal or
prohibited products with this device will void the warranty.
5.Do not over-tighten the atomizer onto the 510 connector, the atomizer should be
snug, not tight. over-tightening may cause damage to the threadingand the delrin
insulator.
6.This is a high end and powerful device capable of providing a high voltageto the
atomizer. We recommend only using the 18650/20700/21700 battery that are rated
no less than 30A.
7.Due care and attention must be followed when using this mod. This is for
experienced vaperswithextensiveknowledgeofhowelectronicdeviceswork
along with access to the appropriate safety tools. Please ensure proper precautions
are taken when using these devices as to not cause damage and/or harm to the
atomizer, device, or yourself. Use at your ownrisk.
8.Battery safety is very important. If you remove the battery from the device,please
store it in a dry place, at room temperature, and away from direct sunlight. The
batteries should never be left unattended while charging. Pleasetake extra care
when youremoving/replacing the battery. Always dispose ofbatteries in a safe
manner, into a designated containers for batteryrecycling.
5. ESCRIBE
Escribe is a software package used to configure, monitor and modify the operation
of your DNA 75C. It installs on a Windows PC and connects to your DNA 75C
using the USB port. Escribe has a separate manual and tutorials which can be
found on Evolv'ssite. Users must go to the Escribe and update the latest firmware
before using the device.
http://www.evolvapor.com/
http://www.evolvapor.com/manuals/EScribeManual.pdf

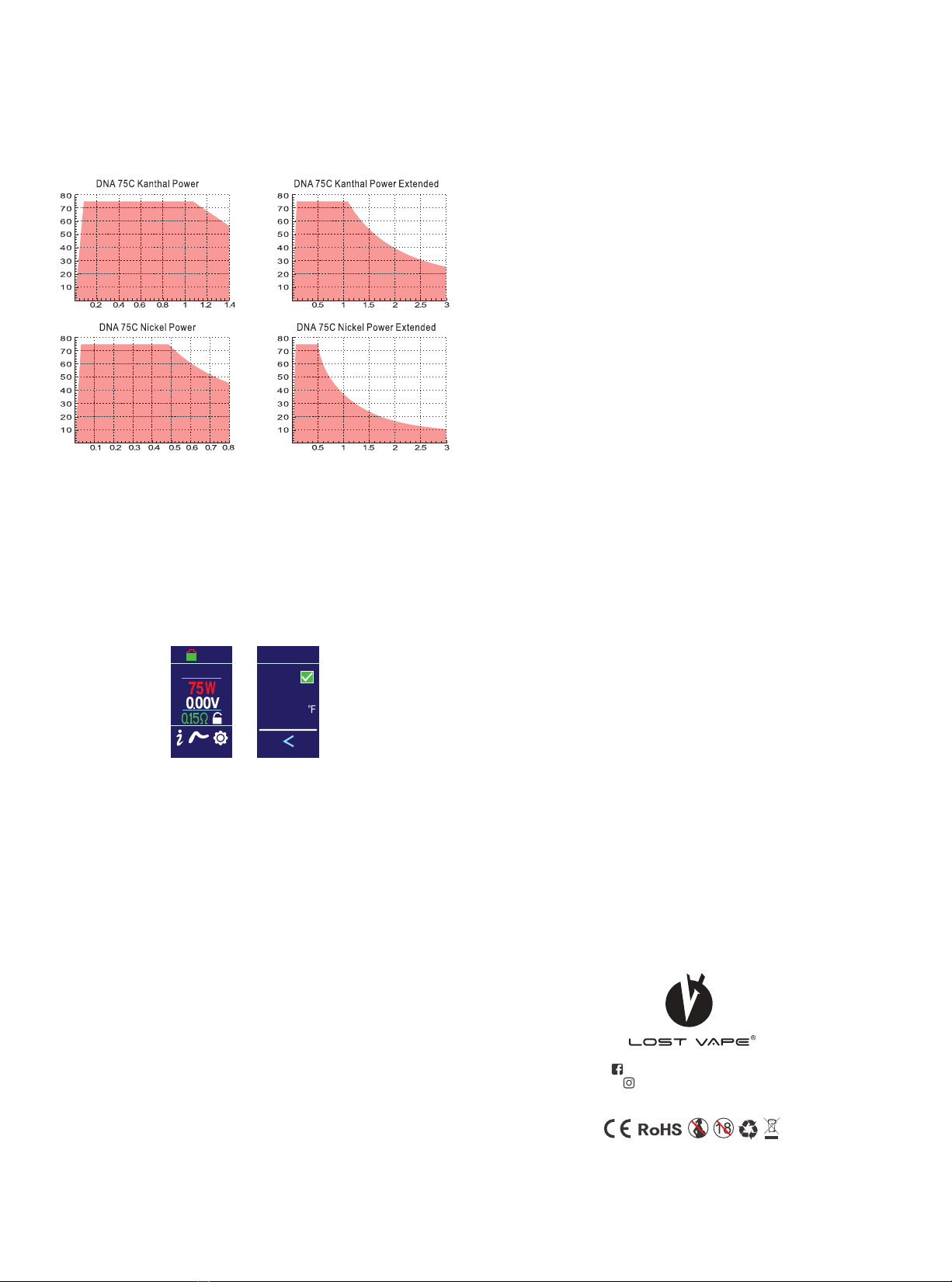

Output Power
The following graphs show the output power range of the DNA 75C as a function of
the coil resistance.
6. DISPLAY OF DNA 75C
Display
The DNA 75C has a full color 80 x 160 px TFT screen.
10. WARRANTY
LOST VAPE Mirage DNA 75C are covered by a 6 months limited warranty from the
date of your retail purchase.The warranty will be void if there are any signs that the
product has been physically damaged, dropped or abused in any way.
For warranty issues, please contact LOST VAPE official retailers and distributors
for their warranty and return policy. LOST VAPE’s warranty doesnot apply to
products purchased through unauthorized vendors.
8. BATTERY INSTALLING AND CHARGING
Installing Battery:
If using 18650, put the included battery adapter cap on the negative side of the
18650 battery, then place the 18650 battery into the device.
If using 20700/21700, just place the battery into the device.
External charging (Recommended):
Remove battery from device.
Follow charginginstructionswith using charger.
Internal charging:
The DNA 75C has a built in 1A USB charger. It automatically detects the type of
USB power supply it is connected to, so it can be plugged into standard PC USB
ports or higher power chargers.
7. ERROR MESSAGES
The DNA 75C will indicate a variety of error states.
Check Atomizer: The DNA does not detect an atomizer, the atomizer has shorted
out, or the atomizer resistance is incorrect for the power setting.
Shorted: The atomizer or wiring are short circuited.
Weak Battery: The battery needs to be charged, or a higher amp rated battery
needs to be used. If this happens, the DNA 75C will continue to fire the atomizer,
but will not be able to provide the desired wattage. The Weak Battery message will
continue to display for a few seconds after the end of the puff.
Check Battery: The battery is deeply discharged and needs to be charged, or is
damaged. If this happens, the DNA 75C will not fire the atomizer. The Check
Battery message will continue to display for a few seconds after attempting to fire
the device. User should remove and replace the battery.
Temperature Protected: The heating coil reached the maximum allowed
temperature during the puff. If this happens, the DNA 75C will continue to fire, but
will not be able to provide the desired wattage.
Ohms Too High: The resistance of the atomizer coil is too high for the current
wattage setting. If this happens, the DNA 75C will continue to fire, but will not be
able to provide the desired wattage. The Ohms Too High message will continue to
display for a few seconds after the end of puff.
Ohms Too Low: The resistance of the atomizer coil is too low for the current
wattage setting. If this happens, the DNA 75C will continue to fire, but will not be
able to provide the desired wattage. The Ohms Too Low message will continue to
display for a few seconds after the end of puff.
Too Hot: The DNA 75C has onboard temperature sensing. It will shut down and
display this message if the internal board temperature becomes excessive.
Preheat
Punch
Enable
Power 100W
Temp
92%
Watts
440
www.lostvape.com
Facebook.com/LostVapeLtd
Instagram: LOST_VAPE
Designed and Manufactured by LOST VAPE LTD.
Copyright © 2017 LOST VAPE. All Rights Reserved
