Mitsubishi Electric Mr.SLIM SLZ-M25FA User manual

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
Mitsubishi Electric SLZ-M25FA/SUZ-KA25VA

Air-Conditioners
Indoor unit
Кондиционеры
ВНУТРЕННИЙ БЛОК
SLZ-KF25, KF35, KF50, KF60VA2
BRUKSANVISNING
Vennligst les nøye gjennom denne bruksanvisningen, for sikkert og riktig bruk av klimaanlegget.
INSTRUKCJA OBSŁUGI
Aby zapewnić bezpieczne i prawidłowe korzystanie z urządzenia, należy wcześniej uważnie przeczytać niniejszą
instrukcję obsługi.
ISTRUZIONI DI FUNZIONAMENTO
Leggere attentamente questi istruzioni di funzionamento prima di avviare l’unità, per un uso corretto e sicuro della
stessa.
BEDIENUNGSHANDBUCH
Zum sicheren und einwandfreien Gebrauch der Klimaanlage dieses Bedienungshandbuch vor Inbetriebnahme
gründlich durchlesen.
MANUEL D’UTILISATION
Pour une utilisation correcte sans risques, veuillez lire le manuel d’utilisation en entier avant de vous servir du
climatiseur.
OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
BEDIENINGSHANDLEIDING
Voor een veilig en juist gebruik moet u deze bedieningshandleiding grondig doorlezen voordat u de
airconditioner gebruikt.
MANUAL DE INSTRUCCIONES
Lea este manual de instrucciones hasta el nal antes de poner en marcha la unidad de aire acondicionado para
garantizar un uso seguro y correcto.
MANUAL DE OPERAÇÃO
Para segurança e utilização correctas, leia atentamente o manual de operação antes de pôr a funcionar a
unidade de ar condicionado.
DRIFTSMANUAL
Läs denna driftsmanual noga för säkert och korrekt bruk innan luftkonditioneringen används.
Français
Deutsch
English
Nederlands
Español
Italiano
Português
Svenska
ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ ΧΡΗΣΕΩΣ
Για ασφάλεια και σωστή χρήση, παρακαλείστε διαβάσετε προσεχτικά αυτό το εγχειρίδιο χρήσεως πριν θέσετε σε
λειτουργία τη μονάδα κλιματισμού. Ελληνικά
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
Для обеспечения правильного и безопасного использования следует ознакомиться с инструкциями,
указанными в данном руководстве по эксплуатации, тщательным образом до того, как приступать к ис-
пользованию кондиционера.
Русский
Norsk
Polski
PER L’UTENTE
VOOR DE GEBRUIKER
PARA EL USUARIO
FÜR BENUTZER
POUR L’UTILISATEUR
FÖR ANVÄNDAREN
PARA O UTILIZADOR
ΓΙΑ ΤΟΝ ΧΡΗΣΤΗ
ДЛЯ ПОЛЬЗОВАТЕЛЯ
FOR BRUKER
INFORMACJA DLA UŻYTKOWNIKA
FOR USER
IŞLETME ELKITABI
Emniyetli ve doğru biçimde nasıl kullanılacağını öğrenmek için lütfen klima cihazını işletmeden önce bu
elkitabını dikkatle okuyunuz.
Türkçe
KULLANICI İÇİN
DRIFTSMANUAL
Læs venligst denne driftsmanual grundigt før airconditionanlægget betjenes af hensyn til sikker og korrekt brug. Dansk
TIL BRUGER
BH79A234H02_cover.indd 1 3/30/2016 3:50:52 PM

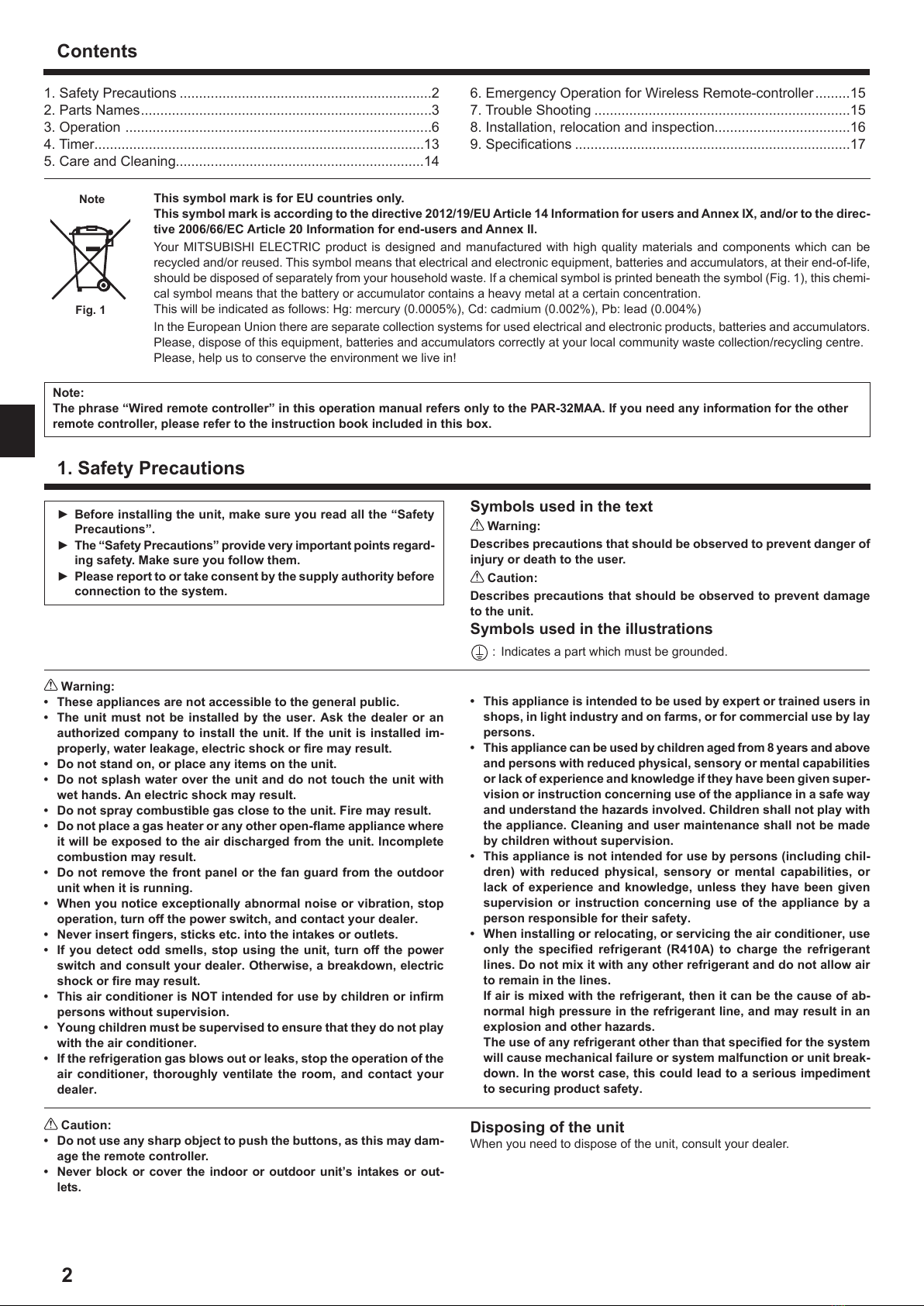

2
1. Safety Precautions .................................................................2
2. Parts Names...........................................................................3
3. Operation ...............................................................................6
4. Timer.....................................................................................13
5. Care and Cleaning................................................................14
Contents
►Beforeinstallingtheunit,makesureyoureadallthe“Safety
Precautions”.
► The“SafetyPrecautions”provideveryimportantpointsregard-
ingsafety.Makesureyoufollowthem.
►Pleasereporttoortakeconsentbythesupplyauthoritybefore
connectiontothesystem.
1.SafetyPrecautions
6. Emergency Operation for Wireless Remote-controller.........15
7. Trouble Shooting ..................................................................15
8. Installation, relocation and inspection...................................16
9. Specications .......................................................................17
Symbolsusedinthetext
Warning:
Describesprecautionsthatshouldbeobservedtopreventdangerof
injuryordeathtotheuser.
Caution:
Describesprecautionsthatshouldbeobservedtopreventdamage
totheunit.
Symbolsusedintheillustrations
: Indicates a part which must be grounded.
Warning:
• Theseappliancesarenotaccessibletothegeneralpublic.
• Theunitmustnotbeinstalledbytheuser.Askthedealeroran
authorizedcompanytoinstalltheunit.Iftheunitisinstalledim-
properly,waterleakage,electricshockorremayresult.
• Donotstandon,orplaceanyitemsontheunit.
• Donotsplashwaterovertheunitanddonottouchtheunitwith
wethands.Anelectricshockmayresult.
• Donotspraycombustiblegasclosetotheunit.Firemayresult.
• Donotplaceagasheateroranyotheropen-ameappliancewhere
itwillbeexposedtotheairdischargedfromtheunit.Incomplete
combustionmayresult.
• Donotremovethefrontpanelorthefanguardfromtheoutdoor
unitwhenitisrunning.
• Whenyounoticeexceptionallyabnormalnoiseorvibration,stop
operation,turnoffthepowerswitch,andcontactyourdealer.
• Neverinsertngers,sticksetc.intotheintakesoroutlets.
• Ifyoudetectoddsmells,stopusingtheunit,turnoffthepower
switchandconsultyourdealer.Otherwise,abreakdown,electric
shockorremayresult.
• ThisairconditionerisNOTintendedforusebychildrenorinrm
personswithoutsupervision.
• Youngchildrenmustbesupervisedtoensurethattheydonotplay
withtheairconditioner.
• Iftherefrigerationgasblowsoutorleaks,stoptheoperationofthe
airconditioner,thoroughlyventilatetheroom,andcontactyour
dealer.
• Thisapplianceisintendedtobeusedbyexpertortrainedusersin
shops,inlightindustryandonfarms,orforcommercialusebylay
persons.
• Thisappliancecanbeusedbychildrenagedfrom8yearsandabove
andpersonswithreducedphysical,sensoryormentalcapabilities
orlackofexperienceandknowledgeiftheyhavebeengivensuper-
visionorinstructionconcerninguseoftheapplianceinasafeway
andunderstandthehazardsinvolved.Childrenshallnotplaywith
theappliance.Cleaningandusermaintenanceshallnotbemade
bychildrenwithoutsupervision.
• Thisapplianceisnotintendedforusebypersons(includingchil-
dren)withreduced physical, sensoryormental capabilities, or
lackofexperienceandknowledge,unlesstheyhavebeengiven
supervisionorinstructionconcerninguseoftheappliancebya
personresponsiblefortheirsafety.
• Wheninstallingorrelocating,orservicingtheairconditioner,use
onlythespecied refrigerant (R410A)tocharge the refrigerant
lines.Donotmixitwithanyotherrefrigerantanddonotallowair
toremaininthelines.
 Ifairismixedwiththerefrigerant,thenitcanbethecauseofab-
normalhighpressureintherefrigerantline,andmayresultinan
explosionandotherhazards.
 Theuseofanyrefrigerantotherthanthatspeciedforthesystem
willcausemechanicalfailureorsystemmalfunctionorunitbreak-
down.Intheworstcase,thiscouldleadtoaseriousimpediment
tosecuringproductsafety.
Caution:
• Donotuseanysharpobjecttopushthebuttons,asthismaydam-
agetheremotecontroller.
• Neverblockorcovertheindoororoutdoorunit’sintakesorout-
lets.
Disposingoftheunit
When you need to dispose of the unit, consult your dealer.
Note:
Thephrase“Wiredremotecontroller”inthisoperationmanualrefersonlytothePAR-32MAA.Ifyouneedanyinformationfortheother
remotecontroller,pleaserefertotheinstructionbookincludedinthisbox.
ThissymbolmarkisforEUcountriesonly.
Thissymbolmarkisaccordingtothedirective2012/19/EUArticle14InformationforusersandAnnexIX,and/ortothedirec-
tive2006/66/ECArticle20Informationforend-usersandAnnexII.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be
recycled and/or reused. This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life,
should be disposed of separately from your household waste. If a chemical symbol is printed beneath the symbol (Fig. 1), this chemi-
cal symbol means that the battery or accumulator contains a heavy metal at a certain concentration.
This will be indicated as follows: Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!
Note
Fig.1
BH79A234H02_en.indd 2 3/30/2016 3:53:54 PM

3
■IndoorUnit
SLZ-KF·VA2
Fan steps 3 steps
Vane Auto with swing
Louver –
Filter Long-life
Filter cleaning indication 2,500 hr
Enter the model setting number for the
indoor unit you want to operate. 002
■SLZ-KF·VA2
4-way Ceiling Cassette
Filter
Air intake
Vane
Air outlet
2.PartsNames
■WiredRemoteController
Function buttons
4 3 2 1
5
6
7 8 9 0
Thefunctionsofthefunctionbuttonschangedependingonthe
screen.
Refertothebuttonfunctionguidethatappearsatthebottomofthe
LCDforthefunctionstheyserveonagivenscreen.
Whenthesystemiscentrallycontrolled,thebuttonfunctionguide
thatcorrespondstothelockedbuttonwillnotappear.
Fri
Room
Set temp.
Mode Temp. Fan
Cool
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Maindisplay Mainmenu
Functionguide
▌1[ON/OFF]button
Press to turn ON/OFF the indoor unit.
▌2[SELECT]button
Press to save the setting.
▌3[RETURN]button
Press to return to the previous screen.
▌4[MENU]button
Press to bring up the Main menu.
▌5BacklitLCD
Operation settings will appear.
When the backlight is off, pressing any button turns the backlight on
and it will stay lit for a certain period of time depending on the screen.
When the backlight is off, pressing any button turns the backlight on
and does not perform its function. (except for the [ON/OFF] button)
▌6ON/OFFlamp
This lamp lights up in green while the unit is in operation. It blinks while
the remote controller is starting up or when there is an error.
▌7Functionbutton[F1]
Main display: Press to change the operation mode.
Main menu: Press to move the cursor down.
▌8Functionbutton[F2]
Main display: Press to decrease temperature.
Main menu: Press to move the cursor up.
▌9Functionbutton[F3]
Main display: Press to increase temperature.
Main menu: Press to go to the previous page.
▌0Functionbutton[F4]
Main display: Press to change the fan speed.
Main menu: Press to go to the next page.
Controllerinterface
7 8 9 07 8 9 0
BH79A234H02_en.indd 3 3/30/2016 3:53:55 PM

4
The main display can be displayed in two different modes: “Full” and “Basic”. The factory setting is “Full”. To switch to the “Basic” mode, change the
setting on the Main display setting. (Refer to operation manual included with remote controller.)
▌1Operationmode
Indoor unit operation mode appears here.
▌2Presettemperature
Preset temperature appears here.
▌3Clock(SeetheInstallationManual.)
Current time appears here.
▌4Fanspeed
Fan speed setting appears here.
▌5Buttonfunctionguide
Functions of the corresponding buttons appear here.
▌6
Appears when the ON/OFF operation is centrally controlled.
▌7
Appears when the operation mode is centrally controlled.
▌8
Appears when the preset temperature is centrally controlled.
▌9
Appears when the lter reset function is centrally controlled.
▌0
Indicates when lter needs maintenance.
▌1Roomtemperature(SeetheInstallationManual.)
Current room temperature appears here.
▌2
Appears when the buttons are locked.
<Full mode>
* All icons are displayed for explanation.
Fri
Mode Temp. Fan
Room
Cool Set temp.
<Basic mode>
Fri
Cool
Mode Temp. Fan
Set temp.
4
3
2
1
5
6
7
8
90
1
3
)
4
!
7
@
2 3 4 5 6 8 9 2
1
5
▌3
Appears when the On/Off timer, Night setback, or Auto-off timer func-
tion is enabled.
appears when the timer is disabled by the centralized control
system.
▌4
Appears when the Weekly timer is enabled.
▌5
Appears while the units are operated in the energy-save mode. (Will
not appear on some models of indoor units)
▌6
Appears while the outdoor units are operated in the silent mode.
▌7
Appears when the built-in thermistor on the remote controller is acti-
vated to monitor the room temperature (1).
appears when the thermistor on the indoor unit is activated to
monitor the room temperature.
▌8
Appears when the units are operated in the energy-save mode with 3D
i-see Sensor.
▌9
Indicates the vane setting.
▌)
Indicates the louver setting.
▌!
Indicates the ventilation setting.
▌@
Appears when the preset temperature range is restricted.
Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Menu screen.
(Refer to operation manual included with remote controller.)
Display
2.PartsNames
BH79A234H02_en.indd 4 3/30/2016 3:53:55 PM

5
■WirelessRemote-Controller
2.PartsNames
Temperaturesetting
The units of temperature can be changed. For
details, refer to the Installation Manual.
Notavailable
Appears when a non-supported func-
tion is selected.
Batteryreplacementindicator
Appears when the remaining battery
power is low.
Vanesetting
Step 1 Step 2 Step 3 Step 4 Step 5 Swing Auto
Fanspeedsetting
3Di-seesensor(Airdistribution)
Default Direct Indirect When Direct or Indirect
is selected, the vane
setting is set to “Auto”.
Set Temperature buttons
Weekly timer ON/OFF button
Set Time button (Sets the time)
Air ow button (Changes up/down air ow direction)
Mode button (Changes operation mode)
Timer ON button
Timer OFF button
OFF/ON button
Fan Speed button (Changes fan speed)
SET/SEND button
CANCEL button
Up/Down buttons
Menu button
i-see button
Reset button
Remote controller display
Battery replacement indicator
Transmission area
Not available
Operationmode
Cool Dry
Fan Auto
(single set point)
Heat Auto*
(dual set point)
* The initial setting is necessary.
Refer to Installation manual.
BH79A234H02_en.indd 5 3/30/2016 3:53:57 PM

6
3.Operation
Batteryinstallation/replacement
1. Remove the top cover, insert two LR6 AA bat-
teries, and then install the top cover.
2. Press the Reset button.
■Abouttheoperationmethod,refertotheoperationmanualthatcomeswitheachremotecontroller.
3.1.TurningON/OFF
[ON] [OFF]
Press the [ON/OFF] button.
The ON/OFF lamp will light up in
green, and the operation will start.
Press the [ON/OFF] button again.
The ON/OFF lamp will come off, and
the operation will stop.
Note:
EvenifyoupresstheON/OFFbuttonimmediatelyaftershuttingdowntheoperationisprogress,theairconditionerwillnotstartforabout3
minutes.
Thisistopreventtheinternalcomponentsfrombeingdamaged.
■Outdoorunit
Power
Earth
Indoor-Outdoor
Connection wire
Ref. Pipes
2.PartsNames
1
2
3
Press the Reset button with an
object that has a narrow end.
Top cover
Notes(Onlyforwirelessremotecontroller):
■ When using the wireless remote controller, point it towards the receiver on the indoor unit.
■ If the remote controller is operated within approximately 2 minutes after power is supplied to the
indoor unit, the indoor unit may beep twice as the unit is performing the initial automatic check.
■ The indoor unit beeps to conrm that the signal transmitted from the remote controller has been
received. Signals can be received up to approximately 7 meters in a direct line from the indoor
unit in an area 45° to the left and right of the unit. However, illumination such as uorescent lights
and strong light can affect the ability of the indoor unit to receive signals.
■ If the operation lamp near the receiver on the indoor unit is blinking, the unit needs to be inspected.
Consult your dealer for service.
■ Handle the remote controller carefully! Do not drop the remote controller or subject it to strong
shocks. In addition, do not get the remote controller wet or leave it in a location with high humidity.
■ To avoid misplacing the remote controller, install the holder included with the remote controller on
a wall and be sure to always place the remote controller in the holder after use.
■ If the indoor unit beeps 4 times when you are using the wireless remote controller, switch the auto
mode setting to the AUTO (single set point) mode or AUTO (dual set point) mode.
For details, refer to the included Notice (A5 sheet) or the Installation Manual.
Two LR6 AA batteries
Insert the negative (–) end of each
battery rst. Install the batteries in
the correct directions (+, –)!
BH79A234H02_en.indd 6 3/30/2016 3:53:57 PM

7
3.Operation
■Operationstatusmemory
Remote controller setting
Operation mode Operation mode before the power was turned off
Preset temperature Preset temperature before the power was turned off
Fan speed Fan speed before the power was turned off
■Settablepresettemperaturerange
Operation mode Preset temperature range
Cool/Dry 19 – 30 ºC
Heat 17 – 28 ºC
Auto 19 – 28 ºC
Fan/Ventilation Not settable
3.2.ModeSelection
Press the [F1] button to go through the
operation modes in the order of “Cool”,
“Dry”, “Fan”, “Auto”, and “Heat”. Select the
desired operation mode.
• Operation modes that are not available to
the connected indoor unit models will not
appear on the display.
Informationformultisystemairconditioner(Outdoor
unit:MXZseries)
►Multisystemairconditioner(Outdoorunit:MXZseries)can
connecttwoormoreindoorunitswithoneoutdoorunit.According
tothecapacity,2ormoreunitscanoperatesimultaneously.
• When you try to operate 2 or more indoor units with 1 outdoor unit
simultaneously, one for the cooling and the other for heating, the
operation mode of the indoor unit that operates earlier is selected.
The other indoor units that will start the operation later cannot operate,
indicating an operation state in blinking.
In this case, please set all the indoor units to the same operation
mode.
• There might be a case that the indoor unit, which is operating in “Auto”
mode. Cannot change over to the operating mode “Cool”/“Heat” and
becomes a state of standby.
• When indoor unit starts the operation while the defrosting of outdoor
unit is being done, it takes a few minutes (max. about 15 minutes) to
blow out the warm air.
• In the heating operation, though indoor unit that does not operate may
get warm or the sound of refrigerant owing may be heard, they are
not malfunction. The reason is that the refrigerant continuously ows
into it.
Automaticoperation
■According to a set temperature, cooling operation starts if the room
temperature is too hot and heating operation starts if the room
temperature is too cold.
■During automatic operation, if the room temperature changes and
remains 2 °C or more above the set temperature for 15 minutes, the
air conditioner switches to cooling mode. In the same way, if the room
temperature remains 2 °C or more below the set temperature for 15
minutes, the air conditioner switches to heating mode.
Cooling mode 15 minutes (switches from
heating to cooling)
Set temperature +2 °C
Set temperature
15 minutes (switches
from cooling to heating)
Set temperature -2 °C
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri
Cool Dry Fan
Auto Heat
Whattheblinkingmodeiconmeans
The mode icon will blink when other indoor units in the same refriger-
ant system (connected to the same outdoor unit) are already operated
in a different mode. In this case, the rest of the unit in the same group
can only be operated in the same mode.
3.3.Temperaturesetting
<Cool,Dry,Heat,andAuto>
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri
Press the [F2] button to decrease the preset temperature, and press the
[F3] button to increase.
• Refer to the table on page 7 for the settable temperature range for
different operation modes.
• Preset temperature range cannot be set for Fan/Ventilation operation.
• Preset temperature will be displayed either in Centigrade in 0.5- or
1-degree increments, or in Fahrenheit, depending on the indoor unit
model and the display mode setting on the remote controller.
Cool
Room
28.5
Set temp.
Mode Temp. Fan
Fri
28.5
Example display
(Centigrade in 0.5-degree increments)
BH79A234H02_en.indd 7 3/30/2016 3:53:57 PM

8
3.Operation
3.4.Fanspeedsetting
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri
Press the [F4] button to go through the fan speeds in the following order.
Auto
• The available fan speeds depend on the models of connected indoor
units.
Notes:
●Thenumberofavailablefanspeedsdependsonthetypeofunit
connected.
●Inthefollowingcases,theactualfanspeedgeneratedbytheunit
willdifferfromthespeedshowntheremotecontrollerdisplay.
 1.Whilethedisplayisin“STANDBY”or“DEFROST”states.
 2.Whenthetemperatureoftheheatexchangerislowintheheat-
ingmode.
  (e.g.immediatelyafterheatingoperationstarts)
 3InHEATmode,whenroomtemperatureishigherthanthetem-
peraturesetting.
 4.WhentheunitisinDRYmode.
3.5.Airowdirectionsetting
3.5.1NavigatingthroughtheMainmenu
<AccessingtheMainmenu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Itemselection>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Cursor
<Navigatingthroughthepages>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
page
<Savingthesettings>
F1 F2 F3 F4
OU silent mode
Mon Tue Wed Thu Fri Sat Sun
Start Stop Silent
-
Setting display:
day
<ExitingtheMainmenuscreen>
F1 F2 F3 F4
Cool
Room
Set temp.
Mode Temp. Fan
Fri
If no buttons are touched for 10 minutes, the screen will automatically
return to the Main display. Any settings that have not been saved will
be lost.
<Displayofunsupportedfunctions>
F1 F2 F3 F4
Title
Not available
Unsupported function
Return:
Press the [MENU] button.
The Main menu will appear.
Press [F1] to move the cursor down.
Press [F2] to move the cursor up.
Press [F3] to go to the previous page.
Press [F4] to go to the next page.
Select the desired item, and press
the [SELECT] button.
The screen to set the selected item
will appear.
Press the [RETURN] button to exit
the Main menu and return to the
Main display.
The message at left will appear
if the user selects a function not
supported by the corresponding
indoor unit model.
BH79A234H02_en.indd 8 3/30/2016 3:53:58 PM

9
3.Operation
3.5.2Vane·Vent.(Lossnay)
<Accessingthemenu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Vanesetting>
F1 F2 F3 F4
Fri
Swing Off
LouverVent.Vane
<Vent.setting>
F1 F2 F3 F4
Fri
Low
Vent.
<ReturningtotheMainmenu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Select "Vane·Louver·Vent.
(Lossnay)" from the Main menu
(refer to page 8), and press the
[SELECT] button.
Press the [F1] or [F2] button to go
through the vane setting options:
"Step 1", "Step 2", "Step 3", "Step
4", "Step 5", "Swing" and "Auto".
Select the desired setting.
Swing
Auto
Select "Swing" to move the vanes
up and down automatically.
When set to "Step 1" through "Step
5", the vane will be fixed at the
selected angle.
Press the [F3] button to go through
the ventilation setting options in the
order of "Off", "Low", and "High".
* Settable only when LOSSNAY
unit is connected.
Off Low High
Off Low High
• The fan on some models of indoor
units may be interlocked with
certain models of ventilation units.
Press the [RETURN] button to go
back to the Main menu.
Reset 1
horizontal
2345
Note:
TheoutletNo.isindicatedbythenumberofgroovesonbothendsof
eachairoutlet.Settheairdirectionwhilecheckingtheinformation
shownontheremotecontrollerdisplay.
Horizontal airow
Downward
Outlet No.4
Electric Component box
Outlet No.1
Air outlet identication marks
Outlet No.3 Outlet No.2
Remote controller setting
The airow direction of this outlet
is controlled by the airow direc-
tion setting of remote controller.
Fixed
The airow direction of this outlet is xed
in particular direction.
* When it is cold because of direct
airow, the airow direction can be
xed horizontally to avoid direct airow.
<Howtosetthexedup/downairdirection>
Notes:
● Thisfunctioncannotbesetdependingontheoutdoorunittobe
connected.

• For SLZ-KF.VA series, only the particular outlet can be xed to certain
direction with the procedures below. Once xed, only the set outlet is
xed every time air conditioner is turned on. (Other outlets follow UP/
DOWN air direction setting of remote controller.)
■Explanationofword
• “Refrigerant address No.” and “Unit No.” are the numbers given to
each air conditioner.
• “Outlet No.” is the number given to each outlet of air conditioner.
(Refer to the illustration below.)
•“Up/Down air direction” is the direction (angle) to x.
Step 1
Step 4
Auto
Step 2
Step 5
Step 3
Swing
Notes:
● Duringswingoperation,thedirectionalindicationonthescreen
doesnotchangeinsyncwiththedirectionalvanesontheunit.
● Availabledirectionsdependonthetypeofunitconnected.
● Inthefollowingcases,theactualairdirectionwilldifferfromthe
directionindicatedontheremotecontrollerdisplay.
1.Whilethedisplayisin“STANDBY”or“DEFROST”states.
2.Immediatelyafterstartingheatmode(whilethesystemiswait-
ingforthemodechangetotakeeffect).
3.Inheatmode,whenroomtemperatureishigherthanthetem-
peraturesetting.
BH79A234H02_en.indd 9 3/30/2016 3:53:59 PM

10
3.Operation
■Manualvaneangle(Wiredremotecontroller)
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Maintenance
Initial setting
Service
F1 F2 F3 F4
Maintenance menu
Main menu:
Cursor
Auto descending panel
Manual vane angle
3D i-See sensor
F1 F2 F3 F4
Manual vane angle
Input display:
Cur. Address Check
Ref. address
Unit No.
Identify unit Check button
F1 F2 F3 F4
Manual vane angle
Manual vane angle
Select:
Setting
Outlet Angle
Note:
Donotsetthedraftreductioninanenvironmentwithhighhumidity.
Otherwise,condensationmayformanddrip.
1Select “Maintenance” from the
Main menu (refer to page 8), and
press the [SELECT] button.
2Select “Manual vane angle” with
the [F1] or [F2] button, and press
the [SELECT] button.
3Move the cursor to “Ref. address”
or “Unit No.” with the [F1] button to
select.
Select the refrigerant address and
the unit number for the units to
whose vanes are to be  xed, with
the [F2] or [F3] button, and press
the [SELECT] button.
• Ref. address: Refrigerant address
• Unit No.: 1, 2, 3, 4
Press the [F4] button to con rm the
unit.
The vane of only the target indoor
unit is pointing downward.
4The current vane setting will ap-
pear.
Select the desired outlets from 1
through 4 with the [F1] or [F2] but-
ton.
• Outlet: “1”, “2”, “3”, “4” and “1, 2, 3,
4, (all outlets)”
Press the [F3] or [F4] button to go
through the option in the order of
“No setting (reset)”, “Step 1”, “Step
2”, “Step 3”, “Step 4”, “Step 5” and
“Draft reduction*”.
Select the desired setting.
* Draft reduction
The air ow direction for this setting
is more horizontal than the air ow
direction for the “Step 1” setting in
order to reduce a drafty feeling.
The draft reduction can be set for
only 1 vane.
■Vanesetting
Press the [SELECT] button to save the settings.
A screen will appear that indicates the setting information is being trans-
mitted.
The setting changes will be made to the selected outlet.
The screen will automatically return to the one shown above (step 5) when
the transmission is completed.
Make the settings for other outlets, following the same procedures.
Ifalloutletsareselected, willbedisplayedthenexttime
theunitgoesintooperation.
Navigating through the screens
•To go back to the Main menu................ [MENU] button
•To return to the previous screen .......... [RETURN] button
■Manualvaneangle(Wirelessremotecontroller)
Fig.1
A
Fig.2
B
Fig.3
Step 1 Step 2
Step 3
No setting
Draft
reduction* All outlets
Step 5Step 4
1Going to the Manual vane setting
mode
Press the button.
(Start this operation from the status
of remote controller display turned
off.)
“FUNCTION” is lighted and “1”
blinks. (Fig. 1)
Press the button to select “2”,
and then press the button.
2Selecting the vane number (Fig. 2)
Press the buttons to select the
vane number A, and then press
the button.
3Setting the vane angle (Fig. 3)
Press the buttons to select the
vane angle B.
Point the wireless remote controller
toward the receiver on the indoor
unit, and then press the
button.
Display
Setting Step 1 Step 2 Step 3 Step 4
Display No display
Setting Step 5 No setting Draft reduction*
* The draft reduction can be set for only 1 vane.
The setting is enabled only for the last vane that was set.
BH79A234H02_en.indd 10 3/30/2016 3:54:00 PM

11
3.Operation
Vane setting
Direct Indirect
Cooling horizontal → swing keep horizontal
Heating keep downward downward → horizontal
■Conrmationprocedure
F1 F2 F3 F4
Manual vane angle
Input display:
Cur. Address Check
Ref. address
Unit No.
Identify unit Check button
F1 F2 F3 F4
Manual vane angle
Return:
Ref. address
Unit No.
Function setting for unit
with vane fully open.
F1 F2 F3 F4
Manual vane angle
Return:
No communication
Check Unit state.
3.6.3Di-Seesensorsetting
3.6.1 3Di-Seesensorsetting
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Maintenance
Initial setting
Service
F1 F2 F3 F4
Maintenance menu
Main menu:
Cursor
Auto descending panel
Manual vane angle
3D i-See sensor
1First, confirm by setting “Ref.
address” to 0 and “Unit No.” to 1.
• Move the cursor to “Ref. address”
or “Unit No.” with the [F1] button to
select.
• Select the refrigerant address and
the unit number for the units to
whose vanes are to be xed, with
the [F2] or [F3] button, and press
the [SELECT] button.
• Ref. address: Refrigerant address
• Unit No.: 1, 2, 3, 4
Press the [F4] button to conrm the
unit.
2Change the “Unit No.” in order and
check each unit.
• Press the [F1] button to select “Unit
No.”.
Press the [F2] or [F3] button to
change the “Unit No.” to the unit
that you want to check, and then
press the [F4] button.
• After pressing the [F4] button, wait
approximately 15 seconds, and
then check the current state of the
air conditioner.
→ The vane is pointing downward.
→ This air conditioner is displayed
on the remote controller.
→ All outlets are closed. → Press
the [RETURN] button and continue
the operation from the beginning.
→ The messages shown to the left
are displayed. → The target device
does not exist at this refrigerant
address.
• Press the [RETURN] button to
return to the initial screen.
3Change the “Ref. address” to the
next number.
• Refer to step 1to change the “Ref.
address” and continue with the
conrmation.
1Select “Maintenance” from the
Main menu (refer to page 8), and
press the [SELECT] button.
2Select “3D i-See sensor” with the
[F1] or [F2] button, and press the
[SELECT] button.
F1 F2 F3 F4
3D i-See sensor
Cursor
Setting display:
Air distribution
Energy saving option
Seasonal airflow
3.6.2 Airdistribution
F1 F2 F3 F4
Air distribution
Input display:
Cur. Address Check
Ref. address
Unit No.
Identify unit Check button
F1 F2 F3 F4
Air distribution
Select:
Cur.
Ref. address
Unit No.
Auto vane
Direct/Indirect setting
All
Direct/Indirect
3Select the desired menu with the
[F1] or [F2] button, and press the
[SELECT] button.
• Air distribution
Select the airow direction control
method when the airow direction
is set to “Auto”.
• Energy saving option
Operates the energy-save mode
according to whether persons are
detected in the room by the 3D
i-See sensor.
• Seasonal airow
When the thermostat turns off, the
fan and the vanes operate accord-
ing to the control settings.
1Move the cursor to “Ref. address”
or “Unit No.” with the [F1] button to
select.
Select the refrigerant address and
the unit number for the units to
whose vanes are to be xed, with
the [F2] or [F3] button, and press
the [SELECT] button.
• Ref. address: Refrigerant address
• Unit No.: 1, 2, 3, 4
Press the [F4] button to conrm the
unit.
The vane of only the target indoor
unit is pointing downward.
2Select the menu with the [F4] but-
ton.
Default → Area → Direct/Indirect
→ Default…
Default: The vanes move the same
as during normal operation.
During cooling mode, all of the
vanes move to the horizontal air-
ow direction.
During heating mode, all of the
vanes move to the down airow
direction.
Area: The vanes move to the down
airow direction toward areas with
a high floor temperature during
cooling mode and toward areas
with a low oor temperature dur-
ing heating mode. Otherwise,
the vanes move to the horizontal
airow direction.
Direct/Indirect: The vanes auto-
matically move relative to the areas
where persons are detected.
The vanes operate as indicated in
the following table.
BH79A234H02_en.indd 11 3/30/2016 3:54:00 PM

12
3.Operation
F1 F2 F3 F4
Direct/Indirect setting
: Direct
: Indirect
: Indirect
: Direct
Select:
Outlet Angle
■i-Seebutton(Wirelessremotecontroller)
1Each time is pressed during operation, the setting changes in
the following order: OFF → Direct → Indirect.
Display
Setting OFF Direct Indirect
When the setting is changed from OFF to Direct or Indirect, the vane setting
changes to "Auto". This setting is applied collectively to all of the vanes.
3When Direct/Indirect is selected,
set each air outlet.
Select the air outlet with the [F1] or
[F2] button, and change the setting
with the [F4] button.
After changing the settings for all of
the air outlets, press the [SELECT]
button to save the settings.
* In order to enable this function,
the airow direction must be set
to “Auto”.
3.6.3 Energysavingoption
F1 F2 F3 F4
Energy saving option
Cursor
Setting display:
No occupancy energy save
Room occupancy energy save
No occupancy Auto-OFF
1Select the desired menu with the
[F1] or [F2] button.
No occupancy energy save
If there are no persons in the room
for 60 minutes or more, energy-
saving operation equal to 2 °C is
performed.
Room occupancy energy save
If the occupancy rate decreases
to approximately 30% of the maxi-
mum occupancy rate, energy-
saving operation equal to 1 °C is
performed.
No occupancy Auto-OFF
If there are no persons in the
room for the set amount of time
(60–180 minutes), the operation
is automatically stopped.
2When No occupancy energy save
or Room occupancy energy save
is selected
Select the setting with the [F4]
button.
OFF →Cooling only →Heating
only →Cooling/Heating → OFF…
After changing the setting, press
the [SELECT] button to save the
setting.
OFF: The function is disabled.
Cooling only: The function is ena-
bled only during cooling mode.
Heating only: The function is ena-
bled only during heating mode.
Cooling/Heating: The function is
enabled during both cooling mode
and heating mode.
3When No occupancy Auto-OFF is
selected
Set the time with the [F3] or [F4]
button.
---: The setting is disabled (the op-
eration will not stop automatically).
60–180: The time can be set in
10-minute increments.
4The message at left will appear
if the operation was stopped
automatically by the No occupancy
Auto-OFF setting.
F1 F2 F3 F4
Energy saving option
Select:
No occupancy energy save
Cooling/Heating
F1 F2 F3 F4
Energy saving option
Select:
Room occupancy energy save
Cooling/Heating
F1 F2 F3 F4
Energy saving option
Select:
Time
No occupancy Auto-OFF
120 min.
F1 F2 F3 F4
18:47 Thu
Shut down by
No Occupancy Auto-OFF
31/Dec AM12:59
BH79A234H02_en.indd 12 3/30/2016 3:54:01 PM

13
4.Timer
■Timer functions are different by each remote controller.
■For details on how to operate the remote controller, refer to the appropriate operation manual included with each remote controller.
Notes:
Anypersonatthefollowingplacescannotbedetected.
● Alongthewallonwhichtheairconditionerisinstalled
● Directlyundertheairconditioner
● Whereanyobstacle,suchasfurniture,isbetweenthepersonand
theairconditioner
Apersonmaynotbedetectedinthefollowingsituations.
● Roomtemperatureishigh.
● Apersonwearsheavyclothesandhis/herskinisnotexposed.
● Aheatingelementofwhichtemperaturechangessignicantlyis
present.
● Someheatsources,suchasasmallchildorpet,maynotbesensed.
● Aheatsourcedoesnotmoveforalongtime.
The3Di-Seesensoroperatesonceapproximatelyevery3minutes
tomeasuretheoortemperatureanddetectpersonsintheroom.
● Theintermittentoperatingsoundisanormalsoundproducedwhen
the3Di-Seesensorismoving.
3.7.Ventilation
For LOSSNAY combination
■The following 2 patterns of operation is available.
• Run the ventilator together with indoor unit.
• Run the ventilator independently.
Notes:(forwirelessremotecontroller)
● Runningtheventilatorindependentlyisnotavailable.
● Noindicationontheremotecontroller.
3.Operation
1Select the setting with the [F4]
button.
OFF → Cooling only → Heating
only → Cooling/Heating → OFF…
After changing the setting, press
the [SELECT] button to save the
setting.
OFF: The function is disabled.
Cooling only: When the thermostat
turns off during cooling mode, the
vanes move up and down.
Heating only: When the thermostat
turns off during heating mode,
the vanes move to the horizontal
air ow direction to circulate the air.
Cooling/Heating: The function is
enabled during both cooling mode
and heating mode.
* In order to enable this function,
the air ow direction must be set
to “Auto”.
3.6.4 Seasonalairowfunction
F1 F2 F3 F4
Seasonal airflow
Select:
Seasonal airflow
Cooling/Heating
B
A
D
C
Weeklyschedule(Wirelessremotecontroller)
■ The weekly schedule can be set to four operation patterns for each day of the week. The settings include the
on and off times and the set temperature.
<Editingmode>
1. Switching to the editing mode
1Press the button when the unit is operating or stopped.
blinks. (Fig. 1)
2. Selecting the setting pattern
1Press the button to select the setting pattern number.
Each time the button is pressed, the pattern number A changes in the following order: 1 → 2 → 3 → 4.
3. Selecting the day of the week
1Press the button to select the day of the week to set.
Each time the button is pressed, the day of the week B changes in the following order: Mon → Tue
→ Wed → Thu → Fri → Sat → Sun → All days.
4. Selecting the operation settings
1Push the button to select the operation on or off setting. (Fig. 2)
( ) is lighted.
Each time the button is pressed, the setting changes in the following order: → .
2Press the button to select the operation time. (Fig. 3)
The operation time blinks.
Set the operation time using the buttons.
• The operation time can be set in 10-minute increments.
3Push the button to select the set temperature. (Fig. 4)
The set temperature blinks.
Set the temperature using the buttons.
• When setting the off operation, the temperature cannot be set.
When the AUTO (dual set point) mode is enabled, press the button to switch between the upper limit
Cand the lower limit D. (Fig. 5)
4By pressing the button, the pattern number settings for the displayed day of the week are deleted.
5Repeat steps 2–4 to select the settings for each day of the week.
<Transmittingthesettings>
Point the transmission area of the wireless remote controller towards the receiver on the indoor unit and operate
the controller. Con rm that the indoor unit beeps 7 times.
Press the button.
<Enablingtheweeklyschedule>
Press the button.
The weekly schedule operates when is on.
• The weekly schedule does not function when the On/Off timer is enabled.
The weekly schedule operates when all of the On/Off timer settings have been executed.
Fig.2
Fig.3
Fig.4
Fig.5
Fig.1
BH79A234H02_en.indd 13 3/30/2016 3:54:01 PM

14
5.CareandCleaning
AB
D
C
F1 F2 F3 F4
Filter information
Filter information
OK
Cancel
Reset filter sign?
Filter sign reset
Main menu:
Select "OK" with the [F4] button.
A conrmation screen will appear.
Navigating through the screens
•To go back to the Main menu
....................... [MENU] button
•To return to the previous screen
....................... [RETURN] button
Cool
Room
Set temp.
Mode Temp. Fan
Fri When the is displayed on the
Main display in the Full mode, the
system is centrally controlled and
the lter sign cannot be reset.
If two or more indoor units are connected, lter cleaning timing for each
unit may be different, depending on the lter type.
The icon will appear when the lter on the main unit is due for
cleaning.
When the lter sign is reset, the cumulative operation time of all units
will be reset.
The icon is scheduled to appear after a certain duration of opera-
tion, based on the premise that the indoor units are installed in a space
with ordinary air quality. Depending on the air quality, the lter may
require more frequent cleaning.
The cumulative time at which filter needs cleaning depends on the
model.
• This indication is not available for wireless remote controller.
Caution:
• Askauthorizedpeopletocleanthelter.
►Cleaningthelters
• Clean the lters using a vacuum cleaner. If you do not have a vacuum
cleaner, tap the lters against a solid object to knock off dirt and dust.
• If the lters are especially dirty, wash them in lukewarm water. Take care
to rinse off any detergent thoroughly and allow the lters to dry completely
before putting them back into the unit.
Caution:
• Donotdrytheltersindirectsunlightorbyusingaheatsource,
suchasanelectricheater:thismaywarpthem.
• Donotwashtheltersinhotwater(above50°C),asthismaywarp
them.
• Makesurethattheairltersarealwaysinstalled.Operatingtheunit
withoutairlterscancausemalfunction.
Caution:
• Beforeyoustartcleaning,stopoperationandturnOFFthepower
supply.
• Indoorunitsareequippedwithlterstoremovethedustofsucked-
inair.Clean the lters usingthemethods shown in thefollowing
sketches.
►Filterremoval
Caution:
• Inremovingthelter,precautionsmustbetakentoprotectyour
eyesfromdust.Also,ifyouhavetoclimbuponastooltodothe
job,becarefulnottofall.
• Whenthelterisremoved,donottouchthemetallicpartsinside
theindoorunit,otherwiseinjurymayresult.
■SLZ-KF·VA
1Slide the levers on the intake grille in the direction indicated by the
arrow and it should open.
2Open the intake grille.
3Release the knob on the center edge of the intake grille and pull the
lter forward to remove the lter.
AIntake grille levers BGrille CIntake grille DFilter
F1 F2 F3 F4
Main menu:
Filter information
Reset
Please clean the filter.
Press Reset button after
filter cleaning.
■Filterinformation
Cool
Room
Set temp.
Mode Temp. Fan
Fri
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Restriction
Energy saving
Night setback
Filter information
Error information
will appear on the Main display
in the Full mode when it is time to
clean the lters.
Wash,clean,orreplacethelters
whenthissignappears.
RefertotheindoorunitInstructions
Manualfordetails.
Select "Filter information" from the
Main menu (refer to page 8), and
press the [SELECT] button.
Press the [F4] button to reset lter
sign.
Refer to the indoor unit Instructions
Manual for how to clean the lter.
BH79A234H02_en.indd 14 3/30/2016 3:54:03 PM

15
Whentheremotecontrollercannotbeused
When the batteries of the remote controller run out or the remote
controller malfunctions, the emergency operation can be done using the
emergency buttons on the grille.
ADEFROST/STAND BY lamp
BOperation lamp
CEmergency operation cooling switch
DEmergency operation heating switch
EReceiver
Starting operation
• To operate the cooling mode, press the button Cfor more than 2
seconds.
• To operate the heating mode, press the button Dfor more than 2
seconds.
• Lighting of the Operation lamp Bmeans the start of operation.
Notes:
Detailsofemergencymodeareasshownbelow.
Details of EMERGENCY MODE are as shown below.
Operation mode COOL HEAT
Set temperature 24°C 24°C
Fan speed High High
Airow direction Horizontal Downward 4 (5)
Stopping operation
• To stop operation, press the button Cor the button Dfor more than
2 seconds.
E
B
A
D C
6.EmergencyOperationforWirelessRemote-controller
Having trouble? Here is the solution. (Unit is operating normally.)
Air conditioner does not heat or cool well. ■ Clean the lter. (Airow is reduced when the lter is dirty or clogged.)
■Check the temperature adjustment and adjust the set temperature.
■Make sure that there is plenty of space around the outdoor unit. Is the
indoor unit air intake or outlet blocked?
■Has a door or window been left open?
When heating operation starts, warm air does not blow from the indoor
unit soon.
■ Warm air does not blow until the indoor unit has sufciently warmed up.
During heating mode, the air conditioner stops before the set room tem-
perature is reached.
■When the outdoor temperature is low and the humidity is high, frost
may form on the outdoor unit. If this occurs, the outdoor unit performs a
defrosting operation. Normal operation should begin after approximately
10 minutes.
During cooling mode, the air conditioner stops when the set room tem-
perature is reached.
■For SLZ-KF·VA series, when the set room temperature is reached during
cooling mode, the fan operates at the lowest speed.
Airow direction changes during operation or airow direction cannot be set. ■During heating mode, the vanes automatically move to the horizontal
airow direction when the airow temperature is low or during defrosting
mode.
When the airow direction is changed, the vanes always move up and down
past the set position before nally stopping at the position.
■ When the airow direction is changed, the vanes move to the set position
after detecting the base position.
A owing water sound or occasional hissing sound is heard. ■ These sounds can be heard when refrigerant is owing in the air condi-
tioner or when the refrigerant ow is changing.
A cracking or creaking sound is heard. ■These sounds can be heard when parts rub against each due to expan-
sion and contraction from temperature changes.
The room has an unpleasant odor. ■The indoor unit draws in air that contains gases produced from the walls,
carpeting, and furniture as well as odors trapped in clothing, and then
blows this air back into the room.
A white mist or vapor is emitted from the indoor unit. ■If the indoor temperature and the humidity are high, this condition may
occur when operation starts.
■ During defrosting mode, cool airow may blow down and appear like a
mist.
Water or vapor is emitted from the outdoor unit. ■During cooling mode, water may form and drip from the cool pipes and
joints.
■During heating mode, water may form and drip from the heat exchanger.
■During defrosting mode, water on the heat exchanger evaporates and
water vapor may be emitted.
“” appears in the remote controller display. ■During central control, “ ” appears in the remote controller display and
air conditioner operation cannot be started or stopped using the remote
controller.
When restarting the air conditioner soon after stopping it, it does not oper-
ate even though the ON/OFF button is pressed.
■Wait approximately three minutes.
(Operation has stopped to protect the air conditioner.)
7.TroubleShooting
BH79A234H02_en.indd 15 3/30/2016 3:54:04 PM

16
7.TroubleShooting
Having trouble? Here is the solution. (Unit is operating normally.)
Air conditioner operates without the ON/OFF button being pressed. ■Is the on timer set?
Press the ON/OFF button to stop operation.
■Is the air conditioner connected to a central remote controller?
Consult the concerned people who control the air conditioner.
■Does “ ” appear in the remote controller display?
Consult the concerned people who control the air conditioner.
■Has the auto recovery feature from power failures been set?
Press the ON/OFF button to stop operation.
Air conditioner stops without the ON/OFF button being pressed. ■Is the off timer set?
Press the ON/OFF button to restart operation.
■Is the air conditioner connected to a central remote controller?
Consult the concerned people who control the air conditioner.
■Does “ ” appear in the remote controller display?
Consult the concerned people who control the air conditioner.
Remote controller timer operation cannot be set. ■Are timer settings invalid?
If the timer can be set, or appears in the remote controller display.
“PLEASE WAIT” appears in the remote controller display. ■The initial settings are being performed. Wait approximately 3 min-
utes.
An error code appears in the remote controller display. ■The protection devices have operated to protect the air conditioner.
■Do not attempt to repair this equipment by yourself.
Turn off the power switch immediately and consult your dealer. Be sure
to provide the dealer with the model name and information that appeared
in the remote controller display.
Draining water or motor rotation sound is heard. ■When cooling operation stops, the drain pump operates and then stops.
Wait approximately 3 minutes.
The vanes do not move or the indoor unit does not respond to input from
the wireless remote controller.
■The junction wire connectors of the vane motor and signal receiver may
not be connected correctly. Have an installer check the connections. (The
colors of the male and female sections of the junction wire connectors
must match.)
Noise is louder than specications. ■The indoor operation sound level is affected by the acoustics of the
particular room as shown in the following table and will be higher than
the noise specication, which was measured in an echo-free room.
High sound-
absorbing
rooms
Normal rooms
Low sound-
absorbing
rooms
Location
examples
Broadcasting
studio, music
room, etc.
Reception
room, hotel
lobby, etc.
Ofce, hotel
room
Noise levels 3 to 7 dB 6 to 10 dB 9 to 13 dB
Nothing appears in the wireless remote controller display, the display
is faint, or signals are not received by the indoor unit unless the remote
controller is close.
■The batteries are low.
Replace the batteries and press the Reset button.
■If nothing appears even after the batteries are replaced, make sure that
the batteries are installed in the correct directions (+, –).
The operation lamp near the receiver for the wireless remote controller on
the indoor unit is ashing.
■The self diagnosis function has operated to protect the air conditioner.
■Do not attempt to repair this equipment by yourself.
Turn off the power switch immediately and consult your dealer. Be sure
to provide the dealer with the model name.
The wireless remote controller does not operate (the indoor unit beeps
4 times).
■Switch the auto mode setting to the AUTO (single set point) mode or
AUTO (dual set point) mode. For details, refer to the included Notice
(A5 sheet) or the Installation Manual.
Installationplace
Avoid installing the air conditioner in the following places.
• Where ammable gas could leak.
Caution:
Donotinstalltheunitwhereammablegascouldleak.
Ifgasleaksandcollectsaroundtheunit,itmaycauseanexplosion.
• Where there is much machine oil.
• Salty place such as the seaside.
• Where sulde gas is generated such as a hot spring.
• Where there is oil splashing or much oily smoke.
8.Installation,relocationandinspection
Inverter type
uorescent lamp
To prevent the effect
of a uorescent lamp,
keep it away as far
apart as possible.
To prevent picture
distortion or
noise, keep 1 m
or more apart.
Radio
100 mm or
more
400 mm
or more
Well-
ventilated dry
place
Wall, etc.
BH79A234H02_en.indd 16 3/30/2016 3:54:04 PM
