Mitsubishi Electric TRANE TPKA0A 1HA70 User manual

FOR USER
OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit. English
MANUAL DE INSTRUCCIONES
Lea este manual de instrucciones hasta el nal antes de poner en marcha la unidad de aire acondicionado para
garantizar un uso seguro y correcto.
PARA EL USUARIO
Español
MANUEL D’UTILISATION
Pour une utilisation correcte sans risques, veuillez lire le manuel d’utilisation en entier avant de vous servir du
climatiseur.
POUR L’UTILISATEUR
Français
SPLIT-SYSTEM HEAT PUMP
TPKA0A.1HA70✱
BH79D839H01_EN.indd 1 2019/07/26 15:27:39
001

1
1. Safety Precautions .................................................................1
2. Parts Names...........................................................................1
3. Operation................................................................................5
4. Timer.......................................................................................9
Contents
►Before installing the unit, make sure you read all the
“Safety Precautions”.
►The “Safety Precautions” provide very important points
regarding safety. Make sure you follow them.
►Please report to or take consent by the supply authority
before connection to the system.

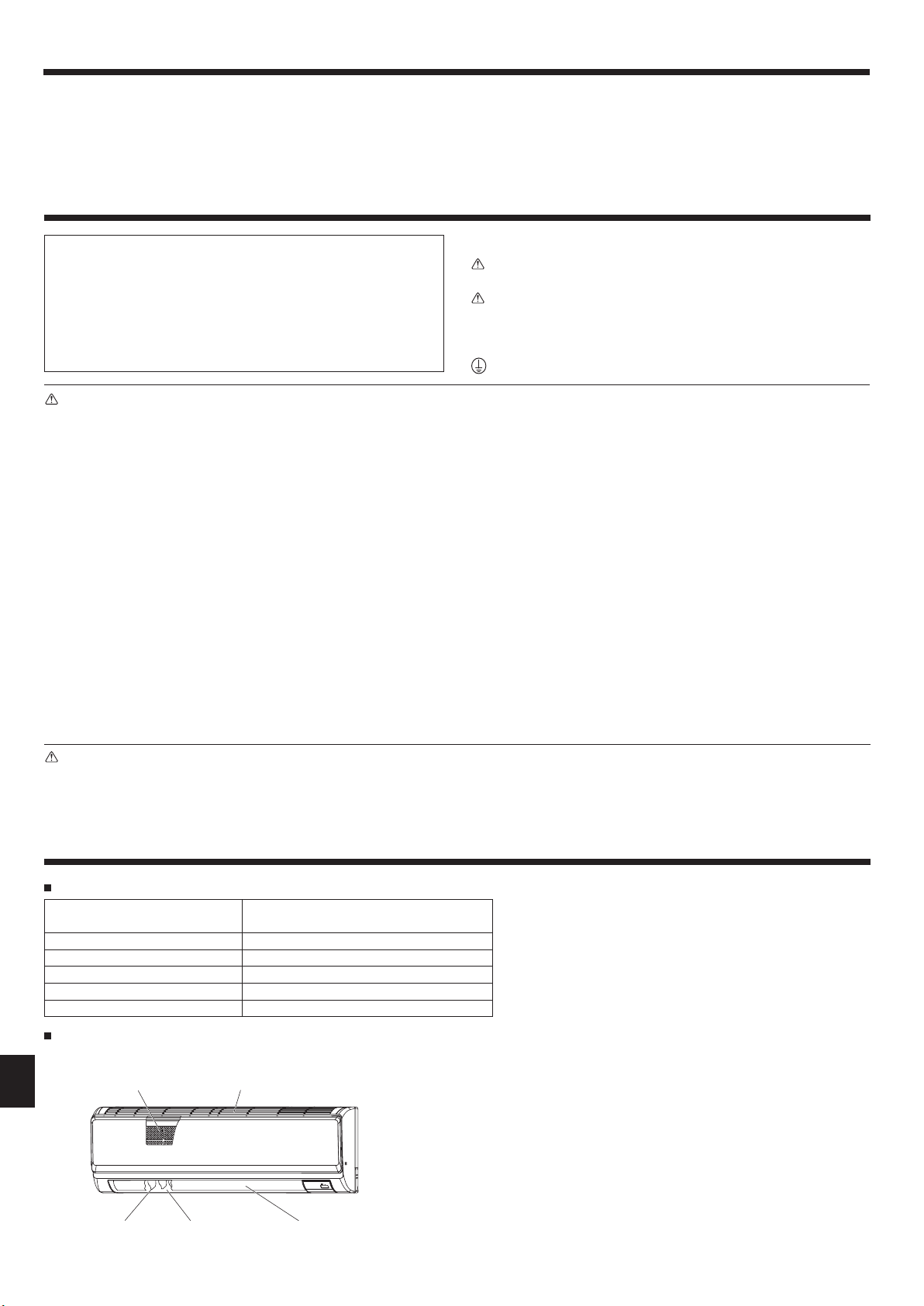

1. Safety Precautions
Symbols used in the text
Warning:
Describes precautions that should be observed to prevent danger of
injury or death to the user.
Caution:
Describes precautions that should be observed to prevent damage
to the unit.
Symbols used in the illustrations
: Indicates a part which must be grounded.
Warning:
• The unit must not be installed by the user. Ask the dealer or an
authorized company to install the unit. If the unit is installed im-
properly, water leakage, electric shock or re may result.
• Do not alter the unit. It may cause re, electric shock, injury or water
leakage.
• Do not stand on, or place any items on the unit.
• Do not splash water over the unit and do not touch the unit with
wet hands. An electric shock may result.
• Do not spray combustible gas close to the unit. Fire may result.
• Do not place a gas heater or any other open-ame appliance where
it will be exposed to the air discharged from the unit. Incomplete
combustion may result.
• Do not remove the front panel or the fan guard from the outdoor
unit when it is running.
• When you notice exceptionally abnormal noise or vibration, stop
operation, turn off the power switch, and contact your dealer.
• Never insert ngers, sticks etc. into the intakes or outlets.
• If you detect odd smells, stop using the unit, turn off the power
switch and consult your dealer. Otherwise, a breakdown, electric
shock or re may result.
• This air conditioner is NOT intended for use by children or inrm
persons without supervision.
• Young children must be supervised to ensure that they do not play
with the air conditioner.
• If the refrigeration gas blows out or leaks, stop the operation of the
air conditioner, thoroughly ventilate the room, and contact your
dealer.
• When installing or relocating, or servicing the air conditioner, use
only the specied refrigerant (R410A) to charge the refrigerant lines.
Do not mix it with any other refrigerant and do not allow air to remain
in the lines. If air is mixed with the refrigerant, then it can be the
cause of abnormal high pressure in the refrigerant line, and may
result in an explosion and other hazards. The use of any refrigerant
other than that specied for the system will cause mechanical failure
or system malfunction or unit breakdown. In the worst case, this
could lead to a serious impediment to securing product safety.
2. Parts Names

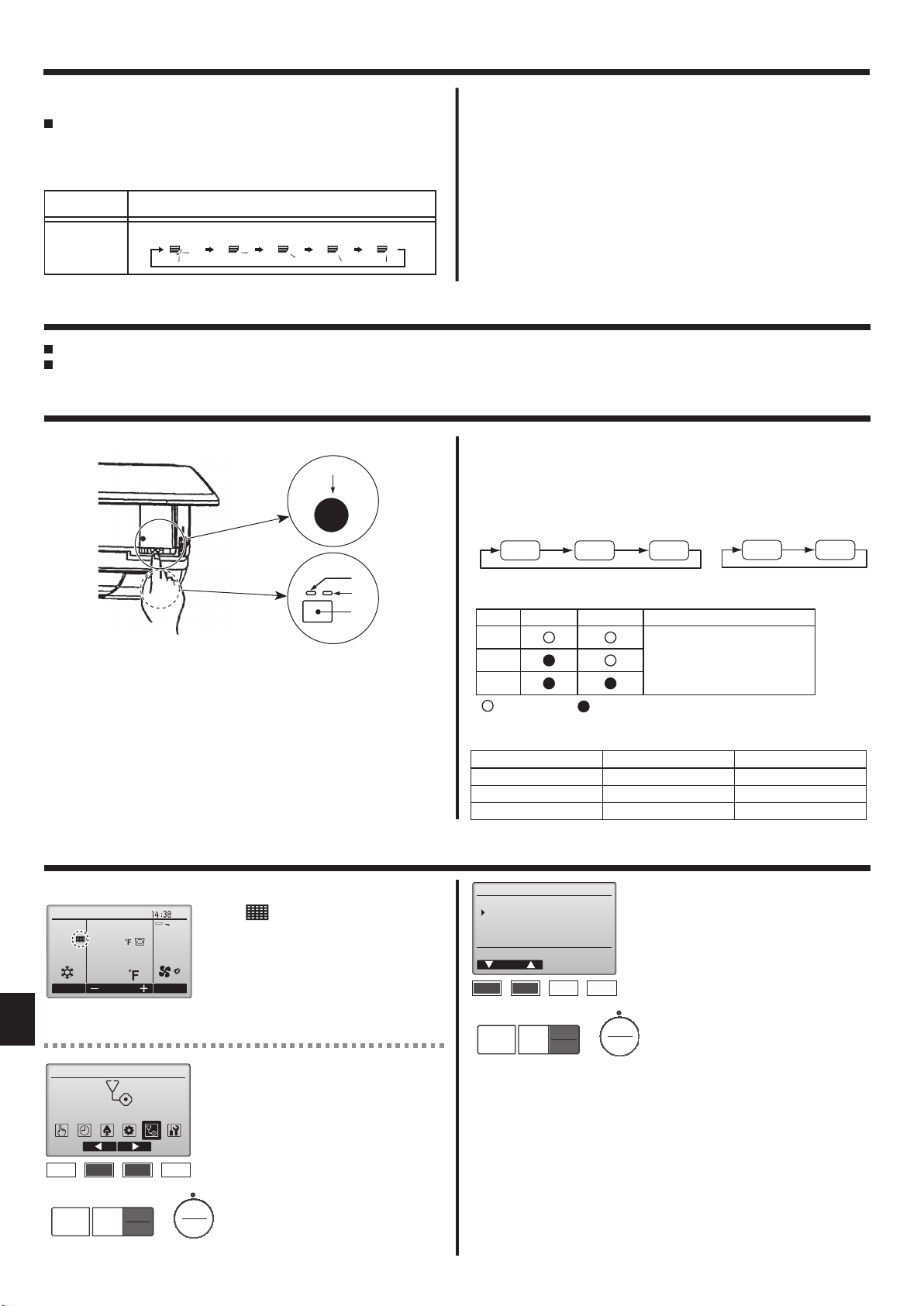

5. Emergency Operation for IR wireless remote controller.........9
6. Care and Cleaning..................................................................9
7. Trouble Shooting ..................................................................11
8. Specications .......................................................................12
Caution:
• Do not use any sharp object to push the buttons, as this may damage
the remote controller.
• Never block or cover the indoor or outdoor unit’s intakes or outlets.
Disposing of the unit
When you need to dispose of the unit, consult your dealer.
TPKA0A.1HA70✱
Wall Mounted
Indoor Unit
TPKA0A.1HA70✱
Fan speed 3 speeds + Auto
Vane Auto with swing
Louver Manual
Filter Normal
Filter cleaning indication 100 hr
Filter Air intake
Louver Air outlet Vane
en
BH79D839H01_EN.indd 1 2019/07/26 15:27:39
002

2
 Remote controller (Optional parts)
2. Parts Names
Wired remote controller IR wireless remote controller
MENU ON
OFF
RETURN SELECT
HOLD
ON/OFF
TEMP.
COOL
DRY
AUTO
FAN
HEAT
F
Controller interface
MENU ON
OFF
RETURN SELECT
HOLD
The functions of the function buttons change depending on the
screen.
Refer to the button function guide that appears at the bottom of the
LCD for the functions they serve on a given screen.
When the system is centrally controlled, the button function guide
that corresponds to the locked button will not appear.
▌1[ON/OFF] button
Press to turn ON/OFF the indoor unit.
▌2[SELECT/HOLD] button
Press to save the setting.
When the Main menu is displayed, pressing this button will enable/dis-
able the HOLD function.
▌3[RETURN] button
Press to return to the previous screen.
▌4[MENU] button
Press to bring up the Main menu.
▌5Backlit LCD
Operation settings will appear.
When the backlight is off, pressing any button turns the backlight on
and it will stay lit for a certain period of time depending on the screen.
When the backlight is off, pressing any button turns the backlight on
and does not perform its function. (except for the [ON/OFF] button)
▌6ON/OFF lamp
This lamp lights up in green while the unit is in operation. It blinks while
the remote controller is starting up or when there is an error.
▌7Function button [F1]
Main display: Press to change the operation mode.
Menu screen: The button function varies with the screen.
▌8Function button [F2]
Main display: Press to decrease temperature.
Main menu: Press to move the cursor left.
Menu screen: The button function varies with the screen.
▌9Function button [F3]
Main display: Press to increase temperature.
Main menu: Press to move the cursor right.
Menu screen: The button function varies with the screen.
▌0 Function button [F4]
Main display: Press to change the fan speed.
Menu screen: The button function varies with the screen.
Main display
Menu screen
Function guide
Main menu
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main Main menu
Energy saving
Main display:
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
RETURN
7890
7890
7890
4 32 1
5
6
7890
Function buttons
■Wired Remote Controller
en
BH79D839H01_EN.indd 2 2019/07/26 15:27:40
003

3
2. Parts Names
Fri
Cool
Mode Temp. Fan
Set temp. Auto
83
Fri
Mode Temp. Fan
Room
Cool Set temp. Auto
83
83

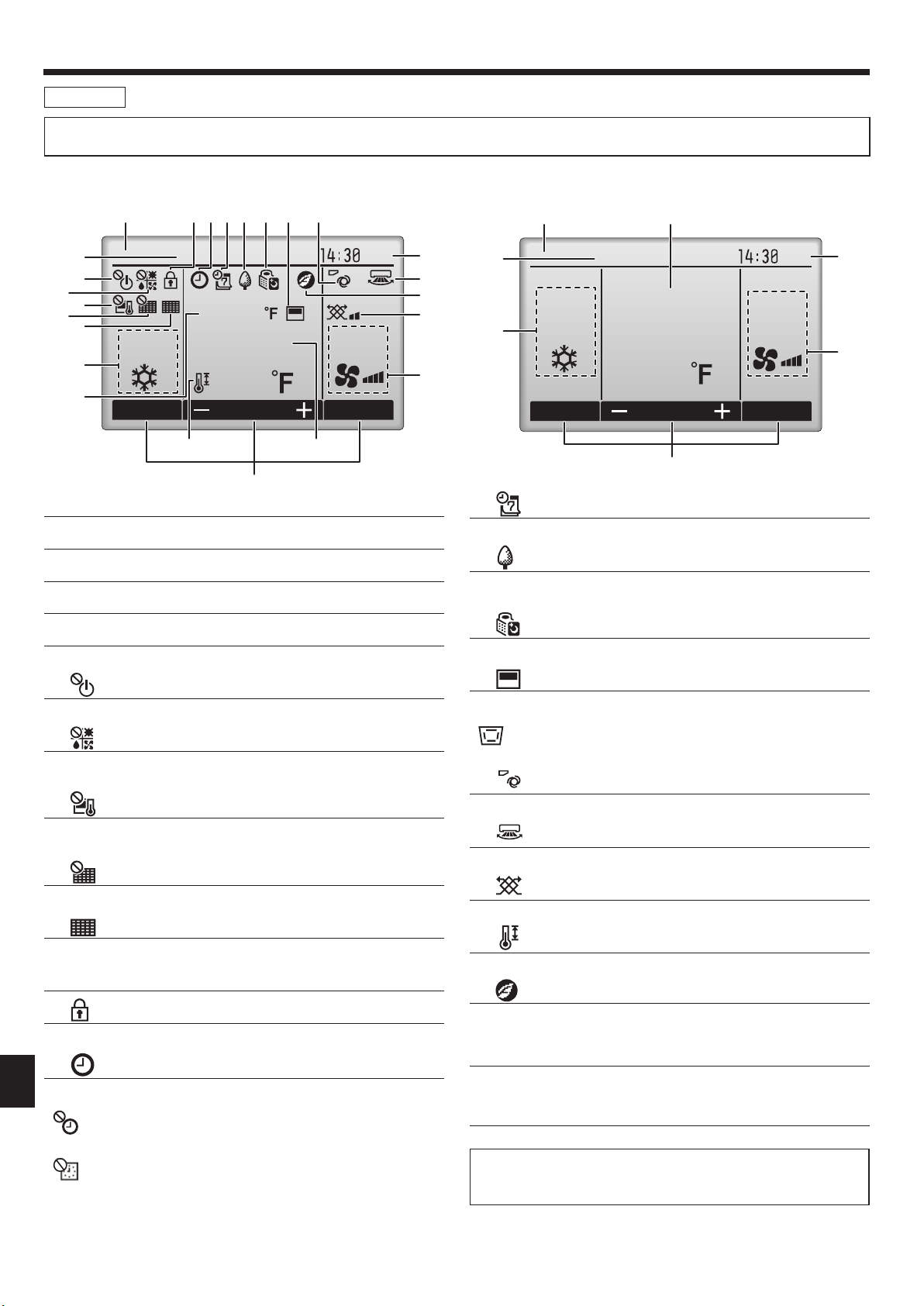

The main display can be displayed in two different modes: “Full” and “Basic”. The factory setting is “Full”. To switch to the “Basic” mode, change the
setting on the Main display setting. (Refer to operation manual included with remote controller.)
▌1Operation mode
▌2Preset temperature
▌3Clock
▌4Fan speed
▌5Button function guide
Functions of the corresponding buttons appear here.
▌6
Appears when the ON/OFF operation is centrally controlled.
▌7
Appears when the operation mode is centrally controlled.
▌8
Appears when the preset temperature is centrally controlled.
▌9
Appears when the lter reset function is centrally controlled.
▌0
Indicates when lter needs maintenance.
▌1Room temperature
▌2
Appears when the buttons are locked.
▌3
Appears when the On/Off timer or Auto-off timer function is enabled.
appears when the timer is disabled by the centralized control
system.
appears when the HOLD function is enabled.
<Full mode>
* All icons are displayed for explanation.
<Basic mode>
4
3
2!
1
5
6
#
7
8
90
1
3
9
4
)
@
$2
1
#
5
▌4
Appears when the Weekly timer is enabled.
▌5
Appears while the units are operated in the energy-save mode. (Will
not appear on some models of indoor units)
▌6
Appears while the outdoor units are operated in the silent mode.
▌7
Appears when the built-in thermistor on the remote controller is activat-
ed to monitor the room temperature (1).
appears when the thermistor on the indoor unit is activated to
monitor the room temperature.
▌8
Indicates the vane setting.
▌9
Indicates the louver setting.
▌)
Indicates the ventilation setting.
▌!
Appears when the preset temperature range is restricted.
▌@
Appears when an energy-saving operation is performed using a “3D i-See
sensor” function.
▌#Centrally controlled
Appears for a certain period of time when a centrally-controlled item is
operated.
▌$Preliminary error display
An error code appears during the preliminary error.
Display
Most settings (except ON/OFF, mode, fan speed, temperature)
can be made from the Main menu. (Refer to Page 7.)
32$45 6 7 8
en
BH79D839H01_EN.indd 3 2019/07/26 15:27:45
004

4

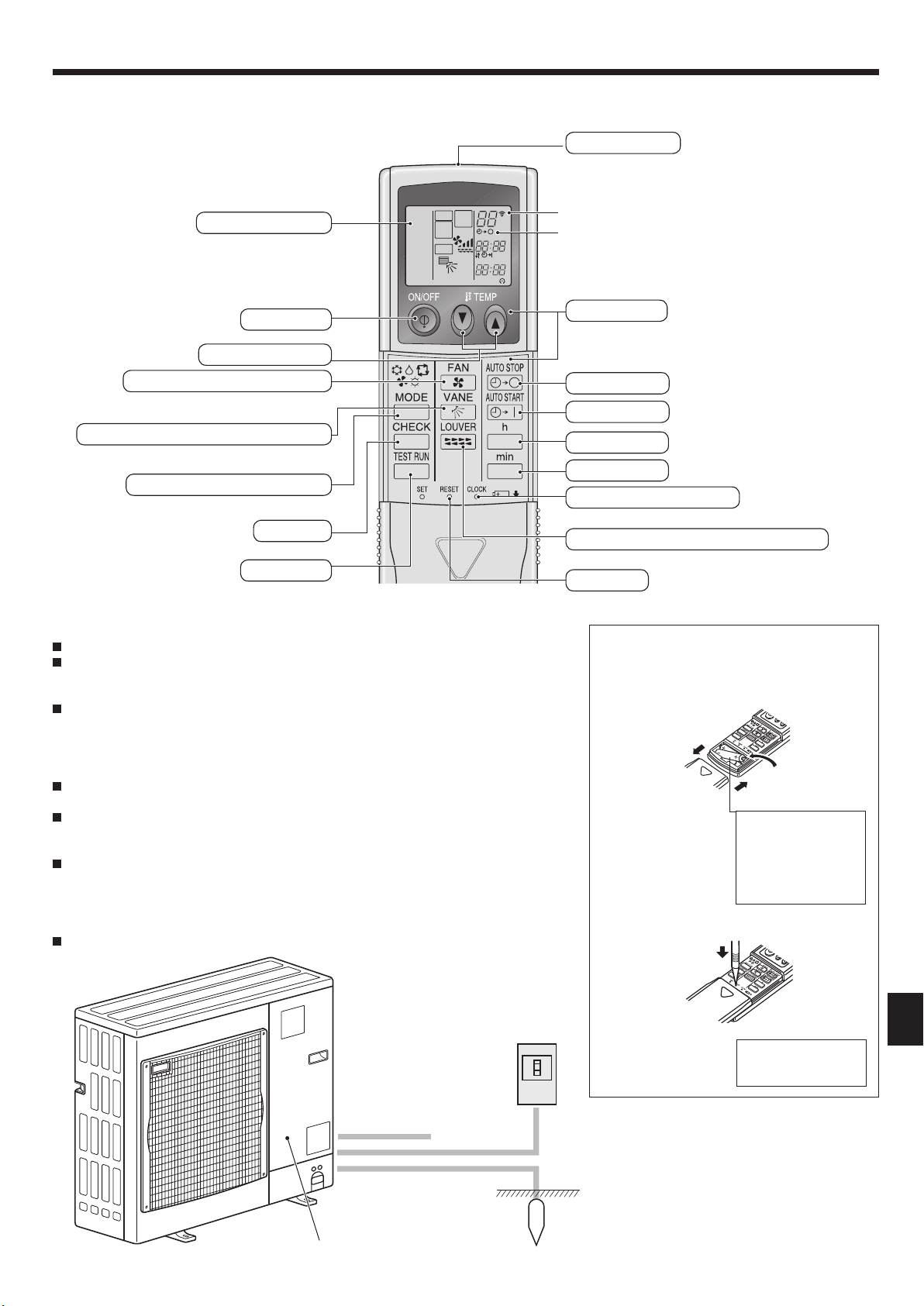

■IR Wireless remote controller
Note: (Only for IR wireless remote controller)
When using the IR wireless remote controller, point it towards the receiver on the indoor unit.
If the IR wireless remote controller is operated within approximately 2 minutes after power is
supplied to the indoor unit, the indoor unit may beep twice as the unit is performing the initial
automatic check.
The indoor unit beeps to conrm that the signal transmitted from the IR wireless remote con-
troller has been received. Signals can be received up to approximately 7 meters, 275-19/32
inch in a direct line from the indoor unit in an area 45° to the left and right of the unit. However,
illumination such as uorescent lights and strong light can affect the ability of the indoor unit
to receive signals.
If the operation lamp near the receiver on the indoor unit is blinking, the unit needs to be
inspected. Consult your dealer for service.
Handle the IR wireless remote controller carefully! Do not drop the IR wireless remote controller
or subject it to strong shocks. In addition, do not get the IR wireless remote controller wet or
leave it in a location with high humidity.
To avoid misplacing the IR wireless remote controller, install the holder included with the IR
wireless remote controller on a wall and be sure to always place the IR wireless remote con-
troller in the holder after use.
Battery installation/replacement
1. Remove the top cover, insert 2 AAA batteries,
and then install the top cover.
1
2
3
2. Press the Reset button.
2 AAA batteries
Insert the negative (–)
end of each battery
first. Install the bat-
teries in the correct
directions (+, –)!
Press the Reset button
with an object that has
a narrow end.
Top cover
MODEL
SELECT
NOT AVAILABLE
SWING
CHECK
FA N
TEST
RUN
°F
°C
AMPMSTOP
START
AMPM
COOL
DRY
AUTO
FA N
HEAT
* For explanation purposes, all of the items
that appear in the display are shown.
* All items are displayed when the Reset
button is pressed.
Transmission indicator
Timer indicator
Remote controller display
ON/OFF button
Set Temperature buttons
Fan Speed button (Changes fan speed)
Airow button (Changes up/down airow direction)
Mode button (Changes operation mode)
Check button
Test Run button
Transmission area
Operation areas
Timer Off button
Timer On button
Hour button
Minute button
Set Time button (Sets the time)
Louver button (Changes left/right airow direction)
Reset button
Outdoor unit
Power
Earth
Service Panel
Indoor-Outdoor
Connection wire
Ref. Pipes
2. Parts Names
en
BH79D839H01_EN.indd 4 2019/07/26 15:27:45
005

5
3. Operation
■About the operation method, refer to the operation manual that comes with each remote controller.
3.1. Turning ON/OFF
<For wired remote controller>
[ON] [OFF]
Note:
Even if you press the ON/OFF button immediately after shutting down the operation is progress, the air conditioner will not start for about 3 minutes.
This is to prevent the internal components from being damaged.
<To Stop Operation>
Press the ON/OFF button 1again.
• The ON lamp 1and the display area go dark.
Note:
Even if you press the ON/OFF button immediately after shutting down the op-
eration is progress, the air conditioner will not start for about three minutes.
This is to prevent the internal components from being damaged.
˚F
COOL
1
26
7
5
3
2
5
67
3
<To Start Operation>
Press the ON/OFF button 1.
• The ON lamp 1and the display area come on.
<For IR wireless remote controller>
Press the [ON/OFF] button.
The ON/OFF lamp will light up in green,
and the operation will start.
When “LED lighting” is set to “No”, the
ON/OFF lamp will not light up.
Press the [ON/OFF] button again.
The ON/OFF lamp will come off, and
the operation will stop.
ON
OFF
ON
OFF
■Operation status memory
Remote controller setting
Operation mode Operation mode before the power was turned off
Preset temperature Preset temperature before the power was turned off
Fan speed Fan speed before the power was turned off
■Settable preset temperature range
Operation mode Preset temperature range
COOL/DRYING 67 - 87 (95) °F/19 - 30 (35) °C
HEAT 63 (40) - 83 °F/17 (4.5) - 28 °C
AUTO (single set point) 67 - 83 °F/19 - 28 °C
FAN, VENTI. Unsettable
The settable temperature range varies with the model of outdoor units and remote controller.
3.2. Operation mode select
Each pressing of the [F1] button cycles
through the following operation modes.
Select the desired operation mode.
• Operation modes that are not available
to the connected outdoor unit models will
not appear on the display.
What the blinking mode icon means
The mode icon will blink when other indoor units in the same refrigerant
system (connected to the same outdoor unit) are already operated in a
different mode. In this case, the rest of the unit in the same group can
only be operated in the same mode.
Cool
Auto
Drying
Heat
Fan
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
83
83
MENU
ON
OFF
RETURN SELECT
HOLD
Note:
Heat and Automatic mode can not be available for cooling only units.
Ventilation mode: only indicated on the following condition. Wired remote
controller is used and LOSSNAY is connected.
Automatic mode
en
BH79D839H01_EN.indd 5 2019/07/26 15:27:45
006

6
3. Operation

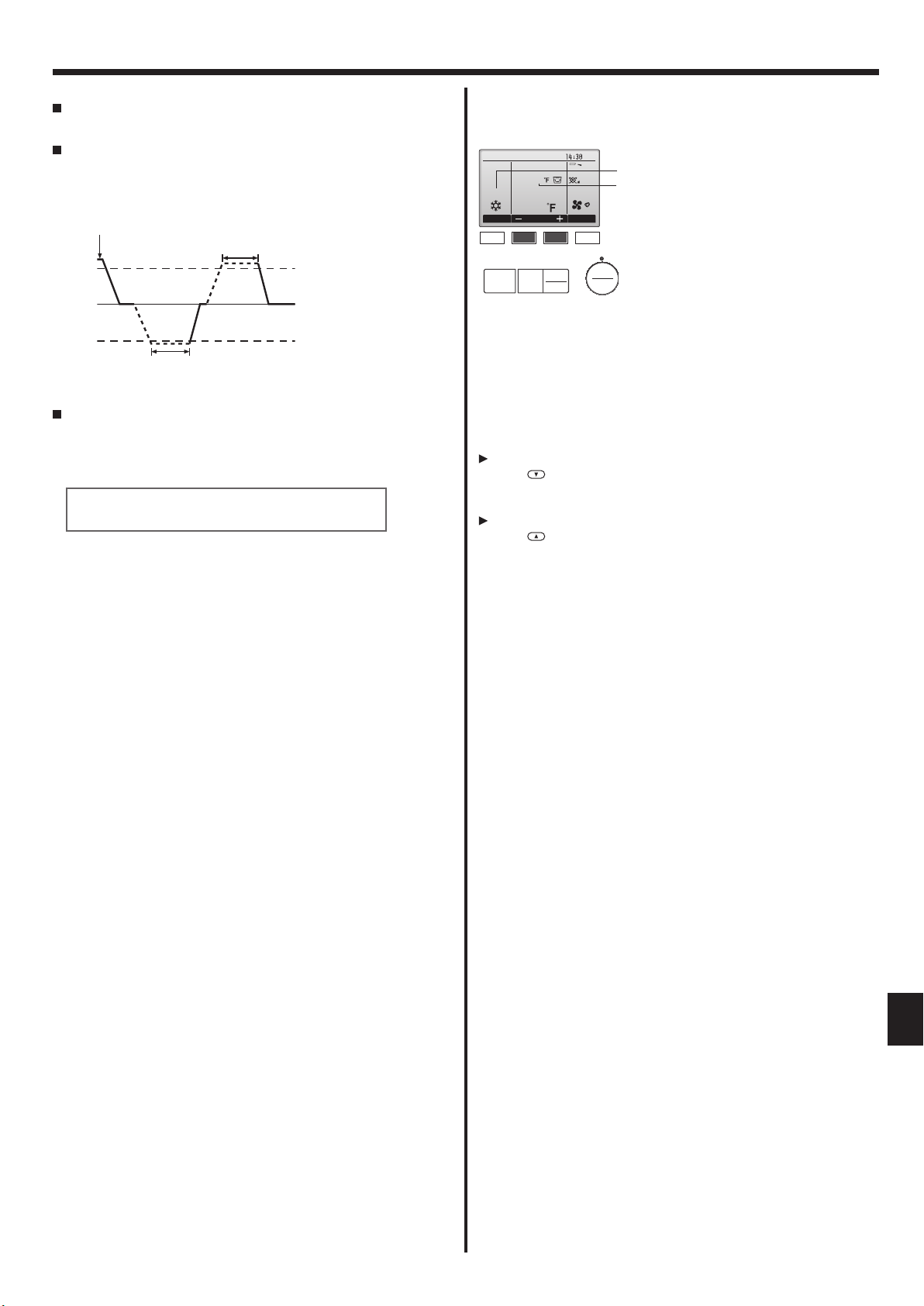

3.3. Temperature setting
<For wired remote controller>
<Cool, Drying, Heat, and Auto>
Automatic operation (Single set point)
According to a set temperature, cooling operation starts if the room tem-
perature is too hot and heating operation starts if the room temperature
is too cold.
During automatic operation, if the room temperature changes and
remains 2 °C, 4 °F or more above the set temperature for 15 minutes,
the air conditioner switches to cool mode. In the same way, if the room
temperature remains 2 °C, 4 °F or more below the set temperature for
15 minutes, the air conditioner switches to heat mode.
Cool mode 15 minutes (switches from
heating to cooling)
Set temperature +2 °C, +4 °F
Set temperature
Set temperature -2 °C, -4 °F
15 minutes (switches from
cooling to heating)
Because the room temperature is automatically adjusted in order to
maintain a xed effective temperature, cooling operation is performed a
few degrees warmer and heating operation is performed a few degrees
cooler than the set room temperature once the temperature is reached
(automatic energy-saving operation).
Press the [F2] button to decrease the preset temperature, and press the
[F3] button to increase.
•Refer to the table on page 5 for the settable temperature range for dif-
ferent operation modes.
•Preset temperature range cannot be set for Fan/Ventilation operation.
• Preset temperature will be displayed either in Centigrade in 0.5- or
1-degree increments, or in Fahrenheit, depending on the indoor unit
model and the display mode setting on the remote controller.
<For IR wireless remote controller>
To decrease the room temperature:
Press button 3to set the desired temperature.
The selected temperature is displayed 3.
To increase the room temperature:
Press button 3to set the desired temperature.
The selected temperature is displayed 3.
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
83
83
MENU
ON
OFF
RETURN SELECT
HOLD
Operation mode
Room temperature (Refer to the page 3)
Navigating through the screens
• To return to the Main screen ...... [RETURN] button
en
BH79D839H01_EN.indd 6 2019/07/26 15:27:46
007

7
3. Operation
3.4. Fan speed setting
<For wired remote controller>
MENU
ON
OFF
RETURN SELECT
HOLD
83
83
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
Each pressing of the [F4] button cycles through the following fan speeds.
Auto
• The available fan speeds depend on the models of connected indoor
units.
<For IR wireless remote controller>
Press the Fan Speed button as many times as necessary while the
system is running.
• Each press changes the force. The currently selected speed is shown
at display.
Note:
The number of available fan speeds depends on the type of unit
connected.
In the following cases, the actual fan speed generated by the unit
will differ from the speed shown the remote controller display.
1. When the unit is in STANDBY or DEFROST states.
2. When the temperature of the heat exchanger is low in the heating
mode. (e.g. immediately after heating operation starts)
3. In HEAT mode, when room temperature is higher than the tem-
perature setting.
4. When the unit is in DRYING mode.
Automatic fan speed setting (For IR wireless remote controller)
It is necessary to set for wireless remote controller only when automatic
fan speed is not set at default setting.
It is not necessary to set for wired remote controller with automatic fan
speed at default setting.
1Press the SET button with something sharp at the end.
Operate when display of remote controller is off.
MODEL SELECT
blinks and Model No. is lighted A.
2Press the AUTO STOP button.
blinks and setting No. is lighted B.
(Setting No.01: without automatic fan speed)
3Press the temp. buttons to set the setting No.02.
(Setting No.02:with automatic fan speed)
If you mistook the operation, press the ON/OFF button and operate
again from procedure 2.
4Press the SET button with something sharp at the end.
MODEL SELECT
and Model No. are lighted for 3 seconds, then turned off.
ON/OFF TEMP
RESETSET CLOCK
MODEL SELECT
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
B
A
3
2
14
5
3.5. Air ow up/down direction setting
<For wired remote controller>
3.5.1 Navigating through the Main menu
<Accessing the Main menu>
Main Main menu
Operation
MENU
ON
OFF
RETURN SELECT
HOLD
<Item selection>
MENU
ON
OFF
RETURN SELECT
HOLD
Main Main menu
Initial setting
Press the [MENU] button on the
Main display.
The Main menu will appear.
Press [F2] to move the cursor left.
Press [F3] to move the cursor right.
Cursor
<Exiting the Main menu screen>
MENU
ON
OFF
RETURN SELECT
HOLD
83
83
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
<Display of unsupported functions>
Title
Not available
Unsupported function
Return: RETURN
MENU
ON
OFF
RETURN SELECT
HOLD
The message at left will appear if the
user selects a function not support-
ed by the corresponding indoor unit
model.
If no buttons are touched for 10
minutes, the screen will automati-
cally return to the Main display. Any
settings that have not been saved
will be lost.
Press the [RETURN] button to exit
the Main menu and return to the
Main display.
en
BH79D839H01_EN.indd 7 2019/07/26 15:27:47
008

8
3. Operation
Notes:
● During swing operation, the directional indication on the screen
does not change in sync with the directional vanes on the unit.
● Available directions depend on the type of unit connected.
● In the following cases, the actual air direction will differ from the
direction indicated on the remote controller display.
1. While the display is in “STAND BY” or “DEFROST” states.
2. Immediately after starting heat mode (while the system is wait-
ing for the mode change to take effect).
3. In heat mode, when room temperature is higher than the temper-
ature setting.
<[Manual] To Change the Airow’s Left/Right Direction>
* The louver button 7cannot be used.
• Stop the unit operation, hold the lever of the louver,
and adjust to the desired direction.
* Do not set to the inside direction when the unit is in
the cooling or drying mode because there is a risk
of condensation and water dripping.
Caution:
When you operate the process above, be sure to take measures to
avoid falls.
3.5.2 Vane·Vent. (Lossnay)
<Accessing the menu>
MENU
ON
OFF
RETURN SELECT
HOLD
Main Main menu
Operation
MENU
ON
OFF
RETURN SELECT
HOLD
Main menu: RETURN
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
<Vane setting>
MENU
ON
OFF
RETURN SELECT
HOLD
Fri
Off
Vent.Vane
Swing
(Sample screen on CITY MULTI)
Select “Operation” from the Main
menu (refer to page 7), and press
the [SELECT/HOLD] button.
Select “Vane·Louver·Vent.
(Lossnay)” from the Operation
menu, and press the [SELECT/
HOLD] button.
Press the [F1] or [F2] button to go
through the vane setting options:
“Auto”, “Step 1”, “Step 2”, “Step 3”,
“Step 4”, “Step 5” and “Swing”.
Select the desired setting.
Auto
Swing
Select “Swing” to move the vanes
up and down automatically.
When set to “Step 1” through “Step
5”, the vane will be xed at the se-
lected angle.
• under the vane setting icon
This icon will appear when the vane
is set to “Step 5” and the fan oper-
ates at low speed during cooling or
drying operation (depends on the
model).
The icon will go off in an hour, and
the vane setting will automatically
change.
Auto
Step 3
Swing
Step 1
Step 4
Step 2
Step 5
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
<Ventilation setting>
Fri
Low
Vent.
MENU
ON
OFF
RETURN SELECT
HOLD
<Returning to the Operation menu>
MENU
ON
OFF
RETURN SELECT
HOLD
Main menu: RETURN
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
Press the [F3] button to go through
the ventilation setting options in the
order of “Off”, “Low”, and “High”.
* Settable only when Lossnay unit
is connected.
Off Low High
Off Low High
• The fan on some models of indoor
units may be interlocked with cer-
tain models of ventilation units.
Press the [RETURN] button to go
back to the Operation menu.
en
BH79D839H01_EN.indd 8 2019/07/26 15:27:47
009

9
Remote controller Display
IR Wireless
remote controller
2341
<To Change the Airow’s Up/Down Direction>
<For IR wireless remote controller>
With the unit running, press the Airow Up/Down button 6as necessary.
• Each press changes the direction. The current direction is shown at
6.
• The change sequence, and the available settings, are as follows.
3. Operation
3.6. Ventilation
►For LOSSNAY combination
The following 2 patterns of operation is available.
• Run the ventilator together with the indoor unit.
• Run t he ventilator independently.
Note:
 With some model congurations, the fan on the indoor unit may come on
even when you set the ventilator to run independently.
Note: (for IR wireless remote controller and RF thermostat)
Running the ventilator independently is not available.
No indication on the remote controller.
Timer functions are different by each remote controller.
For details on how to operate the remote controller, refer to the appropriate operation manual included with each remote controller.
4. Timer
5. Emergency Operation for IR wireless remote controller
Note:
• Details of emergency mode are as shown below.
Operation mode COOL HEAT
Set temperature 24°C, 75°F 24°C, 75°F
Fan speed High High
Airow direction Step 1 Step 5
B
A
D
C
B
A
D
C
E.O.
SW
(For TPKA0A.1HA70✱)
Fig. 5-1
When the IR wireless remote controller cannot be used
When the batteries of the IR wireless remote controller run out or the IR
wireless remote controller malfunctions, the emergency operation can be
done using the emergency buttons.
[Fig. 5-1] ADEFROST/STAND BY lamp (Orange)
BOperation lamp (Green)
CEmergency operation switch (cooling/heating)
DReceiver
• Each press of the emergency operation switch will toggle the operation
mode.
• Check “COOL/HEAT” with the operation monitor display. (The orange
lamp Afollows this monitor display for 5 seconds after pressing the
emergency operation switch.)

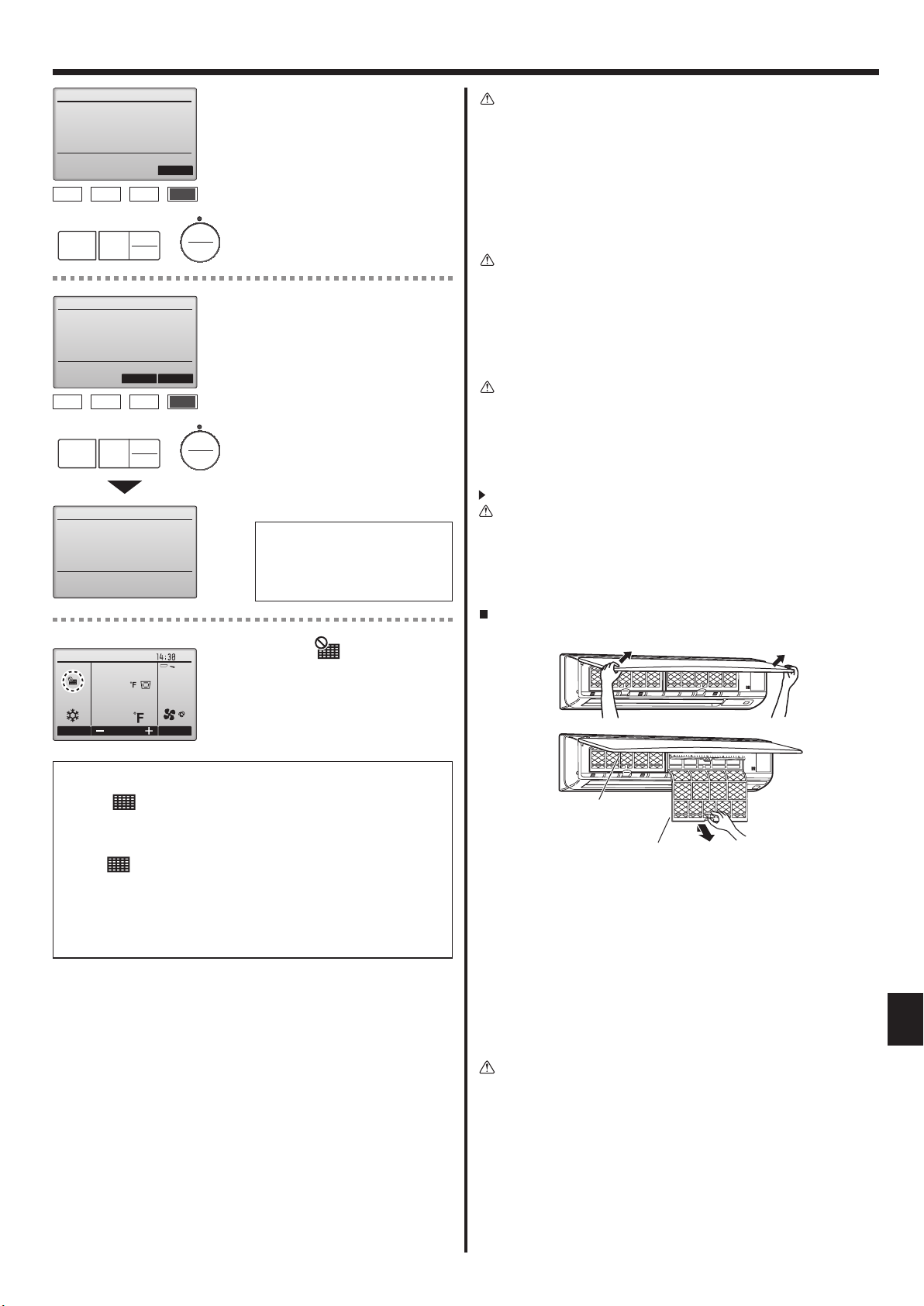

6. Care and Cleaning
■Filter information
will appear on the Main display
in the Full mode when it is time to
clean the lters.
Wash, clean, or replace the lters
when this sign appears.
Refer to the indoor unit Instruc-
tions Manual for details.
Select “Maintenance” from the Main
menu, and press the [SELECT/
HOLD] button.
Select “Filter information” from the
Maintenance menu, and press the
[SELECT/HOLD] button.
Swing
83
83
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
Main Main menu
Maintenance
MENU
ON
OFF
RETURN SELECT
HOLD
Main menu: RETURN
Cursor
Maintenance menu
Error information
Filter information
Cleaning
MENU
ON
OFF
RETURN SELECT
HOLD
[Heat pump type] [Cooling only type]
Cooling Heating Cooling StopStop
Operation Monitor Display
GREEN ORANGE
STOP The orange lamp follows the
switch operation as indicated
at the left for 5 seconds, and
then it will return to the normal
display.
COOL
HEAT
: Turning off : Lighting
en
BH79D839H01_EN.indd 9 2019/07/26 15:27:48
010
