Foreword
Mitsubishi Electric, MA00856B
DT1151 Installation Manual
Foreword
The DT1151 industrial monitor is a TFT-LCD touch screen monitor, designed
to be mounted in a cabinet and connected to an industrial PC.
The monitor is optimized for a maximum resolution of 1024 x 768 pixels when
the full display area of the module is used.
This manual explains how to install the monitor.
© Mitsubishi Electric, MA00856B, 2009-01
The information in this document is subject to change without notice and is provided as available at the time
of printing. The manufacturer reserves the right to change any information without updating this publica-
tion.
The manufacturer assumes no responsibility for any errors that may appear in this document.
Read the entire installation manual prior to installing and using this equipment.
Only qualified personnel may install, operate or repair this equipment. The manufacturer is not responsible
for modified, altered or renovated equipment.
Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use
the equipment properly in their specific applications.
Persons responsible for the application and the equipment must themselves ensure that each application is in
compliance with all relevant requirements, standards and legislation in respect to configuration and safety.
Only parts and accessories manufactured according to specifications set by the manufacturer may be used.
THE MANUFACTURER SHALL NOT BE LIABLE TO ANYONE FOR ANY DIRECT, INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE INSTALLA-
TION, USE OR REPAIR OF THIS EQUIPMENT, WHETHER ARISING IN TORT, CONTRACT, OR
OTHERWISE. BUYER'S SOLE REMEDY SHALL BE THE REPAIR, REPLACEMENT, OR REFUND
OF PURCHASE PRICE, AND THE CHOICE OF THE APPLICABLE REMEDY SHALL BE AT THE
SOLE DISCRETION OF THE MANUFACTURER.

Contents
Mitsubishi Electric, MA00856B
Contents
1 Safety Precautions................................................................................... 5
1.1 General ........................................................................................5
1.2 During Use ..................................................................................6
1.3 Service and Maintenance..............................................................6
1.4 Dismantling and Scrapping..........................................................6
2 Installation.............................................................................................. 7
2.1 Space Requirements .....................................................................7
2.2 Installation Process.......................................................................7
3 Technical Data...................................................................................... 11
3.1 The On Screen Display Menu....................................................12
3.2 Operation Messages ...................................................................15
3.3 Video Input Timing...................................................................15
3.4 Audio Support ...........................................................................15
3.5 Calibrate the Touch Screen ........................................................16
4 Chemical Resistance ............................................................................. 17
4.1 Metal Casing..............................................................................17
4.2 Touch Screen and Overlay .........................................................18
5 Drawings .............................................................................................. 21
5.1 DT1151 Outline .......................................................................21

Contents
Mitsubishi Electric, MA00856B

Safety Precautions
Mitsubishi Electric, MA00856B 5
1 Safety Precautions
Both the installer, owner, and operator of the monitor must read and understand
this installation manual.
1.1 General
– Only qualified personnel may install or operate the monitor.
– The monitor must be installed according to the installation instructions.
– The monitor is designed for stationary installation on a plane surface, where
the following conditions are fulfilled:
no high explosive risks
no strong magnetic fields
no direct sunlight
no large, sudden temperature changes
– Never allow fluids, metal filings or wiring debris to enter any openings in the
monitor. This may cause fire or electrical shock.
– The monitor fulfills the requirements of EMC directive 2004/108/EC.
– Storing the monitor where the temperature is lower or higher than recom-
mended in this manual can cause the LCD display liquid to congeal or be-
come isotopic.
– The LCD display liquid contains a powerful irritant. In case of skin contact,
wash immediately with plenty of water. In case of eye contact, hold the eye
open, flush with plenty of water and get medical attention.
– The supplier is not responsible for modified, altered or reconstructed equip-
ment.
– Use only parts and accessories manufactured according to specifications of the
supplier.
– Peripheral equipment must be appropriate for the application and location.
– The figures in this manual serves an illustrative purpose. Because of the many
variables associated with any particular installation, the supplier cannot as-
sume responsibility for actual use based on the figures.
– The supplier neither guarantees that the monitor is suitable for your particu-
lar application, nor assumes responsibility for your product design, installa-
tion or operation.

Safety Precautions
6Mitsubishi Electric, MA00856B
1.2 During Use
– Keep the monitor clean.
– Emergency stop and other critical safety functions may never be controlled
from the monitor.
– Do not use force or sharp objects on the display surface.
1.3 Service and Maintenance
– Only qualified personnel should carry out repairs.
– The agreed warranty applies.
– Before carrying out any cleaning or maintenance operations, disconnect the
equipment from the electrical supply.
– Clean the display and surrounding front cover with a soft cloth and mild de-
tergent.
1.4 Dismantling and Scrapping
– The monitor or parts thereof shall be recycled according to local regulations.
– The following components contain substances that might be hazardous to
health and the environment: electrolytic capacitor and display.

Installation
Mitsubishi Electric, MA00856B 7
2Installation

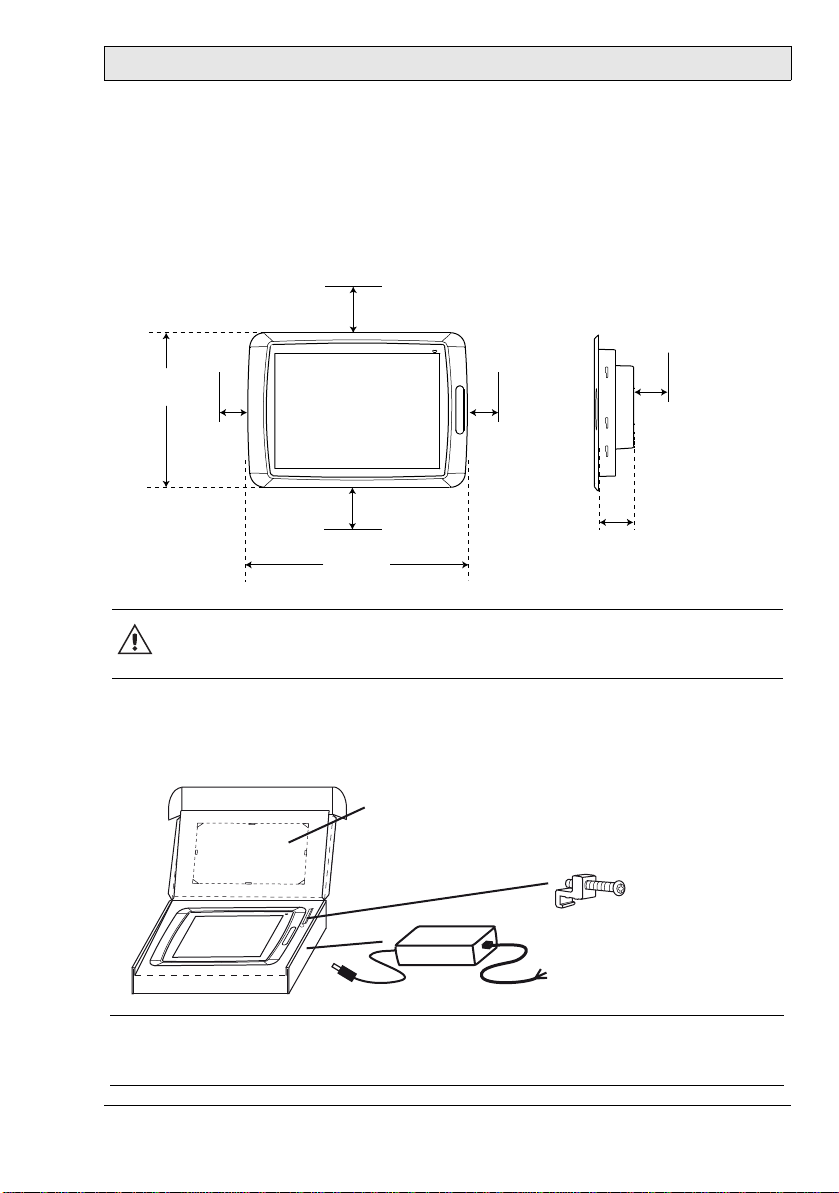

2.1 Space Requirements
Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch)
Space requirements when installing DT1151:
2.2 Installation Process
1. Unpack and check the delivery. If anything is damaged, notify the supplier.
Caution:
The openings on the enclosure are for air convection.
Do not cover these openings.
Note:
Place the monitor on a stable surface during installation. Dropping it or letting it
fall may cause damage.
25 mm
45 mm
50 mm
304 mm
398 mm
50 mm
(2.0 inch)
50 mm
(2.0 inch)
(1.77 inch)
(1.0 inch)
25 mm
(1.0 inch)
(11.97 inch)
(15.67 inch)
(1.97 inch)
o(+
GXe\cZlkflk*,,%,o)./%,dd
(+%'o('%0-`eZ_
o(
8:&;:

Installation
8Mitsubishi Electric, MA00856B
2. Place the panel cut out where the monitor is to be situated, draw along the
outer sides of the holes and cut according to the markings.
3. Secure the monitor in position, using all the fastening holes and the pro-
vided brackets and screws:
x14
0.5 - 1.0 Nm

Installation
Mitsubishi Electric, MA00856B 9
4. Connect the cables in the specified order.
5. Carefully remove the laminated film over the monitor display, to avoid
static electricity that could damage the monitor.
Caution
Use only shielded signal cables.
Separate high voltage cables from signal and supply cables.
Caution:
The monitor must be brought to ambient temperature before it is
started up. If condensation forms, ensure that the monitor is dry be-
fore connecting it to the power outlet.
A
B

Installation
10 Mitsubishi Electric, MA00856B

Te c h n ic a l D a t a
Mitsubishi Electric, MA00856B 11
3 Technical Data
Parameter DT1151
Front panel, W x H x D 398 x 304 x 6 mm
Mounting depth 50 mm
Front panel seal IP 66
Rear panel seal IP 20
Front panel material Touch screen: Polyester on glass *, 1 million finger touch
operations.
Overlay: Autotex F157 or F207.
Powder-coated aluminum.
Reverse side material Powder-coated alu-zink.
Touch interface 3M: SC401U, via USB.
Drivers are available at www.3m.com or at www.mitsub-
ishi-automation.com or www.meau.com
Screen setup Via rear membrane keyboard.
Video interface VGA and DVI.
Weight 4 kg
Rated voltage 12 V DC ± 5%
Power consumption at
rated voltage 2.25 A (27 W) max.
Display TFT-LCD XGA. 1024 x 768 pixels, 16,7 million colors.
CCFL backlight lifetime at the ambient temperature of +25
°C: >35,000 h.
Active area of display,
W x H 304.1 x 228.1 mm
External power supply Input: 100 - 240 V AC, 50/60 Hz, 1.1 A.
Output: 12 V DC, 4 A, 5.5/2.5 mm female DC connector.
Ambient temperature 0 °to +50 °C
Storage temperature -20 °to +70 °C
Relative humidity 5 - 85% non-condensed
CE The monitor conforms with the essential protection
requirements of the directive 2004/108/EC.
Noise tested according to EN61000-6-3 emission and
EN61000-6-2 immunity.
DNV Yes
* See section 4 Chemical Resistance

Technical Data
12 Mitsubishi Electric, MA00856B
3.1 The On Screen Display Menu
The On Screen Display (OSD) menu makes it easy to adjust monitor settings.
The buttons for accessing the OSD menu are located on the rear side of the
monitor. Some of the OSD buttons have multiple functions (a hot key option),
listed below.
Usually, the display is configured by the automatic display configuration when
pressing the Down Arrow button.
If advanced configuration is needed, the Menu button displays other options.
The -and +buttons are used for navigation, and the Menu button is used to
select.
The OSD buttons and their function are described below:
Button Function Alternative
function
Menu Opens the OSD menu and works as Select and
Deselect button. -
Down Arrow Return or Exit in the OSD menu. Automatic display
configuration
- Decrease/left key Brightness decrease
+ Increase/right key Brightness increase
VGA/DVI Source select (VGA or DVI) -
Power Turns on/off the monitor. -

Te c h n ic a l D a t a
Mitsubishi Electric, MA00856B 13
3.1.1 On Screen Menu Descriptions
This section describes the accessible sub menus and their functions.
Main Menu Sub Menu Function
Input Source A RGB Change input signal source to Analog RGB
DVI Change input signal source to DVI
Exit Go back to main menu
Main Menu Sub Menu Function
Picture Brightness Adjust brightness of the screen
Contrast Adjust distinction (ratio of luminance between
black and white)
Blacklevel Adjust black level
Sharpness Adjust sharpness of pictures
Exit Go back to main menu
Main Menu Sub Menu Function
Color Temperature User: Red, green and blue colors can be adjusted
Warm: Red-tinged screen
Normal: Green-tinged screen
Cool: Blue-tinged screen
Auto Color
(A-RGB only) Color automatically set from strange input signal
Exit Go back to main menu

Technical Data
14 Mitsubishi Electric, MA00856B
Main Menu Sub Menu Function
Image Control
Avaliable mode:
Analog RGB
Auto Auto configuration of geometry.
Width Adjust horizontal size of the screen by increasing
or decreasing the number of picture elements
Phase Adjust phase of screen, used when noise or over-
lapped lines are shown on the screen
H Position Move screen horizontally
V Position Move screen vertically
Exit Go back to main menu
Main Menu Sub Menu Function
Tool OSD Control Time Out: Set the duration time of the OSD
menu (OSD turn-off time)
H Position: Adjust horizontal position of OSD
Menu by value
V Position: Adjust vertical position of OSD Menu
by value
Reset Reset to initial setup (factory settings)
Reset Color Initial color
Reset Position Initial position
Mute
(Audio Option) Set sound on or off
Volume
(Audio Option) Adjust the volume of sound
Exit Go back to main menu

Te c h n ic a l D a t a
Mitsubishi Electric, MA00856B 15
3.2 Operation Messages
The following operation messages will be displayed under different
circumstances:
3.3 Video Input Timing
The following vertical refresh rate is recommended:
3.4 Audio Support
The industrial monitor has a built in stereo amplifier that can be controlled ei-
ther via the OSD interface or the OSD buttons on the rear side. The monitor is
equipped with one audio input port and one speaker out port.
Operation
message Explanation
AUTO TRACKING Auto Tracking (analog RGB mode):
Executes auto function
NO SIGNAL Self diagnostics (analog RGB mode):
No input signal after power-on with power switch.
The message will disappear after 10 seconds of activity of
input signal.
NO SUPPORT Out of Range:
The input signal exceeds the supported range.
Mode Refresh rate
1024 x 768 pixels 60~75 Hz
Sync.: H/V separated TTL
Parameter Specification
Maximum output 2 x 2W @ 8 Ω
Note:
The industrial monitor does not include built-in speakers.

Technical Data
16 Mitsubishi Electric, MA00856B
3.5 Calibrate the Touch Screen
The industrial monitor has a built in touch screen. This is not operational when
shipped from the supplier and must be installed. Instructions and drivers for in-
stallation of the touch screen function are available at:
www.mitsubishi-automation.com or www.meau.com

Chemical Resistance
Mitsubishi Electric, MA00856B 17
4 Chemical Resistance
4.1 Metal Casing
The frame and casing material is powder-coated aluminum. This powder paint
withstands exposure to the following chemicals without visible change:
The powder paint shows limited resitance to the following chemicals at room
temperature:
The powder paint shows little or no resistance to the following chemicals at
room temperature:
Acetic acid 10% Phosphoric acid 4%
Citric acid 10% Phosphoric acid 10%
Diesel Sea water
Distilled water Sodium chloride 2%
Edible oil Sodium chloride 20%
Fuel oil Sulphuric acid 20%
Hydrogen peroxide 3% Tap water
Butanol Nitric acid 3%
Hydrochloric acid 5% Nitric acid 10%
Isopropyl alcohol Phosphoric acid 43%
Na-hypochlorite 10% Turpentine
Note:
If exposure to any of the above chemicals is demanded, it is recommended to first
test the chemical on an “invisble” spot of the metal casing.
Acetic acid, conc. Methyl-ethyl ketone Toluene
Acetone Nitric acid 30% Trichlorethylene
Ammonia 5% Phenol Xylene
Ammonia, conc. Sodium hydroxide 5% 97 octan unleaded petrol
Ethyl acetate Sodium hydroxide 30% 98 octan leaded petrol

Chemical Resistance
18 Mitsubishi Electric, MA00856B
4.2 Touch Screen and Overlay
4.2.1 Autotex F157/F207
Autotex F157 or F207 covers the overlay surrounding the touch screen.
Solvent Resistance
Autotex F157/F207 withstands exposure of more than 24 hours duration under
DIN 42 115 Part 2 to the following chemicals without visible change:
Autotex withstands DIN 42 115 Part 2 exposure of up to 1 hour duration to gla-
cial acetic acid without visible change.
Autotex is not resistant to high pressure steam at over 100 °C or the following
chemicals:
Outdoor Use
In common with all polyester based films Autotex F157/F207 is not suitable for
use in conditions of long term exposure to direct sunlight.
Acetonitrile Diesel Downey / Lenor1Phosphoric acid (<30%)
Ajax / Vim in solution Ethanol Potassium ferricyanide
Alkalicarbonate solution1Glycerine Potassium hydroxide
(<30%)
Ammonia (<40%)1Glycol Pure Turpentine
Acetic acid (<50%) Gumption1SBP 60/951
Ariel powder in solution1Hydrochloric acid (<36%) Sulfuric acid (<10%)
Bleach1Linseed oil Tomato ketchup
Castor oil Methanol Trichloroacetic acid (<50%)
Caustic soda (<40%)1Nitric acid (<10%) White Spirit
Cutting oil Paraffin oil Windex1
Cyclohexanol Persil powder in solution1Wisk
Diacetone alcohol Petroleum spirit1-
1 Extremely faint glossing of the texture was noted.
Concentrated mineral acids Benzyl alcohol
Concentrated caustic solution Methylene chloride

Chemical Resistance
Mitsubishi Electric, MA00856B 19
4.2.2 Touch Screen Surface
The touch screen surface on the monitor withstands exposure to the following
solvents without visible change:
4.2.3 Autoflex EB
It is recommended to use the Autoflex EB touch display protection film, that
can be ordered from the manufacturer.
Solvent Resistance
Autoflex EB withstands exposure to the same chemicals as Autotex F157 or
F207 according to section Autotex F157/F207.
Outdoor Use
In common with all polyester based films Autoflex EB is not suitable for use in
conditions of long term exposure to direct sunlight.
Solvents Time
Acetone 10 minutes
Isopropanol 10 minutes
Toluene 5 hours

Chemical Resistance
20 Mitsubishi Electric, MA00856B
