WD390U-EST(M)
Classrooms Will Never be the Same Again
MULTIMEDIA DATA/VIDEO PROJECTORS
Revolutionary Ultrashort-throw cloud projector

Introducing the latest model of ultrashort-throw lens mobile projectors in the Mitsubishi
Electric line-up, the WD390U-EST(M) Cloud Projector. With cloud projection, you don't need
a computer to connect; you simply log onto your network and begin displaying content in
seconds, whether from a local server, the Internet or the cloud, giving teachers and presenters
access to files through the projector itself. Used with a tablet or smart phone that includes
SidePad or Wifi Docs apps, you can take BYOD (Bring Your Own display) to the next level.
Boasting bright 3000lm illumination and capable of projecting an 80-inch image at a distance
of less than 26 inches from the screen, this revolutionary projector reproduces clear, large-
screen images even in the tightest of spaces.
Amazingly Easy to Use Anytime, Anywhere…
Conventional model
[Projection distance of 200cm+(80”+)]
WD390U-EST(M)
Reasons for Adopting a Short-throw Projector
Short-throw projectors project images closely to the screen, so teachers
and presenters can move in front of the image without creating
distracting shadows on the screen. Additionally, they do not need to be
installed and are easy to carry around.
Mitsubishi's Cloud Projector LAN Functions
Using the projector's LAN Display Function and Remote Log-in Function, when connected to a LAN, users can log-in to remote computers directly from
the projector, retreive stored images and display them. As all operations can be performed through the LAN, it is easy to start up another projector when
changing classrooms. Faculty Members don't need to return to the staff room to change the log-in on the remote computer. The WD390U-EST(M) itself also
functions as a terminal adaptor, connecting to the cloud directly. Applications and data can be used in the cloud infrastructure environment, so you don't
need a computer, which saves money. A projector that is truly easy to use, the cloud connectivity of the WD390U-EST(M) provides enhanced convenience
that makes giving presentations much easier.
Computers and projectors connected
to the same LAN can be operated
from either unit.
Using LAN Display System in the
computer and the cloud compatibility of
the projector, users can edit data and
project images stored on the computer.
Cloud supported network area
LAN
Open the RDP port
(TCP;3389)
1
After constructing a cloud environment,
users can access applications, servers,
stored files, platforms and databases in
the cloud through the WD390U-EST(M).

Classroom Staff Room
Server
LAN
LAN
LAN
USB
Log-in to Computer
Remote Log-in Function
USB Display/LAN Display Remote Desktop
The WD390U-EST(M) is equipped with a remote log-in function that enables users to log into a network directly from the projector, eliminating the time and
effort required to go to a computer
To display images through the projector, a VGA cable, USB cable, LAN
cable or comercially available wireless dongle can be used. For displaying
images via a LAN, up to four computers can be connected to one projector.
The projection screen can be divided into quarters, reproducing all
computer screens simultaneously.
When using the LAN Display function, a USB mouse or USB keyboard can
be connected to the projector enabling direct access to a computer using
the Internet or other applications.
Remote computer control
via a keyboard and mouse
connected to the projector
via a USB cable and Wi-Fi
dongle.
Wireless mouse/keyboard
Remote location
Display via LAN (Wired and Wi-Fi)
Images transferred via USB cable
Notes:
1) For displaying images via a LAN, network settings are required.
2) Not all USB dongles are compatible.
2

3
A
Thin client Multi-user Server
SidePad Function
If a server is installed at the school, different images can be projected simultaneously in each classroom.
Staff Room
LAN
Server
PC requirement for the Cloud
Server OS Client OS
Windows MultiPoint Server 2011
Windows Server 2008 R2
Windows XP Professional
Windows Vista (Ultimate, Business, Enterprise)
Windows 7 (Ultimate, Professional, Enterprise)
BYOD - Expand Creativity and Learning Fun in the Classroom with Smartphones and Tablets
Download the free MirrorOp Receiver application and turn iPads, iPhones and Android phones/pads into tablet terminals.
* This feature can be used after downloading the MirrorOp Receiver application software (freeware).
The LAN Display System is included with the main unit.
Used in combination with LAN Display System, images being projected can be displayed on tablets or smartphones,
and a computer can be operated from a tablet. Teachers can remotely access their computer when carrying a tablet with
them in the classroom, facilitating even closer communication with students during lessons.

4
* MirrorOp, MirrorOp Receiver, and WiFi-Doc are registered trademarks,
trademarks, or trade names of AWIND Inc.
Compatibility formats
txt/pdf/ppt
xls/doc/jpeg
APP Store
Google Play
Get from.....
Wifi Doc
Wifi Doc
BYOD - Expand Creativity and Learning Fun in the Classroom with Smartphones and Tablets
* Please download a freeware Wifi Doc application (both freeware and payware are available).
* Mirroring of the tablet screen is not supported.
* On tablets, it is not possible to edit files or send movies.
* Movies and animations are not supported.
* Communication fees incurred while downloading applications are to be paid for by the customer.
Wifi Doc is application software that allows data stored on a tablet or smartphone (txt/pdf/ppt/xls/doc/jpeg files) to be sent
directly to a projector and displayed. Images can be quickly accessed and shared while simultaneously giving presenters
the freedom to interact more closely with the audience.

Presentation
User Friendly
5
Audio
Network

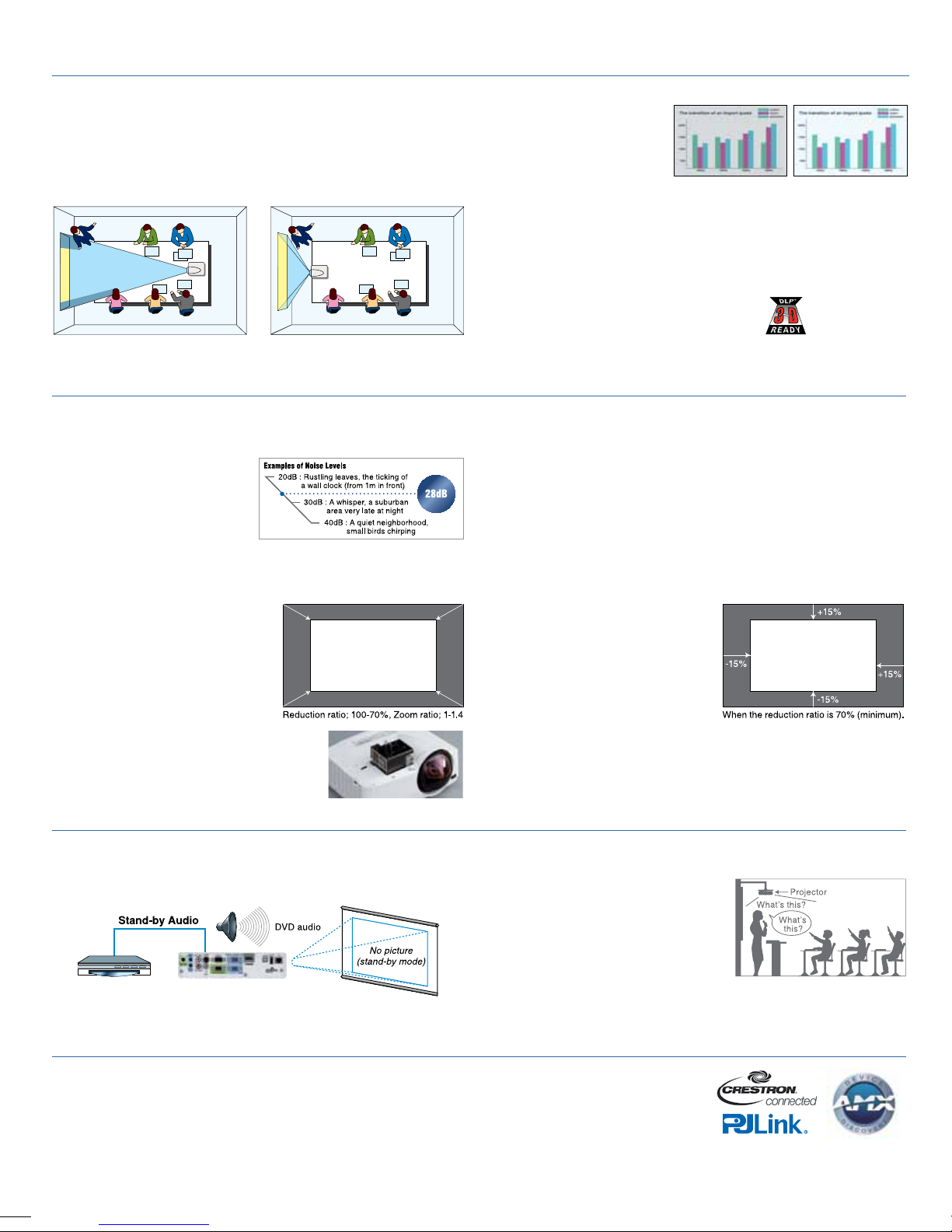

World Shortest* Focal Distance – 0.375 Throw Ratio/80in
Ultra Quiet 28dB Operation
Stand-by Audio/Audio Pass-through Excellent Sound Projection (10W Speaker+Audio Mix)
Network ConnectivitySimultaneous Message Display (Visual PA)
E-Zoom (Digital Zoom)
*Units not equipped with mirrors
Note: Data researched by Mitsubishi Electric in March 2011.
Using a large-diameter lens and optimal optical engine design, the shortest
focal distance (throw ratio: 0.375) in the industry has been achieved. Even if
the teacher or presenter must move in front of the projected image, they are
neither blinded nor disturbed by projector light, enabling them to maintain
eye contact with the audience at all times.
Conventional model
[Projection distance of 200cm+(80”+)]
WD390U-EST(M)
3000lm High Brightness
3000:1 High Contrast
3D READY – Enjoy the future today
Computer-free Presentations (PtG file/JPEG Viewer)
E-Shift
The high 3000lm luminance
helps to ensure presentation
images are clearly seen without
lowering the light in the room.
*Image brightness comparison.
DarkChip3 is newly introduced to the DLP® chip line-up. Stray-light
processing has been optimized for the optical system, achieving a high
contrast of 3000:1. This creates sharp, vivid images in which sentences and
other characters can be easily read.
Using “PtG Converter”, PowerPoint files can be converted into a special
format and saved on a USB storage device. When the USB device is
connected to the projector, users can replay slideshows or animation
effects using only the projector - no computer is needed.
Note: The types of slideshows and animation effects that can be replayed are limited.
JPEG files saved on a USB storage device can be projected in slideshow style.
Note: Only compatible with JPEG files.
This function uses the electrical image-correction process so you can adjust
the position of the image projected up/
down and left/right.* The adjustment
range (up/down, left/right) is ±15% when
the E-Zoom reduction ratio is 70% and
±10% when the reduction ratio is 80%.
*There is a maximum range setting for the projected
image, so E-Shift adjustment is only possible after
the image size has been reduced using E-Zoom.
Fan noise during projector operation can be distracting during a presentation
or videoconference. The WD390U-EST(M) operates at a significantly low
noise level of only 28dB (i.e., in
“low lamp” mode). As a result,
presentations and conferences can
be held without distracting projector
noise in the background.
The E-Zoom function utilizes an electrical image-correction process to reduce
the image size up to 30% (maximum
reduction to 70% of original size). When
zooming out, the focal point at the center
of the image remains the same while the
overall image dimensions are reduced.
Clear, vivid images are reproduced even
in small rooms where a long projection
distance is not possible.
When the projector is in stand-by mode, its 10W speaker can still be used.
Additionally, while in stand-by mode, an external speaker can be used by
connecting it via the Audio Out terminal.
A high-volume, 10W speaker is built-in, eliminating the need for an external
speaker. Using the “Audio Mix*” feature
and wireless microphone sold separately,
the presenter’s voice is reproduced loud
and clear in real time.
*Only compatible with stereo mini-jack.
Not compatible with RCA jack (L/R) or HDMI.
*10W speaker and external speaker cannot be used
at the same time.
*The trademark of PJLink is trademark applied
for registration or registered trademark in Japan,
the United States, and other countries and areas.
Simultaneous message display is a function included in LAN control
operation (ProjectorView Global+). Using a control room computer equipped
with projector-control software, administrators can simultaneously send
messages (up to 390 characters long) in real-time to projectors connected to
the LAN. Ideal for broadcasting important information to multiple rooms in the
school or building.
The 10W speaker can be used when the projector is in stand-by mode.
In addition, audio can be output when the projector is in stand-by mode,
using the projector as an amplifier.
Top-loading lamp
for easier maintenance

6
Ecology
WD390U-EST(M)
Height
Hd
Projection distance (L)
WD390U-EST(M)
Screen (16 : 10)Projection distance (L)
Diagonal size Width Shortest (Wide)
Longest (Tele) with E-Zoom Height
inch
37
42
53
64
79
95
inch
70
80
100
120
150
180
cm
178
203
254
305
381
457
inch
59
68
85
102
127
153
cm
151
172
215
258
323
388
cm
94
108
135
162
202
242
inch
22
25
32
39
49
60
m
0.56
0.64
0.82
0.99
1.25
1.51
inch
31
36
46
56
–
–
m
0.79
0.92
1.17
1.42
–
–
Height Projected Image (Hd) Movable H Position at Longest (Tele) with E-Zoom/E-Shift
Shortest (Wide) Left Right Longest (Tele) with E-Zoom
inch
4.6
5.3
6.6
7.9
9.9
11. 9
cm
12
13
17
20
25
30
inch
12.2
13.9
17. 4
20.9
–
–
cm
31
35
44
53
–
–
inch
-9
-10
-13
-15
–
–
9
10
13
15
–
–
Screen size chart
0
0
0
0
0
0
Left Right
cm
-23
-26
-32
-39
–
–
23
26
32
39
–
–
0
0
0
0
0
0
Movable V Position at Longest (Tele) with E-Zoom/E-Shift
Down Up
inch
-6
-6
-8
-10
–
–
6
6
8
10
–
–
0
0
0
0
0
0
Down Up
cm
-14
-16
-20
-24
–
–
14
16
20
24
–
–
0
0
0
0
0
0
WD390U-EST(M)
SpecificationsInput and Output Terminals
Screen Size and Projection Distance
*Compliant with ISO21118-2005 •Varies depended on condition. •All brand names and product
names are trademarks, registered trademarks or trade names of their respective holders. •Lamp life
specification is an estimate based on verification under proper conditions and is not the duration of
the warranty. Lamp will shut-off automatically when usage reaches the specified estimated maximum
lamp hours. Service life may vary widely depending on usage and operating environment and
conditions, as well as users’ adherence to the maintenance and cleaning procedures provided in the
user manual. •“HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.”
Note: Digital zoom (E-zoom) is a function used to zoom the screen in/out using electrical processing
rather than an optical lens.
The numbers below are approximate, and may be slightly different from the actual measurements.
Side view
6000-hour Long-life Lamp (max. use set to Low mode) Auto Power Off
Stand-by Wattage under 0.5W*
A longer service life for the projection lamp has been achieved by
incorporating an optimal design for lamp temperature control. Benefits
include substantial reductions in projector operating cost and the labor
required for changing the lamp.
If no image signal is output for a predetermined period of time*, power is
automatically turned off, realizing energy savings by reducing needless
power consumption.
*Time preset by user.
Stand-by (low) mode power consumption is less than 0.5W, offering increased
energy savings and further contributing to environmental preservation.
*When in stand-by (low) mode. At this time, use of the LAN function, RS-232C output is not possible.
Lamp life specification is an estimate based on verification under proper conditions and is not
the duration of the warranty. Lamp will shut-off automatically when usage reaches the specified
estimated maximum lamp hours. Service life may vary widely depending on usage and operating
environment and conditions, as well as users’ adherence to the maintenance and cleaning
procedures provided in the user manual.
Audio output
Audio input
S-Video/Video
Serial RS-232C
Monitor output
PC/Component video input
HDMI
USB
LAN (RJ-45)
1
2
3
4
5
6
7
8
9
1 2 3 4 6 7 8 9
5

LITWD390U-EST(M) New publication effective Nov. 2012.
Specificatoin are subject to change without notice.
MITSUBISHI ELECTRIC
VISUAL SOLUTIONS AMERICA
Professional Product Sales
Phone: [phone]
www.mitsubishi-presentations.com
MITSUBISHI ELECTRIC SALES
CANADA, INC.
Display & Imaging Solutions Division
Phone: [phone]
www.mitsubishielectric.ca
