LAN Control Utility
User Manual (for XL2550U/XL1550U)
Contents
Preparation/SetUp .........................................................................2
Preparation before using the network function...........................................2
Connection..................................................................................................3
Installation...................................................................................................3
Setting the IP address of the projector .......................................................5
When using a DHCP server ...........................................................................................6
When not using a DHCP server.....................................................................................7
Telnet setting...............................................................................................8
Setting the password (Password Setup) .......................................................................9
Setting the display language of ProjectorView (language) ..........................................10
Setting the LAN control (LAN-Controlled Mode) .........................................................10
Setting the PJLink™ certification (PJLink certification Mode).....................................11
Save and exit ...............................................................................................................11
ProjectorView...............................................................................12
Using the ProjectorView............................................................................12
How to start up ............................................................................................................12
VIRTUAL REMOTE controller.......................................................................................14
E-mail notification function ..........................................................................................14
Initial setting.................................................................................................................15
Support for the PJLink™ function ...............................................16

EN-2
Preparation/SetUp
Preparation before using the network function
This projector is equipped with the network function to control and monitor the projector’s operations using a Web
browser and to send e-mail notification.
Before using the network function, perform the following three preparation steps.
(1) Setup of the application software “Projector-Control Device Installer”
(2) Setting of the IP address of the projector *1
(3) Setting of password, display language, LAN control, and PJLink™ certification using telnet.
*1 When setting IP addresses for multiple projectors collectively or when setting an IP address for a ceiling-
mounted projector after installation, check and take a note of combination of the projectors and the hardware
addresses (MAC addresses) in advance. To check the hardware addresses (MAC addresses), perform step 2
on the page 5.
[Major functions]
Setting of the projector’s IP address
Setting of password, display language, and LAN control
PJLink™ certification setting (Telnet function)
Startup of the controlling / supervising tool (ProjectorView) using the Web browser
[System requirements]
Supported OS : Windows®2000, Windows®XP
(Microsoft®.NET Framework 1.1*2 should be installed.)
CPU : Pentium II 233 MHz or higher
Memory : 128 MB or more
Free HDD space : 32 MB or more
Web browser : Internet Explorer Ver. 6.0
(Java Plug-in*3 should be installed and JavaScript should be enabled.)
*2 How to install Microsoft®.NET Framework Version 1.1
(1) Download .NET Framework Version 1.1 (file named “dotnetfx.exe”) from the download center on the
Microsoft®Web site (http://www.microsoft.com/downloads/).
(When the file is unavailable from the above-mentioned URL, search for .NET Framework using Windows
Update and access the download site found.)
(2) Execute the downloaded file named dotnetfx.exe.
*3 How to install Java Plug-in
(1) Download J2SE v1.4.2 JRE from the JAVA download center on the Sun Microsystems Web site (http://java.
sun.com/j2se/1.4.2/download.html).
(When the file is unavailable from the above-mentioned URL, search for “J2SE download” using a search
engine and access the download site found.)
(2) Execute the downloaded file.
(3) After the completion of the installation, select [Start] - [Control Panel] - [Java Plug-in] and disable the cache.
• Microsoft or Windows are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
• Pentium is trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and
other countries.
• The trademark of PJLink is trademark applied for registration or registered trademark in Japan, the United
States, and other countries and areas.
• Other brand or product names are trademarks or registered trademarks of their respective holders.

EN-3
1
Copy three files (DI_4.1.3.3.msi, Setup.Exe, and Setup.Ini) contained in the Tools folder of CD-ROM to the
hard disk of your personal computer.
2
Double-click the file named Setup.Exe.
3
When the following window appears, click Next.
Installation
Before starting installation, be sure to read “ReadMe.txt” contained in the CD-ROM.
Connection
• Use a straight-through category-5 cable for LAN connection.
• Don’t touch the metal parts of the LAN connector and LAN cable because static electricity may be discharged
from your body, causing damage to the projector.
Preparation/SetUp (continued)
Computer
To LAN terminal
LAN cable (option)
(100BASE-TX or 10BASE-T should be supported.)
LAN cable (option)
(100BASE-TX or 10BASE-T
should be supported.)
External HUB

EN-4
Preparation/SetUp (continued)

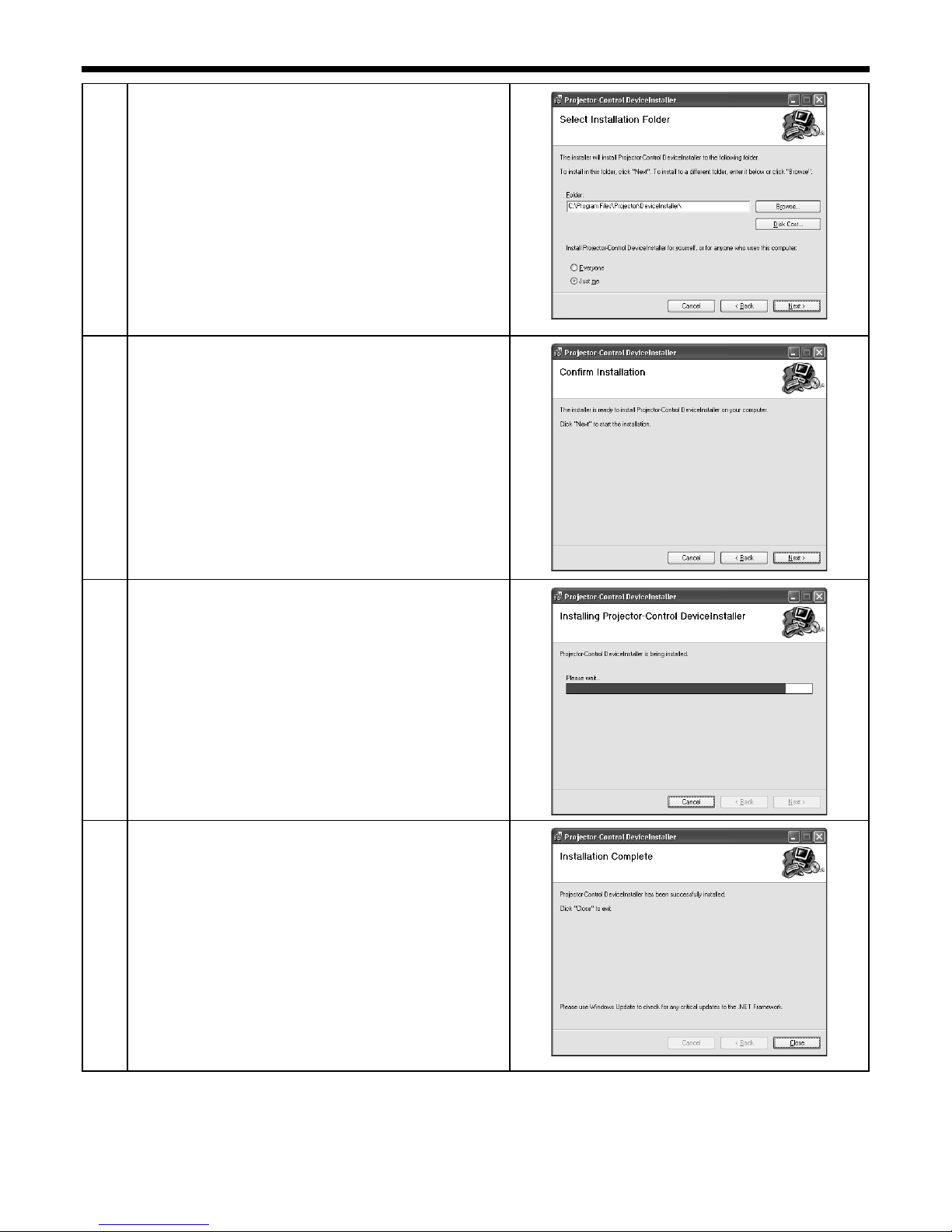

4
Select a folder to install the program, and click Next.
5
Click Next.
6
Installation starts.
• The progress of the installation process is
displayed as shown on the right.
7
When the installation process is completed, click
Close.
How to remove Projector-Control Device Installer
Select [Start] - [Control Panel] - [Add or Remove Programs] - [Projector-Control Device Installer] and click [Remove]
(in the case of Windows®XP).

EN-5

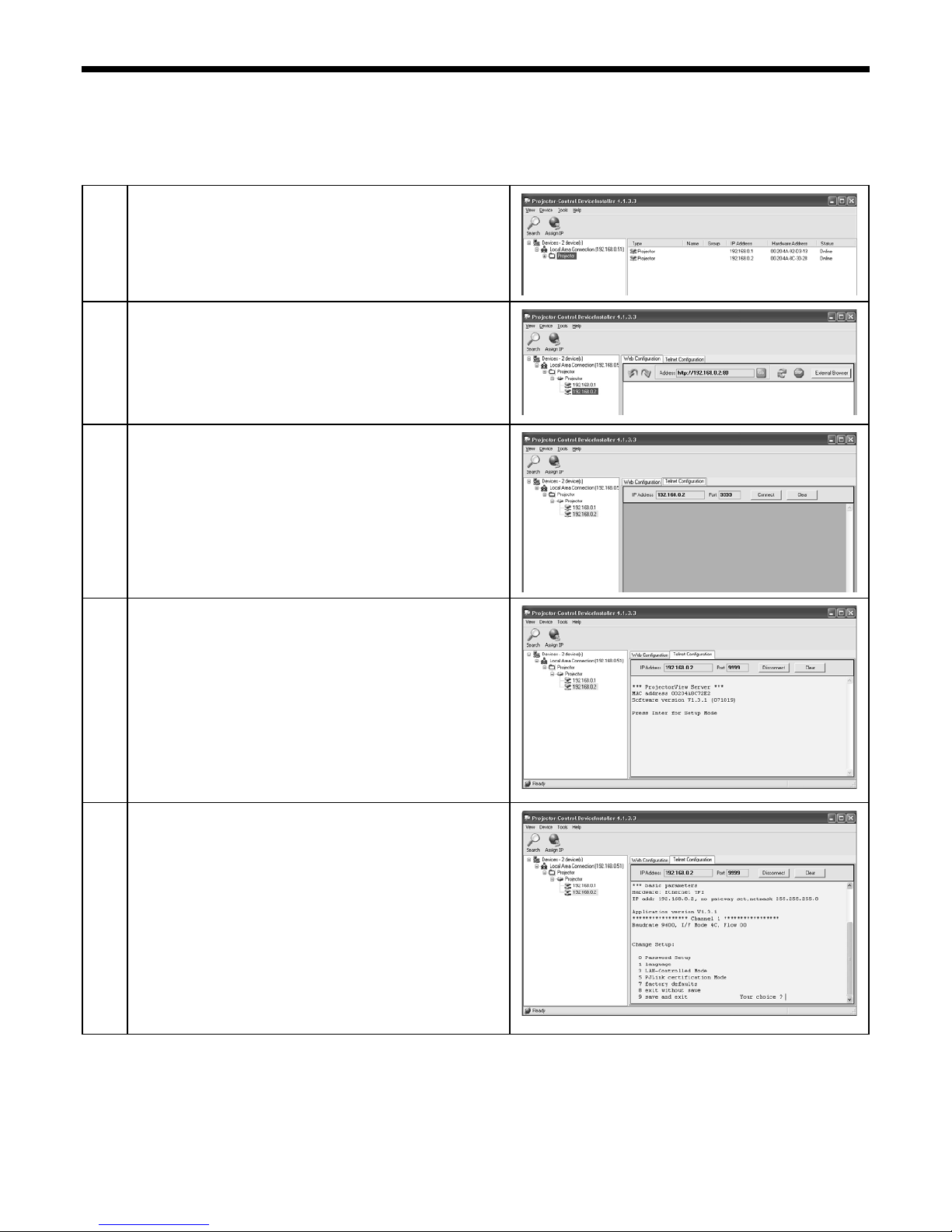

1
Start the Projector-Control Device Installer.
• Select [Start] - [All Programs] - [Projector] -
[Projector-Control Device Installer] (in the case of
Windows®XP).
2
Click the Search button.
• Projector is recognized.
(Note)
When projector isn’t recognized, check the following.
• The firewall function has been disabled. (When it
has been enabled, search may not be conducted.)
• The personal computer and the projector are on
the same network. (For preventing unauthorized
access.)
• More than one Projector-Control Device Installer
isn’t running.
3
Select a projector by clicking the line showing the
projector and click the Assign IP button.
4
The Assign IP Address screen appears.
Setting the IP address of the projector
Before setting the IP address, check that the projector has been LAN-networked and turn on the main power of the
projector.
• For automatic IP address setting by the DHCP server, go to page 6. For IP address setting without using the
DHCP server, go to page 7.
Preparation/SetUp (continued)
Click here

EN-6

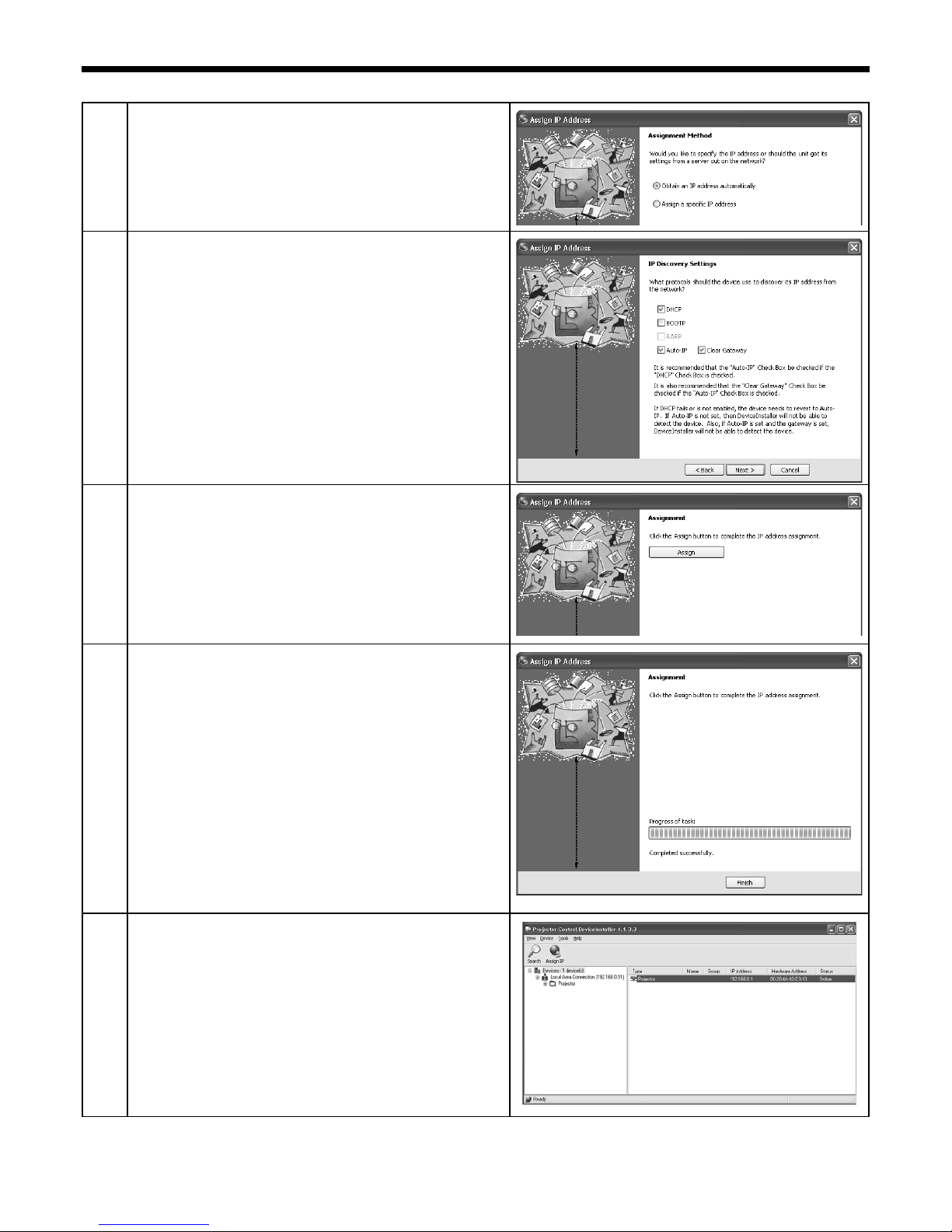

5
Select [Obtain an IP address automatically] and click
Next.
6
Click Next.
• Check that the options are marked with check-
marks as shown on the right. Keep them un-
changed for normal use.
7
Click Assign.
8
Click Finish.
9
Click the Search button.
• Check the IP address.
When using a DHCP server
Preparation/SetUp (continued)

EN-7
5
Select [Assign a specific IP address] and click Next.
6
Enter a fixed IP address (for example, 192.168.0.1)
and click Next.
(Note)
Do not use 0 or 255 for the last digit of the IP
address.
7
Click Assign.
8
Click Finish.
9
Click the Search button.
• Check the IP address you set.
(Note)
When using the error/alert e-mail notification function
described later, click the Assign IP button and set the
subnet mask and default gateway correctly.
• For the values of the subnet mask and default
gateway, contact your network administrator.
When not using a DHCP server
Preparation/SetUp (continued)

EN-8
1
Start the Projector-Control Device Installer.
• Select [Start] - [All Programs] - [Projector] -
[Projector-Control Device Installer] (in the case of
Windows®XP).
2
Press the + buttons on the left pane to expand the
tree structure until the IP address you set appears.
3
Click the Telnet Configuration tab.
4
Select the Connect tab. Press the Enter key within
5 seconds after the message shown on the right
appears.
• When it passes 5 seconds without any operation
on this screen, the screen is shaded and no key
operation is accepted. In this case, click the
Connect button again to continue setting.
5
The setting menu appears.
Telnet setting
Setting of password, display language, LAN control, and PJLink™ certification using telnet.
This section describes how to set the password, display language on the ProjectorView screen, LAN control, and
PJLink™ certification that are necessary for the operation state control tool (commercially available) that uses the
projector operation control/monitor tool ProjectorView and the industry standard PJLink™ protocol.
Preparation/SetUp (continued)

EN-9

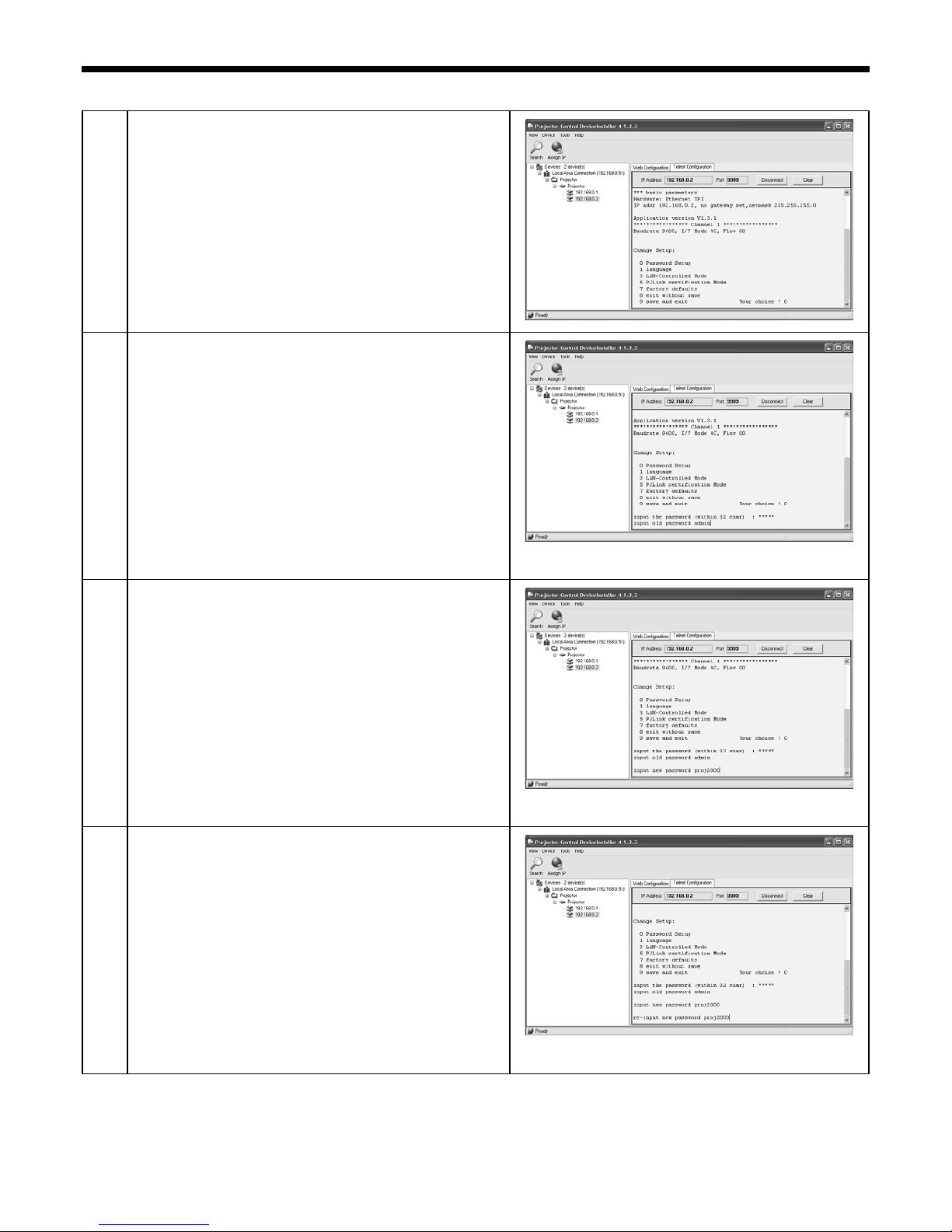

1
Enter “0” and press the Enter key.
2
Input the old (current) password and press the Enter
key. (Default password is admin.)
• If you input a wrong password, an error message
appears and the setting menu is displayed again.
In this case, set the password again.
• If you forget your password, select “7 factory
defaults,” input the password “projectorcontroller,”
and then select “9 save and exit” to perform
initialization.
3
Input a new password (example: “proj2000”) and
press the Enter key.
(Note)
Use single-byte alphanumeric characters only.
4
Input the new password (example: “proj2000”) again
and press the Enter key.
• If you input a wrong password, an error message
appears and the setting menu is displayed again.
In this case, set the password again.
Setting the password (Password Setup)
Preparation/SetUp (continued)

EN-10
1
Enter “3” and press the Enter key.
2
To enable the e-mail notification function of Projector-
View, enter 1 and press the Enter key. (Default is OFF (0).)
(See pages 12 - 15 for ProjectorView function.)
Setting the LAN control (LAN-Controlled Mode)
Preparation/SetUp (continued)

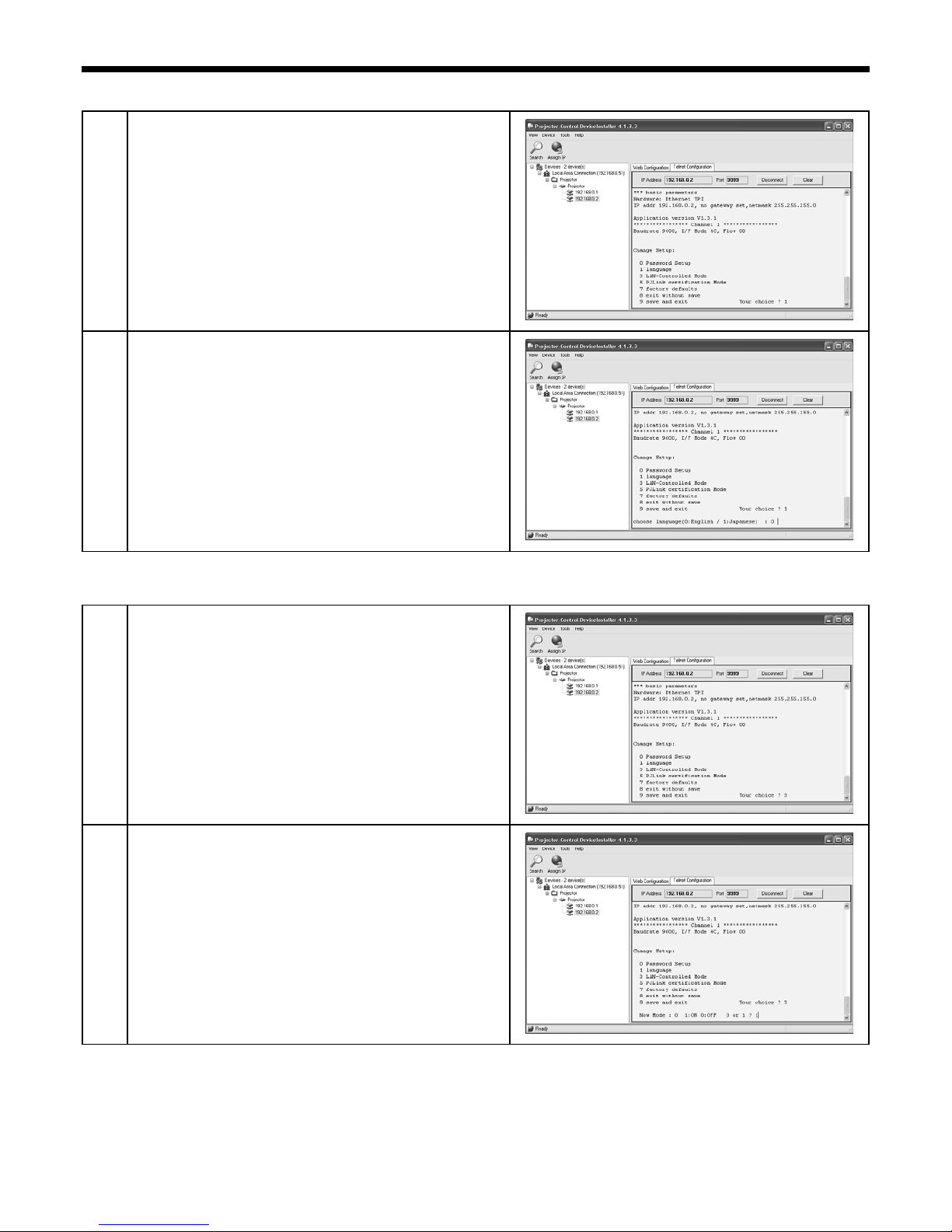

1
Enter “1” and press the Enter key.
2
Enter “0” for English or “1” for Japanese.
Setting the display language of ProjectorView (language)

EN-11
1
Enter “9” and press the Enter key.
2
The setting screen is shaded and the setting is updated.
• It takes about 10 seconds for the setting to be
updated. Don’t perform communication during this
period.
Save and exit
• Because the password, display language, LAN control, and PJLink™certification are set using the telnet function,
you can also set them on the command prompt window of the personal computer. Enter the following command and
press the Enter key.
> telnet [IP address you set] 9999 [“>” shows a prompt.]
When setting menu appears, perform the setting procedure as described above.
(Note)
Check that the port number “9999” isn’t blocked by the firewall.
Preparation/SetUp (continued)
1
Enter “5” and press the Enter key.
• When you don’t use PJLink™ protocol
communication, skip this item. (See page 16 for
PJLink™.)
2
To enable the PJLink™ certification, enter “1” and
press the Enter key. To disable it, enter “0” and press
the Enter key. (Default is ON (1).)
Setting the PJLink™ certification (PJLink certification Mode)

EN-12
1
Start the Projector-Control Device Installer.
• Select [Start] - [All Programs] - [Projector] -
[Projector-Control Device Installer] (in the case of
Windows®XP).
2
Expand the tree structure on the left pane until the IP
address you set appears.
3
Select the WEB Configuration tab.
4
Click the External Browser button or Go button.
External Browser button : The browser starts on a separate window.
Go button : The browser starts on the Projector-Control Device Installer window.
(Note)
• You can start ProjectorView by directly entering the URL of the Web browser “http://IP address you set”
instead of by clicking the External Browser button.
• When you are using a proxy server, don’t enable the proxy when accessing this IP address.
• You can open only 1 browser screen from the device installer.
• It is possible to control a projector using 2 computers running “ProjectorView”. However, use only 1
computer for Telnet setting.
ProjectorView
Using the ProjectorView
This section describes ProjectorView, a tool to control and monitor the projector’s operations by a Web browser.
The major functions of ProjectorView are:
• Power on/off
• Input source switching
• State information indication (projector’s name, temperature, lamp operation time, error/alert, etc.)
• E-mail notification in case of error/alert
How to start up

EN-13
5

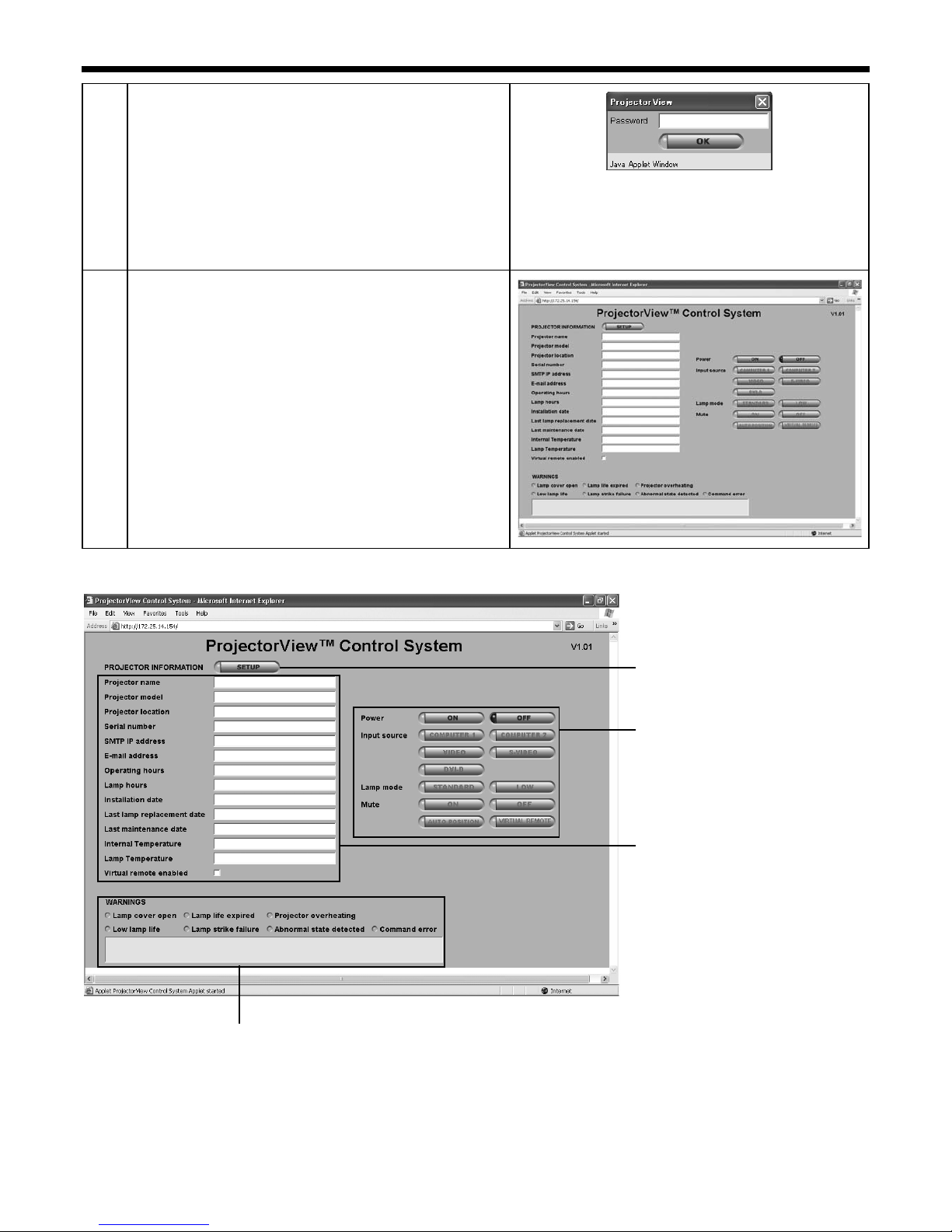

The password input screen appears. Enter the
password you set.
• The default password is admin.
(Note)
If you input a wrong password three successive
times, the Web browser is closed. In this case, repeat
from step 1.
6
The ProjectorView main screen appears.
• Some buttons may not be displayed. In this case,
select [Start] - [Control Panel] - [Java Plug-in] and
disable the cache.
ProjectorView (continued)
Press to display the Setup win-
dow. (See page 15.)
Press to control the projector. For
the functions of these buttons,
see the user guide of the projec-
tor.
Failures in the projector are indicated with dots. When you place the mouse cursor to a dot,
the indicated failure is described in the box at the bottom.
(Note)
When mute is on, you cannot change the lamp mode. If you try to change the lamp mode, a
dot appears next to “Command error” of WARNINGS.
[ProjectorView main screen]
Projector information is dis-
played. To display the projector
information, set LAN-Controlled
Mode to ON (1) (see page 10)
and enter necessary information
on the Projector Setup screen
(see page 15) in advance.

EN-14
ProjectorView (continued)
VIRTUAL REMOTE controller
Put a checkmark in the box of the Virtual remote enabled on the ProjectorView main screen, and click the VIRTUAL
REMOTE button. The following Virtual Remote window appears.
For the functional descriptions of each button, see the user manual of the projector.
E-mail notification function
In case of an error or abnormality in the projector, e-mail notification is automatically sent to the designated
address to notify of the error or abnormality.
To use this function, perform the following steps.
1 Enable the LAN control function. (See page 10.)
2 Set the SMTP IP address, E-mail address, E-mail host, and E-mail from.
Once the above-mentioned items are set, the e-mail notification function remains enabled even when the browser
(ProjectorView screen) is closed.
Example of notification: Alert on lamp life end
ProjectorView Alert:
The lamp has reached its maximum usage. Replace the lamp and reset lamp counter. See user guide for complete
instructions.
Projector name : abc
Projector model : XL2550U
Projector location : 10Factory-5F
Serial number : 12345
Operating hours : 2146 hours and 43 minutes
Lamp hours : 4000 hours and 0 minute
Installation date: 2007/01/01
Last lamp replacement date: 2007/01/01
Last maintenance date: 2007/01/01
(Note)
• In case of a command error, e-mail notification isn’t sent.
• When the LAN control is enabled, serial RS-232C commands may not be transmitted.
• You can’t control the LAN/serial RS-232C commands for about 10 seconds after turning on the main power of the
projector.
• When commands for LAN control and for RS-232C control are issued at the same time, the LAN control command
overrides the RS-232C control command.
• While a test pattern is displayed or a password is entered, you can’t change the lamp mode and enable and disable
the MUTE function.
• Response may be delayed depending on the operating state of the projector.
• The DHCP mode may not operate with certain devices (routers etc.).
• When you turn on the projector by pressing the ON/OFF button on the ProjectorView main screen, other commands
are not accepted for about 1 minute.
• E-mail notification is issued twice: at the time of occurrence of an alert/error and 2 hours after the occurrence.
To use the e-mail notification function, configure the initial settings in advance as described on the next page.

EN-15

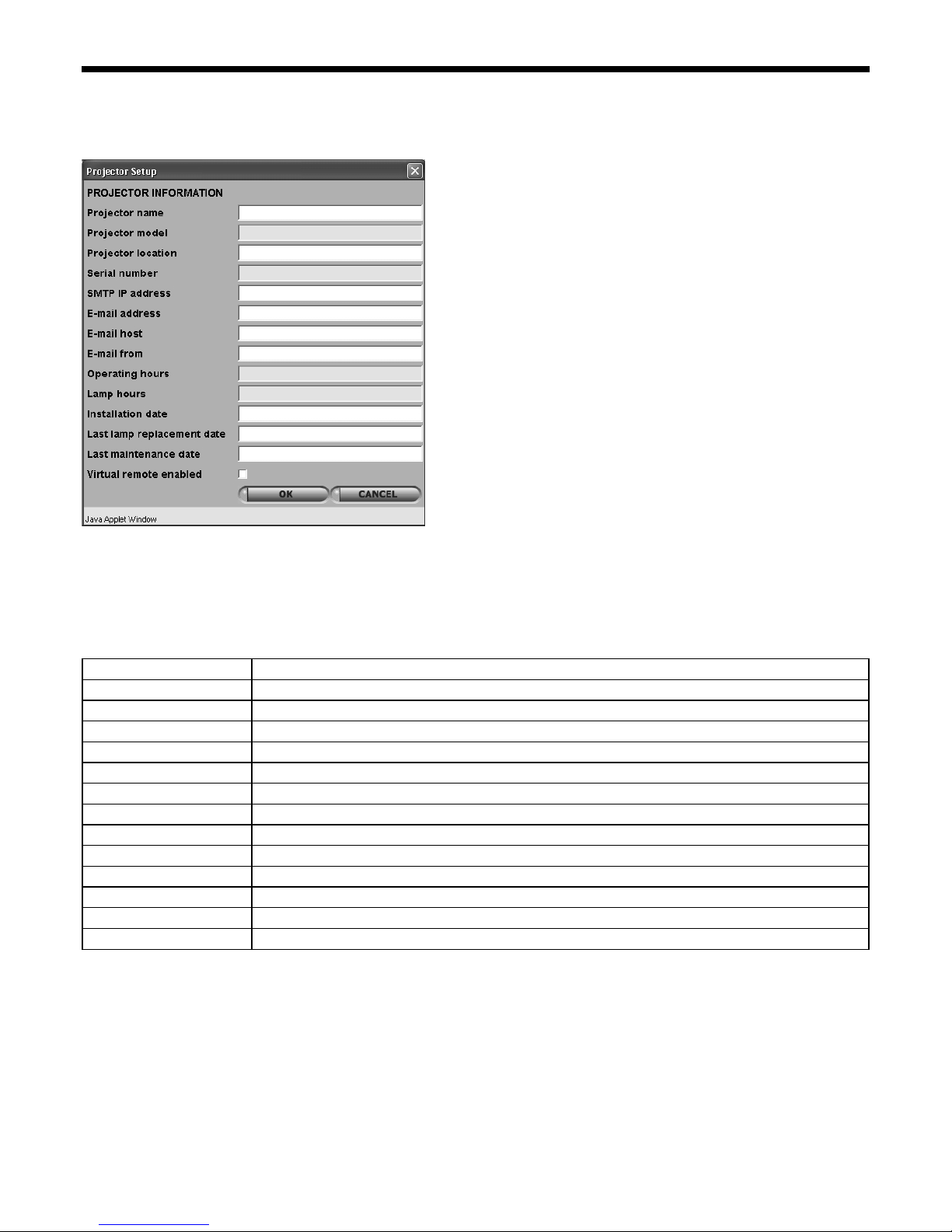

Initial setting
To load information on the projector such as model name and lamp operating time, set the projector data in
advance. Click the SETUP button on the ProjectorView main screen. The Projector Setup screen appears. Enter
data according to the description of each setting item.
(Note)
• You can’t change the Projector model, Serial number, Operating hours, and Lamp hours. They are loaded from the
projector and displayed when the LAN controlled mode of Telnet setting is set to ON.
• The entry field of each setting item contains a blank character by default. When setting these items, delete the blank
characters.
Each setting item is described as follows:
ProjectorView (continued)
Projector name* Name to identify the projector
Projector model Model name of the projector
Projector location* Location of the projector
Serial number Serial number of the projector
SMTP IP address* IP address of the SMTP server used for e-mail transmission (Example: 192.168.0.1)
E-mail address* e-mail address to receive alert notification e-mail (Example: [email protected]) (up to 64 characters)
E-mail host* User-defined string displayed at the Internet header of e-mail message (Example: user)
E-mail from* Sender of alert notification e-mail ( Example: PJView@ XXX .XXX.XXX)
Operating hours Cumulative projector operating time
Lamp hours Cumulative lamp operating time calculated based on that LAMP MODE is LOW.
Installation date* Date when the projector was installed
Last lamp replacement date* Date when the lamp was last replaced
Last maintenance date* Date when the projector was last maintenanced
Virtual remote enabled Display or hide the virtual remote controller (Check the box to display.)
* ) For data entry, use single-byte alphanumeric characters and symbols (+ - / = @ * _ ! ? . , ; : # $ % & ( ) | < > [ ] { } " ').
(Note)
When the “Standard” lamp mode is selected, the indicated lamp operating time may exceed the indicated
operating time.

EN-16
Support for the PJLink™ function
This projector supports standard protocol PJLink™for projector control and you can control and monitor projector’
s operations using the same application among projectors of different models and different manufacturers.
To use this function, set the PJLink™ certification properly according to the setting of the PJLink™ application to
be used. (See page 11.)
Supported commands
The table below shows commands to control the projector using the PJLink™ protocol.
Command Description Remark (Parameter)
POWER Power control 0 = Standby
1 = Power on
POWR? Inquiry about the
power state
0 = Standby
1 = Power on
2 = Cooling down
3 = Warming up
INPT Input switching 11 = RGB1
12 = RGB2
21 = VIDEO
22 = S-VIDEO
31 = DVI-D
INPT? Inquiry about input
switching
AVMT Mute control 30 = Video and audio mute disable
31 = Video and audio mute enable
AVMT? Inquiry about the
mute state
ERST? Inquiry about the
error state
1st byte: Fan error, 0 or 2
2nd byte: Lamp error, 0 to 2
3rd byte: Temperature error, 0 or 2
4th byte: Cover open error, 0 or 2
5th byte: Always 0
6th byte: Other error, 0 or 2
0 to 2 mean as follows:
0 = No error detected, 1 = Warning, 2 = Error
LAMP? Inquiry about the
lamp state
1st value (1 to 5 digits): Cumulative lamp
operating time
2nd value: 0 = Lamp off, 1 = Lamp on
INST? Inquiry about the
available inputs
The following value is returned.
“11 12 21 22 31”
NAME? Inquiry about the
projector name
The projector name set on the ProjectorView
Setup window is returned.
INF1? Inquiry about the
manufacturer name
“MITSUBISHI” is returned.
INF2? Inquiry about the
model name
“XL2550U” or “XL1550U” is returned.
INF0? Inquiry about other
information
No other information is available. No parameter
is returned.
CLSS? Inquiry about the
class information
“1” is returned.
• This projector is fully compliant to the specifications of JBMIA PJLink™ Class 1. It supports all the commands
defined by PJLink™ Class 1, and the compliance has been verified with the PJLink™ standard specifications
Version 1.0.
(Note)
• The above-mentioned control may not be performed correctly or the monitoring data may not be obtained correctly in
the following conditions:
• During standby • During input source switching • During auto position execution
• During AV mute • During command processing
• Before the splash screen disappears after the power is turned on.
• During AV mute, etc., it may take approx. 5 seconds to receive a response to a command.
• Use 1 controller to control/monitor 1 projector.
• For how to control/monitor using PJLink™, see the operation manual of the PJLink™ application you use.
• When you monitor the projector’s operating state using this function by issuing inquiry commands successively, issue
an inquiry command after receiving the response to the previous inquiry command from the projector.
• For the specifications of PJLink™, access to the Web site of Japan Business Machine and Information System
Industries Association (JBMIA). (http://pjlink.jbmia.or.jp/english)

EN-17
[Notes on Instant Shut Down]
Instant shutdown of the projector during control using the network function may cause ProjectorView to fail to
display data correctly.
• The operating time and temperature may not be displayed correctly. In this case, close the browser, recognize this
projector using Projector-Control Device Installer, and then start the browser again. (Refer to “How to start up” of
ProjectorView.)
• When you use the e-mail notification function only, no special action is required.
[Terms and definitions]
For detailed descriptions, see commercial books.
Term Definition
DHCP Abbreviation for Dynamic Host Configuration Protocol. This protocol
automatically assigns IP addresses to networked devices.
Gateway A server (or router) to communicate across networks (subnets) that are divided
by subnet mask.
IP address Numerical address to identify networked computers.
MAC address Abbreviation for Media Access Control address. MAC address is a unique ID
number assigned to each network adapter, based on which data are sent and
received between network adapters.
Subnet mask A value to define the number of bits used for a network address of a divided
network (or subnet) in an IP address.
Telnet A virtual terminal protocol to log in to and control a remote computer.
URL Abbreviation for Uniform Resource Locator. URL is a unique Internet address of
each Web page.
Support for the PJLink™ function (continued)
A
