Mitsubishi Electric NM-C150SD User manual

i
This unit complies with the requirements of the EC Directive 2004/108/EC,
“EMC Directive”. The requirements for the susceptibility according to EN
55024 and the requirements for interference according to EN 55022 are
observed for the operation on residential areas, business, light industrial
premises and in small scale enterprises, inside as well as outside of the
building. All places of operation are characterized by their connection to the
public low voltage power supply system.
Warning
This is class A product. In a domestic environment this product may cause radio
Interference in which case the user may be required to take adequate measures.

ii
Note: This symbol mark is for EU countries only. This
symbol mark is according to the directive 2002/96/EC
Article 10 Information for users and Annex IV, and/or to
the directive 2006/66/EC Article 20 Information for end-
users and Annex II.
Your MITSUBISHI ELECTRIC product is designed and manufactured with
high quality materials and components which can be recycled and/or reused.
This symbol means that electrical and electronic equipment, batteries and
accumulators, at their end-of life, should be disposed of separately from your
household waste.
If a chemical symbol is printed beneath the symbol show above, this chemical
symbol means that the battery or accumulator contains a heavy metal at a
certain concentration. This will be indicated as follows: Hg: mercury (0.0005%),
Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used
electrical and electronic products, batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at
your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!

iii
IMPORTANT SAFEGUARDS
/1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that product heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prongs are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where thy exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for
long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
14. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE
BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE
RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING
OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
15. Use Certified/Listed Class 2 power supply transformer only.
16. Don‟t remove the outer covering of this unit.

iv
TABLE OF CONTENTS
Chapter 1 —Introduction ……………………………………………………………….. 1
1.1 Features ………………………………………………………………………………………... 1
Chapter 2 —Installation and Configuration ………………………………….………. 3
2.1 Package Contents ………………………………………………………………………..…… 3
2.2 Basic Configuration of Fastrax X18 Network Dome Camera System …………………… 5
2.3 Setting Network Dome Camera Termination ………………………………………………… 6
2.4 Setting Network Dome Camera Address (ID) ……………………………………………… 6
2.5 Setting Network Dome Camera Protocol …………………………………………………… 6
2.6 Connections ……………………………………………………………………………………. 6
Connecting to the RS-485 ……………………………………………………………………… 6
Connecting Video out connector ……………………………………………………………… 6
Connecting Alarms ……………………………………………………………………………… 6
Connecting the Network ………………………………………………………………………. 7
Connecting the Power ………………………………………………………………………… 7
2.7 Dome Network Camera IP Assignment ……………………………………………………… 7
2.8 Getting Started ………………………………………………………………………………… 8
Chapter 3 —Operation by Web Browser …………………………………..…………. 9
3.1 Accessing the Network Dome Camera by Web Browser …………………..……………… 9
3.2 Real-Time Monitoring …………………………….…….……………….………………………. 9
3.3 Network Dome Camera Setting ……………………………………………………………. 10
3.3.1 Video Setting …………………………………………….………………………………. 10
3.3.2 Audio Setting ……………………………………….…………………………………… 12
3.3.3 Alarm Setting ……………………………………..……………………………………… 13
3.3.4 PTZ Setting ……………………………………………………………………............. 16
3.3.5 System Setting ………………………………………..………………………………… 19
3.4 Help ……………………………………………………………………………………………… 27
Chapter 4 —Appendix …………………………………………………………………. 28
4.1 Product Specifications ………………………………..……………………………………..… 28
4.2 Troubleshooting ………………………………..……………………………………….……… 29
4.3 Glossary ………………………….………………….……………………………..…….…… 29

- 1 -
Chapter 1 —Introduction
1.1 FEATURES
The Fastrax X18 Network Dome Camera, PC Software makes up the building blocks for any
surveillance/security system. And Multiple Network Dome Cameras, no place is too large for
monitoring. Extensible and flexible architecture facilitates remote control functions for a variety of
external switching devices such as multiplexers and DVRs.
Built-in 18x times optical power zoom camera with True Night Shot function.
Full frame rate up to D1 (25fps@720x576) resolution compatible with MPEG4 standard.
80 Preset positions.
8 Tours consist of Preset, Auto-Scan and other Tours can be programmed with over
300 functions and Preset location. While moving, each Preset scan can be watched in smooth
Vector Scan mode.
8 Auto Scans including vector scan and 1 Endless Auto-Scan.
8 Privacy zones.
2 Alarm inputs / 1 Aux outs (NC & NO).
Variable speed from 0.1/sec to 90/sec.
Turbo speed is Max 360/sec with Ctrl key pressed.
Pan / Tilt speed is inversely proportional to the zoom ratio.
Maximum speed is 380/sec when preset command.
Programmable user preferences (alarm, preset, title, etc.).
Up to 999 selectable camera addresses (Setting up by PC Software).
Built-in RS-485 receiver driver.
Built-in power-line surge protection and lightning protection.
Built-in network interface (10Base-T/100Base-TX) for remote monitoring by PC.
Interface protocol : TCP/IP, HTTP, UDP, DHCP, RTP, RTSP, SMTP, DDNS.
Clear bubble with black liner (shelter) for concealing the camera.

- 2 -
Up to 254 Camera
Alarm
Input 1
Alarm
Output
up to 2
<Sensor>
<Siren>
<Flashing Light>
PC Program
push
remove window assemble bubble ring ass'y
push
remove camera window bubble ring ass'y
screw
[ Figure 1 –Typical System Configuration ]
[ Figure 2 –Assemble bubble ring ass’y ]
Note: It is recommended to remove camera window for improving picture quality when
you use bubble ring ass’y.

- 3 -
Chapter 2 —Installation and Configuration
2.1 Package Contents
The package contains the following.
Network Dome Camera ………………………….………………………………………………1
Bubble Ring……………………………………………………………….………..………………1
Quick Guide ……………………………..…………………………………..……………………1
Assembly Screws for Attaching Fastrax X18 Network Camera ………….…………………3
Plastic Anchor …………………………………………………………………...…………………3
Plate Adaptor ………………………………………………………..……………………………1
I/O Cable …………………………………………………………..………………………………1
CD …………………………………………………………..………….…..………………………1
Cable Clamping Band .….…………….………………………………………………………....1
The Network Dome Camera is for use in surface mounting applications and the mounting
surface should be capable of supporting loads up to 10lb (4.5kg).
The Network Dome Camera‟s base should be attached to a structural object, such as hard
wood, wall stud or ceiling rafter that supports the weight of the Network Dome Camera.
Unlock
Lock
Lock Fastrax II Network Camera
SURFACE(CEILING)
Plate Adaptor
[ Figure 3 –Installation ]

- 4 -
[Figure 4 –Dimension]

- 5 -
2.2 Basic Configuration of Fastrax X18 Network Dome Camera System
[Figure 5 –Basic installation diagram]
The Network Dome Camera must be installed by qualified service personnel in accordance
with all local and federal electrical and building codes. The system should be installed
according to Figures 5 through 10.
AC+ AC- AC+ AC- FGND (Rx+) (Rx-) Rx(Tx)+ Rx(Tx)- GND
Tx+ Tx- GND
RS-485 Controller

- 6 -
[ Figure 6 –Layout of Switches ]
2.3 Setting Network Dome Camera Termination
The device which is connected at end of line, whether it be a Network Dome Camera or
keyboard controller, must have the cable for communication terminated by setting the
appropriate DIP switch. Without proper termination, there is potential for control signal errors.
Total length of the cable for communication should not exceed 1.2km.
ON KS D0 2H
12
9A
SW1
[ Figure 7 –Setting Network Dome Camera Termination ]
2.4 Setting Network Dome Camera Address (ID)
To prevent damage, each Network Dome Camera must have a unique address (ID). When
installing multiple Network Dome Cameras using a multiplexer, it is suggested that the
Network Dome Camera address match the multiplexer port number.
If you want to set the address more than 999, you should contact the service provider.
Refer to „3.3.4 PTZ Setting‟ section for detailed information.
2.5 Setting Network Dome Camera Protocol
If a Network Dome Camera is to be installed with a Fastrax keyboard controller, select F2
protocol.
Consult service personnel if a Network Dome Camera is installed with device other than a
keyboard controller.
Refer to „3.3.4 PTZ Setting‟ section for detailed information.
SW1
1
2
Terminated
ON
ON
Not terminated
OFF
OFF

- 7 -
2.6 Connections
• Connecting to the RS485
The Network Dome Camera can be controlled remotely by an external device or control
system, such as a control keyboard, using RS485 half-duplex serial communications signals.
Connect Marked Rx+, Rx- to Tx+ and Tx- of the RS485 control system.
• Connecting Video out connector
Connect the video out(BNC) connector to the monitor or video input.
• Connecting Alarms
AL1 to 2 (Alarm In)
You can use external devices to signal the Network Dome Camera to react on events.
Mechanical or electrical switches can be wired to the AL (Alarm In) and GND (Ground)
connectors. See “3.3.3 Alarm Setting –Alarm In”for configuring alarm input.
GND (Ground)
NOTE: All the connectors marked GND are common.
Connect the ground side of the Alarm input and/or alarm output to the GND connector.
NC(NO) (Normal Close or Normal Open : Alarm Out)
The Network Dome Camera can activate external devices such as buzzers or lights.
Connect the device to the NC(NO) (Alarm Out) and COM (Common) connectors. See
“3.3.3 Alarm Setting –Alarm Out”for configuring alarm output.
• Connecting the Network
The Network Dome Camera supports the operation through the network. Therefore, it is
necessary to connect a standard RJ-45 cable to it. Generally a cross cable is used for
directly connection to PC, while a direct cable is used for connection to a hub.
• Connecting the Power
Connect the power of DC 12V to the Network Dome Camera.
Use certified / Listed Class 2 power supply transformer only.
2.7 DOME NETWORK CAMERA IP ASSIGNMENT
Dome Network Camera that is first connected to network basically has no IP address. So, it
is necessary to allocate the IP address of Dome Network Camera with an IP allocation
program.
Open the program folder installed with the provided CD and execute “IP Setting Utility”.

- 8 -
1. MAC Address
Enter MAC address of the product for IP input.
2. IP Address
Enter IP address to use.
3. Ethernet Adapter
In case there are several network cards, select a
card to use for the operation of Dome Network
Camera.
4. Start
Allocate input IP to the Dome Network Camera to
use. When a completion message appears on “5”
Status window in several seconds or minutes,
input completes its process. You can add
additional IPs to other devices continuously.
2.8 Getting Started
Once installed apply power to the Network Dome Camera. The Network Dome Camera will
start a configuration sequence.
[Figure 10 –OSD Position]
FASTRAX II E Vx.xxx
CAMERA TYPE xxxx
WAIT DOME SETTING.
INIT TILT ORGIN SET OK
INIT PAN ORGIN SET OK
INIT CAMERA SET OK
001 PRESET
EMPTY DATA !
T001 DOMEID:0001
W→360.0,090.0
PRESET No.
INFORMATION
DISPLAY
FUNCTION
UNDER RUNNING
CAMERA TITLE
CAMERA ID
VIEW DIRECTION
PAN & TILT ANGLE
PRESET TITLE
or AREA TITLE
[Figure 8 –IP Setting Utility]
[Figure 9 –Starting Camera OSD on CRT Monitor]

- 9 -
Chapter 3 —Operation by Web Browser
3.1 Connecting the Network Dome Camera by Web Browser
●Execute the Web Browser on the PC.
●Enter the Network Dome Camera address on the address window of the Web Brower and
execute it.
Ex) http://192.168.0.2/
(If the Network Dome Camera has no IP address or its IP address is wrong, users will fail to
connect the Network Dome Camera. In this case, users will have to connect the Network
Dome Camera the Web Browser after entering the IP address with the IP Utility.)
●Refer to „2.7 Network Camera IP Assignment‟ section for detailed information.
●If a security window for the ActiveX Controller installation appears, press the Confirm and
install it.
●If it is not connected in the Internet, from the CD-ROM install the ActiveX Controller by
manual operation.

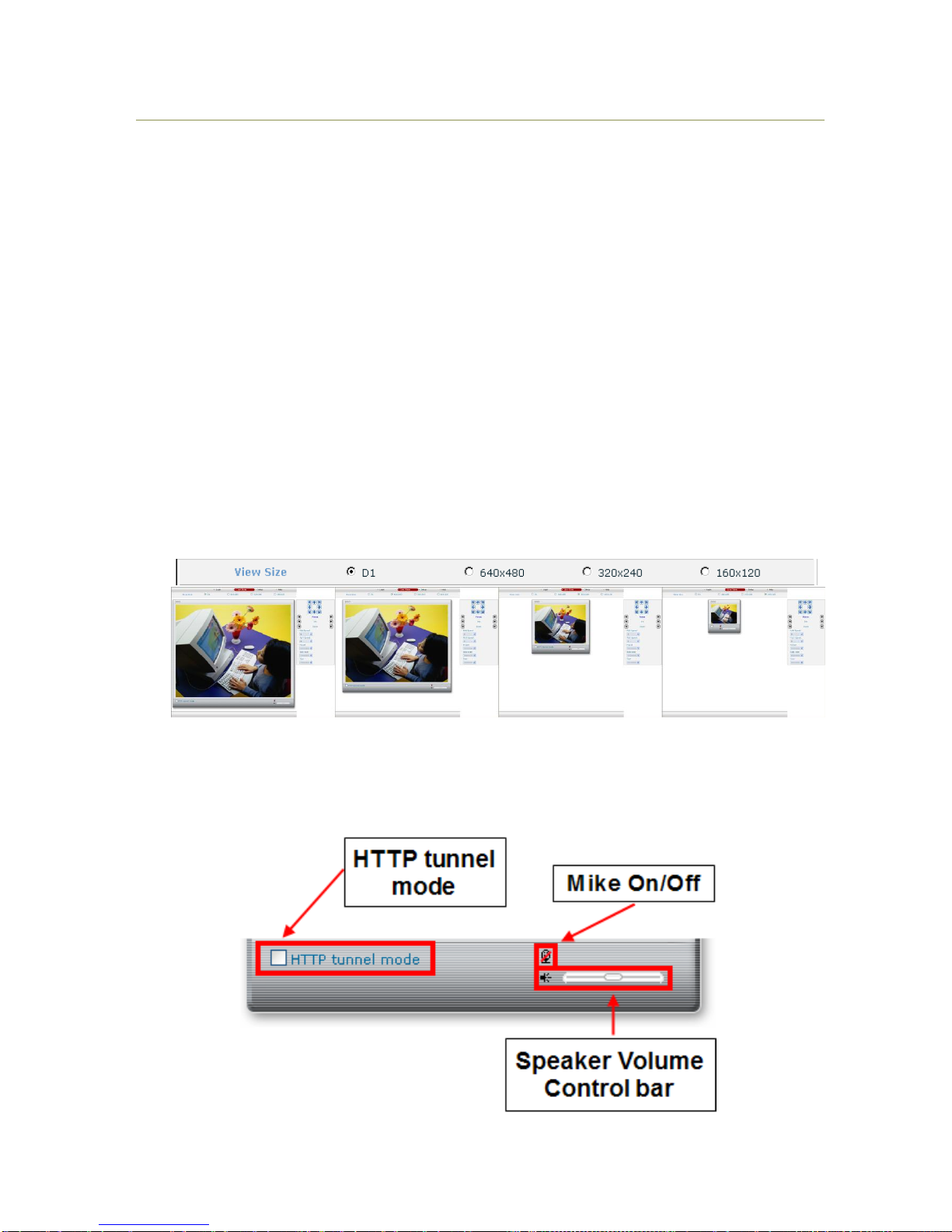

3.2 Real-Time Monitoring
The monitoring screen comes in four screen modes like D1, 640 X 480, 320 X 240, and 160 X
120. Users are allowed to select the most suitable one out of those modes. Please, adjust the
mode in accordance with your PC specifications and monitoring purposes.
In case of real-time monitoring with the Web Browser, one Network Dome Camera will be
connected to just one Web Browser. However, this case is not suitable for monitoring various
screens at the same time. If users are to monitor various images at the same time, please
contact your dealer.

- 10 -
□HTTP tunnel mode
When the screen is not indicated, check. (Notice: "unicast mode" only it is applied.)
If users are to control the volume of a microphone and speaker connected to a user PC, they
should adjust the user PC volume regardless of the microphone and speaker volume control
set in Network cameras.
3.3 Network Dome Camera Setting
Network Dome Camera setting is divided into video, audio, alarm, PTZ and system settings.
And the detailed screen will be provided for each setting.
3.3.1 Video Setting
The video setting is classified into Basic. The Basic menu includes a setting menu for real-time
monitoring. Its setting only is enough to complete a setting for viewing the monitoring screen.
The detailed setting menu is able to perform screen sizing, filtering, compressibility,
and brightness control.
Basic Setting
Image Appearance
Resolution
It enables users to determine a basic screen size when having an access through the
Web Browser or PC program.
The screen size control comes in four modes like D1, 640 X 480, 320 X 240, and 160 X
128. Users can reset the selected screen size anytime while monitoring the screen on a
real-time basis.
Image filter
The image filter control enables users to reinforce the image quality in a strong or weak
way. The default is "disabled.”

- 11 -
Compression
When it is necessary to adjust a smooth transmission status according to network
situations, users can increase the compressibility to carry out the network transmission
stably. On the other hand, when it is necessary to maintain a detailed monitoring screen
by enhancing the image quality, users can do so by decreasing the compressibility. In
ease case, please adjust this function according to the network status and monitoring
purposes. The default is 2000(Kbps).
BCS Adjust
Brightness
The screen brightness can be adjusted from 0 to 255 stages, and the default is 128. The
brightness may differ depending on the equipment and PC monitor status.
Contrast
The screen contrast can be adjusted from 0 to 127 stages, and the default is 73.
The contrast may differ depending on the equipment and PC monitor status.
Saturation
The screen saturation can be adjusted from 0 to 127 stages, and the default is 64.
The saturation may differ depending on the equipment and PC monitor status.
MPEG4 Video Stream
Frame rate
Upon the real-time play, users should select a frame refresh rate per second. If the rate is
high, the image will become smooth. On the other hand, if the rate is low, the image will
not be natural but it can reduce a network load.
Bit-rate control
Variable bit rate (VBR) : It refers to the type of using a variable bit rate (VBR). Increase a
bit rate for the image with much motion, and decrease a bit rate for the image with little
motion. The basic setting value is a VBR type.
Constant bit rate (CBR) : Using a constant bit rate (CBR) may guarantee a stable play.
However, if a large amount of data is not required, it may cause the waste of a
transmission rate. If a large amount of data is required, it may cause the image quality to
be decreased.
Profile
SP (Simple Profile) is available up to the CIF resolution and 384kbit/s.
ASP (Advanced Simple Profile) is available up to the 4CIF resolution and 8000kbit/s.
GOV size
Enter the GOV (group of VOP) size. If users want to have a high quality of fast image one
by one, please decrease the value. For the purpose of general monitoring, please do not
change a basic value. Such act may cause a problem to the system performance. For the
details of GOV setting, please contact the service center.

- 12 -
3.3.2 Audio Setting
Basic Setting
Users can use a microphone and speaker by using the audio function.
Audio Setting
Compression type
Users can increase a transmission rate or enhance a tone quality by selecting an audio
compression mode. The PCM 16-bit implements the best tone quality, while the PCM 8-bit
corresponds to that of radio sound.
Sample rate
If a sample rate is low, the tone quality will go down but the transmission rate will go up.
If a sample rate is high, the tone quality will be better, but the transmission rate will drop.
Please, adjust its rate in accordance with a network status or purposes.
Audio Input
Source
Users can select either MIC input or LINE input, but cannot use both at once.
Input Volume
Users can control the input volume by adjusting the microphone volume.
Audio Output
Output Volume
Users can control the output volume of the speaker connected to the Network Dome
Camera.

- 13 -
3.3.3 Alarm Setting
Alarm In Setting
This function enables users to conduct the alarm input/output setting and event setting.
Motion Detection Setting
Motion information is processed by splitting the screen into 64 areas. Each area can be
selected by clicking with the mouse, and green point shown in the selected area. The area
which uses the motion information as an event is shown green point, while the area which
does not use the information is indicated empty.
Enable
Check this item when using the motion information.
-Sensitivity
This sets up the sensitivity for the motion detection.
-Motion dwelling time
This sets up the event dwelling time when a motion occurs. This can be set in the range of
0 ~ 6 seconds. When an event occurs, the motion icon at the upper right blinks in red for
the preset time period. When another motion occurs during the motion event, the dwelling
time is extended on the basis of the occurring time of the second event.
-Enable down FPS
This feature decreases frame rate to about 1 FPS when no motion event occurs, while
operates with the frame rate set in this item when a motion event occurs.

- 14 -
Alarm IN Port 1 Setting
Type
Select the operation mode of the Alarm Input 1.
Select either „N.O.(Normal Close)‟ or „N.C.(Normal Open)‟
Alarm dwelling time [0~180]
Designate a running time for alarm occurrence. Select one out of 0 to 180 seconds.
Alarm IN Port 2 Setting
Type
Select the operation mode of the Alarm Input 2. Select either „N.O.‟ or „N.C.‟
Alarm dwelling time [0~180]
Designate a running time for alarm occurrence. Select one out of 0 to 180 seconds.
Alarm Out Setting
Upon the alarm occurrence, this function enables users to receive a mailing or ftp service
to the mail address designated by users.
SMPT(eMail) Setting
Sender: Enter an eMail address to send a mail.
Receiver list: Enter up to 10 eMail addresses to receive a mail.
Email test: Enter an eMail address to test for sending a mail.
Test button : Test for sending a mail with a value entered.

- 15 -
FTP & JPEG Setting
-FTP Settings
Enable
Checks to activate the FTP function.
Sender name or IP: Enters the FTP IP address or host name to be received.
Port: Enters the port number of FTP to be received.
Remote Directory: Enters the location for saving the file of FTP to be received.
Username: Enters the user's account when connecting to FTP.
Password: Enters the user password for connecting to FTP.
-JPEG Settings
Sets up the creation condition, screen size, color and name of JPEG file to be sent to FTP.
Pre event: Creates the JPEG file of chapter 1~5 for 1~2 seconds before the event is
generated.
Post event: Creates the JPEG file of chapter 1~15 for 1~2 seconds after the event is
generated.
Image size: Selects the size of JPEG file to be created among 160X120 and 320X240.
Color: Selects the color or B&W of JPEG file to be created.
Base name: Write in the basic name of file to be created.
Except for the basic name, It is possible to add supplementary names for discriminating
multiple files.
Additional suffix: Selects one among date, time and the number of sequence created.
None: Do not add supplementary names.
Date Time: Adds the date and time when the file was created behind the basic name.
Sequence: Adds the number in sequence of file creation behind the basic name.
Event Setup
IN-OUT Mapping
By connecting the Alarm OUT operations to the events occurred from the Alarm IN,
users can send an eMail or FTP Server.
Alarm IN - Alarm IN comes in Motion, Alarm in port 1 and Alarm in port 2.
Alarm OUT - Alarm: Operate the equipment connected to the Alarm OUT port to the
events occurred from the Alarm IN.
email: Send an eMail to events occurred from the Alarm IN.
