Mitsubishi Electric NM-C110 User manual

i
This unit complies with the requirements of the EC Directive 2004/108/EC,
“EMC Directive”. The requirements for the susceptibility according to EN
55024 and the requirements for interference according to EN 55022 are
observed for the operation on residential areas, business, light industrial
premises and in small scale enterprises, inside as well as outside of the
building. All places of operation are characterized by their connection to
the public low voltage power supply system.
Warning
This is class A product. In a domestic environment this product may cause radio
Interference in which case the user may be required to take adequate measures.

ii
Note: This symbol mark is for EU countries only.
This symbol mark is according to the directive
2002/96/EC Article 10 Information for users and Annex
IV, and/or to the directive 2006/66/EC Article 20
Information for end-users and Annex II.
Your MITSUBISHI ELECTRIC product is designed and manufactured with
high quality materials and components which can be recycled and/or
reused.
This symbol means that electrical and electronic equipment, batteries and
accumulators, at their end-of life, should be disposed of separately from
your household waste.
If a chemical symbol is printed beneath the symbol show above, this
chemical symbol means that the battery or accumulator contains a heavy
metal at a certain concentration. This will be indicated as follows: Hg:
mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used
electrical and electronic products, batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at
your local community waste collection/recycling centre.
Please, help us to conserve the environment we live in!

iii
IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS -- All the safety and operating instructions should be read before
the appliance is operated.
2. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for
future reference.
3. CLEANING -- Unplug video monitor or equipment from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. ATTACHMENTS -- Do not use attachments not recommended by the video monitor or
equipment manufacturer as they may result in the risk of fire, electric shock or injury to
persons.
5. WATER AND MOISTURE -- Do not use video monitor or equipment near water - for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool or the like.
6. ACCESSORIES -- Do not place video monitor or equipment on an unstable cart, stand or
table. The video monitor or equipment may fall causing serious injury to a child or adult and
serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's
instructions and should use a mounting kit approved by the manufacturer.
6A. Video monitor or equipment and cart combinations should be moved with care.
Quick stops, excessive force and uneven surfaces may cause the equipment and cart
combination to overturn.
7. VENTILATION -- Slots and openings in the cabinet at the back or bottom are provided for
ventilation and to ensure reliable operation of the video monitor or equipment and to protect
it from overheating. These openings must not be blocked or covered. The openings should
never be blocked by placing the video monitor or equipment on a bed, sofa, rug, or other
similar surface. Video monitor or equipment should never be placed near or over a radiator
or heat register. Video monitor or equipment should not be placed in a built-in installation
such as a bookcase unless proper ventilation is provided.
8. POWER SOURCES -- Video monitor or equipment should be operated only from the type
of power source indicated on the marking label. If you are not sure of the type of power
supplied to your home, consult your video monitor or equipment dealer or local power
company. For video monitor or equipment designed to operate from battery power refer to
the operating instructions.
9. GROUNDING OR POLARIZATION -- This video monitor may be equipped with a polarized
alternating - current line plug (a plug having one blade wider than the other). This plug will
fit into the power outlet only one way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug. Alternate Warnings - This video monitor is equipped with a three-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of
the grounding-type plug.
10. POWER CORDS -- Do not allow anything to rest on the power cord. Do not locate video
monitor or equipment where the cord will be abused by persons walking on it.
11. HEED WARNINGS -- Follow all instructions marked on the video monitor or equipment.
12. LIGHTNING -- For added protection for video monitor or equipment during a lightning storm,
or when it is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage to the video
product due to lightning and power-line surges.
13. OVERLOADING --Do not overload wall outlets and extension cords as this can result in a
risk of fire or electric shock.
14. OBJECT AND LIQUID ENTRY -- Never push objects of any kind into video monitor or
equipment through openings as they may touch dangerous voltage points or short-out parts
that could result in a fire or electric shock. Never spill liquid of any kind on the product.

iv
15. SERVICING -- Do not attempt to service video monitor or equipment yourself as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
16. DAMAGE REQUIRING SERVICE -- Unplug video monitor or equipment from the wall outlet
and refer servicing to qualified service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid has spilled or objects have fallen into the video product.
C. If the video product has been exposed to rain or water.
D. If the video product does not operate normally by following the operating instructions,
adjust only those controls that are covered by the operating instructions as an
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the video product to its normal
operation.
E. If the video product has been dropped, or the cabinet damaged.
F. When the video product exhibits a distinct change in performance -- this indicates a
need for service.
17. REPLACEMENT PARTS -- When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or that have the same
characteristics as the original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
18. SAFETY CHECK -- Upon completion of any service or repairs to this video product, ask the
service technician to perform safety checks to determine that the video product is in proper
operating condition.
19. FIELD INSTALLATION -- This installation should be made by a qualified service person and
should conform to all local codes.
20. Don’t remove the outer covering of this unit.

- 1 -
TABLEOFCONTENTS
1. Production Introduction ………………………………………… 1
1.1 Components ……………………………………………………………………………………… 1
1.2 NETWORK CAMERA'S External View and Port Description ……………………………… 1
1.2.1 Front View …………………………………………………………………………………… 1
1.2.2 Back View …………………………………………………………………………………… 2
1.2.3 Side View …………………………………………………………………………………… 2
1.2.4 Top View …………………………………………………………………………………… 2
2. NETWORK CAMERA Installation ……………………………… 3
2.1 Installation Order ………………………………………………………………………………… 3
2.2 Network Connection …………………………………………………………………………… 3
2.2.1 NETWORK CAMERA IP Assignment …………………………………………………… 3
2.3 Audio Connection ……………………………………………………………………………… 4
2.4 Alarm Connection ……………………………………………………………………………… 4
2.5 Power Connection ……………………………………………………………………………… 4
2.6 Reset Button ……….…………………………………………………………………………… 4
2.7 Network Camera Fixation ……………………………………………………………………… 4
3. Operation by Web Browser ……………………………………… 5
3.1 Accessing the NETWORK CAMERA by Web Browser ……………………………………… 5
3.2 Real-Time Monitoring …………………………………………………………………………… 5
3.3 NETWORK CAMERA Setting ………………………………………………………………… 6
3.3.1 Video Setting ……………………………………………………………………………… 6
3.3.2 Audio Setting ……………………………………………………………………………… 9
3.3.3 Alarm Setting ……………………………………………………………………………… 10
3.3.4 System Setting …………………………………………………………………………… 14
3.4 Help ……………………………………………………………………………………………… 23
4. Appendix …………………………………………………………… 24
4.1 Troubleshooting ……………………….……………………………………………………… 24
4.2 Preventive Maintenance ……………………………………………………………………… 24
4.3 Product Specifications ………………………………………………………………………… 25

- 1 -
QUICK GUIDE
1. Product Introduction
Unlike an analog camera, the NETWORK CAMERA enables users to easily see a real-time
monitoring screen on Internet regardless of distance and locations, requiring no additional
equipment. By using its dedicated program, many users are able to have an access to the
NETWORK CAMERA at once or a single user can monitor various NETWORK CAMERAS at
the same time. It also enables users to play, store and retrieve a monitoring image by using a
PC. All the settings and real-time monitoring screens are also provided through an access to
the web.
1.1 Components
1.2 NETWORK CAMERA’S External View and Port Description
1.2.1 Front View

- 2 -
DC 12V
: Reset Button

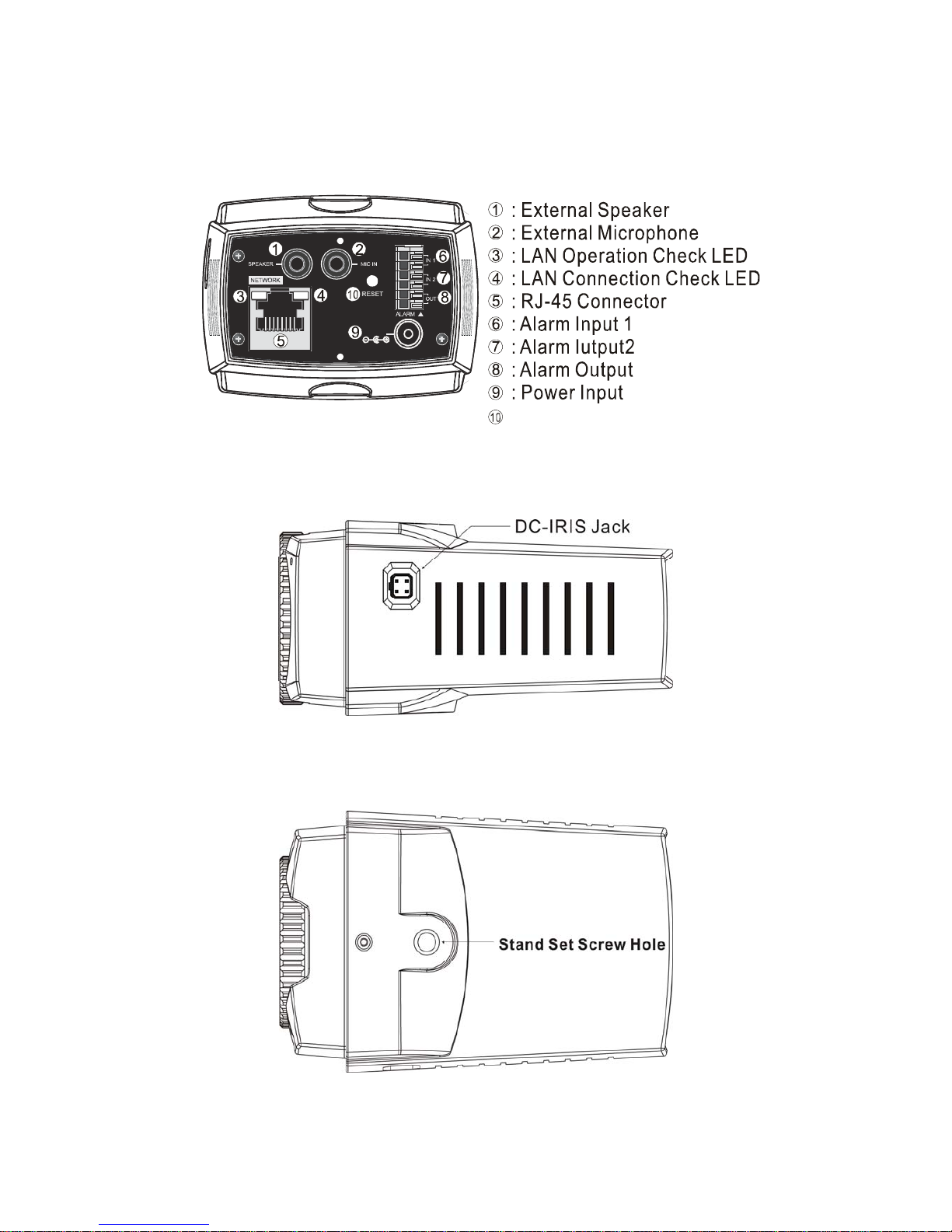

1.2.2 Back View
1.2.3 Side View
1.2.4 Top View

- 3 -
3
4
5
4
5
2. Network Camera Installation
2.1 Installation Order
Before operating this Network Camera, make sure to connect a network cable to power.
Users can add an alarm cable or an audio cable there depending on what operation
methods they choose.
As far as a camera-fixing stand is concerned, consult with an installer about its installation
locations.
2.2 Network Connection
The Network Camera supports
the operation through the
network. Therefore, it is
necessary to connect a
standard RJ-45 cable to it.
Generally a cross cable is used
for directly connection to PC,
while a direct cable is used for
connection to a hub.
2.2.1 Network Camera IP Assignment
Network Camera that is first connected to network basically has no IP address. So, it is
necessary to allocate the IP address of network camera with an IP allocation program.
Open the program folder installed with the provided CD and execute “IP Setting Utility”.
1. MAC Address
- Enter MAC address of the
product for IP input.
2. IP Address
- Enter IP address to use.
3. Ethernet Adapter
- In case there are several network
cards, select a card to use for the
operation of network camera.
4. Start
- Allocate input IP to the network
camera to use. When a
completion message appears on
○
5 Status window in several
seconds or minutes, input
completes its process. You can
add additional IPs to other
devices continuously.

- 4 -
Power Input
Reset Button
2.3 Audio Connection
The NETWORK CAMERA enables users to send and receive a voice through the
input/output module. Use it after connecting the port to the microphone and speaker,
which have an amplifier function.
2.4 Alarm Connection
Users can control the alarm systems like a siren, an
alarm and a warning light through two alarm inputs.
For technical support necessary to use the alarm
function, please contact the installer.
2.5 Power Connection
A stable power supply is required for the normal operation. The
adapter with DC 12V/300mA or more is provided basically. It is
recommended to use it along with an uninterruptible power supply
(UPS) device regardless of its polarity.
2.6 Reset Button
It connects the network camera in sources of electricity. When
pressing reset buttons during 5 seconds, it starts a rebooting.
When pressing reset buttons during 10 seconds, it starts a factory
reset.
2.7 Network Camera Fixation
When it comes to the general installation of the Network Camera, users can fix the Network
Camera on the stand by using a standard-sized screw hole on the top and bottom of the
main body.
●Top Fixed Installation
: This method is mainly used to install a camera on the higher places away from the
ground such as a ceiling or a dome camera stand.
●Bottom Fixed Installation
: This method is mainly used to install a camera on the close places to the ground like
a wall or a general stand.
Besides there are many other methods to install a camera, but they differ slightly from each
other according to installation places and operation methods. Therefore, please consult
with the installer about the detailed installation methods.
External Speaker
External Micro
p
hone
Alarm Input 1
Alarm Input 2
A
larm Output

- 5 -
3. Operation by Web Browser
3.1 Connecting the Network Camera by Web Browser
●Execute the Web Browser on the PC.
●Enter the camera address on the address window of the Web Brower and execute it.
Ex) http://192.168.0.2/
(If the camera has no IP address or its IP address is wrong, users will fail to connect the
camera. In this case, users will have to connect the camera by the Web Browser after
entering the IP address with the IP Utility.)
●If a security window for the ActiveX Controller installation appears, press the Confirm and
install it.
●Refer to ‘2.2.1 Network Camera IP Assignment’ section for detailed information.
●If it is not connected in the Internet, from the CD-ROM install the ActiveX Controller by
manual operation.
●If it is not connected in the Internet, from the CD-ROM install the ActiveX Controller by
manual operation.
3.2 Real-Time Monitoring
The monitoring screen comes in three screen modes like 640 X 480, 320 X 240, and 160 X
120. Users are allowed to select the most suitable one out of those modes. Please, adjust
the mode in accordance with your PC specifications and monitoring purposes.
In case of real-time monitoring with the Web Browser, one NETWORK CAMERA will be
connected to just one Web Browser. However, this case is not suitable for monitoring
various screens at the same time. If users are to monitor various images at the same time,
please contact your dealer.
□HTTP tunnel mode
When the screen is not indicated, check. (Notice: "unicast mode" only it is applied.)
If users are to control the volume of a microphone and speaker connected to a user PC,
they should adjust the user PC volume regardless of the microphone and speaker volume
control set in Network cameras.

- 6 -
3.3 NETWORK CAMERA Setting
Camera setting is divided into video, audio, alarm, and system settings. And the detailed
screen will be provided for each setting.
3.3.1 Video Setting
The video setting is classified into Basic, MPEG-4, and Still Images. The Basic menu
includes a setting menu for real-time monitoring. Its setting only is enough to complete a
setting for viewing the monitoring screen. The detailed setting menu is able to perform
screen sizing, filtering, compressibility, and brightness control.
zBasic Setting
Image Appearance
Resolution
It enables users to determine a basic screen size when having an access through the
Web Browser or PC program.
The screen size control comes in three modes like 640 X 480, 320 X 240, and 160 X
128. Users can reset the selected screen size anytime while monitoring the screen on
a real-time basis.
Image filter
The image filter control enables users to reinforce the image quality in a strong or weak
way. The default is "disabled.”
Compression
When it is necessary to adjust a smooth transmission status according to network
situations, users can increase the compressibility to carry out the network transmission
stably. On the other hand, when it is necessary to maintain a detailed monitoring
screen by enhancing the image quality, users can do so by decreasing the
compressibility. In ease case, please adjust this function according to the network
status and monitoring purposes. The default is 1500(Kbps).
Brightness
The screen brightness can be adjusted from 0 to 100 stages, and the default is 50. The
brightness may differ depending on the equipment and PC monitor status.

- 7 -
MPEG4 Video Stream
Frame rate
Upon the real-time play, users should select a frame refresh rate per second. If the rate
is high, the image will become smooth. On the other hand, if the rate is low, the image
will not be natural but it can reduce a network load.
Bit-rate control
Variable bit rate (VBR): It refers to the type of using a variable bit rate (VBR). Increase
a bit rate for the image with much motion, and decrease a bit
rate for the image with little motion. The basic setting value is a
VBR type.
Constant bit rate (CBR): Using a constant bit rate (CBR) may guarantee a stable play.
However, if a large amount of data is not required, it may
cause the waste of a transmission rate. If a large amount of
data is required, it may cause the image quality to be
decreased.
Profile
SP (Simple Profile) is available up to the CIF resolution and 384kbit/s.
ASP (Advanced Simple Profile) is available up to the 4CIF resolution and 8000kbit/s.
GOV size
The GOV size can be adjusted from 1 to 1000 stages, and the default is 30.
Enter the GOV (group of VOP) size. If users want to have a high quality of fast image
one by one, please decrease the value. For the purpose of general monitoring, please
do not change a basic value. Such act may cause a problem to the system
performance. For the details of GOV setting, please contact the service center.

- 8 -
zAE & AWB Setting
For more detailed settings, users can set the white balance and automatic exposure
control. It is possible to designate the basic value according to the types of light or set
it to a full automation mode.
White Balance Control
White Balance Mode
When it comes to the White Balance Mode, users should select an illumination mode
similar to that of general weather. Then, it can be set automatically. If users are not
familiar with mode selection, please select the automatic mode.
White Balance range
This function is to prevent the White Balance from leaning to a certain color too much.
If users want to prevent a certain color from getting thick too much at night or dark
places, it would be effective to select the “Wide” mode. In general cases, please select
the “Normal” mode. The default is “Normal” mode.
Set user calibration
Users are allowed to set the White Balance of their own. If users press the “Calibration”
button after having a white background or a sheet of white paper in front of the
NETWORK CAMERA, the White Balance will be adjusted.
Auto Exposure Control
Enable Low shutter : Users can use the Low Shutter mode in low light environments.
Select using
-Electronic shutter: For using manual lens.
-DC-IRIS: For using DC-IRIS lens.
Flicker-free : It removes flicker in the 50Hz power zone.( When it checks this, the
shutter speed is fixed. So it uses ‘Dc-Iris Lens’, it promotes.)

- 9 -
3.3.2 Audio Setting
zBasic Setting
Users can use a microphone and speaker by using the audio function.
Audio Setting
Compression type
Users can increase a transmission rate or enhance a tone quality by selecting an
audio compression mode. The PCM 16-bit implements the best tone quality, while
the PCM 8-bit corresponds to that of radio sound.
Sample rate
If a sample rate is low, the tone quality will go down but the transmission rate will go
up. If a sample rate is high, the tone quality will be better, but the transmission rate
will drop. Please, adjust its rate in accordance with a network status or purposes.
Audio Input
Source
Users can select either MIC input or LINE input, but cannot use both at once.
Input Volume
Users can control the input volume by adjusting the microphone volume.
Audio Output
Output Volume
Users can control the output volume of the speaker connected to the
NETWORK CAMERA.

- 10 -
3.3.3 Alarm Setting
zAlarm In Setting
This function enables users to conduct the alarm input/output setting and event setting.
Motion Detection Setting
Motion information is processed by splitting the screen into 64 areas. Each area can
be selected by clicking with the mouse, and green point shown in the selected area.
The area which uses the motion information as an event is shown green point, while
the area which does not use the information is indicated empty.
Enable
Check this item when using the motion information.
-Sensitivity
This sets up the sensitivity for the motion detection.
-Motion dwelling time
This sets up the event dwelling time when a motion occurs. This can be set in the
range of 0 ~ 6 seconds. When an event occurs, the motion icon at the upper right
blinks in red for the preset time period. When another motion occurs during the
motion event, the dwelling time is extended on the basis of the occurring time of the
second event.
-Enable down FPS
This feature decreases frame rate to about 1 FPS when no motion event occurs,
while operates with the frame rate set in this item when a motion event occurs.

- 11 -
Alarm IN Port 1 Setting
Type
Select the operation mode of the Alarm Input 1.
Select either ‘N.O.(Normal Close)’ or ‘N.C.(Normal Open)’
Alarm dwelling time [0~180]
Designate a running time for alarm occurrence. Select one out of 0 to 180 seconds.
Alarm IN Port 2 Setting
Type
Select the operation mode of the Alarm Input 2. Select either ‘N.O.’ or ‘N.C.’
Alarm dwelling time [0~180]
Designate a running time for alarm occurrence. Select one out of 0 to 180 seconds.

- 12 -
zAlarm Out Setting
Upon the alarm occurrence, this function enables users to receive a mailing or ftp
service to the mobile phones or mail address designated by users.
SMPT(eMail) Setting
Sender : Enter an eMail address to send a mail.
Receiver list: Enter up to 10 eMail addresses to receive a mail.
Email test: Enter an eMail address to test for sending a mail.
Tset button : Test for sending a mail with a value entered.
FTP & JPEG Setting
-FTP Settings
Enable
Checks to activate the FTP function.
Sender name or IP: Enters the FTP IP address or host name to be received.
Port: Enters the port number of FTP to be received.
Remote Directory: Enters the location for saving the file of FTP to be received.
Username: Enters the user's account when connecting to FTP.
Password: Enters the user password for connecting to FTP.

- 13 -
-JPEG Settings
Sets up the creation condition, screen size, color and name of JPEG file to be sent to
FTP.
Pre event: Creates the JPEG file of chapter 1~5 for 1~2 seconds before the event is
generated.
Post event: Creates the JPEG file of chapter 1~15 for 1~2 seconds after the event is
generated.
Image size: Selects the size of JPEG file to be created among 160X120 and 320X240.
Color: Selects the color or B&W of JPEG file to be created.
Base name: Write in the basic name of file to be created.
Except for the basic name, It is possible to add supplementary names for discriminating
multiple files.
Additional suffix: Selects one among date, time and the number of sequence created.
~None: Do not add supplementary names.
~Date Time: Adds the date and time when the file was created behind the basic name.
~Sequence: Adds the number in sequence of file creation behind the basic name.
zEvent Setup
IN-OUT Mapping
By connecting the Alarm OUT operations to the events occurred from the Alarm IN,
users can send an eMail or FTP Server.
Alarm IN - Alarm IN comes in Motion, Alarm in port 1 and Alarm in port 2.
Alarm OUT
Alarm: Operate the equipment connected to the Alarm OUT port to the events
occurred from the Alarm IN.
eMail: Send an email to events occurred from the Alarm IN.
FTP: Sends the captured picture to FTP by the event which occurs from Alarm input.
□Enable mandatory alarm out: Enable alarm control to open/close contact.

- 14 -
3.3.4 System Setting
zUsers Setting
This NETWORK CAMERA's Authority Policy
1. Anonymous User Access Permit Mode
This mode enables any anonymous users to have an access to the NETWORK
CAMERA to monitor and set it.
2. Anonymous User Access Denial Mode
Upon selecting this mode, the NETWORK CAMERA operates in two authority groups.
And it also requires a log-in process when users are to have an access to the
NETWORK CAMERA to change a screen monitoring or setting.
1) Administrator Authority Group (admin)
It enables administrators to change the screen monitoring and setting of the
NETWORK CAMERA. In addition, this authority allows only one user to have an
access to the camera at once.
2) General User Authority Group (user)
It enables users to simply use a screen monitoring function. It disables users to
change the NETWORK CAMERA setting but allows them to have a multiple access
at the same time.
User setting
Enable anonymous viewer login: Check it when users do not want to use the camera
without the user account.
When using the user account, users have to try log-
in at every access.
Admin Setting
User name: Enter a user name for the administrator use.
Password: Enter the password for the administrator use.
