Mitsubishi Electric NM-C130FD User manual

ii
This unit complies with the requirements of the EC Directive 2004/108/EC, “EMC
Directive”. The requirements for the susceptibility according to EN 55024 and the
requirements for interference according to EN 55022 are observed for the operation
on residential areas, business, light industrial premises and in small scale
enterprises, inside as well as outside of the building. All places of operation are
characterized by their connection to the public low voltage power supply system.
Warning
This is class A product. In a domestic environment this product may cause radio
Interference in which case the user may be required to take adequate measures.

iii
Note: This symbol mark is for EU countries only.
This symbol mark is according to the directive 2002/96/EC
Article 10 Information for users and Annex IV, and/or to the
directive 2006/66/EC Article 20 Information for end-users and
Annex II.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high
quality materials and components which can be recycled and/or reused.
This symbol means that electrical and electronic equipment, batteries and
accumulators, at their end-of life, should be disposed of separately from your
household waste.
If a chemical symbol is printed beneath the symbol show above, this chemical
symbol means that the battery or accumulator contains a heavy metal at a certain
concentration. This will be indicated as follows: Hg: mercury (0.0005%), Cd:
cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used electrical and
electronic products, batteries and accumulators.
Please, dispose of this equipment, batteries and accumulators correctly at your local
community waste collection/recycling centre.
Please, help us to conserve the environment we live in!

iv
IMPORTANTSAFEGUARDS /
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that product heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prongs are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where thy exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
14. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM
ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS
UNLESS YOU ARE QUALIFIED TO DO SO.
15. Use Certified/Listed Class 2 power supply transformer only.
16. Don’t remove the outer covering of this unit.

v
TABLE OF CONTENTS
1. Product Introduction....................................................................................................................- 1 -
1.1 Features ............................................................................................................................- 1 -
1.2 Operation Requirements ...................................................................................................- 2 -
2. NETWORK CAMERA INSTALLATION.......................................................................................- 3 -
2.1 Package Contents .............................................................................................................- 3 -
2.2 Base Installation ................................................................................................................- 3 -
2.3 Basic Configuration Dome Network Camera System ........................................................- 6 -
2.4 Connecting Wiring .............................................................................................................- 6 -
2.4.1 Connecting Video out connector .............................................................................- 6 -
2.4.2 Connecting Network ................................................................................................- 7 -
2.4.3 Connecting Audio in/out connector..........................................................................- 7 -
2.4.4 Connecting the Power .............................................................................................- 7 -
2.5 NETWORK CAMERA IP Assignment................................................................................- 8 -
3. OPERATING CAMERA (Analog Mode)......................................................................................- 9 -
3.1 SETTINGS.........................................................................................................................- 9 -
3.1.1 Main Menu...............................................................................................................- 9 -
3.1.2 WB.........................................................................................................................- 10 -
3.1.3 AE..........................................................................................................................- 12 -
3.1.4 BLC........................................................................................................................- 16 -
3.1.5 CAM SET...............................................................................................................- 16 -
3.1.6 SPECIAL ...............................................................................................................- 18 -
3.1.7 D&N.......................................................................................................................- 20 -
3.1.8 DNR.......................................................................................................................- 21 -

vi
3.1.9 MOTION DET ........................................................................................................- 22 -
3.1.10 END.....................................................................................................................- 23 -
4. Operation by Web Browser.......................................................................................................- 24 -
4.1 Connecting the NETWORK CAMERA by Web Browser .................................................- 24 -
4.2 Real-Time Monitoring ......................................................................................................- 24 -
4.3 NETWORK CAMERA Setting..........................................................................................- 25 -
4.3.1 Video Setting .........................................................................................................- 25 -
4.3.2 Audio Setting .........................................................................................................- 28 -
4.3.3 Alarm Setting.........................................................................................................- 29 -
4.3.4 System Setting ......................................................................................................- 33 -
4.4 Help .................................................................................................................................- 45 -
5. Appendix...................................................................................................................................- 46 -
5.1 Troubleshooting...............................................................................................................- 46 -
5.2 Preventive Maintenance ..................................................................................................- 46 -
5.3 Product Specifications .....................................................................................................- 47 -

- 1 -
1. Product Introduction
The camera provides high-quality images using SONY CCD technology especially designed for
closed-circuit television (CCTV) and security surveillance applications. The NETWORK CAMERA
supports the operation through the network.
1.1 Features
•High resolution and high performance 1/3" SONY Super HAD CCD Technology.
•Full frame rate up to D1 (25fps@720x576, 30fps@720x480) resolution compatible with
MPEG4 standard.
•Superior Image quality (540 TV Lines).
•Combines superior imaging with a Vandal-proof housing rugged, compact specially designed
for installable anywhere (Indoor / Outdoor).
•0.3 Lux(Color) @ F1.2 Sensitivity.
•1 Audio input and 1 Audio output.
•Auto electronic shutter [1/60(1/50) ~ 1/120,000] and manual electronic shutter modes.
•Full control via the OSD menu key on the rear of the camera.
•Auto and manual white balance modes.
•BLC (Back Light Compensation), Day & Night (Auto / Color / B/W), AGC (Auto Gain Control)
•Incredible noise reduction for picture quality & file size.
•Privacy Zone 4point, MIRROR, VIDEO OUT (BNC), Motion Detection 4point.
•Up to 63 selectable camera addresses.
•Clear bubble with black liner (shelter) for concealing the camera.
•Built-in network interface (10Base-T/100Base-TX) for remote monitoring by PC
•Interface Protocol : TCP/IP, HTTP, UDP, DHCP, RTP, RTSP, SMTP, DDNS
•Optional tinted bubble, wall mount.
•Sophisticated motion detection
•Supports pre & post alarm record in client PC
•Notify events via e-mail
•Quick & Easy set up with user friendly GUI
IMPORTANT: The user of this camera is responsible for checking and complying
with local, state, and federal laws and statutes concerning the recording and
monitoring of audio signals.

- 2 -
1.2 Operation Requirements

- 3 -
2. NETWORK CAMERA INSTALLATION
2.1 Package Contents
The package contains the following.
Dome Camera …………………………..…………….. 1
Quick Guide ………………………………………….... 1
Accessory kit for installing Dome Camera ………….. 1
Template sheet ……………………..………………….. 1
Safety wire ………………………………….………….. 1
RJ-45 Coupler ………………………………………….. 1
CD ……………………………………..………………….. 1
2.2 Base Installation
Note:
When wiring, note the following: For the video cable, keep the BNC connector
(metal part) away from any other metal material.

- 4 -

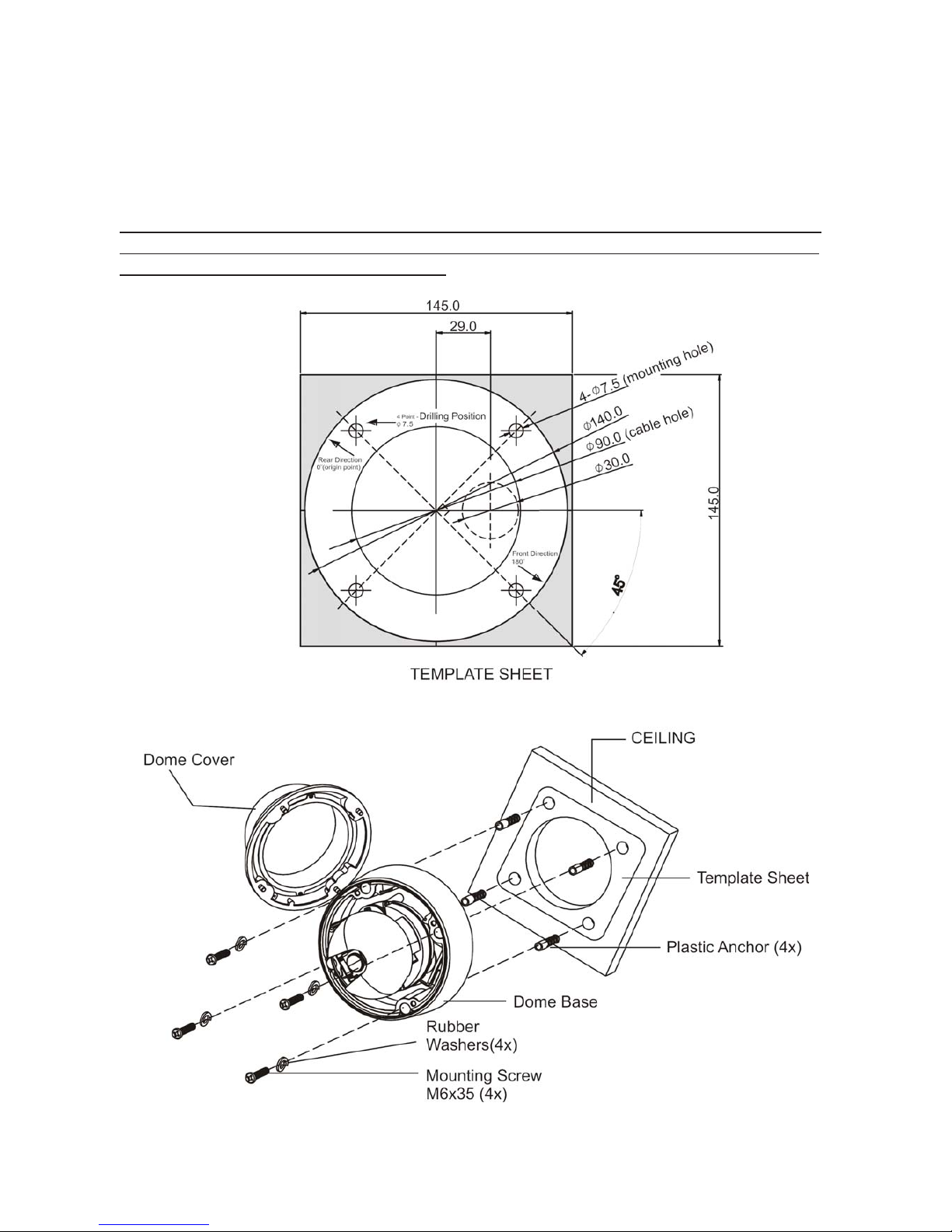

[Installation]
1. Make mounting holes and cable hole in the place (ceiling) to which this dome camera is
installed using the supplied template sheet.
WARNING:THE TOTAL MASS OF THE MAIN UNIT IS APPROX 1.3KG.CHECK WHETHER THE CEILING TO
WHICH THE DOME CAMERA IS INSTALLED IS STRONG ENOUGH TO HOLD THE UNIT MASS.IF NOT,THE
DOME CAMERA COULD FALL,CAUSING INJURY.

- 5 -

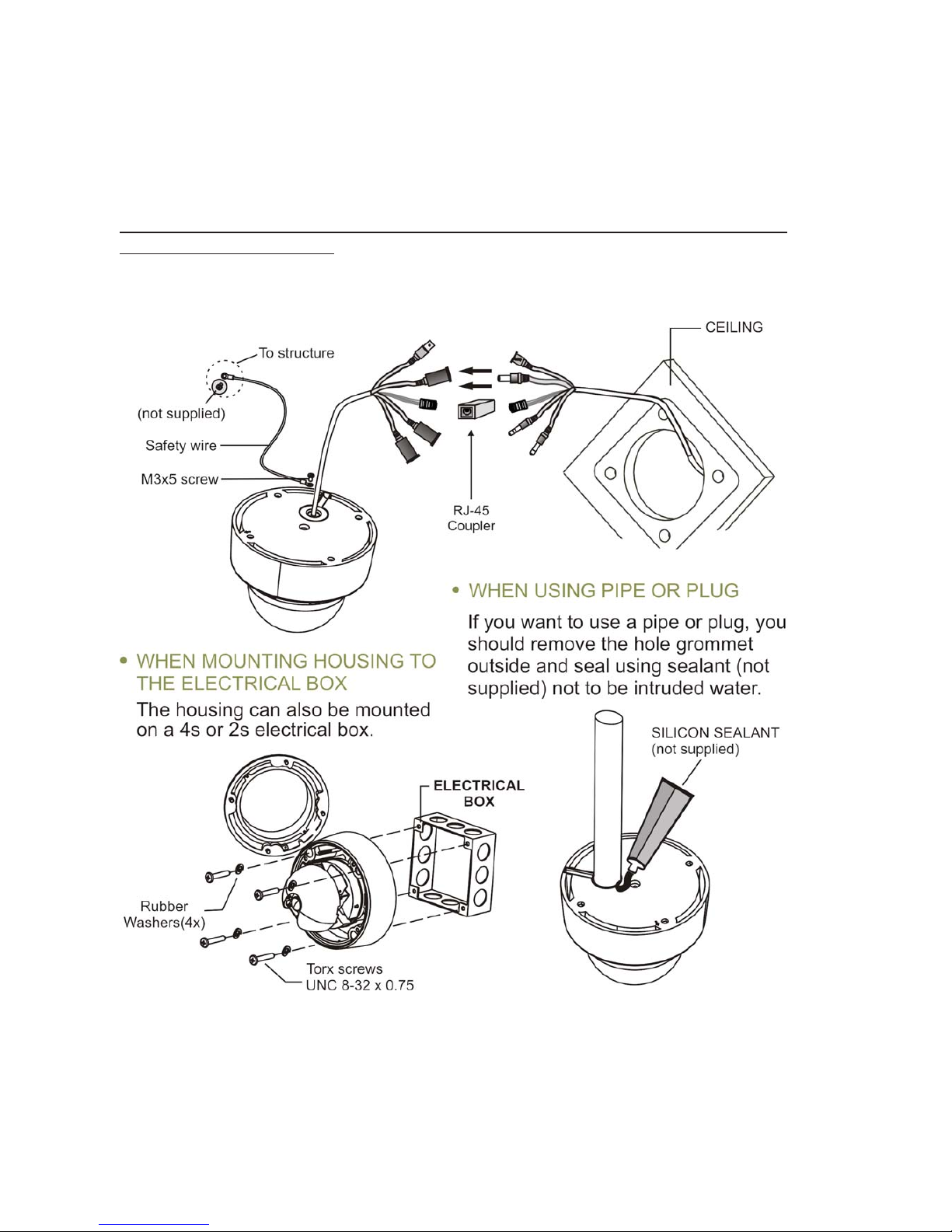

2. Extract each wire through the cable hole and wire the supplied power.
3. Attach the safety wire for securing the dome camera to ceiling or structure not to fall.
4. Unlock 4 torx screws on the dome cover and lock the dome base firmly with supplied 4
fixing screws.
WARNING:FASTEN THE FIXING SCREWS OF THE DOME CAMERA FIRMLY,OR THE DOME CAMERA
COULD FALL,CAUSING INJURY.
5. Lock the housing cover with 4 torx screws.

- 6 -

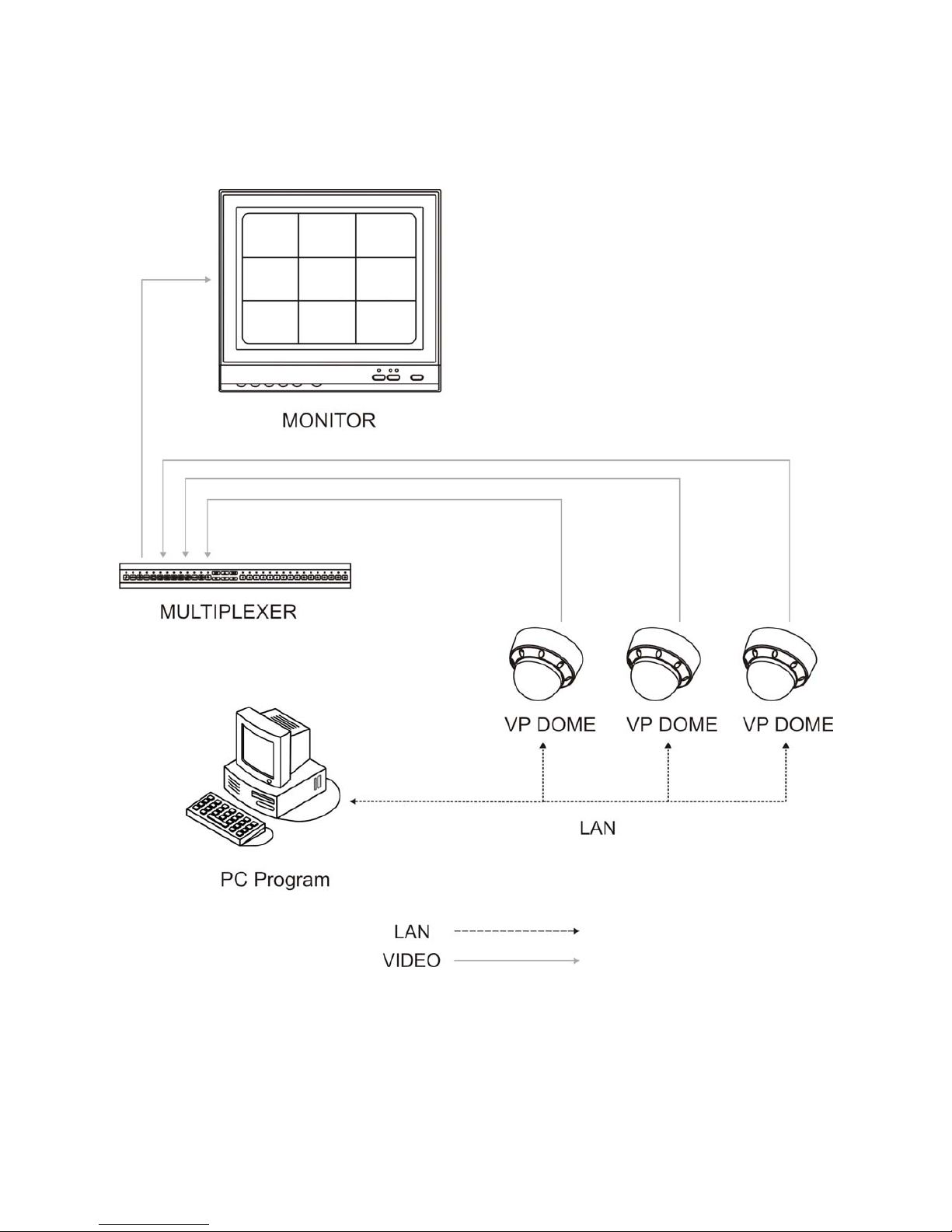

2.3 Basic Configuration Dome Network Camera System

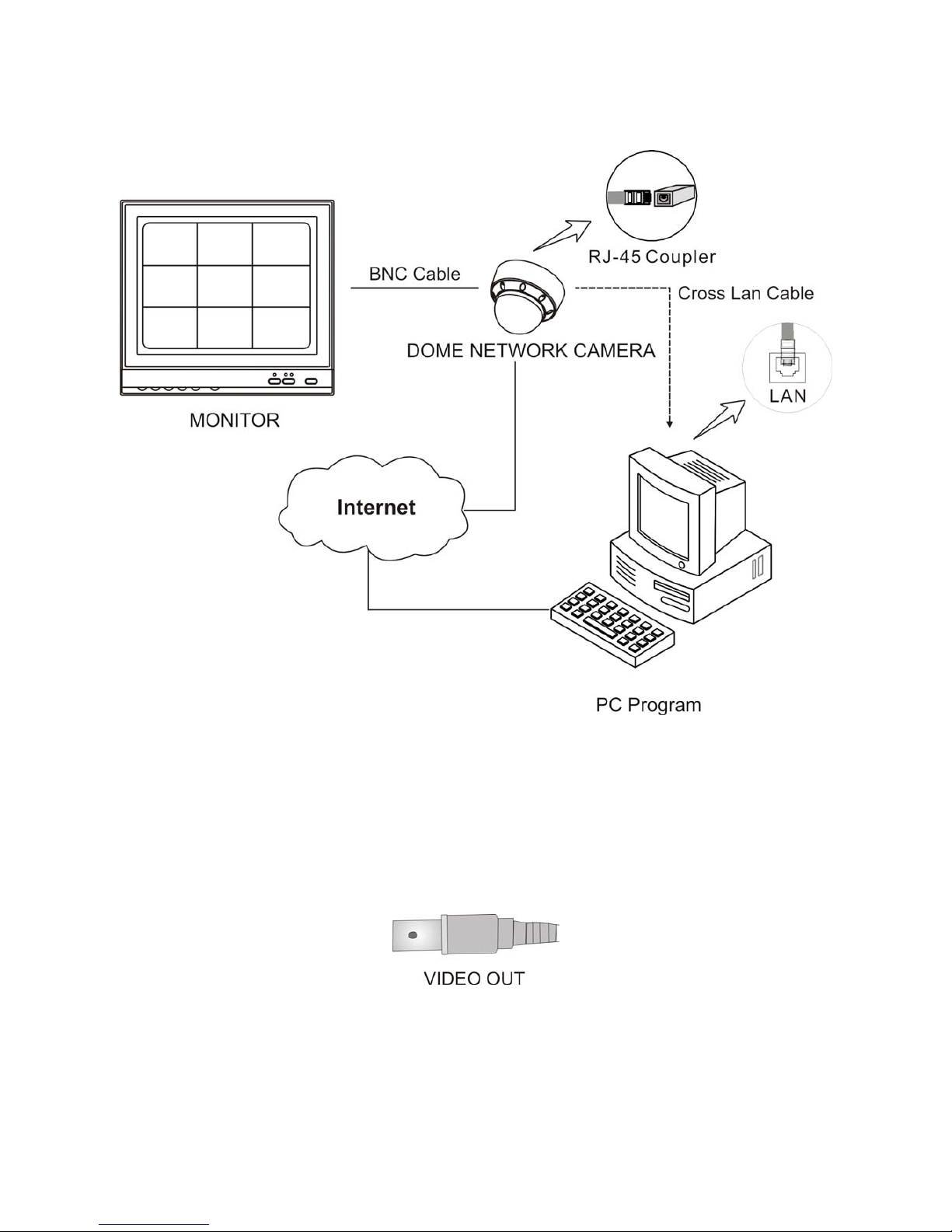

2.4 Connecting Wiring
2.4.1 Connecting Video out connector
Connect the video out (BNC) connector to the monitor or video input.

- 7 -

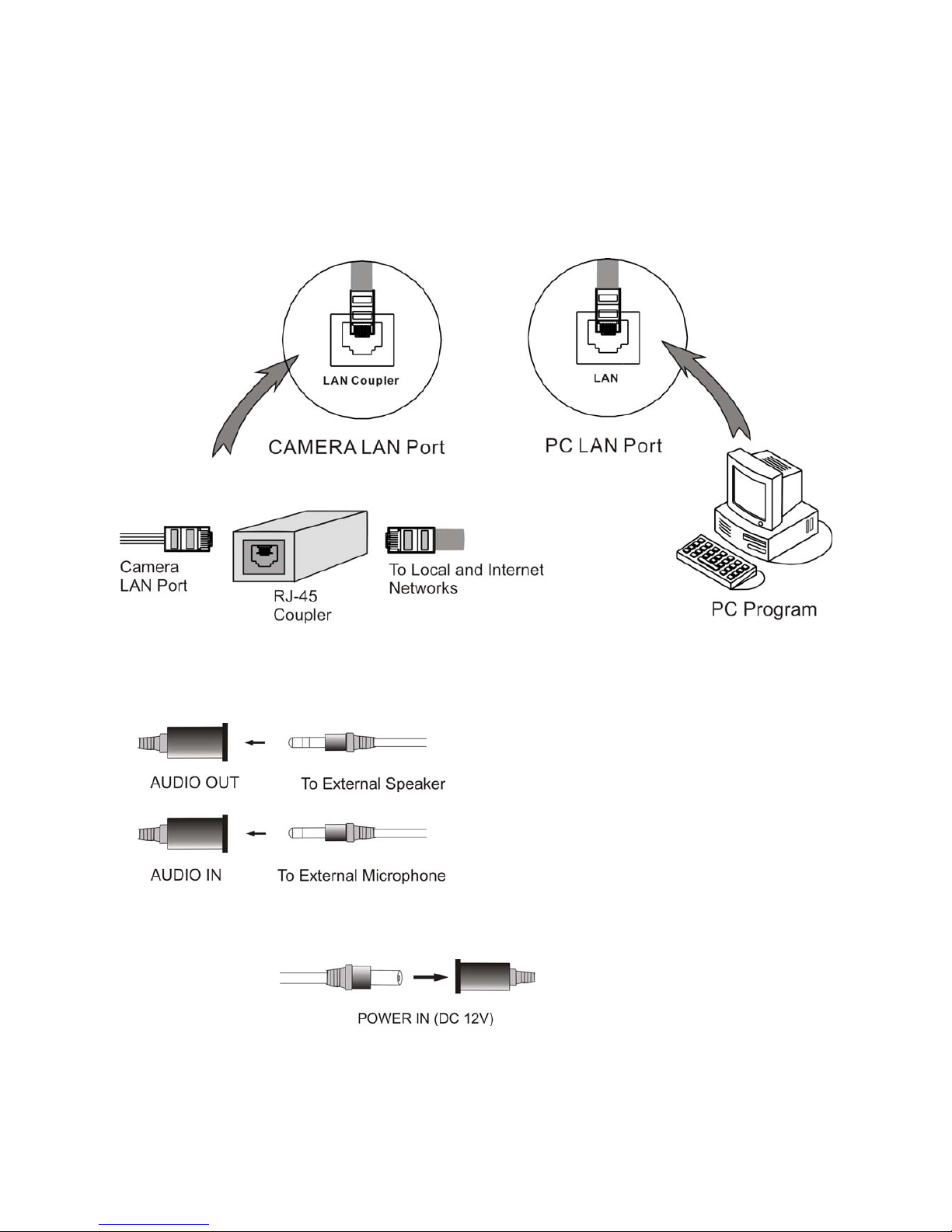

2.4.2 Connecting Network
The Dome Network Camera supports the operation through the network. Therefore, it is necessary
to connect a standard RJ-45 cable to it. Generally a cross cable is used for directly connection to
PC, while a direct cable is used for connection to a hub.
2.4.3 Connecting Audio in/out connector
The Dome Network Camera enable voice
transceiving through the audio input/output module
interworked. Use it after connecting the port to the
microphone and speaker, which have an amplifier
function.
2.4.4 Connecting the Power
Connect the power of DC 12V 1A to the dome camera.
Use certified / Listed Class 2 power supply transformer only.

- 8 -
2.5 NETWORK CAMERA IP Assignment
Dome Network Camera that is first connected to network basically has no IP address. So, it is
necessary to allocate the IP address of Dome Network Camera with an IP allocation program.
Open the program folder installed with the provided CD and execute “IP Setting Utility”.
1. MAC Address
Enter MAC address of the product for IP input.
2. IP Address
Enter IP address to use.
3. Ethernet Adapter
In case there are several network cards, select a card
to use for the operation of Network Camera.
4. Start
Allocate input IP to the Network Camera to use. When
a completion message appears on “5” Status window in
several seconds or minutes, input completes its
process. You can add additional IPs to other devices
continuously.

- 9 -
3. OPERATING CAMERA (Analog Mode)
3.1 SETTINGS
Settings can be made using the 5 buttons located on the back of the camera.
3.1.1 Main Menu
1. The MAIN MENU is displayed on the monitor when press the ENTER button.
2. Please select any function you wish to activate by using the UP and DOWN buttons.
•The arrow can be moved up or down by using the UP and DOWN buttons. Please
position the arrow to point to the function you wish to operate.
<MAIN MENU>
►WB
AE
BLC
CAM SET
SPECIAL
D&N
DNR
MOTIONDET OFF
END
<MAIN MENU>
►WB
AE
BLC
CAM SET
SPECIAL
D&N
DNR
MOTION DET OFF
END
Select any function
you wish to operate
by using the UP and
DOWN buttons.
If  appears at the
mode you wish to
operate, it means that
there is a sub menu
which can be selected
by pressing the
ENTER button.
Modes can be
changed using the
LEFT or RIGHT
buttons.

- 10 -
WHITE BAL.
MODE ATW / AWC/ MANUAL
R GAIN |--------|--------| 1 ~70
R GAIN |--------|--------| 1 ~70
END
3. Press the LEFT or RIGHT button if you wish to change mode.
•When the LEFT or RIGHT button is pressed, available values and modes are displayed
in order.
Please keep pressing the button until you get to the mode you wish to operate.
4. To finishing the setting without save, select 'END' and then press the ENTER button. But if
you want to keep the setting, enter the CAM SET menu, select 'SAVE' and then press the
ENTER button.
NOTE: If ' - - -' appears at the mode item, it means that is no mode available
to be selected.
3.1.2 WB
Press the MENU button to access the "WB" mode.
① -----------------------------
② -----------------------------
③ -----------------------------
④ -----------------------------
① MODE
ATW (Auto Tracking White Balance)
This mode can be used within the color temperature range 1,800°K ~ 10,500°K
AWC (Auto White Balance Control)
Please press the MENU button while the camera is directed at a piece of white paper to
obtain the optimum state under current illumination. If the environment including the light
source is changed, you have to adjust the white balance again.
MANUAL
The manual adjustment mode enables finer adjustment. You can adjust the RED and BLUE
color values while monitoring the color changes on the object at the 'R GAIN' or 'B GAIN'
menu. The 'R GAIN' and 'B GAIN' is available only at the MANUAL mode.

- 11 -
NOTE: Under the following conditions the WHITE BALANCE function may not
operate properly. In such cases, please select the AWC mode.
When the object's surroundings have a very high color temperature. (eg. A clear sky and
sunset)
When the object's surroundings are dark
If the camera directly faces a fluorescent light or is installed in a place where there are
considerable changes in illumination, the WHITE BALANCE function may become unstable.
②R GAIN
Adjust the R GAIN by using the LEFT or RIGHT button.
(This is effective only in case of selecting the MANUAL MODE)
0 ~ 100
③B GAIN
Adjust the B GAIN by using the LEFT or RIGHT button.
(This is effective only in case of selecting the MANUAL MODE)
0 ~ 100
④END
RETURN to MAIN MENU.

- 12 -
AUTO EXPOSURE
MODE
-AUTO 
●BRIGHTNESS |--------|--------| 1 ~70
●END
-SHUTTER 
●SHUTTER X128 ~ 1/120,000
●END
-FLK
AGC
-HIGH 
●BRIGHTNESS |--------|--------| 1 ~70
●END
-NORMAL
●BRIGHTNESS |--------|--------| 1 ~70
●END
-OFF
LENS
-MANUAL
-DC 
●BRIGHTNESS |--------|--------| 1 ~70
●END
-VIDEO
SENS-UP
-OFF
-AUTO 
●AUTO X2 ~ X128
●END
END
3.1.3 AE
Press the MENU button to access the "AE" mode.
① ---------------------
② ---------------------
③ ---------------------
④ ---------------------
⑤ ---------------------

- 13 -
①MODE
AUTO
Auto control of the shutter speed can be achieved. When AUTO mode is on, the speed is
controlled automatically according to the brightness of the screen.
•BRIGHTNESS LEVEL: Adjust the "BRIGHTNESS" to the desired by using LEFT or
RIGHT button. 1 ~ 70
•END: RETURN to AE MENU
SHUTTER
The shutter speed can be controlled manually.
X128 ~ 1/120,000
FLK
Please select 'FLK' mode when flickering occurs on the screen, due to an imbalance
between illumination and frequency.
NTSC Model: 1/100, PAL Model: 1/120
NOTE:
When selecting DC/VIDEO lens, you can choose 'FLK' or '1/60 or 1/50'. The
'FLK' functions FLICKLESS OFF and the '1/60 or 1/50' functions E/I OFF.
While using the internal system, if the shutter setting is on 'AUTO' and the
camera is directly facing a bright fluorescent light, the image on the screen
can be adversely affected. Therefore please choose the installation location
with care.
When 'SHUTTER' mode is on, the SENS UP function does not operate.
②AGC (Auto Gain Control)
Adjust the AGC GAIN to the desired mode by using LEFT or RIGHT button. As the level of
gain increases, the screen gets brighter and the level of noise also increases.
HIGH / MORMAL / OFF
•BRIGHTNESS LEVEL: Adjust the "BRIGHTNESS" to the desired by using LEFT or
RIGHT button. 1 ~ 70
•END: RETURN to AE MENU

- 14 -
③ LENS
Automatic control of the brightness level through the intensity of radiation.
MANUAL
Available by using manual lens.
DC
•LEVEL: Adjust the brightness level by pressing the LEFT or RIGHT button at the DC's
submenu. Level setting is available only by using the DC IRIS lens. Then put the A/I
LENS selection switch on the side of the camera in the "DC" position.
•END: RETURN to the AE MENU
VIDEO
NOTE:
When using an auto iris lens, the setting of the auto iris lens selection switch,
located on the back of the camera, must be on DC or VIDEO depending on
the type of the lens which is being used.
The brightness of the screen can be adjusted in DC mode. The brightness can
be adjusted within the range of 0~70. The optimum level of brightness for
the user can be achieved by adjustment.
* When using Auto Iris Lens with Video type
i. Adjust ALC volume on the lens properly. Normally ALC volume should be turned all the way
to Av(Average).
ii. According to the type of the lens used, the lens may not perform properly. In such a case,
adjust the volume level on the lens.
iii. For adjusting the Volume Level, enter the submenu at the ‘VIDEO LENS’ mode. And then
adjust it to the desired state.
NOTE:
When the auto iris is mounted, you have to set the DC/Video selection switch
on the side of the camera properly according to status of this selection switch.
