SPECIFICATIONS
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply : AC120 V 60 Hz
3. Load imp. : 100 K ohm
4. Room ambient : 5 °C ~ 40 °C
ITEM CONDITIONS UNIT NOMINAL LIMIT
1. Video Output 75 ohm load Vpp 1.0 ± 0.1
2. Optical Digital Out dBm -18
3. Audio (PCM)
3-1. Output Level 1kHz 0dB Vrms 2.0
3-2. S/N dB 120
3-3. Freq. Response
DVD fs=48kHz 20~22kHz dB ± 0.5
CD fs=44.1kHz 20~20 kHz dB ± 0.5
3-4. THD+N
DVD 1 kHz 0dB % 0.0025
CD 1 kHz 0dB % 0.003

1-2-1 DVD_LASER
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
LASER RADIATION
WHEN OPEN. DO NOT
STARE INTO BEAM.
CAUTION
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
Location: Inside Top of DVD mechanism.

1-3-1 DVD_SFN1
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evi-
dent from visual inspection, nor can the protection they
give necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are iden-
tified by a #on schematics and in parts lists. Use of a
substitute replacement that does not have the same
safety characteristics as the recommended replace-
ment part might create shock, fire, and/or other haz-
ards. The Product’s Safety is under review
continuously and new instructions are issued when-
ever appropriate. Prior to shipment from the factory,
our products are carefully inspected to confirm with
the recognized product safety and electrical codes of
the countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor-
tant to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the #symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent
shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo-
sure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.

1-3-2 DVD_SFN1
Chassis or Secondary Conductor
dd'
Primary Circuit Terminals
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
1.5k 0.15 F
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original posi-
tions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi-
nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
AC Line Voltage Clearance Distance (d) (d’)
120 V ≥3.2mm (0.126 inches)
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15µF CAP. & 1.5kΩ RES.
Connected in parallel i≤0.5mA Peak Exposed accessible parts
Fig. 1
Fig. 2

1-4-1 DVD_NOTE
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indi-
cated as shown.
2. For other ICs, pin 1 and every fifth pin are indicated
as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2

1-4-2 DVD_NOTE
With Soldering Iron:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6

1-4-3 DVD_NOTE
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2) The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro-
static charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is prop-
erly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(1) Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground-
ing band, be careful to avoid contacting semi-con-
ductors with your clothing.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8
CBA
< Incorrect >
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
< Correct >

1-5-1 E5732IB
4 5 6 7 8321
FRONT PANEL
REMOTE CONTROL
1
9
10
6
11
28
13
27
26
14
18
16
17
15
25
12 24
23
5
2
4
22
3
21
20
19

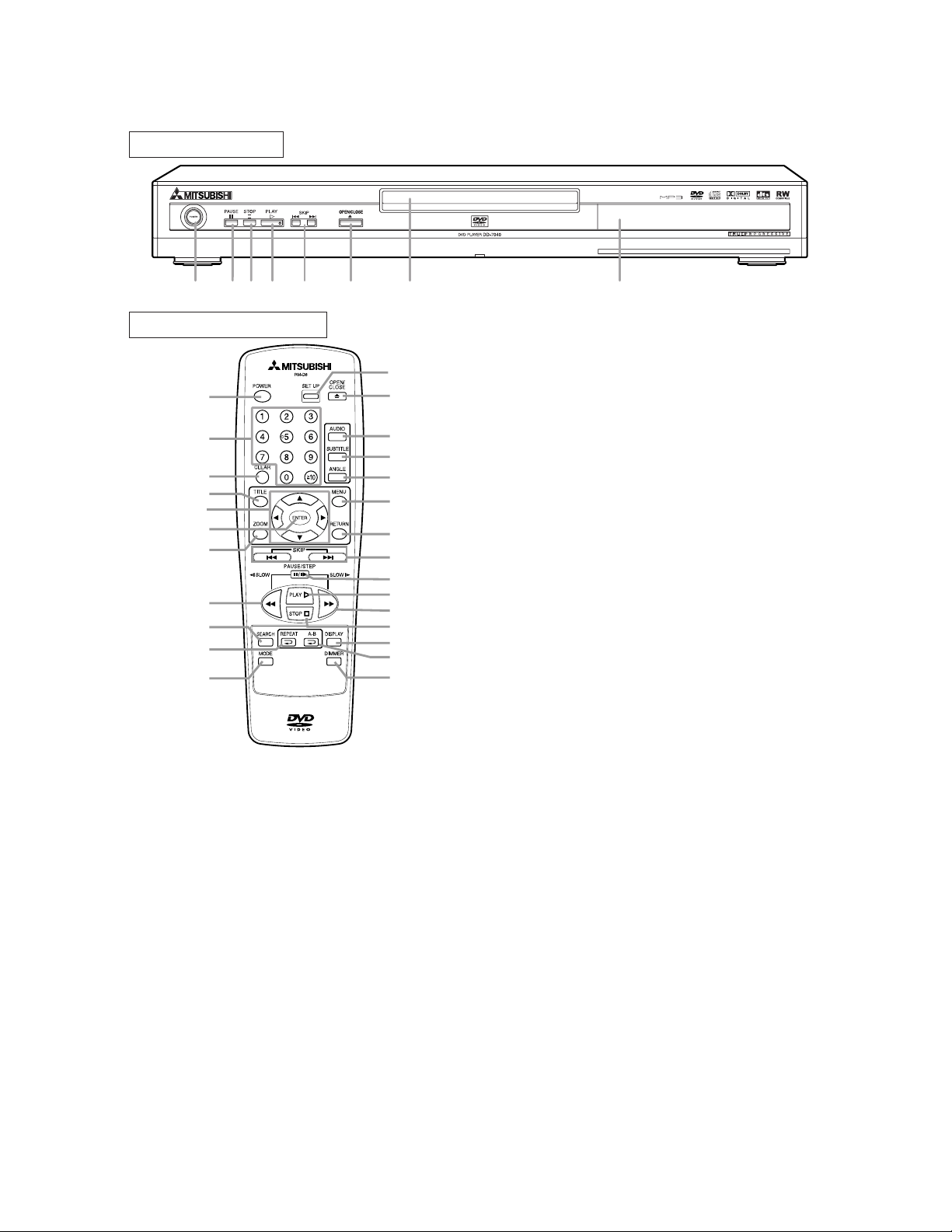

1. POWER Button
Press to turn the power on and off.
2. PAUSE Button (main unit)
Pauses the current disc operation.
PAUSE/STEP Button (remote control)
Pauses the current disc operation. View the still
picture frame by frame.
3. STOP Button
Stops operation of the disc.
4. PLAY Button
Starts playback of the disc contents.
5. SKIP Buttons
G: Plays back from the beginning of the next
chapter or track.
j:Plays back from the beginning of the current
chapter or track.
6. OPEN/CLOSE Button
Press to insert or remove discs from the tray.
7. Disc loading tray
8. Display, Remote Sensor Window
9. Numeric Buttons
10. CLEAR Button
Resets a setting.
11. TITLE Button
Displays the title menu.
12. Arrow Buttons
Use to scroll and cycle through disc and player men
us
and settings.
13. ENTER Button
Press to accept a setting.
14. ZOOM Button
Enlarges part of a DVD-reproduced image.
15. REV Button
Fast reverse playback to a desired point.
16. SEARCH MODE Button
Press to locate a desired point.
17. REPEAT Button
Repeats playback of the current disc, title, chapter
or
track.
18. MODE Button
Activates program playback or random playback mo
de
when playing DVD-Audio CDs or MP3/JPEG/Pictu
re
CD/WMA. Also sets Black level, Image Quality mod
e,
and Noise Reduction. It selects freeze-frame viewing
of
DVD-Audio.
19. DIMMER Button
Select the display panel brightness.
20. A-B REPEAT Button
Repeats playback of a selected section.
21. DISPLAY Button
Displays timer and bit-rate information on the T
V
screen.
22. FWD Button
Fast forwards playback to a desired point.
23. RETURN Button
Returns to the previous operation.
24. MENU Button
Displays the disc menus.
25. ANGLE Button
Press to change the camera angle to see the sequen
ce
being played back from a different angle.
26. SUBTITLE Button
Press to select a desired subtitle language.
27. AUDIO Button
Press to select a desired audio language or sound mod
e.
28. SETUP Button
Press to enter the setup mode or to change setup item
s.
OPERATING CONTROLS AND FUNCTIONS

1-5-2 E5732IB
OPTICAL COAXIAL
R
L
VIDEO
YCr
Cb S
SCAN MODE
VIDEO OUT
CENTER
SUBWOOFER
L
R
SURROUND
R
FRONT
L
ANALOG
5.1 CH
AUDIO OUT
IP
AUDIO OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
29 34 36 37353330 31 32 38
REAR VIEW
2
9. Power Cord
3
0. Left AUDIO OUT Jack
3
1. OPTICAL DIGITAL AUDIO OUT Jack
3
2. COAXIAL DIGITAL AUDIO OUT Jack
3
3. Right AUDIO OUT Jack
34. VIDEO OUT Jack
35. Component Video Out Jacks
36. S-VIDEO OUT Jack
37. SCAN MODE Switch
38. ANALOG 5.1 CH AUDIO OUT Jacks
DISPLAY DISPLAYS DURING
OPERATION
Lights-up when the
multi-angle scene is taken
Lights-up when the repeat mode
or A-B repeat mode is set
CD:
Lights-up when an audio CD is inserted
VIDEO CD:
Lights-up when a Video CD is inserted
Lights-up when a DVD is inserted
Displays a title number
Lights-up when
playback control is activated
Displays how long a current
title or track has been played
back.
When a chapter or track has
switched, the number of a
new title, chapter or track is
displayed.
Displays a chapter or track number
Displays the disc status
Power on
Power off
Tray open and closed
LOAD
No disc or error
During playback
During pause
Stop (Resume ON)
Stop (Resume OFF)
ERROR
(“ON” is lit.)
(“Disc icon” is lit.)
(“OFF” is lit.)
(“- - - - -” is lit.)
(“Disc icon” blinks.)
(“Disc icon” rotates.)
(“Disc icon” rotates.)
(Two segments on
“Disc icon” blink.)
(A segment on
“Disc icon” blinks.)
- - - - -
Bright
Dark
OFF
I
t is possible to change the brightness of display
u
nit by pressing the DIMMER button of remote
c
ontrol .
•
When the power supply is turned off, the
display is returned to the setup status.

1-6-1 E5732DC
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
Reference Notes
CAUTION 1: Locking Tabs (L-1), (L-2), (L-3) and (L-4)
are fragile. Be careful not to break them.
1-1. Connect the wall plug to an AC outlet and press
the OPEN/CLOSE button to open the Tray.
1-2. Remove the Tray Panel by releasing two Locking
Tabs (L-1).
1-3. Press the OPEN/CLOSE button again to close
the Tray.
1-4. Press the POWER button to turn the power off.
1-5. Unplug an AC cord.
1-6. Release two Locking Tabs (L-2). Then, release
five Locking Tabs (L-3) (to do this, first release
two Locking Tabs (A) at the side, and then three
Locking Tabs (B) at the bottom.)
1-7. Release three Locking Tabs (L-4). Then remove
the Front Assembly.
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
2-1. Disconnect Connector (CN301). Remove three
Screws (S-5) and lift the DVD Mecha. (Fig. D4)
2-2. Slide out the pickup unit as shown in Fig. D5.
2-3. Short the three short lands with solder before
removing the FFC cable (CN201) from it. If you
disconnect the FFC cable (CN201), the laser
diode of pickup will be destroyed. (Fig. D5)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D5)
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
[1] Top Cover D1 5(S-1) -
[2] Front
Assembly D2
*2(L-1), Tray Panel,
*2(L-2), *5(L-3),
*3(L-4)
1-1
1-2
1-3
1-4
1-5
1-6
1-7
[3] Rear Panel D3 5(S-2), 2(S-3), (S-4) -
[4] DVD Mecha D4,
D5
*CN301, 3(S-5),
*CN201
2
2-1
2-2
2-3
3
[5] Shield Plate D4 (S-6), 2(S-7) -
[6] DVD Audio
CBA D4 *CN1602, *CN7102, *3(L-5) -
[7] DVD Main
CBA Unit D4 2(S-8), *CN1001, *CN1601 -
[8] Main CBA
Holder D4 (S-9) -
[9] AV CBA D6 3(S-10) -
[10] Function CBA D6 Desolder -
↓
(1) ↓ (2) ↓ (3) ↓ (4) ↓ (5)
[1] Top Cover
[2] Front Assembly
[3] Rear Panel
[4] DVD Mecha[5] Shield Plate
[9] AV CBA[6] DVD Audio CBA
[7] DVD Main CBA Unit
[8] Main CBA Holder
[10] Function CBA

1-6-2 E5732DC

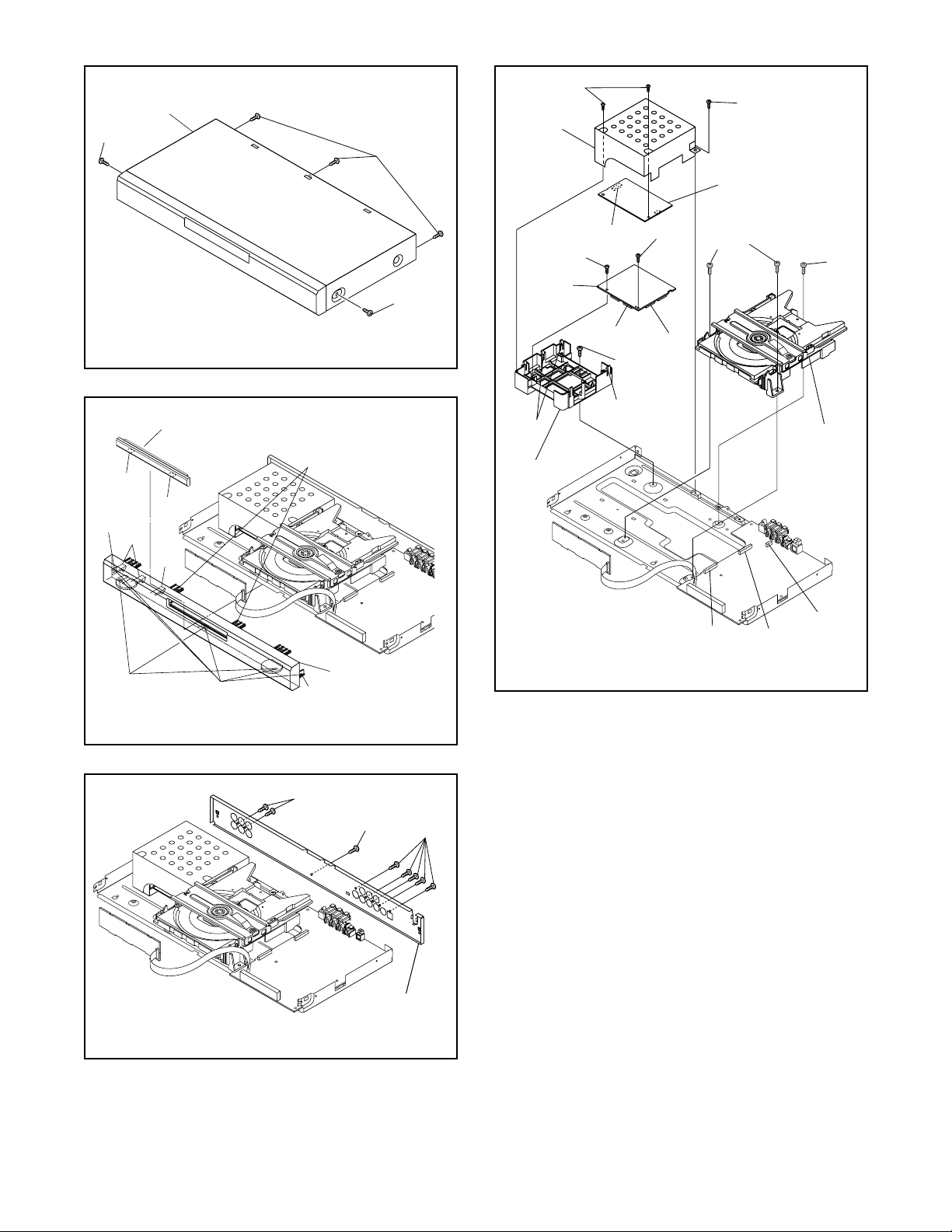

(S-1)
(S-1)
[1] Top Cover
(S-1)
Fig. D1
[2] Front Assembly
Tray Panel
(A)
(A)
(L-3)
(L-1)
(L-1)
(B)
(L-2)
(L-4)
(L-4)
Fig. D2
(S-2)
(S-4)
(S-3)
[3] Rear Panel
Fig. D3
(S-5) (S-5)
(S-6)
(S-9)
(L-5)
(L-5)
(S-7)
(S-8)
(S-8)
CN201
CN7102
CN301
[7] DVD
Main CBA
Unit
[8] Main
CBA
Holder
[6] DVD
Audio
CBA
[5] Shield
Plate
CN1601
CN1001 CN1602
[4] DVD
Mecha
Fig. D4

1-6-3 E5732DC
View for B
Pickup Unit
C
B
Short the three short
lands by soldering
Short the three short lands by soldering
FPC Cable
Connector
Slide
DVD Mecha
View for C
View for A
OR
A
Fig. D5

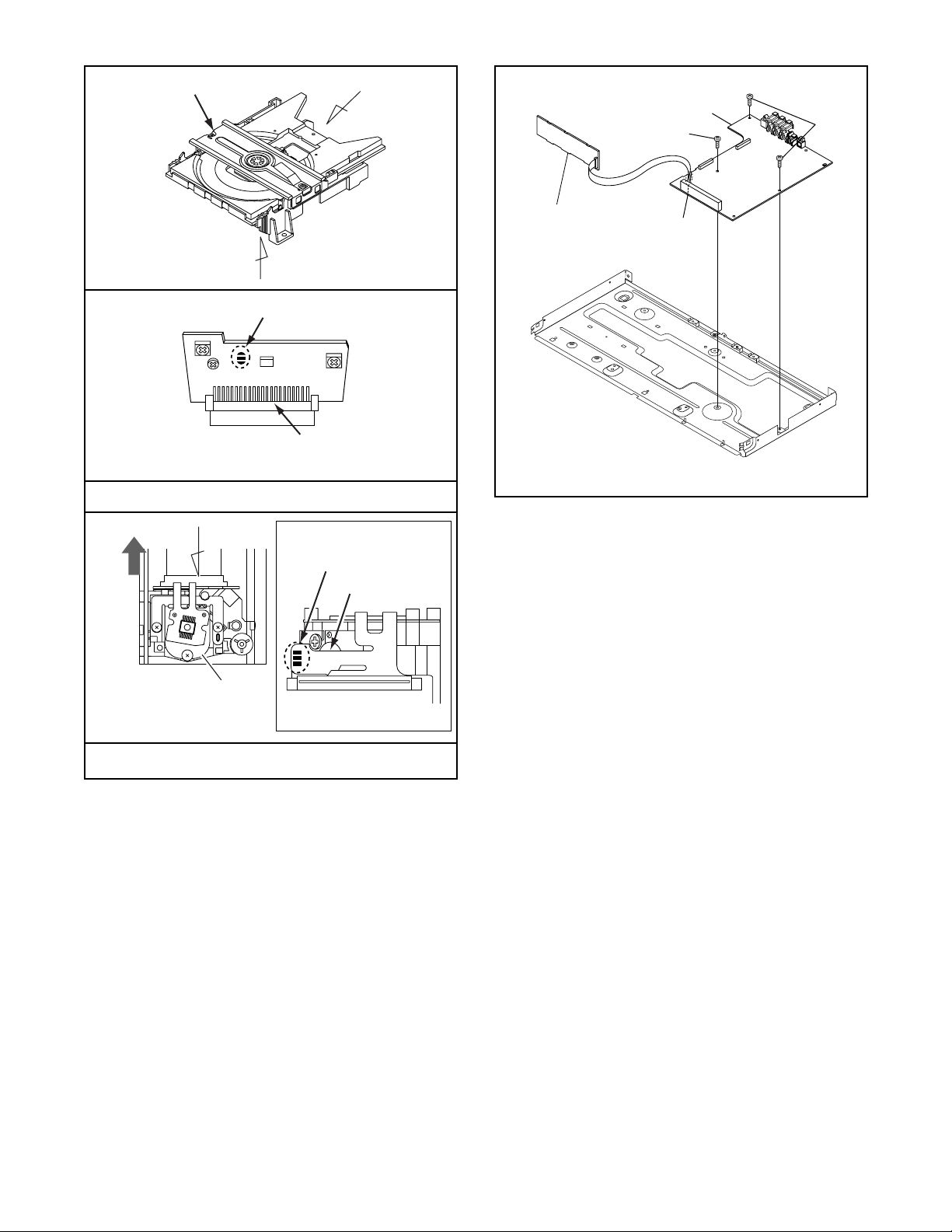

[9] AV CBA
(S-10)
(S-10)
[10] Function CBA Desolder
from
bottom
Fig. D6

1-6-4 E5732DC
Rotate this roulette in
the direction of the arrow
A
View for A
HOW TO MANUAL EJECT
1. Remove the Top Case.
2. Rotate the roulette in the direction of the arrow as
shown below.

System Control/Servo Block Diagram
E5732BLS
1-7-1 1-7-2
BLOCK DIAGRAMS
59
27
7
8
3
15
10
14
26
1
2
3
4
6
23
5
17
18
12
11
14
13
15
16
25
24
FP-STB
54FP-DIN
55
FP-DOUT
61
REMOTE
53
FP-CLK
CN401 CN1001
2
28
27
1
12
7
8
9
10
11
REMOTE
SENSOR
RM2001
1G
7G
~
23
17
~
a/KEY-1
b/KEY-2
c/KEY-3
d/KEY-4
e
K1
K2
FP-STB
FP-DIN
FP-DOUT
FP-CLK
GRID FIP
SEGMENT
FL2001
IC2001
DVD MAIN CBA UNIT AV CBA DRIVE CBA
(FRONT PANEL CONTROL)
IC301
(SERVO DRIVE)
IC451 (CLOCK GENERATOR)
13
14
16
3
4
FP-STB 16
16
FP-DIN 18
18
FP-DOUT 20
20
FP-CLK 21
21
REMOTE 22
22
f
g
h
i
KEY
MATRIX
IC202
(OP AMP)
12 14
CN301
FG CBA
FG
SENSOR
M
SLED
MOTOR
M
SPINDLE
MOTOR
IC101
(MICRO CONTROLLER)
+
-+
-
+
-
+
-
+
-
+
-
+
-
SLED
MOTOR
DRIVE
FOCUS
ACTUATOR
DRIVE
1/4
1/4 PLL2
X451
MULTI
PLL X'TAL OSC 36.864MHz OSC
SPINDLE
MOTOR
DRIVE
TRACKING
ACTUATOR
DRIVE
EXT CLOCK
2ch-L/6ch-H
ADAC-ML1
A-MUTE2
M-MUTE
ADAC-ML2
CLK33M
BE CLOCK
172
170
150
TRAY-OUT
TRAY-IN
FG-IN
97
SLD70
SPDL71
TRACKING
DRIVE
152 FOCUS DRIVE
60
66
TO DIGITAL SIGNAL
PROCESS BLOCK
DIAGRAM
FS(+)
FS(-)
TS(+)
TS(-)
FROM/TO
VIDEO/ AUDIO
BLOCK DIAGRAM
TO DVD
AUDIO
BLOCK
DIAGRAM
CN7102
51
ADAC-MD
50 ADAC-MC
96 ADAC-ML0
85 I/P-SW
ADAC-MC
ADAC-ML0
I/P-SW
PCM-SCLK
CN901
86
A-MUTE
ADAC-MD
A-MUTE
17
92
FSEL
RESET68RESET
IC461
5 4
+3.3V
TRAY-OUT
TRAY-IN
FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL SLED SERVO SIGNAL SPINDLE SERVO SIGNAL
3SP(+)
4SP(-)
5TRAY-OUT
6TRAY-IN
7GND
8SL(-)
9SL(+)
1FG-IN
JP2001 JP2002
KEY-1 7
7
KEY-2 2
2
KEY-3 6
6
KEY-4 5
5
K2 1
1
K1 8
8
FUNCTION
CBA
2ch-L/6ch-H 2
ADAC-MC 11
ADAC-MD 12
ADAC-ML0 13
ADAC-ML1 14
PCM-SCLK 16
A-MUTE 18
M-MUTE 19
ADAC-ML2 20
100
88
95
89
84

Digital Signal Process Block Diagram
E5732BLD1-7-3 1-7-4
DVD MAIN CBA UNIT
C 6
D 7
A 8
B 5
F 10
E 2
DVD-LD 14
CD-LD 12
PD-MONI 13
FS(+) 18
FS(-) 19
TS(+) 20
TS(-) 17
CN201
CN201
CN201
IC201
(SW)
IC105 (LATCH)
IC102 (SDRAM) IC101 (MICRO CONTROLLER)
FS
FS(+)
CD/DVD
FS(-)
TS(+)
TS(-)
TS
PICK-UP
UNIT
DETECTOR
CD/DVD 9
Q251,Q252
CD DVD
AMP
Q253,Q254
AMP
4
1 3
6
GND(DVD-PD) 15
GND(CD-PD) 16
GND(LD) 11
FROM SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
RF
SIGNAL
PROCESS
CIRCUIT
DVD/CD
FORMATTER
AUDIO
I/F
VIDEO
I/F
NTSC/PAL
ENCODER
DMA
BCU
INST.
ROM 32BIT
CPU
DATA
ROM
INTERRUPT
CONTROLLER
WATCH DOG
TIMER
CPU
I/F
TIMER
DECODER
I/F
CPU
I/F
READ
MEMORY
DATA
ROM
DSP
DECODER
PIXEL
OPERATION
I/O
PROCESSOR
INST.
ROM
DATA
ROM
INST.
ROM
DATA
ROM
INST.
ROM
SERIAL
D/A
GENERAL
I/O
INTERRUPT
CONTROLLER
TIMER
WATCH DOG
TIMER
32BIT CPU
STREAM
I/F
EXTERNAL
MEMORY
I/F
SDRAM
ECC
UMAC
124
125
122
123
128
129
126
127
131
130
135
133
132
134
78
DEBUG
BCU
INST
CACHE
D TYPE
LATCH
DATA
CACHE
D/A
D/A
D/A
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
158
164
Y
C
Cr
Cb
VIDEO-Y
VIDEO-C
VIDEO-Cr
VIDEO-Cb
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
TO DVD
AUDIO
BLOCK
DIAGRAM
CN7102
CN901
181
178
179
180
SPDIF
175
PCM-BCK
176
PCM-DATA3
174
PCM-LRCLK
161
160
EXADT (0-15), EXADR (16-19)
EXADT (0-15), EXADR (16-19)
EXADT (0-7)
EXADT (8-15)
EXADR (0-7)
EXADR (0-15)
EXADR (8-15)
SDRAM DATA(0-31)SDRAM DATA(0-31)
SDRAM ADDRESS(0-10)SDRAM ADDRESS(0-10)
2
9
~
12
19
~
210
235
~
IC104 (LATCH)
D TYPE
LATCH
2
9
~
12
19
~
2
13
184
205
247
256
~~~
2
13
31
56
74
85
~~~
IC103 (FLASH ROM)
FLASH
ROM
29
36
38
45
~
~
DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL DATA(AUDIO) SIGNAL FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL
24
27
60
66
~~
EXADT (0-15)
EXADR (16-19)
~
1
9
16
25
48
~
1PCM-DATA3
3PCM-DATA2
5PCM-DATA1
7PCM-DATA0
9PCM-BCK
10 PCM-LRCLK

Video / Audio Block Diagram
E5732BLV
1-7-5 1-7-6
DVD MAIN CBA UNIT
IC601 (AUDIO DAC)
7
8
12
11
DIGITAL
AUDIO OUT
JK1202
JK1404
AMP
Q1351
IC1201
Q1203
Q1201
Q1202
+3.3V
(AMP)
CN601 CN1601
13 13AUDIO-L
15 15AUDIO-R
14 14A-L-MUTE
16 16A-R-MUTE
12 12A-MUTE
1 1I/P-SW
AUDIO-L
OUT
1
2
3
13
14
15
16
FROM/TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
FROM
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
SERIAL
PORT
SERIAL
CONTROL
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
DAC LPF+AMP L-CH
R-CH
LPF+AMP
DAC
ZERO DETECT
SYSTEM CLOCK
1
2
67
5AUDIO-R
OUT
PCM-BCK
SPDIF
PCM-DATA3
PCM-LRCLK
ADAC-MD
ADAC-MC
ADAC-ML0
PCM-SCLK
AV CBA
AUDIO SIGNALDATA(AUDIO) SIGNAL
18 18 SPDIF
A-MUTE
I/P-SW
+3.3V
Q1204
WF6
3
WF4
WF5
CN601
7 7VIDEO-Y
9 9VIDEO-C
5 5VIDEO-Cb
3 3VIDEO-Cr
VIDEO-Y
VIDEO-C
VIDEO-Cb
VIDEO-Cr
JK1401
S-VIDEO OUT
CN1601
3 4
2
1
IC1402 (VIDEO DRIVER)
18
4dB
AMP
2dB
AMP
LPF DRIVER YC
21
2dB
AMP DRIVER
4dB
AMP
2dB
AMP
LPF DRIVER
15
4dB
AMP
2dB
AMP
LPF DRIVER
9
13
4dB
AMP
2dB
AMP
LPF
MUTE
DRIVER
11
3
COMPOSITE
VIDEO OUT
VIDEO-Cb
OUT
VIDEO-Y
OUT
VIDEO-Cr
OUT
SW1401
PROGRESSIVE
/INTERLACE
JK1404
6
223
FROM DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
VIDEO SIGNAL
WF1
WF2
WF3
+5V
FIBER OPTIC
TRANS MODULE
IC1204

DVD Audio Block Diagram
E5732BLDA
1-7-7 1-7-8
IC7101 (SW)
CN7102
CN7102
IC7202 (AUDIO DAC)
IC7203 (AUDIO DAC)
IC7301
Q7301
Q7307
JK7101
SORROUND(R)
OUT
Q7308
+3.3V
(AMP)
1
2
67
5
+3.3V
Q7302
3
+5V
PCM-BCK 9
PCM-LRCLK 10
PCM-SCLK 16
A-MUTE2 18
M-MUTE 19
ADAC-MC 11
ADAC-MD 12
ADAC-ML0 13
ADAC-ML1 14
ADAC-ML2 20
PCM-DATA3 1
PCM-DATA2 3
PCM-DATA1 5
PCM-DATA0 7
2ch-L/6ch-H 2
3 1
4
6
IC7401
Q7401
Q7403
Q7404
+3.3V
(AMP)
1
2
67
5
+3.3V
Q7402
3
+5V
IC7501
Q7501
Q7503
Q7504
+3.3V
(AMP)
1
2
67
5
+3.3V
Q7502
3
+5V
IC7201 (AUDIO DAC)
7
8
11
12
1
2
3
13
14
15
16
SERIAL
PORT
SERIAL
CONTROL
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
DAC LPF+AMP
LPF+AMP
DAC
ZERO DETECT
SYSTEM CLOCK
7
8
11
12
1
2
3
13
14
15
16
SERIAL
PORT
SERIAL
CONTROL
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
DAC LPF+AMP
LPF+AMP
DAC
ZERO DETECT
SYSTEM CLOCK
7
8
11
12
1
2
3
13
14
15
16
SERIAL
PORT
SERIAL
CONTROL
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
DAC LPF+AMP
LPF+AMP
DAC
ZERO DETECT
SYSTEM CLOCK
SORROUND(L)
OUT
FRONT(R)
OUT
FRONT(L)
OUT
SUBWOOFER
OUT
CENTER
OUT
DVD AUDIO CBA
FROM
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
CN901
FROM
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
CN901
AUDIO SIGNALDATA(AUDIO) SIGNAL

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
Power Supply Block Diagram
E5732BLP1-7-9 1-7-10
-REPLACE FUSE AS MARKED.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE
"This symbol means fast operating fuse."
A V
F
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
IC1006
(SHUNT REGULATOR) REG
AC1001
AC CORD F1001
1A 250V
LINE
FILTER
L1001
D1001, D1002
D1004, D1005
Q1003 Q1001
2
4
7
3
4
IC1001
ERROR
VOLTAGE DET
T1001
11
12
13
15
14
16
17
18
SWITCHING
SWITCHING
CONTROL
1
2
6
BRIDGE
RECTIFIER
HOT
AV CBA
A V
F
HOT CIRCUIT. BE CAREFUL.
D1003
RECTIFIER
D1030
RECTIFIER
D1016
RECTIFIER
Q1016
Q1006
Q1005
Q1011
Q1015
Q1002
CN1001
Q1004
-FL
EV+5V
F2
F1
P-ON+9V
EV+3.3V
P-ON+5V
P-ON+3.3V
FROM/TO
CN401
1,2,3 EV+1.5V
4,5 EV+3.3V
14,15 EV+9V
13 P-ON+5V
17 P-ON+3.3V
19 PWRCON
+1.5V
REG.
IC1002
D1006
SCHOTTKY
BARRIER
SCHOTTKY
BARRIER
D1008
D1015
