Mitsubishi Diamond 825 series User manual

Model WS-52825
62 Inch Screen
Optional Matching Base Available
Performance
• Mitsubishi 1280 x 720p
DLP™ Light Engine
• AMVP2™
• PerfectColor™
• Dark Detailer
• DefinEdge™
• 480-Line Motion-Adaptive 3D Y/C
Comb Filter
• Auto Film Mode
• High Transmissivity Anti-Glare
Diamond Shield™
• 5" Coaxial Speakers
Easy to Use
• CableCARD™ Slot
• HD PVR with 120GB
Hard Disc Drive
• SD MPEG Encoder
• TV Guide On Screen®
• NetCommand®4.0
• MediaCommand™
• FireWire®(IEEE 1394)
• HDMI™ Input
• TV Pause and Instant Replay
• 8 Format Modes
• Front Replaceable Lamp
• Compact Tabletop Design
• Optional Matching Base
The Top-of-the-Line Diamond 825 Series MicroDisplay Integrated
Digital Cable Ready HDTVs present revolutionary programming control
and recording capabilities – all in a slim, stylish compact cabinet.
The HD PVR’s amazing 120GB hard-drive records 12 hours of high
definition programming or a hard-to-believe 72 hours of standard TV
with Instant Replay and Pause functions.
TV Guide On Screen®Programming makes it simple to choose a
program. Find its title or name on the screen’s electronic program
guide and press the ENTER button to watch it now or record it later.
The Mitsubishi 1280 X 720 Pixel DLP™ Light Engine eliminates drift in
convergence, geometry and focus. It creates images that set new,
higher standards for brightness, resolution and clarity.
MORE THAN JUST TELEVISION™… MITSUBISHI TELEVISION.
Models:
WD-52825
WD-62825
DIAMOND 825 SERIES
Digital Cable Ready MicroDisplay HDTV
Quality
Every industry has a leader.
Mitsubishi has been producing premium
quality products for more than 25 years.
Superior performance, precision build-
quality and long-lasting reliability are
characteristics you have come to
associate with the name Mitsubishi. Our
advanced research capabilities, our
robust engineering practices and our
exacting quality standards combine to
bring you a truly remarkable
entertainment experience.

*TV and some PC displays have standard overscan
Features, specifications and dimensions are preliminary and
are subject to change.
Digital Light Processing, Digital Micromirror Device, and DLP are
trademarks of Texas Instruments.
CableCARD is a trademark of Cable Television Laboratories,
Inc.
TV GUIDE and other related marks are registered marks of
Gemstar-TV Guide International, Inc. and/or one of its affiliates.
FireWire is a registered trademark of Apple Computer, Inc.
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing
LLC.
Dolby and Dolby Digital are registered trademarks of Dolby
Laboratories.
DTVLink Certification Logo is a U.S. registered mark of CEA.
DIAMOND 825 SERIES
Digital Cable Ready MicroDisplay HDTV
MODEL SCREEN SIZE PRELIMINARY CABINET DIMENSIONS/WEIGHT (HxWxD, LBS.) OPTIONAL MATCHING BASE
WD-52825 52" 37.2" x 49.6" x 17.4", 132.4 lbs. MB-52825
WD-62825 62" 43.7" x 58.3" x 19.9", 165.5 lbs. MB-62825
VIDEO FEATURES
AMVP2™ Motion Processor •
Comb Filter Motion-Adaptive 480-Line 3D Y/C
All Sources Displayed at 720p •
Picture Format Modes for analog 480i/480p
and 4:3 digital sources 6
Picture Format Modes for analog 720p/1080i
and digital 16:9 sources 2
PICTURE PERFORMANCE
Light Engine Type Proprietary DLP™
Pixel Resolution (Horizontal x Vertical) * 1280 x 720
Screen Type Ultra Fine Pitch
Diamond Shield™ (included) High Transmissivity Anti-glare
USER INTERFACE
Control Features
NetCommand®4.0 •
CableCommand™ (Digital Cable Control) •
ChannelView™ (On-screen Channel List) •
MediaCommand™ (5-format Memory Card Reader) JPEG, MP3, WMA
IR Learning Capabilities •
TV Guide On Screen®(8 day interactive program guide) •
PerfectColor™ / Auto Color Correction •
PVR Features
Internal PVR Hard Disc Drive Recorder 120 GB
(approximately 12 hours HD recording)
Live TV Pause and Instant Replay •
Digitally Record Analog Channels •
Digitally Record Digital SD and HD Channels •
Schedule Recordings from TV Guide On Screen®•
Digitally Record from Video/S-Video Devices •
Digitally Record from FireWire®MPEG2 Devices •
Digitally Playback to FireWire®MPEG2 Devices •
PIP/POP Features
Multi-Image 1 PIP, 3 and 9 POP
Split Screen •
Channel Preview/Input Strobe (analog channels only) •
AUDIO
Speakers 5" coaxial x 2
Output Power (Watts) 10W x 2
TUNING
Digital/Analog Combined Tuner Air/Cable-ATSC/NTSC/CableCARD™
2nd Analog Tuner for PIP/POP image only •
INPUTS ANTENNA (RF) INPUTS 2 Analog/Digital Combined
CableCARD™ Slot •
AV INPUTS (ANALOG)
A/V Inputs with S-Video (Front/Rear) with Stereo Audio 1/2
Component Video Inputs with Stereo Audio (480i/480p/720p/1080i) 2
Input-DTV (YPbPr/RGBHV) with Stereo Audio (480i/480p/720p/1080i) 1
PC Input (60Hz) with Stereo Audio (VGA/SVGA/XGA/720p) 1
AV OUTPUTS (ANALOG)
Monitor A/V Output (for recording) •
Stereo Audio Output (fixed audio) •
INPUTS/OUTPUTS (DIGITAL)
FireWire®(IEEE 1394) front/rear 1/2
Memory Card Slots for JPEG and MP3 Playback 4 (5-formats)
HDMI™ 1
RS-232C 1
Digital Audio Bitstream Output (Dolby®Digital) 1 (coaxial)
NETCOMMAND®REMOTE CONTROL Fully Illuminated
IR EMITTER
NetCommand R
DVI
Analog Audio
INPUT-1
AUDIO 2
AUDIO/VIDEO 1
AUDIO
L(MONO)R
INPUT-2
COMPONENT-1
YPbPr (480i/480p/720p/1080i)
Y/G
Pb/BPr/R
COMPONENT-2
YPbPr (480i/480p/720p/1080i)
INPUT-DTV
YPbPr / RGB HV
(480i/480p/720p/1080i)
DTV/
CABLE/
VHF/
UHF
ANT-2
ANT-1
DIGITAL
AUDIO
PC
VGA/SVGA/XGA/
720p
60 Hz
PC-
AUDIO
PC-
INPUT
M-LINK
CONTROL/
RS-232C
HDMI
M-LINK
IEEE1394
INPUT/OUTPUT
L
R
VIDEO S-VIDEO
MONITOR
OUTPUT
L
R
VH
CARD
TOP
CableCARD SLOT
TM
MAIN
AUX
DVI/VGA AUDIO INPUT

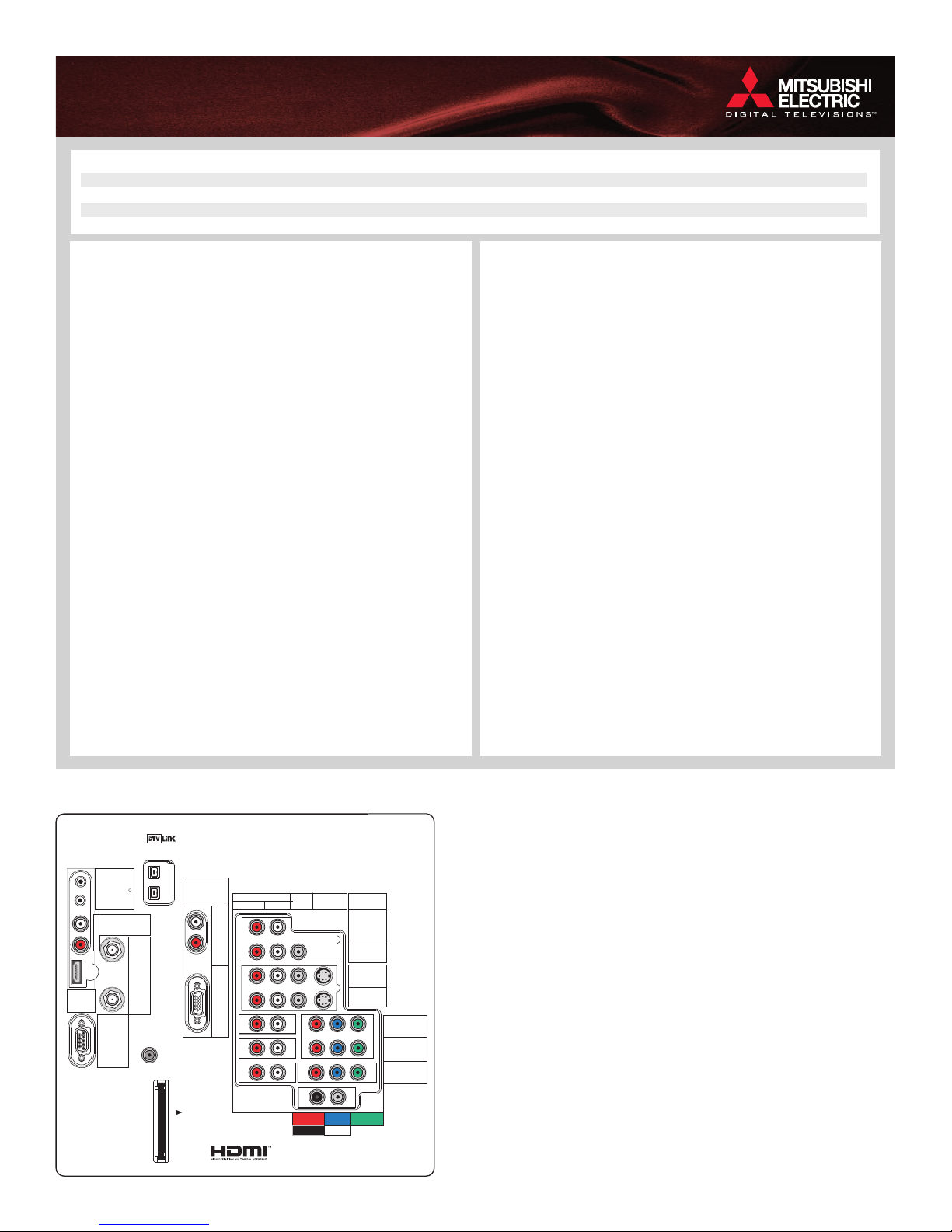

BACK PANEL:
