Welcome to NetCommand TM2.0
Your new Mitsubishi television is equipped with NetCommand TM 2.0, the latest technology in home
theater control. NetCommand TM technology combines the control of older IR controlled devices with the
control of brand new IEEE 1394 devices to make your television the "brain" of your home theater. By
connecting all of your compatible A/V devices as mapped out in both the Owner's Guide, and this, the
NetCommand TM Guide, you will be able to view and control your compatible A/V devices using your
television screen and TV remote control. Here are just some of the benefits NetCommand TM will offer to
you:
• The Device Selection menu to select devices and combination of devices for viewing.
• You can operate all compatible devices from a single remote control.
• You can enjoy automatic switching of both video source for the TV and audio source for your A/V
Receiver.
• Easy switching from TV speakers to A/V Receiver speakers.
• Both your IEEE 1394 devices and your traditional NetCommand TM compatible IR devices will appear
together on your Device Selection menu and operate in the same way.
NetCommand TM Compatible Traditional Devices
Brand AV Receiver Cable Box DBS Satellite DVD Player VCR
Receiver
M-VRS00,M-VRg00 SR-HD5 DD-8000,DD=8020 HS-U795,HS-U778
Lifestyle ®28 Lifestyle _) 28
AVR-2700
Mitsubishi
Bose
Oenoll
Echostar
Funi
Generalinstruments
Hitachi
Hughes
Integra
Jerrold
JVC
Kenwood
Marantz
Microsoft
Motorola
Panasonic
Philips
Pioneer
RCA
Rotel
Scientific Atalanta
Sharp
Sony
Toshiba
Yamaha
Zenith
DTR-9.1
VR2088
SR8200
VSX-D557,VSX-49TX
RSX-1865
STR-DE825
RX-V2095,RX-V2200
OFT2200
Different Models
Different Models
8600
6000
HIRDE-45, HIRDE-86
TU-HDS20
DRD480RE_ DTC-100
SAT=A55
DTS-300
DTV1OS0
DV-P415U
DPS-9.1
XV-S65GD
XBo_"*
DVD-A310
DV-414
® _*
DVP-S500D_ PlayStation 2
SD-9200, SD-5109
DVD-S520, DVD-0996
F268LA
V_FX665A
HR-VP 650U
PV-8662
VR628CAT
VC-H810U
SLV-778HF
W-717
TM
XBox requires the DVD Kit from Microsoft.
** PlayStation® 2 requires the DVD Kit from Sony, tested with the 2.10 software.

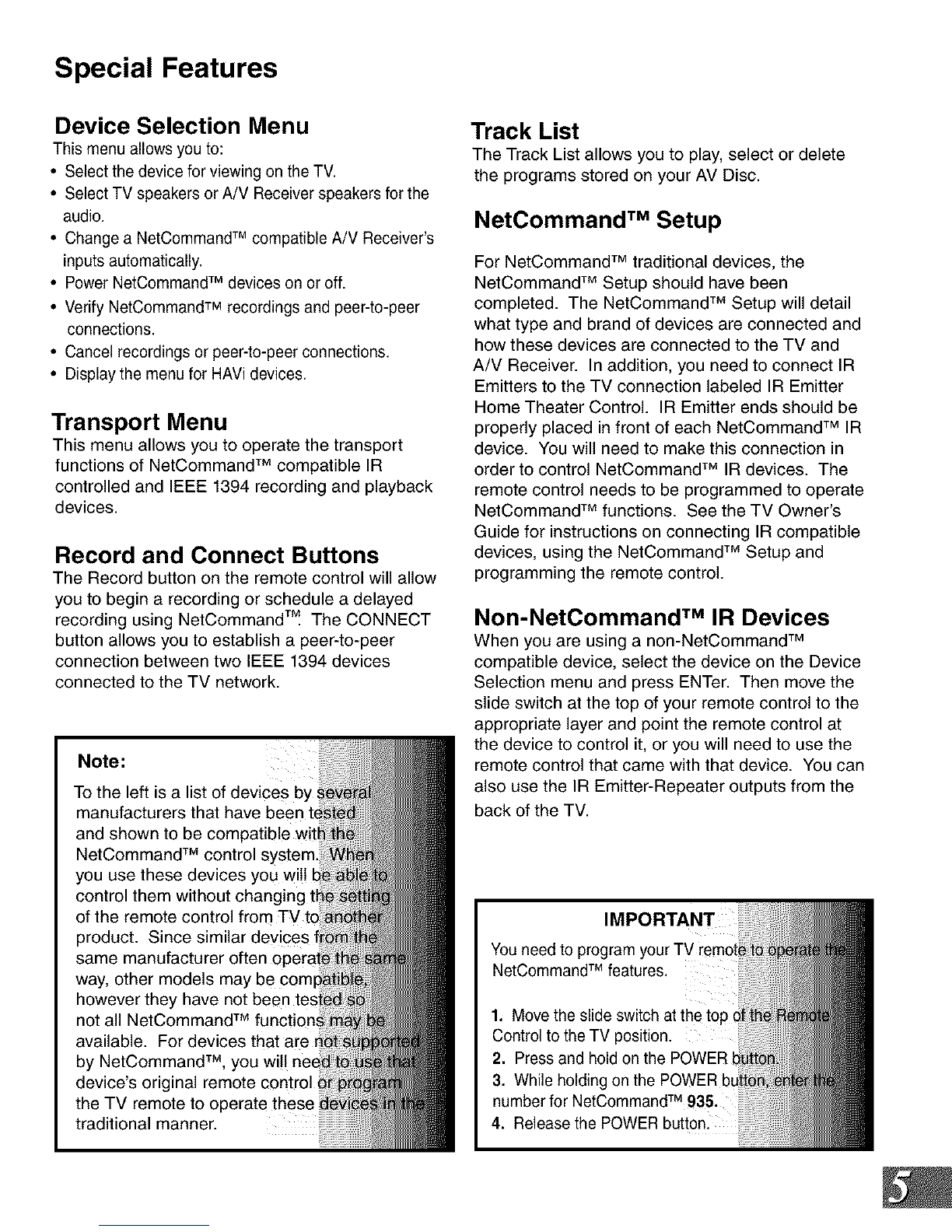

Special Features
Device Selection Menu
This menu allows you to:
•Select the device for viewing on the TV.
• Select TV speakers or A/V Receiver speakers for the
audio.
• Change a NetCommand TM compatible A/V Receiver's
inputs automatically.
• Power NetCommand TM devices on or off.
• Verify NetCommandTM recordings and peer-to-peer
connections.
• Cancel recordings or peer-to-peer connections,
• Display the menu for HAVi devices,

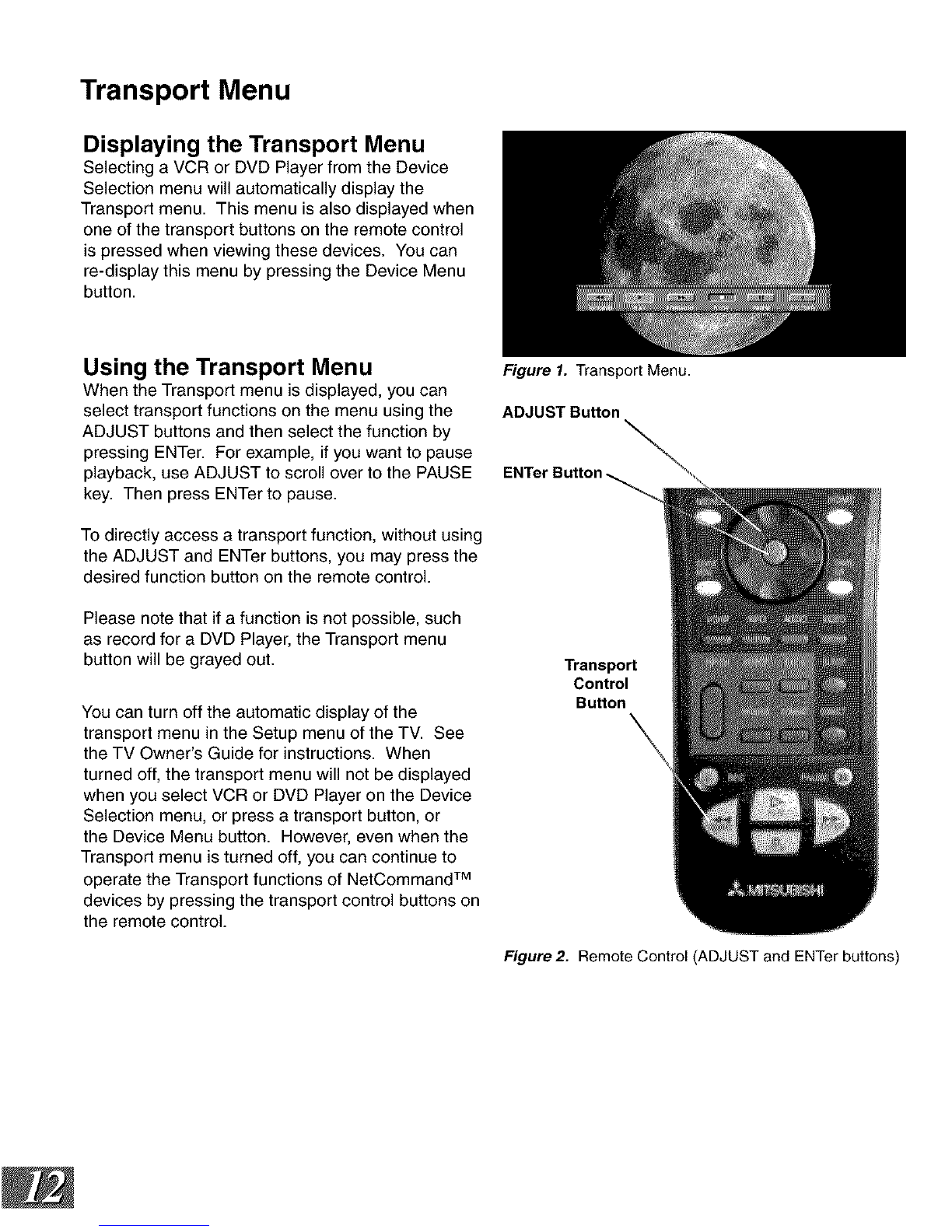

Transport Menu
This menu allows you to operate the transport
functions of NetCommand TM compatible IR
controlled and IEEE 1394 recording and playback
devices.
Record and Connect Buttons
The Record button on the remote control will allow
you to begin a recording or schedule a delayed
recording using NetCommand TM. The CONNECT
button allows you to establish a peer-to-peer
connection between two IEEE 1394 devices
connected to the TV network.

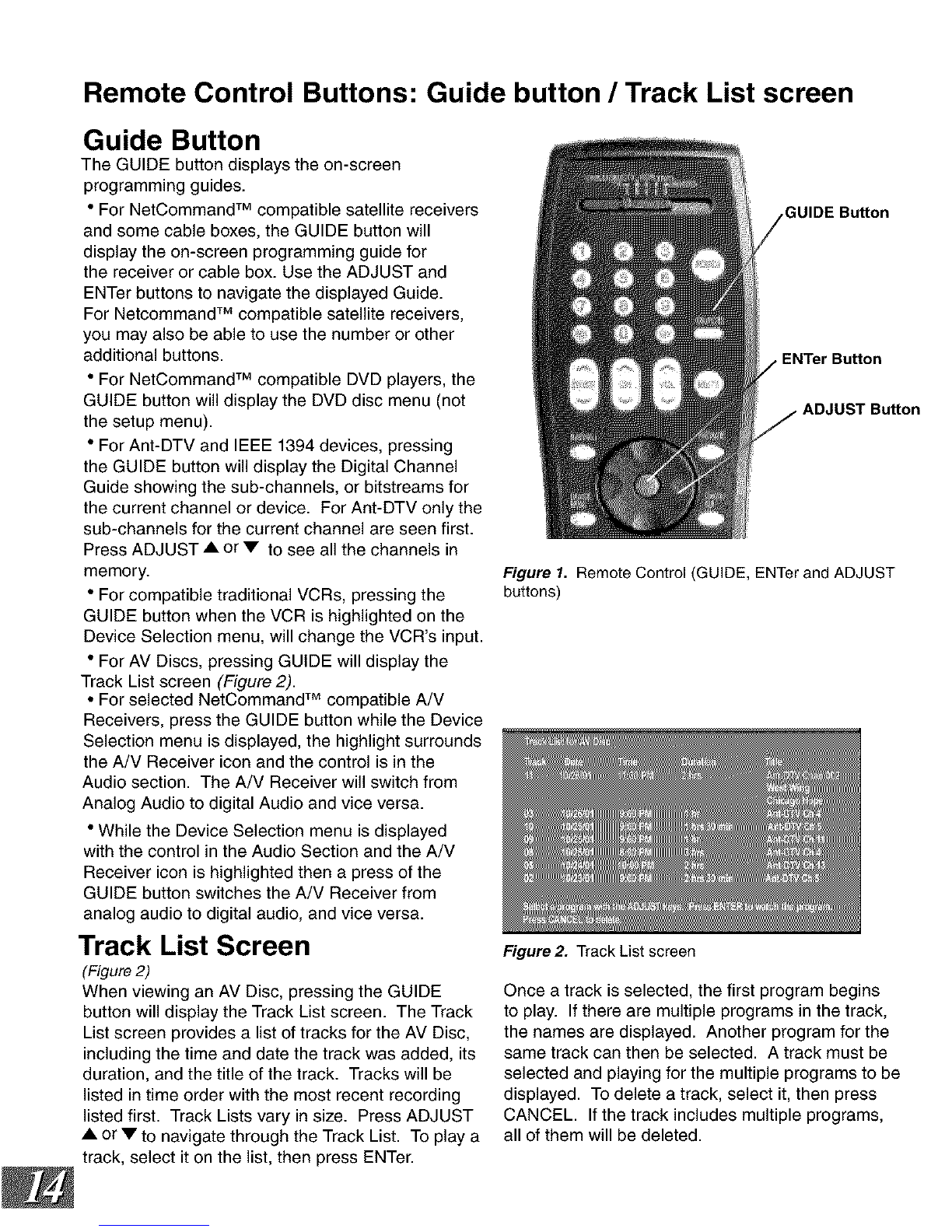

Track List
The Track List allows you to play, select or delete
the programs stored on your AV Disc.
NetCommand TM Setup
For NetCommand TM traditional devices, the
NetCommand TM Setup should have been
completed. The NetCommand TM Setup will detail
what type and brand of devices are connected and
how these devices are connected to the TV and
A/V Receiver. In addition, you need to connect IR
Emitters to the TV connection labeled IR Emitter
Home Theater Control. IR Emitter ends should be
properly placed in front of each NetCommand TM IR
device. You will need to make this connection in
order to control NetCommand TM IR devices. The
remote control needs to be programmed to operate
NetCommand TM functions. See the TV Owner's
Guide for instructions on connecting IR compatible
devices, using the NetCommand TM Setup and
programming the remote control.
Non-NetCommand TM IR Devices
When you are using a non-NetCommand TM
compatible device, select the device on the Device
Selection menu and press ENTer. Then move the
slide switch at the top of your remote control to the
appropriate layer and point the remote control at
the device to control it, or you will need to use the
remote control that came with that device. You can
also use the IR Emitter-Repeater outputs from the
back of the TV.

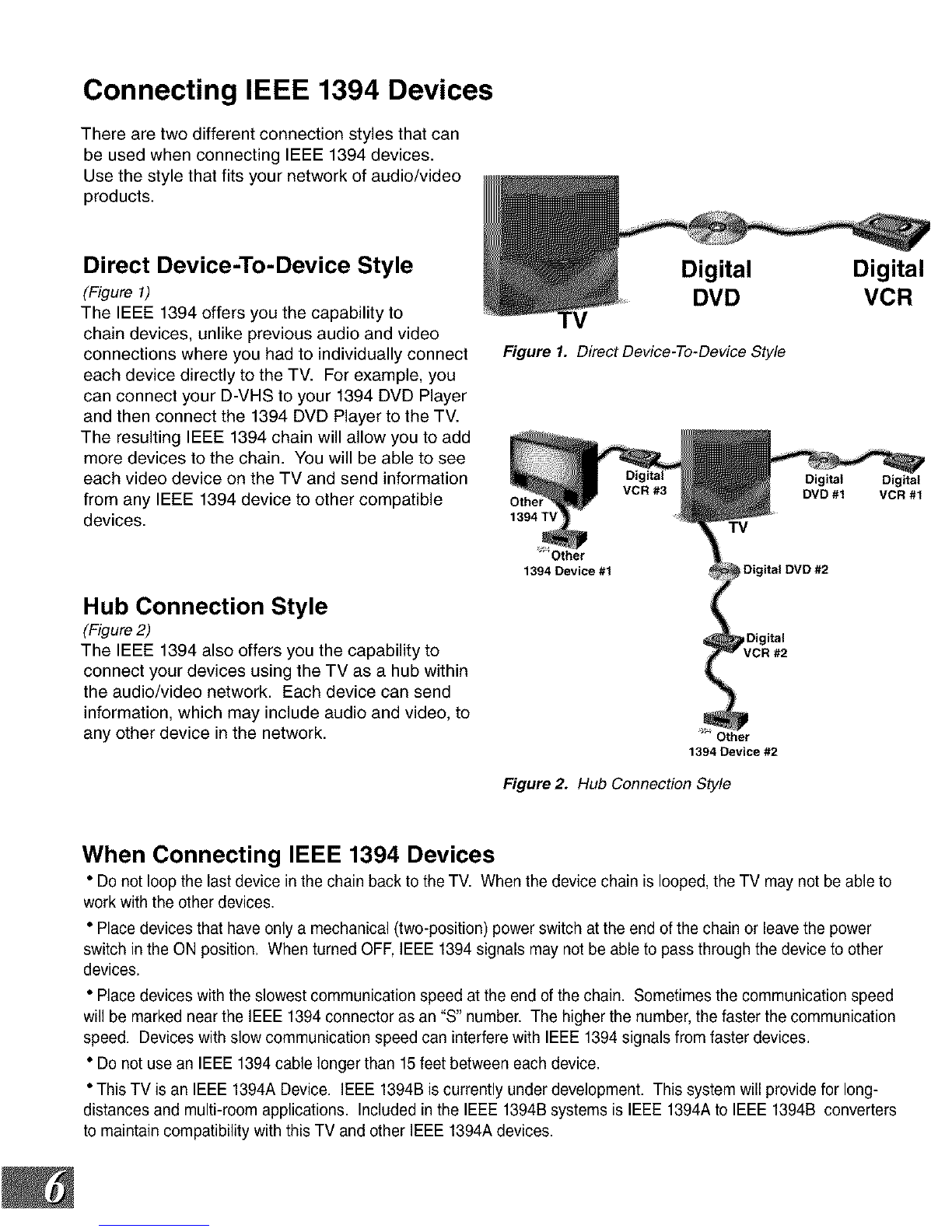

Connecting IEEE 1394 Devices
There are two different connection styles that can
be used when connecting IEEE 1394 devices.
Use the style that fits your network of audio/video
products.
Direct Device-To-Device Style
(Figure 1)
The IEEE 1394 offers you the capability to
chain devices, unlike previous audio and video
connections where you had to individually connect
each device directly to the TV. For example, you
can connect your D-VHS to your 1394 DVD Player
and then connect the 1394 DVD Player to the TV.
The resulting IEEE 1394 chain will allow you to add
more devices to the chain. You will be able to see
each video device on the TV and send information
from any IEEE 1394 device to other compatible
devices.
Hub Connection Style
(Figure 2)
The IEEE 1394 also offers you the capability to
connect your devices using the TV as a hub within
the audio/video network. Each device can send
information, which may include audio and video, to
any other device in the network.
Digital Digital
DVD VCR
Figure 1. Direct Device-To-Device Style
1394 T_,
1394 Device #1
TV
1394 Device#2
Figure 2. Hub Connection Style
When Connecting IEEE 1394 Devices
• Do not loop the last device in the chain back to the TV. When the device chain is looped, the TV may not be able to
work with the other devices.
• Place devices that have only a mechanical (two-position) power switch at the end of the chain or leave the power
switch in the ON position. When turned OFF, IEEE 1394 signals may not be able to pass through the device to other
devices.
• Place devices with the slowest communication speed at the end of the chain. Sometimes the communication speed
will be marked near the IEEE 1394 connector as an "S" number. The higher the number, the faster the communication
speed. Devices with slow communication speed can interfere with IEEE 1394 signals from faster devices.
• Do not use an IEEE 1394 cable longer than 15 feet between each device.
• This TV is an IEEE 1394A Device. IEEE 1394B is currently under development. This system will provide for long-
distances and multi-room applications. Included in the IEEE 1394B systems is IEEE 1394A to IEEE 1394B converters
to maintain compatibility with this TV and other IEEE 1394A devices.

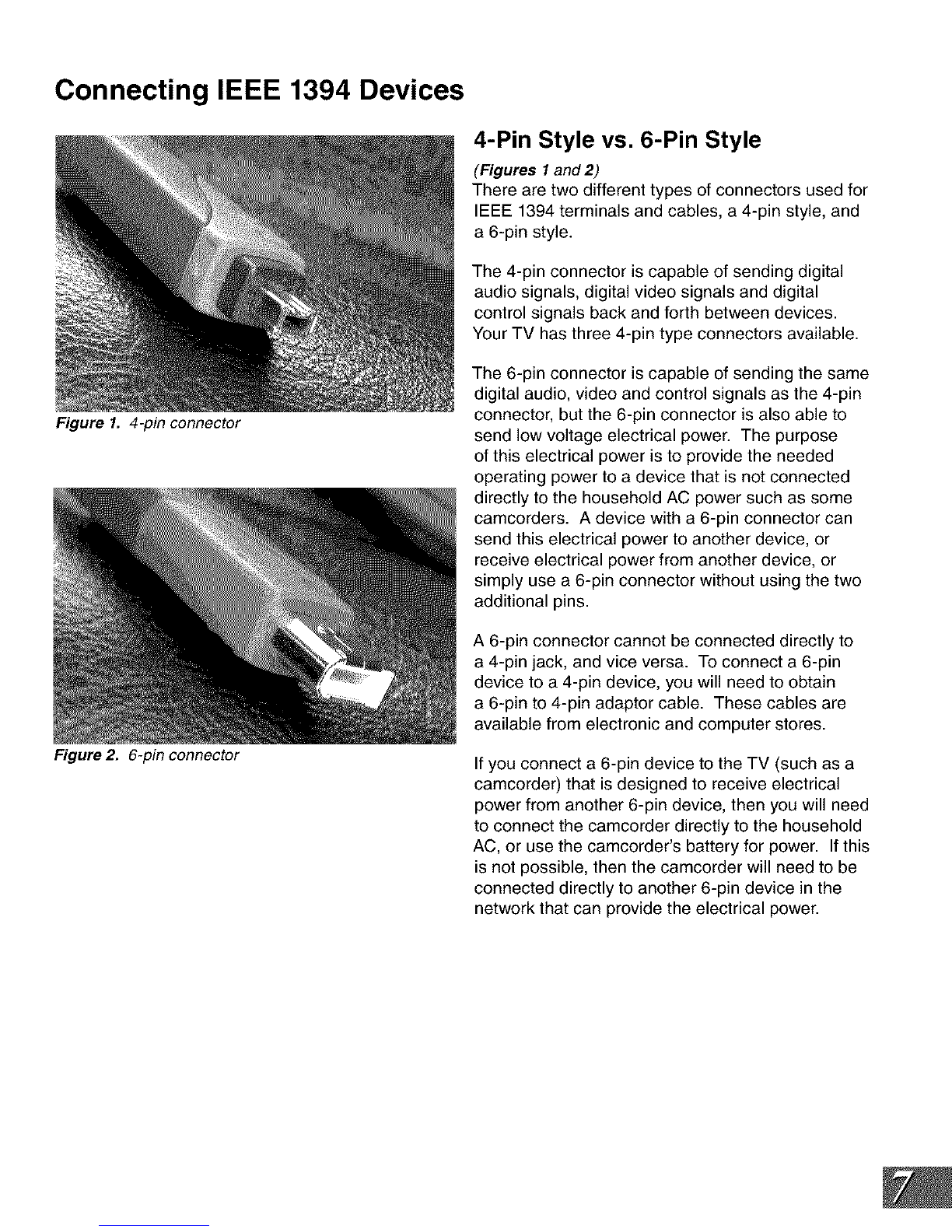

Connecting IEEE 1394 Devices
Figure 1. 4-pin connector
Figure 2. 6-pin connector
4-Pin Style vs. 6-Pin Style
(Figures I and 2)
There are two different types of connectors used for
IEEE 1394 terminals and cables, a 4-pin style, and
a 6-pin style.
The 4-pin connector is capable of sending digital
audio signals, digital video signals and digital
control signals back and forth between devices.
Your TV has three 4-pin type connectors available.
The 6-pin connector is capable of sending the same
digital audio, video and control signals as the 4-pin
connector, but the 6-pin connector is also able to
send low voltage electrical power. The purpose
of this electrical power is to provide the needed
operating power to a device that is not connected
directly to the household AC power such as some
camcorders. A device with a 6-pin connector can
send this electrical power to another device, or
receive electrical power from another device, or
simply use a 6-pin connector without using the two
additional pins.
A 6-pin connector cannot be connected directly to
a 4-pin jack, and vice versa. To connect a 6-pin
device to a 4-pin device, you will need to obtain
a 6-pin to 4-pin adaptor cable. These cables are
available from electronic and computer stores.
If you connect a 6-pin device to the TV (such as a
camcorder) that is designed to receive electrical
power from another 6-pin device, then you will need
to connect the camcorder directly to the household
AC, or use the camcorder's battery for power. If this
is not possible, then the camcorder will need to be
connected directly to another 6-pin device in the
network that can provide the electrical power.

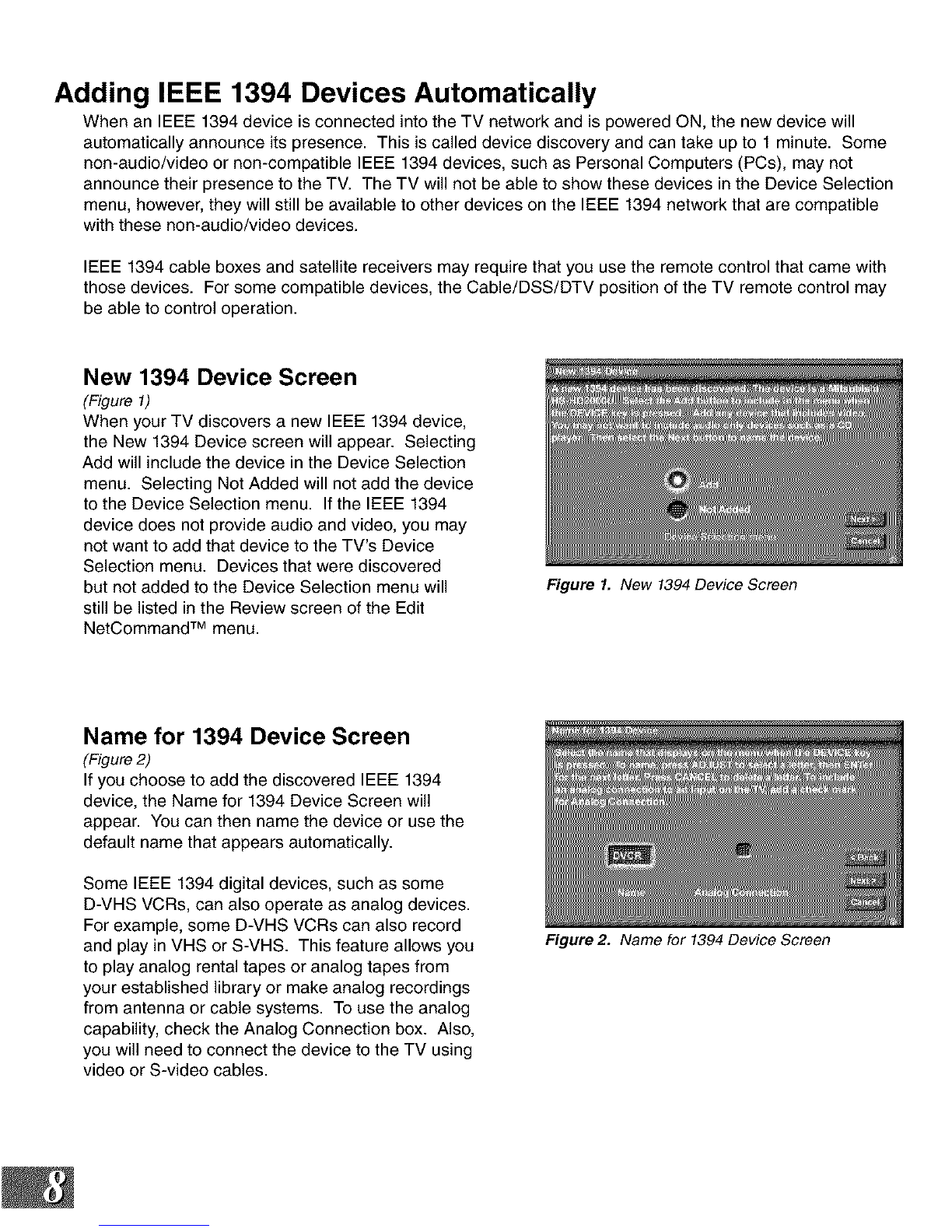

Adding IEEE 1394 Devices Automatically
When an IEEE 1394 device is connected into the TV network and is powered ON, the new device will
automatically announce its presence. This is called device discovery and can take up to 1 minute. Some
non-audio/video or non-compatible IEEE 1394 devices, such as Personal Computers (PCs), may not
announce their presence to the TV. The TV will not be able to show these devices in the Device Selection
menu, however, they will still be available to other devices on the IEEE 1394 network that are compatible
with these non-audio/video devices.
IEEE 1394 cable boxes and satellite receivers may require that you use the remote control that came with
those devices. For some compatible devices, the Cable/DSS/DTV position of the TV remote control may
be able to control operation.
New 1394 Device Screen
(Figure 1)
When your TV discovers a new IEEE 1394 device,
the New 1394 Device screen will appear. Selecting
Add will include the device in the Device Selection
menu. Selecting Not Added will not add the device
to the Device Selection menu. If the IEEE 1394
device does not provide audio and video, you may
not want to add that device to the TV's Device
Selection menu. Devices that were discovered
but not added to the Device Selection menu will
still be listed in the Review screen of the Edit
NetCommand TM menu.
Name for 1394 Device Screen
(Figure 2)
If you choose to add the discovered IEEE 1394
device, the Name for 1394 Device Screen will
appear. You can then name the device or use the
default name that appears automatically.
Some IEEE 1394 digital devices, such as some
D-VHS VCRs, can also operate as analog devices.
For example, some D-VHS VCRs can also record
and play in VHS or S-VHS. This feature allows you
to play analog rental tapes or analog tapes from
your established library or make analog recordings
from antenna or cable systems. To use the analog
capability, check the Analog Connection box. Also,
you will need to connect the device to the TV using
video or S-video cables.
Figure 1. New 1394 Device Screen
Figure 2. Name for 1394 Device Screen

Adding IEEE 1394 Devices Automatically

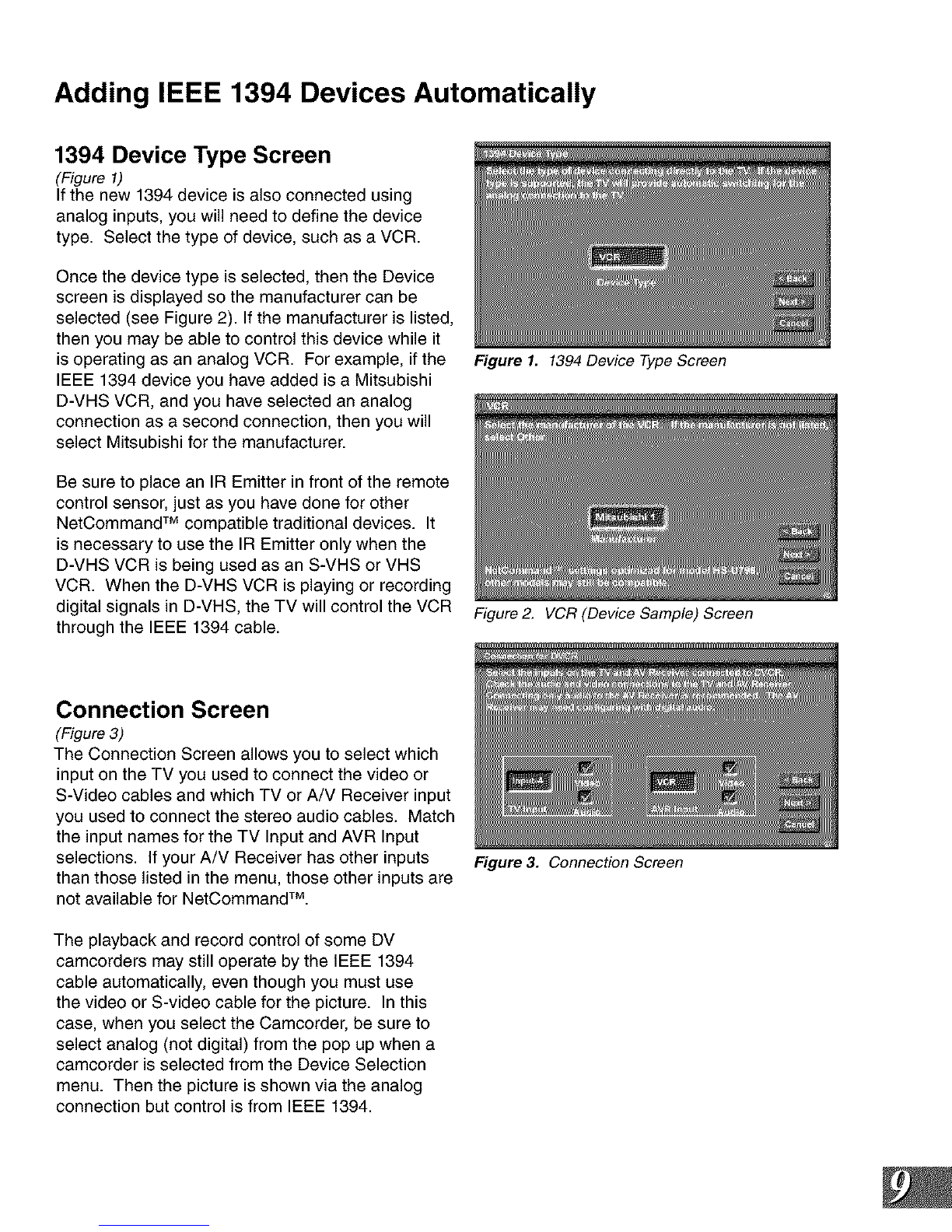

1394 Device Type Screen
(Figure 1)
If the new 1394 device is also connected using
analog inputs, you will need to define the device
type. Select the type of device, such as a VCR.
Once the device type is selected, then the Device
screen is displayed so the manufacturer can be
selected (see Figure 2). If the manufacturer is listed,
then you may be able to control this device while it
is operating as an analog VCR. For example, if the
IEEE 1394 device you have added is a Mitsubishi
D-VHS VCR, and you have selected an analog
connection as a second connection, then you will
select Mitsubishi for the manufacturer.
Be sure to place an IR Emitter in front of the remote
control sensor, just as you have done for other
NetCommand TM compatible traditional devices. It
is necessary to use the IR Emitter only when the
D-VHS VCR is being used as an S-VHS or VHS
VCR. When the D-VHS VCR is playing or recording
digital signals in D-VHS, the TV will control the VCR
through the IEEE 1394 cable.
Connection Screen
(Figure 3)
The Connection Screen allows you to select which
input on the TV you used to connect the video or
S-Video cables and which TV or A/V Receiver input
you used to connect the stereo audio cables. Match
the input names for the TV Input and AVR Input
selections. If your A/V Receiver has other inputs
than those listed in the menu, those other inputs are
not available for NetCommand TM.
The playback and record control of some DV
camcorders may still operate by the IEEE 1394
cable automatically, even though you must use
the video or S-video cable for the picture. In this
case, when you select the Camcorder, be sure to
select analog (not digital) from the pop up when a
camcorder is selected from the Device Selection
menu. Then the picture is shown via the analog
connection but control is from IEEE 1394.
Figure I. 1394 Device Type Screen
Figure 2. VCR (Device Sample) Screen
Figure 3. Connection Screen

Adding IEEE 1394 Devices Automatically
Compatible IEEE 1394 Devices
It is possible to connect devices to the TV that have
IEEE 1394 connectors but are not compatible with
the TV or with the NetCommand TM control system.
This TV is DTV Link compatible, and should work
properly with other devices that carry the DTV Link
logo. There are three areas of compatibility to
consider:
• Digital Video Signals
• Digital Audio Signals
• Digital Control Signals
Digital Video Signals
The TV is able to decode MPEG2 video. Other
types of digital video, such as DV video, provided
by some camcorders, must be decoded by the
source device and sent to the TV as analog video
or S-Video. If the camcorder uses a compatible
digital control system, the IEEE 1394 cable can still
provide control for the camcorder while the TV is
viewing the video or S-Video signals.
Digital Audio Signals
The TV is able to decode Dolby Digital signals, PCM
Digital Audio Signals and MPEG Audio signals.
Other types of digital audio such as MP3 Audio and
DTS Audio, as provided by some digital recording
devices, cannot be decoded by the TV.
The TV may not be able to pass incompatible digital
audio signals on the coaxial digital audio output,
however these signals may pass on the IEEE 1394
cable to other devices.
Digital Control Signals
Digital Control Signals, cont'd.
EIA-775 is designed for tuning devices such as
cable boxes allowing the device to send simple
graphics. However, this standard does not
allow the TV to control the cable box by IEEE
1394.
AV/C (Audio Video Control) is designed
to provide basic controls such as play, stop,
channel selection and volume, as appropriate
for the device.
HAVi (Home Audio Video Interoperablity) is
designed to handle AV/C type of control and
allows each device to "teach" the TV how to
control more than simple basic functions. The
device will inform the TV what information
and control buttons will be needed on device
specific menus so the additional functions can
be controlled. The ability of a device to "teach"
the TV how to control new functions allows the
TV to control non-traditional devices or new
types of devices not yet developed.
Some devices may be a combination of two or
more types of devices. For instance, there may
be a recording device that is also a tuning device.
Each portion of the device is called a sub-unit.
When you select a device on the Device Selection
menu that has sub-units, a pop-up menu will
appear so you can select which sub-unit section
you wish to use.
The TV is not able to control IEEE 1394 devices
that use other types of control protocols.
Incompatible digital audio, video and/or control
information will still be able to pass from one
device through the TV to another device. These
incompatible devices may not appear on the Device
Selection menu or in the Review screen of the Edit
NetCommand TM menu.
The TV is able to act as the control center for
IEEE 1394 audio/video devices, such as VCRs, AV
Discs, tuners, cable boxes and amplifiers that are
compatible with the following IEEE 1394 control
standards.

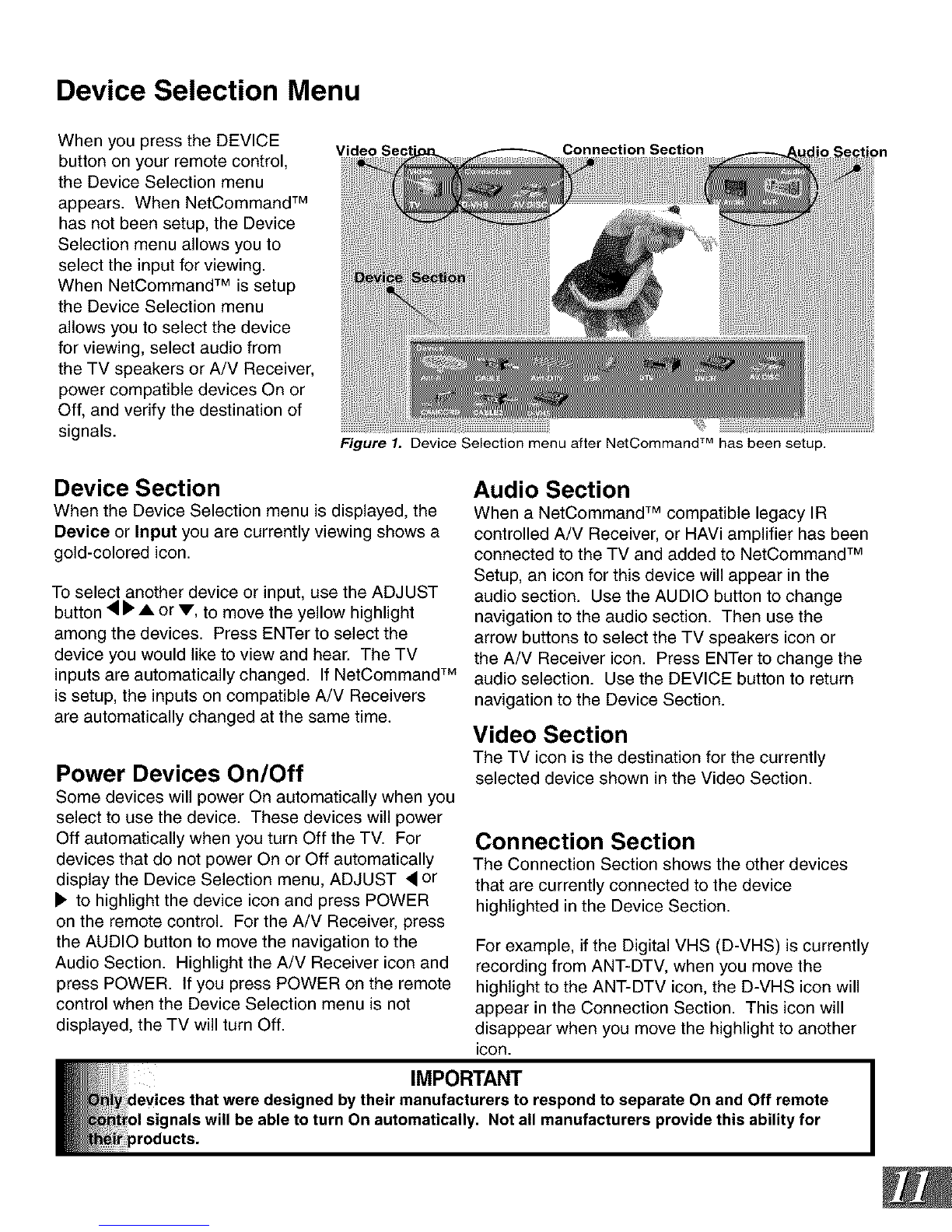

Device Selection Menu
When you press the DEVICE
button on your remote control,
the Device Selection menu
appears. When NetCommand TM
has not been setup, the Device
Selection menu allows you to
select the input for viewing.
When NetCommand TM is setup
the Device Selection menu
allows you to select the device
for viewing, select audio from
the TV speakers or A/V Receiver,
power compatible devices On or
Off, and verify the destination of
signals.
Video Connection Section
Figure I. Device Selection menu after NetCommand TM has been setup.
Device Section
When the Device Selection menu is displayed, the
Device or Input you are currently viewing shows a
gold-colored icon.
To select another device or input, use the ADJUST
button • • '& or V, to move the yellow highlight
among the devices. Press ENTer to select the
device you would like to view and hear. The TV
inputs are automatically changed. If NetCommand TM
is setup, the inputs on compatible A/V Receivers
are automatically changed at the same time.
Power Devices On/Off
Some devices will power On automatically when you
select to use the device. These devices will power
Off automatically when you turn Off the TV. For
devices that do not power On or Off automatically
display the Device Selection menu, ADJUST • or
•to highlight the device icon and press POWER
on the remote control. For the A/V Receiver, press
the AUDIO button to move the navigation to the
Audio Section. Highlight the A/V Receiver icon and
press POWER. If you press POWER on the remote
control when the Device Selection menu is not
displayed, the TV will turn Off.
Audio Section
When a NetCommand TM compatible legacy IR
controlled A/V Receiver, or HAVi amplifier has been
connected to the TV and added to NetCommand TM
Setup, an icon for this device will appear in the
audio section. Use the AUDIO button to change
navigation to the audio section. Then use the
arrow buttons to select the TV speakers icon or
the A/V Receiver icon. Press ENTer to change the
audio selection. Use the DEVICE button to return
navigation to the Device Section.
Video Section
The TV icon is the destination for the currently
selected device shown in the Video Section.
Connection Section
The Connection Section shows the other devices
that are currently connected to the device
highlighted in the Device Section.
For example, if the Digital VHS (D-VHS) is currently
recording from ANT-DTV, when you move the
highlight to the ANT-DTV icon, the D-VHS icon will
appear in the Connection Section. This icon will
disappear when you move the highlight to another
icon.

Transport Menu
Displaying the Transport Menu
Selecting a VCR or DVD Player from the Device
Selection menu will automatically display the
Transport menu. This menu is also displayed when
one of the transport buttons on the remote control
is pressed when viewing these devices. You can
re-display this menu by pressing the Device Menu
button.
Using the Transport Menu
When the Transport menu is displayed, you can
select transport functions on the menu using the
ADJUST buttons and then select the function by
pressing ENTer. For example, if you want to pause
playback, use ADJUST to scroll over to the PAUSE
key. Then press ENTer to pause.
To directly access a transport function, without using
the ADJUST and ENTer buttons, you may press the
desired function button on the remote control.
Please note that if a function is not possible, such
as record for a DVD Player, the Transport menu
button will be grayed out.
You can turn off the automatic display of the
transport menu in the Setup menu of the TV. See
the TV Owner's Guide for instructions. When
turned off, the transport menu will not be displayed
when you select VCR or DVD Player on the Device
Selection menu, or press a transport button, or
the Device Menu button. However, even when the
Transport menu is turned off, you can continue to
operate the Transport functions of NetCommand TM
devices by pressing the transport control buttons on
the remote control.
Figure 1. Transport Menu.
ADJUST Button
ENTer Button
Transport
Control
Button \
Figure 2. Remote Control (ADJUST and ENTer buttons)

Remote Control Buttons: Device Menu Button
ADJUST Button
ENTer Button
DEVICE MENU Button
\
Figure 1. Remote Control (DEVICE MENU, ADJUST
and ENTer buttons)
Device Menu Button
The DEVICE MENU button displays the Transport
playback devices. A second press of this button will
display the menus for NetCommand TM compatible
IEEE 1394 devices. Menu access varies by device.
While watching a NetCommand TM compatible
traditional IR controlled or an IEEE 1394 device,
press the DEVICE MENU button once or twice, to
display the menu for that device.
When the Device Selection menu is displayed, and
a HAVi IEEE 1394 device is highlighted, pressing
the DEVICE MENU button will automatically display
the menu for that device over the current source.
The HAVi IEEE 1394 device does not need to be the
current source. Some IEEE 1394 devices do not
have a menu to display. Check with the Owner's
Guide of the IEEE 1394 device.
For playback devices, the first time you press the
DEVICE MENU button, it displays the Transport
menu. A second press of this button displays the
menus for NetCommand TM compatible devices.
Menu access varies by device.
When the menu for the device has been displayed,
to navigate, use the ADJUST _, =, V and ENTer
buttons. For some NetCommand TM traditional
devices you will also be able to use the number
buttons and other additional buttons.
For traditional DVD players, the Device Menu is also
known as the setup menu.

Remote Control Buttons: Guide button /Track List screen
Guide Button
The GUIDE button displays the on-screen
programming guides.
• For NetCommand TM compatible satellite receivers
and some cable boxes, the GUIDE button will
display the on-screen programming guide for
the receiver or cable box. Use the ADJUST and
ENTer buttons to navigate the displayed Guide.
For Netcommand TM compatible satellite receivers,
you may also be able to use the number or other
additional buttons.
• For NetCommand TM compatible DVD players, the
GUIDE button will display the DVD disc menu (not
the setup menu).
• For Ant-DTV and IEEE 1394 devices, pressing
the GUIDE button will display the Digital Channel
Guide showing the sub-channels, or bitstreams for
the current channel or device. For Ant-DTV only the
sub-channels for the current channel are seen first.
Press ADJUST ,& or • to see all the channels in
memory.
• For compatible traditional VCRs, pressing the
GUIDE button when the VCR is highlighted on the
Device Selection menu, will change the VCR's input.
• For AV Discs, pressing GUIDE will display the
Track List screen (Figure 2).
• For selected NetCommand TM compatible A/V
Receivers, press the GUIDE button while the Device
Selection menu is displayed, the highlight surrounds
the A/V Receiver icon and the control is in the
Audio section. The A/V Receiver will switch from
Analog Audio to digital Audio and vice versa.
• While the Device Selection menu is displayed
with the control in the Audio Section and the A/V
Receiver icon is highlighted then a press of the
GUIDE button switches the A/V Receiver from
analog audio to digital audio, and vice versa.
Track List Screen
(Figure 2)
When viewing an AV Disc, pressing the GUIDE
button will display the Track List screen. The Track
List screen provides a list of tracks for the AV Disc,
including the time and date the track was added, its
duration, and the title of the track. Tracks will be
listed in time order with the most recent recording
listed first. Track Lists vary in size. Press ADJUST
•&or • to navigate through the Track List. To play a
track, select it on the list, then press ENTer.
JIDE Button
ENTer Button
ADJUST Bu_on
Figure 1. Remote Control (GUIDE, ENTer and ADJUST
buttons)
Figure 2. Track List screen
Once a track is selected, the first program begins
to play. If there are multiple programs in the track,
the names are displayed. Another program for the
same track can then be selected. A track must be
selected and playing for the multiple programs to be
displayed. To delete a track, select it, then press
CANCEL. If the track includes multiple programs,
all of them will be deleted.

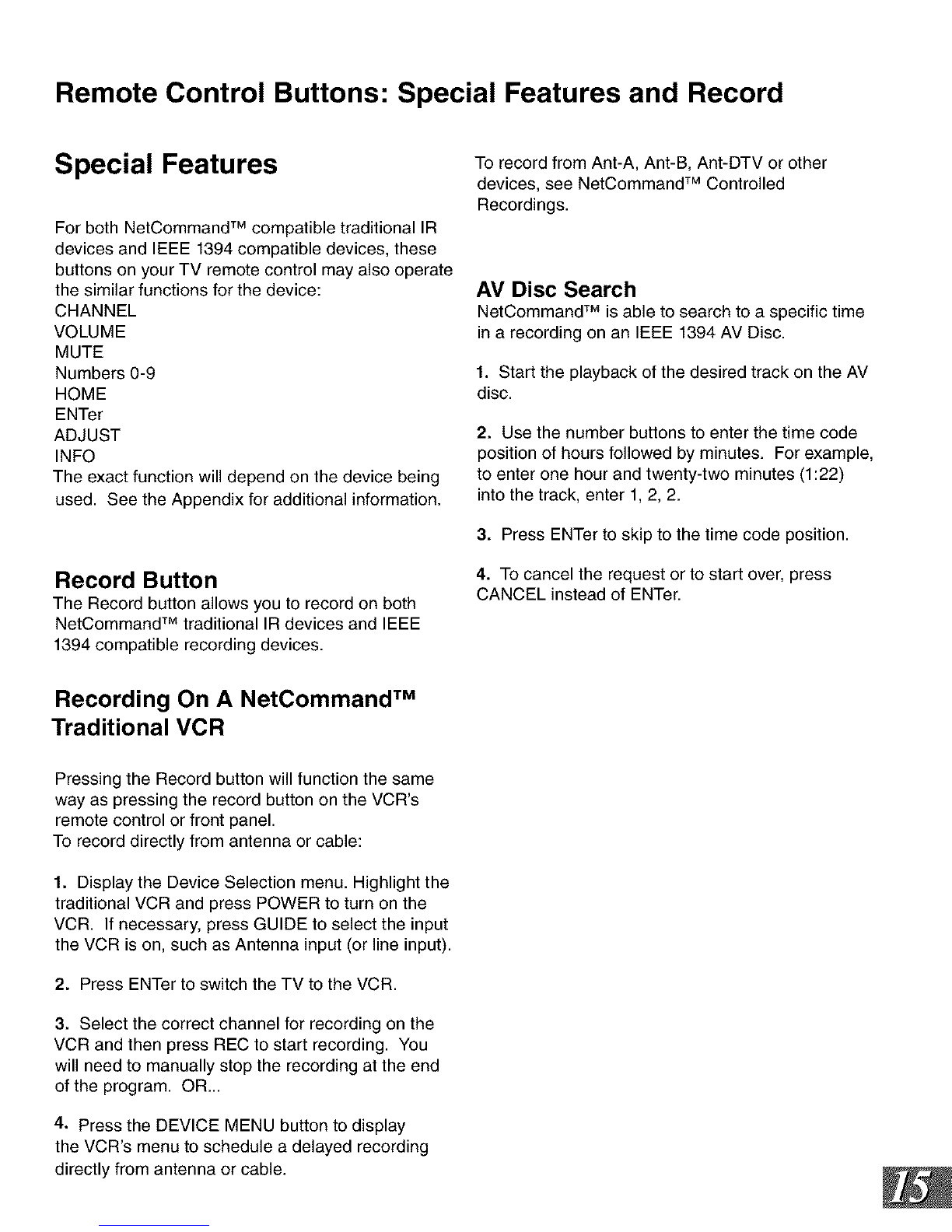

Remote Control Buttons: Special Features and Record
Special Features
For both NetCommand TM compatible traditional IR
devices and IEEE 1394 compatible devices, these
buttons on your TV remote control may also operate
the similar functions for the device:
CHANNEL
VOLUME
MUTE
Numbers 0-9
HOME
ENTer
ADJUST
INFO
The exact function will depend on the device being
used. See the Appendix for additional information.
Record Button
The Record button allows you to record on both
NetCommand TM traditional IR devices and IEEE
1394 compatible recording devices.
To record from Ant-A, Ant-B, Ant-DTV or other
devices, see NetCommand TM Controlled
Recordings.
AV Disc Search
NetCommand TM is able to search to a specific time
in a recording on an IEEE 1394 AV Disc.
1. Start the playback of the desired track on the AV
disc.
2. Use the number buttons to enter the time code
position of hours followed by minutes. For example,
to enter one hour and twenty-two minutes (1:22)
into the track, enter 1, 2, 2.
3. Press ENTer to skip to the time code position.
4. To cancel the request or to start over, press
CANCEL instead of ENTer.
Recording On A NetCommand TM
Traditional VCR
Pressing the Record button will function the same
way as pressing the record button on the VCR's
remote control or front panel.
To record directly from antenna or cable:
1. Display the Device Selection menu. Highlight the
traditional VCR and press POWER to turn on the
VCR. If necessary, press GUIDE to select the input
the VCR is on, such as Antenna input (or line input).
2. Press ENTer to switch the TV to the VCR.
3. Select the correct channel for recording on the
VCR and then press REC to start recording. You
will need to manually stop the recording at the end
of the program. OR...
4. Press the DEVICE MENU button to display
the VCR's menu to schedule a delayed recording
directly from antenna or cable.

NetCommand TM Controlled Recordings
Recording Setup
(Figure 1)
Your TV is able to start and stop recordings
automatically and send the signals from one
external playback device to another external
recording device. It is also able to convert digital
signals from Ant-DTV and from IEEE 1394
devices to analog signals that can be recorded
on NetCommand TM compatible analog VHS and
S-VHS VCRs. You cannot record from an analog
device such as Ant-A, Ant-B or a VHS or S-VHS
VCR to a digital recording device such as a D-VHS
VCR or AV Disc.
You can schedule the recording to take place at a
later time and program the recording duration, in
30 minute increments, to last from 30 minutes to 6
hours.
When a digital recording is being made, the TV will
direct the signals to the recording device using the
IEEE 1394 cable. During the recording the TV is
able to watch any analog source or can be turned
off.
Time-Delayed Recording
You will need to select the destination device that
you want to record to, the duration of the recording,
the start time, day, and channel.
To initiate a time-delayed recording:
[] Display the Device Selection menu.
[] Select the source device you want to record and
press ENTer.
[] While viewing the source, press the REC button.
[] Select the destination device, duration time, the
start time and day. For devices that can select
channels, select the channel.
[] Select the Add button to add the recording
to the record list (a confirmation message will be
displayed).
[] Select the Quit button when all recor-
dings have been added.
Note: When selecting channels, you may use the
ADJUST • or V, or use the number buttons.
When an analog recording is being made, the TV
will direct signals to the recording device using the
Monitor Output Video or S-Video and stereo left and
right audio.
During the analog recording, the TV can be
powered Off. If the TV is powered On, it must be
watching the source that is being recorded.
If the Monitor outputs are sent to the A/V Receiver,
then the A/V Receiver must be turned on and set to
the TV input.
Recording Now
While viewing Ant-A, Ant-B, Ant-DTV, an IEEE
1394 device, or a non-recording traditional device,
pressing the REC button will bring up the Record/
Connect Screen.
To initiate recording now:
[] Display the Device Selection menu.
[] Select the source device you want to record and
press ENTer.
[] While viewing the source device, press the REC
button. The Record/Connect screen is
displayed.
[] Check that the destination device (VCRt) and
duration are OK. Change if necessary.
[] Press REC a second time to initiate recording.
Figure 1. Record/Connect Screen

NetCommand TM Controlled Recordings
Record List Screen
(Figure 1)
To view a list of all of your currently programmed
recordings, select List from the Record/Connect
screen. A maximum of 8 scheduled recordings
are possible at a time. To cancel a recording on
the Record List, use ADJUST A or • to select the
recording, then press CANCEL.
Figure 1. Record List Screen
Restrictions for Traditional VCRs
If turned On, the TV must be viewing the source device.
•Your VCR must be connected to the A/V Receiver VCR
record outputs, or TV monitor outputs ifyou do not have
an A/V Receiver.
• The VCR must be set manually to "line input". Display
the Device Selection menu, highlight the VCR and press
GUIDE to change VCR inputs.
• If you are connected to an A/V Receiver, the A/V
Receiver must be turned on.
• To record directly from antenna or cable, connect the
TV "Loop Out" to the VCR "Antenna In."
• The TV can select channels on compatible cable boxes
for recordings. Leave the cable box turned on.
• If the AV Receiver, source device or recording device
cannot power On automatically, then leave those devices
powered On.
Cancel Current Recordings
To cancel a recording in progress, display the
Device Selection menu and highlight the source
of the recording. Confirm that the icon for VCR
(or recording device) is in the Connection Section
next to the TV icon. Press the CANCEL button.
The icon for the VCR (or recording device) will
disappear from the Connection Section to confirm
the cancellation.
Copy-Protected Material
When attempting to record copy-protected and
5C protected material, the Record functions of the
NetCommand TM and IEEE 1394 systems may be
prevented or stopped.
If one of the sub-channels in a bitstream is copy-
protected, then the entire bitstream, that is, all
programs for that bitstream or channel, are similarly
copy-protected. If you have a recording that is
tagged "Record Once", NetCommand TM will not
allow another copy to be made.

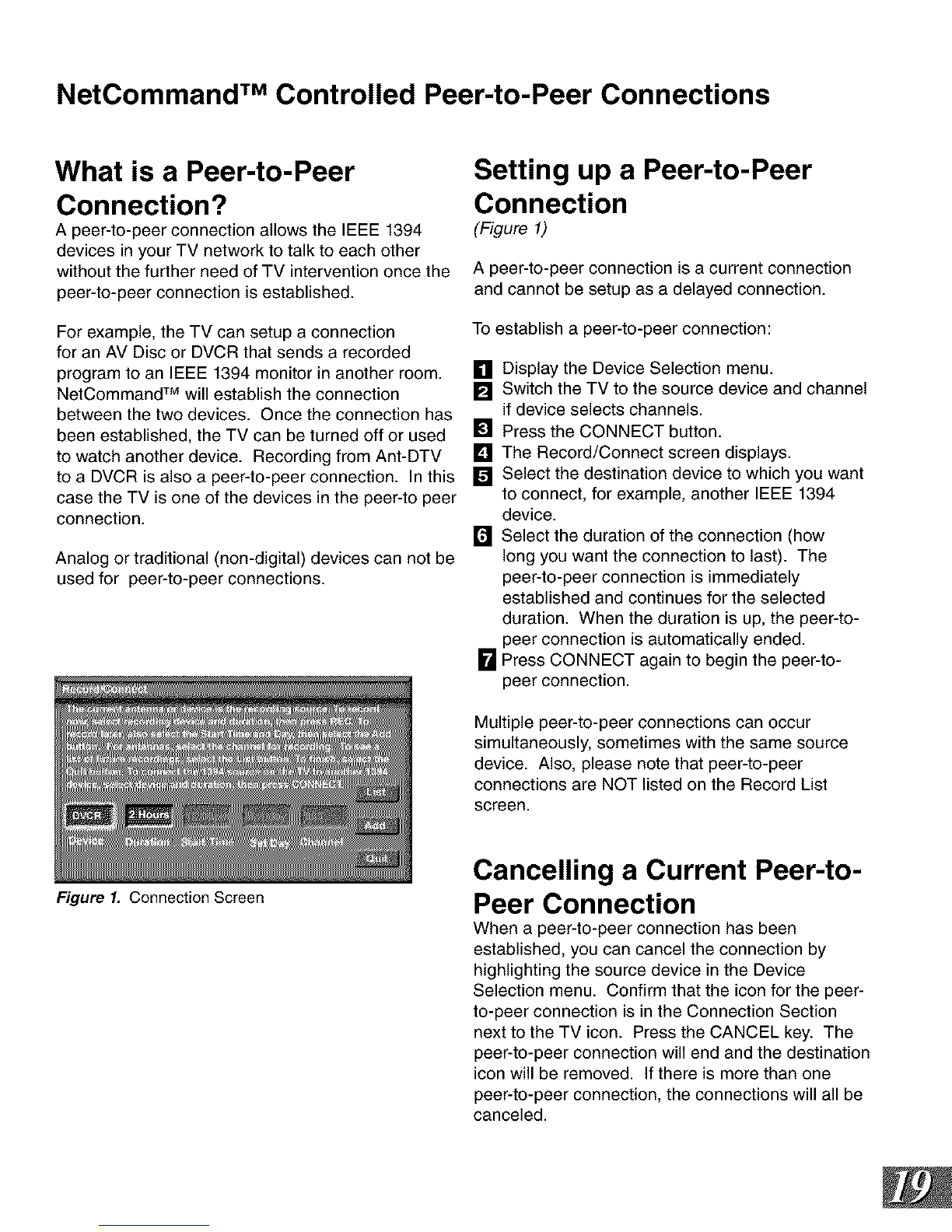

NetCommand TM Controlled Peer-to-Peer Connections
What is a Peer-to-Peer
Connection?
A peer-to-peer connection allows the IEEE 1394
devices in your TV network to talk to each other
without the further need of TV intervention once the
peer-to-peer connection is established.
For example, the TV can setup a connection
for an AV Disc or DVCR that sends a recorded
program to an IEEE 1394 monitor in another room.
NetCommand TM will establish the connection
between the two devices. Once the connection has
been established, the TV can be turned off or used
to watch another device. Recording from Ant-DTV
to a DVCR is also a peer-to-peer connection. In this
case the TV is one of the devices in the peer-to peer
connection.
Analog or traditional (non-digital) devices can not be
used for peer-to-peer connections.
Figure 1. Connection Screen
Setting up a Peer-to-Peer
Connection
(Figure 1)
A peer-to-peer connection is a current connection
and cannot be setup as a delayed connection.
To establish a peer-to-peer connection:
[] Display the Device Selection menu.
[] Switch the TV to the source device and channel
if device selects channels.
[] Press the CONNECT button.
[] The Record/Connect screen displays.
[] Select the destination device to which you want
to connect, for example, another IEEE 1394
device.
[] Select the duration of the connection (how
long you want the connection to last). The
peer-to-peer connection is immediately
established and continues for the selected
duration. When the duration is up, the peer-to-
peer connection is automatically ended.
[] Press CONNECT again to begin the peer-to-
peer connection.
Multiple peer-to-peer connections can occur
simultaneously, sometimes with the same source
device. Also, please note that peer-to-peer
connections are NOT listed on the Record List
screen.
Cancelling a Current Peer-to-
Peer Connection
When a peer-to-peer connection has been
established, you can cancel the connection by
highlighting the source device in the Device
Selection menu. Confirm that the icon for the peer-
to-peer connection is in the Connection Section
next to the TV icon. Press the CANCEL key. The
peer-to-peer connection will end and the destination
icon will be removed. If there is more than one
peer-to-peer connection, the connections will all be
canceled.

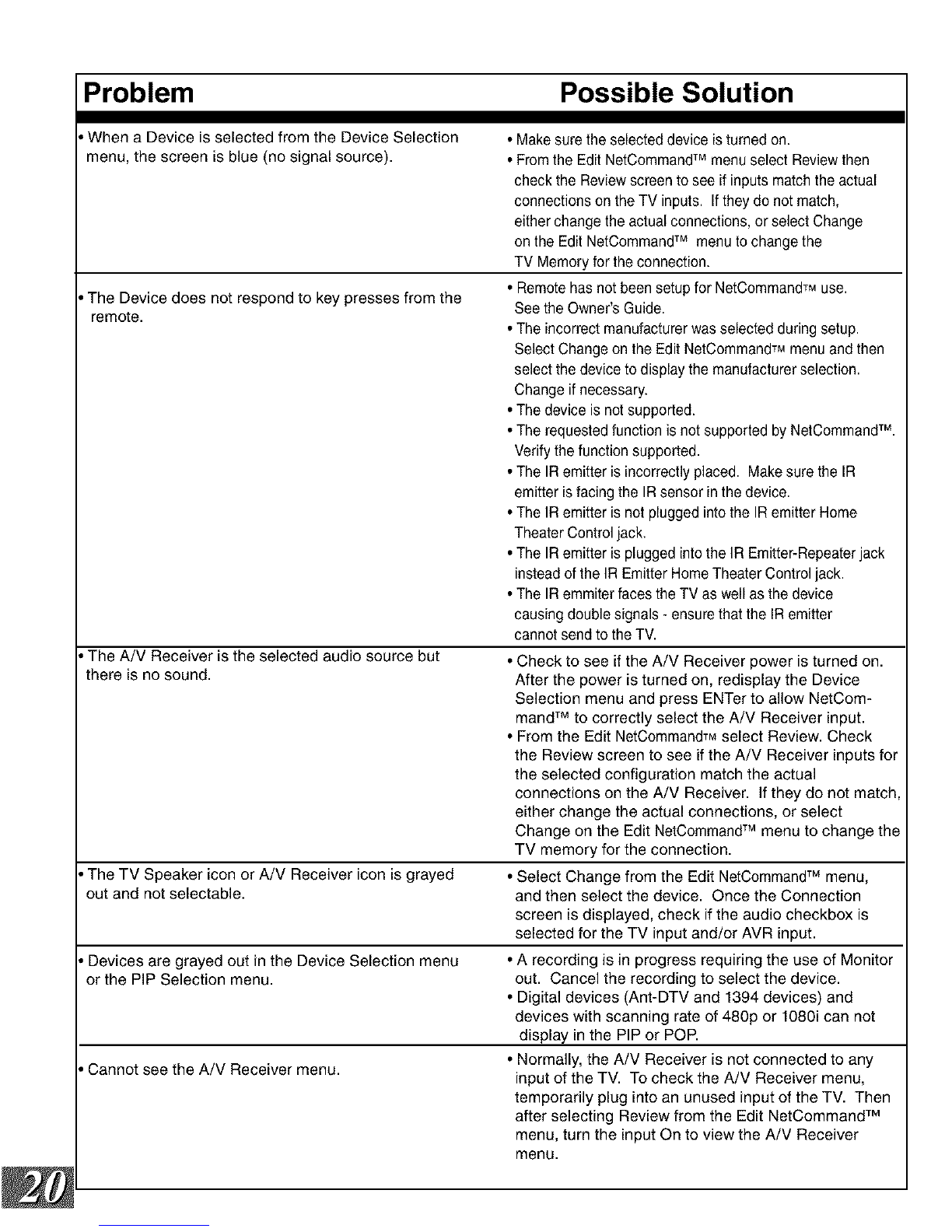

Problem Possible Solution
• When
menu, a Device is selected from the Device Selection the screen is blue (no signal source).
The Device does not respond to key presses from the
remote.
• The A/V Receiver is the selected audio source but
there is no sound.
• The TV Speaker icon or A/V Receiver icon is grayed
out and not selectable.
• Devices are grayed out in the Device Selection menu
or the PIP Selection menu.
Cannot see the A/V Receiver menu.
• Make surethe selected device is turned on.
• From the Edit NetCommandTM menu select Reviewthen
check the Reviewscreen to see if inputs match the actual
connections on the TV inputs. If they do not match,
either change the actual connections, or select Change
on the Edit NetCommandTM menuto change the
TV Memory for the connection.
• Remotehas not been setup for NetCommandTMuse.
See the Owner's Guide.
• The incorrect manufacturer was selected during setup.
Select Change on the Edit NetCommandTMmenu and then
select the device to display the manufacturer selection.
Change ifnecessary.
• The device is not supported.
• The requested function is not supported by NetOommandTM.
Verify the function supported.
• The IR emitter is incorrectly placed. Make sure the IR
emitter isfacing the IR sensor in the device.
• The IR emitter is not plugged into the IRemitter Home
Theater Control jack,
• The IR emitter is plugged into the IR Emitter-Repeaterjack
instead ofthe IR Emitter Home Theater Control jack.
• The IR emmiter faces the TV as well as the device
causing double signals - ensure that the IR emitter
cannot send to the TV.
• Check to see if the A/V Receiver power is turned on.
After the power is turned on, redisplay the Device
Selection menu and press ENTer to allow NetCom-
mand TM to correctly select the A/V Receiver input.
• From the Edit NetCommandTMselect Review. Check
the Review screen to see if the A/V Receiver inputs for
the selected configuration match the actual
connections on the A/V Receiver. If they do not match
either change the actual connections, or select
Change on the Edit NetCommandTM menu to change the
TV memory for the connection.
• Select Change from the Edit NetCommandTM menu,
and then select the device. Once the Connection
screen is displayed, check if the audio checkbox is
selected for the TV input and/or AVR input.
• A recording is in progress requiring the use of Monitor
out. Cancel the recording to select the device.
• Digital devices (Ant-DTV and 1394 devices) and
devices with scanning rate of 480p or 1080i can not
display in the PIP or POR
• Normally, the A/V Receiver is not connected to any
input of the TV. To check the A/V Receiver menu,
temporarily plug into an unused input of the TV. Then
after selecting Review from the Edit NetCommand TM
menu, turn the input On to view the A/V Receiver
menu.
