MK Martin CU-7 User manual

Cultivator
60" 72" 84"
Manufactured by
Tel: [phone] email: [email protected] Fax: [phone]
M K Martin Enterprise Inc
3950 Steffler Rd Elmira On Ca N3B 2Z3
rev:00

Table of Content
Warranty
Safety
Decal Location
Assembly
Operation
Maintenance
Parts
Bolt torque
1

.Warranty and Limitation Of Liability
All equipment is sold subject to mutual agreement that it is warranted by M K Martin Enterprise
Inc. (hereafter called the company) to be free of any defects of material and workmanship. But
the company shall not be liable for special, indirect or consequential, damages of any kind under
this contract or otherwise. The company’s liability shall be limited exclusively to replacing or
repairing without charge, at it’s factory or elsewhere, at it’s discretion, any material, or
workmanship defects, which becomes apparent within one year from the date of purchase. The
company will have no liability for damages of any kind. The buyer by the acceptance of the
equipment will assume all liability for any damages, which may result from the use or misuse by
the employees or others. The buyer shall maintain and service the equipment as recommended in
this Operators manual.
Warranty is voided if changes or alterations have been made without the written consent of the
company.
This Warranty does not cover Rental or Commercial use of this equipment. This equipment is
rated as agricultural.
For Rental/Commercial use, Warranty is for defects in material and workmanship, 90 days from
date of purchase.
Warranty coverage is null and void unless the Warranty Registration form has been completely
filled in and is on file at
M K Martin Enterprise Inc
3950 Steffler Road
Elmira Ont. Ca.
N3B 2Z3 For your record
Purchase Date Y20__ M___
Model #__________
Serial # ___________
Please cut at dotted line and return this registration form to the company via Mail, Fax
(519-664-3695) or e-mail the information to: sales@mkmartin>ca
M K Martin Inc
3950 Steffler Road
Elmira Ont. Ca.
N3B 2Z3 Buyers
Purchase Date Y20__ M___ Name ___________________
Model #__________ Address___________________
Serial # ___________
__________________________
Postal Code_______________
Cultivator
2

Safety
Take Note! This safety symbol is found throughout this manual to call your attention to
instructions involving yourself and others working around the machine.
•Failure to follow these instructions can result in injury or death!
This symbol means
--Attention!
--Become Alert!
--Your Safety is involved!
Signal words are used in this book.
Caution: Indicates a potentially hazardous situation that may result injury.
Warning: Indicates a potentially hazardous situation that could result in serious
injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the
operator that needs to be aware of these dangers.
If you have any questions not answered in this manual, please contact your dealer or
M K Martin Enterprise Inc.
3950 Steffler Rd
Elmira On Ca N3B 2Z3
Tel; 1-855-664-2752
(519)-664-2752
Fax; (519)-664 3695
e-mail; [e-mail]
3

Safety – It’s in your interest.
Safety Guidelines.
Safety of the operator is one of our main concerns, however it is up to the operator to
practice caution.
To avoid personal injury, study the following precautions and insist that those
working with you to follow them.
The MK Cultivator is designed for tilling soil and should not be used to transport
material or equipment.
Replace any decals that may be missing or not readable. Location of decals are
indicated elsewhere in this manual.
Do not use this machine while under the influence of drugs or alcohol.
Review the safety instructions with all users annually.
This equipment should not be operated by children: or those unfamiliar with the
operation of the MK Cultivator. Do not allow persons to operate this machine until
they have read this manual and/or were instructed by a qualified person.
Do not paint over, remove or deface any safety signs or warning decals on the
Meteor® Blower. Observe all safety signs and practice the instructions on them.
Do not allow anybody to ride on this equipment.
Please be careful with the extra weight on the back of the tractor. It may be
necessary to add weights on the front of the tractor to keep it balanced properly.
Stop engine and remove key when attaching and un-attaching equipment
from tractor.
4

MK Cultivator

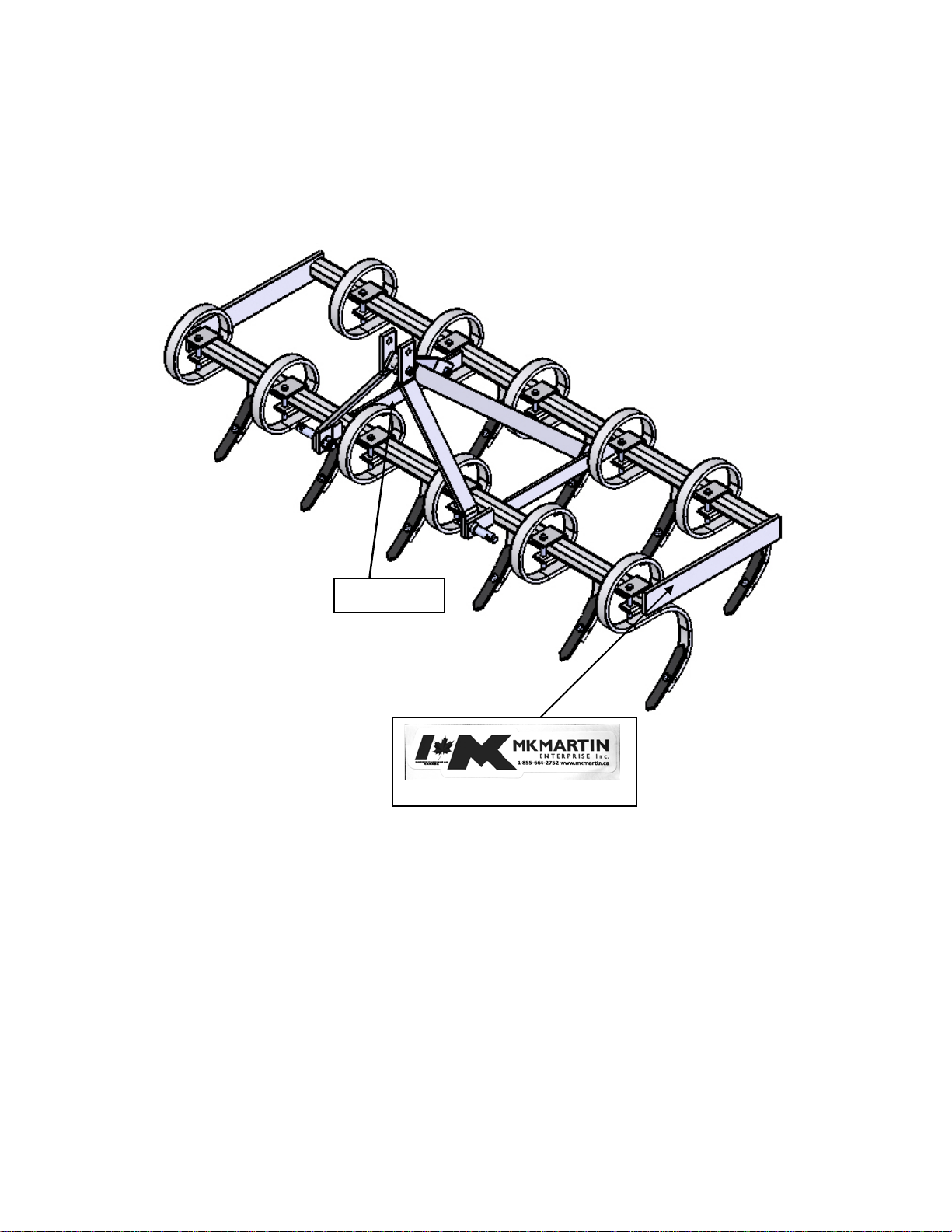

Decal Location
Serial Plate
Both ends
5

MK Cultivator
Assembly Instructions
Parts and Components
1. Main Frame
2. Cultivator Shanks
3. Cultivator Teeth
4. Cultivator tooth bolt c/w nut
5. Cultivator Shank Clamp
6. Cultivator Shank Clamp Bolt c/w n
7. 2 pc Front "A" Frame
8. 2 pc "A" Frame Brace
9. 2 pc Cat #1 Hitch Pin
10. 1 pc Spacer
11. 1 pc "A" Frame Bolt
12. 2 pc "A" Frame Brace Bolt
---------------------------------------------------------------------------------------------------------------------
Upon Receiving the MK Cultivator
Shipped in a packaged state
The number of Shanks or Tines varies depending on the size of the cultivator.
The 60 in has 9 Tines, - the 72 in has 11 Tines, - the 84 in has 13 Tines.
Unpack the package and inspect the produce for damaged and/or items missing.
Set Frame on sturdy Blocks approx 16"-18" high
Locate tine clamp according to dimensions on following page and place Clamp on frame, and
insert tine as shown.
Insert Hitch Pin with "A" Frame, lightly secure with nut and lockwasher.
Assemble brace onto main frame, lightly secure with bolt, lockwasher and nut.
Assemble "A" Frame and Brace with spacer between brace plates, lightly secure with bolt,
lockwasher and nut.
Finish by tightening all nuts and bolts to recommended torque.

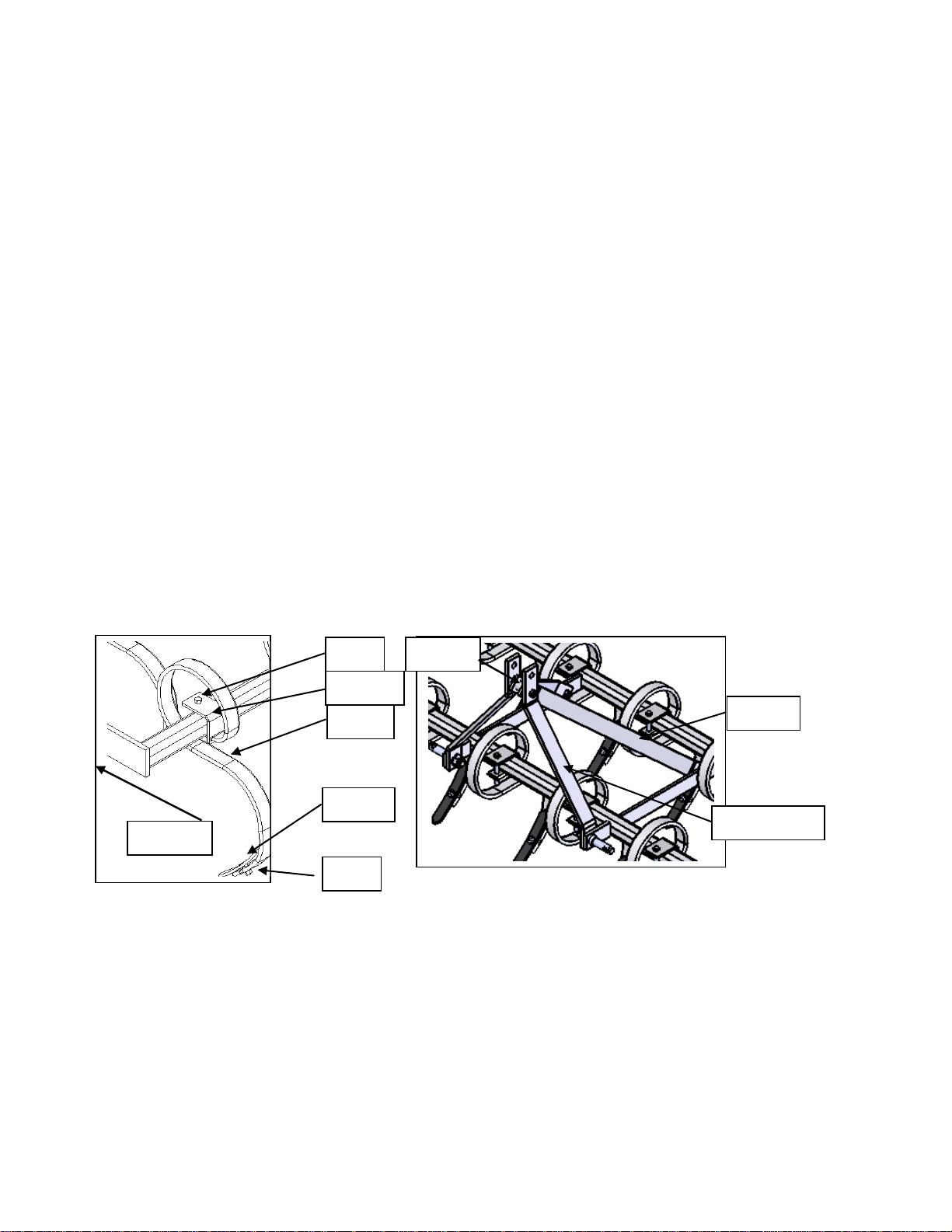

Tractor
Tine
Clamp
Bolt
Tooth
Bolt
"A" Frame
Brace
Spacer
6

MK Cultivator

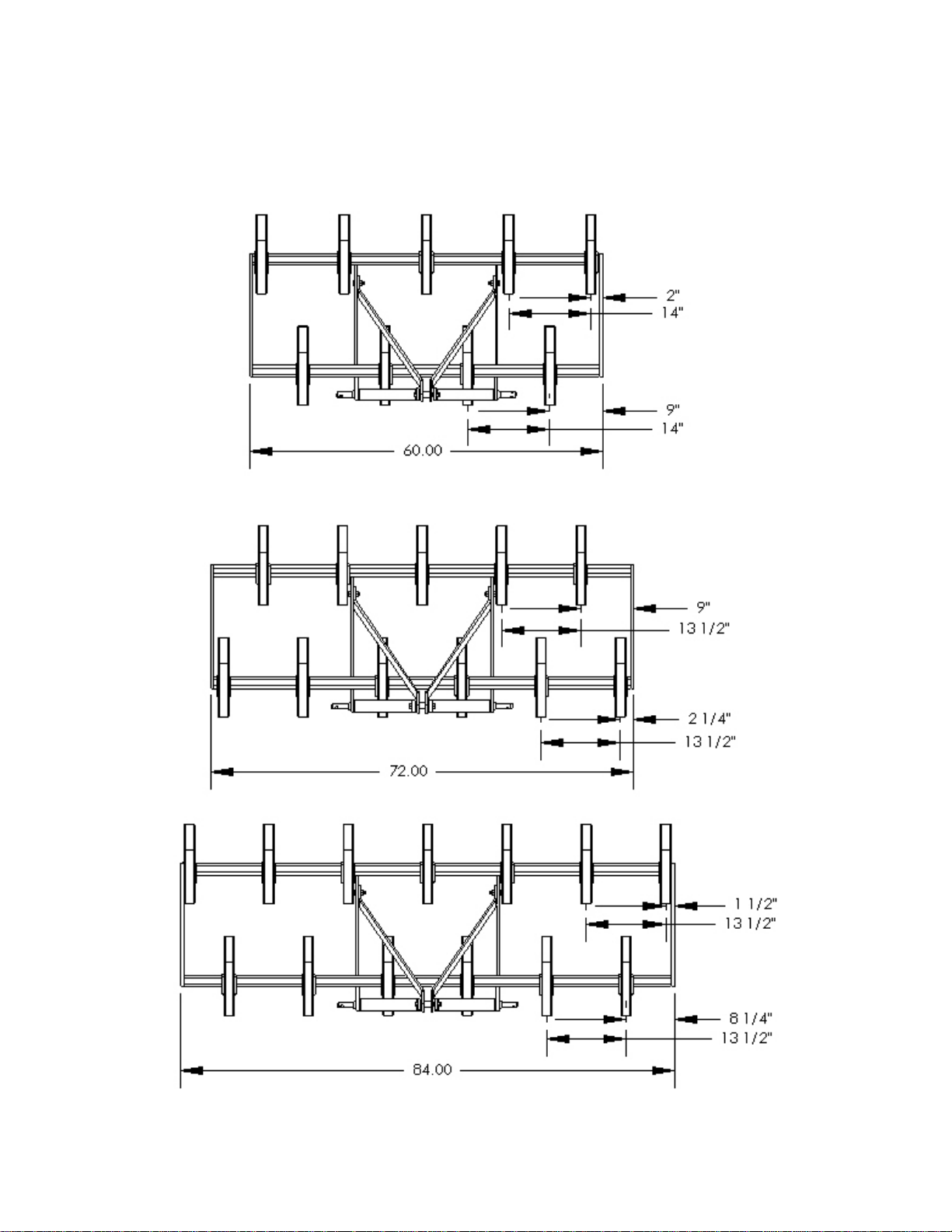

Tooth Spacing
7

Operating the MK Cultivator
Lower the cultivator to the ground and slowly start driving forward while moving the depth
control on the tractor until the teeth are 3-4" in the soil, or whatever your preference is.
Set the tractor hydraulic stop to this point. Check the orientation for the frame to see if it is level
to the soil when at the proper working depth, adjust the top link accordingly.
With the proper depth and speed the tines will move independently, ie. Vibrate back and forth
and side to side producing a viable seed bed.
Replacing Teeth on cultivator
When the teeth become worn or chipped they can be rotated or turned upside down to use the
other end.
Place the cultivator on solid blocks and remove the Plowbolt holding the tooth, turn the tooth
around and refasten, if the bolt head is worn replace.
Maintenance
This is very low maintenance equipment.
After the first 1-2 hours of use retorque all bolts
Check again at 5-6 hr intervals, when no more loose bolts are noticed then they will probably
stay tight.
8

MK Cultivator
60" 72" 84"
Item #
Description
Part #
Qty 60"
Qty 72"
Qty 84"
1
60" Main Frame
10136
1
72" Main Frame
10138
1
84" Main Frame
10140
1
2
Bolt 7/16x3 1/2 c/w ln
OL
9
11
13
3
Tine Clamp
783-100-108
9
11
13
4
" S "Tine
783-100-107
9
11
13
5
Plow Bolt
200011
9
11
13
6
Cultivator Point
783-100-109
9
11
13
7
Bolt 1/2x1 1/2 c/w ln
OL
2
2
2
8
Cat#1 Lower 3ph Pin
783-10-110
2
2
2
9
"A" Frame Bar
10005
2
2
2
10
Brace
10006
2
2
2
11
Spacer
10007
1
1
1
12
Bolt 1/2x4 c/w ln
OL
1
1
1
9

Bolt Torque
As used on this equipment
Bolt torque table shown below gives torque values for the various bolts used.
This chart is for non-lubricated threads.
Replace with the same strength bolt.
Torque Specifications. Torque values are identified by their head markings
Diameter
SAE 2
SAE 5
SAE 8
“A”
Lb-ft
N.m
Lb-ft
N.m
Lb-ft
N.m
1/4
6
(8)
9
(12)
12
(17)
5/16
10
(13)
19
(25)
27
(36)
3/8
20
(27)
33
(45)
45
(63)
7/16
30
(41)
53
(72)
75
(100)
1/2
45
(61)
80
(110)
115
(155)
5/8
95
(128)
160
(215)
220
(305)
3/4
165
(225)
290
(390)
400
(540)
1
225
(345)
630
(850)
970
(1320)
Allen head cap screws are similar to SAE 8 quality.
These torques are for a reference only. Not all these sizes and grades are necessarily used
in this machine. Bolts that are used as a pivot or hinge have to be used with a locknut,
therefore only tighten enough to secure the bolt and still allowing the part to rotate freely.
SAE -2
SAE - 5
SAE-8
A
10
