Mobatime 133286 User manual

© MOBATIME BE-801367.01
MOUNTING AND
INSTRUCTION MANUAL
Multi Signal Converter MSC
Cascadable Signal-Converter / Distributor
Article No. 133286 without fiber optic (FO)
Article No. 133287 with fiber optic input and output (FO IN, OUT)
Please read these instructions carefully before installation.

© MOBATIME 2 / 16 801367.01
Product Certification
STANDARDS
The Multi Signal Converter was developed and produced in accordance with the EU Guidelines
2004 / 108 / EC
96 / 48 / EC
References to the Instruction Manual
1. The information in this Instruction Manual can be changed at any time without notice. The cur-
rent version is available for download at www.mobatime.com.
2. This Instruction Manual has been composed with the utmost care, in order to explain all details
in respect of the operation of the product. Please do not hesitate to contact us if you have any
questions. Thank you for reporting any possible mistakes.
3. We do not answer for direct or indirect damages which could occur when using this manual.
4. Read the instructions carefully. Only start setting-up the product if you have understood the
information for installation and operation.
5. It is prohibited to copy this publication or to store it on a computer system. All rights reserved.
Copyright © BÜRK MOBATIME GmbH D-78026 VS-Schwenningen / GERMANY and
MOSER-BAER AG CH 3454 Sumiswald / SWITZERLAND.

© MOBATIME 3 / 16 801367.01
Content
1Safety ............................................................................................................................................................4
1.1 Safety instructions.....................................................................................................................................4
1.2 Symbols and Signal Words used in this Instruction Manual.....................................................................4
1.3 Intended use..............................................................................................................................................4
1.4 Observe operating safety!........................................................................................................................5
1.5 Consider the installation site! ....................................................................................................................5
1.6 Observe electromagnetic compatibility! ...................................................................................................5
2Maintenance..................................................................................................................................................6
2.1 Troubleshooting: Repairs..........................................................................................................................6
2.2 Cleaning....................................................................................................................................................6
2.3 Disposing...................................................................................................................................................6
3General Information: Introduction..................................................................................................................7
3.1 Scope of delivery.......................................................................................................................................7
3.2 Appropriate accessories - Mains power supply ........................................................................................7
3.3 Function description..................................................................................................................................7
4Configuration, Displays and Connections .....................................................................................................8
5Application examples and circuits .................................................................................................................9
6Detailed wiring examples of the inputs and outputs....................................................................................10
7Technical data .............................................................................................................................................14
8Dimensions..................................................................................................................................................15

© MOBATIME 4 / 16 801367.01
1 Safety
1.1 Safety instructions
Read this chapter and the entire instruction manual carefully and follow all instructions
listed. This is your assurance for dependable operations and a long life of the device.
Keep this instruction manual in a safe place to have it handy every time you need it.
1.2 Symbols and Signal Words used in this Instruction Manual
Danger!
Please observe this safety message to avoid electrical shock!
There is danger to life!
Warning!
Please observe this safety message to avoid bodily harm and injuries!
Caution!
Please observe this safety message to avoid damages to property and devices!
Notice!
Additional information for the use of the device.
1.3 Intended use
The Multi Signal Converter is a device, which can be used to convert and distribute
DCF signals.
However, it can also be used for other types of signals. The limitation is given by the
frequency of the signals and the signal form. Ideally, the device is used for digital sig-
nals. See also chapter 7 Technical data.
Please refer to section - 3.3 Function description - for a detailed function description.
!
!

© MOBATIME 5 / 16 801367.01
1.4 Observe operating safety!
•Never open the housing of the device! This could cause an electric short or even a
fire, which would damage your device. Do not modify your device!
•The device is not intended for use by persons (including children) with limited physi-
cal, sensory, or mental capacities or a lack of experience and/or knowledge.
•Keep packaging such as plastic films away from children. There is the risk of suffo-
cation if misused.
1.5 Consider the installation site!
•To avoid any operating problems, keep the device away from moisture and avoid
dust, heat, and direct sunlight. Do not use the device outdoors.
•The Multi Signal Converter is designed for DIN rails and should only be operated
installed on a DIN rail.
Danger! Make sure
that you wait before using the device after any transport until the device has
reached the ambient air temperature. Great fluctuations in temperature or humid-
ity may lead to moisture within the device caused by condensation, which can
cause a short.
1.6 Observe electromagnetic compatibility!
The device complies with the requirements of EMC directive 2004/108/EC and
96/48/EC
!
Vorsicht!
!
Vorsicht!

© MOBATIME 6 / 16 801367.01
2 Maintenance
2.1 Troubleshooting: Repairs
If you cannot rectify the problems, contact your supplier from whom you have pur-
chased the device.
Any repairs must be carried out at the manufacturer’s plant.
Disconnect the power supply immediately and contact your supplier, if …
•liquid has entered your device
•the device does not properly work and you cannot rectify this problem yourself.
2.2 Cleaning
•Please make sure that the device remains clean especially in the area of the con-
nections, the control elements, and the display elements.
•Clean your device with a damp cloth only.
•Do not use solvents, caustic, or gaseous cleaning substances.
2.3 Disposing
Device
At the end of its life cycle, do not dispose of your device in the regular household rub-
bish. Return your device to your supplier who will dispose of it correctly.
Packaging
Your device is packaged to protect it from damages during transport.
Packaging is made of materials that can be disposed of in an environmentally friendly
manner and properly recycled.

© MOBATIME 7 / 16 801367.01
3 General Information: Introduction
3.1 Scope of delivery
Please check that the delivery is complete and notify your supplier within 14 days of
receipt of the delivery if it is not complete.
In the package purchased by you, you have received:
•Multi Signal Converter for DIN rail mounting
.
3.2 Appropriate accessories - Mains power supply
Mains power supply suitable for Multi Signal Converter for mounting on DIN rails:
HDR 15-24 from Meanwell (24VDC / 15W)
HDR 30-24 from Meanwell (24VDC / 30W)
Other power supply can also be used.
Minimum requirements: 24VDC smoothed und stabilized, min. 100 mA
3.3 Function description
-Wide power input voltage range 12 –60 VDC.
Either via DC Input or external DIN Rail Power
Supply.
-Several inputs, current or voltage controlled.
Option: optical input (820nm / ST Port)
-4 galvanically separated outputs for current or
voltage interfaces, 1 TTL or RS422 output
(single or differential useable).
Option: optical output (820nm / ST Port)
-Cascading possible, without relevant delay of
the current loop outputs
-Very low signal propagation delay
-DC Out for GNSS receiver or cascaded de-
vices, limited to 30V (@ UIN >30V).
-2 LEDs for supervision: power and input sig-
nal
-Replaces DCF-Multi-4 and 10x-DCF-Multi-
plexer

© MOBATIME 8 / 16 801367.01

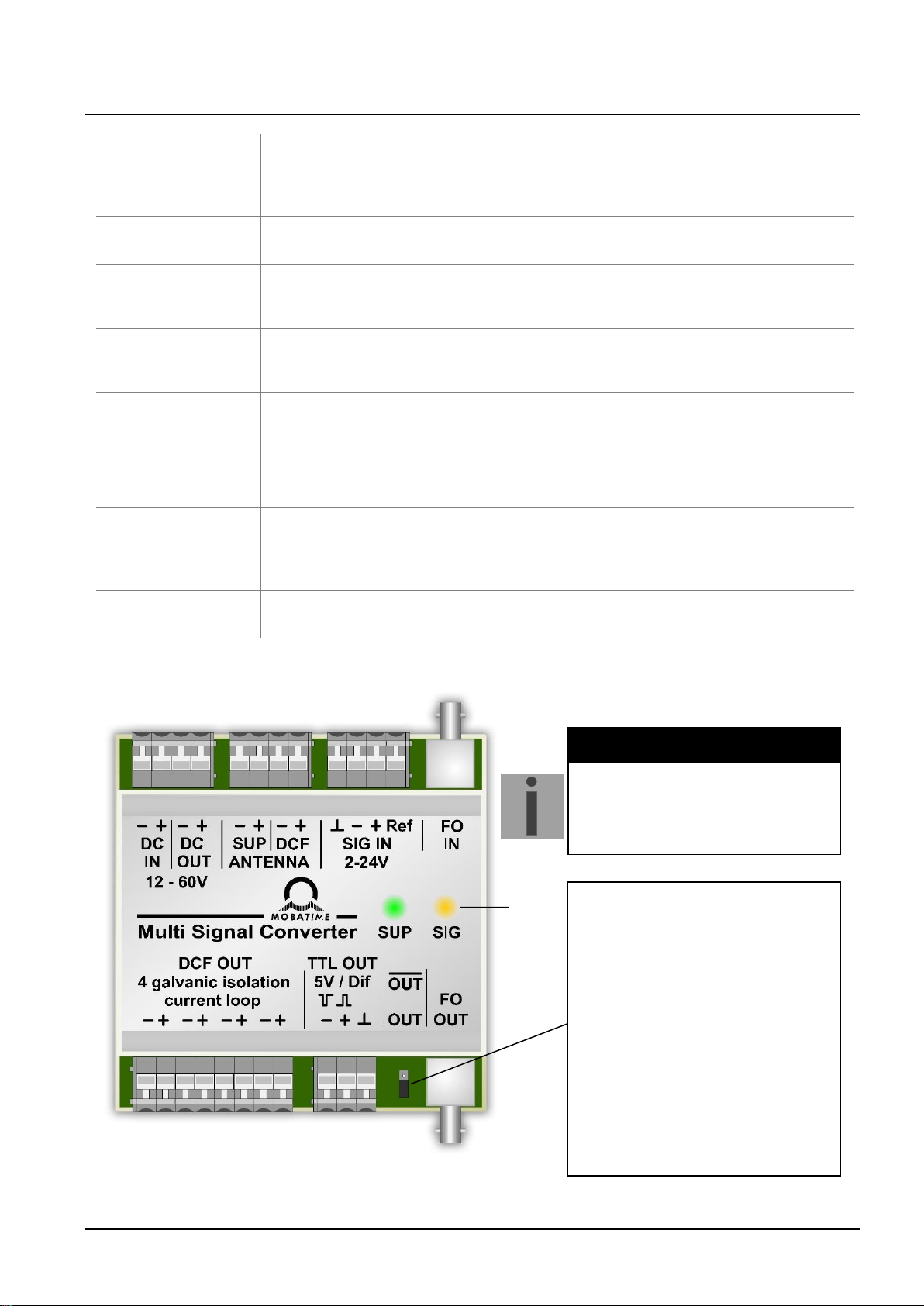

4 Configuration, Displays and Connections

DC IN
Power input, nom. 24VDC / < 100mA (12V-60V)
Remark: Correct +/- polarity required. Internal thermical fuse

DC OUT
Directly wired to DC IN. Used for power cascading to next converter.

SUP ANT
Power output for power supply of the GPS/GNSS receiver.
Same voltage as DC IN but limited to 30VDC.

DCF ANT
DCF input, active current loop input. For the connection of a GNSS receiver
(with DCF current loop out) or any other DCF source.
30V / 30mA, current limited, min signal level: approx. 6 mA

SIG IN
Voltage signal input 2-24V, potential against GND, inverted (-) resp. none-
inverted (+),or differential connection (RS422)
Ref.: Out 2.5VDC, used to define the unused input (+ or -)

DCF OUT
4 galvanically separated outputs for current or voltage interfaces:
- Passive current loop interface 12mA max. 30V
- "Open Collector" application 3-30V

TTL OUT
Signal output 5V, transparent resp. inverted or as RS422 output
Signal cascading to next "Multi Signal Converter"

FO IN / OUT
Option: Fiber optic in- and output 1Hz - 10MHz (820nm / ST Port)

SIG INV
Inversion of the output signals "DCF OUT" and "FO OUT"
Jumper position: "OUT" = Signal transparent, "OUT" = Signal invertiert

LED‘s
green: power supply yellow: signal activity (DCF, SIG IN, FO IN).
Flashes to the beat of input signal or with approx. 20Hz at higher frequency











Important !
The signal inputs are "OR" con-
nected.
This means, only one input must
be used.
Signal-Inversion
The “Multi Signal Converter”
works in transparent mode by
default, i.e. the signal polarity at
the output is the same as at the
input.
The jumper for signal inversion
should only be repositioned in
special cases.
The inversion only takes place
for "DCF OUT" and "FO OUT".
The output "TTL OUT" is not af-
fected since the signal is already
available in inverted form (-).

© MOBATIME 9 / 16 801367.01
5 Application examples and circuits
DCF-Distributor with
DIN rail power supply (24V)
or external 24V supply
DCF-Distribution with cascading of additional distributors.
Signal input: DCF 4500 (two wires) or GPS/GNSS 4500 with
power supply (4 wire connection). 24V supply cascaded.
Connection of 2 Systems via
optical fiber: RS422 signal
IN: PPS, IRIG digital, frequency
OUT: Signal according input
Connection of a GNSS
receiver via optical fiber for
the DCF synchronization of
one or more systems
Schematic representation of the
inputs and outputs
DCF signal receiver
or ext. source
devices to be synchronized
(DCF current-loop)
Mains
24V
Supply 24V
AC
DC
DCF
signal
devices to be synchronized
(DCF current-loop)
Mains
24V
Supply 24V
GNSS rec.
supply
Cascading
+TTL-OUT to +SIG-IN
24V
AC
DC
Shunt
+30V
current-
limiter
approx.
120mV
current-voltage
converter
+
-
DCF
ANT
Opto-
coupler
DCF
OUT
+
-
current-limiter
DCF ANT: Current-loop active
DCF OUT: Current-loop passiv
SIG IN: 2-24V
SIG OUT: 5V TTL
SIG
SIG
50Ω
50Ω
SIG
SIG
GND
2.5V
Ref
Mains
Master
(RS422)
Slave
(RS422)
Optical fiber
24V
Supply 24V
AC
DC
Mains
Supply 24V
AC
DC
24V
Mains
Optical fiber
GPS/GNSS 4500
DCF OUT
(current-loop)
24V
AC
DC
Mains
Supply 24V
AC
DC
24V
Supply 24V

© MOBATIME 10 / 16 801367.01

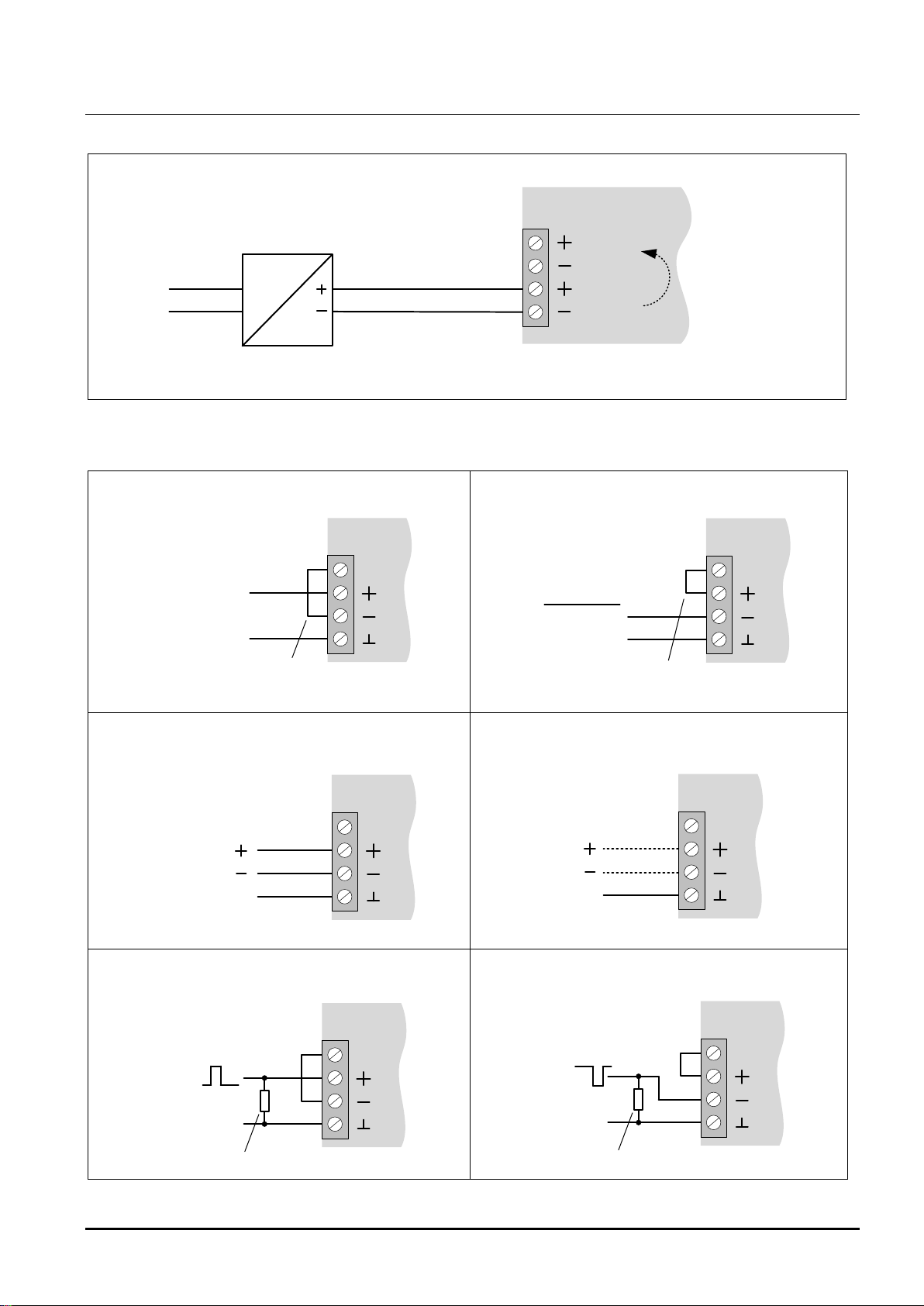

6 Detailed wiring examples of the inputs and outputs
Wiring power supply
DC IN
Supply 12-60V
External DC-supply
Ext. Power supply
typ. 24V DC OUT
=
DC IN
DC OUT
24V
80-
240V
DC-supply 12V to 60V over external power supply or from a third party device.
The voltage at DC Out is identical to the input voltage (DC IN).

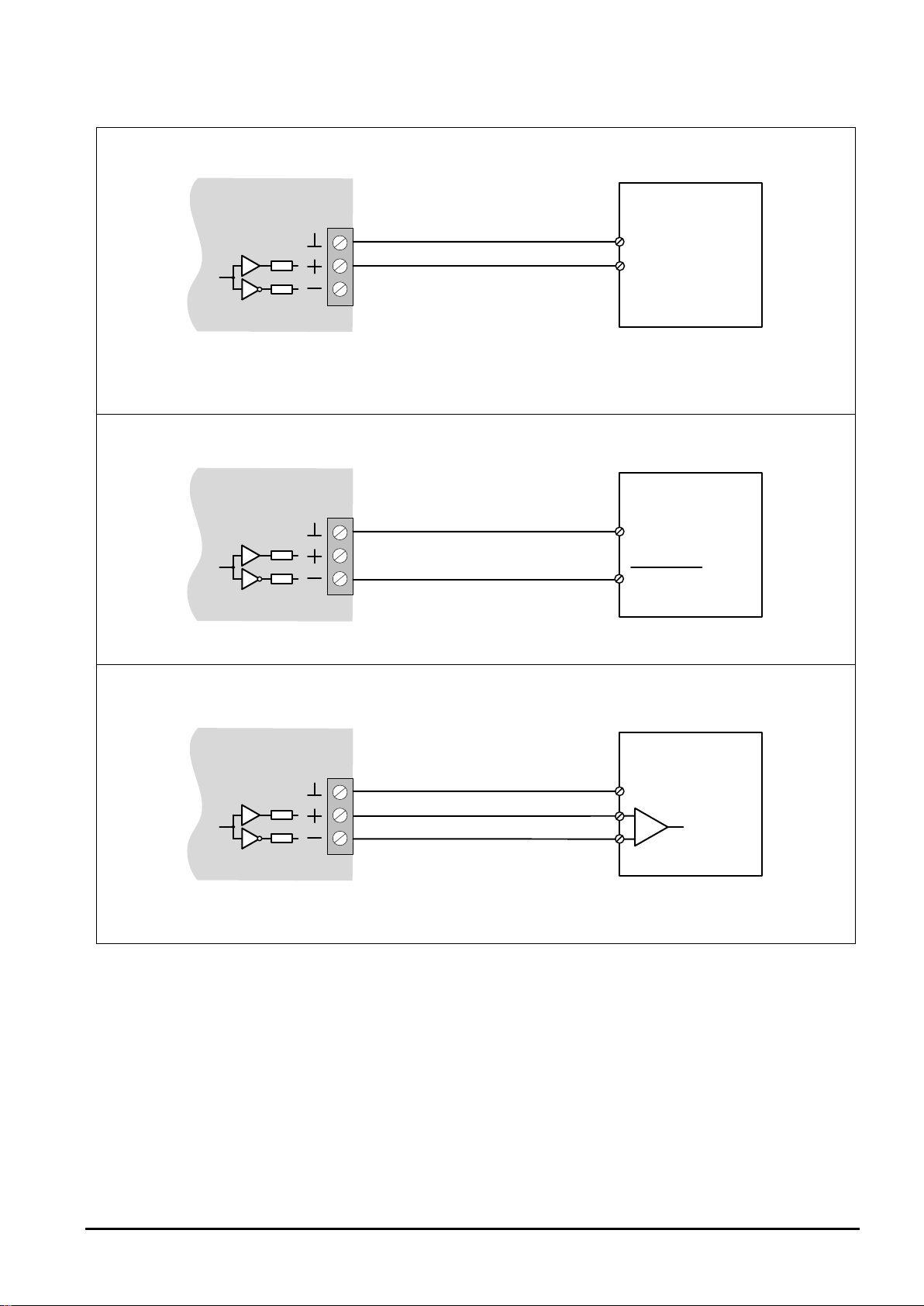

Wiring of the signal input (voltage controlled)
Ref
SIG IN
TTL-Signal
GND
TTL input not inverted
3-5V Logic
Defines the unused
input
Ref
SIG IN
TTL-Signal
GND
TTL input inverted
3-5V Logic
Defines the unused
input
Ref
SIG IN
RS 422
Reference-GND
Differential input
3-5V Logic
Ref
SIG IN
Signal
Line signals from a master clock
Active DCF bipolar
(Mode 3 or 4)
or MOBALine
Ref
SIG IN
24V
minus
Optional 4.7-22kOhms
24V input from a PLC
Ref
SIG IN
minus
24V
Optional 4.7-22kOhms
24V input from a PLC (inverted)
