Mobatime DTS 4128.timeserver User manual

© MOBATIME BE-800847.08
INSTRUCTION MANUAL
DTS 4128.timeserver
Network Time Server

© MOBATIME 2 / 84 800847.08
Certification of the Producer
STANDARDS
The DTS 4128.timeserver was developed and produced in accordance with the EU Guidelines:
2014 / 30 / EU EMC
2014 / 35 / EU LVD
2008 / 57 / EU Railway
2011 / 65 / EU RoHS
1907 / 2006 REACH
2012 / 19 / EU WEEE
References to the Instruction Manual
1. The information in this Instruction Manual can be changed at any time without notice.
The current version is available for download on www.mobatime.com.
2. The device software is continuously being optimized and supplemented with new options. For this
reason, the newest software version can be obtained from the Mobatime website.
3. This Instruction Manual has been composed with the utmost care, in order to explain all details in
respect of the operation of the product. Should you, nevertheless, have questions or discover errors in
this Manual, please contact us.
4. We do not answer for direct or indirect damages, which could occur, when using this Manual.
5. Please read the instructions carefully and only start setting-up the product, after you have correctly
understood all the information for the installation and operation.
6. The installation must only be carried out by skilled staff.
7. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or
another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH,
D-78026 VS-Schwenningen and MOSER-BAER AG –CH 3454 Sumiswald / SWITZERLAND.

© MOBATIME 3 / 84 800847.08
Overview
1Safety..............................................................................................................................................5
2Maintenance....................................................................................................................................8
3General Information: Introduction....................................................................................................9
4Displays ........................................................................................................................................13
5Installation.....................................................................................................................................14
6Operation ......................................................................................................................................16
7Updates.........................................................................................................................................54
8Time administration.......................................................................................................................58
9SNMP............................................................................................................................................63
APPENDIX
AConnection diagrams ....................................................................................................................69
BTime zone table.............................................................................................................................72
CAlarm list .......................................................................................................................................74
DTroubleshooting.............................................................................................................................75
ECopyright notice ............................................................................................................................76
FTechnical data...............................................................................................................................77
GIndex.............................................................................................................................................79
HConnection table (to fill in).............................................................................................................81

© MOBATIME 4 / 84 800847.08
Table of contents
1Safety............................................................5
1.1 Safety instructions....................................... 5
1.2 Symbols and Signal Words used in this
Instruction Manual....................................... 5
1.3 Intended Use............................................... 5
1.4 Observe operating safety!........................... 6
1.5 Consider the installation site! ...................... 6
1.6 Please observe the electromagnetic
compatibility!................................................ 6
1.7 Network security.......................................... 6
1.8 Pay attention to the instructions for the
connection of the power supply................... 7
2Maintenance..................................................8
2.1 Troubleshooting: Repairs............................ 8
2.2 Cleaning...................................................... 8
2.3 Disposing..................................................... 8
3General Information: Introduction..................9
3.1 Scope of Delivery........................................ 9
3.2 Technical Data ............................................ 9
3.3 Introduction.................................................. 9
3.4 Device types.............................................. 10
3.5 DTS distributed time system ..................... 10
3.6 MOBA-NMS - Network Management
System ...................................................... 11
3.6.1 Overview of the main functions............................11
3.6.2 Device management............................................12
4Displays ......................................................13
4.1 LED displays ............................................. 13
4.2 LED indication back side........................... 13
5Installation...................................................14
5.1 Connections .............................................. 14
5.2 Boot procedure of the DTS
4128.timeserver......................................... 14
5.3 Firmware ................................................... 14
5.4 Basic settings (factory settings) ................ 15
6Operation ....................................................16
6.1 General...................................................... 16
6.1.1 Serial connection....................................... 17
6.1.2 Telnet ........................................................ 17
6.1.3 SSH........................................................... 17
6.1.4 Menu structure .......................................... 18
6.2 MOBA-NMS operation .............................. 19
6.3 Main menu................................................. 20
6.4 Status menu.............................................. 21
6.4.1 Time information and status...................... 22
6.4.2 Time source information............................ 23
6.5 Configuration menu................................... 24
6.5.1 Lines.......................................................... 24
6.5.2 DCF –output............................................. 25
6.5.3 NTP slave clocks / time zone server......... 26
6.5.4 Time administration................................... 27
6.5.5 Time source............................................... 28
6.5.6 Time-keeping............................................. 29
6.5.7 Redundant operation................................. 30
6.5.8 NTP server ................................................ 31
6.5.9 Manual time set / Leap second................. 35
6.5.10Alarms ....................................................... 36
6.5.11Alarm relay.................................................36
6.5.12Alarm mask................................................37
6.5.13E-mail.........................................................38
6.5.14SNMP traps................................................40
6.5.15General settings.........................................42
6.5.16Network......................................................43
6.5.17Services (network services FTP, telnet,
SSH...) .......................................................46
6.5.18SNMP.........................................................47
6.5.19SNMP V1 / V2c..........................................48
6.5.20SNMP V3...................................................49
6.5.21Time zone selection...................................52
6.6 Maintenance menu ....................................53
7Updates.......................................................54
7.1 Image- und Filenames...............................54
7.2 Updating images with MOBA-NMS ...........54
7.3 Updating images with FTP.........................54
7.4 Updating configurations.............................55
7.5 FTP connection..........................................56
7.6 Save Configuration externally....................56
8Time administration.....................................58
8.1 Time acceptance .......................................58
8.2 Time acceptance from an external source
(DCF or GPS) ............................................58
8.3 Time acceptance from NTP.......................59
8.4 NTP as backup ..........................................59
8.5 Time server................................................59
8.6 Time accuracy, time-keeping.....................59
8.7 Leap second ..............................................59
8.8 NTP Authentication....................................59
8.8.1 NTP symmetric keys............................................60
8.8.2 NTP Autokey.......................................................61
8.9 Redundant operation of 2 DTS
4128.timeservers .......................................61
9SNMP..........................................................63
9.1 General......................................................63
9.2 Device configuration with SNMP ...............64
9.3 DTS subagent SNMP notification..............64
9.3.1 Start up [dts4128StartUp] ...................................64
9.3.2 Shutdown [dts4128Shutdown] .............................64
9.3.3 Status changed [dts4128StatusChanged]............65
9.3.4 Configuration changed [dts4128ConfigChanged].65
9.3.5 Alive notification [dts4128Alive]............................67
9.3.6 Alarm notification [dts4128Alarm] ........................68
AConnection diagrams...................................69
A.1 Front connections ......................................69
A.2 Connections (rear view).............................70
A.3 Plug-in spring terminals .............................71
A.4 Connection GNSS 4500 or DCF 450.........71
BTime zone table...........................................72
CAlarm list......................................................74
DTroubleshooting...........................................75
ECopyright notice...........................................76
FTechnical data.............................................77
GIndex ...........................................................79
HConnection table (to fill in)...........................81

© MOBATIME 5 / 84 800847.08
1 Safety
1.1 Safety instructions
Read this chapter and the entire instruction manual carefully and follow all instructions
listed. This is your assurance for dependable operations and a long life of the device.
Keep this instruction manual in a safe place to have it handy every time you need it.
1.2 Symbols and Signal Words used in this Instruction Manual
Danger!
Please observe this safety message to avoid electrical shock!
There is danger to life!
Warning!
Please observe this safety message to avoid bodily harm and injuries!
Caution!
Please observe this safety message to avoid damages to property and
devices!
Notice!
Additional information for the use of the device.
Important information in the Manual!
This information must be followed!
1.3 Intended Use
The DTS 4128.timeserver is a time server for the use in network environments. It can
be synchronized from NTP and be used as NTP server. In addition, it can read the time
from DCF or GPS (e.g. from GNSS 4500).
For additional functions, see the device descriptions in chapter 3.
The device is designed for 19" racks and intended to be installed in a 19" cabinet.
Operate the device only in installed condition and with all connectors plugged in.
Use this product only as stated in this instruction manual. Any other use is considered
improper use.
!
!

© MOBATIME 6 / 84 800847.08
1.4 Observe operating safety!
Never open the housing of the device! This could cause an electric short or even a
fire, which would damage your device. Do not modify your device!
The device is not intended for use by persons (including children) with limited
physical, sensory, or mental capacities or a lack of experience and/or knowledge.
Keep packaging such as plastic films away from children. There is the risk of
suffocation if misused.
1.5 Consider the installation site!
To avoid any operating problems, keep the device away from moisture and avoid
dust, heat, and direct sunlight. Do not use the device outdoors.
The device is designed for 19" racks and should only be operated installed in a 19"
cabinet.
By operating the device, the heat sinks attached to the sides get warm.
Make sure there is enough air circulation for the heat to dissipate.
The device shuts off when overheated. After it has regained its normal operating
temperature, it will restart automatically. The settings are saved.
Danger! Make sure
that you wait before using the device after any transport until the device has
reached the ambient air temperature. Great fluctuations in temperature or
humidity may lead to moisture within the device caused by condensation, which
can cause a short.
1.6 Please observe the electromagnetic compatibility!
This device complies with therequirements of theEMC and the Low-voltage Directive.
1.7 Network security
The default password shall be changed after the commissioning of the device.
A reset of the password to default through hardware is not possible.
Using MOBA-NMS the password can be modified.
In case an access via MOBA-NMS is not possible, support effort will be needed or
the device has to be sent back to the factory.
Use encrypted services (SSH, SCP, SFTP)
All unused services shall be deactivated: FTP, Telnet, ...
Refer to our Security Guidelines TE-801312 (see "http://www.mobatime.com" –
Login area: > Customer_area > Product_Resources -
10_Timerserver_TimeCenter).
!
Caution!
!
Caution!
!
Caution!
!
Caution!

© MOBATIME 7 / 84 800847.08
1.8 Pay attention to the instructions for the connection of the power supply
The connections are described in appendix "A Connection diagrams".
Danger! Absolutely pay attention::
Mounting, installation, commissioning and repairs of electrical devices must only be
carried out by a licensed electrician. While the national installation regulations must
be adhered.
For the power supply connection ( DC In1 ), a fuse in according to the performance
data has to be provided.
The used fuses for the DC-supply have to be approved for DC.
The power supply connection ( DC In1 ) needs to be realized with an all-pole
disconnection device, which is installed near to the device mentioned in this
manual, which is clearly labeled and good accessible.
Before working on a device or on the electrical installations the corresponding
circuits have to be switched off and secured against uncontrolled power on.

© MOBATIME 8 / 84 800847.08
2 Maintenance
2.1 Troubleshooting: Repairs
Please read carefully Appendix "D Troubleshooting" if your device does not work
properly.
If you cannot rectify the problems, contact your supplier from whom you have
purchased the device.
Any repairs must be carried out at the manufacturer’s plant.
Disconnect the power supply immediately and contact your supplier, if …
liquid has entered your device
the device does not properly work and you cannot rectify this problem yourself.
2.2 Cleaning
Please make sure that the device remains clean especially in the area of the
connections, the control elements, and the display elements.
Clean your device with a damp cloth only.
Do not use solvents, caustic, or gaseous cleaning substances.
2.3 Disposing
Device
At the end of its lifecycle, do not dispose of your device in the regular household
rubbish. Return your device to your supplier who will dispose of it correctly.
Packaging
Your device is packaged to protect it from damages during transport.
Packaging is made of materials that can be disposed of in an environmentally friendly
manner and properly recycled.

© MOBATIME 9 / 84 800847.08
3 General Information: Introduction
3.1 Scope of Delivery
Please check your deliveryfor completeness andnotify your supplierwithin 14 daysupon
receipt of the shipment, if it is incomplete.
The package you received contains:
DTS 4128.timeserver
Mounting set for rack mounting consisting of:
- 4 pcs nuts for 19" housing
- 4 screws M6 for the nuts
- 4 plastic discs for screws M6
Connector set
- 1 * spring terminal 6-pole orange
- 2 * spring terminal 2-pole orange
2 pcs mounting tools with spring terminals
3.2 Technical Data
See Appendix F Technical data.
3.3 Introduction
The DTS 4128.timeserver is a NTP Time Server for use in network environments. It
can be synchronized by DCF or GPS (e.g. from GNSS4500) and act as a NTP server
in a network.
In addition, it can be used as a master clock for NTP slave clocks, synchronized via
multicast with NTP and time zone table.
As a “main“ master clock the DTS 4128 can synchronize further master clocks or other
equipment by synthetic DCF.
The DTS 4128 can send e-mails as well as SNMP traps.
Via SNMP configuration and system status can be requested and the DTS 4128 can be
operated.
To maintain a redundant time source, two DTS 4128 can be linked by an optical link.

© MOBATIME 10 / 84 800847.08
3.4 Device types
Model:
Product no.:
DTS 4128.timeserver
117973
Device descriptions:
The front plate always has DTS 4128.timeserver printed on it. The precise description
is made on the identification plate on the back.
3.5 DTS distributed time system
The DTS (Distributed Time System) is a system developed by Moser-Baer AG to connect
decentralized master clocks, slave clock lines and time servers. For communication,
standard LAN (Ethernet) is used. The DTS can be centrally operated and monitored.

© MOBATIME 11 / 84 800847.08
3.6 MOBA-NMS - Network Management System
MOBA-NMS is a software used for central management and inquiry of state and alarm
information. It supports DTSdevices aswell as allMOBATime analog anddigital network
clocks and can handle a network with more than 1000 devices. This software provides
extensive functions for the configuration, installation, back-up / recovery etc. especially
for DTS devices.
True to the DTS concept, MOBA-NMS can be installed multiple times in one network.
With different user rights on the device and software level, the configuration abilities of
different users can be set as required.
For DTS devices, all communication is conducted over SNMP V3. The SFTP protocol is
used for broadcasting files.
3.6.1 Overview of the main functions
The main MOBA-NMS functions for DTS devices and network clocks are listed below:
automatic device scan over multicast or IP range
device management using user-defined device groups see chapter „3.6.2
Device management“
intuitive user interface with input check for the device configuration
status / alarm request and display on the device group level
device firmware update for one or several devices (parallel)
support for device commands, e. g. reset, restart etc.
back-up / recovery of DTS devices
transfer of the whole DTS configuration to another device
user management with different access rights
monitor for NTP and time zone packages
editor for time zone files
online help
etc.

© MOBATIME 12 / 84 800847.08
3.6.2 Device management
All MOBATime network devices are displayed in the so-called device view. Here, the
devices can begrouped according to user-defined criteria. For this, the individual devices
can simply be moved to the according groups and sorted using drag and drop. There is
no limit to the number of groups and sub-groups.
Besides the organizational advantages (easier locating, better
overview), a device group has the following advantages:
commands and device updates can be applied to the
whole group (including sub-groups).
Alarms and errors of included devices are displayed on
the group level.
Complete groups can be moved / sorted among
themselves.
The content of the device view can be saved and opened at a
later time. The created structure and breakdown into groups is
preserved.

© MOBATIME 13 / 84 800847.08
4 Displays

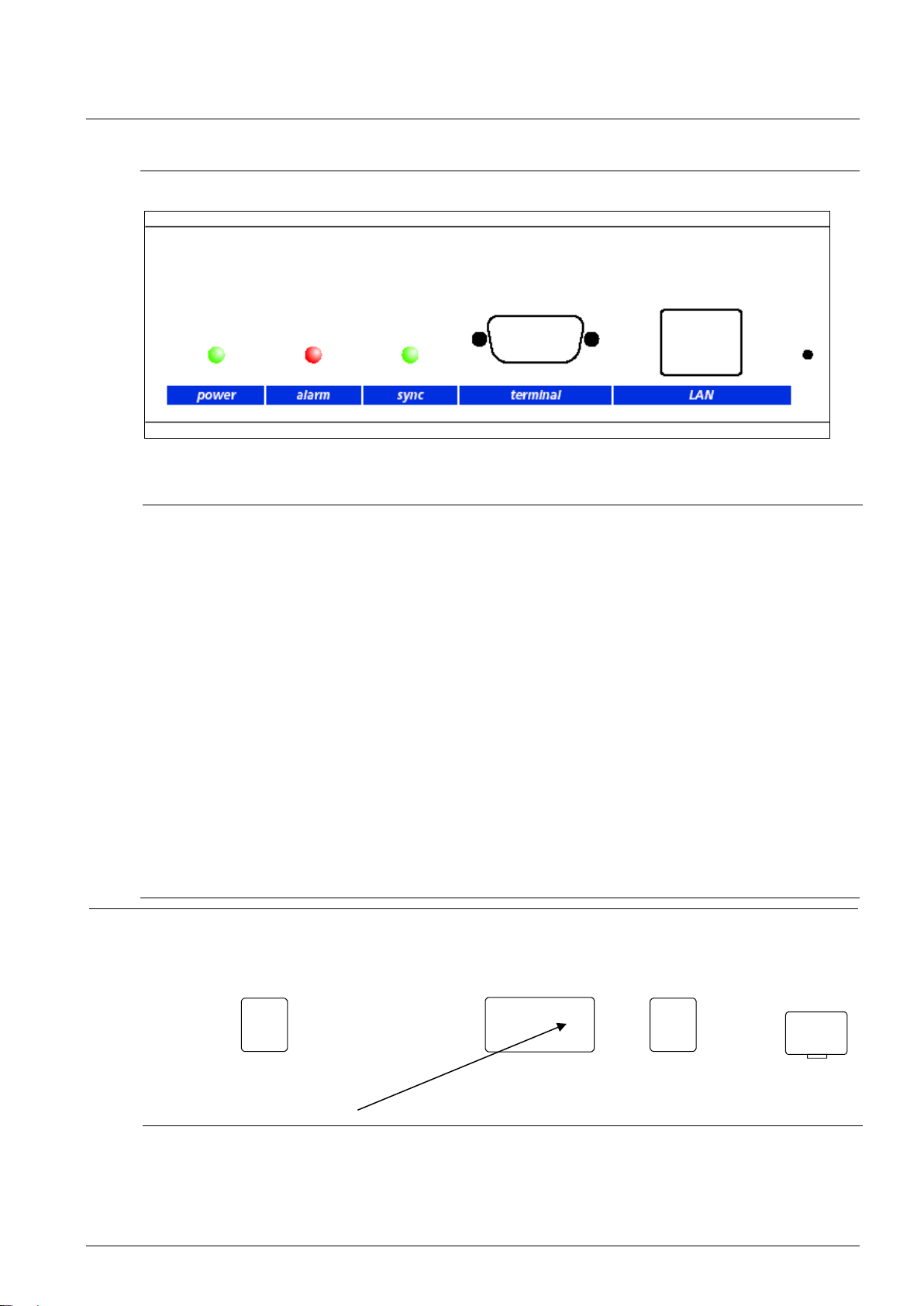

4.1 LED displays
Description
Color
Status
Description
Power
Green
On
Off
Mains or DC power supply is in order
No power supply
Alarm
Red
On
Off
The alarm relay signalizes an alarm
No active alarms
Sync
Green
On
Off
DTS 4128 can read the time from a synchronization
source
Synchronization source is not available
LAN control lamps:
Left
Green
Orange
Blinking
Blinking
Network activity
No connection to network
Right
Yellow
Off
On
10 Mbit
100 Mbit
4.2 LED indication back side
1 DC in
2 GND DTS Link
TX RX
9 Alarm
10 Alarm
3 DCF in+ 4 DCF in-
5 VB+
6 GND
7 DCF out+ 8 DCF out-
24V DC +20/-10%
max: 10W
Description
Color
Status
Description
DCF reception
red
Blinking
DCF (GPS reception)

© MOBATIME 14 / 84 800847.08
5 Installation
5.1 Connections
The connections are specified in Appendix "A Connection diagrams".
Only connect the designated devices to the various inputs and outputs.
5.2 Boot procedure of the DTS 4128.timeserver
The normal booting time of the DTS 4128 is approx. 20 sec. with pre-set IP or with
DHCP. The booting procedure of the operating system is displayed on the serial
console. After that, the ’sync’ control lamp is switched off and only switched on again
when time is received from the time source. Without any connection to a DHCP server,
the first start up can take up to 30 seconds. Afterwards, the DHCP option must be set
to "off" in the network settings.
5.3 Firmware
It is recommended to install the current firmware on your device prior to the definite
commissioning. The current firmware can be found under www.mobatime.com 
Customer Data Product Ressources Time Server.

© MOBATIME 15 / 84 800847.08
5.4 Basic settings (factory settings)
General Language English
Internal time zone MEZ
Menu password dts
Time source Source DCF-GPS (UTC)
Alarm delay for failure 10 min
DTS stratum auto
stratum limit 12
stratum TO DCF fail 24hrs
Offset per stratum 50ms
Max. offset time ok 50'000us
time source correction 0ms
Time-keeping Mode Catch up
Catch up speed 100'000ns/s
Quartz type 0
Synch only offset 800ms
Redundant operation Mode off
stratum limit 16
Max. offset to slave 100000us
Port for LAN link 14338
NTP Server no server configured
Lines DCF output on, UTC
NTP slave clocks /
Time zone server off
Network DHCP on
Autoconf IPv6 off
DHCPv6 off
Hostname DTS4128
Link auto
Alarm Relay all on
Mail off
SNMP traps off
Trap-Community trapmobatime
NW Services SSH on
Telnet off
FTP off
SNMP Modus on
RO-Community romobatime
RW-Community rwmobatime

© MOBATIME 16 / 84 800847.08
6 Operation
6.1 General
Operation occurs via a terminal menu or SNMP. SNMP operation is explained in Chapter
“9 SNMP“. Operation with the terminal menu takes place either via Telnet, SSH, or via a
serial terminal. The serial terminal is particularly used for the first configuration. After a
connection has been set up, the login screen is displayed:
To start the menu, dts must be logged in as user. The standard password is dts.
(Changing the password see Chapter “6.5.15 General Settings“).
Only one menu can be open at any time. The first menu started has priority. The menu
is automatically closed after 10 min. without operation, and any possible connection via
Telnet or SSH interrupted.
Backspace:
Backspace must be set to "delete“ with the serial terminal.
Local echo:
Some terminals (serial or Telnet) do not display the characters entered. It is, therefore,
necessary to switch on the "local echo" in the terminal.
DTS4128 login:

© MOBATIME 17 / 84 800847.08
6.1.1 Serial connection
38400 Bauds, 8 data bits, no parity, 1 stop bit.
Windows 10, 11: e.g. with Putty
Linux: Minicom
Switch off Xon/Xoff and hardware handshake.
After establishing the serial connection, the menu can be initialized with ENTER.
When rebooting, the boot process will be displayed on the serial console.
Important:
The serial connection should always be disconnected before switching off
the operating PC (exit terminal program or pull out the RS232).
6.1.2 Telnet
Windows 10, 11: e.g. with Putty
User: dts
Standard Passwort: dts
Linux: Start console and enter “telnet [IP-address]"
6.1.3 SSH
Windows 10, 11: z.B. mit Putty
Linux: Start console and enter “ssh dts@[IP-address]“

© MOBATIME 18 / 84 800847.08
6.1.4 Menu structure
The current menu is always displayed in the menu title. The menu options show all
the selectable menu functions. Provided the menu item is not a further menu, the set
parameters are displayed. Error messages (e.g. invalid entries) or additional
information to the selected menu items are displayed in the response line. The input
line shows the current input values or options possible. The status line only appears,
when an information has to be displayed, e.g. "An alarm is active".
All entries must be completed with ENTER (Return) (e.g. also ESC).
The menu window can always be exited with Ctrl-C (incl. termination of the Telnet and
SSH connection).
The desired menu can be selected with the relevant number.
The numbers 98 and 99 are always used identically:
With 98, the settings entered are saved and the menu exited. Depending on the
change, the DTS 4128, or only partial functions, are rebooted.
With 99, all changes to the menu are reversed and the menu exited.
In the menus where data cannot be saved (command 98), the menu is only exited
with 99, but any changes are not saved.
The current menu is updated, without any further entry, with ENTER.
DTS 4128.timeserver Moser-Baer AG
====================================
TIME SOURCE
1 Source type 2
2 Alarm delay for failure of the source 10min
3 DTS stratum (0=auto, 1-15=fix) 0
4 Stratum limit for synchalarm 12
5 Stratum TO (0-16) DCF/GPS fail 24h
6 Offset per stratum 50ms
7 Max. offset for time ok 50000us
8 Time source correction (DCF/GPS only) 0ms
98 Return and save
99 Return and discard changes
Unknown command: "9"
Enter desired menu number>
---------------AN ALARM IS ACTIVE!---------------
Menu title
Menu options
Response line
parameters
Status line
Input line (Pprompt)

© MOBATIME 19 / 84 800847.08
6.2 MOBA-NMS operation
For the configuration of DTS devices via GUI, MOBA-NMS (see chapter „3.6 MOBA-
NMS - Network Management System“) can be used. All configuration possibilities are
subordinated in different configuration pages (called „tabs“). These tabs are connected
to the terminal menu and designated accordingly. Example: The terminal menu
„Configuration Alarms“ can be found in MOBA-NMS under the tab „Alarms“.
Configuration example of a DTS 4128 timeserver:
For further details on the general MOBA-NMS operation, check the integrated online help
(menu „Help Show help“).
Important:
In order for the communication between MOBA-NMS and the DTS
devices to work, SNMP must be activated! Set terminal menu
„Configuration SNMP SNMP Mode“ to „on“. SNMP is active by
default.
configuration pages
(tabs)

© MOBATIME 20 / 84 800847.08
6.3 Main menu
Menus:
Status: Display of various information regarding operation and environment
See Chapter “6.4 Status Menu“
Configuration: Configuration of the DTS 4128
See Chapter “6.5 Configuration Menu“
Maintenance: Software update, backup and restore
See Chapter “6.6 Maintenance Menu“
DTS 4128.timeserver Moser-Baer AG
====================================
MAIN SELECTION
1 Status
(Actual alarms and history, timesource state, version
2 Configuration
(Configuration of the lines, timesources, alarms ...)
3 Maintenance
(Update, backup ...)
99 Exit DTS menu
Enter desired menu number>
