Mobiletron TX011 User manual

Tire Pressure Monitoring System
Installation and Operating
Instructions
Model: TX011
Table of Content
Content
1. Product Introduction
2. Safety Notice
3. Vehicle Application
4. Installation of Transmitter
4.1 Fasten Transmitter on the Wheel Rim
4.2 Installation of the Tire
4.3 De-Mounting Tire with Transmitter Inside
5. Limit Warranty
5.1 Warranty Service
5.2 What Are Not Covered
6. Thing to Notice
7. Technical Specification

1
1、Product Introduction
(1) TX011 contains highly accurate sensors to detect tire pressure and
temperature; and RF modules send data via radio wave to the digital receiver
placed in driver’s cabin.
(2) TX011 starts to detect pressure and temperature automatically when the
vehicle is in motion. Pressure and temperature data will be showed on the
LCD screen of digital receiver. If the pressure and temperature go wrong, the
driver will be warned with LCD backlight, beep, and flashing numbers.
Therefore, the driver can take action immediately.
2、Safety Notice
(1) Tire pressure monitoring system is a vehicle safety warning system. Please
follow installation guide and instruction carefully. When the system sends out
warming signals, please check your tires immediately.
(2) This product has to be properly installed and programmed by professional
technician.
3、Vehicle Application
This product is suitable for passenger cars and trucks of 4 wheels.

2
4、Installation of Transmitter
Attention:
Transmitters must be installed by professional technicians. The technicians have
to follow the installation guide step by step to install transmitters correctly.
Following tools and instructions are for technicians, not for end users.
Tools：
¾Tire Changer
¾Wheel Balancer
¾Pliers
¾Other Hand-tools

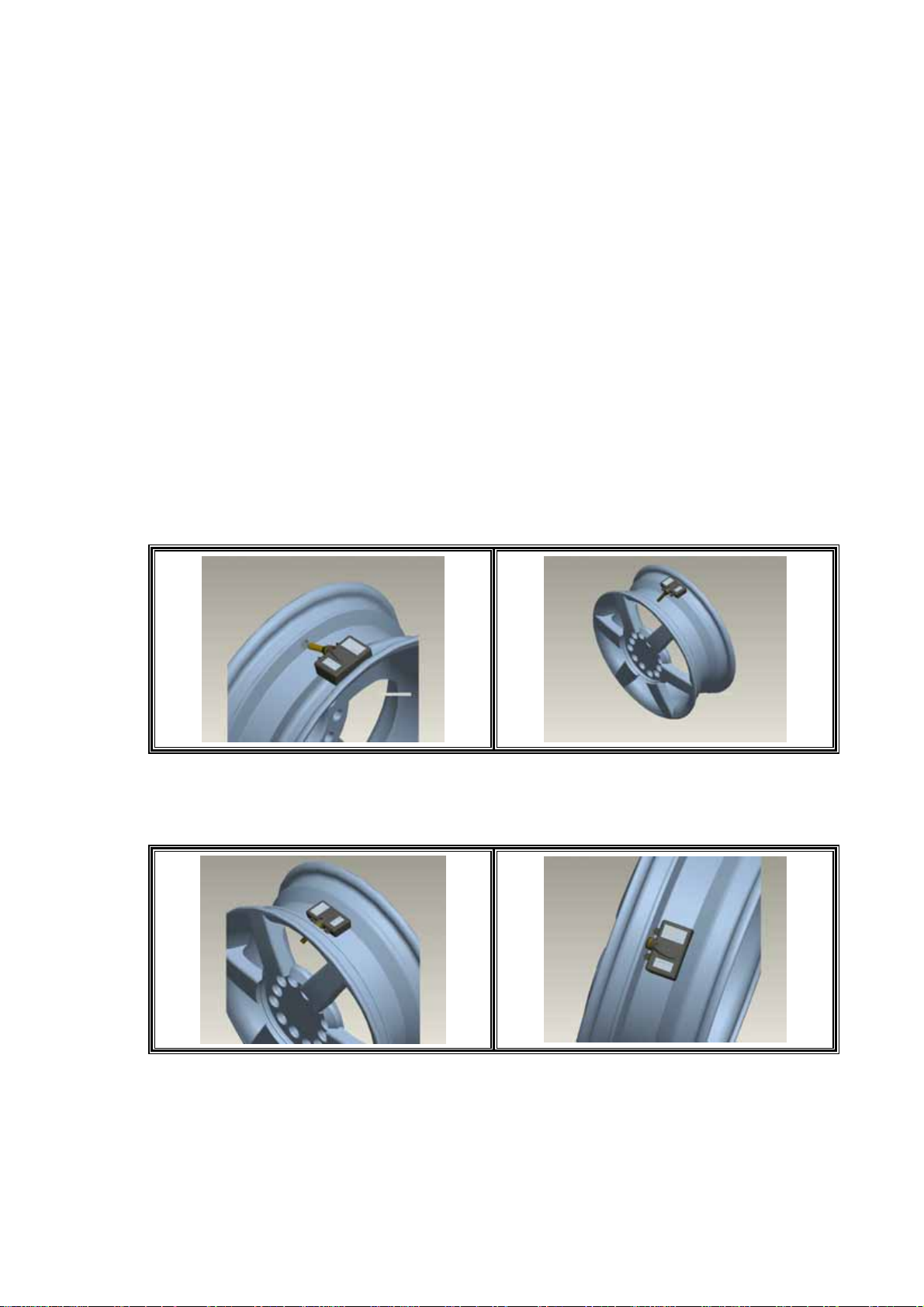

4.1 Fasten Transmitter on the Wheel Rim
4.1.1 Prepare the Transmitter to pass through the valve hole which is
positioned on the steel, aluminum or aluminum alloy wheel rim.
4.1.2 Pass the Transmitter through the valve hole and the rubber circle will
push up the inside of the valve.

3
4.1.3 Attach the Washer that is the spare part of Transmitter from the outside of
the wheel rim onto the valve hole.
4.1.4 Attach the Nut that is the spare part of the Transmitter from the outside
of the wheel rim onto the valve hole. ( Recommendatory Torque to attach
the Nut: 35~45 Kgf.cm )
4.1.5 Attach the Cap that is the spare part of Transmitter from the outside of the
wheel rim onto the valve hole.

4
4.1.6 Finalize the installation of the Transmitter.
4.1.2 Installation of the Tire
Please install the product with standard installation equipment, and
installation procedures could be proceeded by the technicians from the
purchasing place or the authorized installation ort. Moreover, we would like to
suggest general consumer should cooperate with the seller or the responsible
people from the authorized garage, if he wants to install the product by himself,
and it should be a must that he has gotten the professional training in advance. If
general consumer without authorization damages the product, we will not
warrant any replacement or limit warranty.
4.1.3 De-Mounting Tire with Transmitter Inside
Please demount the product with standard demounting equipment, and
demounting procedures could be proceeded by the technicians from our
appointed vehicle manufacturer or garage. In addition, we would like to suggest
general consumer should cooperate with the seller or the responsible people
from authorized garage, if he wants to demount the product by himself, and it is a
must that he has gotten the professional training in advance. If general consumer
without authorization and damage the product, we will not warrant any
replacement or limit warranty.

5
5. Limit Warranty
Mobiletron, hereby warrants that this Mobiletron wireless tire pressure
monitoring system shall be free from material defects in workmanship and/or
materials until the expiry of twelve months from its purchase by the end user,
EXCEPT WHERE any such defect has been caused by: Improper or
non-normal use, Improper installation, contacts with any corrosive or otherwise
harmful substance, any other acts or omission not sanctioned by the User
Manual.
¾Mobiletron’s sole obligation shall be to repair or replace the defective
product at no charge to the original owner.
¾Mobiletron cautions the user or driver of the driving safety by the limited
warning signal range, and does not protect or take the responsibility of the
user’s or driver’s safety directly.
¾In no event will Mobiletron be liable for any direct, indirect, special,
incidental or consequential damage, including loss of profit, loss of savings,
or any other damages caused by this product, or its documentation, or
failure of the product to perform, even if Mobiletron has been advised of the
possibility of such damages.
5.1.1 Warranty Service
(1) The above warranty will be honored by the retailer from which it was
purchased, provided that the owner can provide dated proof of
purchase.
(2) In the event that any defect in the unit is covered by the above warranty,
Mobiletron will replace the affected components free of charge,
shipping prepaid. The owner shall be responsible for any labor and
installation costs incurred in removing the defective parts and/or
installing the replacement.
(3) The retailer shall at Mobiletron’ cost send any unit which is defective as
described in the above warranty to Mobiletron at No.39, Sec 3,
Chung-Ching Rd., Ta-Ya, Taichung Hsien, Taiwan 428.
5.1.2 What Are Not Covered
(1) Products that have been subjected to abuse, accident, alteration,
modification, tampering, negligence, misuse, faulty installation, lack of
reasonable care, repair or service in any way that is not authorized by
Mobiletron.
(2) Damage that occurs in shipment or due to an act of God.

6
6. Things to Notice
Temperature Compensated Pressure Readings :
When a tire heats up, caused by long duration of driving or braking, the air
pressure inside the tire can also be expected to increase, e.g. tire temperature
increases 20℃to 30℃may lead to 3psi to 6psi pressure increment.
7. Technical Specifications
7.1 Operation Condition
Description Value Accuracy Units
Pressure Range 0 ~ 80 +/- 2 PSI
Rated Pressure 240 - PSI
-40 ~ +125 +/- 3 ℃
Operating Temperature -40 ~ +257 +/- 5 ℉
Operating Humidity 0 ~ 100 - %
7.2 Radio Frequency Transmitter
Description Value Units
Central Frequency 433.92 MHz
7.3General Specification
Description Value Units
Sensor Sampling Rate 4 Second
Weight 38 Gram
7.4 Power
Description Type Value Units
Power Source Lithium Battery 3.6 Vdc
Battery Life - 7years or Over
2,000,000 km Year or km
Manufacturer: Moniletron Electronic ,Inc.
Address : No.39, Sec 3, Chung-Ching Rd., Ta-Ya, Taichung Hsien, Taiwan 428
Telephone : [phone]
Fax : [phone]
Web Site: http://www.more.com.tw

FCC statement in User's Manual (for class B)
"Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:
1.The device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
2.This device and its antenna(s) must not be co-located or operating in conjunction with
any other antenna or transmitter.
3. Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user authority to operate the equipment.
