INTRODUCTION
INTRODUCTION
Mobishear is an Australian farming family
owned business that was born from a
need for innovation out in the paddock,
but more importantly a desire to provide
the best possible service. We have now
moved out of the sheep yards and into
the vineyard and orchard by oering you
these truly cordless pruning secateurs.
You can buy with condence from us
as we are a 100% Australian owned
business here to provide you with full
after-sales service.
Please read all safety warnings and instructions carefully. Failure to
follow these warnings and instructions may result in electric shock,
re, severe burns or other serious injury.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
SAFETY WARNINGS
Do not use the device in the rain, or expose it to water.
Keep hands away from the blade during operation.
Do not use the device near a heat source.
WASTE DISPOSAL
Do not dispose of this device with household refuse. Please adhere to
relevant local waste disposal laws and regulations.
This device, accessories and packaging are recyclable.

mobishear.com.au ||MOBISHEAR AuStRAlIA 5
PRECAUTIONS BEFORE USE
PRECAUTIONS BEFORE USE
1. Be alert when operating the secateurs.
Do not operate them when fatigued
or aected by medication or alcohol.
Distraction during operation may
cause serious personal injury.
2. Use safety guards and always wear
goggles when operating the secateurs.
Dust masks, non-slip safety shoes,
helmets and hearing protection can
help prevent personal injury.
3. Remove all adjustment keys and
wrenches before turning on the
secateurs. Any wrench or key left on
the rotating parts of the secateurs
can cause personal injury.
4. When operating, keep your hands
away from the work area. Never
extend your hands under the material
being pruned. Ensure that any material
or surface under the operating area
is not damaged.
5. Pay attention to your balance in order
to better control secateurs in case
of accident.
6. Do not wear loose clothes or
ornaments and keep long hair,
clothes and sleeves away from
moving parts.
7. Keep the cutting edge closed when
the secateurs are not in use.
SAFETY INSTRUCTIONS FOR WORK SITES
1. Keep your work area well lit and free
from debris.
2. Do not operate the electric secateurs
in explosive, ammable or humid
environments.
3. Ensure the work area is free of
children and other bystanders before
operating the secateurs.
ELECTRICAL SAFETY INSTRUCTIONS
1. The battery socket of the secateurs
must match the battery connector.
Do not modify the socket and plug in
any way.
2. Do not expose the secateurs to rain
or moisture. Water or other liquids
entering it may increase the risk of
electric shock and damage to the
device.
3. Keep the secateurs away from heat,
oil, sharp edges or moving parts;
4. Do not use the charger when the power
cord or plug is damaged. Damaged
and entangled wires can increase the
risk of electric shock.
PERSONAL SAFETY INSTRUCTIONS

6
CASE CONTENTS
MOBISHEAR AuStRAlIA || mobishear.com.au
CASE CONTENTS
1. Secateurs
2. Accessories
3. Battery pack
1
MOBISHEAR
AuStRAlIA
MOBISHEAR
AuStRAlIA
4
3
2
4. Charger
5. Oil bottle
5

POWER OFF BEFORE
REMOVING BATTERY
OIL EVERY
4 HOURS
7
PRODUCT OVERVIEW
mobishear.com.au ||MOBISHEAR AuStRAlIA

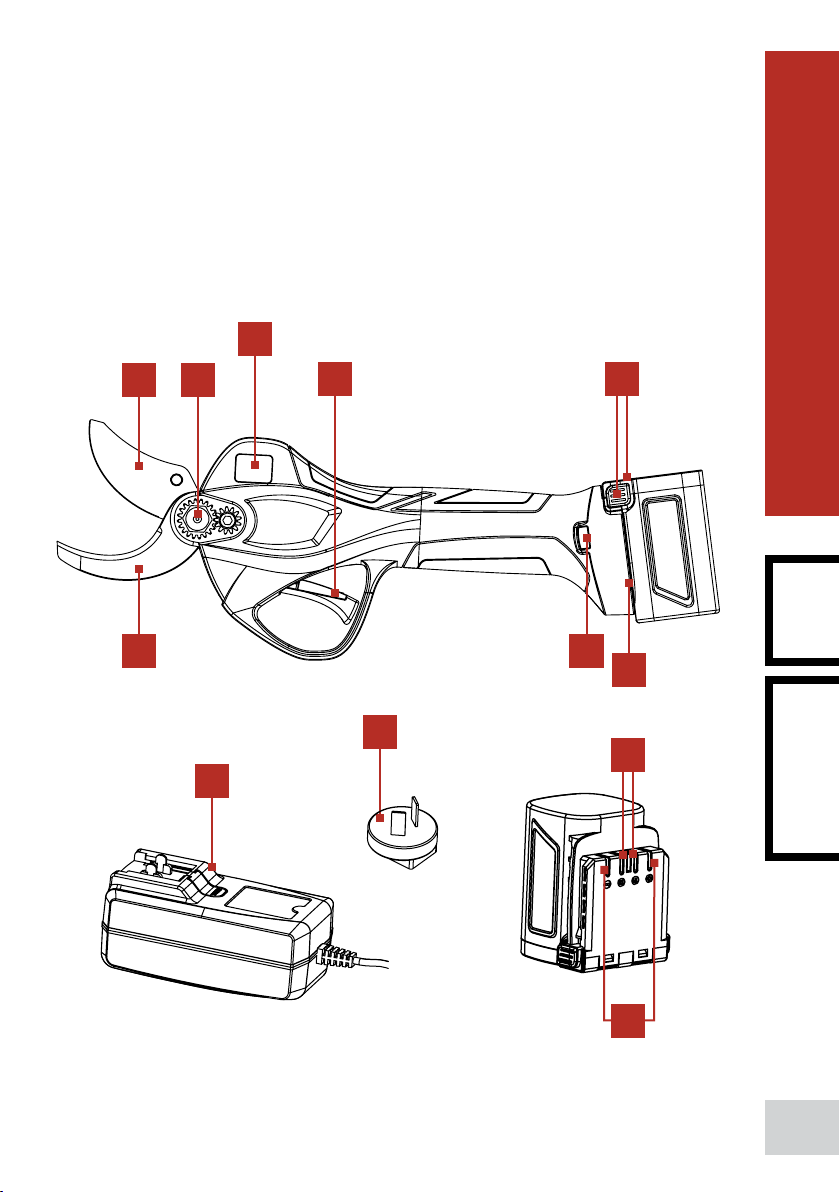

PRODUCT OVERVIEW
1. Blade
2. Anvil
3. Centre bolt oiling point
3. Display screen
4. Trigger
5. On/O switch
6. Battery release button
7. Battery pack inserts
8. Charger plug
9. Charger AC socket
10. Battery charging jack
11. Battery contacts
MOBISHEAR
AuStRAlIA
MOBISHEAR
AuStRAlIA
MOBISHEAR
AuStRAlIA
1
2
4
5
6
7
8
9
10
11
12
3

8
PLUG ASSEMBLY
MOBISHEAR AuStRAlIA || mobishear.com.au
PLUG ASSEMBLY
TO ASSEMBLE THE PLUG:
Push the charger AC socket parallel with the socket of the charger until the socket
is fully engaged and locked into place. It will be a tight t to ensure a good
connection to the charger plug.
1 2
3
4
TO DISASSEMBLE:
Press and hold the disassembly button as shown in Figure 1, and simultaneously
push the charging plug outward.
1 2 3

9
BATTERY USE & MAINTENANCE
mobishear.com.au ||MOBISHEAR AuStRAlIA
1 2 3
BATTERY USE & MAINTENANCE
BATTERY CHARGING
FULLY CHARGE EACH BATTERY BEFORE
FIRST USE.

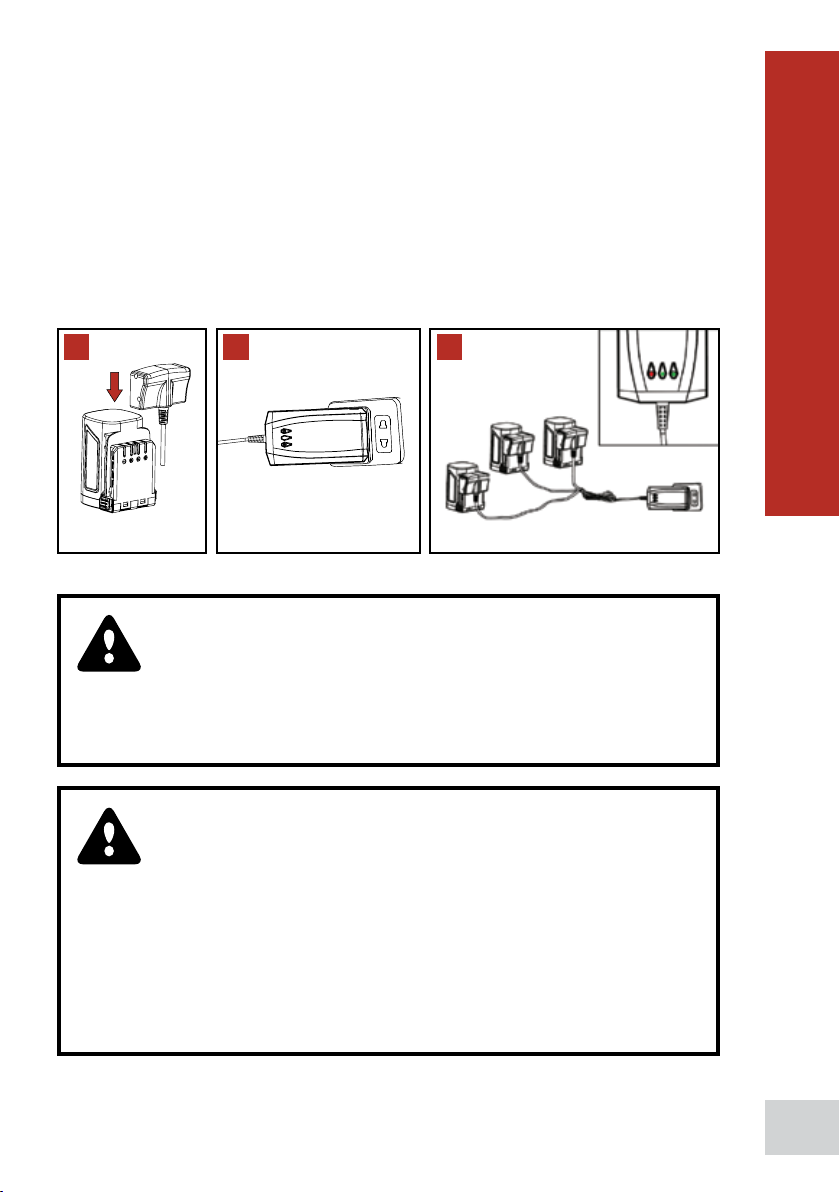

To charge, place the battery on a at
surface and slide the charger outlet on
to the battery contacts ensuring 100%
connection (Fig.1). Connect socket to
240V outlet (Fig.2). When the indicator
on charger light lights up charging
starts. A red light indicates the charger is
charging. A green light indicates charging
is done and the battery can be used.
Each indicator light represents the
charging state of one USB. This charger
has three USB ports (Fig. 3).
The display will show a warning when the battery charge
reaches less than 20%.
The secateurs will stop working automatically when the
charge is less than 5%.
Shut down secateurs before removing battery.
Please only use the charger included.
The charger has an indicator light corresponding to each
charging plug. The indicator lights will turn green when
charging on the corresponding plug is completed.
The charger uses a sequential charging method instead
of simultaneous charging.
If the batteries are connected to the charger but the
charger is not connected to a power supply the indicator
light(s) on the charger will be green.
MOBISHEAR
AuStRAlIA

10
BATTERY USE & MAINTENANCE
MOBISHEAR AuStRAlIA || mobishear.com.au
CHARGING MULTIPLE BATTERIES

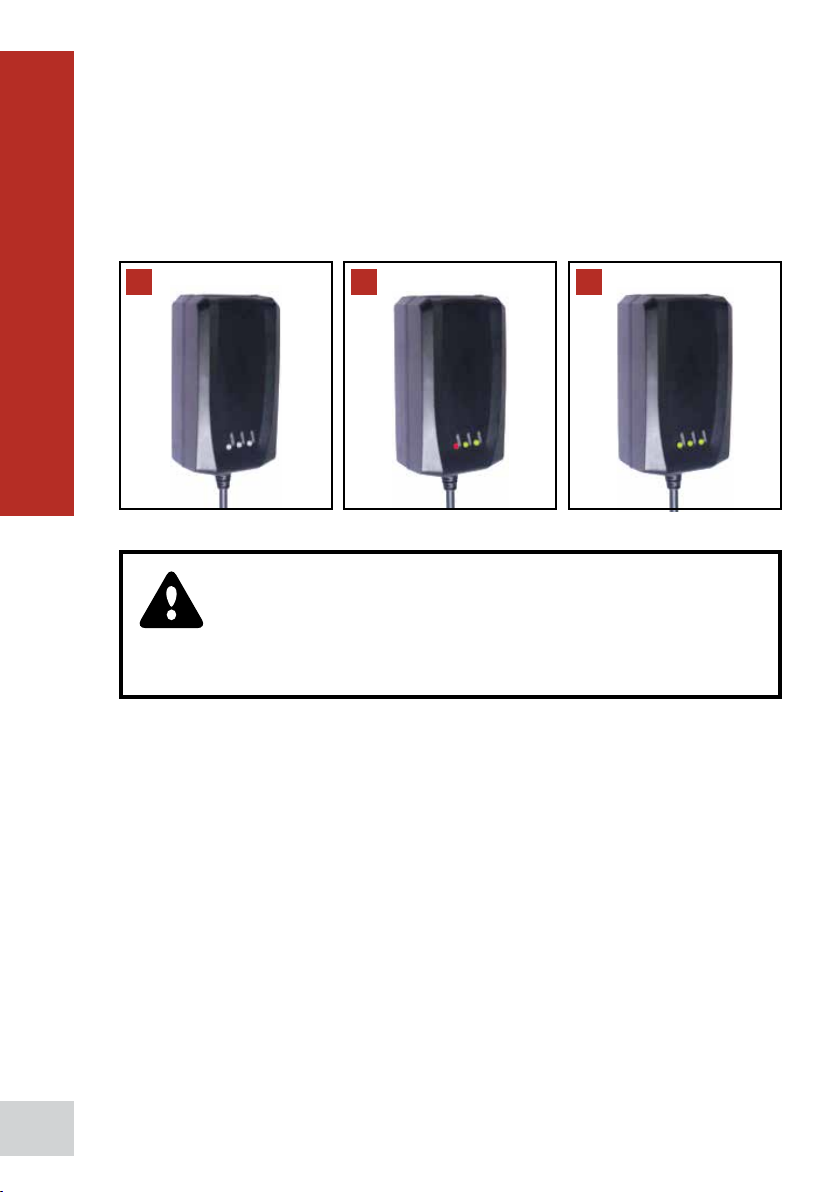

1. Not charging
2. Charging
3. Fully charged
1 2 3
When two or three batteries are connected, charging will
occur from plug 1 to 2 then to 3, during which the indicator
light is red and will turn green when the battery is fully
charged. If the current battery is fully charged, the charger
will jump to the next battery and begin charging.
1. It is normal for the charger and battery
to heat slightly during charging.
2. When battery is not in use, it needs to
be recharged every three months to
prolong its service life.
3. A new battery or a battery that has
not been used for a long time will not
reach its maximum capacity until it
has been charged and discharged
about ve times.
4. Do not recharge after a short
operation. This may reduce battery
life and performance.
IMPORTANT INFORMATION
5. Do not use a damaged battery pack
or disassemble the charger and
battery pack.
6. To prevent explosion, keep the battery
away from re and other heat sources.
7. Do not charge the battery outdoors
or in humid environments.
8. As the battery power decreases, the
pruning range will also decrease.
9. Disconnect the secateurs before
charging. Do not use while charging.
10. Do not store the battery pack in a
humid environment.

POWER OFF BEFORE
REMOVING BATTERY
11
BATTERY USE & MAINTENANCE
mobishear.com.au ||MOBISHEAR AuStRAlIA
1. Do not charge in an environment
below 0ºC and above 45ºC. This can
damage the battery and charger.
2. Turn the secateurs o before
disconnecting the battery. If the switch
is on, accidental connection of the
battery to the machine is likely
to occur.
3. Charge the battery only with the
charger supplied. The use of other
chargers may lead to re and other
dangers.
4. When the battery is not in use, keep
it away from small metal objects such
as paper clips, coins, keys, nails and
screws that can cause short circuit,
and subsequent burns or re.
5. Do not disassemble or reassemble
the battery.
6. Do not use batteries with short circuit.
7. Do not use the battery near any
heat source.
8. Do not put the battery into re
or water.
9. Do not charge near re or sunlight.
10. Do not insert metal objects into the
battery or hit or throw the battery.
11. Do not use batteries that are severely
damaged or deformed.
12. Do not weld directly on the battery.
13. Reverse charging, reverse-pole
connection and over-discharge of the
battery are dangerous.
14. Do not connect the battery to power
sockets or car cigarette lighter sockets.
15. Do not use the battery with other
devices.
16. Do not make direct contact with the
lithium battery.
BATTERY MAINTENANCE
17. Do not place the battery in containers
with high temperature and high
pressure, such as a microwave oven.
18. Do not use the battery if it is leaking.
19. Keep the battery out of reach
of children.
20. Do not use or place the battery in
direct sunlight. This may cause the
battery to overheat or catch re.
Overheating will result in functional
failure and shortened life.
21. Do not use the battery in places with
static electricity (>64V).
22. In case of any corrosion, bad smell or
abnormality when the battery is rst
used, do not use it. Return it to the
sales outlet.
23. If skin or clothes are stained with
electrolyte from the battery, rinse
them with clean water.
24. If the secateurs are not used for a
long time, the battery needs to be
charged for storage.

POWER OFF BEFORE
REMOVING BATTERY
OIL EVERY
4 HOURS
12 MOBISHEAR AuStRAlIA ||
mobishear.com.au
SECATEUR SAFETY & OPERATION
SECATEUR SAFETY & OPERATION
SECATEUR SAFETY
1. Do not prune branches that exceed
the working range of the shears. Do
not cut hard objects such as metal
and stone. Do not hold the secateurs
with a vice. If the blade is worn or
damaged, replace it immediately.
2. Use a clean cloth to clean the secateurs,
battery pack and charger (do not use
corrosive or solvent-based cleaners).
Use a soft brush or a dry cloth to
remove dust from the blades.
3. Do not immerse the secateurs,
battery pack or charger in any liquid.
4. Operate the device according to the
instructions for use. Do not use the
secateurs, battery pack or charger if
they are damaged.
5. If the switch fails to turn on or o
properly, do not use the secateurs.
The device is dangerous, and must
be repaired.
6. Ensure that the switch is turned o
when making adjustments, replacing
accessories, or storing the secateurs.
This will prevent accidental start up.
7. Keep the unused secateurs out of
the reach of children and keep the
blade closed. Do not let those who
are not familiar with the secateurs or
don’t understand the instructions
operate them. It is dangerous for
untrained users to use the secateurs.
8. When using the secateurs and their
accessories, take into account the
working environment and the tasks
to be done. Using them for any
purpose they are not designed for
may result in a hazard.
9. After use, remove dirt on the moving
blade and the xed blade. Then coat
the contact part with lubricating oil
or engine oil to prepare it for storage,
reduce the resistance during its next
use and extend the service life of
the blade.
OPERATING INSTRUCTIONS

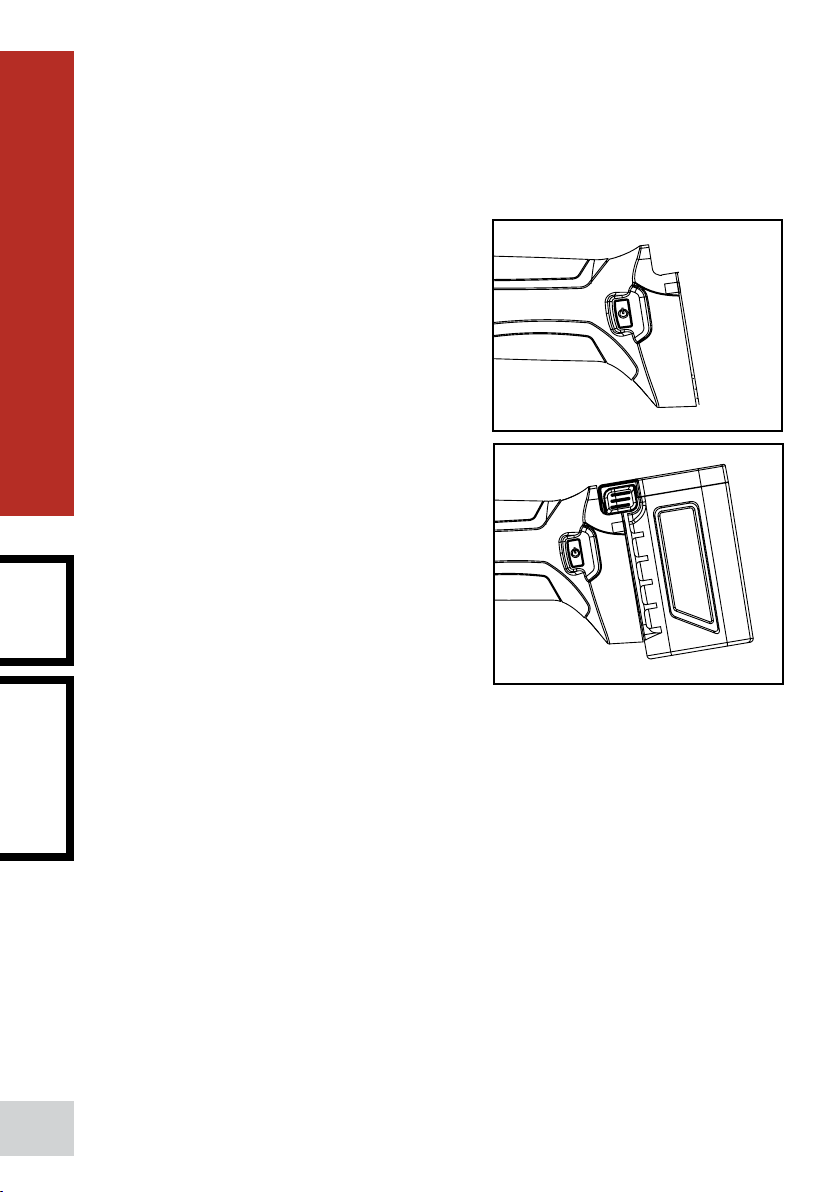

1. Open the package and insert battery
pack into the battery pack inserts.
2. Before use ll lubricating oil reservoir
as per instructions on page 14.
3. Turn on the power control switch.
The display screen will light up
indicating the secateurs are on.
4. The buzzer will sound twice when
the power is rst turned on. Pull the
trigger twice in quick succession to
activate the secateurs.
5. Before operation, check the
secateurs are functioning correctly.
Press the trigger several times
without any load to open and
close the blade.
6. Normal pruning: press the trigger
and then the blade will close. Release
the trigger and the blade will open.
MOBISHEAR
AuStRAlIA

POWER OFF BEFORE
REMOVING BATTERY
OIL EVERY
4 HOURS
13
mobishear.com.au ||MOBISHEAR AuStRAlIA
SECATEUR SAFETY & OPERATION
7. Closing the secateurs: hold the trigger
until 3 long beeps are heard. Pull the
trigger twice in quick succession to
reactivate the secateurs.
8. The secateurs have 2 opening modes;
100% & 70%. To switch from one
mode to the other, keep the trigger
depressed until a single beep is heard.
Release the trigger and work in your
usual way
9. To turn the progressive cutting
function on and o, turn the secateurs
o, then hold down the trigger and
turn the secateurs back on, while
keeping the trigger down. Hold for
3 beeps.
SHUT DOWN
1. Lock the blade by pressing and
holding the trigger. When the buzzer
sounds 3 times, the blade is locked.
2. Turn o the power source and remove
the battery pack.
3. Clean the secateurs and pack them
back into their case.
STORAGE
1. Keep the trigger pressed for a few
seconds until you hear 3 long beeps.
The blades close and remain closed.
Release the trigger.
2. Switch the secateurs o and remove
the battery.
3. Recharge the battery before putting
it into its box.
4. Clean the secateurs and put them
back with their components into
their box.
5. Store the secateurs in a dry place.
6. For long periods of inactivity,
recharge the batteries not later
than every 3 months.

POWER OFF BEFORE
REMOVING BATTERY
OIL EVERY
4 HOURS
14
SECATEUR MAINTENANCE
MOBISHEAR AuStRAlIA || mobishear.com.au
SECATEUR MAINTENANCE
Always remove the battery pack before performing
maintenance tasks.
LUBRICATION
Rell the lubricating oil reservoir every
4 hours.
BLADE ADJUSTMENT
Check the tightness of the blade before
use. A correctly adjusted blade will not
swing left or right and will operate as
eciently as possible.
When closed, the blade should not
have a lateral swing.
Whilst it is important to be tight, over-
tightening can cause undue friction
between the parts reducing the
performance of the battery. Under-
tightening can lead to gear teeth being
misaligned, potentially damaging the unit.
REPLACING THE BLADE
If the blade is damaged or too worn as
to not hold a sharp edge it should be
replaced. The replacement steps are
as follows:
1. For safety, power o before
replacement and remove the battery.
2. Follow the steps outlines on page 15
to replace the blade.
3. After replacement, clean the blades,
connect the battery, check the power
and close the blade.
1. Open the blade.
2. Fill the centre oiler bolt with oil by
depressing the centre bearing with
the oil bottle application tip and
squeezing oil until reservoir is full.
3. Open and close the secateurs several
times to distribute the lubricating
oil evenly.
MOBISHEAR
AuStRAlIA
MOBISHEAR
AuStRAlIA
Centre bolt
oiling point

POWER OFF BEFORE
REMOVING BATTERY
OIL EVERY
4 HOURS
15
SECATEUR MAINTENANCE
mobishear.com.au ||MOBISHEAR AuStRAlIA
HOW TO REPLACE THE BLADE:
0.2N.m0.2N.m
1 2 3 4
5 6 7 8
910 11 12
13 14 15 16
17 18 19 20
21 22 23 24

16
PARTS LIST
MOBISHEAR AuStRAlIA || mobishear.com.au

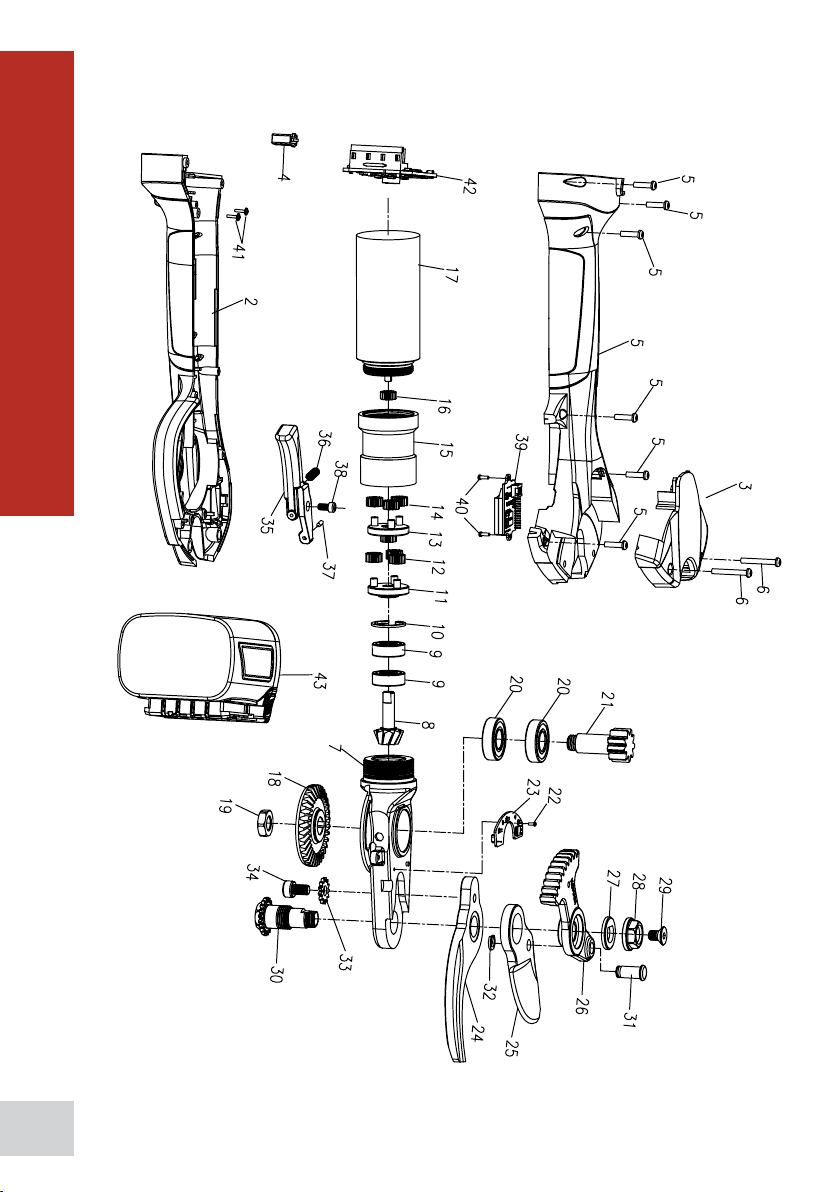

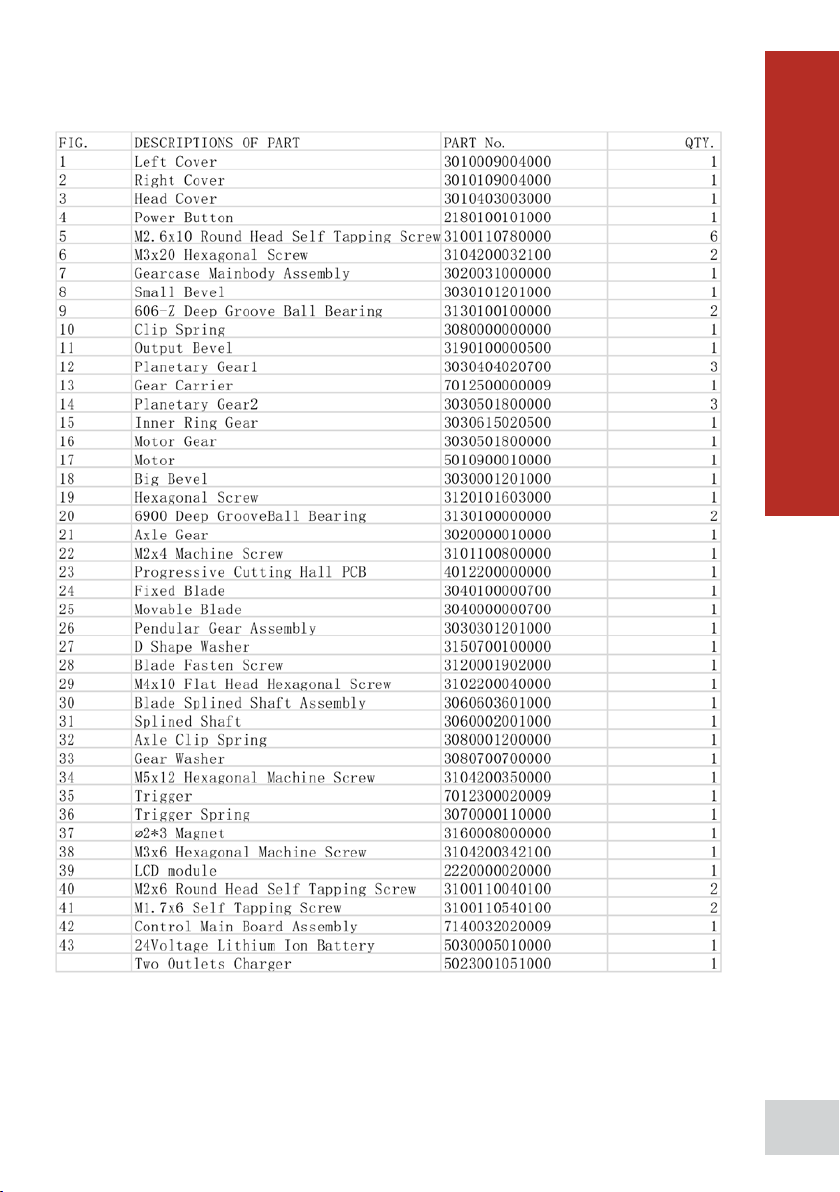

PARTS LIST

17
PARTS LIST
mobishear.com.au ||MOBISHEAR AuStRAlIA

18
TROUBLESHOOTING
MOBISHEAR AuStRAlIA || mobishear.com.au
POWER OFF BEFORE
REMOVING BATTERY
OIL EVERY
4 HOURS
Alarm type Number of ashes Number Type of error shown
on the display of beeps on the display
No problem 0 0 E00
Contact protection 1 1 E01
Current sensor error 2 6 E02
Damage to the mosfets 3 6 E03
Hall sensor / broken blade 4 3 E04
Overcurrent peak / medium 5 5 E05
current protection
Locked opening / 6 3 E06
blocked motor
Overload 7 4 E07
Undervoltage / overvoltage 8 1 E08
Mosfet overheating 9 6 E09
PWM communication error / 10 2 E10
voltage error
Battery error 10 7 E10
EEPROM error 11 6 E11
Phase detection error 12 4 E12
Programming error 13 6 E13
The secateurs and the battery 16 9 E16
unit are not compatible
The motherboard has not 17 10 E17
succeeded in communicating
with the battery unit
TROUBLESHOOTING
In case of problems, check the error code on the display.

19
TECHNICAL DATA
mobishear.com.au ||MOBISHEAR AuStRAlIA
TECHNICAL DATA
OPERATING VOLTAGE
Lithium battery 24v 2.5Ah
Input voltage of the charger AC110V ~ 220V
Battery charging time 2 ~ 2.5h
Working time of the battery 6 - 8h
Maximum power 800W
Total weight 860g
PRUNING RANGE (MAXIMUM SIZE)
Diameter 37mm soft branches
Working temperature -10ºC ~ 60ºC

Arnd & Heidi Enneking
Box 89, Mount Barker SA 5251
Email: [email protected].au
Arnd: 0421 062 697 Heidi: 0409 289 532
mobishear.com.au
