Mod-Arte Flaunt FL03-70-110 User manual

Item Code-FL03-70-110

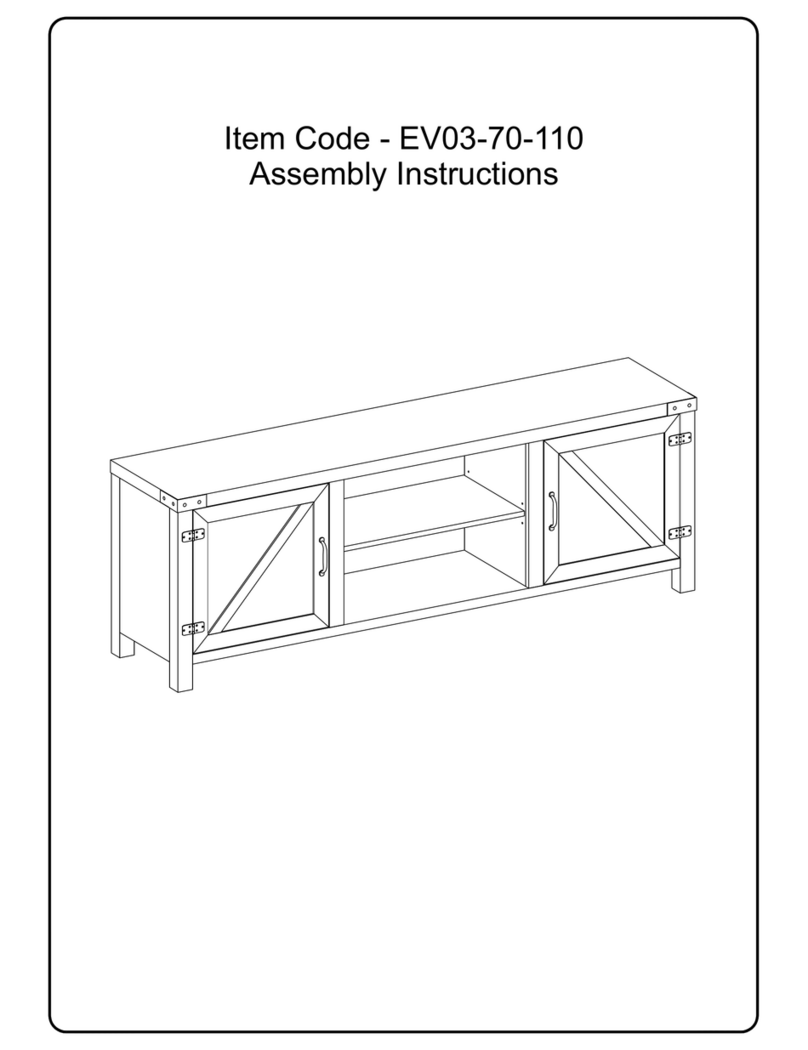

Assembly Instructions

ATTENTION: Is your product damaged or missing assembly instructions?
DO NOT RETURN!!!PLEASE READ THE FOLLOWING!!!
For Replacement / Missing Parts: www.modarte.com/parts
For Assembly Instructions and Assembly Videos:https://modarte.com/assembly/
All other enquiries, please send email to: [e-mail] or 973-264-1228
IF YOU ARE MISSING PARTS, OR PARTS ARRIVED DAMAGED:
For fastest service, please contact us and we will mail you replacements parts the next business day. To
request replacement parts, please fill out a parts request form on our website at
www.modarte.com/parts, or email us at [e-mail]. DO NOT RETURN TO THE RETAILER.
CUSTOMER CARE
For any other customer service enquiries, please feel free to reach out to us:
[e-mail] or 973-264-1228
Thank You!

Approximate time : 30 Minutes
Surface should be uniform during assembly process.
While door assembly ,ensure gap on all Four sides are equal.
Mallet can be used to drive in dowel.

HARDWARE LIST
A 8x40mm Wooden Dowel 16 pcs
B 6x35mm Minifix twister 8 pcs
C 15x12mm Minifix Roster 8 pcs
D 15mm Minifix Cap 8 pcs
E 6x50mm Shoulder Screw 8 pcs
F 3x16mm Screw 44 pcs
G 8x5x16mm Shef support pins 8 pcs
H 8x5x16mm Glass Holder 4 pcs
I Door Magnetic 2 pcs
catcher with Removal plate
J Door Handle 4 pcs
K Door Handle 2 pcs
L Door Hinge 2 Set
M PVC Sleeve 44 pcs
N PVC Sleeve 8 pcs
Screw
5x25mm
5x10mm
8x13mm
O Glue tube 1 pcs
Note: PVC SLEEVE AND MINIFIX SOCKET ALREADY FIXED.
IN SOME CASES MINIFIX ROSTER ARE ALREADY FIXED.
SHELF SUPPORT PINS AND GLASS HOLDER ARE SAME (G,H).

TL 1
TL 3 TL 4
TL 5
TL 6
TL 7
TL 8
TL 7
TL 9
TL 10
TL 9
TL 2
TL 1
TL 11
TL 12
TL 14
TL 13
TL 11
TL 11
TL 11
TL 11

Step 1
F
I
F
Step 2
Attach Door Stopper (I) to part (TL1) using screw (F) with Screw Driver.
Remove magnetic catcher plate for further use.
Attach Minifix Twister(B) to part (TL1) with Screw Driver.

Step 3
TL 2
F
TL 3TL 3TL 3
TL 4
TL 5
TL 6
Step 4
Attach Dowel (A) into parts (TL3,TL4,TL5,TL6)
Check direction of leg while fixing follow
the above pic along side and use screw(F) with screw driver.
TL 11
TL 11
TL 11
TL 11
TL 12
GROOVE
SIDE
LEG FRONT
SIDE
GROOVE
SIDE
GROOVE
SIDE
Dowels (A) FIX ONLY IN BLIND HOLES

Step 5
E
E
TL 2
E
E
E
E
E
E
E
TL 3
TL 4
TL 5
TL 6
Step 6
TL 8
TL 7
TL 7
TL 3 TL 4
TL 5
TL 6
Slide Back Panel (TL7,TL8) into Grooves as per diagram
Attach parts (TL3,TL4,TL5,TL6) to part (TL 2) using screw(E).

Step 7
TL 1
TL 6
TL 7
TL 5
TL 2
TL 8
TL 4
TL 7
TL 3
Attach part (TL 1) to parts (TL3,TL4,TL5,TL6) then insert and
secure Minifix Roster © to parts (TL3,TL4,TL5,TL6) to lock it.
TL 6
TL 5
TL 1
TL 4 TL 2
TL 3
Place sticker(D) to parts (TL3,TL4,TL5,TL6) over holes as per diagram
Step 8

Step 10
Step 9
Insert shelf support pins(G) into (TL3,TL4,TL5,TL6) panel.
TL 1
TL 5
TL 9
TL 6
TL 4
TL 2
TL 9
TL 3
Place shelf on (TL9,) on top of support pins.
TL 1
TL 2
TL 3
TL 4
TL 5 TL 6
TL 7
TL 8
TL 7
G
G
G
G
GG

After shelf placement diagram
TL 1 TL 5 TL 9
TL 6
TL 4
TL 2
TL 9
TL 3
TL 8
Step 12
Step 11
I
TL 14
K
J
J
F
TL 13
J
J
K
IF
Attach handle (K) to parts (TL13,TL14) using handle screw(J)
with screw driver and also magnetic catcher plate (I) with screw (F).
Detail Steps
1.Insert screw in one of the hole meant for door handle and turn 1-2 thread only.
2.Insert screw in another hole in door, match the hole in handle and turn 1-2 threads in handle.
3.Once both the screw catch the threads in handle tighten both the screws equally to draw both
the ends of handle in simultaneously.

LF
TL 1
TL 3
TL 9TL 9
TL 4
TL 5
TL 9
TL 2
TL 13
TL 6
Step 13
TL 14
TL 9
TL 5
TL 1
TL 2
TL 4
TL 3
TL 9
Step 14
L
F
Hinge Setting Required for Proper Door Closure.
Fix (L) as shown in diagram using (F) screw.
Fix (L) as shown in diagram using (F) screw.
Hinge Setting Required for Proper Door Closure.

Step 15
TL 1
TL 14
TL 2
TL 13
TL 3
TL 8
TL 5
H
H
H
H
TL 4
Insert glass holder(H) into part (TL4,TL5)
Insert part (Tl10) over glass holder (H) into part (TL4.TL5)
TL 1
TL 13
TL 3
TL 8TL 8
TL 14
TL 5TL 5
TL 2
TL 4
TL 10
Step 16

Step 17
FINAL ASSEMBLY
TL 1
TL 14
TL 5
TL 8
TL 10
TL 2
TL 13
TL 3
