Moda Light Moda Mini Graze Interior Series User manual

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
1 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
Max Continuous Run: See section 15
Continuidad Máxima: Vea sección 15
Run continue Max: Voir la section 15
!
1
DRY/DAMP LOCATION INSTALL
INSTALACIÓN DE LUGARES SECOS/HÚMEDOS
INSTALLATION EMPLACEMENT SEC/HUMIDE
Must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and
regulations by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply
with the following installation instructions will void the warranty and may result in serious injury or possible death. Ensure power
is off before installation, verify electrical plan first and read all installation instructions prior to installation. With the constant
development of our products please check our website (www.modalight.com) for any possible changes to the installation of this
product.
Debe ser instalado por un electricista calificado de acuerdo con todos los códigos y reglamentos eléctricos y de construcción nacionales y locales, por una
persona familiarizada con la construcción y el funcionamiento del producto y los riesgos involucrados. El incumplimiento de las siguientes instrucciones de
instalación anulará la garantía y puede provocar lesiones graves o la muerte. Asegúrese de que la energía esté apagada antes de la instalación, verifique
primero el plan eléctrico y lea todas las instrucciones de instalación antes de instalar. Con el constante desarrollo de nuestros productos, visite nuestro website
(www.modalight.com) para todos posibles cambios en la instalación de este producto.
Doit être installé par un électricien qualifié conformément à tous les codes et réglementations électriques et de construction nationaux et locaux par une
personne connaissant bien la construction et le fonctionnement du produit et les risques encourus. Le non-respect des instructions d’installation suivantes
annulera la garantie et pourrait entraîner des blessures graves ou la mort éventuelle. Assurez-vous que l’alimentation est coupée avant l’installation, vérifiez
d’abord le plan électrique et lisez toutes les instructions d’installation avant l’installation. Avec le développement constant de nos produits s’il vous plaît consulter
notre site web (www.modalight.com) pour toutes les modifications possibles à l’installation de ce produit.

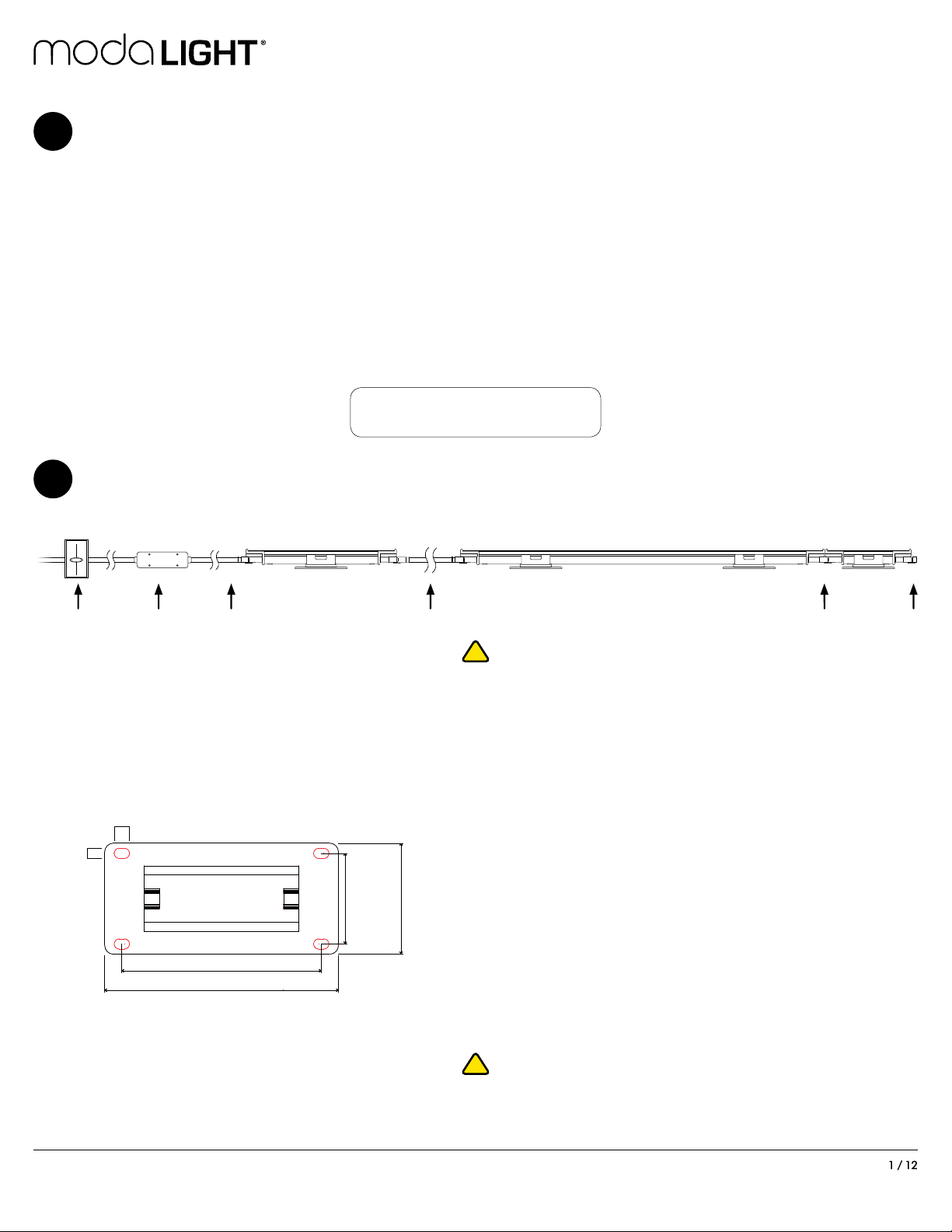

2Verify electrical plan and ensure all hardware is present
Verificar plan electrico y verifique que todo el equipo esté presente
Vérifier le plan électrique et assurer que tout le matériel est présent
Dimmer
(Optional) Leader Cable
Moda Bridge
(Optional) Jumper Cable Fixture to Fixture
Connection
Terminator
Mounting Bracket can be moved to the left or right of the fixture
El soporte se puede mover hacia la izquierda o hacia la derecha del accesorio
Le support de montage peut être déplacé vers la gauche ou la droite de l’appareil
!
1 1/2” (38 MM)1 1/2” (38 MM)
Overall fixture length
with connectors:
6in - 6 27/32” (174.18mm)
1ft - 1’ 15/32” (317.10mm)
4ft - 4’ 1/2” (1.23m)
8ft - 8’ 1/2” (2.45m)
2 11/16” (68.25mm)
7/32” (5.25mm)
3 5/32” (80mm)
Mounting Bracket
(Bottom View)
1/8”
(3.5mm)
1 7/32”
(31mm) 1 1/2” (38mm)

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
2 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
4
3Mount to surface using the 4 screw holes on the bracket
Monte a superficie utilizando los 4 agujeros para tornillos en el soporte
Mont à la surface en utilisant les 4 trous de vis sur le support
Push down on bracket to rotate to desired angle, then release
Empuje hacia debajo sobre el soporte para rotar al ángulo deseado, y luego suelte
Appuyez sur le support pour le faire pivoter à l’angle souhaité, puis relâchez-le
Bracket is self locking, do not rotate like a conventional bracket. Place on a flat surface and push down
on bracket to release locking mechanism then release once desired position has been reached.
El soporte se autobloquea, no rote como un soporte convencional. Coloque en superficie plana y empuje hacia debajo sobre el soporte para
liberar el mechanismo de bloqueo, luego suelte cuando aya alcanzado la posición deseada.
Support est auto-bloquante , ne tournent pas comme un support classique. Placer sur une surface plane et pousser vers le bas sur le support
pour libérer le mécanisme de verrouillage puis relâcher une fois la position désirée est atteinte.
!
170º Rotation
5For a straight run of fixtures, use Moda Mini Graze Interior Mounting Track
Para un tramo recto de los accesorios , utilice la canal de montaje Moda Mini Graze Interior
Pour une course rectiligne de luminaires , utiliser Moda Mini Graze Interior piste de montage

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
3 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
7
6
8
Screw Moda Mini Graze Interior into the mounting track
Atornille Moda Mini Graze Interior al canal de montaje
Vissez Moda Mini Graze Interior dans la voie de montage
!
Use appropriate mounting screws suitable for each surface
Use tornillos de montaje adecuados para cada superficie
Utilisez des vis de montage appropriées pour chaque surface
Tight torque may damage bracket
Mucha torsión puede dañar el soporte
Un couple serré peut endommager le support
!
Wiring
Cablería
Cables
Snap Moda Mini Graze Interior mounting track then slide to connect fixtures
Encaje Moda Mini Graze Interior en el canal de montaje y luego deslice para conectar accesorios
Accrochez Moda Mini Graze Interior dans la piste puis faites glisser pour connecter les appareils
Ceiling mounted
Instalación en techos
Plafond monté
UL / cUL Non-dimming UL / cUL ELV Dimming
LEADER CABLE100-277V AC LEADER CABLE100-277V AC
ELV DIMMER
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
*Not illustrated
Minimum end to end spacing is 1/8” (3.5mm)
Espacio minimo de extremo a extremo es 1/8” (3.5mm)
L’espacement minimal entre les extrémités est 1/8” (3.5mm)

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
4 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019

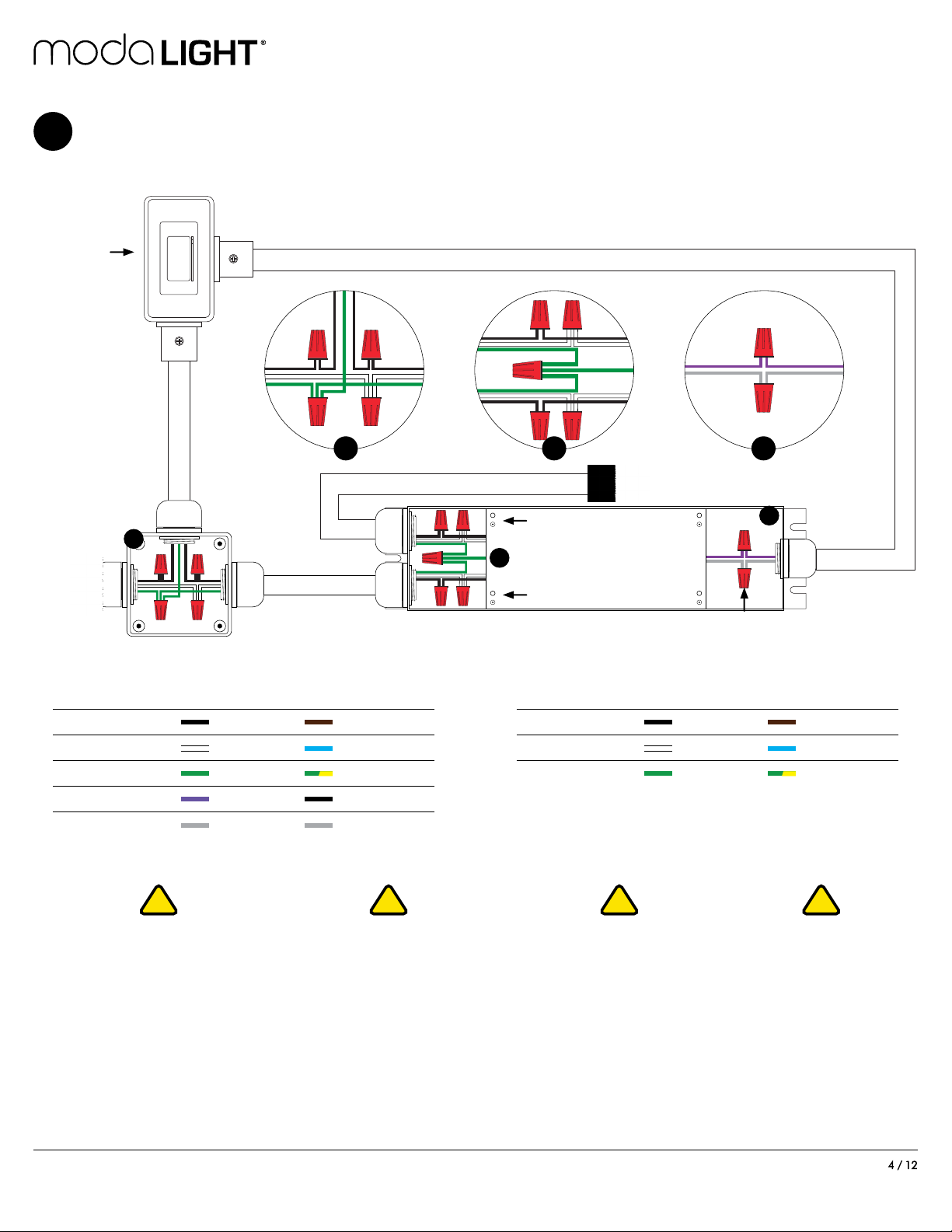

9Wiring Moda Bridge
Cablería Moda Bridge
Cables Moda Bridge
0-10V
Dimmer
100-
277V AC
ELV Output
Input
0-10V Input
A
A B
B
C
C
Output
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
*Not illustrated
Input
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
0-10V / Data + Purple Black
0-10V / Data - Grey Grey
*Not illustrated
!
IF MODA BRIDGE IS MOUNTED OUTSIDE
USE SUITABLE WET LOCATION WIRE NUTS
Si el MODA Bridge es montado en el exterior, utilize
sujetadores de cables a prueba de liquidos.
Si MODA BRIDGE est monté à l’extérieur, utiliser un
endroit humide approprié
!
AVOID DIRECT SUNLIGHT
Evite la luz solar directa
Évitez la lumière directe du soleil
!
NOT SUITABLE FOR AN IP67 AND IP68
INSTALLATION
No es adecuado para instalación de IP67 y de IP68
Ne convient pas pour l’installation IP67 et IP68
!
MODA BRIDGE NEEDS TO BE MOUNTED AT
LEAST 3 FEET HIGH FROM THE GROUND
Moda Bridge debe de estar montado al menos a 3ft
del suelo
Moda Bridge doit être monté à au moins 3ft du sol

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
5 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
10
11

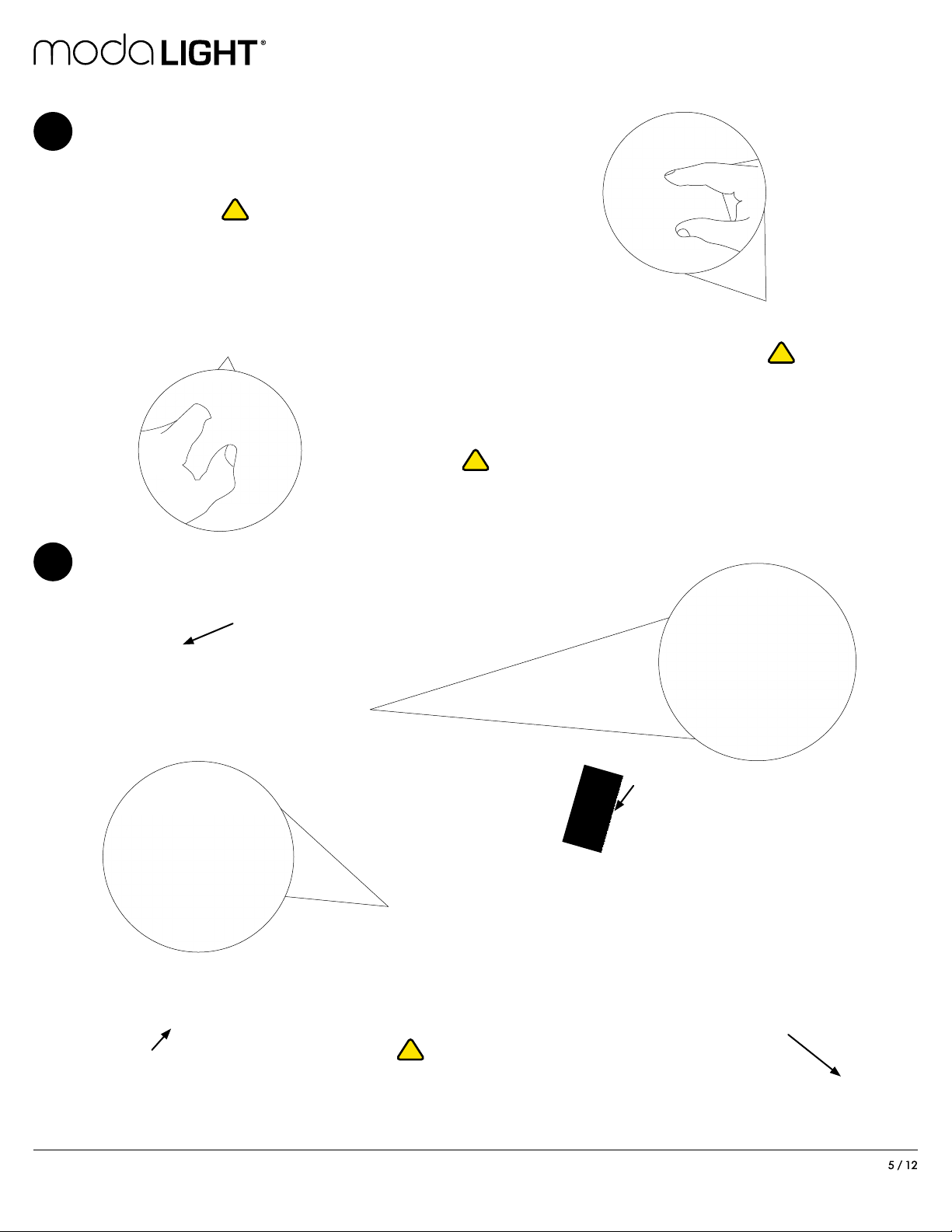

Connect leader cable and connect terminator
Connectar el cable leader y conectar Terminador
Branchez le câble leader et connectez Terminateur
To release,
press down
on thumb
latch and
pull.
Connect
Terminator
CLICK!
CLICK!
Terminator MUST be placed on final fixture!
Terminator DEBE ser colocado en el accesorio final!
Terminator DOIT être placé sur l’appareil final!
Do NOT mix SO with HO fixtures
NO combine accesorios SO con HO
Ne pas mélanger SO avec les luminaires HO
!
!
Ensure a positive click to avoid arcing
Asegúrese un clic positivo para evitar arco eléctrico
Assurez un clic positif pour éviter de cambrer
!
Connection types
Tipos de connexiones
Types de connexion CLICK!
Maximum bend radius of
fixture to fixture connection is
90°
Jumper Cable
Fixture to Fixture
CLICK!
Sizes can be mixed, Do Not Exceed Max Run Lengths (see section 15)
Se pueden combinar tamaños, No Exeder Longitud Maxima (vea sección 15)
Vous pouvez combiner tailles, Dépasser Aucune Longueur Maximale (voir la section 15)
Terminator
Leader Cable
!
Jumper Cable

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
6 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
Power on!
Encender!
Allumer!
12
14

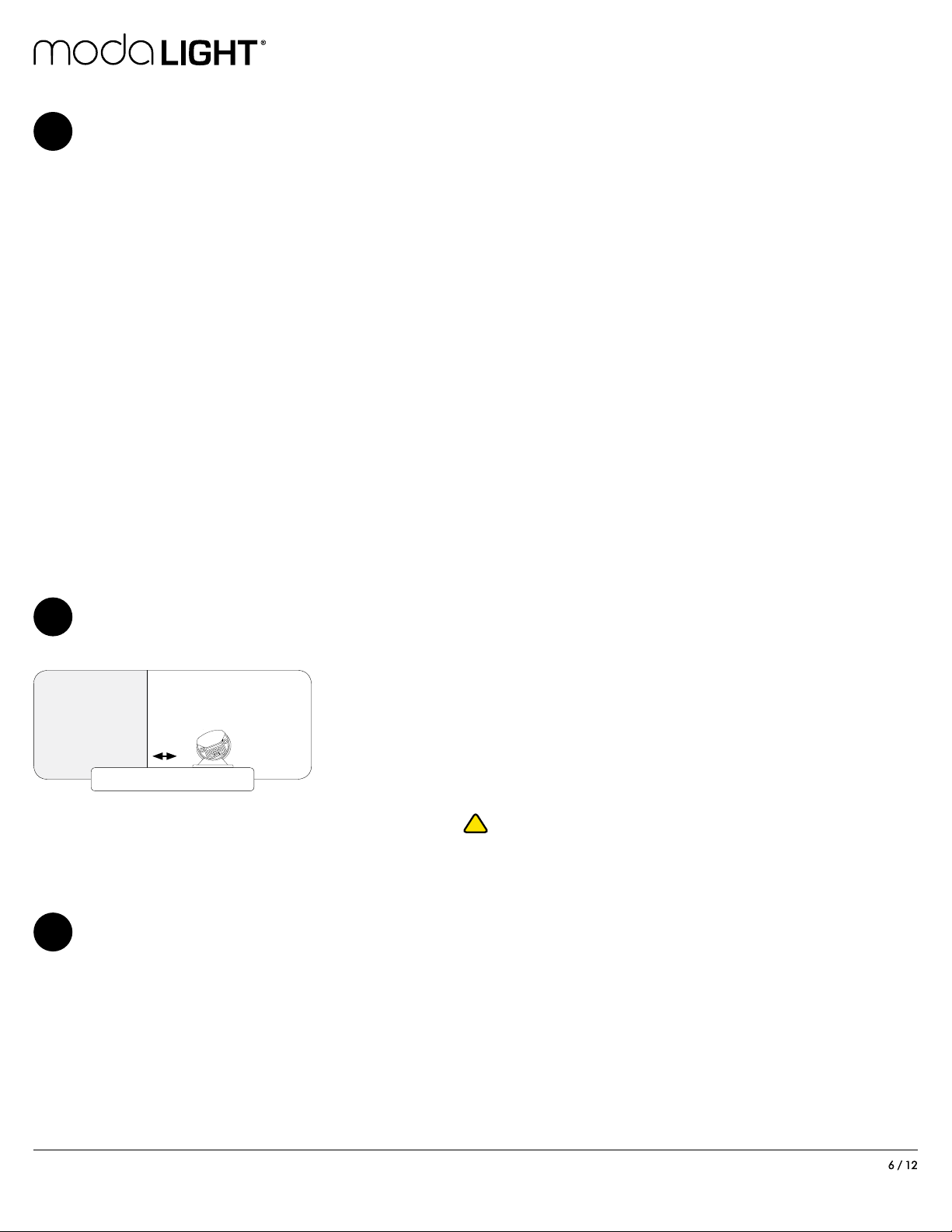

13 Setback chart
Gráfica de retroceso
Chart Abaissement
!
Recommended setback from the wall is 1/10 of the wall height
Retroceso de la pared recomendada es 1/10 de la altura del muro
Revers recommandée de la paroi est de 1/10 de la hauteur du mur
1 feet
10 Feet Wall
Moda Mini Graze Interior 6in.
Designed for tight curving coves
Moda Mini Graze Interior 6in. diseñada para curvas cerradas
Moda Mini Graze Interior 6in. conçu pour les virages serrés
Moda Mini Graze Interior 6 inch application
Applicacion de Moda Mini Graze Interior 6 pulgadas
Application Moda Mini Graze 6 Interior punces

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
7 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
15 Maximum Continuous Run
Longitud máxima continua
Longueur maximale continue
PRODUCT 120V AC 240V AC 277V AC
Moda Mini Graze Interior Color ELV SO 6in 120ft 240ft 240ft
Moda Mini Graze Interior Color ELV SO 1ft 120ft 240ft 240ft
Moda Mini Graze Interior Color ELV SO 4ft 120ft 240ft 240ft
Moda Mini Graze Interior Color ELV SO 8ft 120ft 240ft 240ft
Moda Mini Graze Interior Color ELV HO 1ft 50ft 100ft 100ft
Moda Mini Graze Interior Color ELV HO 4ft 50ft 100ft 100ft
Moda Mini Graze Interior Color ELV HO 8ft 50ft 100ft 100ft
16 Compatible dimmers
Atenuadores de luz compatibles
Gradateurs compatibles
INPUT VOLTAGE: 120V AC, 60Hz
OUTPUT VOLTAGE: 41.5V (at non-dimming)
OUTPUT CURRENT: 95mA (at non-dimming)
Dimmer
Model Position
Output
Voltage
(V)
Output
Current
(mA)
LED
Power
(W)
Current
Ratio
(%)
LED Power
Ratio
(%)
Mini
Load Request Flicker
Vantage
STPERW101
100% 41.04 84.25 3.46 88.54% 85.18% No No
50% 38.78 37.50 1.45 39.06% 35.80% No No
0% 35.03 0.39 0.01 0.41% 0.96% No No
Grafik Eye QS
with Grafik Eye
PHPM-PA-DV-
WH
100% 40.81 85.00 3.45 88.54% 85.18% No No
50% 37.56 18.86 0.70 19.64% 20.00% No No
0% 34.89 0.35 0.12 0.36% 0.29% No No
Legrand
HDA-703-1
100% 40.92 84.50 3.46 88.02% 85.43% No No
50% 38.79 39.50 1.52 41.14% 37.53% No No
0% 34.92 0.30 0.01 0.31% 0.24% No No
Legrand
RH703PTUTC
100% 40.96 84.50 3.46 88.02% 85.43% No No
50% 38.78 39.00 1.52 40.39% 37.53% No No
0% 35.50 0.92 0.03 0.96% 0.74% No No

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
8 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
INPUT VOLTAGE: 120V AC, 60Hz
OUTPUT VOLTAGE: 41.5V (at non-dimming)
OUTPUT CURRENT: 95mA (at non-dimming)
Dimmer
Model Position
Output
Voltage
(V)
Output
Current
(mA)
LED
Power
(W)
Current
Ratio
(%)
LED Power
Ratio
(%)
Mini
Load Request Flicker
Lutron
MAELV-600
(600W)
100% 41.95 90.40 3.79 94.17% 93.65% No No
50% 38.84 29.25 1.15 30.73% 28.29 No No
0% 35.70 0.73 0.03 0.76% 0.64% No No
Lutron
Skylark
SELV-300P
(300W)
100% 41.73 87.20 3.64 90.83% 89.85% No No
50% 39.39 37.66 1.48 39.23% 36.63% No No
0% 35.21 0.70 0.02 0.73% 0.61% No No
Leviton
MNE04
(400W)
100% 41.60 85.40 3.55 88.96% 87.72% No No
50% 40.16 53.50 2.15 55.73% 53.05% No No
0% 35.77 0.84 0.03 0.88% 0.74% No No
Lutron
Diva
DVELV-300P
(300W)
100% 41.12 74.90 3.08 78.02% 76.05% No No
50% 38.60 29.12 1.12 30.33% 27.75% No No
0% 35.33 0.46 0.02 0.48% 0.40% No No
Lutron
Diva
DVELV-300P
(300W)
Adjusted
100% 41.60 88.30 3.67 91.88% 90.70% No No
50% 39.00 35.32 1.38 36.79% 34.01% No No
0% 35.37 0.48 0.02 0.50% 0.42% No No
Lutron
Diva
DVCLA-153P
(150W)
100% 41.34 79.90 3.30 83.23% 81.56% Yes No
50% 37.54 12.20 0.46 12.7% 11.31% Yes No
0% 35.33 0.20 0.01 0.21% 0.17% Yes No
No Dimmer
Dimmer
Model Position
Output
Voltage
(V)
Output
Current
(mA)
LED
Power
(W)
Current
Ratio
(%)
LED Power
Ratio
(%)
Mini
Load Request Flicker
None 42.18 96 4.05

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
9 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
FIXTURE SKU
ELV
SO
6IN
Moda Mini Graze Interior Standard Output Silver ELV Dimming Red 6IN 30X100 131-0000
Moda Mini Graze Interior Standard Output Silver ELV Dimming Green 6IN 30X100 131-0001
Moda Mini Graze Interior Standard Output Silver ELV Dimming Blue 6IN 30X100 131-0002
Moda Mini Graze Interior Standard Output Silver ELV Dimming Amber 6IN 30X100 131-0003
Moda Mini Graze Interior Standard Output Silver ELV Dimming Yellow 6IN 30X100 131-0004
Moda Mini Graze Interior Standard Output Silver ELV Dimming Golden Yellow 6IN 30X100 131-0005
Moda Mini Graze Interior Standard Output Silver ELV Dimming Ice Blue 6IN 30X100 131-0006
Moda Mini Graze Interior Standard Output Silver ELV Dimming Cyan 6IN 30X100 131-0007
Moda Mini Graze Interior Standard Output Silver ELV Dimming Light Green 6IN 30X100 131-0008
Moda Mini Graze Interior Standard Output Silver ELV Dimming Pink 6IN 30X100 131-0009
Moda Mini Graze Interior Standard Output Silver ELV Dimming Violet 6IN 30X100 131-0010
Moda Mini Graze Interior Standard Output Silver ELV Dimming Turquoise 6IN 30X100 131-0011
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Blue 6IN 30X100 131-0012
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Orange 6IN 30X100 131-0013
ELV
SO
1FT
Moda Mini Graze Interior Standard Output Silver ELV Dimming Red 1FT 30X100 131-1000
Moda Mini Graze Interior Standard Output Silver ELV Dimming Green 1FT 30X100 131-1001
Moda Mini Graze Interior Standard Output Silver ELV Dimming Blue 1FT 30X100 131-1002
Moda Mini Graze Interior Standard Output Silver ELV Dimming Amber 1FT 30X100 131-1003
Moda Mini Graze Interior Standard Output Silver ELV Dimming Yellow 1FT 30X100 131-1004
Moda Mini Graze Interior Standard Output Silver ELV Dimming Golden Yellow 1FT 30X100 131-1005
Moda Mini Graze Interior Standard Output Silver ELV Dimming Ice Blue 1FT 30X100 131-1006
Moda Mini Graze Interior Standard Output Silver ELV Dimming Cyan 1FT 30X100 131-1007
Moda Mini Graze Interior Standard Output Silver ELV Dimming Light Green 1FT 30X100 131-1008
Moda Mini Graze Interior Standard Output Silver ELV Dimming Pink 1FT 30X100 131-1009
Moda Mini Graze Interior Standard Output Silver ELV Dimming Violet 1FT 30X100 131-1010
Moda Mini Graze Interior Standard Output Silver ELV Dimming Turquoise 1FT 30X100 131-1011
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Blue 1FT 30X100 131-1012
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Orange 1FT 30X100 131-1013
ELV
HO
1FT
Moda Mini Graze Interior High Output Silver ELV Dimming Red 1FT 30X100 131-1200
Moda Mini Graze Interior High Output Silver ELV Dimming Green 1FT 30X100 131-1201
Moda Mini Graze Interior High Output Silver ELV Dimming Blue 1FT 30X100 131-1202
Moda Mini Graze Interior High Output Silver ELV Dimming Amber 1FT 30X100 131-1203
Moda Mini Graze Interior High Output Silver ELV Dimming Yellow 1FT 30X100 131-1204
Moda Mini Graze Interior High Output Silver ELV Dimming Golden Yellow 1FT 30X100 131-1205
Moda Mini Graze Interior High Output Silver ELV Dimming Ice Blue 1FT 30X100 131-1206
Moda Mini Graze Interior High Output Silver ELV Dimming Cyan 1FT 30X100 131-1207
Moda Mini Graze Interior High Output Silver ELV Dimming Light Green 1FT 30X100 131-1208
Moda Mini Graze Interior High Output Silver ELV Dimming Pink 1FT 30X100 131-1209
Moda Mini Graze Interior High Output Silver ELV Dimming Violet 1FT 30X100 131-1210
Moda Mini Graze Interior High Output Silver ELV Dimming Turquoise 1FT 30X100 131-1211
Moda Mini Graze Interior High Output Silver ELV Dimming Dark Blue 1FT 30X100 131-1212
Moda Mini Graze Interior High Output Silver ELV Dimming Dark Orange 1FT 30X100 131-1213

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
10 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
FIXTURE SKU
ELV
SO
4FT
Moda Mini Graze Interior Standard Output Silver ELV Dimming Red 4FT 30X100 131-3000
Moda Mini Graze Interior Standard Output Silver ELV Dimming Green 4FT 30X100 131-3001
Moda Mini Graze Interior Standard Output Silver ELV Dimming Blue 4FT 30X100 131-3002
Moda Mini Graze Interior Standard Output Silver ELV Dimming Amber 4FT 30X100 131-3003
Moda Mini Graze Interior Standard Output Silver ELV Dimming Yellow 4FT 30X100 131-3004
Moda Mini Graze Interior Standard Output Silver ELV Dimming Golden Yellow 4FT 30X100 131-3005
Moda Mini Graze Interior Standard Output Silver ELV Dimming Ice Blue 4FT 30X100 131-3006
Moda Mini Graze Interior Standard Output Silver ELV Dimming Cyan 4FT 30X100 131-3007
Moda Mini Graze Interior Standard Output Silver ELV Dimming Light Green 4FT 30X100 131-3008
Moda Mini Graze Interior Standard Output Silver ELV Dimming Pink 4FT 30X100 131-3009
Moda Mini Graze Interior Standard Output Silver ELV Dimming Violet 4FT 30X100 131-3010
Moda Mini Graze Interior Standard Output Silver ELV Dimming Turquoise 4FT 30X100 131-3011
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Blue 4FT 30X100 131-3012
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Orange 4FT 30X100 131-3013
ELV
HO
4FT
Moda Mini Graze Interior High Output Silver ELV Dimming Red 4FT 30X100 131-3200
Moda Mini Graze Interior High Output Silver ELV Dimming Green 4FT 30X100 131-3201
Moda Mini Graze Interior High Output Silver ELV Dimming Blue 4FT 30X100 131-3202
Moda Mini Graze Interior High Output Silver ELV Dimming Amber 4FT 30X100 131-3203
Moda Mini Graze Interior High Output Silver ELV Dimming Yellow 4FT 30X100 131-3204
Moda Mini Graze Interior High Output Silver ELV Dimming Golden Yellow 4FT 30X100 131-3205
Moda Mini Graze Interior High Output Silver ELV Dimming Ice Blue 4FT 30X100 131-3206
Moda Mini Graze Interior High Output Silver ELV Dimming Cyan 4FT 30X100 131-3207
Moda Mini Graze Interior High Output Silver ELV Dimming Light Green 4FT 30X100 131-3208
Moda Mini Graze Interior High Output Silver ELV Dimming Pink 4FT 30X100 131-3209
Moda Mini Graze Interior High Output Silver ELV Dimming Violet 4FT 30X100 131-3210
Moda Mini Graze Interior High Output Silver ELV Dimming Turquoise 4FT 30X100 131-3211
Moda Mini Graze Interior High Output Silver ELV Dimming Dark Blue 4FT 30X100 131-3212
Moda Mini Graze Interior High Output Silver ELV Dimming Dark Orange 4FT 30X100 131-3213
ELV
SO
8FT
Moda Mini Graze Interior Standard Output Silver ELV Dimming Red 8FT 30X100 131-5000
Moda Mini Graze Interior Standard Output Silver ELV Dimming Green 8FT 30X100 131-5001
Moda Mini Graze Interior Standard Output Silver ELV Dimming Blue 8FT 30X100 131-5002
Moda Mini Graze Interior Standard Output Silver ELV Dimming Amber 8FT 30X100 131-5003
Moda Mini Graze Interior Standard Output Silver ELV Dimming Yellow 8FT 30X100 131-5004
Moda Mini Graze Interior Standard Output Silver ELV Dimming Golden Yellow 8FT 30X100 131-5005
Moda Mini Graze Interior Standard Output Silver ELV Dimming Ice Blue 8FT 30X100 131-5006
Moda Mini Graze Interior Standard Output Silver ELV Dimming Cyan 8FT 30X100 131-5007
Moda Mini Graze Interior Standard Output Silver ELV Dimming Light Green 8FT 30X100 131-5008
Moda Mini Graze Interior Standard Output Silver ELV Dimming Pink 8FT 30X100 131-5009
Moda Mini Graze Interior Standard Output Silver ELV Dimming Violet 8FT 30X100 131-5010
Moda Mini Graze Interior Standard Output Silver ELV Dimming Turquoise 8FT 30X100 131-5011
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Blue 8FT 30X100 131-5012
Moda Mini Graze Interior Standard Output Silver ELV Dimming Dark Orange 8FT 30X100 131-5013

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
11 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
FIXTURE SKU
ELV
HO
8FT
Moda Mini Graze Interior High Output Silver ELV Dimming Red 8FT 30X100 131-5200
Moda Mini Graze Interior High Output Silver ELV Dimming Green 8FT 30X100 131-5201
Moda Mini Graze Interior High Output Silver ELV Dimming Blue 8FT 30X100 131-5202
Moda Mini Graze Interior High Output Silver ELV Dimming Amber 8FT 30X100 131-5203
Moda Mini Graze Interior High Output Silver ELV Dimming Yellow 8FT 30X100 131-5204
Moda Mini Graze Interior High Output Silver ELV Dimming Golden Yellow 8FT 30X100 131-5205
Moda Mini Graze Interior High Output Silver ELV Dimming Ice Blue 8FT 30X100 131-5206
Moda Mini Graze Interior High Output Silver ELV Dimming Cyan 8FT 30X100 131-5207
Moda Mini Graze Interior High Output Silver ELV Dimming Light Green 8FT 30X100 131-5208
Moda Mini Graze Interior High Output Silver ELV Dimming Pink 8FT 30X100 131-5209
Moda Mini Graze Interior High Output Silver ELV Dimming Violet 8FT 30X100 131-5210
Moda Mini Graze Interior High Output Silver ELV Dimming Turquoise 8FT 30X100 131-5211
Moda Mini Graze Interior High Output Silver ELV Dimming Dark Blue 8FT 30X100 131-5212
Moda Mini Graze Interior High Output Silver ELV Dimming Dark Orange 8FT 30X100 131-5213
CONTROLS DESCRIPTION SKU
Bridge 1 US Allows user to convert a 0-10V dimming signal into an ELV dimming
signal. North American Model 250-0000
ACCESSORIES DESCRIPTION SKU
Leader Cable US 3 Pin 10ft Power to first fixture of run 299-0000
Leader Cable US 3 Pin 25ft Power to first fixture of run 299-0002
Jumper Cable US 3 Pin 1ft Connection between fixtures 299-1000
Jumper Cable US 3 Pin 4ft Connection between fixtures 299-1002
Leader Cable EU 3 Pin 3m Power to first fixture of run 299-0001
Leader Cable EU 3 Pin 7.62m Power to first fixture of run 299-0003
Jumper Cable EU 3 Pin 300mm Connection between fixtures 299-1001
Jumper Cable EU 3 Pin 1m Connection between fixtures 299-1003
Terminator 3 Pin Must be fixed to last fixture for safety 299-2000
Mounting Track Allows user to install fixtures in a continuous linear position.
Packaged in 5 4ft sections in total of 20ft. 299-3200

MODA MINI GRAZE®INTERIOR COLOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
12 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 01/2/2019
!Do not attempt to install or use the product
until installation is fully read and understood!
¡No intente instalar o utilizar el producto sin antes leer y comprender las
instrucciones!
Ne tentez pas d’installer ou d’utiliser le produit jusqu’à ce que l’installa-
tion est entièrement lu et compris!
!Do not use the product if lens or power
cables are damaged!
¡No utilize el producto si el lente o cables de energía están defectuosos!
Ne pas utiliser le produit si l’objectif ou les câbles d’alimentation sont
endommagés!
!Do not use currents or voltages of any kind
that do not fit under the product’s requirements!
¡Por favor no utilice corrientes o voltajes que no sean los que se especifi-
can para los productos!
S’il vous plaît ne pas utiliser des courants ou des tensions autres que
celles spécifiées pour la lampe!
!Not compatible with voltage step down
devices/voltage converters/buck converter.
No es compatible con dispositivos de reducción de voltaje /
convertidores de voltaje / convertidor de buck.
Non compatible avec les dispositifs abaisseurs de tension / convertisseurs
de tension / convertisseur abaisseur.
!Make sure that power or cable is completely
off or disconnected before connecting or
disconnecting the product!
¡Por favor asegurese que el suministro de electricidad este apagado y ca-
bles estén desconectados antes de conectar o desconectar los productos!
Faire S’il vous plaît assurer que l’alimentation et les câbles d’électricité
sont hors tension et débranché avant de brancher ou de débrancher
lampes!
!Must be wired on its own dedicated lighting
circuit. Do not share the same lighting circuit
with motors, fans or computers as this may cause
flickering of the fixture.
Debe conectarse en su propio circuito de iluminación dedicada. No
comparta en el mismo circuito de iluminación con motores, ventiladores
o computadoras ya que puede causar parpadeo en el equipo.
Doit être câblé sur son propre circuit d’éclairage dédié. Ne partagent
pas le même circuit d’éclairage avec moteurs, des ventilateurs ou des
ordinateurs, car cela risquerait de scintillement de l’appareil.
!Only use compatible dimmers.
Solo utilizar atenuadores de luz compatibles.
Utilisez uniquement des gradateurs compatibles.
!Do not mix SO fixtures with HO fixtures.
No combine accesorio SO con accesorio HO
Ne pas mélanger les luminaires SO avec des accessoires HOT
!If a fixture is not working, please remove from
service.
Si un accesorio no está funcionando, por favor poner fuera de servicio.
Si un appareil ne fonctionne pas, s’il vous plaît retirer du service.
!Do not coat the product in paint! This will ruin
the product and void warranty!
No cubra el producto en pintura! Esto va a arruinar el producto y anular la
garantía!
Ne pas enduire le produit dans la peinture! Cela va ruiner le produit et
annuler la garantie!
!Please make sure to install in accordance with
the local code!
Por favor asegúrese de instalar de acuerdo con el código local!
Faire S’il vous plaît veillez à installer en conformité avec le code local!
!No serviceable parts - Do not disassemble.
No hay piezas reparables - No desamblar.
Aucune pièce - Ne pas démonter.
!Do not hot swap fixtures!
No remplaze el producto mientras estén calientes!
Feds ne cherchez pas produit tout chaud!
!Do not open fixtures as they are line voltage
and could cause a shock.
No intente abrir el producto ya que contienen lineas de voltaje y podría
causar un corto circuito.
Ne pas essayer d’ouvrir le produit car ils contiennent des lignes de tension
pordría et provoquer un court-circuit.
!Must use terminator.
Se tiene que utilizar terminadores.
Doit utiliser terminateur.
!Do not stare into beam.
No mire fijamente la luz.
Ne pas regarder le faisceau.
