Modern Forms Woody 60 User manual

Woody
Installation Instructions
works with the
Google Assistant

FR-W1814
Woody Instructions2
Please read and
save these instructions
before installation
DO NOT RETURN TO STORE

FR-W1814 Woody Instructions 3
For all questions about your ceiling fan please read all included
instructions, installation procedures, troubleshooting guidelines
and warranty information before starting installation.
For missing parts or general inquiries call our trained technical staff at:
1-866-810-6615 option 0
MON-FRI 8AM-8PM EST
Email: [e-mail]
Or live chat at modernforms.com
For fast service have the following information below when you call:
1. Model Name and Number
2. Part Number and Part Description
3. Date Of Purchase and Purchase Location
1-866-810-6615 option 1
MON-FRI 8AM-8PM EST
Email: [e-mail]
General Inquiries
Fan Support

FR-W1814
Woody Instructions4
For operation, maintenance, and troubleshooting information,
visit http://modernforms.com/fan-support/
To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker
before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA
70” and local electrical codes. Electrical installation should be performed by a licensed electrician.
The fan must be mounted with a minimum of 7 ft. (2.1m) clearance from the trailing edge of
the fan blades to the floor and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the
surrounding walls. Never place objects in the path of the fan blades. To avoid personal injury or
damage to the fan and other items, please be cautious when working around or cleaning the fan.
To avoid electrical shock or damage to the motor or finish, do not use water or chemicals
when cleaning the fan or fan blades. A dry cloth or lightly dampened cloth will be suitable
for most cleaning.
After making electrical connections, spliced conductors should be turned upward and pushed
carefully up into the outlet box. The wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet box, and the ungrounded conductor
on the other side of the outlet box.
All set screws must be checked and re-tightened
where necessary before installation.
Safety Rules

FR-W1814 Woody Instructions 5
WARNING:Do not install or use your fan if any part(s) is/are damaged or missing. This product
is designed for use only with the supplied parts and/or accessories designated for use with this
product by Modern Forms. Substitution of parts or accessories not designated for use with this
product by Modern Forms could result in personal injury or property damage and will void the
warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
WARNING:To reduce the risk of electric shock, this fan must
be installed and operated with the supplied wall control, or controlled from the Modern Forms app
or Wi-Fi Touch Panel Wall Control (not included).
WARNING:Do not use power tools to assemble or install your fan. Using power tools can result in
improper assembly which can lead to noise or fan damage,personal injury or property damage.
WARNING:To reduce the risk of personal injury, do not bend the blade arms when installing the
brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING:Do not operate fan unless fan blades are in place. Noise and fan damage can occur
WARNING:This appliance is not intended for use by young children without supervision.
WARNING: To reduce the risk of fire, electric shock, personal injury or damage to the fan or other
items, the outlet box and support structure must be securely mounted and capable of reliably
supporting a minimum of 35 Ibs (15.9 kg). Use only UL/cUL listed outlet boxes marked “FOR FAN
SUPPORT.” Use only the screws and washers provided with the outlet box.
CAUTION:Before assembling your fan, refer to the “Making the Electrical Connections“
section. If you feel you do not have enough wiring knowledge or experience, have your fan
installed by a licensed electrician.
NOTE:Before servicing or cleaning the fan, switch power off at the circuit breaker.

FR-W1814
Woody Instructions6
Get Smart...
Integrates
seamlessly with:
devices you already own
works with the
Google Assistant
Premium smart
features:
Accessories:
DC
MOTOR
complement high quality materials
personalize your experience
Quiet, reliable, and up to 70%
more ecient than AC fans
Wi-Fi and Bluetooth enabled
for exible control
Bluetooth Wall Control
Dims light to 1% | ON/OFF
6 fan speeds
F-WCBT-WT White
Bluetooth Remote Control
Dims light to 1% | ON/OFF
6 fan speeds | Sold separately
F-RCBT-WT White
Wet Location-listed to the strictest
UL/cUL safety regulations. Finished
and rated for interior and exterior use

FR-W1814 Woody Instructions 7
Contents
Tools Required
1. Mounting Options 10
2. Hanging the Fan 12, 14
3. Attaching the Fan Blades 12
5. Making the Electrical Connections 16
6. Installing the Wall Control 18
7. Finishing the Installation 20
8. Installing the LED Luminaire Module 22
9. Controlling the Fan 24
10. Reset 26
11. Breeze Mode 26
12. Application 26
13. Accessories 28

FR-W1814
Woody Instructions8

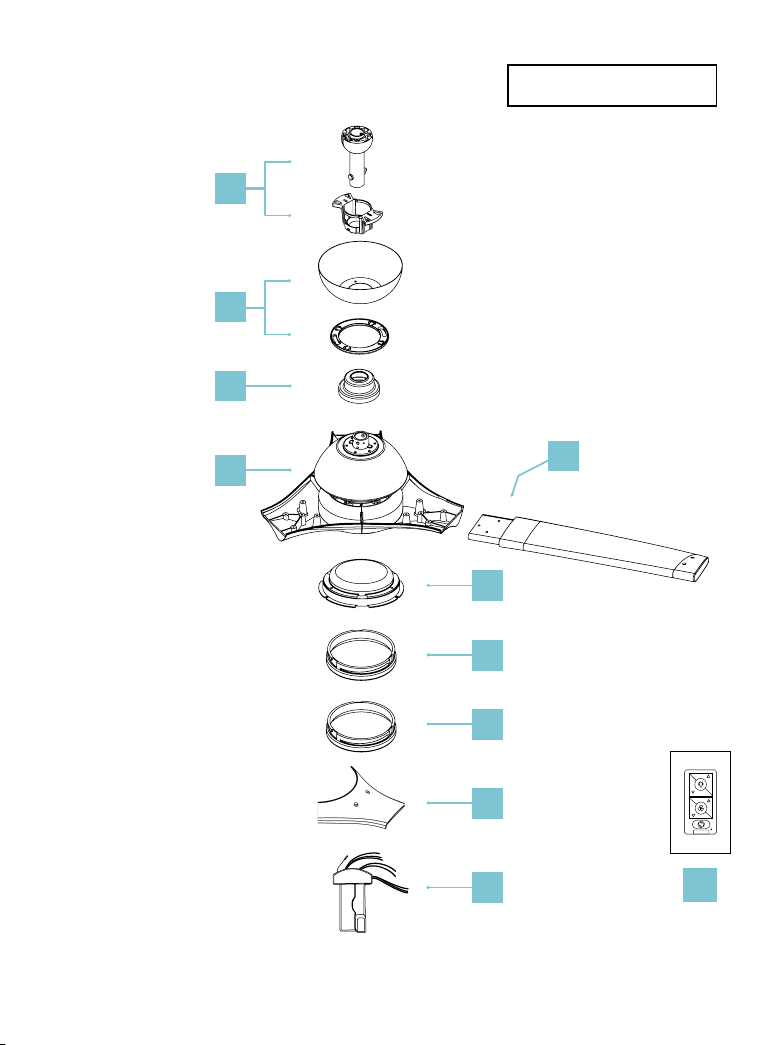

Package Contents
6. LED Module
F4IN-120V-R1-30
7. Glass Shade
RPL-F1814-GLA
8. Luminaire Cover
RPL-F1814-COVER**
9. Blade Holder
10. Control Receiver w/Hardware
F-R3-1814-0**
11. Wall Control w/Hardware
F-WCBT-WT
• 3/16”x24mm Phil/Slotted
Pan Head Screw (10)
• 4.7x14x2mm rubber washer
• 5x14x1mm Flat Washer (10)
• 3/16”x32mm Phil/Slotted
Pan Head Screw (7)
• 6.5x19x2mm Flat Washer (1)
• 3/16”(5.2x8.4x1.0mm)
Spring Washer (1)
Hardware Bag
RPL-WOODY-PARTS
1. Blade Set of 3 (60”/ 72”)
RPL-F1814-***-BD-**
2. Hanger Assembly -
Mounting Bracket
Downrod Assembly
RPL-HGR-ASM-**
3. Canopy & Canopy Ring
RPL-CAN-RND-**
4. Coupling Cover
RPL-COU-CVR-**
5. Motor Assembly
** denotes finish code of fan *** denotes blade sweep of fan
Before discarding packaging materials be certain all parts have been removed.
Place the parts from the hardware bag into a small container to keep them from being lost.
• #10x76mm Pan Head
Phillip Wood Screws (1)
• 5/32”x25mm Phil Truss
Head Screw (4)
• #10x38mm Pan Head Phillip
Screws (2)
• Ø5*14*1mm Flat Washer (2)
• 3/16” Star Washer (2)

FR-W1814 Woody Instructions 9
IMPORTANT: Please make note of
the MAC ID on the receiver and
keep it in a safe place.
MACID
11
1
6
7
8
9
10
4
3
2
5
Hanging Weight: 13 lbs

FR-W1814
Woody Instructions10
1. Mounting Options
CAUTION: To prevent electrical shock, ensure electricity has been
turned off at the circuit breaker before beginning.
If there isn’t an existing UL/cUL listed outlet box, please refer to the
following instructions. Secure the outlet box directly to the building
structure. Use appropriate fasteners and building materials. The
outlet box and support structure must be able to fully support the
moving weight of the fan (at least 35 lbs/15.9 kg). Do not use plastic
outlet boxes. Use only UL/cUL listed outlet boxes marked
“FOR FAN SUPPORT.”
Secure the outlet box directly to the building structure.

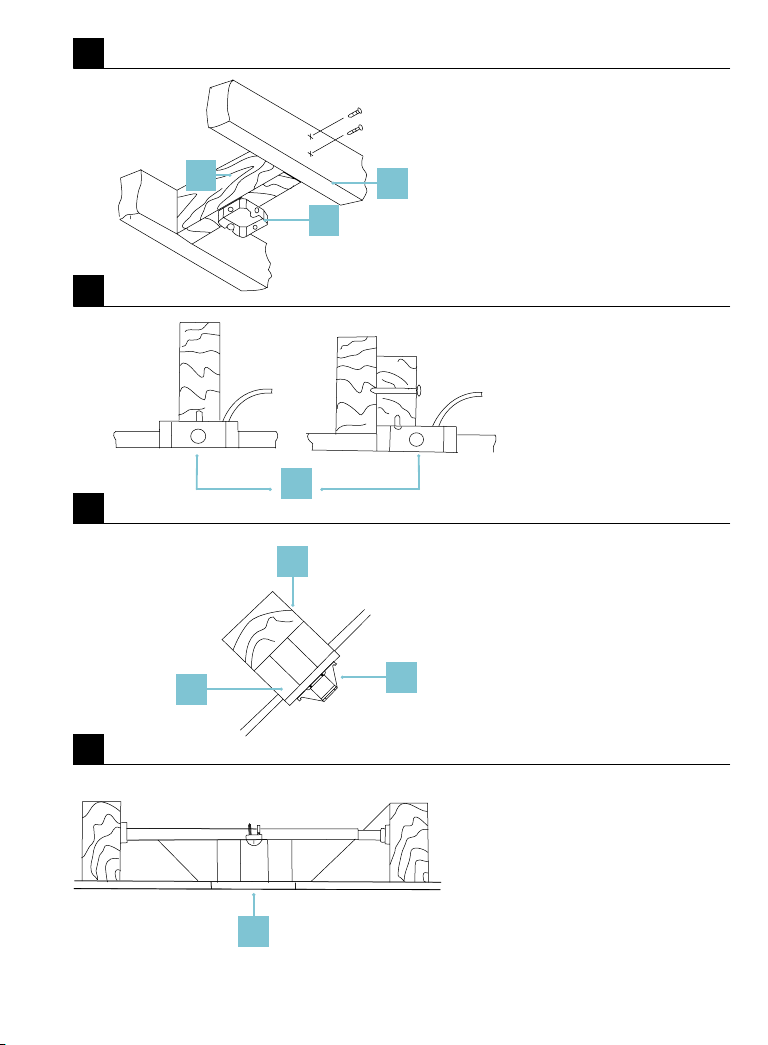

Figures 1-1C are examples of different ways to mount the
outlet box.
NOTE: To hang your fan where there is an existing fixture but no
ceiling joist, you may need an installation hanger bar.
NOTE: Downrod fans can be suspended up to a maximum
recommended length of 72” using additional downrods
(sold separately) and the included 80” lead wire.
NOTE: The sloped ceiling kit (sold separately) is required for sloped
ceiling applications, and will accommodate slopes up to 45° (Fig. 1B).
NOTE: You may need a longer downrod to maintain proper blade
clearance when installing on a steep, sloped ceiling (Fig. 1B).

FR-W1814 Woody Instructions 11
1
1A
1B
1C
1
1
2
1
1
2
3
3
1. Support Brace
2. Outer Box
3. Joist
1. Support Brace
2. Mounting Bracket
3. Recess Outlet Box
1. Outlet Box
1. Outer Box
Support Ceiling
Max 30° Angle

FR-W1814
Woody Instructions12
2. Hanging the Fan
3. Attaching the Fan Blades

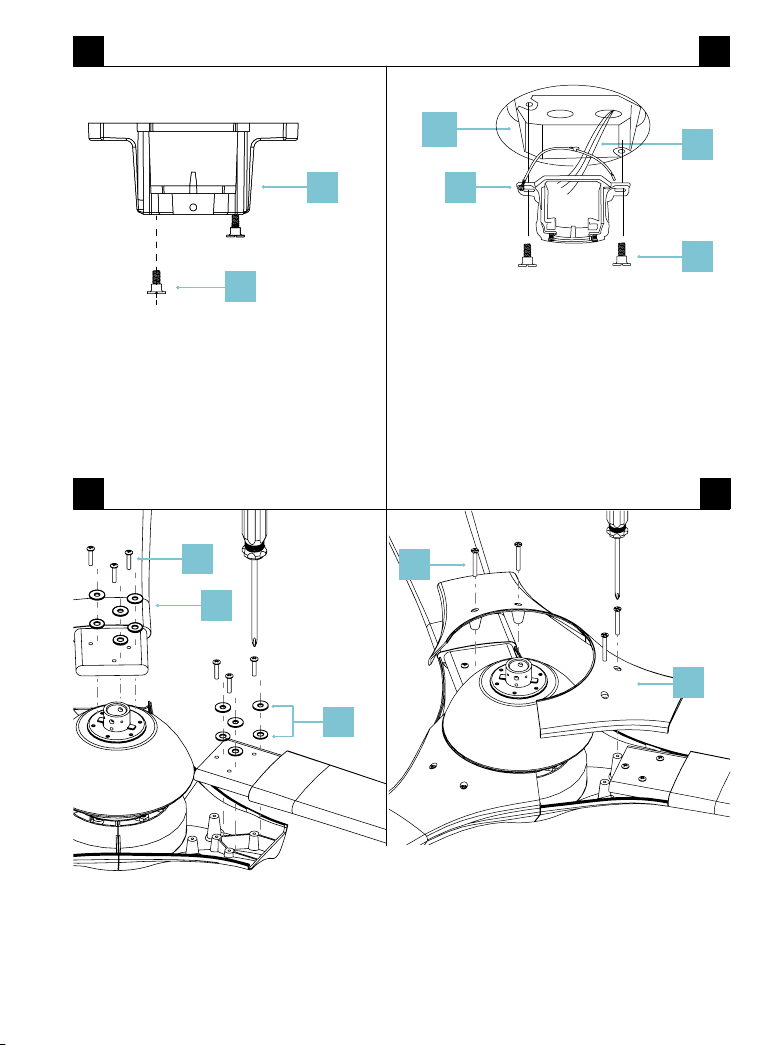

1. Remove 1 of 2 screws from the bottom of mounting bracket and
save for use in section 9. Loosen the other screw (Fig. 2).
2. Pass the 120-volt supply wires through the center hole in the
ceiling mounting bracket as shown in (Fig. 2A).
3. Secure the mounting bracket to the ceiling outlet box with the
screws and washers provided with your outlet box (Fig. 2A).
1. Attach each fan blade with the flat washers, rubber washers,
and screws provided. Install the flat washer onto the screw, then
the rubber washer. The rubber washer will be in contact with the
wood blades (Fig. 3).
2. Attach the upper blade holder using the 6 screws provided
(Fig. 3A).

FR-W1814 Woody Instructions 13
3 3A
2 2A
1
2
1. 120V Wires
2. cUL Listed Electrical Box
3. Mounting Bracket
4. Mounting Screws
(supplied with outlet box)
1. Screw
2. Mounting Bracket
2 2A
2
1
2
3
1
1
2
1. 120V Wires
2. cUL Listed Electrical Box
3. Mounting Bracket
4. Mounting Screws
(supplied with outlet box)
1. Screw
2. Flat washer (top)
3. Rubber washer (bottom)
1. Screw
2. Upper blade holder
1
2
3
4

FR-W1814
Woody Instructions14
4 . Hanging the Fan
1. Remove the clevis pin and cotter pin, and loosen the two
collar screws from the motor collar (Fig. 4).
2. Feed motor wires through coupling cover, canopy ring,
and canopy.
3. Feed motor wires through downrod assembly.
4. Thread the downrod assembly onto motor collar. Align the
holes of downrod and collar and insert the cotter pin and
clevis pin. Tighten the two collar screws (Fig. 4).
5. Slide coupling cover to rest on motor housing.
6. Carefully lift the fan motor assembly up to the mounting
bracket and seat the hanger ball in the mounting bracket
socket. Make sure the tab on the mounting bracket socket
is properly seated in the groove in the hanger ball (Fig. 4A).
Rotate the socket assembly until the ball drops and locks
into the hanger bracket screw.
7. Secure the safety cable into the structure beams using the wood
screw, washers, and spring washers provided.
NOTE: Safety cable is required for all ceiling fan installations in Canada.
Safety cable is required for ceiling fan and light (combo) installations
over 35 lbs. in both flush and downrod models in the United States.
WARNING: Failure to properly install the cotter pin and/or tighten
the screws could result in the fan loosening and possibly falling.

FR-W1814 Woody Instructions 15
4A 4B
4
1
2
3
5
4
1. Canopy
2. Canopy Ring
3. Canopy Cover
4. Cotter Pin
5. Clevis Pin

FR-W1814
Woody Instructions16
5. Making the Electrical Connections
WARNING: Installation of this fan requires that a three-conductor
cable (including ground wire) which should run between ceiling and
wall outlet box.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire nuts,
except for the ground wire.

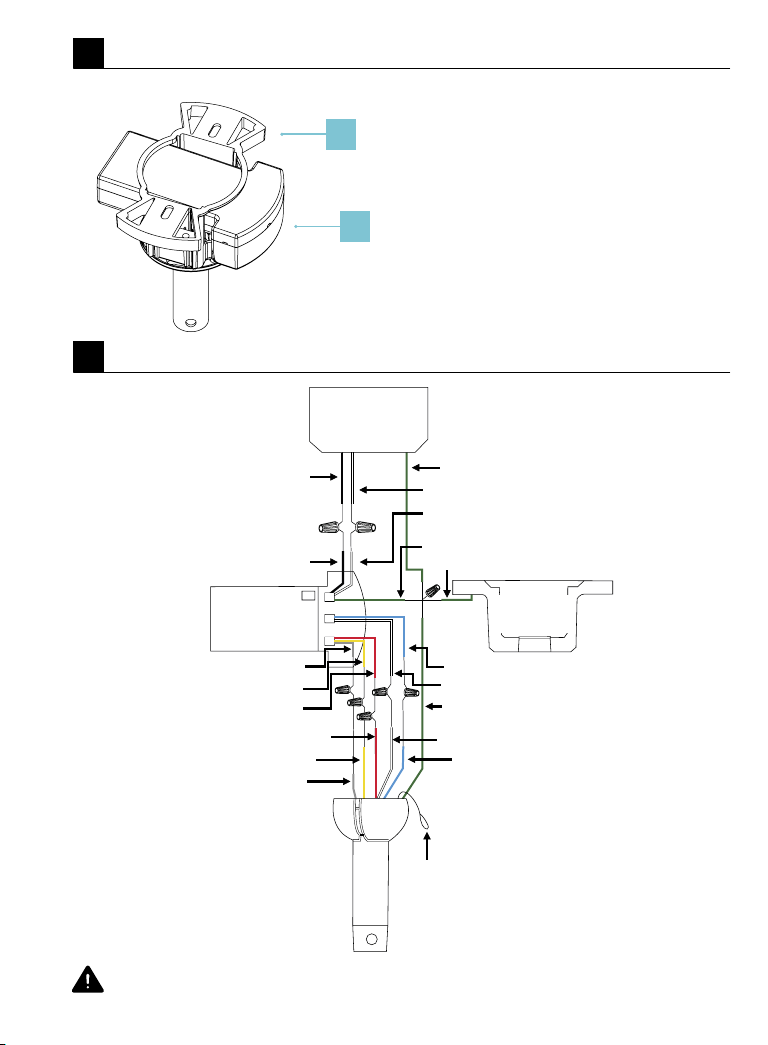

Insert the receiver into the mounting bracket with the flat side of the
receiver facing the ceiling (Fig. 5).
Motor to Receiver & Receiver to house supply wires (Fig. 5A).
1. Connect the hanger ball/downrod assembly ground wire,
mounting bracket ground wire and receiver ground wire to
the ground wire in outlet box.
WARNING: Failure to connect ground wires could result in
poor fan control functionality.
2. Connect the red wire from the fan to the red wire marked
“TO MOTOR” from the receiver.
3. Connect the grey wire from the fan to the grey wire marked
“TO MOTOR” from the receiver.
4. Connect the yellow wire from the fan to the yellow wire marked
“TO MOTOR” from the receiver.
5. Connect the white wire from the fan to the white wire marked
“FOR LIGHT” from the receiver.
6. Connect the blue wire from the fan to the blue wire marked
“FOR LIGHT” from the receiver.
7. Connect the black (hot) wire from the ceiling to the black wire
marked “AC in L” from the receiver.
8. Connect the white (neutral) wire from the ceiling to the white
wire marked “AC in N” from the receiver.

FR-W1814 Woody Instructions 17
Follow the steps above to connect the fan to your household wiring. Use the plastic wire nuts with your fan.
Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections.
5
5A
1. Mounting Bracket
2. Receiver
Black(Hot)
can be RED from Switch leg
Black(Line in H)
RED(to Motor)
GREEN(Ground)
BLUE (to Light)
BLUE (for Light)
GREEN(GND Must Use)
GREEN(Hanger Bracket Ground)
GREEN(Hanger Bracket Ground)
RED(to Motor)
GREY(to Motor)
WHITE(Neutral)
WHITE(to Light)
WHITE(Neutral)
Safety Cable
GREY(to Motor)
YELLOW(to Motor)
WHITE(Line in N)
YELLOW(to Motor)
Outlet
Box
Receiver
Hanger Ball & Downrod
Hanger
Bracket
1
2

FR-W1814
Woody Instructions18

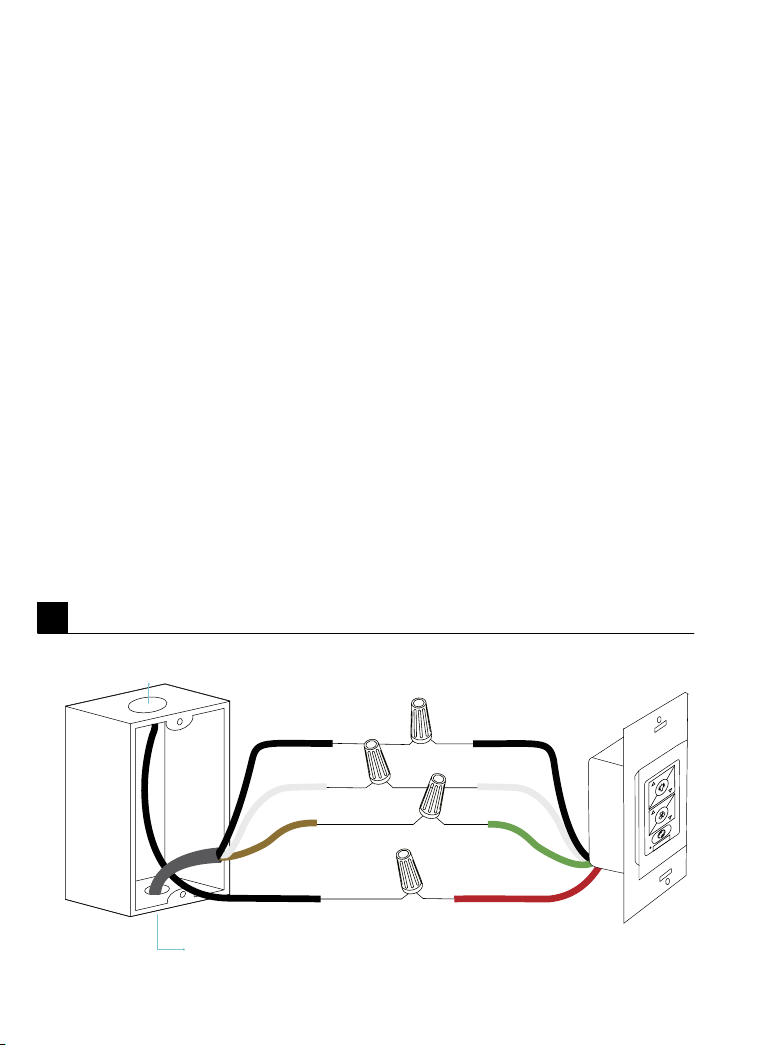

6. Installing the Wall Control
1. Connect the green wire marked “GROUND” from the wall
control to the copper wire from the wall outlet box that
feeds back to the circuit breaker – important for proper
fan function (Fig. 6).
2. Connect the black wire marked “LINE IN” from the wall control to
the black LINE VOLTAGE wire from the wall outlet box that feeds
back to the circuit breaker (Fig. 6).
3. Connect the red wire from the wall control to the black wire from
the wall outlet box that feeds up to the fan (Fig. 6).
4. Connect the white wire from the wall control to the white
(neutral) wire from the wall outlet box (Fig. 6).
5. Carefully tuck the wire connections inside the outlet box.
Secure the wall control with the two (2) wall control screws
provided (Fig. 6A).
6. Attach the wall mounting plate over the wall switch and secure
with the two (2) wall mounting plate screws provided (Fig. 6A).
7. Fasten the wall plate to the wall mounting plate (Fig. 6A).
6
Wall Switch WiresHouse Wires
(Hot In)
(Neutral)
(Ground)
(Hot out to Fan)Fan Switch leg
(Copper/Ground)
(Neutral)
(Hot)
From Breaker
* Home Wiring may vary
to Fan

FR-W1814 Woody Instructions 19
6A

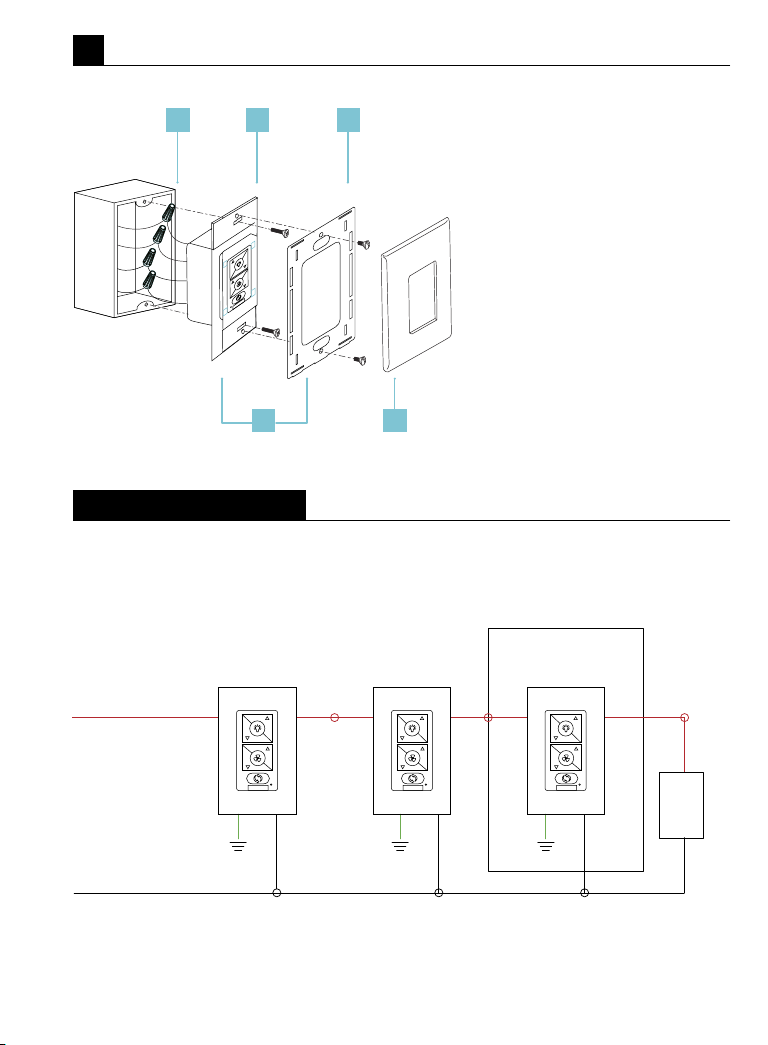

Multi-location wiring
1 2 3
54
1. Wall Outlet
2. Wall Control
3. Wall Mounting Plate
4. Mounting Plate Screws
5. Wallplate
Individually pair each of the wall controls with the fan
receiver using the pairing instruction. See page 24.
Line/Hot
Red
Green (Green or Bare)
Wall Control 1 Wall Control 2 Wall Control 3
If Applicable
FAN
Neutral/White

FR-W1814
Woody Instructions20
7. Finishing the Installation
1. Secure all wire connections with supplied wire ties to assist in
canopy installation.
2. Tuck connections neatly into ceiling outlet box.
3. Slide the canopy up to hanger bracket and place the key hole on
the canopy over the screw on the hanger bracket. Turn canopy
until it locks in place at the narrow section of the key holes
4. Align the circular hole on canopy with the remaining hole on the
hanger bracket. Secure by tightening the one screw previously
loosened and the one previously removed. Adjust the canopy
screws as necessary until the canopy and canopy cover are snug.
5. Adjust the canopy screws as necessary until the canopy
and canopy screw ring are snug.
WARNING: Make sure tab at bottom of hanger bracket is
properly seated in groove of hanger ball before attaching canopy to
bracket. Failure to properly seat tab in groove could cause damage to
electrical wiring.
