INSTALLATION INSTRUCTIONS
DC
MOTOR
WET SMART
s
AVIATOR FLUSH
FH-W1811-54
works with the
Google Assistant modernforms.com

All Modern Forms Smart Fans are:
Durably nished and Rated for
interior and exterior use
WET SMART
Able to coordinate with smart devices
for voice-activated and thermostat
control
Quiet, reliable, and up to 70%
more ecient than AC fans
Wi-Fi and RF enabled for
unlimited control
DC
MOTOR
RF WALL CONTROL
F-WC-WT
Included with each fan
6 fan speeds
Dims light to 1%
ON/OFF
WIFI TOUCH PANEL
WALL CONTROL
F-TS-BK Black
F-TS-WT White
Sold separately
Full app control
FREE APP DOWNLOAD
Sync with our exclusive Modern Forms app
to control fan speed, use smart features like
Adaptive Learning, create groups and reduce
energy costs
APP INSTRUCTIONS AND SMART HOME DEVICE INTEGRATION
modernforms.com/mfappins
Wet location-listed to the strictest ETL/
cETL safety regulations

3FH-W1811
TABLE OF CONTENTS
1. SAFETY RULES........................................................................................................................................................................................ 4
2. FTC ENERGY GUIDE & SPECIFICATION ........................................................................................................................................... 5
3. TOOLS AND MATERIALS REQUIRED................................................................................................................................................ 5
4. PACKAGE CONTENTS ........................................................................................................................................................................... 6
5. MOUNTING OPTIONS .......................................................................................................................................................................... 8
6. INSTALLING THE MOUNTING BRACKET......................................................................................................................................... 9
7. ATTACHING THE FAN BLADES.........................................................................................................................................................10
8. ATTACHING DECORATIVE LOWER CAP ........................................................................................................................................10
9. MAKING THE ELECTRICAL CONNECTIONS.................................................................................................................................11
10. FINISHING THE INSTALLATION.....................................................................................................................................................14
11. INSTALLING THE LED LUMINAIRE MODULE (Optional Accessory)..................................................................................15
12. INSTALLING THE WALL CONTROL...............................................................................................................................................16
13. WALL CONTROL OPERATING INSTRUCTIONS.........................................................................................................................18
14. APPLICATION......................................................................................................................................................................................20
15. TROUBLESHOOTING........................................................................................................................................................................21
16. ACCESSORIES ....................................................................................................................................................................................22

4FH-W1811
1. SAFETY RULES
For operation, maintenance, and troubleshooting information,
visit modernforms.com/help.
1. To reduce the risk of electric shock, ensure electricity has been turned o
at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code“ANSI/
NFPA 70” and local electrical codes. Electrical installation should be per-
formed by a qualied licensed and insured
electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg). Use only
UL-listed outlet boxes marked“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Never place objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
7. Do not use chemicals when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
8. After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into the outlet box. The wires should be
spread apart with the grounded conductor and the equipment-ground-
ing conductor on one side of the outlet
box and ungrounded conductor on the other side of the outlet box.
9. All set screws must be checked and re-tightened where necessary before
installation.
WARNING: To reduce the risk of electric shock, this fan must be installed and
operated with the supplied wall control, or controlled from the Modern Forms
app or WIFI Touch Panel wall control (not included).
WARNING: To reduce the risk of personal injury, do not bend the blade arms
when installing the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: To reduce the risk of re, electric shock, personal injury or damage to
the fan or other items, mount the fan to the outlet box marked acceptable for fan
support with the screws provided with the outlet box.
NOTE: For use only with light kits marked “Suitable for use in wet locations.”
NOTE: A maximum of 2 fans can operate on a circuit through the supplied wall
control.
NOTE: A maximum of 12 fans can operate on a circuit through an on/o switch
or a breaker when utilizing the Modern Forms app for the fan control (without
the wall control in the circuit).

5FH-W1811
3. TOOLS AND MATERIALS REQUIRED
• Phillips screw driver
• Step ladder
• Wire cutters
• Electrical tape
* Estimated annual energy cost based on $0.12 per kWh and 6.4 hours use per day.
2. FTC ENERGY GUIDE & SPECIFICATION
FAN FAN SIZE VOLTS N.W.
(lbs)
G.W.
(lbs)
STANDARD ELECTRICITY AIR FLOW ENERGY
COSTS*
FAN EFFICACY
Aviator Flush 54” 120 6.85 10.67 High Speed 27W 6744 CFM $8/yr 246.1 CFM/W
Weighted Average 15W 3982 CFM $4/yr 259 CFM/W

6FH-W1811
4. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items:
NOTE: ** denotes nish code of fan
REF. DESCRIPTION PART NO.
A Blade Set of 3 RPL-F1811-54-BD-**
B Blade Collector Ring ---
C Hanger Plate RPL-F1811-HANGER-**
D Hanger Gasket ---
E Motor Assembly ---
F Bottom Cap (Aluminum) ---
G Control Receiver w/ Hardware RPL-F1811-54-REC
H Wall Control w/ Hardware F-WC-WT
I Hardware Bag RPL-AVIATORFH-PART
3/16” x .375” Flat head screws (5 pcs) -Blade Collector Ring
Φ 4x9mm Flat head screws (10 pcs) - Blade Screws
1/4” x 16mm Pan head Philips screws with washer (7 pcs)
Φ 5x14x1mm Flat washers (2 pcs) - Hanger Plate
#8-32x38mm Pan Head Philips Screw (2 pcs) - Hanger Plate
Φ 5.2x8.4x1mm Spring washers (2 pcs) - OPTIONAL for direct wood mount - Hanger Plate
Φ 4.4x9.4x1mm Star washers (2 pcs) OPTIONAL for direct wood mount - Hanger Plate
#10x38mm Pan head Philips wood screws (2 pcs) - OPTIONAL for direct wood mount -Hanger Plate
Φ 5.2x8.4x1mm Spring washer (1 pc) - Safety Cable
Φ 6.5x19x2mm Flat washer (1 pc) - Safety Cable
#10x76mm Pan head Philips wood screw (1 pc) - Safety Cable

7FH-W1811
DC FE G
A B HI
4. PACKAGE CONTENTS (cont.)
REF. DESCRIPTION
A Blade Set of 3
B Blade Collector Ring
C Hanger Plate
D Hanger Gasket
E Motor Assembly
F Bottom Cap (Aluminum)
G Control Receiver w/ Hardware
H Wall Control w/ Hardware
I Hardware Bag

8FH-W1811
5. MOUNTING OPTIONS
If there isn’t an existing UL/cUL listed mounting box, then read the
following instructions. Disconnect the power by removing fuses or turning o
circuit breakers.
Secure the outlet box directly to the building structure.
Use appropriate fasteners and building materials. The outlet box and its sup-
port must be able to fully support the moving weight of the fan (at least 35 lbs).
Do not use plastic outlet boxes.
Figures 1 and 2 are examples of dierent ways to mount the
outlet box.
To hang your fan where there is an existing xture but no ceiling joist, you may
need an installation hanger bar as shown in (Fig. 3).
FIGURE 1
Outlet box
Outlet box
Outlet box
FIGURE 2
FIGURE 3
Support brace
Joist

9FH-W1811
6. INSTALLING THE MOUNTING BRACKET
REMEMBER to turn o power at the breaker.
Follow the steps below to hang your fan properly:
1. Disconnect power to the fan location at the breaker. A licensed electrician
must install the fan.
2. There are four screws on top of the motor assembly. Remove two that are
on the opposite of eachother and save for section 10. Loosen remaining
two.
3. Pass the 120-volt supply wires through the center hole in the ceiling
mounting bracket as shown in Figure 4.
4. Secure the hanger plate and hanger gasket to the ceiling outlet box with
the screws and washers provided (Fig. 5).
FIGURE 4
FIGURE 5

10FH-W1811
7. ATTACHING THE FAN BLADES
8. ATTACHING DECORATIVE LOWER CAP
1. Place blade on motor as shown in Fig. 6 and secure with the blade attach-
ment screws and washers.
2. Repeat this procedure with the remaining blades (Fig. 6).
3. Secure the bottom of the blades together using the provided blade
collector ring and hardware (Fig. 7).
1. Tightly twist the decorative lower cap onto the motor assembly (Fig. 8).
FIGURE 6
FIGURE 7
FIGURE 8
Blade Collector Ring

11FH-W1811
9. MAKING THE ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure electricity is turned o at
the main fuse box before wiring.
WARNING: Installation of this fan requires that a two-conductor cable with
ground wire be run between ceiling and wall outlet box.
WARNING: Check to see that all connections are tight, including ground, and
that no bare wire is visible at the wire nuts, except for the ground wire.
If you feel you do not have enough electrical wiring knowledge or experience,
have your fan installed by a licensed electrician.
Insert the receiver into the mounting bracket with the at side of the receiver
facing the ceiling (Fig. 9).
Follow the steps below to connect the fan to your household wiring. Use the
plastic wire nuts with your fan. Secure the plastic wire nuts with electrical tape.
Make sure there are no loose strands or connections.
FIGURE 9

12FH-W1811
9. MAKING THE ELECTRICAL CONNECTIONS (cont.)
FIGURE 10
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)
Receiver
White (for light)
White (for light)
Blue (for light)
Black (for light)
Motor to receiver electrical connections: (Fig. 10)
Place motor on at surface before connecting receiver wires.
1. Connect the red wire from the fan to the red wire marked “TO MOTOR”
from the receiver.
2. Connect the gray wire from the fan to the gray wire marked“TO MOTOR”
from the receiver.
3. Connect the yellow wire from the fan to the yellow wire marked“TO
MOTOR” from the receiver.
4. Connect the white wire from the fan to the white wire marked “For Light”
from the receiver.
5. Connect the black wire from the fan to the blue wire marked “For Light”
from the receiver.
6. Drop the receiver into the motor assembly, at side up.

13FH-W1811
9. MAKING THE ELECTRICAL CONNECTIONS (cont.)
Receiver
White (“AC IN N”)
Black (“AC IN L”)
Black (hot)
Outlet box
White (neutral)
Green (ground)
Green (ground)
from hanger ball
Green (ground)
from hanger ball
Green (ground)
from receiver
Receiver to house supply wires electrical connections:
(Fig. 11 & 12)
1. Lift motor assembly and hang it using the cable/hook as shown in Figure
11.
2. Secure the safety cable to the building structure using a wood screw (Fig.
11).
3. Connect the fan assembly ground wire, mounting bracket ground wire
and receiver ground wire to the ground wire in outlet box (Fig. 12).
WARNING: Failure to connect ground wires could result in poor fan
control functionality.
4. Connect the white wire from the fan to the white wire marked “for light”
from the receiver.
5. Connect the black wire from the fan to the blue wire marked “for light”
from the receiver.
FIGURE 11
FIGURE 12

14FH-W1811
10. FINISHING THE INSTALLATION
1. Secure all wire connections with supplied wire ties to assist in fan instal-
lation.
2. Tuck connections neatly into ceiling outlet box.
3. Remove the motor assembly from the hook on the mounting bracket.

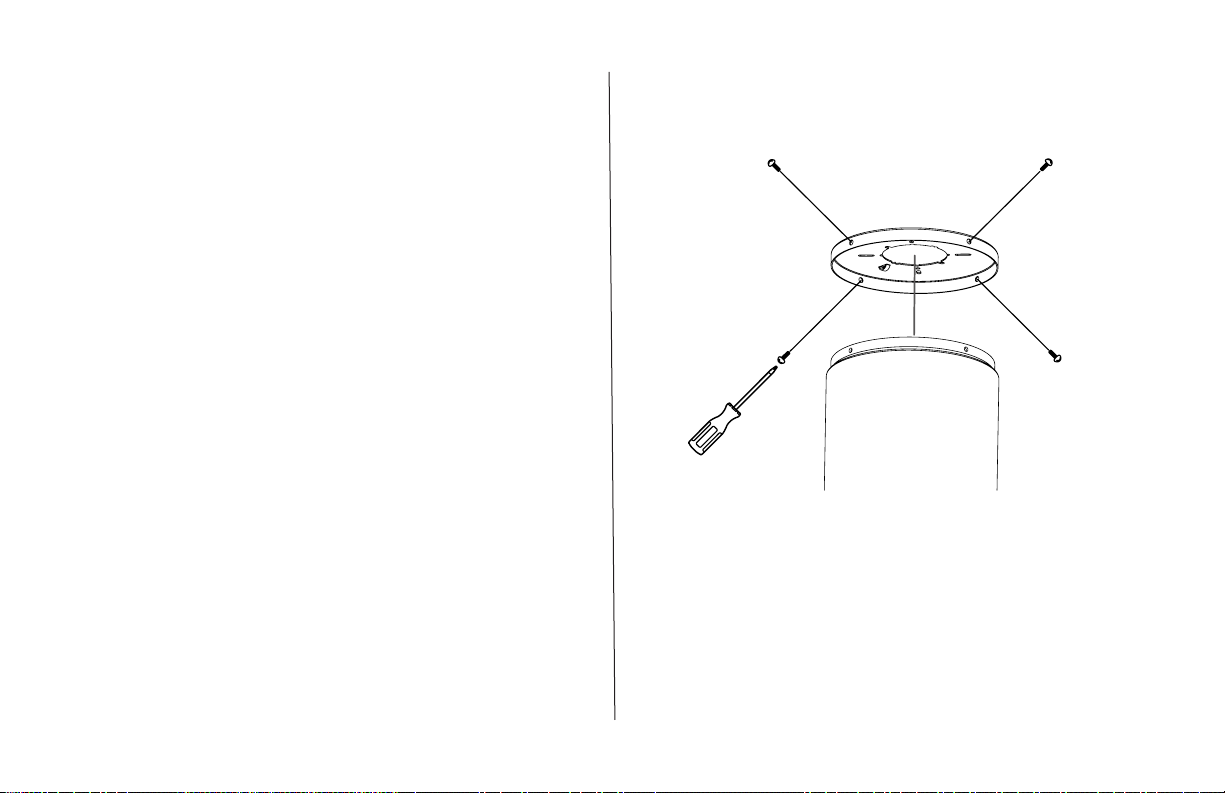

Position the motor up to the hanger plate and attach using two screws
through the two key slots in the top of the motor housing (Fig. 13).
Note: Make sure the receiver sits at and does not interfere with the hook.
4. Align the remaining two circular holes on motor housing with the two
holes on the hanger plate. Secure by tightening the two screws.
FIGURE 13

15FH-W1811
11. INSTALLING THE LED LUMINAIRE MOD-
ULE (Optional Accessory)
1. Remove the three screws from the LED wire storage cap, keep the cap for
future use when not using the luminaire (Fig. 14).
2. Install the LED mounting plate using 3 screws removed from step 1 (Fig.
15).
3. Raise and hold the LED luminaire module close to the adapter plate and
proceed to secure the wire connections. Connect the white wire connec-
tor from the luminaire module to the white wire of the fan. Follow the
same procedure with the black wire connectors (Fig. 16).
4. Seat the LED luminaire onto LED mounting plate using 3 screws provided
with LED luminaire (Fig 17).
5. Install glass shade by turning it clockwise until it locks securely (Fig. 18).
FIGURE 18
FIGURE 14 FIGURE 15
FIGURE 16 FIGURE 17
CAUTION: To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing light kit.

16FH-W1811
12. INSTALLING THE WALL CONTROL
1. Connect the white wire from the control to the white (neutral) wire from the wall outlet box.
2. Connect the red wire form the control to the black wire from the wall outlet box that feeds up to the fan.
3. Connect the black wire marked “LINE IN” from the control to the black LINE VOLTAGE wire from the outlet box that
feeds back to the main fuse box.
4. Connect ground wires - Important for proper control function.
FIGURE 19
White White
Red
Black
Ground
Black (to fan)
Copper
Ground
White
(neutral) Line Voltage (Black wire from main fuse box)
Wall Control
Switch Box
Wall control to wall outlet box electrical connections: (Fig. 19)

17FH-W1811
12. INSTALLING THE WALL CONTROL (cont.)
Wall Mounting
Plate
Wall Outlet Box
Wall Control
Wall Plate
Mounting Screws
Mounting Screws
WARNING: Remember to shut the power o at the circuit breaker or fuse box.
FIGURE 20
1. Carefully tuck the wire connections inside the junction box. Secure the
wall control with the two wall transmitter screws provided (Fig. 20).
2. Attach the wall mounting plate over the wall switch and secure with the
two wall mounting plate screws provided.
3. Fasten the wall plate to the wall mounting plate.
NOTE: A maximum of 2 fans can operate on a circuit through the wall transmit-
ter.
NOTE: A maximum of 12 fans can operate on a circuit through an on
o switch or breaker when utilizing the app for the fan control (with-
out the wall control in the circuit).

18FH-W1811
13. WALL CONTROL OPERATING INSTRUCTIONS
FIGURE 21
Your DC brushless motor is equipped with an intuitive wall control.
Restore power to ceiling fan and test the wall control as below for proper operation.
Button: turn the light ON or OFF
Press/Hold to increase the desired light level.
Press/Hold to decrease the desired light level.
Button: turn the fan ON or OFF
Press/Hold the button to increase the fan speed through
the speed settings.
Press/Hold the button to decrease the fan speed through
the speed settings.
Button: Switch between summer mode and winter mode.
Pairing the Wall Control to Your Fan
Your fan is pre-paired at the factory, No pairing is necessary.
Wall Control Button Denitions
These seven buttons are used to set the fan speed as follows:
ON-OFF Switch: Pull switch tab to power o in case of emergency. Not necessary for normal fan operation.
ON-OFF
switch

19FH-W1811
13. WALL CONTROL OPERATING INSTRUCTIONS (cont.)
FIGURE 22
FIGURE 23
NOTE: A maximum of 2 fans can operate on a circuit through the wall
control.
NOTE: A maximum of 12 fans can operate on a circuit through an on/o
switch or breaker when utilizing the app for the fan control (without the wall
control in the circuit).
Summer Mode - (counter-clockwise) A downward airow creates a cooling eect
as shown in Fig. 22. This allows you to set your air conditioner on a warmer setting
without aecting your comfort.
Winter Mode - (clockwise) An upward airow moves warm air o the ceiling area and
redistributes the warm air to the living space as shown in Fig. 23. This should allow for
savings on heating costs.
NOTE: To operate the reverse function on this fan, press the reverse button while the
fan is running.
NOTE: Fans do not change the temperature in the room, they change the comfort
level allowing you to save energy.

20FH-W1811
FIGURE 24 FIGURE 25
APP INSTRUCTIONS AND SMART HOME DEVICE INTEGRATION
modernforms.com/mfappins
14. APPLICATION
In addition to the included wall control, you can control the fan through the Modern
Forms app.
1. To use the app, download it for free from the App Store or Google Play.
2. Open the app to create your account. You can also log in with your Facebook or
Google account.
3. Next, set up a WiFi connection. You’ll need the SSID and WiFi password for the
network you want to connect to.
4. You’ll receive a prompt to name your fan device and upload a picture of it if you
choose.
5. The app will walk you through the main screen and show you how to create
schedules, change fan speeds, dim the light, switch between Summer/Winter
mode, invite users, create groups and much more.
Refer to app instructions for more details.
NOTE: A maximum of 2 fans can operate on a circuit through the
wall control.
NOTE: A maximum of 12 fans can operate on a circuit through an on/o
switch or breaker when utilizing the app for the fan control (without the wall
control in the circuit).
