Moffat SDHU Instruction and safety manual

Manual 018 Issue 001 July 2020
Sanitisers
Operating & Service Manual
Models:
SDHU, SDCU,SDRU,SDRUCT,SDBU,SDSU

Contents
Specification
General Installation
Battery Recharge safety
Wall Mounting
Operation
Cleaning
1
2
3
4
5
6
Page
3
3
4
5
6 / 7 / 8
9
The appliance must only be used for the purpose it was designed for
and may become unsafe if used for any other purpose. Operators
should be trained. The room where this trolley is used must be dry,
clean with temperatures between 16°C and 25°C and with a maximum
relative humidity of 60%. This unit is for indoor use only and has an IPX4
rating.
To ensure the best results from this unit please take the time to read
and follow all safety, installation and maintenance guidelines carefully
before proceeding to install. Keep this manual in a safe place for future
consultation.
These appliances are CE-marked in compliance with the relevant Low
Voltage & EMC Directives. Voltage stated on unit data plate.
Warning! Please pay attention to sections of the manual displaying
this symbol.
Warning! Do not attempt to use a hose or water jet to clean this unit.
For cleaning instructions, refer to section 15.
Warning! When used with Alcohol Gel extra care must taken.
Alcohol Gel is highly flammable and may cause eye
irritation. Keep away from heat, sparks, and open flames.

1: Specification
Model
SDHU
SDCU
SDRU
SDRUCT
SDBU
SDSU
Weight
(kg)
20
40
60
120
25
100
Dimensions
L X W X H (mm)
450 x 281 x 622
500 x 400 x1470
550 x 425 x 1472
1196 x 750 x1522
500 x 400 x 1470
850 x 400 x 1470
2: General Installation
Before installation please read the following points:
• When placing the unit in position ensure there is adequate access.
1. Remove all packaging & plastic coatings from the appliance.
2. Check for any damage.
3. Assemble all parts and carefully unpack the Battery pack
and place in position. (See page 6 to 8)
4. Drop the Gel pump tube into the sanitising Bottle (see page 6 to 8)
5. Connect the battery to the dispensing cable. (See page 6 to 8)
6. Place hand under the dispensing nozzle 8 times to allow the Gel to pump through
the unit, when the Gel starts to appear continue for an additional 3 times to ensure
the system is functioning correctly.
Do not site in direct sunlight.
Sun reflection may aect the dispensing sensor.
NOTE: The battery must be charged and discharged three times before the maxi,um
capacity is realised.
Only use the battery charger supplied in a dry environment with a temperature
of between 10 °C and 40 °C.
Before the first use, 15hours are required in order to reach a full charge.
Based on an average of 120 uses per day,
the battery will last 58 days before needing recharged .
Power supply
Battery 12v 7Ah Lead Acid
with Fused 2.1mm with DC
power lead 1.5m
12v Lead acid charger
750mA with 2.1mm DC outlet
3

Important safety instructions for the charger and battery block
Should you come into contact with acid from the battery, immediately wash the acid
o with water. If acid gets into your eyes, immediately rinse your eyes with water and
see a doctor at once!
The maximum charging time of the battery is approx. 15 hours
Basic safety precautions should be taken, including those listed below, in order
To reduce the risk of a fire, depleted batteries and personal injury.
1. Only use the charger and battery that were supplied by the
manufacturer, otherwise an accident may occur.
2. Before using the charger, always check to ensure that the cables are
connected correctly.
3. If you discover damage to the power cables, you must discontinue using the
charger. Have the power cable replaced.
4. If you are not using the charger, the power plug must be disconnected from the
outlet. Do not pull the power plug by the power cable.
5. If the charger falls, or is subjected to some other serious impact, have it
examined for damage before the next use by a qualified specialist.
6. Damaged components must be replaced.
7. Handle the battery block with care, never allow it to fall
8. Never charge the battery block when the ambient temperature is under 10 °C or
over 40 °C.
9. The battery block must not be allowed to short-Circuit. During a short-circuit,
Over-heating, risk of fire or an exploded battery block may result. This can lead to
damage to the battery block or an increased risk of an accident for the user.
Therefore:
• Do not connect any cables to the poles of the battery block.
• Ensure that no metallic objects come into contact with the battery terminals
• Do not expose the battery block to water or rain.
• Only use the supplied battery block.
• A battery block that is damaged or no longer chargeable must be
disposed of as special waste. Do not throw it away in ordinary household waste.
• Never throw the battery block into fire or water. It may explode!
3: Battery Recharge Safety
4

These instructions are produced as a guide only.
• Decide the position that the unit is to be fixed to the wall.
• Measure and mark out the location for the fixing holes on the wall.
Check the area for hidden pipes and wires with a detector.
• Mark out fixing positions on the wall
• Drill the holes for your screws. Remember to use the necessary safety equipment and to
also use the correct drill and bit for the surface type.
Make sure that the screws and wall plugs being used are suitable
for supporting the unit.
• Tap in a wall plugs, then oer up the unit in place.
• Check the unit is level with a spirit level.
• Fit the unit to the wall and screw in place.
Do not place any barriers within the hand sensor range
Models: SDCU, and SDRU can also be fixed to a rear wall.

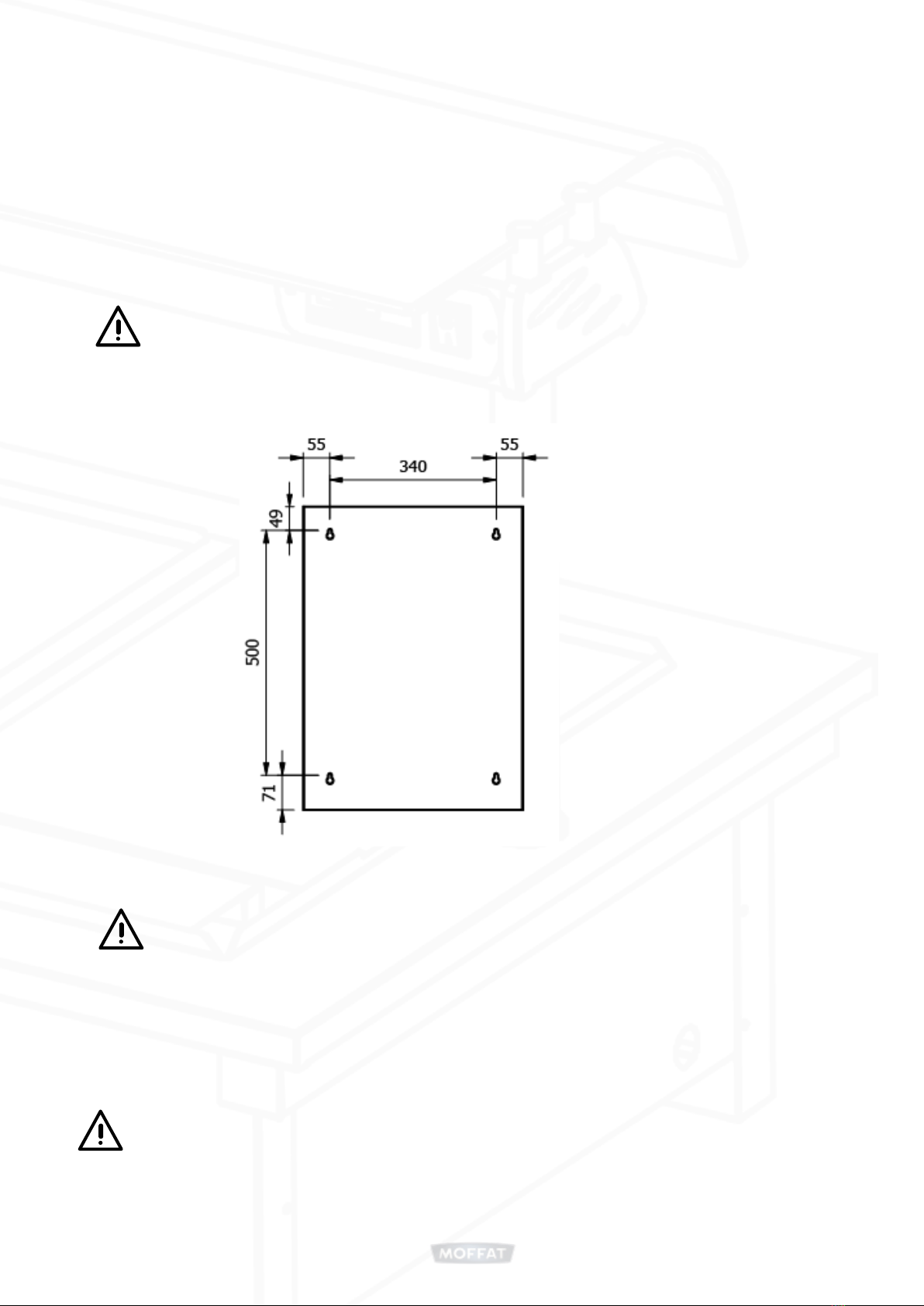

1: Wall Mounting ( Model SDHU.)
5

4: Operation
The dispenser runs one time per 72 hours if not used to avoid clogging.
Loading Gel
• Open the large door and place Gel containers into the compartment.
• Remove the bottle lid and pierce the bottle seal.
• Carefully push the vertical rubber tube into the bottle.
Ensure the tube is inserted all the way to the bottom of the gel bottle.
• Open the top door and check the battery is plugged in.
• Close the doors remove keys and store them in a safe location.
• Place hand under the dispensing nozzle 20 times to allow the Gel to pump through
the unit, when the Gel starts to appear continue for an additional 3 times to ensure the
system is functioning correctly.
Note: Dispensing volume is factory set
Models: SDHU, SDCU, SDRU. SDRUCT, SDSU.
6
Models: SDBU.
Battery.
Charger.

Battery connection point
Battery lifts out for charging
Vertical Gel Tube
Spare Gel Bottle
Dispensing Nozzel

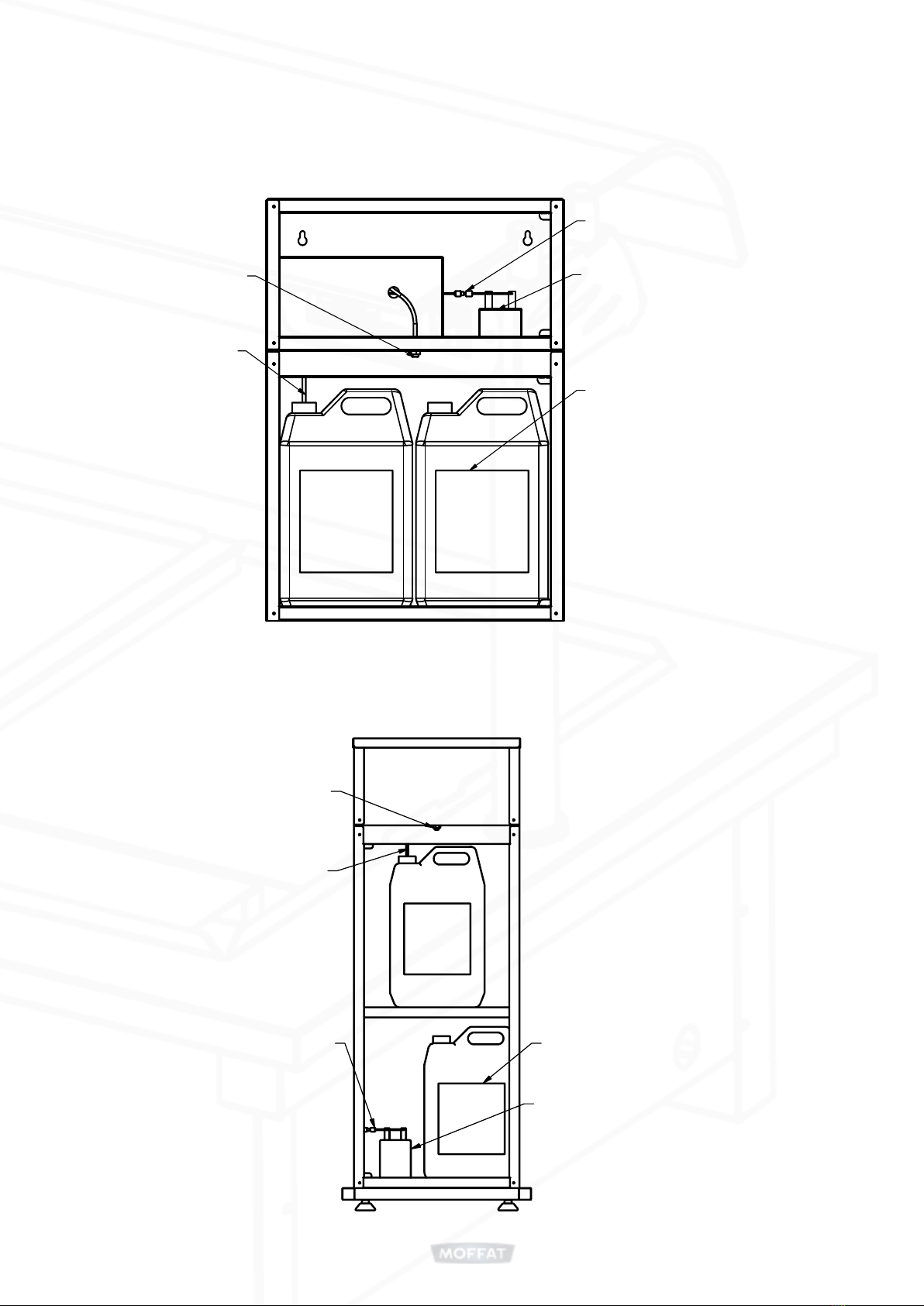

4:Battery and Gel Connection
Models: SDHU, SDCU, SDRU. SDRUCRT, SDSU.
7
Models: SDBU.
Dispensing Nozzel
Vertical Gel Tube
Battery connection point Spare Gel Bottle
Battery lifts out for charging

Before attempting to clean the unit, please ensure that the Unit is isolated from
the electric supply and allowed to cool down, with all food plates and other
Dishes removed from the unit.
Do not use a water jet or pressure spray to clean this appliance.
1. Disconnect trolley from mains and wait until appliance has cooled.
2. Wipe clean using hot, soapy water and soft, non-abrasive cloth. Ensure that the
stainless steel is wiped in straight strokes following the grain of the material.
3. Wipe dry using a clean cloth. Do not use scouring pads or abrasive cleaners of any
type. Shelving and select inner panels can be removed to allow a deeper internal
clean. Ensure all panels and fixings are replaced after cleaning operation.
4. Refrigeration compartment should be washed and then dried with a cloth after
each service.
5. The chilled well has removable base sections for easy cleaning and maintenance.
They should be removed periodically and the area beneath wiped clean.
6. The drain holes must also be kept clear from blockage.
7. Wipe down sneeze screen and glass top with a damp, clean cloth.
8. Finish by carefully drying with a soft dry cloth or Kitchen Towels.
17: Cleaning
Do not use scouring pads or abrasive cleaners of any type.
Do not use Solvents, bleach, Caustic Cleaners
or biological powders on any surface.
Special care should be taken around electrical parts,
avoided excessive use of water.
Take special care when cleaning glass use a soft duster & glass cleaner spray.
8

9
Battery 12v 7Ah Lead Acid with Fused 2.1mm DC power
12v Lead acid charger 750mA with 2.1mm DC outlet

E&R Moat Ltd.
Bonnybridge
FK4 2BS
Scotland
Scan the QR code below to visit the
E&R Moat website for further information:
www.ermoat.co.uk
[phone]
sales@ermoat.co.uk
Thank you for choosing E&R Moat!
