INTRODUCTION
1
Dear Customer,
The trademark F.B Mondial is exclusively licensed to the Italian PELPI INTERNATIONAL SRL.
For legal reasons, please refer to PELPI INTERNATIONAL SRL as the vehicle manufacturer.
WELCOME TO THE WORLD OF F.B MONDIAL MOTORCYCLES
F.B Mondial congratulates you on choosing the SMX125E CBS / SMX125M CBS / ABS models among
its range of products.
We have drawn up this booklet to provide a comprehensive overview of your vehicle’s quality features.
Please read it carefully before riding the vehicle for the first time. It contains information, tips
and precautions for using your vehicle It also describes features, details and devices to assure you that
you have made the right choice. We believe that if you follow our suggestions, you will soon get to know
your new vehicle well and will use it for a long time at full satisfaction. This booklet is an integral part of
the vehicle, and it must be transferred to the new owner if the vehicle should be sold.

INTRODUCTION
2
SMX125E CBS
SMX125M CBS
SMX125M ABS
The instructions given in this manual are intended to provide a clear, easy guide to using your vehicle.
It also describes routine maintenance procedures and regular checks that should be carried out on the vehicle at a
F.B Mondial dealer or Authorized Workshop.
The booklet also contains instructions for simple repairs.
Any operations not specifically described in this booklet require the use of special tools and/or technical knowledge: for
these operations, please take your vehicle to a F.B Mondial or Authorized Workshop.

IMPORTANT MANUAL INFORMATION
3
Personal safety
This is the safety alert symbols. It used to alert you to potential injury hazards. Failure
to completely observe these instructions will result in serious risk of personal injury.
A WARNING indicates a potentially hazardous situation which, if not avoided, could result
in death, serious personal injury or property damage.
Safeguarding the environment
Sections marked with this symbol indicate the correct use of the vehicle to prevent
damaging the environment.
Vehicle intactness
The incomplete or non-observance of these regulations involves to the risk of
considerable damage to the vehicle and sometimes even the invalidity of the guarantee.
CAUTION
A CAUTION indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
NOTE
A NOTE provides key information to make procedures easier and clearer
The symbols illustrated above are very important. They are used to highlight parts of the booklet that they should be read with care.
The different symbols are used to make each topic in the manual simple and quick to locate. Before operating this motorcycle
read this booklet carefully and the “SAFE RIDING” section. Your safety as well as other’s does not only depend on the
quickness of your reflexes and agility, but also on how well you know your vehicle, the state of maintenance of the vehicle itself and
your knowledge of the rules for SAFE RIDING. For your safety, get to know your vehicle well to safely ride and master it in any
riding condition. IMPORTANT: This booklet is a help to safely ride and to master it in any riding condition.
IMPORTANT: This booklet is an integral part of the vehicle and must be handed to the new owner in the event of sale.
* Product and specifications are subject to change without any notice.
E

TABLE OF CONTENTS
4
GENERAL RULES
MAINTENANCE
Motorcycle care
6
Engine oil level check
55
Cleaning of sensitive parts
7
Refilling engine oil
56
Carbon monoxide
8
Spoke wheels
57
Fuel
8
Tires
58
Hot components
9
Spark plug
59
Coolant
9
Removing the air filter
61
Engine oil and gearbox oil used.
10
Air filter cleaning / Air filter replacement
64
Brake fluid
10
Coolant level
65
Battery hydrogen gas and electrolyte
11
Coolant level check
65
Side stand
11
Coolant fill in
66
Reporting of defects that affect safety
11
Checking the brake fluid level
67
INSTRUMENT AND CONTROL FUNCTIONS
Battery
68
Arrangement of the main components
13
Extended periods of inactivity
70
Analog instrument panel (symbols functions)
19
Replacing the fuses
70
Multi-function display
21
Checking the fuses CBS Models
71
Multi-function meter operations
22
Checking the fuses ABS Model
72
Dashboard function set up
24
Lamps
73
ABS
25
Headlight adjustment
75
Ignition switch / Steering lock
26
Rear turn signal lights
76
Horn button
27
Tail/brake light
76
Turn signal switch
27
Front turn signal lights
77
Dimmer switch
27
Rear view mirrors
77
Engine stop switch / Startswitch
28
Front and rear brake
78
Accessing the fuel tank
29
Periods of inactivity
80
Fairings
31
Cleaning the vehicle
81
Seat
32
Transport
83
Glove, tool kit compartment
33
Drive chain
83
Vehicle identification
34
Drive chain slack check
84
USE
Drive chain slack adjustment
85
Checks
36
Checking wear of chain, front and rear sprockets
86
Refueling
38
Chain lubrication and cleaning
87
Front fork adjustment
38
TECHNICAL DATA
Clutch lever adjustment
39
Technical Data
89
Running in
40
PERIODIC MAINTENANCE AND ADJUSTMENT
Starting up the engine
41
Schedule maintenance table
92
Moving off / Riding
44
Table of recommended products
97
Engine stop
49
Parking
50
Catalytic converter
51
Side stand
52
HANDOVER INSPECTION
499
Suggestion to prevent theft
52
CONFIRMATION INSPECTION
500

5
E
SMX125E CBS
SMX125M CBS
SMX125M ABS
SMX125M ABS
Chapter 01
GENERAL RULES
G
ENERAL RULES

GENERAL RULES
6
Foreword
NOTE
Carry out maintenance operations at half the intervals specified if the vehicle is used rainy or dust conditions, off road
or for track use.
Motorcycle care
F.B Mondial recommends using quality products to clean the vehicle. The use of unsuitable products can damage vehicle
components. For cleaning do not use solvents such as” nitro thinner ” or ” cold cleaning agents ”, fuels or similar, or cleaning
products that contain alcohol.
Before cleaning
•Close off the exhaust system to avoid water from entering
•Make sure that all caps and covers as well as electrical couplers and connectors, including the spark plug(s) are properly
tightly installed.
•First, remove coarse dirt particles with a gentle spray of water. Spray very dirty areas with a normal motorcycle cleaner and
then clean with a brush.
Washing the motorcycle
F.B Mondial recommends softening with plenty of water and then, carefully remove the insects and more stubborn stains before
washing the vehicle. To prevent stains, do not wash the motorcycle immediately after exposure to sunlight.
Do not wash it in the sun.
If the vehicle is used during the wintertime, be sure to frequently wash the motorcycle. To remove anti-icing salt sprayed on roads
in the winter, wash the motorcycle with chilly water immediately after use.
CAUTION
After cleaning your motorcycle, the efficiency of the braking system may be temporarily affected due to the presence
of water on the friction surfaces. You must consider an increase in braking space, operate the brakes repeatedly to
restore normal conditions. Carry out the pre-ride checks before use.
Use of hot water intensifies the effect of the salt. Use only plenty of chilly water to wash and remove anti-icing salt.
Use of high-pressure washing systems (or steam cleaners) can damage the seals, oil seals, braking system,
electrical system and seat. Do not use steam or high-pressure cleaning systems.

GENERAL RULES
7
Cleaning of sensitive parts
Bodywork
To keep the motorcycle bright, wash it regularly, especially if used in areas with elevated levels of pollution or mud. Aggressive
stains from tree resins, gasoline, oil, brake fluid or bird excrement in general must be removed immediately, otherwise
permanent stains on the paint can appear. After washing it is easy to identify marks and residual stains, remove them from the
body using a soft cloth, non-abrasive polish, and protect with a protective wax for cars. Periodic care, a thorough cleaning and
regular protective wax for the bodywork preserves the aesthetic quality of the motorcycle over the long term.
Plastic components
If the plastic components are cleaned using aggressive agents, the surface may be damaged.
Do not use cleaning products containing alcohol, solvents or that are abrasive for the cleaning of plastic parts.
Rotatory brushes or sponges with hard surfaces can cause scratches.
Chrome parts and polished metal
Treat the chromed parts like aluminium or polished steel in a special manner.
Wash them with plenty of water car shampoo, polish and regularly brighten them with polishing.
Products, protect them with waxes or suitable acid-free products ( e.g., Vaseline).
Radiator
If using the motorcycle in the winter on roads with de-icing salt, regularly wash the radiator to prevent
aesthetic damage and the engine from overheating.
Wash using plenty of water, for example, use a garden hose with water at low pressure.
Rubber parts
Clean the rubber parts by using water and mild shampoo (product for car wash).
The silicone spray usage to clean the rubber seals may cause damage.
Do not use other products containing silicon for cleaning the motorcycle.
E

GENERAL RULES
8
Carbon monoxide
All engine exhaust contains carbon monoxide, a deadly gas. If you need to keep the engine running to perform a procedure, please
ensure that you do so in an undeveloped area or very well-ventilated. Never let the engine run in an enclosed area. If you do work
in a closed area, make sure to use a smoke extraction system.
•Exhaust emissions contain carbon monoxide, a poisonous gas which can cause loss of consciousness and even
death.
•Carbon monoxide is odourless and colourless, therefore it cannot be detected by smell, sight or other sense.
Do not breathe in exhaust fumes under any circumstances.
Fuel
•The fuel used to power internal combustion engines is highly flammable and maybe explosive under certain
conditions. It is therefore recommended to carry out refuelling and maintenance procedures in a ventilated area
with the engine switched off. Do not smoke during refuelling and near fuel vapours, avoiding any contact with
naked flames, sparks, or other sources which may cause them to ignite or explode.
Do not disperse fuel in the environment.
Keep out of the reach of children.
If the vehicle falls or is on a steep incline, fuel can leak.
NOTE
•This mark identifies the recommended fuel for this vehicle as specified by European regulation (EN 228)
•Check that gasoline nozzle has the same identifier when refuelling.
E5

GENERAL RULES
9
•Avoid spilling fuel off the filler cap as it may catch fire in contact with the engine hot surfaces. In case of
accidental fuel spills, check that the area is completely dry before starting the vehicle.
Fuel expands when exposed to heat or sun rays, therefore be careful and do not overfill the fuel tank.
Stop filling when the fuel reaches the bottom of filler tube.
•Make sure that the fuel tank cap is properly installed before riding. Leaking fuel is a fire hazard.
•Be careful that fuel does not get into contact with the skin. Do not inhale vapours or to swallow fuel.
•Do not transfer fuel from one container to another using a hose.
Hot components
The engine or exhaust system components become very hot and remain in this condition for a certain time interval
after the engine has been switched off. Before handling these components, make sure that you are wearing insulating
gloves or wait until the engine and exhaust system have cooled down.
Coolant
The coolant contains ethylene glycol which, under certain conditions, can be become flammable. When ethylene glycol
burns, it produces an invisible flame which can nevertheless cause burns.
•Take care not to pour coolant onto hot engine or exhaust system components.
The fluid may catch fire and burn with invisible flames. When carrying out maintenance operations, it is advisable
to wear latex gloves. Even though it is toxic, coolant has a sweet flavour which makes it very attractive to animals.
Never leave the coolant in open containers in area, accessible to animals as they may drink it.
Keep out of the reach of children.
•Do not remove the radiator cap when the engine is still hot. The coolant is under pressure and may cause burns.
E

GENERAL RULES
10
Engine oil and gearbox oil used.
CAUTION
It is advisable to wear protective impermeable gloves when servicing the vehicle.
The engine or gearbox oil may cause serious injuries to the skin if handled for prolonged periods of time and on a
regular basis.
Wash your hands carefully after handling oil.
Hand the oil over to or have it collected by the nearest used oil recycling company or the supplier.
Do not dispose oil in the environment.
Keep out of the reach of children.
Brake fluid
CAUTION
Brake fluids can damage the plastic or rubber painted surfaces.
When servicing braking system, protect these components with a clean cloth.
Always wear protective goggles when servicing these systems.
Brake fluids are extremely harmful for your eyes.
In the event of accidental contact with the eyes, rinse them immediately with abundant cold, clean water and seek
medical advice.

GENERAL RULES
11
Battery hydrogen gas and electrolyte
The battery electrolyte is toxic, corrosive and it contains sulfuric acid, it can cause burns when is in contact with the
skin while handling battery electrolyte, wear tight fitting gloves and protective apparel.
In the event of skin contact with the electrolyte fluid, rinse well with plenty of clean water.
It is particularly important to protect your eyes, because even tiny amounts of battery acid may cause blindness.
If the fluid gets in contact with your eyes, wash with abundant water for fifteen minutes and consult an eye specialist
immediately. The battery releases explosive gases; keep it away from flames, sparks, cigarettes or any other heat
sources. Ensure adequately ventilation when servicing or recharging the battery.
Battery liquid is corrosive. Do Not pour it or overthrow it, particularly on plastic components. Ensure that the
electrolytic acid is compatible with the battery to be activated.
Side stand
Reporting of defects that affect safety
Unless otherwise specified in this Owner’s Manual, do not remove any mechanical or electrical component.
Before setting off, make sure the side stand has been completely retracted to its position.
Do not rest the rider’s or passenger’s weight on the stand.
CAUTION
Some connectors in the vehicle may be accidentally swapped and may compromise normal vehicle operation if
incorrectly installed. Some operations are complicated and risky. For any procedure that is complicated or for any
operations not described in this booklet, contact a F.B Mondial Official Dealer. If you are adequately trained and
experienced, refer to the instructions in the workshop booklet available also at any F.B Mondial Official Dealer.
E

12
SMX125E CBS
SMX125M CBS
SMX125M ABS
SMX125M ABS
Chapter 02
INSTRUMENT
AND
CONTROL FUNCTIONS

INSTRUMENT AND CONTROL FUNCTIONS
13

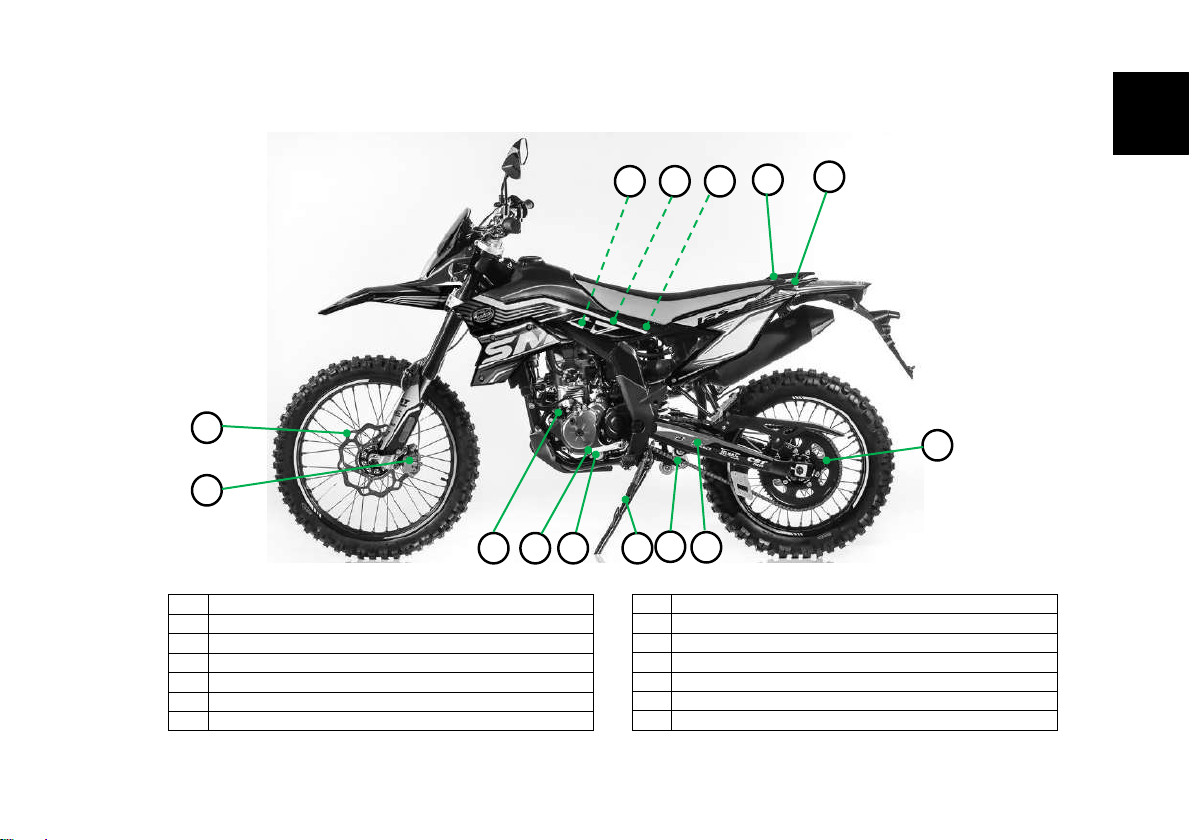

SMX125E Left view Arrangement of the main components
1
Front caliper assy.,
2
Front brake disc
3
Battery
4
Fuses
5
Glove box / tool kit compartment
6
Seat lock
7
Grab bar (Lh.)
8
Driven sprocket
9
Rear arm
10
Drive chain
11
Side stand
12
Oil drain plug
13
Shift Pedal
14
Oil level dipstick
E
2
1
3
4
5
6
7
8
9
10
11
12
13
14
3

INSTRUMENT AND CONTROL FUNCTIONS
14
SMX125M ( CBS / ABS)

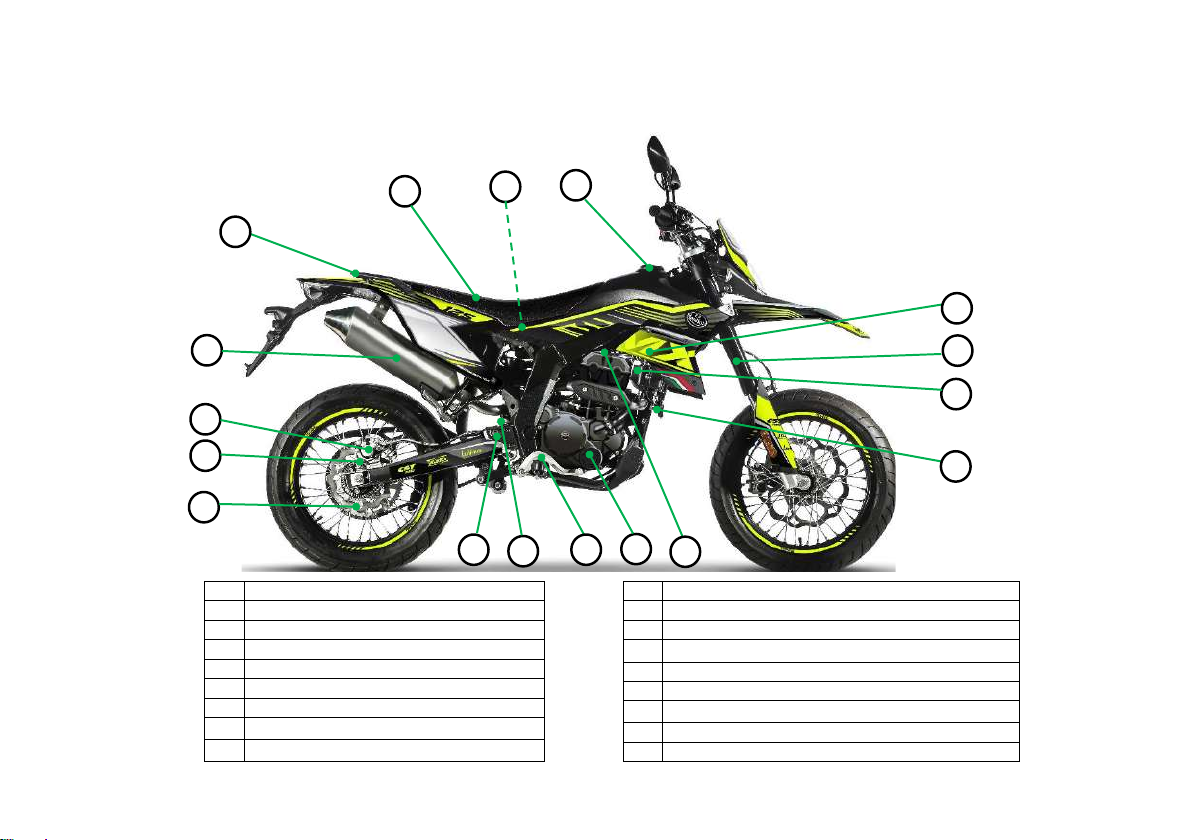

Left view Arrangement of the main components
1
Front wheel sensor (only ABS Model)
2
Fr.brake disc
3
Battery
4
Fuses
5
Glove box / tool kit compartment
6
Seat lock
7
Grab bar (Lh.)
8
Driven sprocket
9
Drive chain
10
Rear arm
11
Side stand
12
Oil drain plug
13
Shift Pedal
14
Oil level dipstick
15
Front caliper assy.,
1
2
3
4
5
7
6
8
9
10
11
12
13
14
3
15

INSTRUMENT AND CONTROL FUNCTIONS
15
SMX125E Right view Arrangement of the main components
1
Rear brake disc
2
Rear caliper assy.,
3
Silencer assy.,
4
Grab bar (Rh.)
5
Seat
6
ECU(Engine Control unit)
7
Fuel tank cap
8
Coolant reservoir cap
9
Fr.fork assy.,
10
Horn
11
Spark plug
12
Oil filter
13
Brake pedal
14
Mono-shock absorber
15
Rear master cylinder
16
Rear wheel sensor
E
1
2
3
4
5
6
7
8
9
10
11
13
14
3
15
12
16

INSTRUMENT AND CONTROL FUNCTIONS
16
SMX125M (CBS/ABS)
Right view Arrangement of the main components
1
Rear brake disc
2
Rr.Wheel sensor
3
Rear Caliper assy.,
4
Silencer assy.,
5
Grab bar (right)
6
Seat
7
ECU(Engine Control unit)
8
Fuel tank cap
9
Coolant reservoir cap
10
Fr.fork assy.,
11
ABS control unit (only ABS Model)
12
Horn
13
Spark plug
14
Oil filter
15
Brake pedal
16
Mono shock absorber
17
Rear master cylinder
11
3
1
2
4
5
6
7
8
9
12
13
14
15
16
17
10

INSTRUMENT AND CONTROL FUNCTIONS
17
SMX125E
Rear view / Front view Arrangement of the main components
E
1
2
6
7
8
9
5
12
0
13
1
14
2
15
3
16
4
4
3
18
4
17
4
Front View
10
11
19
4
20
23
2
22
21
24

INSTRUMENT AND CONTROL FUNCTIONS
18
SMX125M (CBS/ABS)
Rear view / Front view Arrangement of the main components
8
7
1
2
3
4
5
6
9
10
11
12
13
14
15
16
17
18
7
24
23
19
7
20
7
21
7
22
7
Front View
