740009 BLDV cover
MODELS: BLDV400 & BLDV500
BLDV SERIES
DIRECT VENT GAS
FIREPLACE
INSTALLATION AND
OPERATING INSTRUCTIONS
READ BEFORE INSTALLING. SAVE THESE INSTRUCTIONS
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT OF
TRAFFIC AND AWAY FROM FURNITURE AND
DRAPERIES.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTHING
IGNITION.
YOUNG CHILDREN SHOULD BE SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE
APPLIANCE.
C L O T H I N G O R O T H E R F L A M M A B L E
MATERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLIANCE.
KEEP THE ROOM AREA CLEAR AND
FREE FROM COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE
VAPORS AND LIQUIDS.
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
 • Ifyoucannotreachyourgassupplier,callthere
department.
– Installationandservicemustbeperformedbyaqualied
installer, service agency or the gas supplier.
WARNING: Improper installation, adjustment, alteration,
services or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional
informationconsultaqualiedinstaller,serviceagency
or the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for
usewithothergases,unlessacertiedkitisused.
* Aftermarket: Completion of sale, not for purpose of resale, from the
manufacturer.
WARNING
74D0009 11/08 Rev. 11

2 74D0009
CONTENTS
Important Safety Information .......................... 3

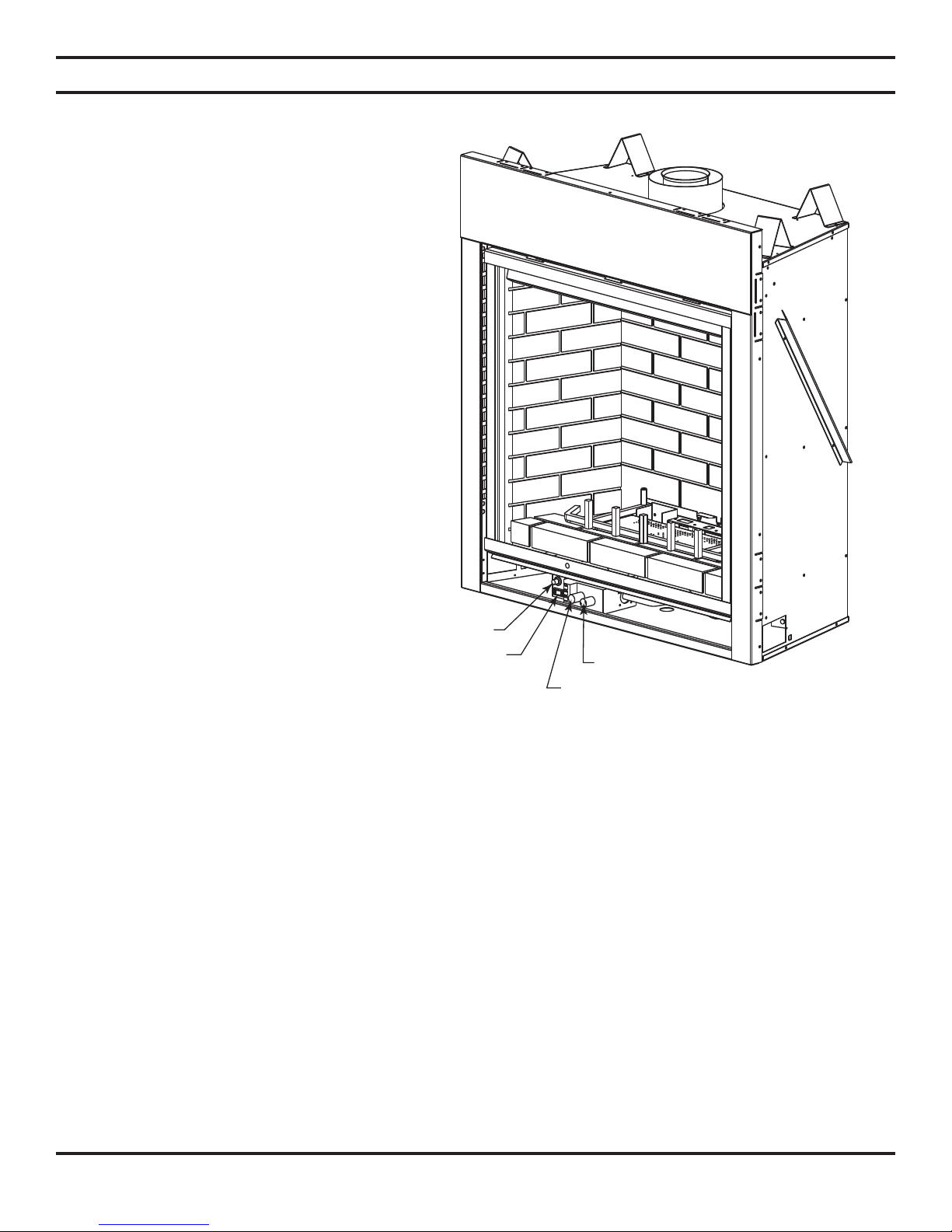

Product Features.............................................. 5
Code Approval .................................................. 5
Pre-Installation Information
Installing Above 2000 Feet............................ 6
Orice Sizes, Pressures and BTUs............... 6
Before You Start ............................................ 6
Fireplace Framing ......................................... 7

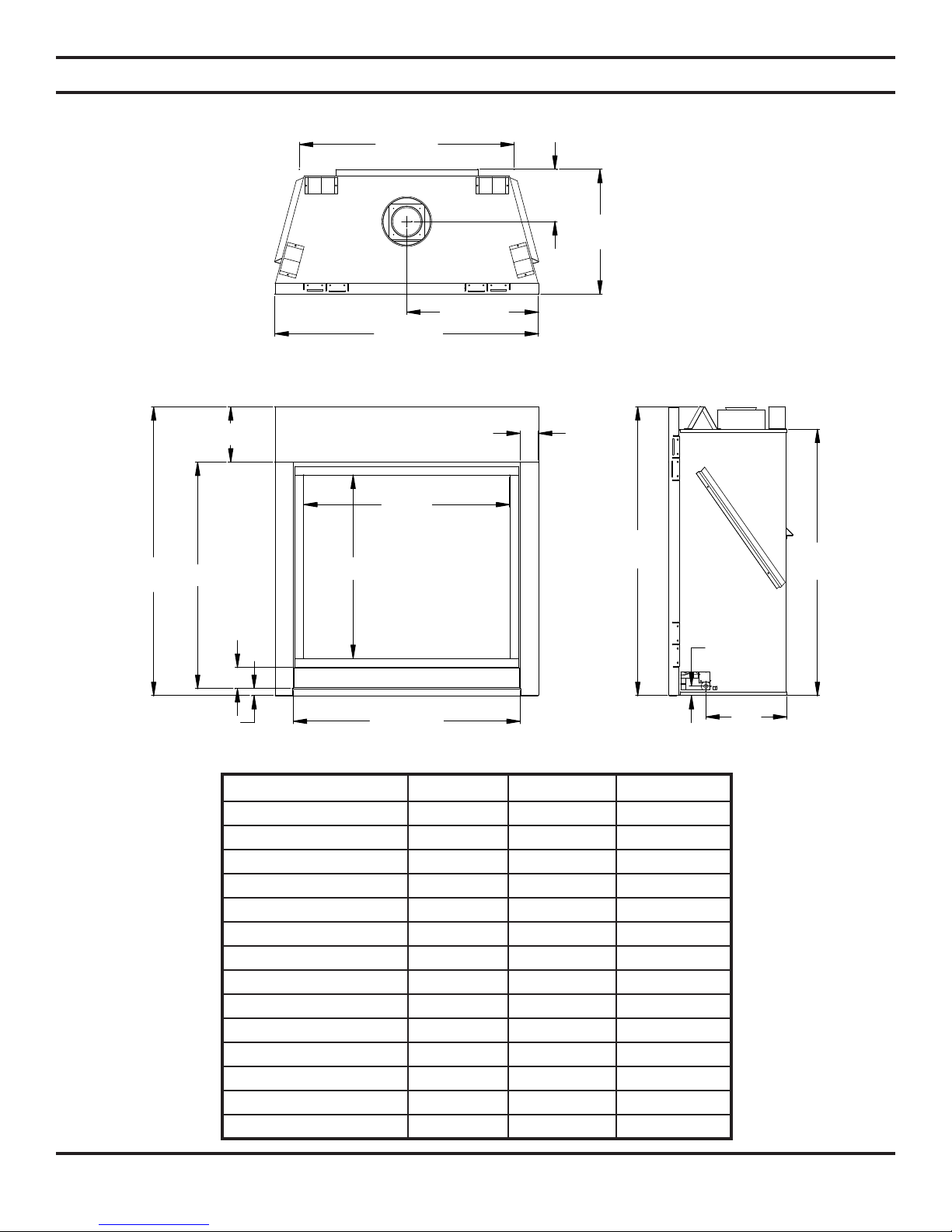

Fireplace Dimensions.................................... 8
Fireplace Location......................................... 9
Clearances ...................................................... 10

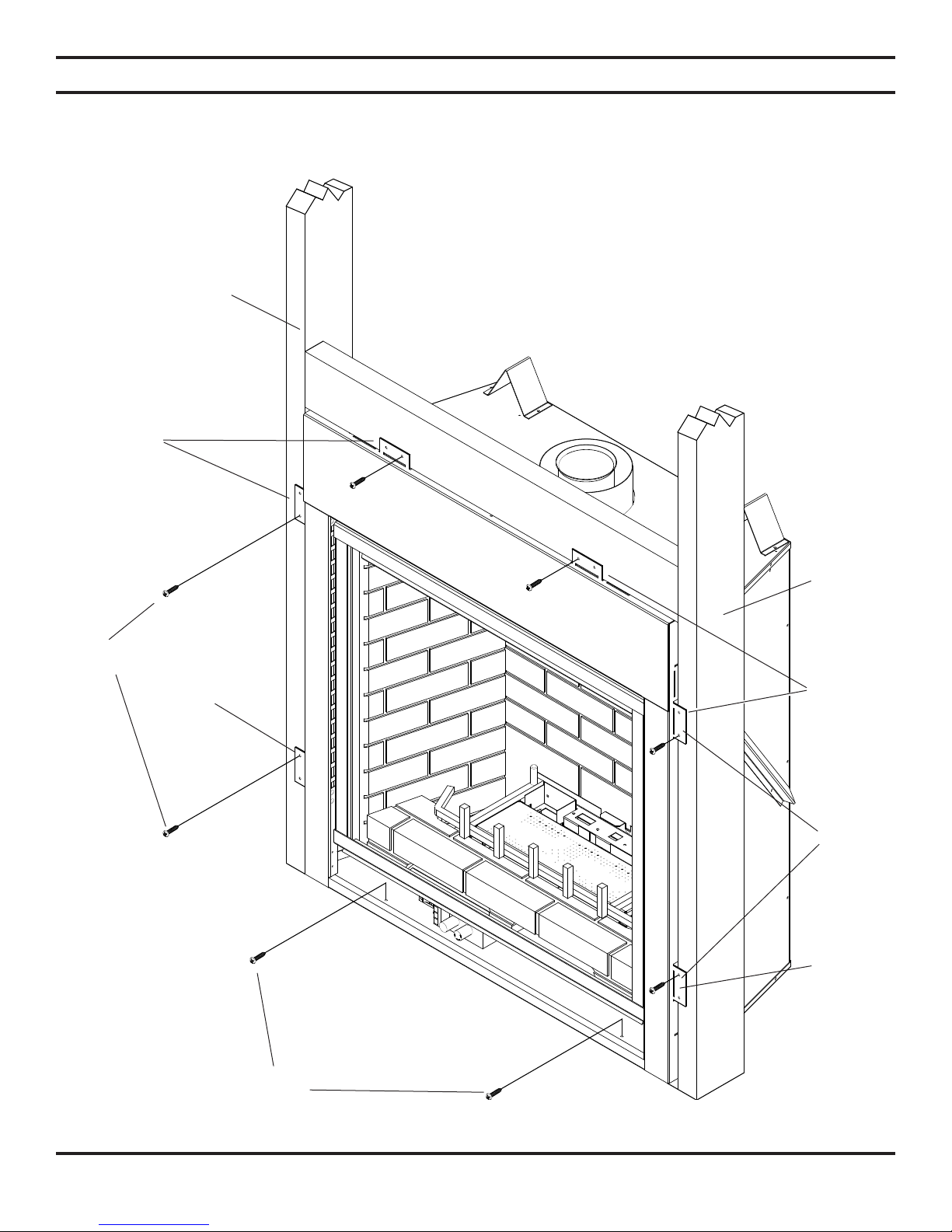

Securing Fireplace to Floor or Framing ........11
Installation Information.................................. 12

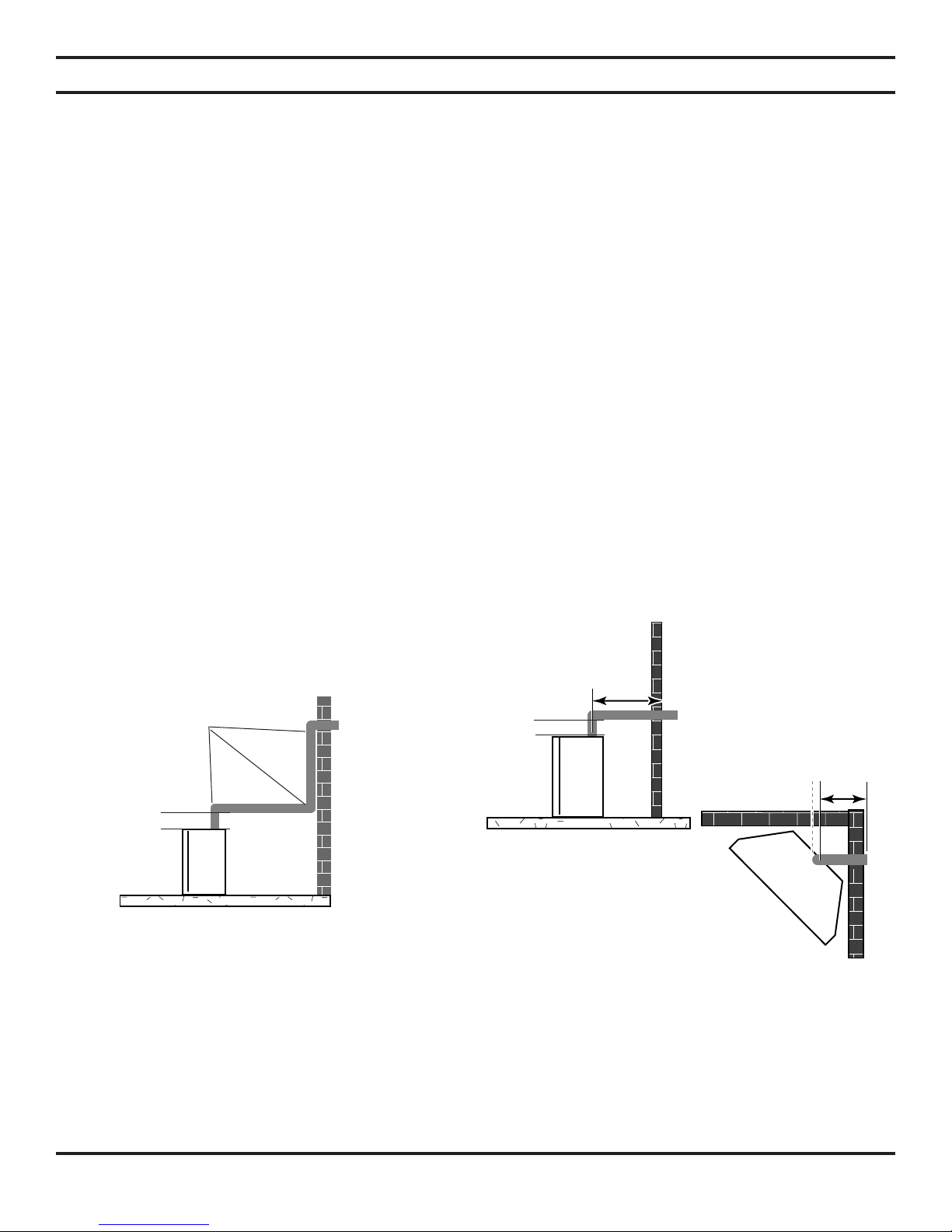

Vent Installation .............................................. 13
Installation Planning.................................... 14

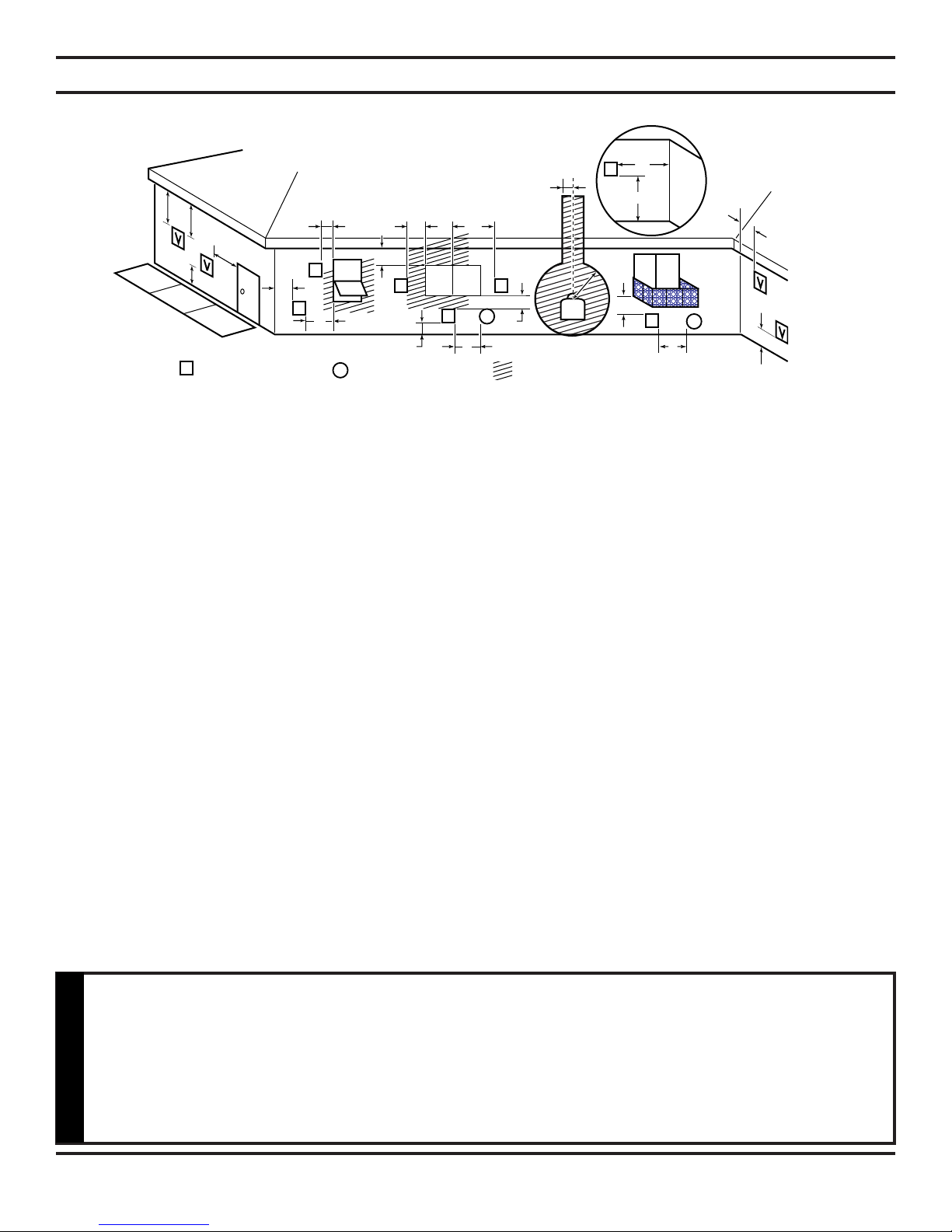

Rear (Through-the-Wall) Applications ......... 17
Vertical/Horizontal Termination
Conguration............................................... 19
Below Grade Installation ............................. 21
Vertical Through-the-Roof Applications....... 22
Installation for Vertical Termination ............. 23
Flex Vent Installation ................................... 25
Fireplace Installation...................................... 27
Check Gas Type.......................................... 27
Installing Gas Piping to Fireplace/Burner
System Location.......................................... 27
Checking Gas Pressure (Millivolt) ............... 29
Electrical Installation...................................... 29
Electrical Wiring .......................................... 29
Remote Wall Switch Installation ................... 30
Optional Fan/Blower Systems (Milli-Volt)..... 30
Operating Instructions (Milli-Volt)................. 33
Lighting Pilot for the First Time.................... 33
Lighting Pilot................................................ 34
Lighting Burner............................................ 35
Checking Gas Pressure -
(Signature Command System) ................ 36
Electrical Wiring
(Signature Command System) ................ 36
Command Center Wall Installation ............... 37
Optional Fan/Blower System
(Signature Command System)................. 38
Operating Instructions
(Signature Command System)................. 41
Operating Instructions................................. 42
To Turn Off Gas To Appliance ..................... 42
Signature Command System Operation....... 43
Glass Removal................................................ 46
Final Installation ............................................. 47
Hearth Brick Placement .............................. 47
Rockwool Placement................................... 47
Log Placement ............................................ 47
Cleaning and Maintenance ............................ 49
Burner, Pilot and Control Compartment ...... 49
Pilot Flame .................................................. 49
Burner Flame .............................................. 49
Vent System ................................................ 50
Glass Door .................................................. 50
Logs ............................................................ 50
Rock Wool .................................................. 50
Troubleshooting
Standing Pilot Ignition ................................. 51
Signature Command System ...................... 53
Illustrated Parts Lists..................................... 54
Firebox Components................................... 54
Standing Pilot Millivolt Control .................... 56
Signature Command System ...................... 58
Vent Components........................................ 60
Logs ............................................................ 62
Mass Residents Only ..................................... 63
Warranty .......................................................... 67

74D0009 3
• do not touch any electrical switch; do not use
any phone in your building .
• immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
4. Never install the replace
• in a recreational vehicle
• where curtains, furniture, clothing, or other am-
mable objects are less than 42" from the front,
top, or sides of the replace
• in high trafc areas
• in windy or drafty areas
5. This replace reaches high temperatures. Keep
children and adults away from hot surfaces to avoid
burns or clothing ignition. Fireplace will remain hot
for a time after shutdown. Allow surfaces to cool
before touching.
6. Carefully supervise young children when they are
in the room with replace.
7. Do not modify replace under any circumstances.
Any parts removed for servicing must be replaced
prior to operating replace.
8. Turn replace off and let cool before servicing, install-
ing, or repairing. Only a qualied service person
should install, service, or repair the replace. Have
burner system inspected annually by a qualied
service person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent clean-
ing may be needed due to excessive lint and dust.
Turn off the gas valve and pilot light before cleaning
replace.
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference .
IMPORTANT SAFETY INFORMATION
This replace is a vented product. This replace must
be properly installed by a qualied service person. The
glass door must be properly seated and sealed. If this
unit is not properly installed by a qualied service person
with glass door properly seated and sealed, combustion
leakage can occur.
CARBON MONOXIDE POISONING: Early signs of
carbon monoxide poisoning are similar to the u with
headaches, dizziness and/or nausea. If you have these
signs, the replace may not have been installed properly.
Get fresh air at once! Have the replace inspected and
serviced by a qualied service person. Some people
are more affected by carbon monoxide than others.
These include pregnant women, people with heart or
lung disease or anemia, those under the inuence of
alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor
added to these gases can fade. Gas may be present
even though no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to safe
and proper operation of this replace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certi-
ed kit is used.
2. For propane/LP replace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/
LP supply tank(s) outdoors. To prevent performance
problems, do not use propane/LP fuel tank of less
than 100 lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance. Continued on page 4
• Read this owner’s manual carefully and completely before trying to assemble, operate,
orservicethisreplace.
• Anychangetothisreplaceoritscontrolscanbedangerous.
• Improperinstallationoruseofthisreplacecancauseseriousinjuryordeathfrom
re,burns,explosions,electricalshockandcarbonmonoxidepoisoning.
WARNING

4 74D0009
IMPORTANT SAFETY INFORMATION
Continued from page 3
10. Have venting system inspected annually by a quali-
ed service person. If needed, have venting system
cleaned or repaired. See Cleaning and Maintenance,
page 35.
11. Keep the area around your replace clear of combus-
tible materials, gasoline, and other ammable vapor
and liquids. Do not run replace where these are
used or stored. Do not place items such as clothing
or decorations on or around replace.
12. Do not use this replace to cook food or burn paper
or other objects.
13. Never place anything on top of replace.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this replace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
16. Do not obstruct the ow of combustion and ventila-
tion air in any way. Provide adequate clearances
around air openings into the combustion chamber
along with adequate accessibility clearance for ser-
vicing and proper operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood
ooring, you must set appliance on a metal or wood
panel or hearth pad extending the full width and
depth of the appliance.
18. Do not use replace if any part has been exposed to
or has been under water. Immediately call a quali-
ed service technician to inspect the appliance and
replace any part of the control system and any gas
control which as been submerged in water.
19. Do not operate replace if any log is broken.
20. Do not use a blower insert, heat exchanger insert,
or any other accessory not approved for use with
this replace.
21. Do not operate the replace with glass door removed,
cracked, or broken.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for replaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is not unusual for gas replaces to give off some
odor the rst time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your replace for
at least ten (10) hours the rst time you use it. Place
the fan switch in the “OFF” position during this time.
Never connect unit to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
WARNING

74D0009 5
FP2073
BLDV controls
PRODUCT FEATURES and CODE APPROVAL
Off/Pilot/On Knob
Figure 1 -
BLDV Series Fireplace
(Millivolt Control shown)
• This appliance has been certied for use with
either natural or propane gas. See appropriate
data plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bed-
sitting room installations.
• The appliance must be installed in accordance
with local codes if any. If none exist use the
current installation code. ANSI Z223.1/NFPA
54 in the USA, CSA B149 in Canada.
• This appliance is mobile home appr-oved.
• The appliance must be properly connected to
a venting system.
• The appliance is not approved for closet or
recessed installations.
Hi/Lo Knob
PRODUCT SPECIFICATIONS
The efciency rating of this appliance is
a product thermal efciency rating deter-
mined under continuous operating condi-
tions and was determined independently
of any installed system.
Thermal Efciency = up to 80%
CODE APPROVAL
Direct Vent type appliances draw all combustion air from outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to comply with the established standards for DIRECT
VENT GAS FIREPLACE HEATERS in the USA and Canada as follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO: ANSI Z21.88Bb-2008/CSA 2.33b-2008 STANDARDS
A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped
Recreational Vehicles and Mobile Housing, CSA Z240.4.
On/Off/RS Switch
Ignitor
FP2073

6 74D0009
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are certied without deration for elevations
up to 4,500 feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA, installation must be in accordance with
the current ANSI Z223.1/NFPA 54 and/or local codes having jurisdiction.
In Canada, please consult provincial and/or local authorities having jurisdiction for instal-
lation at elevations above 4,500 feet (1,370 m).
PRE-INSTALLATION INFORMATION
ORIFICE SIZES, PRESSURES AND BTUs
NATURAL GAS PROPANE GAS
Manifold Press: (W.C.) 3.5" Manifold Press: (W.C.) 10"
Maximum Supply Pressure 10.5" Maximum Supply Pressure 13"
Minimum Supply Pressure 4.5" Minimum Supply Pressure 11"
BEFORE YOU START
Read this homeowner manual thoroughly and follow all instructions carefully. Inspect all contents for shipping
damage and immediately inform your dealer if any damage is found. Do not install any unit with damaged, incom-
plete, or substitute parts. Check your packing list to verify that all listed parts have been received. You should
have the following:
• Fireplace (Firebox and Burner System)
• Rock Wool
• Log Set
ITEMS REQUIRED FOR INSTALLATION
Tools: Building Supplies:
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Caulking Material (Noncombustible)
• Level • Fireplace Surround Material (Noncombustible)
• Measuring Tape • Piping Complying with Local Codes
• Electric Drill and Bits • Tee Joint
• Pliers • Pipe Sealant Approved for use with Propane/LPG
• Square (Resistant to Sulfur Compounds)
• Pipe Wrench
Model
Number
BLDV400NV BLDV400PV BLDV500NV BLDV500PV BLDV400NS BLDV400PS BLDV500NS BLDV500PS
Gas Type Natural Propane Natural Propane Natural Propane Natural Propane
Max. BTU/h
Input
26,000 26,000 28,000 27,000 26,000 26,000 28,000 27,000
Min. BTU/h
Input
19,000 21,000 20,000 22,000 19,000 21,000 20,000 22,000
Orice Size 2.50 mm 1/16 in. #38 1.60 mm 2.50 mm 1/16 in. #38 1.60 mm

74D0009 7
H
G
D
F
E
A
C
B
A
1/2” or 5/8”
C
A
G
C
G
A 1/2” or 5/8”
FIREBOX FRAMING
Firebox framing can be built before or after the appliance is set in place. Construct rebox framing following
Figure 2 and the chart below for your specic installation requirements. Refer to Figure 3 on page 8 for rebox
dimensions. The framing headers may rest on the top of the rebox standoffs. Do not bring headers below top
of standoffs. Please note: When planning your framing and installation, keep in mind that your gas line will come
in on the right side of the box (as you are facing it) and your electricity will come in on the left side.
The rebox may be installed directly on a combustible oor or raised on a platform of an appropriate height.
When the rebox is installed directly on carpeting, tile,
or other combustible material, other than wood ooring,
the rebox shall be installed on a metal or wood panel
extending the full width and depth of the enclosure.
FIREPLACE FRAMING
Corner Installation
Stud Location
Inside Chase Installation
Recessed Installation
Donotllspacesaroundreboxwith
insulation or other materials. This
couldcauseare.
WARNING
Figure 2 - Framing Dimensions
BLDV 400 BLDV500
A 377/16" 417/16"
B 407/8" 407/8"
C 301/4" 341/4"
D 1413/16" 1613/16"
E 643/4" 683/4"
F 323/8" 343/8"
G 171/16" 171/16"
H 4513/16" 485/8"

8 74D0009
A
NF
C
KL
J
I
31 7/8
3
MB
D
E
H
G
15/16
11 3/8
PRE-INSTALLATION INFORMATION
Figure 3 - Fireplace Dimensions
FIREPLACE DIMENSIONS
E
H
J
A
D
L
K
C
F
N
MB
I
G
DESCRIPTION Key Letter BLDV400 BLDV500
Overall Front Width A 371/16" 411/16"
Inside Width B 3115/16" 3515/16"
Glass Width C 29" 33"
CTR Pipe (L/R) D 189/16" 209/16"
Rear Width E 301/4" 341/4"
Glass Height F 2513/16" 2513/16"
Chassis Height G 371/2" 371/2"
Depth H 179/16" 179/16"
Height to Standoffs I 405/8" 405/8"
CTR Pipe Rear J 75/16" 75/16"
Top Face K 73/4" 73/4"
Side Face L 29/16" 29/16"
Bottom Face M 1" 1"
Overall Front Height N 405/8" 405/8"

74D0009 9
Y
EAB
C
D
F
Y
X
PRE-INSTALLATION INFORMATION
FIREPLACE LOCATION
Plan for the installation of your appliance. This includes determining where the unit is to be installed, the vent
conguration to be used, framing and nishing details, and whether any optional accessories (i.e. blower, wall
switch, or remote control) are desired. Consult your local building code agency to ensure compliance with local
codes, including permits and inspections.
The following factors should be taken into consideration:
• Clearance to side-wall, ceiling, woodwork, and windows. Minimum clearances to combustibles must be
maintained.
• This replace may be installed along a wall, across a corner, or use an exterior chase. Refer to Figure 4 for
suggested locations.
• Location should be out of high trafc areas and away from furniture and draperies due to heat from appli-
ance.
• Never obstruct the front opening of the replace.
• Do not install in the vicinity where gasoline or other ammable liquids may be stored.
• Vent pipe routing. See Venting section found in this manual for allowable venting congurations.
• These units can be installed in a bedroom. See National Fuel Gas Code ANSI Z233.1/NFPA 54 — (current
edition), the Uniform Mechanical Code — (current edition), and Local Building Codes for specic installation
requirements.
• These units can be installed in a bathroom.

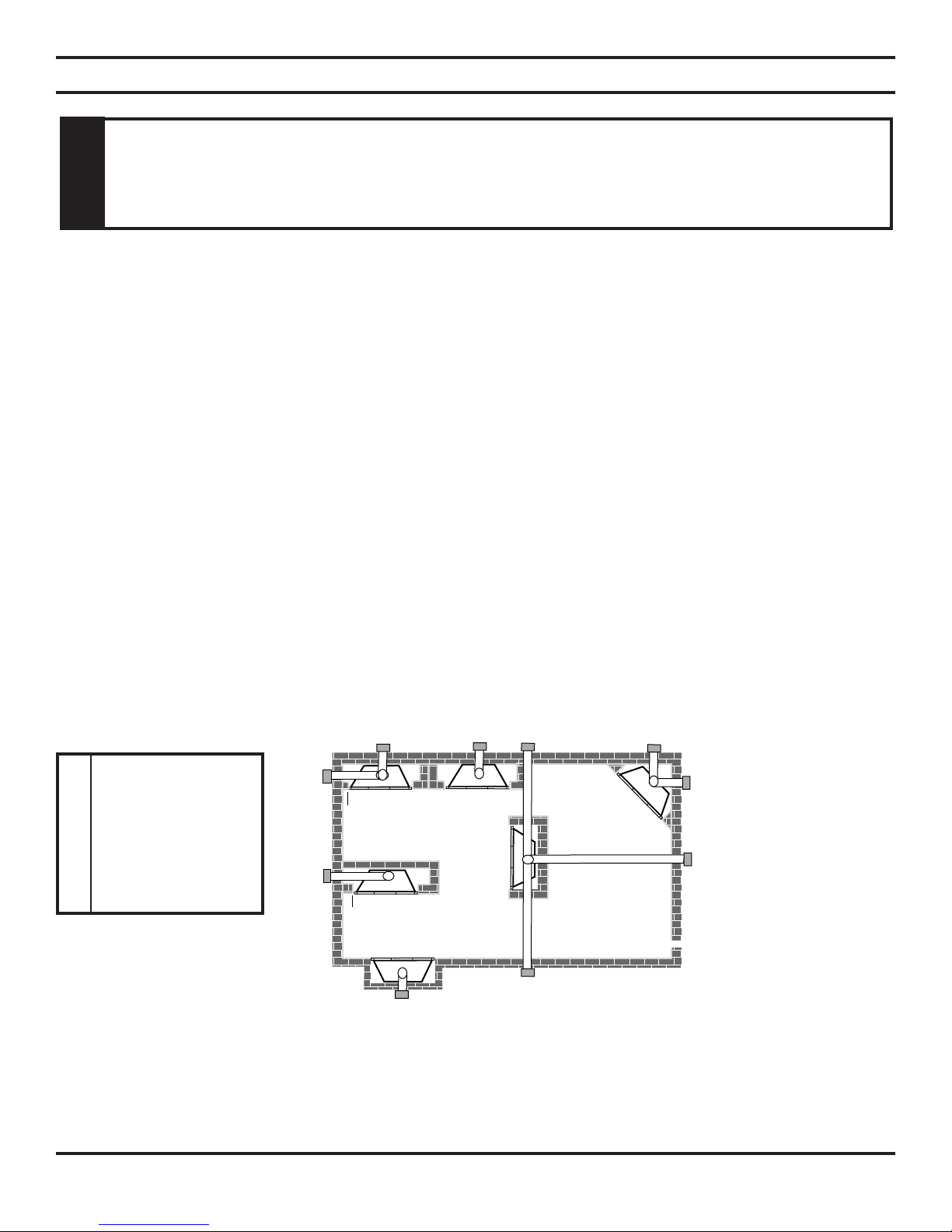

Figure 4 - Locating Gas Fireplace
A Flat on Wall
B Cross Corner
C Island**
D Room Divider*
E Flat on Wall Corner*
F Chase Installation
Y 6" Minimum
** Island (C) and room divider (D) installation is possible as long as the horizontal portion of vent system (X)
does not exceed 20'. See Installing Horizontal Termination Conguration on pages 18 and 19.
* When you install your replace in (D) room divider or (E) at on wall corner positions (Y), a minimum of 6"
clearance must be maintained from perpendicular wall and front of replace.
NOTE
COLD CLIMATE INSULATION
If you live in a cold climate, seal all cracks around your appliance, and wherever cold air could enter
the room, with noncombustible material. It is especially important to insulate the outside chase cavity
between the studs and under the oor on which the appliance rests, if the oor is above ground level.

10 74D0009
13" MIN.
6" MIN.
FROM OPENING
71" MINIMUM
CIELING
MANTEL SHELF:
0-12”MAX DEPTH
Follow these instructions carefully to ensure safe installation. Failure to follow
instructionsexactlycancreatearehazard.
The appliance cannot be installed on a carpet, tile or other combustible material other
thanwoodooring.Ifinstalledoncarpetorvinylooring,theapplianceshallbeinstalled
onametal,woodornoncombustiblematerialpanelextendingfullwidthanddepthof
the appliance.
WARNING
CLEARANCES
CLEARANCES TO COMBUSTIBLES
MANTEL CLEARANCES
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it does,
it is considered a mantel and must meet the mantel requirements listed in this manual.
Figure 5 - Clearances from the mantel,
ceiling, and side wall.
Figure 5a - Mantel clearances.
6"
5"
3"
2.5" 4.5"
45°
3.5"3.5"
1" 1.5"1.5"
All mantel shelves, regardless of depth, should be a
minimum of 13" from top opening of replace. Mantel
shelf shall not exceed 12" maximum depth at 13"
minimum height from opening.
NOTE:
Fireplace
Opening
Wall
Combustible
Material Area

74D0009 11
The replace must be secured to the oor and/or to framing studs as shown in Figure 6. Use two (2) wood screws
or masonry/ concrete screws to secure replace to the oor. Use four (4) screws to attach replace to framing.
The side nailing anges are 1/2" or 5/8" to accommodate different wall thickness.
SECURING FIREPLACE TO FLOOR OR FRAMING
Figure 6 - Securing Fireplace to Floor and Framing Studs
Framing
Framing
Nailing
Flange
Nailing
Flange
Screws
Screws
Screws
Nailing
Flange
Nailing
Flange

12 74D0009
Read all instructions completely and thoroughly before attempting installation. Failure
to do so could result in serious injury, property damage or loss of life. Operation of
improperly installed and maintained venting system could result in serious injury,
property damage or loss of life.
WARNING
Failure to follow these instructions will
void the warranty.
NOTICE
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the installation. The installer must make sure to select the proper
vent system for installation. Before installing vent kit, the installer must read this replace manual and vent
kit instructions.
Only a qualied installer/service person should install venting system. The installer must follow these safety
rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on rooftops.
• Be aware of electrical wiring locations in walls and ceilings.
The following actions will void the warranty on your venting system:
• Installation of any damaged venting component.
• Unauthorized modication of the venting system.
• Installation of any component part not manufactured or approved by MHSC.
• Installation other than permitted by these instructions.
FINISHING MATERIAL
NOTE: Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to nal
nishing to avoid costly reconstruction.
INSTALLATION INFORMATION
Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL re rating of Zero) may
be used to cover the black painted face of the appliance. It is permissible to bring combustible wall board to the
top and side edges of the black painted face. A 300°F minimum adhesive may be used to attach facing materials
to the black surface. If joints between the nished wall and the replace surround are sealed, a 300°F minimum
sealant material (General Electric RTV103 or equivalent) must be used.
VENT INSTALLATION
This replace must be vented to the outside. The venting system must NEVER be
attached to a chimney serving a separate solid fuel burning appliance. Each gas
appliance must use a separate vent system. Do not use common vent systems.
WARNING

74D0009 13
VENT INSTALLATION

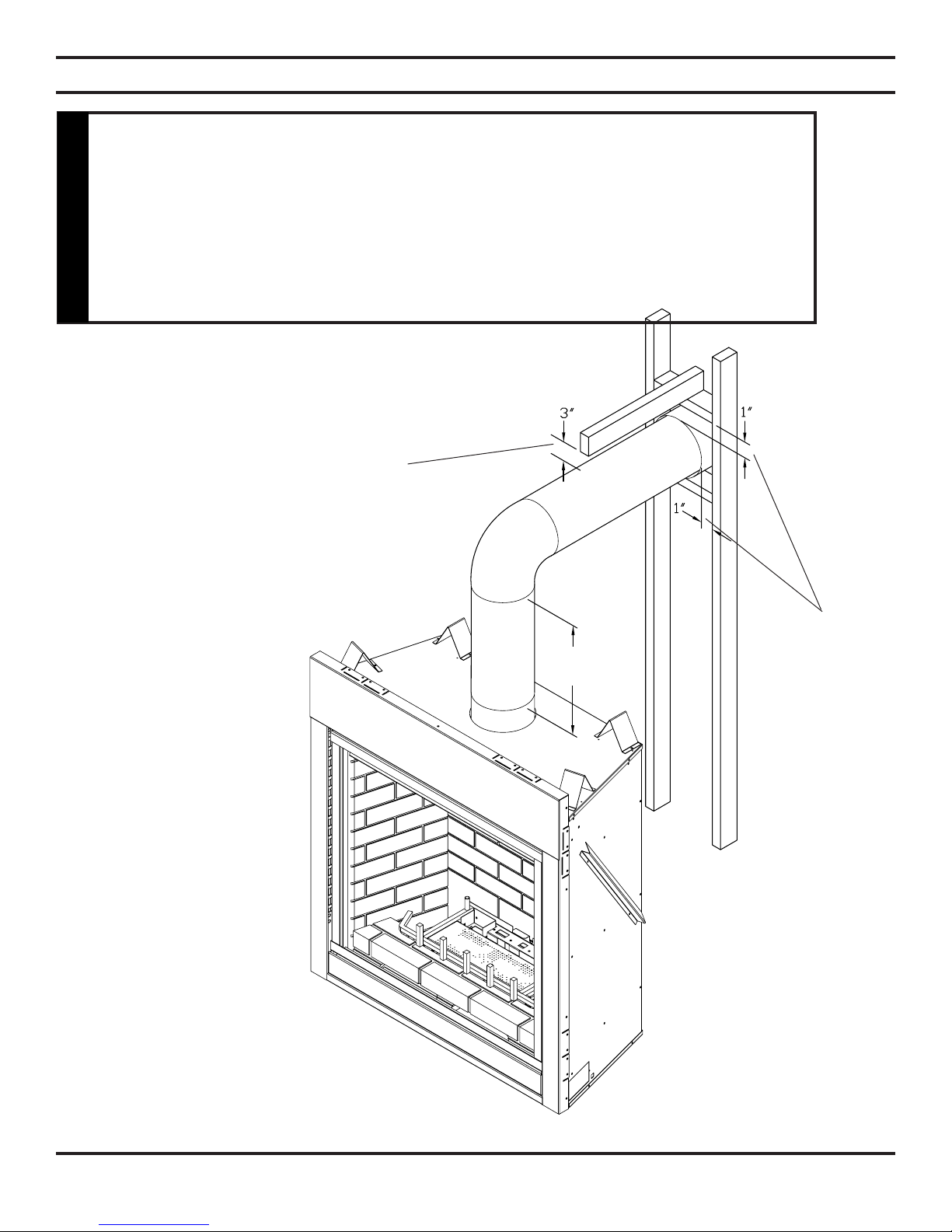

Figure 7 - Combustible Clearances for Vent Pipe
A minimum of 3" clearance to the top is
required along horizontal length until ue
pipe penetrates outside wall.
A minimum 1"
clearance to
combustibles
permitted all
around ue at
outside wall
WARNING
12" vertical rise required
before horizontal run
Horizontalsectionsofthisventsystemrequireaminimumof3"clearancesto
combustiblesatthetopoftheueand1"clearanceatthesidesandbottom until
the ue penetrates the outside wall. Aminimum1"clearanceallaroundtheue
is acceptable at this point of penetration.
If the vertical rise is 71/2ft.ormore,onlya1"clearanceisneededontopofany
horizontalrun.
Vertical sections of this vent system require a minimum of 1" clearance to
combustibles on all sides of the pipe.

14 74D0009
VENT INSTALLATION

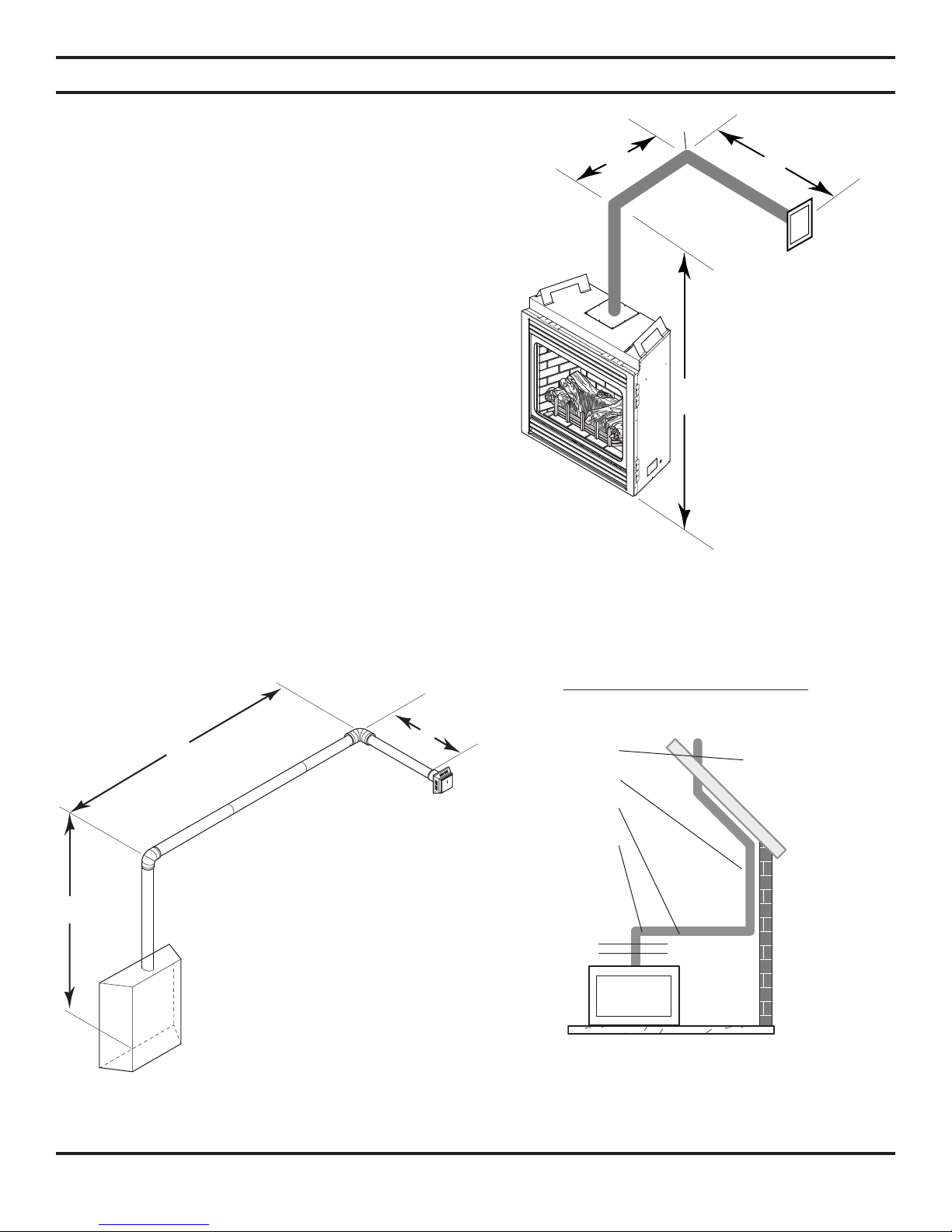

INSTALLATION PLANNING
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
It is important to select the proper length of vent pipe for the type of termination you choose. It is also important
to note the wall thickness.
FOR HORIZONTAL TERMINATION
Select the amount of vertical rise desired. All horizontal run
of venting must have 1/4" rise for every 12" of run towards
the termination below 71/2 ft, of vertical rise. With 71/2 ft. or
more vertical rise,the horizontal run may run level. NEVER
run vent piping downward.
You may use up to three 90° elbows in this vent congura-
tion. See Horizontal Termination Congurations on pages
17 and 18.
FOR VERTICAL TERMINATION
Measure the distance from the replace oor to the ceiling. Add the ceiling thickness, the vertical rise in an attic
or second story, and allow for sufcient vent height above the roof line.
NOTE: You may use two 45° elbows in place of a 90° elbow. You must follow rise to run ratios when using
45° elbows. The appliance is approved for use with three 90° elbows maximum or a combination of 90°
and 45° elbows up to a maximum of 270°.
For two-story applications, restops are required at each oor level. If an offset is needed in the attic, additional
pipe and elbows will be required.
You may use a chase with a vent termination with exposed pipe on the exterior of the house. See Installing Vent
System in a Chase below. If pipe is enclosed in chase, it is not exposed.
It is very important that the venting system maintain its balance between the combustion air intake and the ue
gas exhaust. Certain limitations apply to vent congurations and must be strictly followed.
INSTALLING A VENT SYSTEM IN AN OUTSIDE CHASE
A chase is a vertical boxlike structure built to enclose venting that runs along the outside of a building. A chase
is required for such venting.
Neverruntheventpipedownward.This
may cause excessive temperatures
whichcouldcauseare.
WARNING
Treatmentofrestopsandconstructionofthechasemayvaryfrombuildingtypeto
building type. These instructions are not substitutes for the requirements of local
building codes. You must follow all local building codes.
NOTICE
When installing in a chase, you should insulate the chase as you would the outside walls of
your home. This is especially important in cold climates. Insulation should be considered
a combustible material. Maintain proper clearances to all combustible materials.
NOTICE

74D0009 15
V
V
V
V
V
V
V
V
D
L
E
B
C
F
B
B
B B
B
M
I
A
A
J
H
G
A
Operable
Fixed
Closed Fixed
Closed
Opera-
ble
K
A
A
A
G
VENT INSTALLATION
WARNING
Figure 8 - Horizontal Vent Termination Location
Vent Terminal Air Supply Inlet Area Where Terminals Not Permitted
Inside Corner Detail
FOR HORIZONTAL TERMINATION
MINIMUM DISTANCES
A = Clearance above the grade, a veranda, porch, deck, or balcony [*12" (305 mm) minimum].
B = Clearance to window or door that may be opened [*12" (305 mm) minimum].
C = Clearance to permanently closed window [*minimum 12" (305 mm) recommended to prevent condensation
on window]
D= Vertical clearance to ventilated soft located above the terminal within a horizontal distance of two (2) feet
(610 mm) from the centerline of the terminal [18" (457 mm) minimum].
E= Clearance to unventilated softs [12" (305 mm) minimum]. Clearance to vinyl soft [30" (762 mm)].
F = Clearance to an outside corner. Figure 9
G = Clearance to an inside corner. Figure 9
H = *Not to be installed above a gas meter/regulator assembly within three (3) feet (914 mm) horizontally from
the centerline of the regulator.
I = Clearance to service regulator vent outlet [*3' (914 mm) minimum].
J = Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance [*12"
(305 mm) minimum].
K = Clearance to a mechanical air supply inlet [*6' (1829 mm) minimum].
L= Clearance above a paved sidewalk or paved driveway located on public property [**7' (2133 mm)
minimum].
M= Clearance under veranda, porch, deck, or balcony Refer to Figure 9 [*For Canada 12" (305 mm)
minimum***].
* As specied in CSA B149 Installation Codes. Note: Local codes or regulations may require different
clearances.
** A vent must not terminate directly above a sidewalk or paved driveway, which is located between two single-
family dwellings and serves both dwellings.
*** Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the
oor.
Always maintain minimum clearances around vent systems. The minimum clearances to
combustiblesforhorizontalventpipeare3"atthetopand1"atthesidesandbottomofthe
ventsystemuntilthepipepenetratesthenearestverticalwall(1"required).Ifthevertical
run is 71/2ft.ormore,theclearanceis1"onallsidesofthehorizontalrun.A1"minimum
clearance all around the pipe must be maintained at outside wall and on vertical runs. Do
not pack the open air spaces with insulation or other materials. This could cause high
temperaturesandmaypresentarehazard.

16 74D0009
V
GG = 6" (152 mm)
FF = 6" (152 mm)
V
V
G
G = Combustible 24"(610mm)
Noncombustible 18"(457mm)
Combustible &
Noncombustible
H = 24" (610mm)
J = 20" (508mm)
V
H
J
C = Maximum depth of 48" (1219 mm)
for alcove location
D = Minimum width for back wall of
alcove location
Combustible - 38" (965 mm)
Noncombustible - 24" (610 mm)
E =Clearance from corner in alcove
location
Combustible - 6" (152 mm)
Noncombustible - 2" (51 mm)
E
V
D
C
C
Inside Corner
Alcove Location
Outside Corner
Balcony with No Side Wall Balcony with Perpendicular
Side Wall
FP2075
termination clearances
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 1214 16 1820
eg: A
VENT INSTALLATION
TERMINATION CLEARANCES FOR BUILDINGS WITH COMBUSTIBLE
AND NONCOMBUSTIBLE EXTERIORS
Figure 9 - Allowable Venting Chart
HOW TO USE THE VENT GRAPH
The Vent Graph should be read in conjunction with the follow-
ing vent installation instructions to determine the relationship
between the vertical and horizontal dimensions of the vent
system.
1. Determine the height of the center of the horizontal vent pipe
exiting through the outer wall. Using this dimension on the
Sidewall Vent Graph below, locate the point intersecting with
the slanted graph line.
2. From the point of this intersection, draw a vertical line to the
bottom of the graph.
3. Select the indicated dimension, and position the replace in
accordance with same.
Example: If the vertical dimension from the oor of the re-
place is 11' (3.4 m) the horizontal run to the face of the outer
wall must not exceed 14' (4.3 m).
Example: If the vertical dimension from the oor of the unit
is 7’ (2.14 m), the horizontal run to the face of the outer wall
must not exceed 61/2' (2 m).
Sidewall Vent Graph showing the relationship between vertical
and horizontal dimensions for a Direct Vent ue system. Figure 10 - Rear Wall Venting Graph
Horizontal dimension from the nished outside wall
to the center of the pipe on the replace
Vertical Dimension From the Floor of Unit to the
Center of the Horizontal Vent Pipe
Dimensions in
Feet
Combustible – 6" (152 mm)
Noncombustible – 2" (51mm)
57"from
oor
to center

74D0009 17
VENT INSTALLATION
REAR (THROUGH-THE-WALL) APPLICATIONS
Sealant is not required to assemble replace venting. Do
not use silicone sealant at the ue exhaust connections.
1. Find the pipe section's direction label. The label arrow
shall be pointed away from the rebox and toward the
termination. Firmly insert the initial rigid section/elbow
into the rebox outer collar. Simpson "GS" and Selkirk
"DT" outer walls are hemmed and will snap into the
collar's tabs. Attach Simpson's DirectVent Pro by fully
inserting into the collar and securing with self-tapping
screws. The screws shall only penetrate the ue outer
wall.
Refer to vent manufacturer's installation instructions
to properly assemble ue.
2. Locate and cut the vent opening in the wall. For com-
bustible walls rst frame in opening.
Combustible Interior Walls: Cut an 111/2"H x 91/2"W
hole through the interior wall.
CombustibleExteriorWalls: Cut a 91/2"H x 91/2"W
square hole through the exterior wall frame. Figure 12
Noncombustible Walls: Hole opening should be
71/2" (190 mm) in diameter.
3. The center of the hole should align with the center line
of the horizontal rigid vent pipe end. Pipe shall always
run level or uphill on horizontal runs. Never run pipe
down hill. Figure 12
Female Locking Lugs
Male Slots
NOTE: Horizontal runs
of vent must be sup-
ported every three feet
(914 mm). Use wall
straps for this purpose.
Figure 11 - Rigid Vent Pipe Connections
91/2"
(241 mm)
91/2"
(241 mm)33/4"
(92 mm)
71/2"
(190 mm)
Figure 12 - Exterior Wall Framing Dimensions

18 74D0009
VENT INSTALLATION
REAR (THROUGH-THE-WALL) APPLICATIONS (continued)
4. Apply a bead of non-hardening mastic around the outside
edge of vent cap. Position the vent cap in the center of hole
on the exterior wall with the word "HOT" on the vent cap
facing up. Insure proper clearance of 1" to combustibles is
maintained to the ue. Attach the vent cap with four wood
screws supplied. Figure 13
HOT
Vent Cap
Wood Screw
Apply Mastic to
all Four Sides
Figure 13 - Installing Horizontal Termination
HOT
Cut Vinyl Siding
Away to Fit Standoff
Standoff #950
Simpson
Termination
#985
Bolt
Wood Screw
Nut
Apply
Mastic to all
Four Sides
Figure 14 - Installing Simpson/Selkirk Vinyl
Siding Standoff and Termination
Inerior Wall
Surface
Firestop
Horizontal
Vent Pipe
Screw
Vent Cap
(Horizontal
Termination)
Figure 15 - Installing Firestop on
Horizontal Vent Pipe
WARNING
Do not recess vent
termination into any
wall. This will cause a
rehazard.
NOTE: Replace the wood screws with appropriate fasten-
ers for stucco, brick, concrete, or other types of siding.
A vinyl siding standoff (part #950) must be used with the Simp-
son/Selkirk Horizontal Termination (part #985) on vinyl, stucco
or wood-clad exterior walls. Apply non-hardening mastic around
outside edge of the standoff instead of the vent cap assembly.
Figure 14
5. Slide the restop over the vent pipe before connecting the
horizontal run to the vent cap. Figure 15
6. The termination should overlap the ue a minimum of 11/4".
Apply silicone to the outer pipe/termination connection. Fasten
termination with screws provided.
7. Slide the restop against the interior wall surface and attach
with screws. Figure 15

74D0009 19
12" Min.
• The maximum number of 90° elbows per side wall installation is three (3). Figure 16
• A minimum of 12" is required before a 90° elbow. If a 90° elbow is tted directly after 12" vertical section
mounted to the top of the replace, the maximum horizontal vent run before the termination or a vertical rise
is 24” (914 mm). Figure 17
VENT INSTALLATION
VERTICAL/HORIZONTAL TERMINATION
CONFIGURATIONS
Since it is very important that the venting system maintain its balance between the combustion air intake
andtheuegasexhaust,certainlimitationsastoventcongurationsapplyandmustbestrictlyadhered
to.
The Vent Graph, showing the relationship between vertical and horizontal side wall venting, will help to determine
the various dimensions allowable. Figure 10
NOTE: Horizontal sections of this vent system require a minimum of 3" clearances to combustibles at the top of
the ue and 1" clearance at the sides and bottom until the ue penetrates the outside wall. A minimum 1" clearance
all around the ue is acceptable at this point of penetration. If the vertical run is 71/2ft. or more, the clearance is 1"
on all sides of the horizontal run.
Vertical sections of this vent system require a minimum of 1" clearance to combustibles on all sides of the pipe.
When vent exits through foundations less than 20" below outcrop, the termination must be ush up with out-
cropped wall above.
It is best to locate the replace in such a way that minimizes the number of offsets and horizontal vent length.
The horizontal vent run refers to the total length of vent pipe from the ue collar of the replace (or the top of the
Transition Elbow) to the face of the nished outside wall.
Figure 16 - Maximum Three (3) 90° Elbows
Per Installation
Figure 17 - Maximum Horizontal Run with No Rise
3 x 90°
Elbows
24"
Max.
24"
Max.
12" Min.

20 74D0009
VERTICAL/HORIZONTAL TERMINATION
CONFIGURATIONS (continued)
• If a 90° elbow is used in the horizontal vent run
(level height maintained) the horizontal vent length
is reduced by 36". Refer to Figures 16 and 17, page
19. This does not apply if the 90° elbows are used to
increase or redirect a vertical rise. Figure 19
Example: According to the vent graph (page 16) the
maximum horizontal vent length in a system with a 10'
vertical rise is 20’ (6m) and if a 90° elbow is required in
the horizontal vent it must be reduced to 17' (5.2 m).
In Figures 18 and 19 dimension A plus B must not be
greater than 17' (5.2m).
• The maximum number of 45° elbows permitted per
side wall installation is two (2). These elbows can be
installed in either the vertical or horizontal run.
• For each 45° elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced by
18" (45cm). This does not apply if the 45° elbows are
installed on the vertical part of the vent system.
• The maximum number of elbow degrees in a system
is 270°. Figure 20
Figure 19 - Maximum Vent Run with Elbows
Example: Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total Angular Variation = 270°
Figure 18 - Horizontal Run Reduction
Figure 20 - Maximum Elbow Usage
VENT INSTALLATION
90°
A + B = 17' Maximum
90° Elbow = 3'
1 + 2 + 3 + 4 = 270°
1
2
3
4
10'
A B
10'
10'
7'
A
B
12" Min.
