Monogram ZX27CTACSS User manual

Monogram
®
Assembly Instructions
Before you Begin – Read these instructions completely and carefully.
Note To Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Owners Manual for future reference.
If you have questions concerning the installation of this
product, call the GE Answer Center® Consumer
Information Service at 800.626.2000, 24 hours a day, 7
days a week.
If you received a damaged Grill Cart, you should contact
your dealer.
Assembly of this grill cart requires basic mechanical skills.
Proper assembly is the responsibility of the installer.
Step 1:
Remove
Packaging
Open the box and remove the contents.
Remove packaging and protective film. Locate the hardware accessory package and
check contents.
24" and 27" Outdoor Cooking Center
Grill Carts
Models ZX24CTBSS/ZX27CTACSS
For Monogram local service in your area, 1-800-444-1845.
For Monogram service in Canada, 1-888-880-3030.
For Monogram Parts and Accessories, call 1-800-626-2002.
NOTE:
Carts must be completely assembled before any gas
connections are made.
24” Grill Cart
1/4-20 x 1/2 Bolts
Count 2
1/4-20 Nuts
Count 2 Shelf with
4 Bolts
and 8 Nuts
Cart
27” Grill Cart
1/4-20 x 1/2" Bolts
Count 6
1/4" Flat Washers
Count 6
10-24 x 1" Screws
Count 6
Aluminum Spacers
Count 2
Fold-Down Shelf
Extra Hardware
(not required)
Cart

2
Tools
You Will
Need

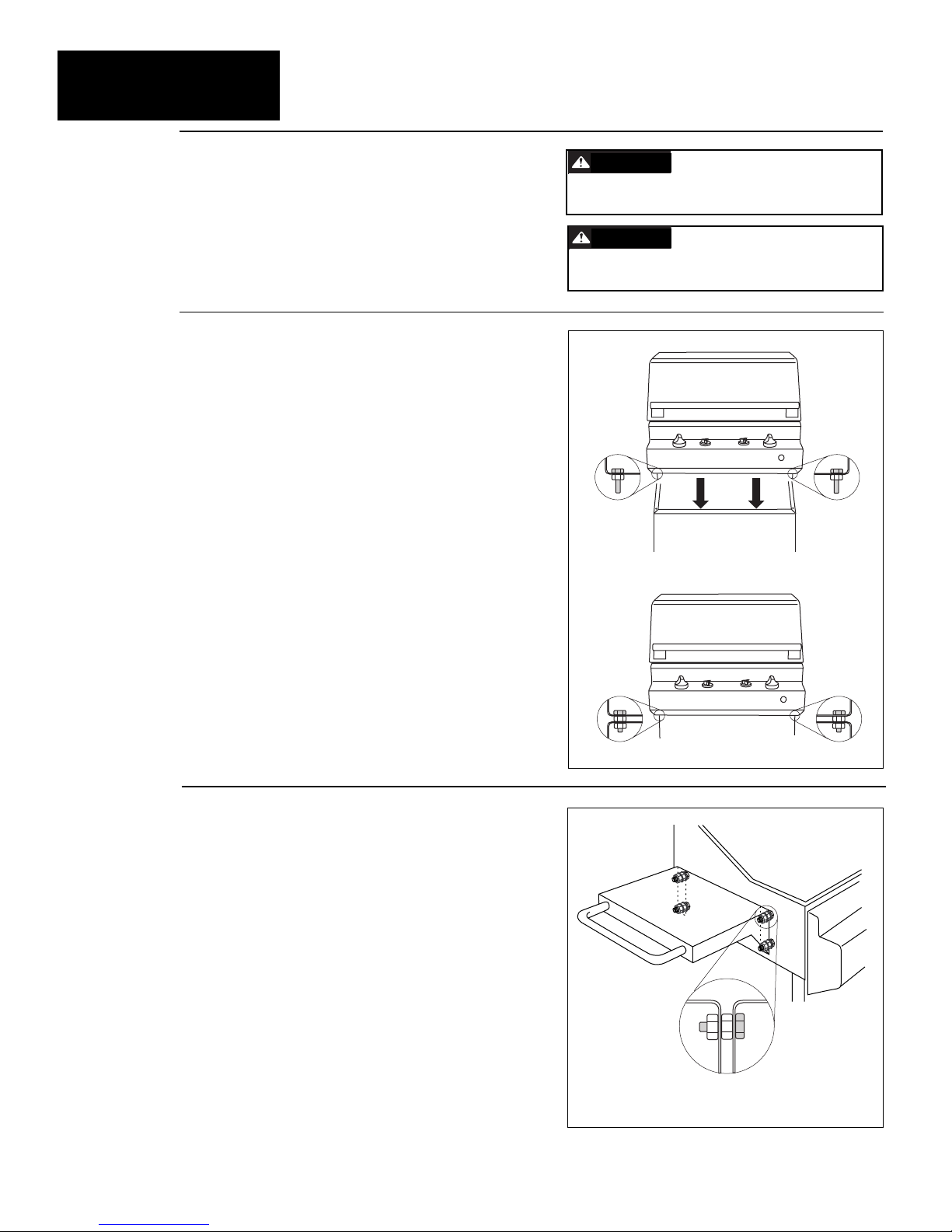

Step 2
Mount Grill
Onto Cart
• Two 7/16" wrenches or socket with 6”
extension.
• Phillips head screwdriver
• Gloves to protect against sharp edges
• The grill base has 1/4 x 20 bolts with two
nuts pre-installed on each corner. Remove
bottom nuts on each corner and set aside.
• Check to be sure the remaining nuts on the
bottom of the grill are tight.
• Lower the grill onto the cart.
• Route the attached hose through the large
square cutout in the top of the cart as you
position the grill onto the cart.
• The bolts on the bottom of the grill should
go through the four corner holes in the top
of the cart.
• Install the four nuts on each corner to the
grill bolts protruding through the cart.
Le gril est extremement
lourd, Il faut deux personnes pour le
soulever et le mettre ur un chariot.
CAUTION
PRUDENCE
The grill is extremely heavy.
2 people are required to lift and place the
grill onto the cart.
CAUTION
CAUTION
Step 3
Mount Side
Shelf Onto
24” Grill
• The shelf should be installed after the grill
has been secured to the cart.
• Open the grill lid.
• Remove the 8 nuts and 4 bolts from the
shelf.
• Install bolts through the grill and secure
with nuts. Tighten.
• Mount shelf onto the four bolts. Secure with
nuts and tighten.
Note: The additional nut installed between the grill
and shelf serves as a spacer that will help keep
the shelf cool during long periods of cooking.
24” Grill Cart
Assembly Instructions
Use the Four Bolts and 8 Nuts Secured to the Shelf

3
Step 2:
Mount Grill
Onto Cart
Step 3
Install
Mounting
Brackets
and Shelf
CAUTION: Lock front caster on the cart to
prevent movement.
See installation instructions packed with the
grill. Remove Packaging, drip tray, burner
grates and parts box.
CAUTION: The grill is extremely heavy. 2
people are required to lift and place the grill
onto the cart.
• Lower the grill onto the cart.
• Check to be sure the grill rests securely and
fits square on the cart.
• To secure the grill to the cart: Insert the 1/4
x 20 bolts and washers up through the cart
holes and thread into the bottom holes of
the grill head, two on each side.
• Install side shelf mounting brackets to the
grill head on the left side. Use four 10 x 24
screws.
27” Grill Cart
Assembly Instructions
• Slide shelf supports up and into the shelf
mounting brackets.
• When the shelf reaches stops at the top, fold
the shelf out horizontally.
• The shelf should rest securely in the
channels.
• Install the long 10-24 screws and spacers
below the shelf supports.
• The spacers and screws will prevent the shelf
from sliding out of the channels when folded
down.
A
C
B

To obtain specific information concerning any
Monogram product or service, call GE Answer Center®
consumer information service at 800.626.2000—any
time, day or night.
For Monogram local service in your area, call
1-800-444-1845.
NOTE: Product improvement is a continuing endeavor at General
Electric. Therefore, materials, appearance and specifications are
subject to change without notice.
Monogram.
®
General Electric Company
Louisville, KY 40225
To fold the shelf down:
– Lift the shelf up until it clears the channels.
– Fold down and let the shelf slide down and
stop on the spacers.
Pub. No. 49-80007
Dwg. No. 164D3333P225
 2000 GE Appliances
(N.D. 535) 5/00
10744-01
27” Grill Cart
Assembly Instructions
Complete
The
Installation
24” Grill on Cart 27” Grill on Cart
• Complete the installation according to the
installation instructions packed with the
grill.
GRILL
IGNITOR
ROTESSERIE
IGNITOR
GRILL
IGNITOR
GRILLGRILL ROTISSERIE
HOLD10SEC. WHILE LIGHTING
D
Step 3
(continued)
