Monogram ZIS360N User manual

Installation
Instructions
Side by Side Refrigerators
ZIS360N, ZISB360D, ZISW360D
ZISS360N, ZISS360D
ZIS420N, ZISB420D, ZISW420D
ZISS420N, ZISS420D
ZIS480N, ZISB480D, ZISW480D
ZISS480N, ZISS480D
Design Guide
With Installation Instructions
Monogram:

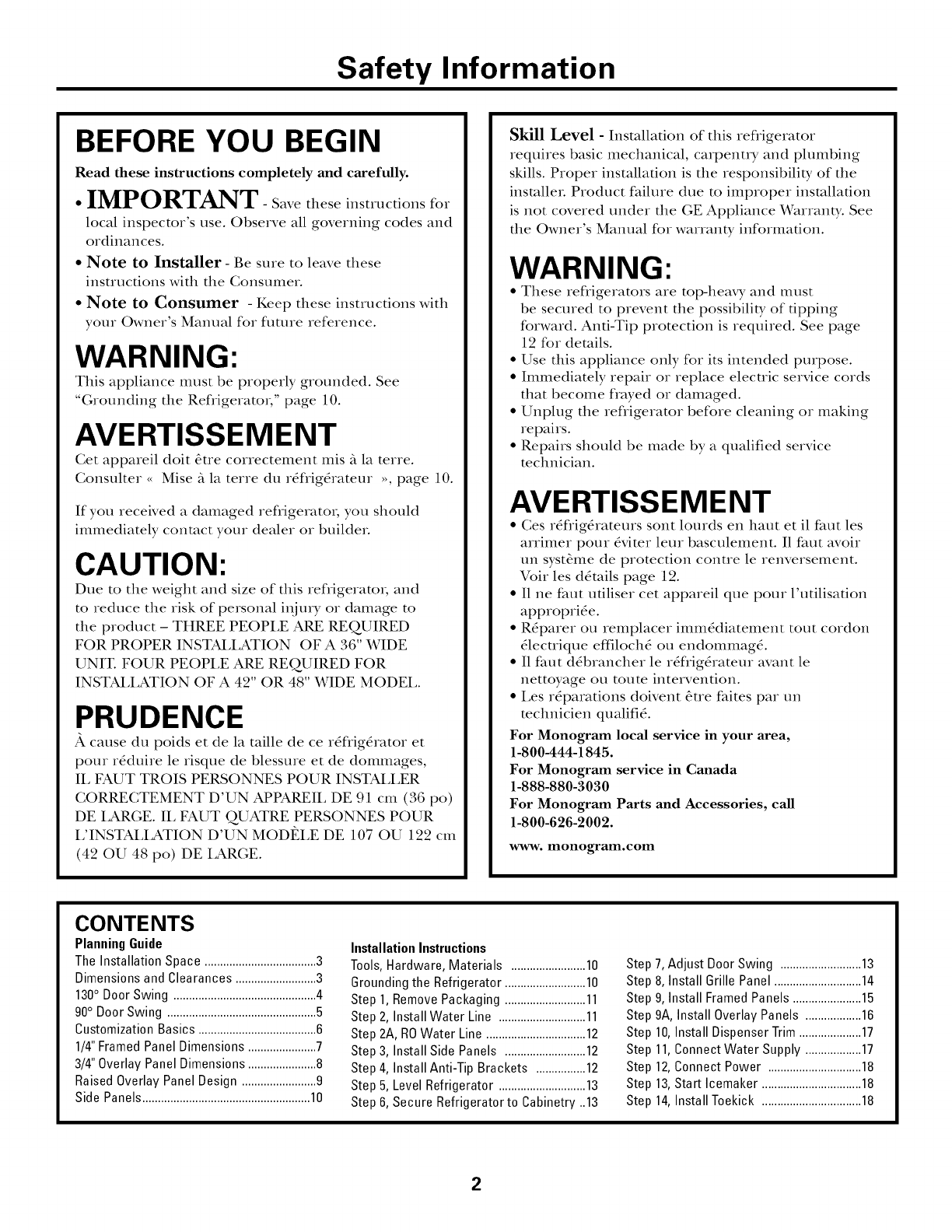

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
° IMPORTANT - Save these instructions for
local inspector’s use. Observe all governing codes and
ordinances.
* Note to Installer - Be sure to leave these
instructions with the Consumer.
¢« Note to Consumer - Keep these instructions with
your Owner’s Manual for future reference.
WARNING:
This appliance must be properly grounded. See
“Grounding the Refrigerator,” page 10.
AVERTISSEMENT
Cet appareil doit étre correctement mis a la terre.
Consulter « Mise a la terre du réfrigérateur », page 10.
If you received a damaged refrigerator, you should
immediately contact your dealer or builder.
CAUTION:
Due to the weight and size of this refrigerator, and
to reduce the risk of personal injury or damage to
the product — THREE PEOPLE ARE REQUIRED
FOR PROPER INSTALLATION OF A 36" WIDE
UNIT. FOUR PEOPLE ARE REQUIRED FOR
INSTALLATION OF A 42" OR 48" WIDE MODEL.
PRUDENCE
A cause du poids et de la taille de ce réfrigérator et
pour réduire le risque de blessure et de dommages,
IL FAUT TROIS PERSONNES POUR INSTALLER
CGORRECTEMENT D’UN APPAREIL DE 91 cm (36 po)
DE LARGE. IL FAUT QUATRE PERSONNES POUR
LINSTALLATION D’UN MODELE DE 107 OU 122 cm
(42 OU 48 po) DE LARGE.
Skill Level - Installation of this refrigerator
requires basic mechanical, carpentry and plumbing
skills. Proper installation is the responsibility of the
installer. Product failure due to improper installation
is not covered under the GE Appliance Warranty. See
the Owner’s Manual for warranty information.
WARNING:
¢ These refrigerators are top-heavy and must
be secured to prevent the possibility of tipping
forward. Anti-Tip protection is required. See page
12 for details.
¢ Use this appliance only for its intended purpose.
¢ Immediately repair or replace electric service cords
that become frayed or damaged.
¢ Unplug the refrigerator before cleaning or making
repairs.
¢ Repairs should be made by a qualified service
technician.
AVERTISSEMENT
* Ces réfrigérateurs sont lourds en haut et il faut les
arrimer pour éviter leur basculement. II faut avoir
un systéme de protection contre le renversement.
Voir les détails page 12.
¢ Il ne faut utiliser cet appareil que pour Vutilisation
appropriée.
¢ Réparer ou remplacer immédiatement tout cordon
électrique effiloché ou endommagé.
¢ Il faut débrancher le réfrigérateur avant le
nettoyage ou toute intervention.
¢ Les réparations doivent étre faites par un
technicien qualifié.
For Monogram local service in your area,
1-800-444-1845.
For Monogram service in Canada
1-888-880-3030
For Monogram Parts and Accessories, call
1-800-626-2002.
www. monogram.com
CONTENTS
Planning Guide
The Installation Space woes 3 Tools, Hardware, Materials
Dimensions and Clearances vss 3 Grounding the Refrigerator
130° Door Swing seeeeneen eee nanaennneeneneausteennnaes 4 Step 1, Remove Packaging
90° Door SWING ersssssessesessenseiseiseinenneie 5 Step 2, Install Water Line
Customization Basics wu. 6 Step 2A, RO Water Line ........
1/4" Framed Panel Dimensions... 7 Step 3, Install Side Panels
3/4’ Overlay Panel Dimensions «sss 8 Step 4, Install Anti-Tip Brackets. ....
Raised Overlay Panel Design .......c.cccccceen 9
Side Panels......c.ccsssssssssessessesesssessesssneesees 10
Installation Instructions
Step 5, Level Refrigerator
Step 6, Secure Refrigerator to Cabinetry ..13
Step 7, Adjust Door SWING wees 13
10 Step 8, Install Grille Panel ........ wld
aM Step 9, Install Framed Panels .......... weld
. Step 9A, Install Overlay Panels ...... ve
12 Step 10, Install Dispenser Trim... 17
12 Step 11, Connect Water Supply ...... 17
12 Step 12, Connect Power bee
Step 13, Start lcemaker
Step 14, Install Toekick

Design Guide

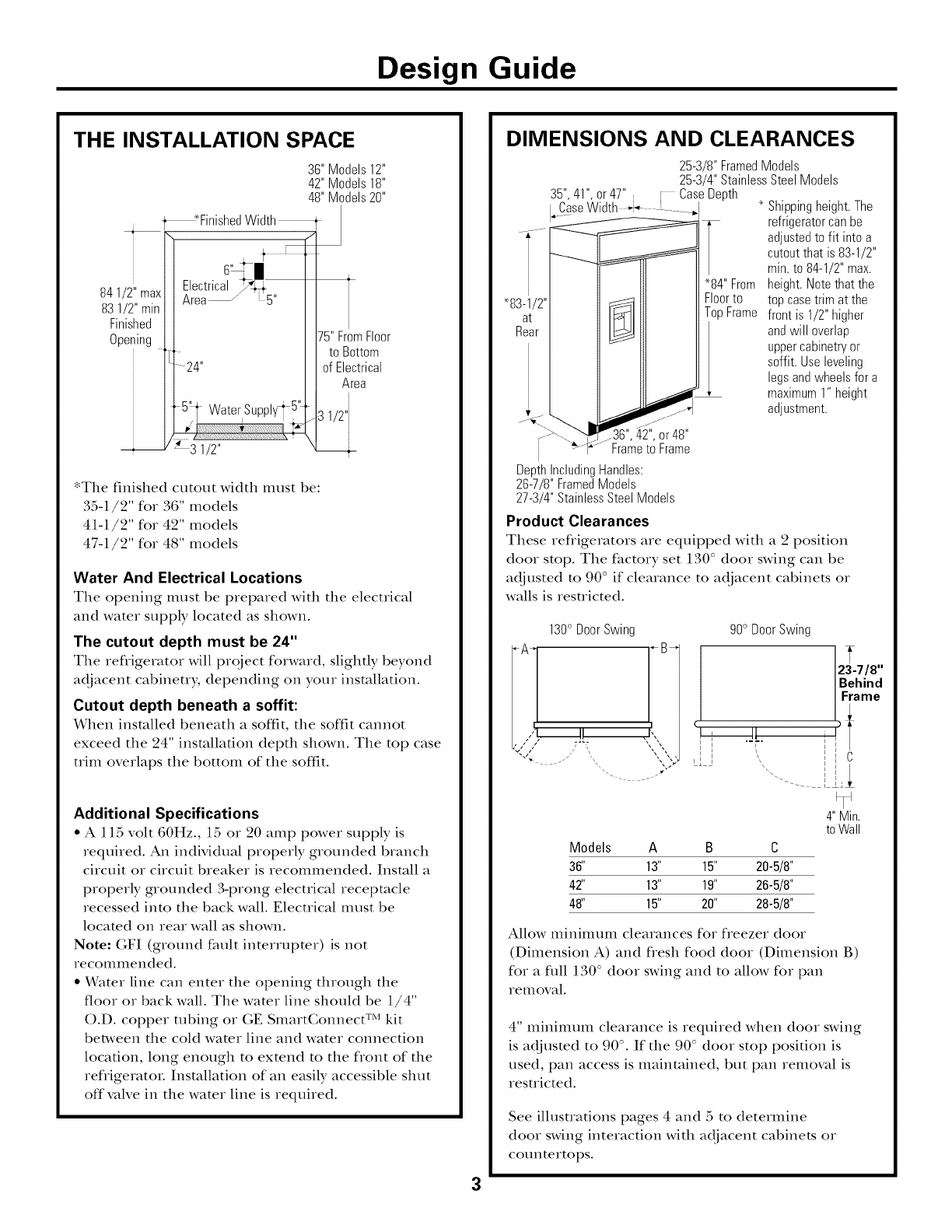

THE INSTALLATION SPACE
36" Models 12"
42" Models 18"
48" Models 20"
oes Finished Width +
+
| ot
84 1/2" max flectrical A i 5"
83 1/2" min |
Finished
Opening 75" From Floor
oP to Bottom
ve 24" of Electrical
Area
+5"+ Water Supply*5't /
"1 Suoply Lp 12"
*The finished cutout width must be:
35-1 /2" for 36" models
41-1/2" for 42" models
47-1/2" for 48" models
Water And Electrical Locations
The opening must be prepared with the electrical
and water supply located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot
exceed the 24" installation depth shown. The top case
trim overlaps the bottom of the soffit.
Additional Specifications
¢A 115 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not
recommended.
e Water line can enter the opening through the
floor or back wall. The water line should be 1/4"
O.D. copper tubing or GE SmartConnect™ kit
between the cold water line and water connection
location, long enough to extend to the front of the
refrigerator. Installation of an easily accessible shut
off valve in the water line is required.
DIMENSIONS AND CLEARANCES
25-3/8" Framed Models
25-3/4" Stainless Steel Models
35", 41", or 47" , e~ Case Depth
_ * Shipping height. The
refrigerator can be
adjusted to fit into a
cutout that is 83-1/2"
min. to 84-1/2" max.
*84" From height. Note that the
Floor to — top case trim at the
Top Frame front is 1/2" higher
and will overlap
upper cabinetry or
soffit. Use leveling
legs and wheels for a
—¥ maximum 1” height
adjustment.
*83-1/2"
at
Rear
ae a
oT 36", 42", or 48"
~~ Frame to Frame
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models
Product Clearances
These refrigerators are equipped with a 2 position
door stop. The factory set 130° door swing can be
adjusted to 90° if clearance to adjacent cabinets or
walls is restricted.
130° Door Swing 90° Door Swing
23-7/8"
Behind
Frame
<
gS
Io---_p
4" Min
to Wall
Models A B C
36" 13" 15" 20-5/8"
42" 13" 19" 26-5/8"
48" 15" 20" 28-5/8"
Allow minimum clearances for freezer door
(Dimension A) and fresh food door (Dimension B)
for a full 130° door swing and to allow for pan
removal.
4" minimum clearance is required when door swing
is adjusted to 90°. If the 90° door stop position is
used, pan access is maintained, but pan removal is
restricted.
See illustrations pages 4 and 5 to determine
door swing interaction with adjacent cabinets or
countertops.

Design Guide
Refrigerator |
: 23-7/8" From
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require
filler strips to prevent interfeence with cabinet
door swing. The opening must allow for filler
strips.
| _ Rear of P
|| Refrigerator
Se
: 1" 2" 3"
C ' ‘ noe
Trim
S/N"
1-3/4"
3
2-3/4"
§
= 2" ts ifn} ob 24/2" st
vat brant bb atmant Gt
py bor pobeben bebe becten dea
a rr
de SS Brvctbens pesbescbscteoecece bono 2!
SOON be deedecdietede bs gya
y ; = I ' 1 ! ' 1
uy NN ON beeen ne eb eee dene eteeedeeeeeeeees 1"
NOB sO
VN sf
Ne ; 5
iN . . . , > ;
SO 3/4" Overlay
ass Panel
es
‘(Nominal
Size}
, NOG , » ‘
Re , fs
SON 5 >
. oo)
S : >
. > >
<3
“
:
Os
‘

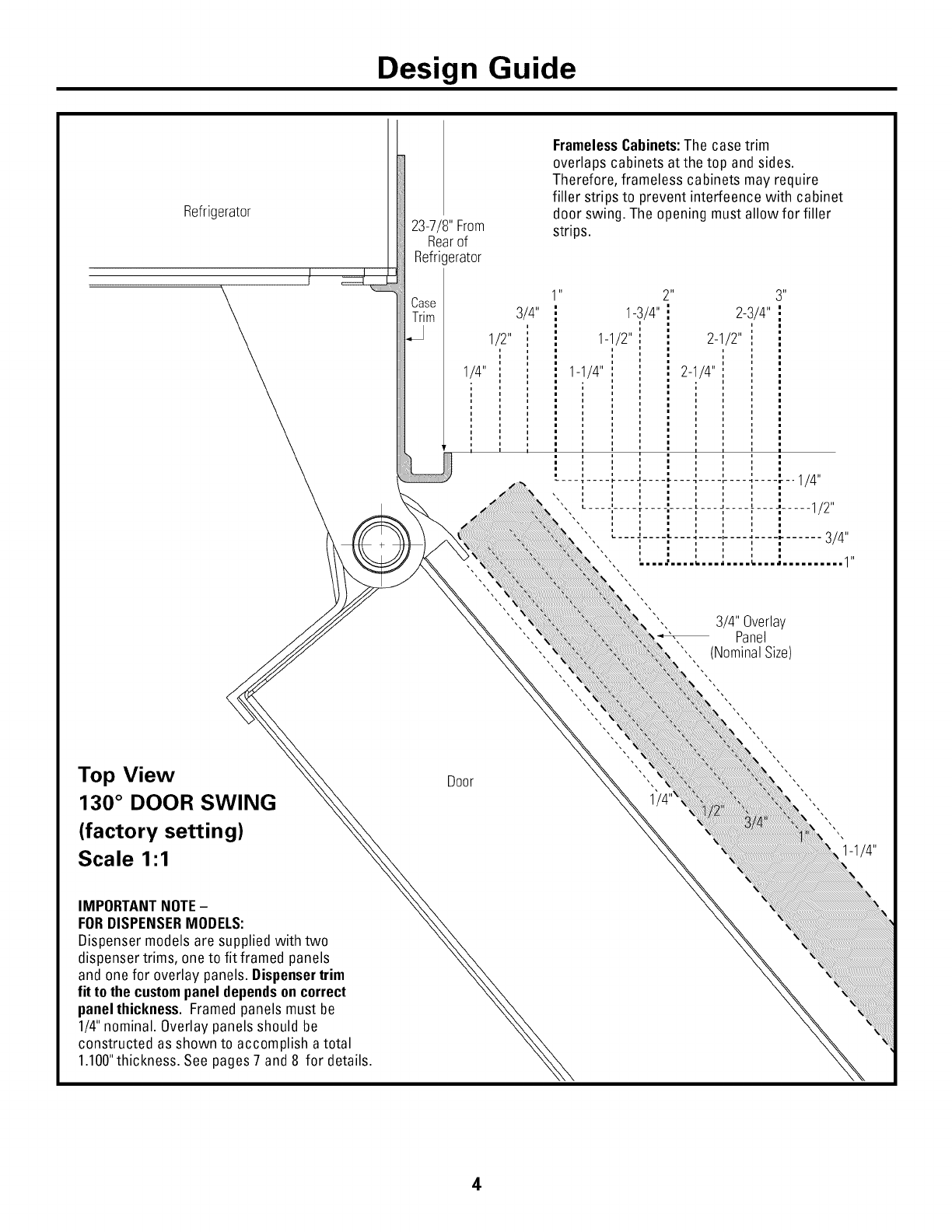

Top View Door A > . SY
Ke :
130° DOOR SWING a
. \ 54
(factory
setting)
va
DON.
. < ». 1-1/4"
Scale 1:1 Ne \
‘ \
IMPORTANT NOTE - ‘\ ,
FOR DISPENSER MODELS: ‘S
Dispenser models are supplied with two Y
dispenser trims, one to fit framed panels ‘
and one for overlay panels. Dispenser trim Ny
fit to the custom panel depends on correct \
panel thickness. Framed panels must be ‘\\
1/4” nominal. Overlay panels should be x
constructed as shown to accomplish a total
1.100" thickness. See pages 7 and 8 for details.

Design Guide
Frameless Cabinets:
The case trim overlaps
cabinets at the top
and sides. Therefore,
Refrigerator frameless cabinets may
require filler strips to
prevent interference with
cabinet door swing. The
opening must allow for
filler strips.
Case Trim
23-7/8"
From Rear of
Refrigerator
de---4--- qccc-
wrocctctss
a
\
F--- | L.- |
=
)
-----------------------------------------------------------4----+
Top View

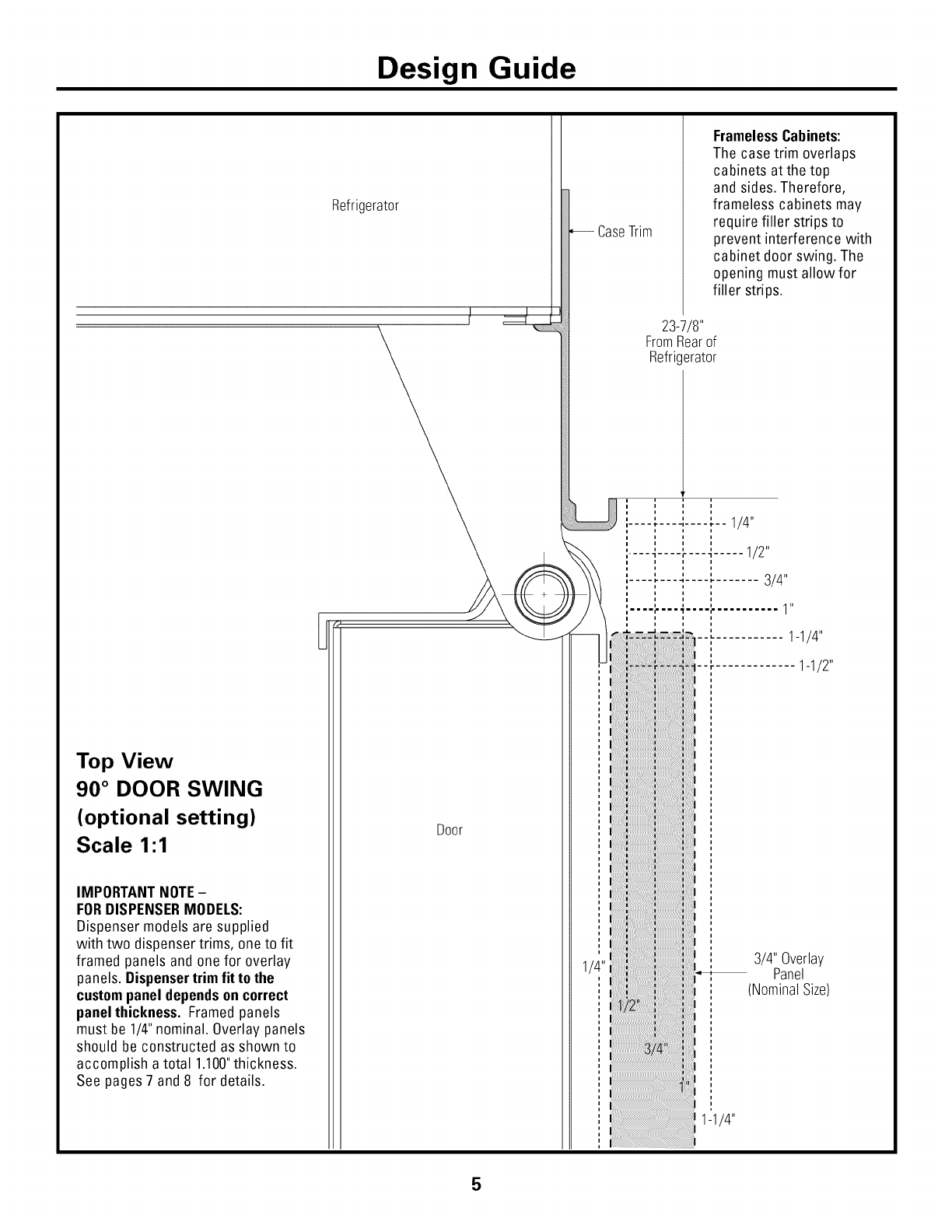

90° DOOR SWING
(optional setting)
Scale 1:1
Door
IMPORTANT NOTE —
FOR DISPENSER MODELS:
Dispenser models are supplied
with two dispenser trims, one to fit
framed panels and one for overlay 1/4"
panels. Dispenser trim fit to the
custom panel depends on correct
panel thickness. Framed panels
must be 1/4" nominal. Overlay panels
should be constructed as shown to
accomplish a total 1.100" thickness.
wr
cr
tt
rrr
ncn
rr
nn
nn
cn
nn
nnn
n
cn
snc
nde ccc
pesca
rcs
3/4" Overlay
Panel
(Nominal Size}
‘tts
st
ta
Sat
|
—
So
.-5---------
ee
-
----------
™
a
=
oa
—
lL
LL
LL
LL LL
LL
See pages 7 and 8 for details.
1-1/4"

Design Guide
CUSTOMIZATION BASICS:
Framed Or Overlay Panels, Custom Handles and Accessory Kits
Stainless Steel Wrapped Models
36" wide models - ZISS360N, ZISS360D
42" wide models - ZISS420N, ZISS420D
48" wide models - ZISS480N, ZISS480D
Trimmed Models
36" wide models - ZIS360N, ZISB360D, ZISW360D
42" wide models - ZIS420N, ZISB420D, ZISW420D
48" wide models - ZIS480N, ZISB480D, ZISW480D
Stainless Steel Wrapped Refrigerators
Stainless Steel wrapped refrigerators have wrapped
doors and grille panel, beveled edges, and tubular
stainless steel handles that coordinate with other
Monogram appliances. These models are shipped
ready for installation.
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized
with decorative panels. Field installed custom door and
grille panels are required.
Framed panels
You may install 1/4" thick custom panels from your
cabinet manufacturer. The decorative panel slides into
the factory installed trim. Or, order black, white and
stainless steel accessory panels from your Monogram
dealer.
/
Framed Panel
Standard Door Handles
Standard supplied handles shown in 1/4" panel position.
Overlay panels
You may also choose to install custom overlay panels
from your cabinet manufacturer. This design provides
a seamless appearance which integrates smoothly with
surrounding cabinetry.
a
3/4" Overlay Panel
10" Thick Spacer Panel
1/4" Thick Backer Panel
Ct kD
SA
Standard Door Handles
Standard supplied handles shown in 3/4" overlay panel position.
Door Handles
The standard supplied handles can be adjusted to
accommodate both framed or overlay panels. Custom
handles of your choice, supplied by your cabinet maker
can also be installed on overlay panels. If desired, you
may order ZKHSS2 Monogram stainless steel tubular
handle kit for 3/4" overlay panels.
Side Panels
Side panels must be used whenever the sides of the
refrigerator will be exposed.
Optional Accessory Kits
ZKHSS2: Monogram Tubular Stainless Steel handles
designed to fit 3/4” overlay panels.
Accessory Panels
White, black and stainless steel accessory panels are
available from your Monogram dealer. Panels are cut to
size and ready to install.
Black Stainless
etait Steel
Models
ZPS480N
ZPS420D
ZIS480N ZPB480N ZPW480N
ISB420D
ZIS360N ZPW360N ZPB360N ZPS360N

Design Guide
1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they must be
cut to the dimensions shown. The panels will slide
into the frame on the door and grille.
Non-Dispenser Models
If the custom panel is less than 1/4" thick and it fits
loosely in the door frame it can be backed up with
a piece of filler material or foam tape to improve
the fit.
5/16"
Trim
Reveal
IMPORTANT NOTE: Maximum total panel weight:
® Fresh food door panel — 75 lbs.
® Freezer door panel — 53 lbs.
® Grille Panel — 18 lbs.
IMPORTANT NOTE - Dispenser Models
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
¢ If the panel is less than 0.250" thick a noticeable
gap may be created around the dispenser trim.
Foam tape may be applied on the door to improve
the fit.
¢ If the panel is more than 0.250" thick, the
dispenser trim cannot be secured to the door.
See Dispenser Trim Fit Example, page 9.
Dispenser Cutout
a
Grille Panel 8
. F
Dispenser
Cutout |
G C
Side-by-Side (in inches}
F Fresh Food
Panel | | Panel” 36" Models 33-7/8
42” Models 39-7/8
+ 48” Models 45-7/8
The framed panel must be 1/4” nominal thickness
to fit the dispenser trim.
g 68-3/8
9-1/2 68-3/8
9-1/2 68-3/8
14-9/16
14-9/16
18-9/16
18-9/16
24-9/16
26-9/16

Design Guide

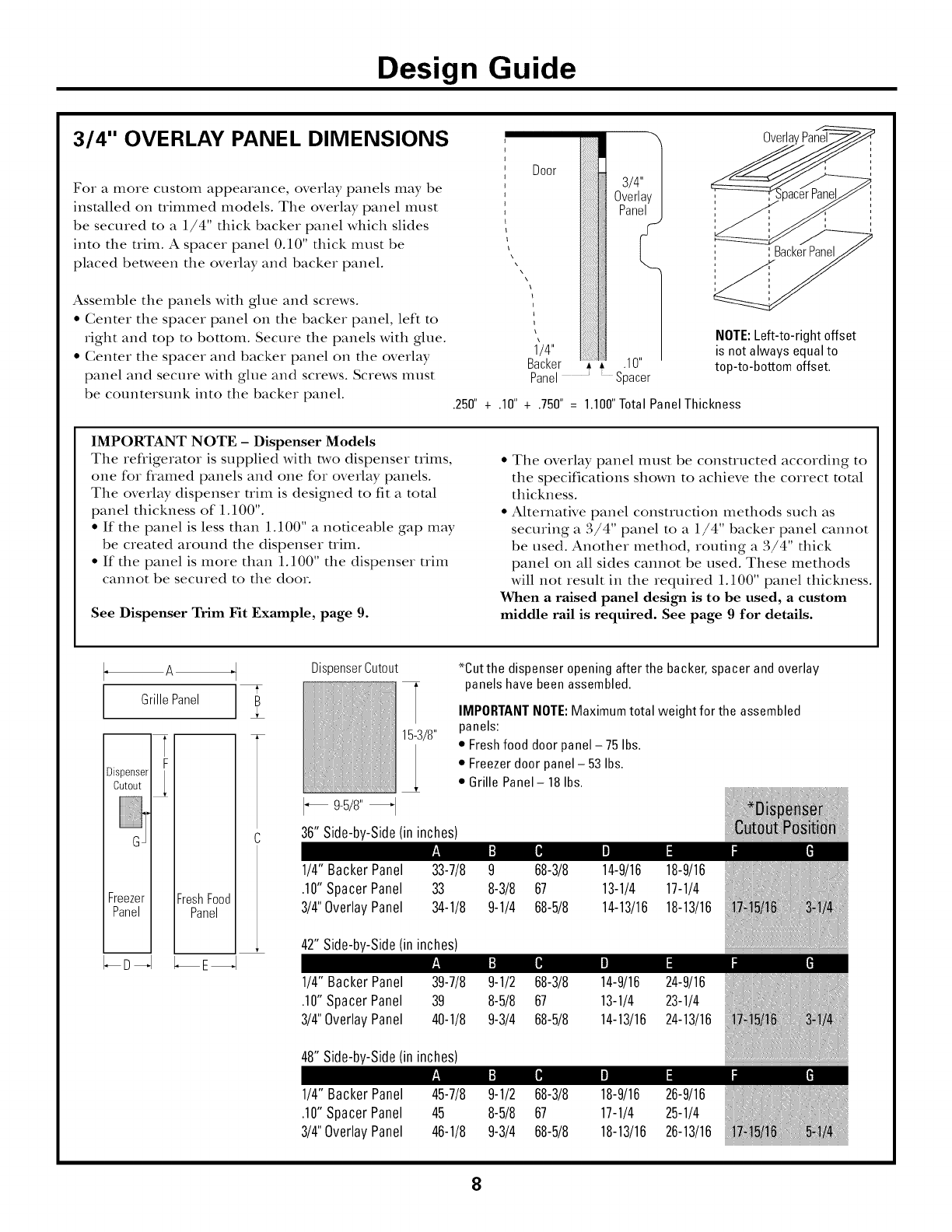

3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may be
installed on trimmed models. The overlay panel must
be secured to a 1/4" thick backer panel which slides
into the trim. A spacer panel 0.10" thick must be \
placed between the overlay and backer panel. .
Assemble the panels with glue and screws.
¢ Center the spacer panel on the backer panel, left to i
right and top to bottom. Secure the panels with glue.
| 3a"
| Overlay
| Panel
Overlay Panel
NOTE: Left-to-right offset
\
¢ Center the spacer and backer panel on the overlay ant | ag" is not always equal to
.
acker
“a
4
top-to-bottom
offset.
panel and secure with glue and screws. Screws must Panel ' &~ Spacer
be countersunk into the backer panel.
250° + .10" + .750" = 1.100" Total Panel Thickness
IMPORTANT NOTE - Dispenser Models
The refrigerator is supplied with two dispenser trims, * The overlay panel must be constructed according to
one for framed panels and one for overlay panels. the specifications shown to achieve the correct total
The overlay dispenser trim is designed to fit a total thickness.
panel thickness of 1.100". ¢ Alternative panel construction methods such as
¢ If the panel is less than 1.100" a noticeable gap may securing a 3/4" panel to a 1/4" backer panel cannot
be created around the dispenser trim. be used. Another method, routing a 3/4" thick
¢ If the panel is more than 1.100" the dispenser trim panel on all sides cannot be used. These methods
cannot be secured to the door. will not result in the required 1.100" panel thickness.
See Dispenser Trim Fit Example, page 9. middle rail is required. See page 9 for details.
When a raised panel design is to be used, a custom
a
Grille Panel
a
Dispenser
Cutout
|
—+—
Freezer Fresh Food
Panel Panel
kK—p |b -¢-_]
Dispenser Cutout *Cut the dispenser opening after the backer, spacer and overlay
Tor : panels have been assembled.
IMPORTANT NOTE: Maximum total weight for the assembled
panels:
® Fresh food door panel — 75 lbs.
© Freezer door panel — 53 lbs.
* Grille Panel — 18 lbs.
36” Side-by-Side (in inches}
1/4” Backer Panel —-33-7/8 68-3/8 14-9/16 18-9/16
10” Spacer Panel 33 8-3/8 67 13-1/4 17-1/4
3/4" Overlay Panel 34-1/8 9-1/4 ~—-68-5/8 14-13/16 — 18-13/16
42” Side-by-Side (in inches)
1/4” Backer Panel —-39-7/8 14-9/16 —-24-9/16
10” Spacer Panel 39 8-5/8 67 13-1/4 23-1/4
3/4" Overlay Panel = 40-1/8 »=—-9-3/4_—«68-5/8 14-13/16 24-13/16
48” Side-by-Side (in inches}
A B oi D a
1/4” Backer Panel 45-7/8 + 9-1/2 —-68-3/8 18-9/16 26-9/16
10” Spacer Panel 45 8-5/8 67 17-1/4 25-1/4
3/4" Overlay Panel = 46-1/8 »=—-9-3/4_—«68-5/8 18-13/16 26-13/16

Design Guide

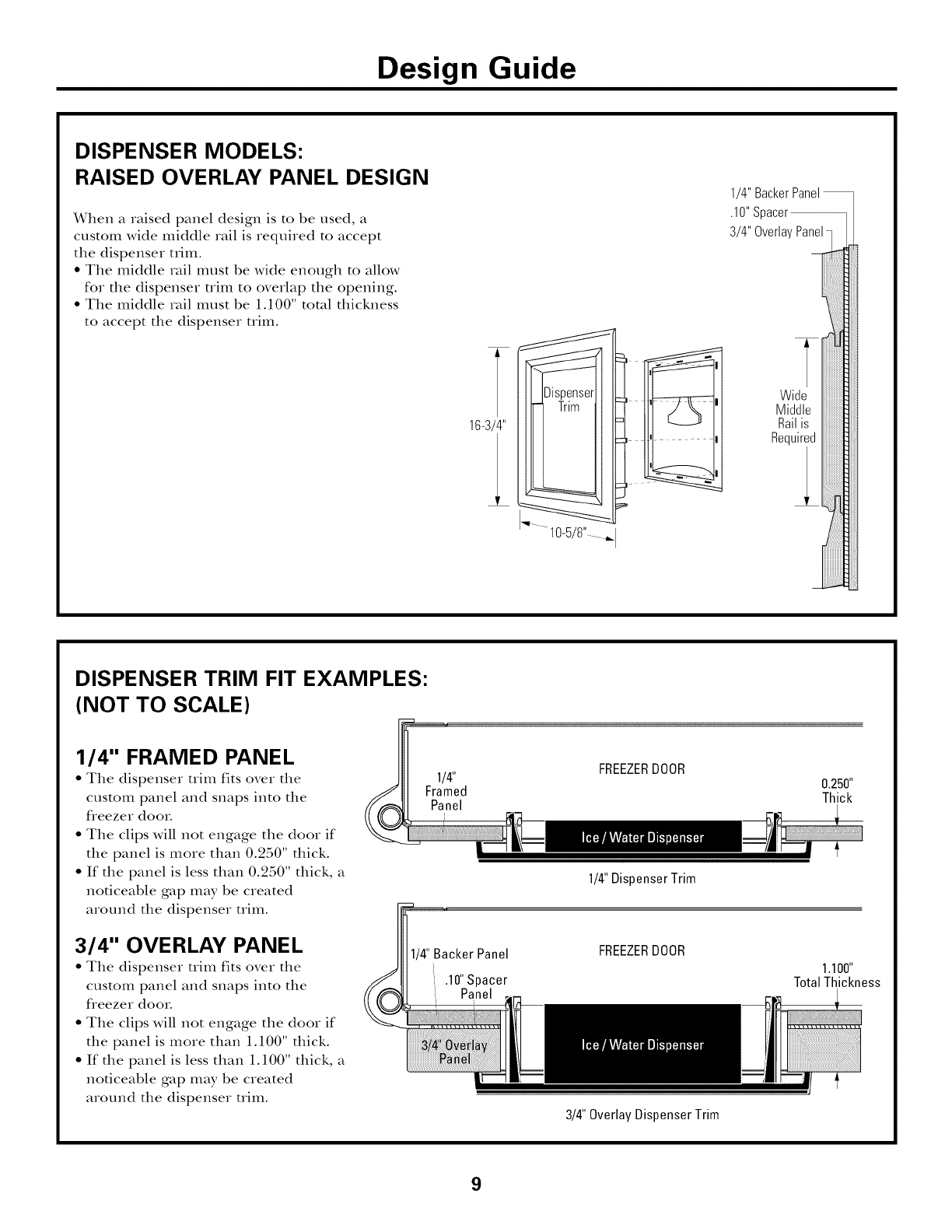

DISPENSER MODELS:
RAISED OVERLAY PANEL DESIGN
When a raised panel design is to be used, a
custom wide middle rail is required to accept
the dispenser trim.
¢ The middle rail must be wide enough to allow
for the dispenser trim to overlap the opening.
¢ The middle rail must be 1.100" total thickness
to accept the dispenser trim.
1/4" Backer Panel
10" Spacer
3/4" Overlay Panel
:
Wide
Middle
Rail is
Required
DISPENSER TRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4" FRAMED PANEL
¢ The dispenser trim fits over the
custom panel and snaps into the
freezer door.
¢ The clips will not engage the door if
the panel is more than 0.250" thick.
¢ If the panel is less than 0.250" thick, a
noticeable gap may be created
—§h
Kerem eMtclm RI eLliesiclg je
FREEZER DOOR
0.250"
1/4’ Dispenser Trim
around the dispenser trim.
3/4"
OVERLAY
PANEL
1/4"
Backer
Panel
¢ The dispenser trim fits over the
custom panel and snaps into the
freezer door.
¢ The clips will not engage the door if
the panel is more than 1.100” thick. 3/4” Overlay
¢ If the panel is less than 1.100" thick, a Pane]
noticeable gap may be created
around the dispenser trim.
| .10" Spacer
Panel
rt
FREEZER DOOR
1.100”
Kerem eMtclm RI eLliesiclg
3/4" Overlay Dispenser Trim
Total Thickness

Design Guide

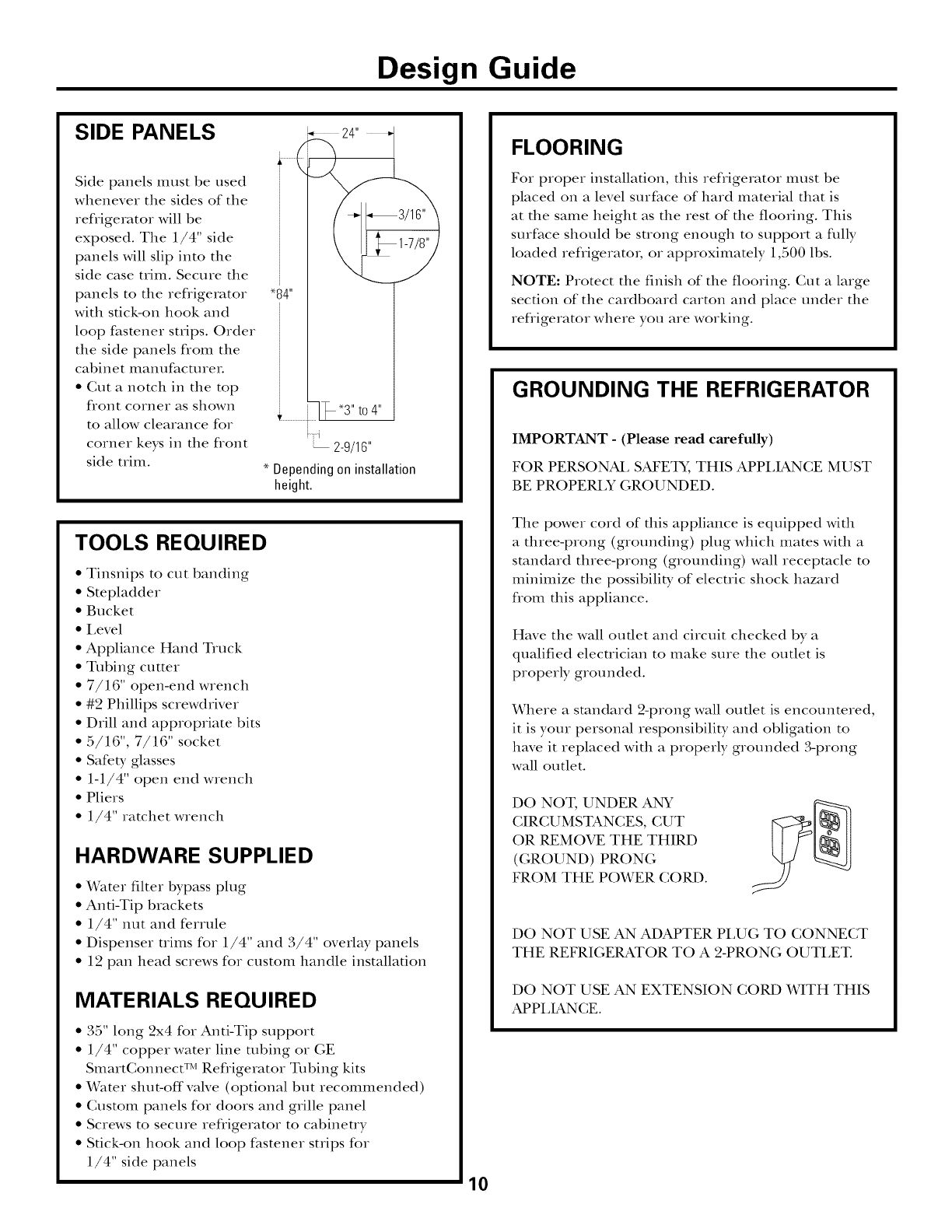

SIDE PANELS
Side panels must be used
whenever the sides of the
refrigerator will be
exposed. The 1/4" side
panels will slip into the
side case trim. Secure the
panels to the refrigerator
with stick-on hook and
loop fastener strips. Order
the side panels from the
cabinet manufacturer.
¢ Cut a notch in the top
front corner as shown
to allow clearance for
corner keys in the front
side trim.
* Depending on installation
height.
FLOORING
For proper installation, this refrigerator must be
placed on a level surface of hard material that is
at the same height as the rest of the flooring. This
surface should be strong enough to support a fully
loaded refrigerator, or approximately 1,500 Ibs.
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
refrigerator where you are working.
TOOLS REQUIRED
¢ Tinsnips to cut banding
¢ Stepladder
¢ Bucket
¢ Level
¢ Appliance Hand Truck
¢ Tubing cutter
¢ 7/16" open-end wrench
¢ #2 Phillips screwdriver
¢ Drill and appropriate bits
¢ 5/16", 7/16" socket
¢ Safety glasses
¢ 1-1/4" open end wrench
¢ Pliers
e 1/4" ratchet wrench
HARDWARE SUPPLIED
¢ Water filter bypass plug
¢ Anti-Tip brackets
e 1/4" nut and ferrule
¢ Dispenser trims for 1/4” and 3/4" overlay panels
¢ 12 pan head screws for custom handle installation
MATERIALS REQUIRED
¢ 35" long 2x4 for Anti-Tip support
¢ 1/4" copper water line tubing or GE
SmartConnect™ Refrigerator Tubing kits
e Water shut-off valve (optional but recommended)
¢ Custom panels for doors and grille panel
¢ Screws to secure refrigerator to cabinetry
¢ Stick-on hook and loop fastener strips for
1/4” side panels
GROUNDING THE REFRIGERATOR
IMPORTANT - (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
The power cord of this appliance is equipped with
a three-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded 3-prong
wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFRIGERATOR TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.

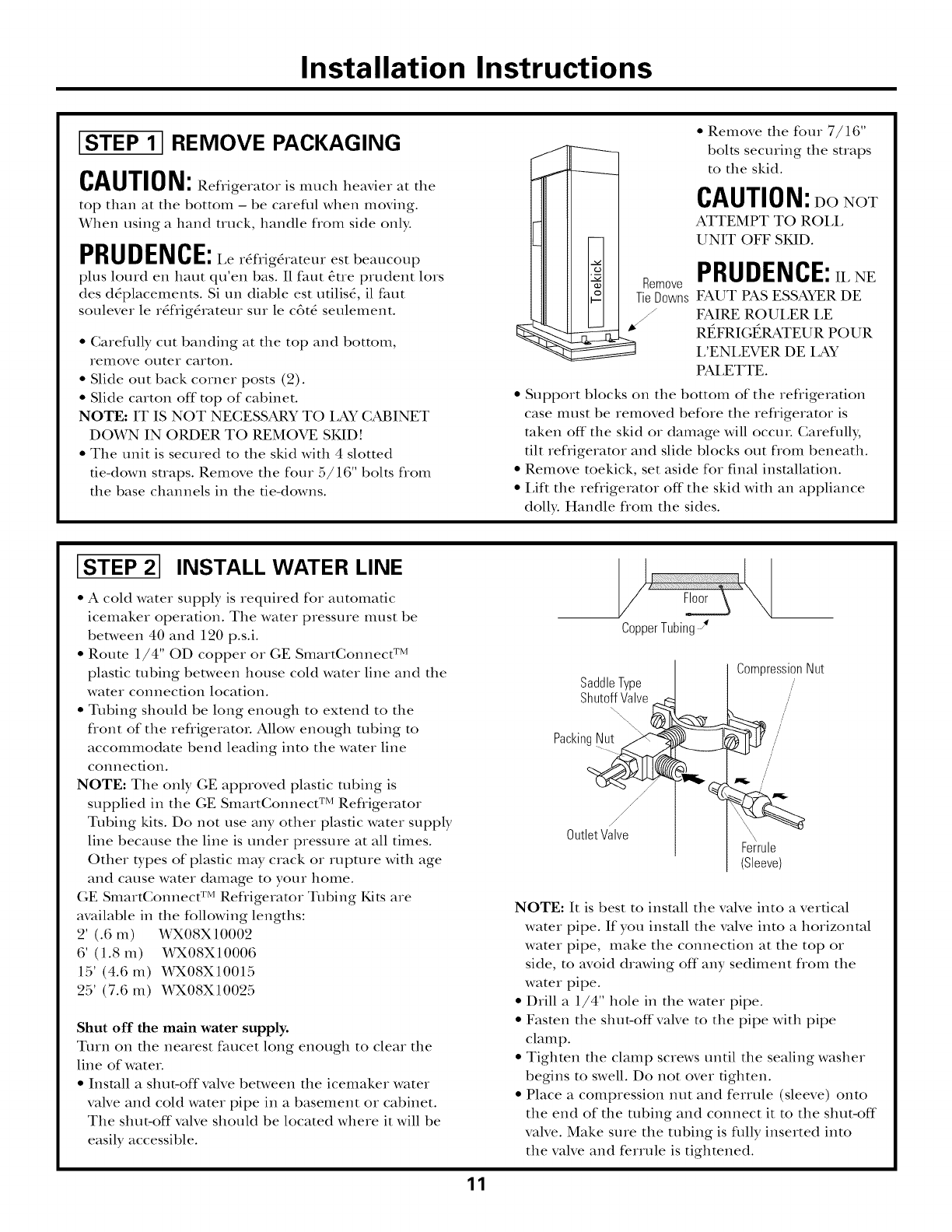

Installation Instructions
STEP 1} REMOVE PACKAGING
CAUTI 0 N: Refrigerator is much heavier at the
top than at the bottom — be careful when moving.
When using a hand truck, handle from side only.
P R U D E N C E: Le réfrigérateur est beaucoup
plus lourd en haut qu’en bas. II faut étre prudent lors
des déplacements. Si un diable est utilisé, il faut
soulever le réfrigérateur sur le cété seulement.
¢ Carefully cut banding at the top and bottom,
remove outer carton.
* Slide out back corner posts (2).
¢ Slide carton off top of cabinet.
NOTE: IT IS NOT NECESSARY TO LAY CABINET
DOWN IN ORDER TO REMOVE SKID!
¢ The unit is secured to the skid with 4 slotted
tie-down straps. Remove the four 5/16" bolts from
the base channels in the tie-downs.
¢ Remove the four 7/16"
bolts securing the straps
to the skid.
CAUTION: po nor
ATTEMPT TO ROLL
UNIT OFF SKID.
Remove PRUDENCE: xe
Tie Downs FAUT PAS ESSAYER DE
a FAIRE ROULER LE
REFRIGERATEUR POUR
L'ENLEVER DE LAY
PALETTE.
¢ Support blocks on the bottom of the refrigeration
case must be removed before the refrigerator is
taken off the skid or damage will occur. Carefully,
tilt refrigerator and slide blocks out from beneath.
¢ Remove toekick, set aside for final installation.
¢ Lift the refrigerator off the skid with an appliance
dolly. Handle from the sides.
Toekick
STEP 2} INSTALL WATER LINE
¢ A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 40 and 120 p.s.i.
¢ Route 1/4" OD copper or GE SmartConnect™
plastic tubing between house cold water line and the
water connection location.
¢ Tubing should be long enough to extend to the
front of the refrigerator. Allow enough tubing to
accommodate bend leading into the water line
connection.
NOTE: The only GE approved plastic tubing is
supplied in the GE SmartConnect™ Refrigerator
Tubing kits. Do not use any other plastic water supply
line because the line is under pressure at all times.
Other types of plastic may crack or rupture with age
and cause water damage to your home.
GE SmartConnect™ Refrigerator Tubing Kits are
available in the following lengths:
2) (6m) WX08X10002
6' (1.8m) WX08X10006
15' (4.6m) WX08X10015
25' (7.6 m) WX08X10025
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the
line of water.
¢ Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet.
The shut-off valve should be located where it will be
easily accessible.
Floor
Copper Tubing *
Compression Nut
Saddle Type /
Shutoff Valve /
Packing Nut an /
RES,
Outlet Valve \
Ferrule
{Sleeve}
NOTE: It is best to install the valve into a vertical
water pipe. If you install the valve into a horizontal
water pipe, make the connection at the top or
side, to avoid drawing off any sediment from the
water pipe.
¢ Drill a 1/4" hole in the water pipe.
¢ Fasten the shut-off valve to the pipe with pipe
clamp.
¢ Tighten the clamp screws until the sealing washer
begins to swell. Do not over tighten.
¢ Place a compression nut and ferrule (sleeve) onto
the end of the tubing and connect it to the shut-off
valve. Make sure the tubing is fully inserted into
the valve and ferrule is tightened.
11

Installation Instructions
STEP 2|(continued)
¢ Turn on the main water supply and flush debris.
Run about a quart of water through the tubing into
a bucket. Shut off water supply at the shut-off valve.
NOTE: Saddle type shut-off valves are included in
many water supply kits. Before purchasing, make
sure a saddle type valve complies with your local
plumbing codes.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
STEP 2A| WATER LINE
INSTALLATION WITH A REVERSE
OSMOSIS SYSTEM
Skip this step when not using an RO System
If the water supply to the refrigerator is from a
Reverse Osmosis Water System use the refrigerator’s
filter bypass plug. Using the refrigerator’s water
filtration cartridge with the RO filter can result
in hollow ice cubes.
STEP 3] INSTALL SIDE PANELS
Skip this step when not using side panels
If you are using 1/4” side panels, they should be
inserted into the case trim. Fasten the panels to the
refrigerator with stick-on hook and loop fastener
strips before setting refrigerator in place.
12
STEP 4] INSTALL ANTI-TIP BRACKETS
WARN I N G: ANTI-TIP PRECAUTIONS
The refrigerator is top-heavy and must be secured to
prevent the possibility of tipping forward.
ATTENTION: precautions contre Les
BASCULEMENTS
Le réfrigérateur est beaucoup plus lourd en haut et il
faut le maintenir en place pour éviter la possibilité de
son basculement vers l’avant.
¢ Cut a 2" x 4" block, 35" long and secure the block to
the mounting brackets provided using #12 or #14
wood screws.
oxACut-*”
35"
Length
Installation Mounting
Height
Bracket
From Floor
Screws Mounted into~
Vertical Wall Studs
e Secure the bracket with wood block to the back wall
so that it is 84" (or your installation height) from
the finished floor. Use #12 or #14 wood screws.
See illustration.
Brack Block Brackets
rackets
Not
Required
Required
||
Beneath
a
Soffit
Side View
¢ Screws must penetrate at least one inch into vertical
wall studs.
¢ Before pushing the refrigerator into the opening,
plug the power cord into the receptacle. Open the
grille panel and reach into the opening at the back
to grasp the power cord. Pull the power cord into
the opening as you push the refrigerator back.
¢ Gently push refrigerator into the opening with
hands against front corners.
Important Note: When the refrigerator is installed under a soffit or if
there is not enough height for this method of security, brackets cannot
be used. Proceed to step 5 to level the refrigerator and then to step 6
to secure refrigerator to cabinets. The refrigerator must be secured to
prevent tipping.

Installation Instructions

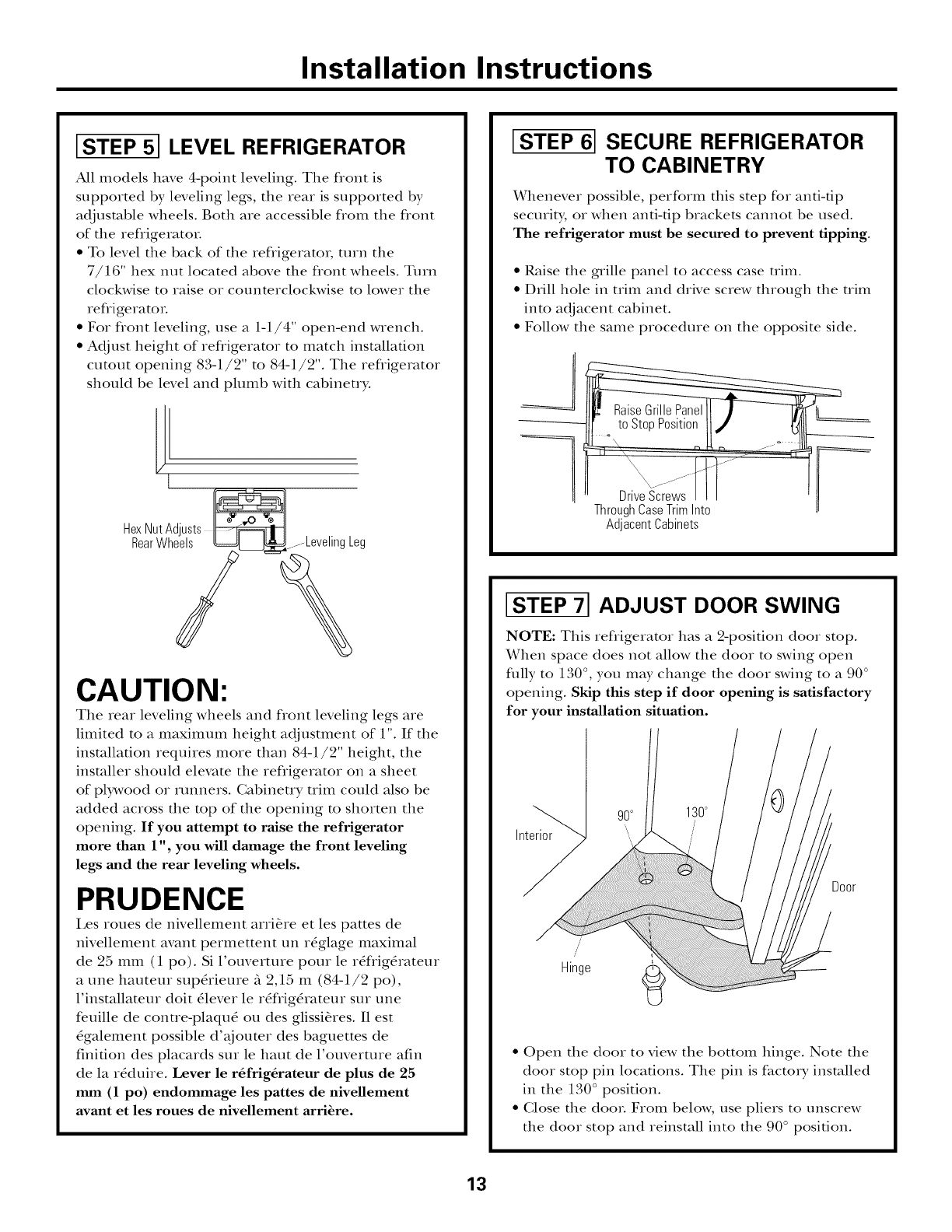

STEP 5| LEVEL REFRIGERATOR
All models have 4-point leveling. The front is
supported by leveling legs, the rear is supported by
adjustable wheels. Both are accessible from the front
of the refrigerator.
¢ To level the back of the refrigerator, turn the
7/16" hex nut located above the front wheels. Turn
clockwise to raise or counterclockwise to lower the
refrigerator.
¢ For front leveling, use a 1-1/4" open-end wrench.
¢ Adjust height of refrigerator to match installation
cutout opening 83-1/2" to 84-1/2". The refrigerator
should be level and plumb with cabinetry.
Hex Nut Adjusts
Rear Wheels
) Leveling Leg
CAUTION:
The rear leveling wheels and front leveling legs are
limited to a maximum height adjustment of 1”. If the
installation requires more than 84-1/2" height, the
installer should elevate the refrigerator on a sheet
of plywood or runners. Cabinetry trim could also be
added across the top of the opening to shorten the
opening. If you attempt to raise the refrigerator
more than 1", you will damage the front leveling
legs and the rear leveling wheels.
PRUDENCE
Les roues de nivellement arriére et les pattes de
nivellement avant permettent un réglage maximal
de 25 mm (1 po). Si Pouverture pour le réfrigérateur
aune hauteur supérieure a 2,15 m (84-1/2 po),
Pinstallateur doit élever le réfrigérateur sur une
feuille de contre-plaqué ou des glissiéres. II est
également possible d’ajouter des baguettes de
finition des placards sur le haut de ouverture afin
de la réduire. Lever le réfrigérateur de plus de 25
mum (1 po) endommage les pattes de nivellement
avant et les roues de nivellement arriére.
13
STEP 6} SECURE REFRIGERATOR
TO CABINETRY
Whenever possible, perform this step for anti-tip
security, or when anti-tip brackets cannot be used.
The refrigerator must be secured to prevent tipping.
¢ Raise the grille panel to access case trim.
¢ Drill hole in trim and drive screw through the trim
into adjacent cabinet.
¢ Follow the same procedure on the opposite side.
Raise Grille Panel
to Stop Position
\
vet
Through Case Trim Into
Adjacent Cabinets
STEP 7} ADJUST DOOR SWING
NOTE: This refrigerator has a 2-position door stop.
When space does not allow the door to swing open
fully to 130°, you may change the door swing to a 90°
opening. Skip this step if door opening is satisfactory
for your installation situation.
Interior
¢ Open the door to view the bottom hinge. Note the
door stop pin locations. The pin is factory installed
in the 130° position.
¢ Close the door. From below, use pliers to unscrew
the door stop and reinstall into the 90° position.

Installation Instructions
STEP 8| INSTALL GRILLE PANEL
To insert framed or overlay panel into the grille:
¢ Raise the grille panel to stop position.
<l
=
Raise | [f ze y
crile LY Loosen
Panel |" Side
Screw — 1] _—- Screw
Adjust Nut Below
Spring to Accommodate
Panel Weight
¢ Loosen screws on side trim behind frame. Remove
bottom trim.
¢ Slide panel over the metal backer panel and into
the trim.
¢ If necessary, tap with a wood block until panel slips
under the top trim piece.
¢ Reassemble bottom trim. Tighten screws.
¢ Adjust the hinge spring to accommodate the panel
weight, if necessary.
14

Installation Instructions
STEP 9} INSTALL FRAMED PANELS
ge fol. _fq) ee
e ly & 4
& je bee q
8 ee fo
los 9}
ee ®
La
0 7 8
ey e
Install door panels:
¢ Open door to 90°. Remove the 6 Phillips head screws
from the door handle.
¢ Remove handle. Retain all screws.
¢ Remove 6 screws holding trim, lift off trim. Retain
screws.
¢ Slide framed panel into the door trim.
Dispenser Models Only:
¢ The dispenser controls protrude beyond the face of
the freezer door. To avoid damage to the dispenser,
the trim at the top of the door should be removed.
¢ Remove the screws holding the top trim in place.
¢ Place the freezer panel into the bottom channel and
slide into the hinge side trim.
¢ Reinstall the top trim piece with screws.
¢ There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original
screws in the FRONT screw holes.
¢ Secure the handle to the door using the REAR screw
holes.
¢ Follow the same procedures to install the opposite
panel.
¢ Check to be sure handles are evenly aligned with each
other at the top. To adjust, loosen handle screws and
slide up or down. Tighten screws.
Go to Step 9A for Overlay Panels
Handle
Trim
Door Trim
Refrigerator
Door
PRAMAS
Supplied
Handle Shown
in 1/4" Panel
Position
~ Use Front Holes
/ to Secure Trim
Use Rear Holes
to Secure Handle
15

Installation Instructions
STEP 9A| INSTALL OVERLAY PANELS
Door Trim
Handle
Trim
Refrigerator
Door
Move
Forward
For 3/4"
Panel
Supplied Handle
Shown in Overlay
GP) Ps | PSS
& lo. Ore dag
fe lot | ae o
» of ge 0
we ph ieee
Uy
® Ue os
Install door panels:
¢ Open door to 90°. Remove the 6 Phillips head screws
from the door handle.
¢ Remove handle. Retain all screws.
¢ Remove 6 screws holding trim, lift off trim. Retain
screws.
¢ Slide overlay panel into the door trim.
Dispenser Models Only:
¢ The dispenser controls protrude beyond the face of
the freezer door. To avoid damage to the dispenser,
the trim at the top of the door should be removed.
¢ Remove the screws holding the top trim in place.
¢ Place the assembled freezer panel into the bottom
channel and slide into the hinge side trim.
¢ Reinstall the top trim piece with screws.
¢ There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original
screws in the REAR screw holes.
¢ Secure the handle to the door using the FRONT screw
holes.
¢ Follow the same procedures to install the opposite
panel.
¢ Check to be sure handles are evenly aligned with each
other at the top. To adjust, loosen handle screws and
slide up or down. Tighten screws.
Panel Position
7 Use Front Holes
SL to Secure Handle
Oe ~~ “Use Rear Holes
to Secure Trim
Custom handles
If you are using custom handles, the handle must be
properly secured to the panel before sliding the panel
into the trim.
¢ The cabinet manufacturer will supply the custom
handle and hardware.
¢ Secure the door trims using both the FRONT and
REAR screw holes. Use pan head screws to secure the
trim. A package of 12 extra pan head screws can be
found in the literature package. Discard supplied
handles.
16

Installation Instructions
STEP 10! INSTALL DISPENSER
TRIM
Skip this step is you are installing a stainless
steel wrapped or a non-dispenser refrigerator.
There are two dispenser trims shipped with your
refrigerator. Select the appropriate trim for your
application.
A
\
Framed
Panel
Trim
Compare the dispenser trims. Note that the inside
depth of the frames are different. Choose the trim
with less depth for framed panels, choose the
deeper one for overlay panels.
Dispenser trim fit over the custom panel depends on
correct panel thickness. See pages 7 and 8 for panel
construction information.
\
|
¢ Press and snap the dispenser trim into the dis-
penser recess on the refrigerator door.
If an excessive gap exists around the dispenser trim
or if the panel fits loosely in the door frame, foam
tape may be applied to help improve the fit. Remove
the trim and panel and apply foam tape to the door
around the dispenser and in the corners.
17
STEP 11} CONNECT WATER SUPPLY
Check to be sure that refrigerator power cord is not
plugged into the wall outlet.
House
Water Supply
\ Refrigerator
Water Supply
_
¢ Locate and bring tubing to the front of the cabinet.
¢ Turn the water on to flush debris from line. Run
about a quart of water through tubing into a bucket,
then shut-off water.
Copper Tubing:
¢ Slip a 1/4" nut and ferrule (provided) over both
ends of the copper tubing. Insert tube into the
union fitting on the unit and tighten nut to union.
¢ Turn on the water to check for leaks.
GE SmartConnect™ Tubing:
¢ Insert the molded end of the tubing into the
refrigerator connection. Tighten the compression
nut until it is just hand tight.
¢ Tighten one additional turn with a wrench.
Overtightening can cause leaks!
¢ Turn on the water to check for leaks.
Note: Make sure excess tubing length does not
interfere with toekick installation.

Installation Instructions
STEP 12} CONNECT POWER
¢ Check to be sure the power cord is plugged into
the receptacle.
&
<i
]
Raise
=|]
Grille
Panel
7
\
Electrical
Master
Light
Outlet
Switch
¢ Check to make sure power to refrigerator is on by
opening refrigerator door to see if interior lights
are on.
¢ The temperature controls are preset at 37°F for the
fresh food section and 0°F for the freezer.
¢ Allow 24 hours to stabilize before making
adjustments.
STEP 13} START ICEMAKER
Power Switch
<a
Green Power Light
¢ Flip the switch to I (ON). The icemaker will begin
operation automatically.
¢ Be sure nothing interferes with the sweep of the
feeler arm.
¢ Discard the first full bucket of ice cubes.
¢ To turn the icemaker off, set the switch to O
(OFF).
STEP 14| INSTALL TOEKICK
¢ Locate the supplied toekick (shipped taped to
the side of the refrigerator). Install with 2 screws
provided, adjust to desired height and tighten
screws,
¢ A custom toekick can be installed to match or
complement the surrounding cabinetry. Use the
supplied toekick as a template to cut the shape.
Supplied Toekick
a.
coy
Xe
1/4" or Thicker Toekick
tT
“&
%
INSPECT FINAL INSTALLATION
Check door alignment
Stand back away from the refrigerator to inspect the
final installation.
¢ Check to be sure handles are evenly aligned with
each other at the top. To adjust, loosen handle
screws and slide up or down. Tighten screws.
¢ During shipping or the addition of heavy door
panels may have caused the doors to move slightly
out of alignment.
“ Door Out of
Alignment
5
a
18
— 5/16" Wrench
~ Raise
— nn
¢ If necessary, the fresh food door may be adjusted
up or down to align with the freezer door.
¢ Use a 5/16" wrench to adjust the hinge pin as
shown.

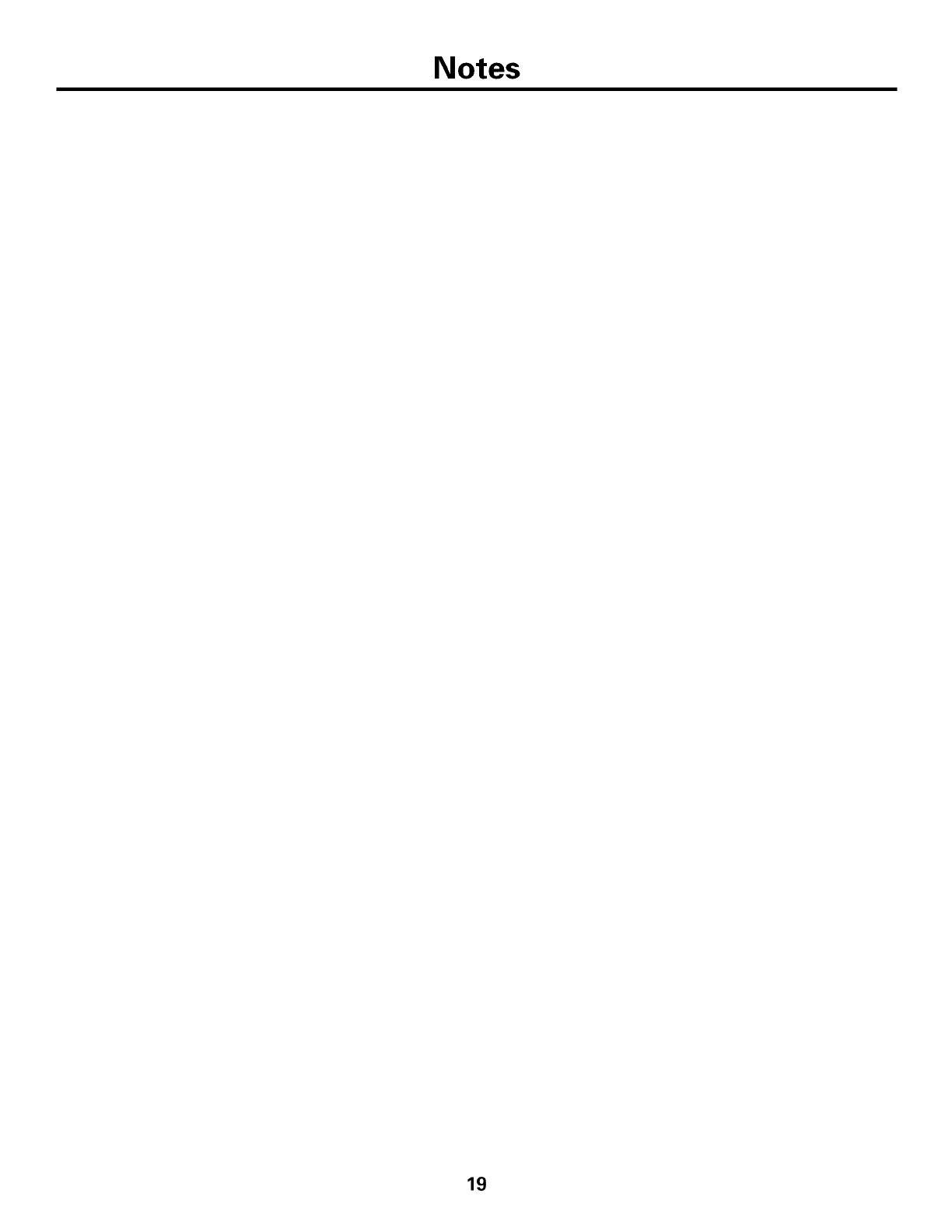

Notes
19

Note: While performing installations described in this book,
safety glasses or goggles should be worn.
For Monogram® local service in your area, call
1-800-444-1845,
Note: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
Monogram:
GE Consumer Products
Pub. No. 49-60138-2 poner eae
Dwg. No. 164D4373P001
©2003 General Electric Company
10-03 JR
25739-1
