monolith ZEUS004 User manual

CLEANING SOLENOID VALVE
1. Unscrew the screws like the picture
2. Extract the rubber membrane.
3. Check if there are impurities and clean.
4. Clean the holes on the rubber membrane.
SOLENOID VALVE TECHNICAL DRAWING
G1/2
97,5
G1/2
SW23
ELECTRONIC MIXER TAP
POWER SUPPLY : 4x1,5V batteries AA
TECHNICAL DATA –INSTRUCTION FOR THE ASSEMBLAGE –PRECAUTIONS FOR USE
ZEUS004
Serie R

INFORMATIONS FOR THE USER
SPECIFICATIONS:
POWER SUPPLY
Alkaline batteries (4x1,5V AA)
MINIMUM WORKING PRESSURE
0,5 bar
MAXIMUM WORKING PRESSURE
4 bar
MAXIMUM WORKING TEMPERATURE
70°C
MINIMUM SENSING DISTANCE
0,5cm
MAXIMUM SENSING DISTANCE
15 cm
FLOW RANGE
5 l/min with 3 bar pressure
FLEXIBLES CONNECTION
G 1/2" F
FLEXIBLES LENGHT
35 cm
WARNING LOW BATTERY
yes
VANDAL PROOF SYSTEM
yes
ANTI-LEGIONELLA SYSTEM
yes

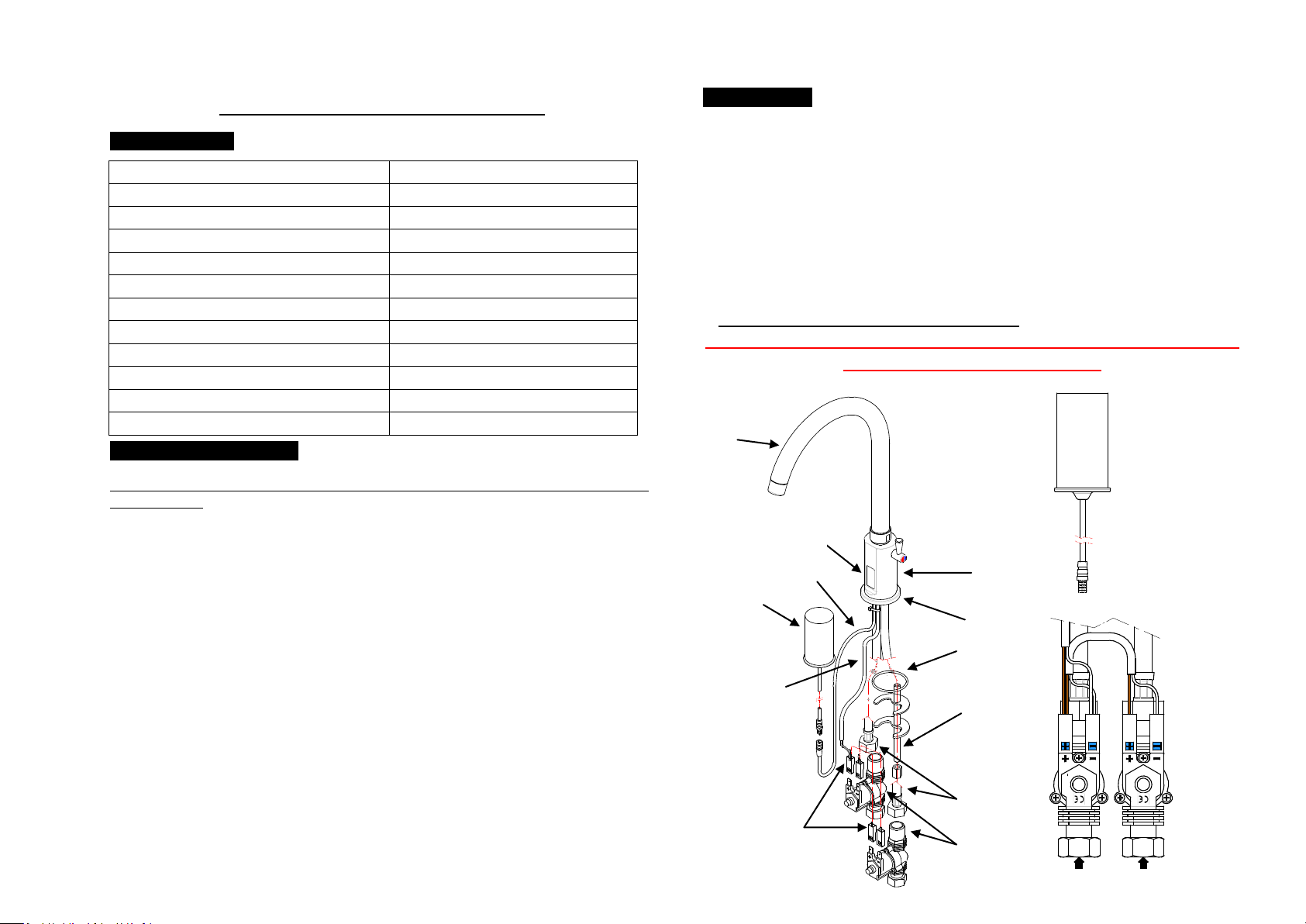

ASSEMBLY INSTRUCTIONS:
In case of new plumbing , always proceed to drain the pipes before
installation.
1. Turn off the water supplies.
2. Screw the stay bolt (H) to the mixer tap (G). Insert the base (I), the O-Ring (J)
and screw the flexibles (B) to the mixer tap (G).
3. Place the tap on the sink by passing the flexibles (B) and the sensor cables
(C1,C2) in the sink hole, staring it with the fixing kit.
4. Screw the swinging spout (F) to the tap (G).
5. Connect the solenoid valves (D) to the flexibles (B) according to the input of the
water (see pic. 1).
6. Connect the connectors (K) to the solenoid valves (D), paying attention to the
polarity of the cables (see pic. 1).
7. Secure the battery holder (E) on the wall under the sink, using the velcro and
making sure that the cable outlet is facing downward. (see pic. 2)
8. Insert the 4 alkaline batteries in the battery holder (E). Pay attention to the poles
+ and -.
9. Conect the cable (C1)to the battery holder (E).
FUNCTIONING:
The infrared sensor (A) identifies the presence of the hands and the valve begins to
provide the water till the sensor will no more detect the hands in front of the sensor
or until the expiration of the maximum time of closing (VANDAL PROOF SYSTEM).
If the infrared system detects an object for 5 minutes, the system cut off the water
supply until the object will not be removed. Once the foreign object has been
removed, the tap will resume regular operation.
The low battery is indicated by flashing red LED light with increasing speed.
The solenoid valve closes and the system hangs waiting for the battery replacements.
After 24 hours of non-use, the tap is automatically activated to prevent the
LEGIONELLA bacterium (ANTI-LEGIONELLA SYSTEM).
Failure to supply water, check that the batteries are charged and/or correctly
positioned.
The operation of the tap is guaranteed only with water free of impurities, therefore it
is important install the faucet filters.
FAILURE IN FOLLOW THE INFORMATIONS CONTAINED IN THIS LEAFLET
WILL INVALIDATE THE WARRANTY
Battery holder
D
B
H
G
J
Serie R Serie R
Solenoid valve
pic. 1
pic. 2
F
A
K
I
C1
E
C2

A
B
C
D
E
F
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
A
B
C
D
E
F
45 O
210
25 O
G1/2
273
370
95
5
55 O
SW23
40 O
76
Rev. 00
G1/2
97,5
G1/2
SW23
ZEUS004
ALIMENTAZIONE : BATTERIE ALCALINE (4x1,5v AA)
POWER SUPPLY : Alkaline batteries (4x1,5V AA)
