Waterproof Camera Dive Housing
FOR SONY RX100
User’s Manual
PID 10603

Check if the following items are included in your
Waterproof Case package. If anything is missing,
contact Monoprice Customer Service for a replacement.
• Waterproof Case with Installed Waterproof Seal and
Tethered Flash Diffuser
• Neck Strap
Please ensure that you read this guide before using the
Waterproof Case
• Wrist Strap
• Silicone Grease for the Waterproof Seal
• Spare Waterproof Seal
• Silica Gel Dry Packs
• User’s Manual
Read This First
Before you use the Waterproof Case, make sure it is functioning
correctly and does not leak. To check for leaks, close the camera
case before putting the camera in and hold it under water at an
approximate depth of 5.9 inches (15cm) for about three minutes.
If it leaks, contact Monoprice Technical Support for assistance.
Disclaimer
• Monoprice reserves the right to change the contents
of this guide at any time without prior notice.
• Illustrations and screenshots in this guide may dier
slightly from the actual equipment.
• Monoprice, its subsidiaries, and distributors of the
Waterproof Case are not liable for any damages due
to misuse of the case.
•Please also carefully read the Camera User Guide
supplied with your camera.
• : Things you should be careful about.
• : Hints for getting more out of your Waterproof Case.
• The various types of memory cards that can be used in
the camera are collectively referred to as memory cards
in this guide.

Leaving the camera in the Waterproof Case and placing
WARNING Denotes the possibility of serious injury
or death.
CAUTION Denotes the possibility of injury.
NOTICE Denotes the possibility of damage to
the Waterproof Case and Camera
it in direct sunlight or other places subject to high
temperatures may result in fire, or cause the case to burst.
Monoprice Technical Support for assistance.

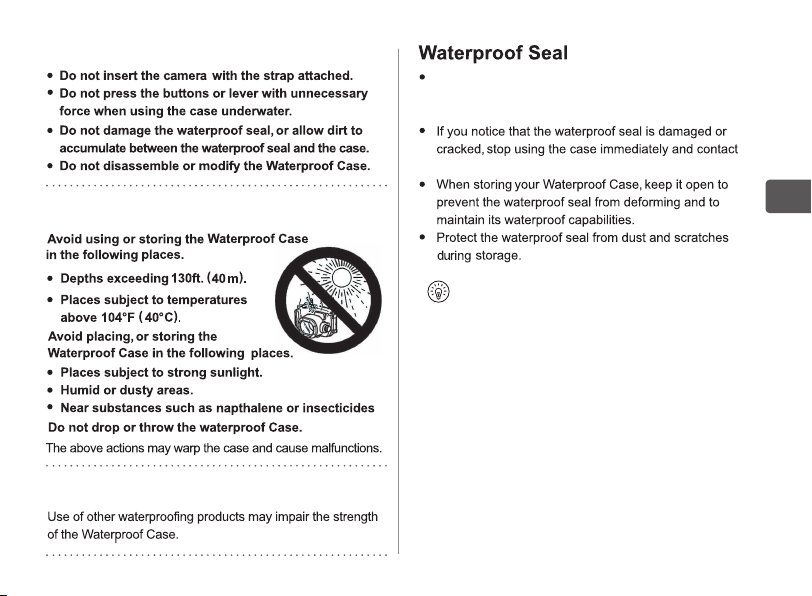

Safety Precautions
WARNING
CAUTION
NOTICE

Check the Monoprice website for replacement seals
and additional silicone grease.
The following actions could result in leakage:
The following actions may warp the case and
cause malfunctions:
To ensure that the case remains watertight, you should
replace the seal approximately once a year.
Debris stuck to the waterproof seal may cause water
leakage. The presence of even a single strand of hair
or a tiny grain of sand in the seal can cause leaks.
Use only the supplied siliconegrease or an
exact replacement.
Monoprice Technical Support for assistance.

Introduction
Thank you for purchasing th waterproof case his manual explains not only how to use
the waterproof case but also includes important precautions regarding its use. Please read
this manual carefully before you use the waterproof case and retain it for future reference
Before you use the waterproof case, check that it is functioning correctly and does not leak
Refer to Preparing he Waterproof Case for details (P )
hall not be liable for any consequential damages arising from corrupted or lost
data due to mistaken operation or malfunction of the waterproof case, the camera, the
battery pack r the memory card, results in the failure of a movie or photo to be
recorded
1

Safety Precautions
Waterproof ase and for
.
- While using the Waterproof ase underwater, pay close attention to your current situation
at all times. Failure to do so may lead to an accident.
Waterproof ase breaks or leaks, remain calm and surface according
to usual safety conventions.
- After you use the Waterproof ase, be sure to remove the camera f you leave the
waterproof case containing the camera in direct sunlight or in a high-temperature place,
this may cause a re or the case to burst.
- Do not use the Waterproof ase as a personal otation device (life preserver).
- Do not use the Waterproof ase at water depths exceeding 130 ft. his may cause
an accident, present a burn hazard, or cause the case to leak.
- When in the water, do not press the lever of the Waterproof ase with unnecessary force.
his may warp the casing and cause leak.
- When cleaning the Waterproof ase, do not spray water under pressure at the waterproof
seal his may cause an accident, present a burn hazard, or cause the case to leak.
- Do not disassemble or modify the waterproof case his may cause an accident, present a
burn hazard, or cause the case to leak.
2

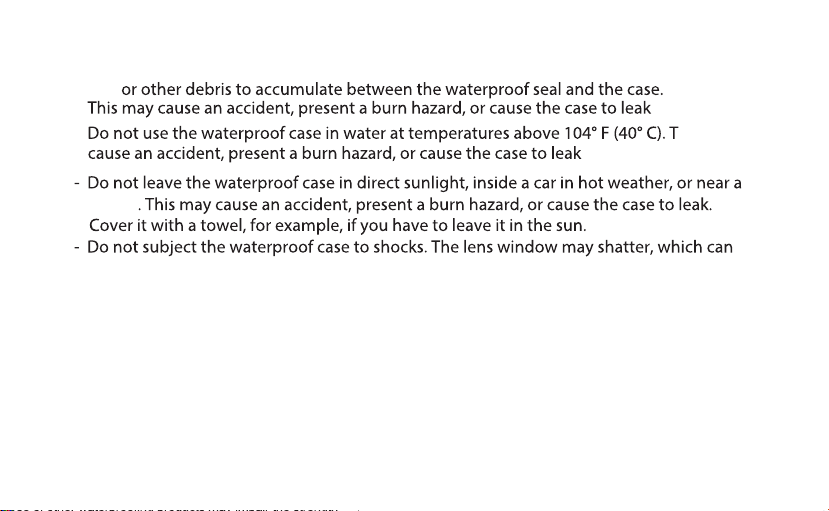

- Do not damage the waterproof seal, scratch its contact surfaces, or allow, hair, sand,
dirt,
.
- his may
.
heater
lead to injury.
- Before installing the camera in the waterproof case, remove the wrist strap and any
other optional accessories, from the camera.
3

Handling Precautions
1. Avoid opening or closing the aterproof ase near water. When you are installing
the camera or changing the memory card or the batter pack, choose a place with
low humidity well away from salty sea air.
2. Use only the supplied silicone grease. Use of other waterproong products may impair
the strength of the aterproof ase. If any other waterproong product is mistakenly
applied, wipe it o immediately.
3. Before going into or getting out of the water, handle the aterproof ase carefully in
order to prevent damage or loss.
4. Avoid using the aterproof ase for long periods of time in hot temperatures
interior will become hot, which can damage the camera. When using the cas
days, do not leave the waterproof case in direct sunlight. Also, turn o the camera regularly.
5. Remove sand and debris from the spaces surrounding the buttons and zoom lever by
rinsing them with water. Do not use the buttons or zoom lever while sand or debris is .
6. Battery life is reduced in cold temperatures. When you use the waterproof case in very
cold places, keep it warm by putting it in a bag whenever you are not shooting. It is not
advisable to use waterproof case in temperatures below the freezing point.
4

7. Moving the waterproof case rapidly between hot and cold temperatures may cause
.
5

About Water Leakage
If the waterproof case leaks, stop using the camera immediately. Do not use it in this state
under any circumstance. If you use the camera in this state, this may cause a fire, electric
shock, or injury. Remove the battery pack and thoroughly wipe the waterproof case
interior and the camera until they are dry.
Notes Regarding The Waterproof Seal
Because the waterproof seal is designed to ensure that the
waterproof case remains waterproof, it is important that you
observe the following:
- Perform a rolling motion with your fingertip to remove
the waterproof seal from the waterproof case so you do not
damage the seal. Do not dig your fingernails into it or use
pointed or metallic objects to remove it.
- Do not forcibly pull the waterproof seal. Forcibly pulling the seal may overstretch it,
which may cause the waterproof case to not close properly, resulting in leaks.
- While attaching the waterproof seal, do not forcibly twist or pull the seal. Extreme care
should be taken to ensure the waterproof seal is level around the mounting groove.
Please check to ensure that the waterproof seal is working.6

- Make sure you check the waterproof seal before use Debris (e.g. hair, sand, lint or dirt)
to the waterproof seal may cause leaks Even a single strand of hair or a tiny grain
- Use your ngers to apply grease to the seal. Do not use paper or cloth
- A damaged or cracked waterproof seal may cause leaks. You can purchase
7

8
Names of Parts
1
23
4
8910 11
12
13
14 15
16
17
18
19
20
7
6
5
3.Hot Shoe
7.Control Ring
11.Power On/O
15.Video Button
1.Shutter Button
5.Bracket Hole
9.Set Button
13.Mode dial
17.Control Dial/Right
2. Zoom Lever
6.Lens
10. Fn Button
14.MENU Button
18.Control Dial/Down 19.Delete Button
4. Light Shield
8.Control Dial/Left
12.Control Dial/Up
16.Safety Lock
20.Play Button

Preparing The Waterproof Case
Before securing the camera in the waterproof case, check over the waterproof case to make
sure there are no problems.
1. Check the waterproof case
Make sure the exterior is not damaged and the lens window is not dirty.
If it is dirty, gently wipe it with a soft and dry cloth.

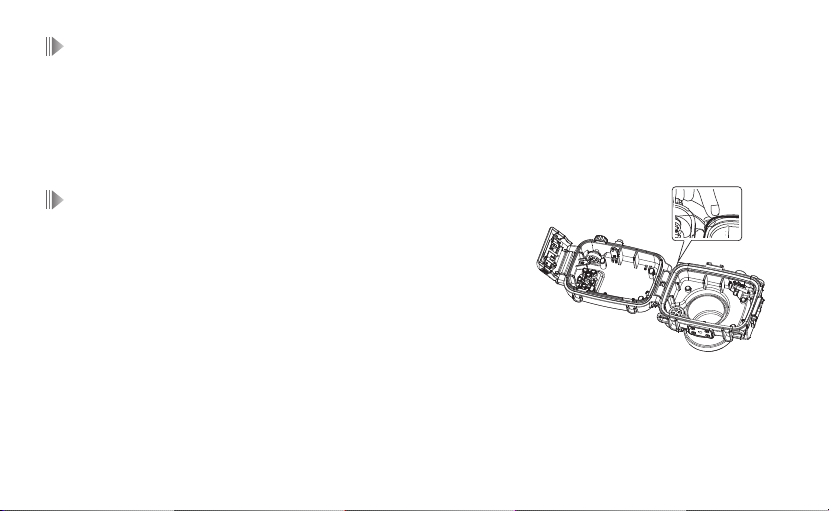

2. Remove the waterproof seal from the mounting groove
Before the first use and after each successive use, perform a
rolling motion with your fingertip to remove the seal. Do not dig
your fingernails into it or use pointed or metallic objects to remove it.
3.Check the waterproof seal and mounting groove
* Make sure there is no debris (e.g. hair, sand or dirt) attached to the seal or in the
mounting groove.
* To remove debris from the seal, put about a droplet of grease on your index finger,
hold the seal between your index finger and thumb, and slide your fingers around
the seal.
9
* Make sure the seal is not cracked or damaged. If the seal is damaged, replace it.

4.Apply grease to the entire waterproof seal then attach the seal
* Before the first use and after each successive use, put about a droplet of grease
on your index finger, hold the seal between your index finger and thumb, and
slide your fingers, around the seal so the grease is applied evenly.
* Do not to damage the seal when applying the grease.
* Do not forcibly pull the seal when putting it in the mounting groove.
5.Close the waterproof case
Seat the camera securely inside the case before closing it.
6.Hold the waterproof case in water
Submerge the waterproof case slowly in a tub filled with water
and make sure there are no leaks.
7. Wipe the exterior of the waterproof case with a soft, dry cloth
When using commercially available anticondensation products, the anticondensation
solution should be applied only to the inside surface of the lens window using a soft, dry
cloth. If the solution comes in contact with any other surface, wipe it off immediately as it
could lead to deterioration of the waterproof case.
iNOTES
10

Preparing The Camera
Set the camera's recording program to [underwater ] to ensure your recordings have natural
looking colors with toned-down blues.
Before using the camera underwater, make sure you save your important recordings to a
computer. See saving and sharing your recordings in the camera's instruction manual.
1Insert a memory card (if necessary) and attach a fully-charged battery pack
2Remove the grip belt and the optional wrist or shoulder strap, if attached
3Turn on the camera and change in advance the camera s settings as necessary
* Set the recording program to [underwater]. See Special Scene ecording program in
the camera's instruction manual
* Check that the image stabilizer is set to [Dynamic]. See dvanced mage Stabilization in
the camera's instruction manual.
* Check that simultaneous recording is not turned o if you want to take photos with
an aspect ratio of 16:9 while you record movies. See aking hotos While ecording ovies
(Simultaneous recording) in the camera's instruction manual.
* Check that the wireless controller is not turned o if you want to access menus and
settings while the camera is secured in the waterproof case. See [Wireless emote ontrol]
under the system setup menu in the camera's instruction manual.
11

If necessary, adjust the LCD s brightness See Adjusting The Position and Brightness
of S
4. Turn o the camera
iNOTES
For important details about the cameras settings and restrictions while the recording program
set to [underwater] or [surface], see the Power/Others section of the specications in the
camera s instruction manual.
12

Securing The Camera in the Waterproof Case
The camera must be secured in the waterproof case before recording underwater.
Perform the following procedure to secure the camera properly.

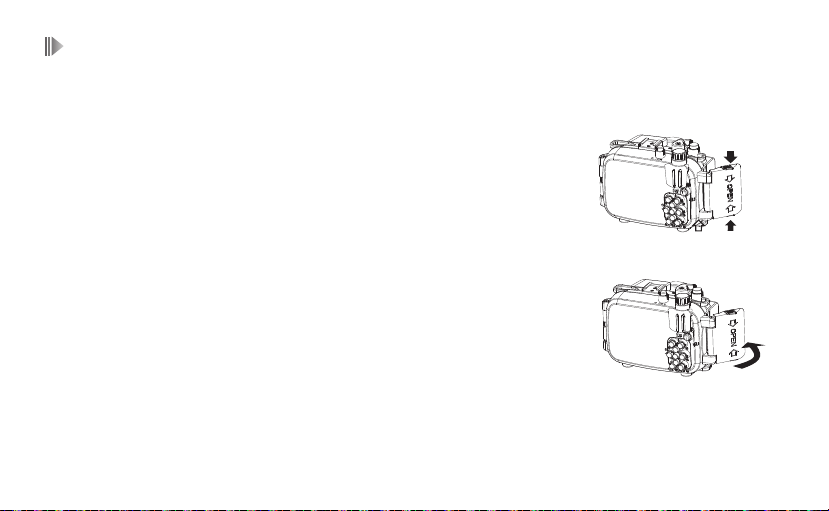

1.Open the waterproof case
Squeeze the recessed buttons on each side of the cover latch.
* Release the catch
* Open the case
2.Insert the camera
* Ensure the camera is off.
*Gently insert the camera into the case.
13
3.Close the waterproof case
* Fasten the catch
* Close the case securely, make sure that the waterproof seal and its
contact surfaces are free of debris (e.g. hair, sand or dirt). Even a single
strand of hair or a tiny grain of sand caught in the seal can cause leaks.
*Insert a new silica gel dry pack into the case to
absorb any moisture that might accumulate.

4 Make sure the buttons and zoom lever are operating correctly
* If they are not operating correctly, remove the camera from the waterproof case
and the camera again.
Before recording, it is important to make sure the waterproof case is functioning correctly and
does not lea . Hold the waterproof case in a tub lled with fresh water for 5 to 10 seconds.
Remove the waterproof case and then hold it underwater again for 30 seconds to 1 minute.
Finally, remove the waterproof case and hold it underwater again for 3 to 5 minutes, pressing
the buttons and moving the zoom lever to check for leaks.
Testing the waterproof case
14
5Attach the wrist strap to the waterproof case

Recording Movies and Taking Photos
After the camera is secured in the waterproof case, you are ready to start recording movies
and taking photos
1. Turn on the camera
* Press “ POWER ”
* The ON/OFF(CHG) indicator on the
2. Make a recording
* Press “ START/STOP ”to begin/end recording a movie or “ PHOTO ” to take a photo
* Use the wrist strap and hold the
3. Turn o the camera
* Press “ POWER ”
* The “ON/OFF(CHG)” indicator on
15
