Monoprice 35381 User manual

Sous-Vide 1200-Watt Immersion Cooker
P/N 35381/35382
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
•Do not fill water over the MAX etch mark on the stainless steel pump housing.
•Only the stainless steel pump housing and water cap are dishwasher safe.
•If the cooker falls into the water, immediately unplug it from the AC power outlet,
then allow it to fully dry before reuse.
•Unplug the cooker from the power source when not in use. Never unplug the unit
by pulling on the power cord. Always grasp the connector head.
•Do not touch the device or the power cord with wet hands.
•Do not use power extension cords. Always plug the cooker directly into a nearby,
grounded AC power outlet.
•This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
•Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
•Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
•This cooker has no user serviceable parts. Do not attempt to open, service, or
modify this device.
•The cooking container, stainless steel pump housing, and the food bags all get hot
during use. Allow them to fully cool before emptying the water.
•Do not expose this cooker to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a stove, or leave it in direct sunlight.
•Use only sealed zip bags or vacuum bags when cooking. Do not use plastic wrap.
•The cooker requires a 4.25" (11cm) deep pot or container with a minimum capacity of
2.64 gallons (10 liters).

3
INTRODUCTION
Thank you for purchasing this Sous-Vide 1200-Watt Precision Cooker! This cooker heats and
circulates water to cook/heat food contained in plastic zip or vacuum bags. Sous-vide
cooking is a slow cooking method, which ensures that the food is cooked evenly and that
it retains its natural moisture. The sous-vide method prevents overcooking the exterior
surface of the food and produces food that is particularly fresh and tasty.
FEATURES
•+68 ~ +194°F (+20 ~ +90°C) temperature range
•1200 watts maximum cooking power
•±1.8°F (±1.0°C) temperature stability
•2.25 gallons (8.50 liters) per minute circulation pump
•4.0 gallon maximum bath size
ONLINE SUPPORT
Monoprice is pleased to provide free online support. For order related issues, contact the
Customer Service department through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [e-mail]
For technical issues, contact the Technical Support department through the online chat
button on our website www.monoprice.com during regular business hours, 7 days a week.
You can also get assistance through email by sending a message to [email protected]

4
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Sous-vide precision cooker
1x Sous-vide adjustable clamp
1x User's manual

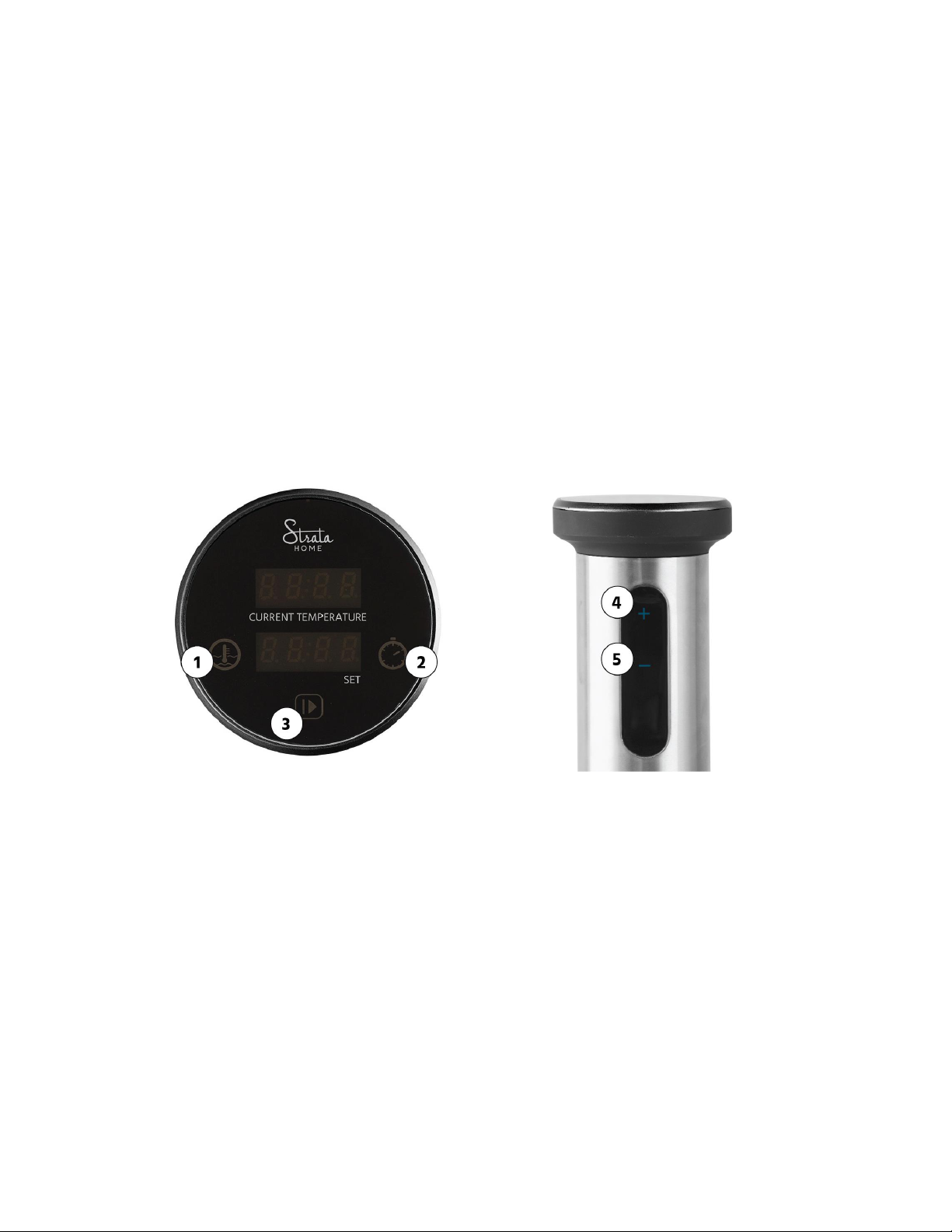

PRODUCT OVERVIEW
1. Temperature Button
2. Timer Button
3. Play/Start Button
4. Increment Button
5. Decrement Button
SETUP
Changing Temperature Units
•Press and hold the Play/Start button for about 3 seconds to toggle between
Fahrenheit and Celsius temperature units.

5
Setting the Timer
1. Press the Timer button on the Control Panel, then press the Increment button to set
the hours.
2. Press the Timer button to save the hours value, then press the Increment and/or
Decrement button to set the minutes.
3. Press the Play/Start button to save the minutes value. The Timer button will blink
for about 3 seconds, indicating that your timer is properly set. Once the
temperature reaches the target temperature, the timer will start the countdown.
Setting the Flow Direction
The cooker can circulate water in a clockwise or counterclockwise direction. Additionally, it
can be set to direct the output of the pump into the side of the container, to protect
delicate foods, such as eggs or salmon, or to prevent the water jet from being blocked by
food.
1. Twist the Pump Cap clockwise to unlock it from the Pump Housing.
2. Position the openings in the side of the Pump Cap, as desired. Insert the retaining
tabs into the slots, then turn the cap counterclockwise to lock it in place.
Calibrating the Temperature
The temperature sensor on the cooker is extremely accurate and is calibrated at the
factory. However, if you want the readings on the cooker to match that of your
thermometer, perform the following steps to recalibrate the cooker.
1. Determine the difference between the temperature reading on the cooker and the
temperature reading on your thermometer. You can change the cooker's reading by
up to ±9.9°C.
2. Press and hold the Temp button for about 5 seconds. The display will show 0.0°.
3. Press the Increment button or Decrement button to add or subtract up to 9.9°C.
4. Press the Temp button to save the set value.

6
COOKING WITH SOUS VIDE
1. Ensure that the cooker is unplugged from the power source.

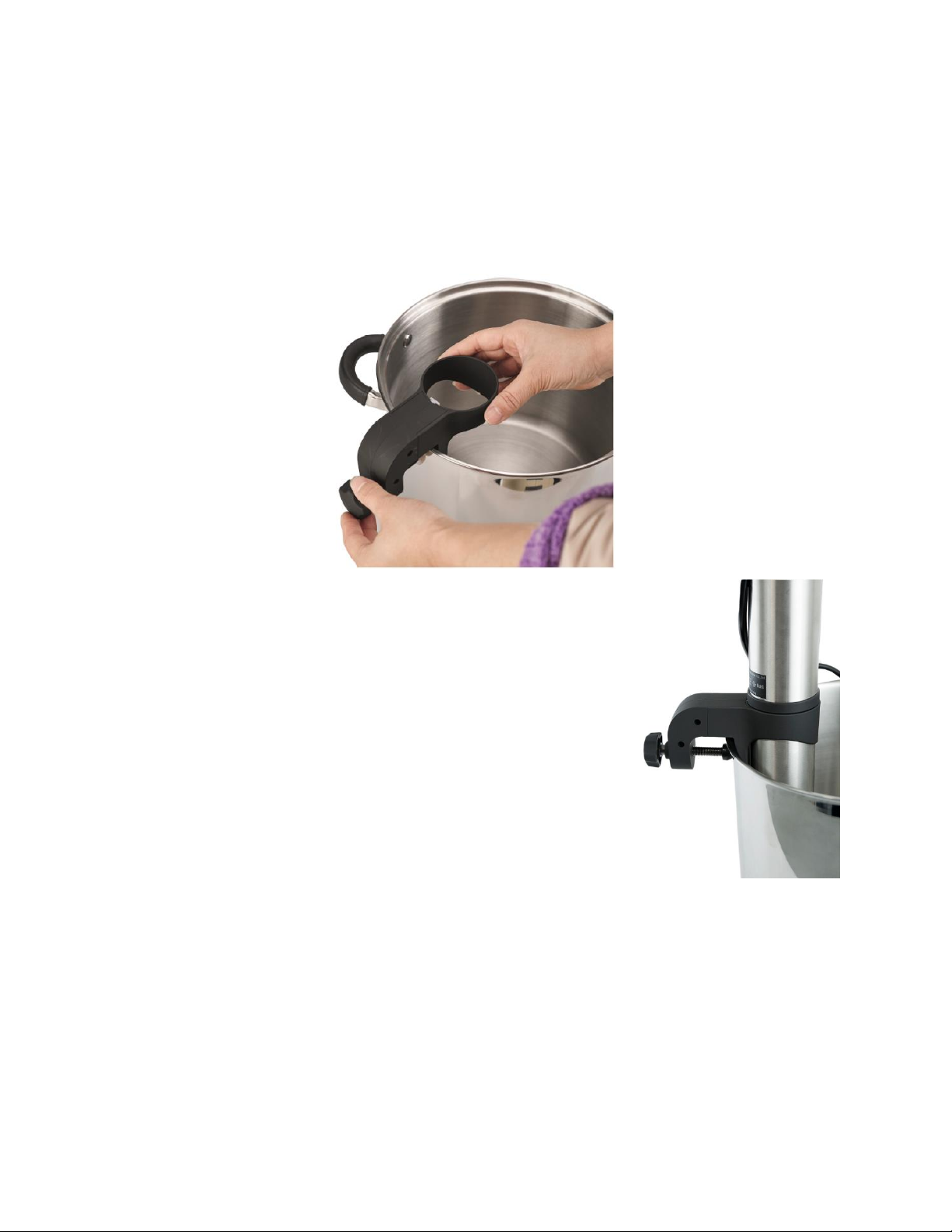

2. Install the Adjustable Clamp on the side of your pot or container, then clamp it
firmly in place.
3. Insert the cooker into the Adjustable Clamp.
4. Fill the pot with water to some level between the
MIN and MAX lines on the side of the Pump Housing.
5. Place a vacuum sealed bag with the food you want to
cook into the water.
6. Plug the cooker into the nearby AC power outlet.
Ensure that it is not on a stove or other heat source.
7. Press the Temp button on the Control Panel, then
press the Increment button or Decrement button to
set to target temperature.
Note that there are many websites and apps that can help you determine the
proper temperature and cooking time for the type of food and desired tenderness.
8. Press the Play/Start button to begin cooking.
9. When cooking is complete, press the Play/Start button stop the cooker.

7
CLEANING
1. Turn the Pump Housing clockwise to unlock it from the cooker body, then remove
it.
2. Turn the Pump Cap clockwise to unlock it from the Pump Housing, then remove it.
3. Clean the Pump Housing and Pump Cap in a dishwasher or sink.
4. To clean the heating coil, pump shaft, and sensor, use dish soap and a soft
toothbrush, then rinse under running water. Ensure that only the metal parts are
exposed to water. Do not expose the upper part of the cooker to water.
5. Allow all parts to fully dry before reassembly.
TROUBLESHOOTING
Q1: The cooker is emitting a whistling noise.
A1: This is caused by the motor, propeller, and cooling fan, and is normal.
Q2: The cooker is emitting a grinding noise.
A2: The stainless steel Pump Housing is loose. Turn off the cooker, wait until it cools, then
secure the Pump Housing in place.
If the sound persists, the pump shaft may have become bent. Remove the Pump Cap,
then push the propeller until it is centrally located.
Q3: The cooker is emitting a hissing noise.
A3: Check that the water level is between the MIN and MAX marks. Refill the pot as
necessary.

8
Q4: The cooker is making a bubbling and/or swishing noise.
A4: Check that the water level is between the MIN and MAX marks. Refill the pot as
necessary.
Q5: The cooker damages fish fillets or cracks eggs.
A5: Reposition the Pump Cap to direct the water jet into the side of the pot, away from
the food.
Q6: The lights on the cooker Control Panel or main body flicker during operation.
A6: This is normal.
SPECIFICATIONS
Model
35380
Thermal Power
1200 watts
Minimum Temperature
+68°F (+20°C)
Maximum Temperature
+194°F (+90°C)
Temperature Stability
±1.8°F (±1.0°C)
Minimum Water Depth
4.25" (11 cm)
Minimum Bath Size
2.6 gallons (10 liters)
Maximum Bath Size
4.0 gallons (15 liters)
Pump Volume
2.25 gallons/minute (8.5 liters/minute)
Input Power
110 ~ 120 VAC, 60 Hz

9
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class A digital devices. In that event, your

10
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
EU Declaration of Conformity
Monoprice, Inc. declares the product described within this user guide or manual is in
compliance with below applicable directives. The full text of the EU Declaration of
Conformity is available at the following internet address:
https://www.monoprice.com/product?p_id=35381,
https://www.monoprice.com/product?p_id=35382,
or the CE DoC can be found within this user manual.
•EMC Directive 2004/108/EC
•Low Voltage Directive 2014/35/EU
•RoHS2 Directive 2011/65/EU
•WEEE Directive 2012/19/EC
•Packaging & Packaging Waste Directive 94/62/EC
•REACH Directive 1907/2006/EC
WEEE Information
User information for consumer products covered by EU Directive 2012/19/EU on Waste
Electric and Electronic Equipment (WEEE).
This document contains important information for users with regards to the proper
disposal and recycling of Monoprice products. Consumers are required to comply with this
notice for all electronic products bearing the following symbol:

11
For Consumers in the European Union: This EU Directive requires that the product bearing
this symbol and or its packaging must not be disposed of with unsorted municipal waste.
The symbol indicates that this product should be disposed of separately from regular
household waste streams. It is your responsibility to dispose of this and other electrical and
electronics products via designated collection facilities appointed by the government or
local authorities. Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. For more detailed information about
the disposal of your unwanted product, please contact your local authorities or waste
disposal service.
Safety Notice
WARNING: Avoid using this product during an electrical storm. There may be a remote risk
of electric shock from the surge caused by lightning.
WARNING: The external power adapter or AC power cord is the equipment's disconnection
device. The power outlet must be located nearby the equipment and its access must be
easy.
WARNING: Use this product in a well-ventilated area.
Strata Home™ and the Strata Home logo are trademarks of Monoprice Inc.
