Monoprice 612790 User manual

2
SAFETY WARNINGS AND GUIDELINES
Prior to operation, check the unit and power cord for physical damage. Do not
use if physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
This device uses a grounded power cord and requires a ground connection for
safe operation. Ensure that the power source has a proper ground connection.
Do not modify the plug or use a "cheater" plug to bypass the ground connection.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
Do not look directly into the light source.
Keep the original packaging material for use when transporting the device.
If the device will not be used for any lengthy period of time, it should be
unplugged from the wall.
When installing this device, ensure that the mount is sufficiently robust to support
the weight of the unit and to prevent unwanted movement.
INTRODUCTION
Thank you for purchasing this stage light from Monoprice!
This light features six 10-watt RGBW LEDs enclosed within an IP65-rated water
resistant enclosure for use in outdoor environments. It includes several built-in
programs for dimming and strobe effects, including a Strobe Follow mode, which allows
multiple lights to strobe in sequence, rather than all at the same time. It also supports
standard DMX-512 control signals for use as part of a larger light production.
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your
ordering, purchasing, and delivery experience is second to none. If you have any
problem with your order, please give us an opportunity to make it right. You can contact
a Monoprice Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun:
9am-6pm PT) or via email at [email protected]

3
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service
for a replacement.
1x Outdoor rated PAR stage light
1x User's manual
CONTROLS AND MENU DISPLAY
The LED menu display and the control buttons are located behind a translucent silicone
panel, which helps ensure the water resistant integrity of the light. To make changes to
the light's settings, temporarily remove the panel by unscrewing the four Philips head
screws. Once you have finished making changes, replace the panel to ensure the light's
water resistant integrity. Note that the IP65 rating does not apply when the panel has
been removed.

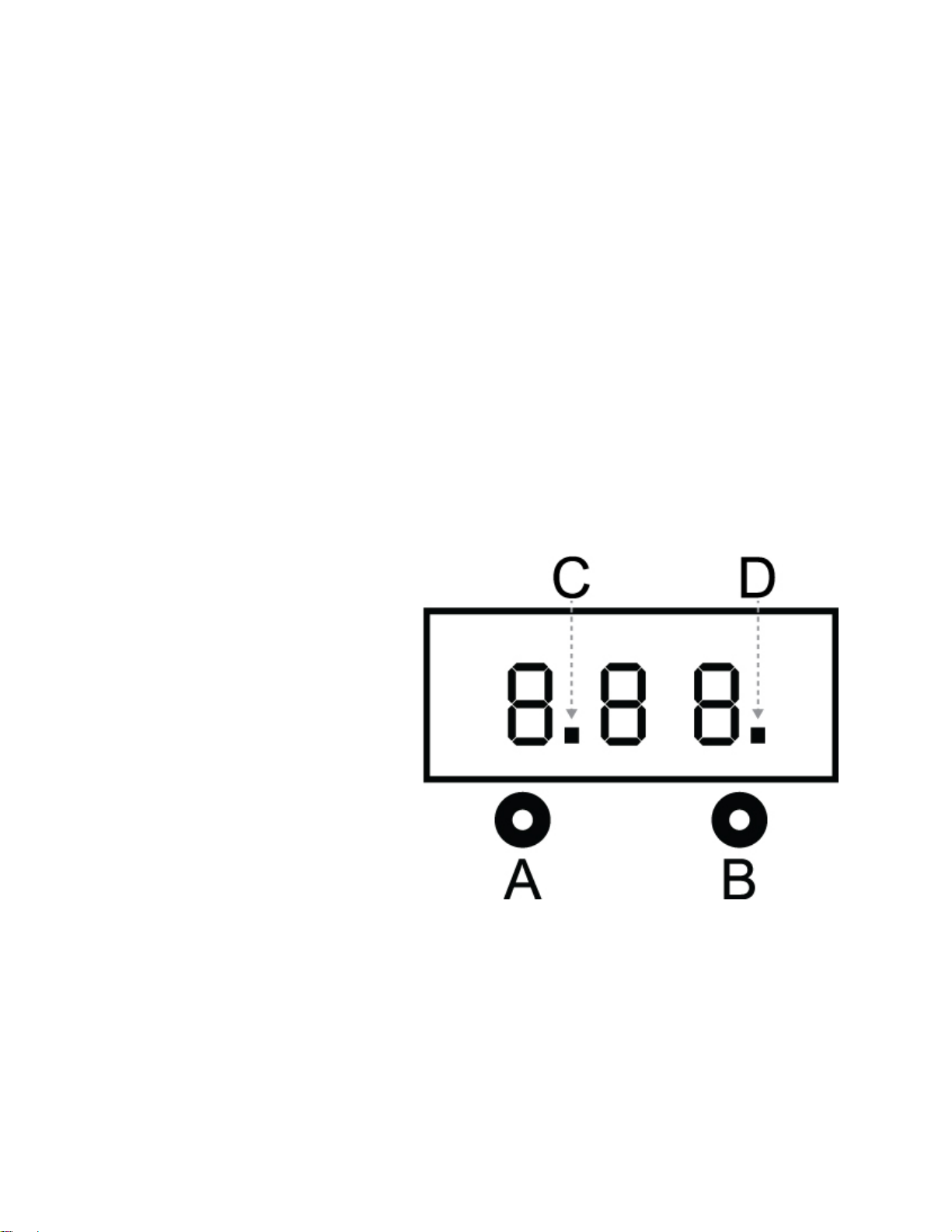

The 3-digit LED display indicates the mode and the selected value for that function or
mode.
Press the Abutton on the
left to cycle through the
various modes and
functions.
Press the Bbutton on the
right to increase the value of
the selected function or
mode. Press and hold the
right button to rapidly
increase the displayed value.
The list will cycle back to the
beginning after the maximum
value is reached.
Once the desired value is
displayed, press the A
button on the left again to set that value for the displayed function or mode and
allow for selection of another function or mode.
Decimal point C(the one on the left) is illuminated whenever the light is in a
standalone mode.
Decimal point D(the one on the right) is illuminated whenever the light is set to
DMX mode and a DMX signal is present.
Both decimal points Cand Dwill remain OFF whenever the light is in DMX mode
and no DMX signal is present.

4
MENU MODES
Menu Display
Value Range
Function
001
001 ~ 256
DMX channel selection
Hot or SLu
Hot or SLu
Host (Master) or Slave mode
□.01
01 ~ 32
The total number of follow mode devices*
‑.01
01 ~ 32
Follow mode ID**
E.01
00 ~ 8
Strobe follow mode color selections
09 ~ 21
Strobe follow mode effect selection
22
Recycle effect
t.01
00 ~ 99
Strobe follow mode speed (slow to fast)
A.01
01 ~ 99
Four color jumping change (slow to fast)
C.01
01 ~ 99
Full color jumping change (slow to fast)
J.01
01 ~ 99
Four color gradient mode (slow to fast)
H.01
01 ~ 99
Full color gradient mode (slow to fast)
L.01
01 ~ 99
Variable pulse mode (slow to fast)
n.01
01 ~ 99
Jumping change, gradient, and variable pulse
modes combined (slow to fast)
P.01
01 ~ 99
Gradient strobe mode (slow to fast)
F.01
01 ~ 99
Color selection strobe mode (slow to fast)
r.01
01 ~ 99
Red dimming (0 ~ 100%)
g.01
01 ~ 99
Green dimming (0 ~ 100%)
b.01
01 ~ 99
Blue dimming (0 ~ 100%)
u.01
01 ~ 99
White dimming (0 ~ 100%)
* Set this value to the total number of devices in Strobe Follow mode. Each device must
be set to the same value.
** This value represents the position of the current device within the Strobe Follow
mode sequence. Each device must be set to a unique value. The values set must be
equal to or less than the total number of Strobe Follow mode devices set using the □
parameter. Note that this menu selection is only available when the □parameter is
set to a value other than 01.

5
STROBE FOLLOW MODE EXAMPLE
As an example of setting the □and ‑values, let's assume that you have four lights that
you want to strobe in sequence. Set the lights to use the following □and ‑values:
Light #
□Value
‑Value
1
□.04
‑.01
2
□.04
‑.02
3
□.04
‑.03
4
□.04
‑.04

6
DMX CONTROL
Channel
DMX Values
Control Function
1
000 ~ 255
General dimming (0 ~ 100%)
2
000 ~ 255
Red dimming (0 ~ 100%)
3
000 ~ 255
Green dimming (0 ~ 100%)
4
000 ~ 255
Blue dimming (0 ~ 100%)
5
000 ~ 255
White dimming (0 ~ 100%)
6
000
No strobe
001 ~ 255
Strobe speed (slow to fast)
7
000
Macro function off
001 ~ 029
Four color jumping change
030 ~ 059
Full color jumping change
060 ~ 089
Four color gradient mode
090 ~ 119
Full color gradient mode
120 ~ 149
Variable pulse mode
150 ~ 179
Jumping change, gradient, and variable pulse
modes combined
180 ~ 209
Gradient strobe mode (color change speed)
210 ~ 239
Strobe follow mode color selections (1 ~ 9)
240 ~ 253
Strobe follow mode effect selection (1 ~ 13)
254 ~ 255
Recycle effect
8
000 ~ 255
Macro function LED speed from slow to fast

7
Master/Slave Operation
Multiple lights can be daisy chained together, with one serving as the master and the
others configured as slaves to perform whatever actions are performed by the master
unit. The master light must be set to Host mode and then can be in any mode except
DMX mode, while all the slaves must be set to Slave mode and then set to DMX mode,
using the address 001.
Note: If the daisy chain is longer than 60 meters or if it contains 20 or more light fixtures,
a DMX signal amplifier should be used to ensure that all devices get valid
instruction signals.
Note: The last device in any DMX chain must be terminated using a DMX Terminator.
You can purchase a DMX terminator (PID 601600) from Monoprice or you can
make a DMX terminator using a standard XLR male plug (PID 601651) by
soldering a 120 ohm (1/4 watt) resistor between pins 2 and 3.
3-pin XLR to 5-pin DMX Conversion
While most DMX compatible equipment uses 3-pin XLR connectors, some devices use
the official 5-pin DMX connector. To make a 3-pin to 5-pin converter simply make a
cable with a 3-pin XLR connector on one end and a 5-pin DMX connector on the other.
Connect the pins as follows:
3-pin XLR to 5-pin DMX Adapter
Signal
3-pin XLR
5-pin DMX
Ground/Shield
1
1
Data Compliment (- signal)
2
2
Data True (+ signal)
3
3
Do Not Use
4
Do Not Use
5

8
TROUBLESHOOTING
Following are some common problems and common solutions.
Problem:
The light will not turn on.
Solutions:
Check to ensure the power cord is connected to a power outlet.
Check to ensure that the connected outlet has available power.
Problem:
The light will not execute DMX instructions.
Solutions:
Check to ensure that the light is connected to the controller via a DMX cable.
Check to ensure that the DMX chain is properly terminated.
Check to ensure that the DMX cable is good; swap out a known good cable to
test.
Check to ensure the light is in DMX mode (001 ~ 255).
Check to ensure the DMX controller is operating properly.
If you experience other problems with this light and cannot solve them on your own,
please contact Monoprice Technical Support for assistance.

9
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with
any questions you may have about installation, setup, troubleshooting or product
recommendations. If you ever need assistance with your new product, please come
online to talk to one of our friendly and knowledgeable Tech Support Associates.
Technical support is available through the online chat button on our website
www.monoprice.com during regular business hours, 7 days a week. You can also get
assistance through email by sending a message to [email protected]
SPECIFICATIONS
Input Voltage: 90 ~ 240 VAC, 47 ~ 63 Hz
Maximum Power Consumption: 60 watts
Lamp Type: 6x 10-watt RGBW 4-in-1 LEDs
Control Modes: Stand Alone, DMX-512, Master/Slave
DMX Channels: 8
Protection Rating: IP65
Dimensions: 5.5" x 5.5" x 7.9" (140 x 140 x 200 mm)
Net Weight: 4.4 lbs. (2.0 kg)

10
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice’s authorization may result in the equipment
no longer complying with FCC requirements for Class A digital devices. In that event,
your right to use the equipment may be limited by FCC regulations, and you may be
required to correct any interference to radio or television communications at your own
expense.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a commercial installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference
at his own expense.
Notice for Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
EU Conformity with applicable directives
This equipment complies with the essential requirements listed below:
EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
RoHS Directive 2011/65/EU
WEEE Directive 2011/65/EU
