Monoprice MM-5 User manual

MM-5/MM-5R Powered Multimedia Speakers with Bluetooth®
P/N 38619, 38620
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
If operating this speaker in a humid environment, ensure that no condensation
occurs. Condensation could cause damage to the speaker cone and could cause a
short in the amplifier, which in turn could cause fire or severe electric shock.
Do not expose this device to excessive vibration.
Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in
direct sunlight.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Unplug this device from the power source when not in use.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.

3
Ensure that power is turned off and disconnected before making any electrical
connections.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
FEATURES
5.25" paper cone woofer
1.5" silk dome tweeter (38619 only)
2.6"’ AMT tweeter (38620 only)
42Hz~20KHz frequency response (38619 only)
42Hz~22KHz frequency response (38620 only)
Dual class AB amplifiers with 2x 60 watts to the woofers and 2x 30 watts to the
tweeters
Bluetooth® version 4.2 radio with the Qualcomm® aptX™ HD audio codec
Subwoofer and 3.5mm headphone outputs
Stereo analog RCA, stereo analog 3.5mm TRS, digital optical (Toslink®), USB, and
Bluetooth® audio inputs
USB charging port (5 VDC, 2A)
Includes a pair of wooden isolation/elevation stands

4
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com or via email at [email protected]. Check the website for
support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Pair MM-5/MM-5R Powered Speakers
2x Wooden Isolation/Elevation Stands
2x Foot Mats
1x IR Remote Control
2x AAA Batteries
1x Speaker Interconnect Cable
1x 3.5mm Stereo Audio Cable
1x RCA Stereo Audio Cable
1x AC Power Cord
1x User's Manual

5
PRODUCT OVERVIEW

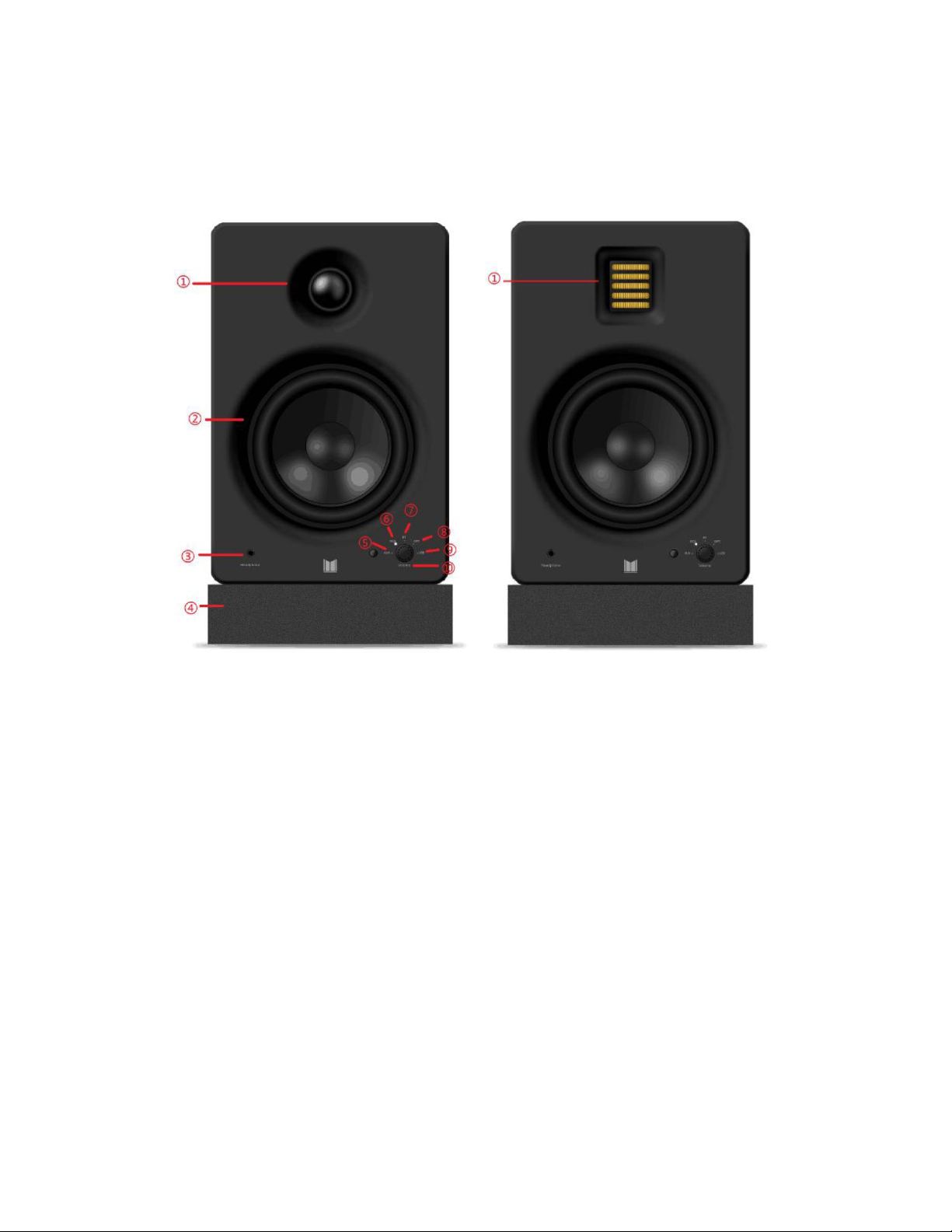

Front Panel
1. 1.5" Silk Dome Tweeter (38619 only) or 2.6" AMT Tweeter (38620 only)
2. 5.25" Paper Cone Woofer
3. 3.5mm Headphone Output
4. Wooden Isolation/Elevation Stands
5. AUX LED Indicator
6. RCA LED Indicator
7. Bluetooth® LED Indicator
8. Optical LED Indicator
9. USB LED Indicator
10. Multifunction Knob

6

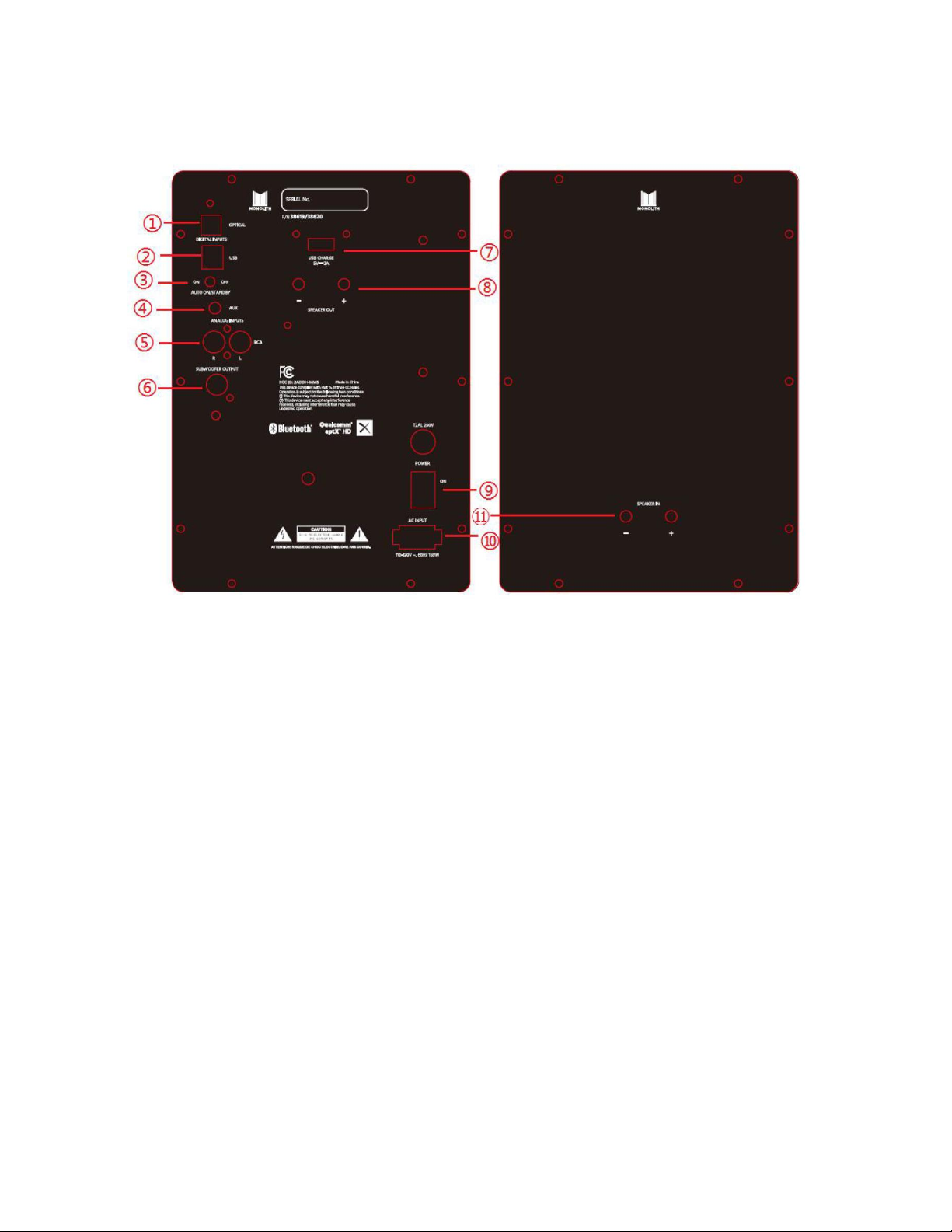

Rear Panel
1. Digital Optical Input
2. USB Input
3. Auto On/Standby Switch
4. 3.5mm TRS Input
5. Stereo RCA Input
6. Subwoofer Output
7. USB Charging Port
8. Speaker Interconnect Output
9. Master Power Switch
10. AC Input
11. Speaker Interconnect Input

7
INSTALLATION
Perform the following steps to install these speakers.
1. Ensure that the Master Power Switch on the Master Speaker is in the OFF position.
2. Plug one end of the included Speaker Interconnect Cable into the Speaker
Interconnect Input on the Slave Speaker, then plug the other end into the Speaker
Interconnect Output on the Master Speaker.
3. (Optional) Plug one end of the included 3.5mm Stereo Audio Cable into the 3.5mm
TRS Input on the Master Speaker, then plug the other end into the 3.5mm output on
your mobile device or other audio source device.
4. (Optional) Plug one end of the included RCA Stereo Audio Cable into the Stereo
RCA Input on the Master Speaker, then plug the other end into the RCA output on
your audio source device.
5. (Optional) Plug one end of a Digital Optical Audio Cable (not included) into the
Digital Optical Input on the Master Speaker, then plug the other end into the
optical output on your audio source device.
6. (Optional) Plug one end of a USB Cable (not included) into the USB Input on the
Master Speaker, then plug the other end into the USB output on your PC or laptop.
7. Plug one end of the included AC Power Cord into the AC Input on the Master
Speaker, then plug the other end into a nearby AC power outlet.
8. Flip the Master Power Switch to the ON position.
OPERATION
With the speakers powered off, momentarily press the Multifunction Knob to turn
the speakers on. The LED of the last selected input will illuminate solid white.
With the speakers powered on, press and hold the Multifunction Knob for 2
seconds to put the speakers in standby mode. The LED will extinguish.

8
With the speakers powered on, momentarily press the Multifunction Knob to cycle
through the inputs. The cycle order is AUX (3.5mm), RCA, BT (Bluetooth®), OPT
(optical), and USB. The corresponding LED will illuminate solid white.
With the speakers powered on, rotate the knob clockwise to increase the volume
level.
With the speakers powered on, rotate the knob counterclockwise to decrease the
volume level.
After 30 minutes with no audio input, the speakers will automatically go into
standby mode. The LED of the last selected input will blink white slowly.
When the speakers go into standby mode, they will remember the last set volume
level and selected input.
If you want the speakers to automatically power on when audio is detected or to
automatically go into standby mode, place the Auto On/Standby Switch in the ON
position. Otherwise, place it in the OFF position.
BLUETOOTH PAIRING
Perform the following steps to pair these speakers with your mobile device.
1. Ensure that the Master Power Switch on the rear panel of the Master Speaker is in
the ON position.
2. Momentarily press the Multifunction Knob to turn the speakers on.
3. Momentarily press the Multifunction Knob until the BT LED Indicator starts to blink
white slowly.
4. Open the Bluetooth® settings on your phone, then locate and select the MM5 or
MM5R entry. If prompted for a passcode, enter 0000 (four zeroes). The BT LED
Indicator will cease blinking and will illuminate solid white.
Note that once paired with your mobile device, the speakers will remember the pairing. To
reconnect after the connection has been broken, open the Bluetooth settings on your
mobile device and select Connect.

9
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com or
through email by sending a message to [email protected]. Check the website for
support times and links.
SPECIFICATIONS
Model
38619 or 38620
Input
3.5mm, RCA, Bluetooth®, Digital Optical, USB
Outputs
3.5mm headphones, Subwoofer
Woofer Driver
5.25" paper cone
Tweeter Driver (38619 only)
1.5" silk dome
Tweeter Driver (38620 only)
2.6" AMT ribbon
Amplifier Type
Dual Class AB
Woofer Amplifier Output Power
2x 60 watts
Tweeter Amplifier Output Power
2x 30 watts
Frequency Response (38619 only)
42 Hz ~ 20 kHz
Frequency Response (38620 only)
42 Hz ~ 22 kHz
Bluetooth Version
4.2 with Qualcomm® aptX™ audio codec
USB Charging Power
5 VDC, 2A
Dimensions
10.9" x 7.3" x 9.4" (277 x 185 x 240 mm)

10
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

11
Radio Notice for FCC
Caution
This FCC Part 15 radio device operates on a non-interference basis with other devices
operating at this frequency. Any changes or modification to said product not expressly
approved by Monoprice, including the use of non-approved antennas, could void the user’s
authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
Qualcomm® is a trademark of Qualcomm Incorporated, registered in the United States and
other countries. aptX™ is a trademark of Qualcomm Technologies International, Ltd.,
registered in the United States and other countries. Qualcomm® aptX™ is a product of
Qualcomm Technologies International, Ltd.
TOSLINK® is a registered trademark of Toshiba Corporation.
